Name: Camshaft Position Sensor for Ford Transit VH VJ VM VO Diesel 2.2L 2.4L TDCi TDdi
Brand: Aftermarket OEM Replacement
SKU: CSCA432-2
Price: 78.45 AUD
Availability: InStock

BRAND NEW *OEM Quality* camshaft position sensor to suit Ford Transit VH/VJ/VM/VN/VO diesel engines.

A failed cam sensor on the Transit VM or VO TDCi engine typically triggers P0340 or P0345 and can leave the van in limp mode or fail to start. The Transit's Duratorq engine relies on CMP timing data for injection control - a genuine-spec replacement prevents misfires and smoke that crop up when the signal degrades. Dispatched same-day from Melbourne before 12pm.

TO SUIT

Ford Transit VH/VJ 2.4L diesel (2000-2006) covering engines F4FA, DOFA, FXFA, D4FA, H9FA. Ford Transit VM 2.2L TD/TDCi and 2.4L TD diesel (2006-2014) covering QVFA, CYFA, CYFB, CYFC, SRFA, CVRB, CVRA, H9FB. Ford Transit Custom VN 2.2L TDCi (2013-2016) engine CYFF/CYF4. Ford Transit VO 2.2L TDCi (2014 onwards) engine CV24/CVR5/UYR6. Full vehicle list below.

OEM PART NUMBERS

1920 KX
1132919
1219993
1347419
1358343
1811604
1780382
2S7Q12K073AA
2S7Q12K073BA
2S7Q12K073BB
6C1112K073AA
6C1112K073AB
6C1112K073AC
6C11-12K073-AA
6C11-12K073-AB
6C11-12K073-AC
2S7Q-12K073-AA
2S7Q-12K073-BA
2S7Q-12K073-BB

OTHER PART NUMBERS

BOSCH: 0986280732
VEMO: V25-72-1049
WALKER: 235-1927
NTY: ECP-FR-001

PACKAGE INCLUDES

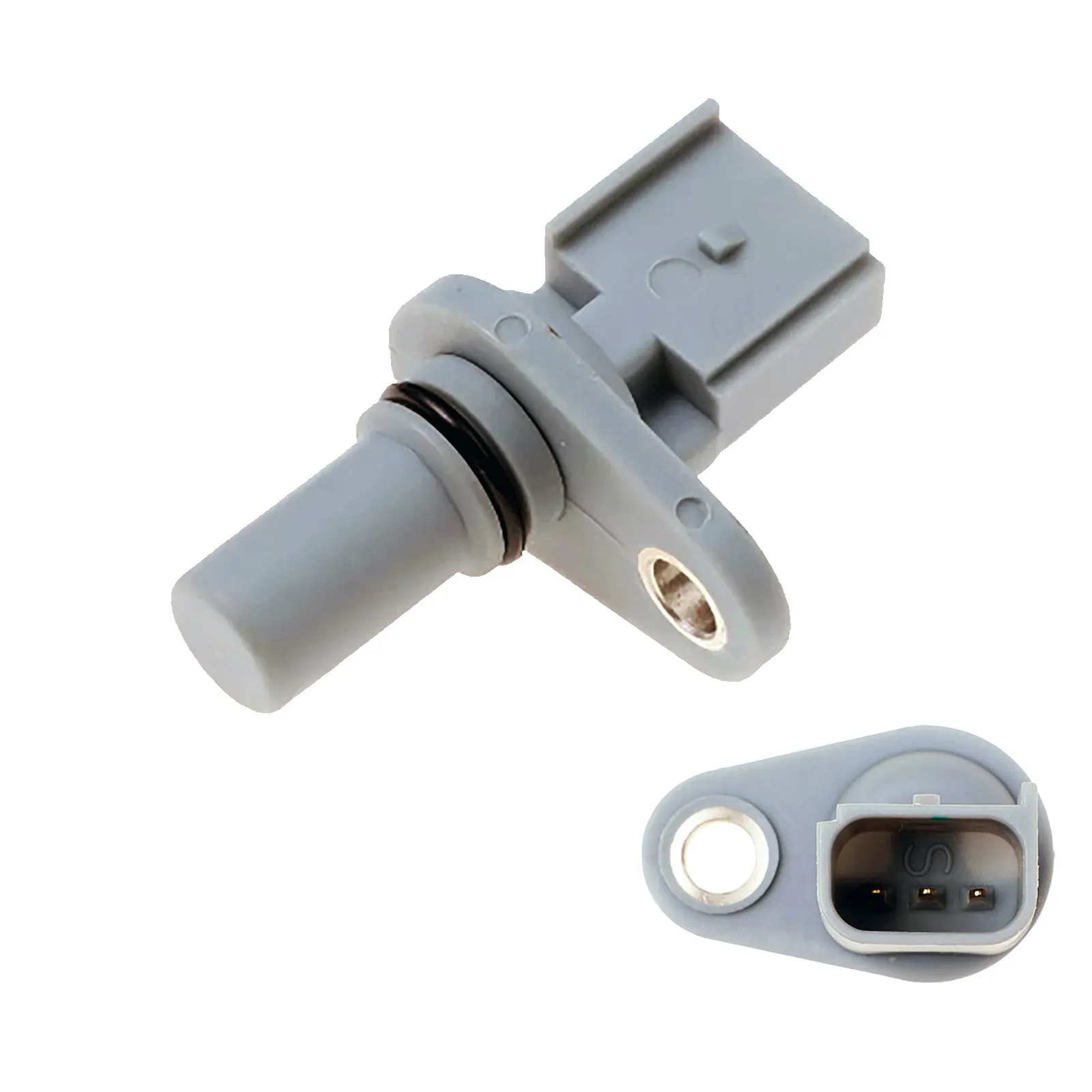

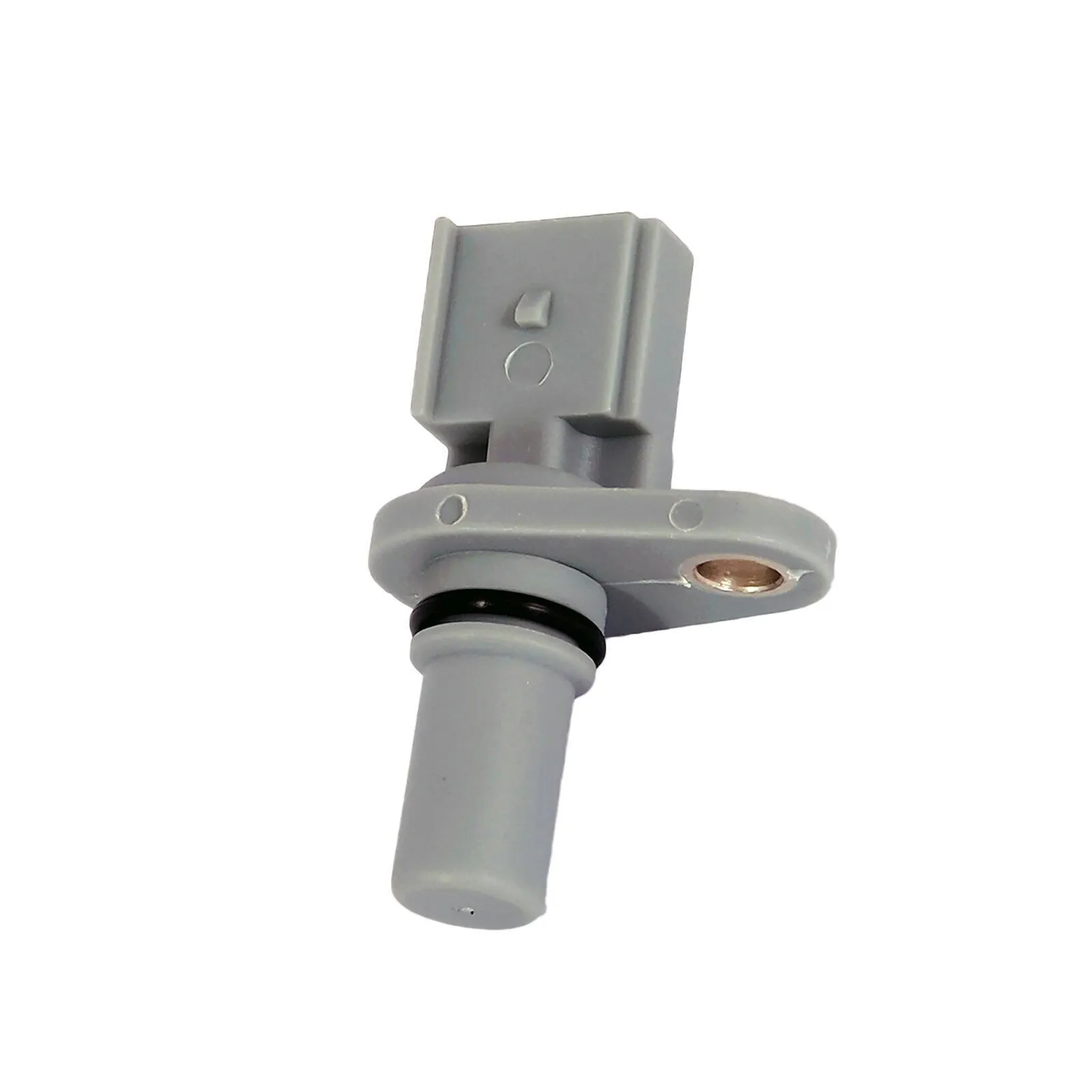

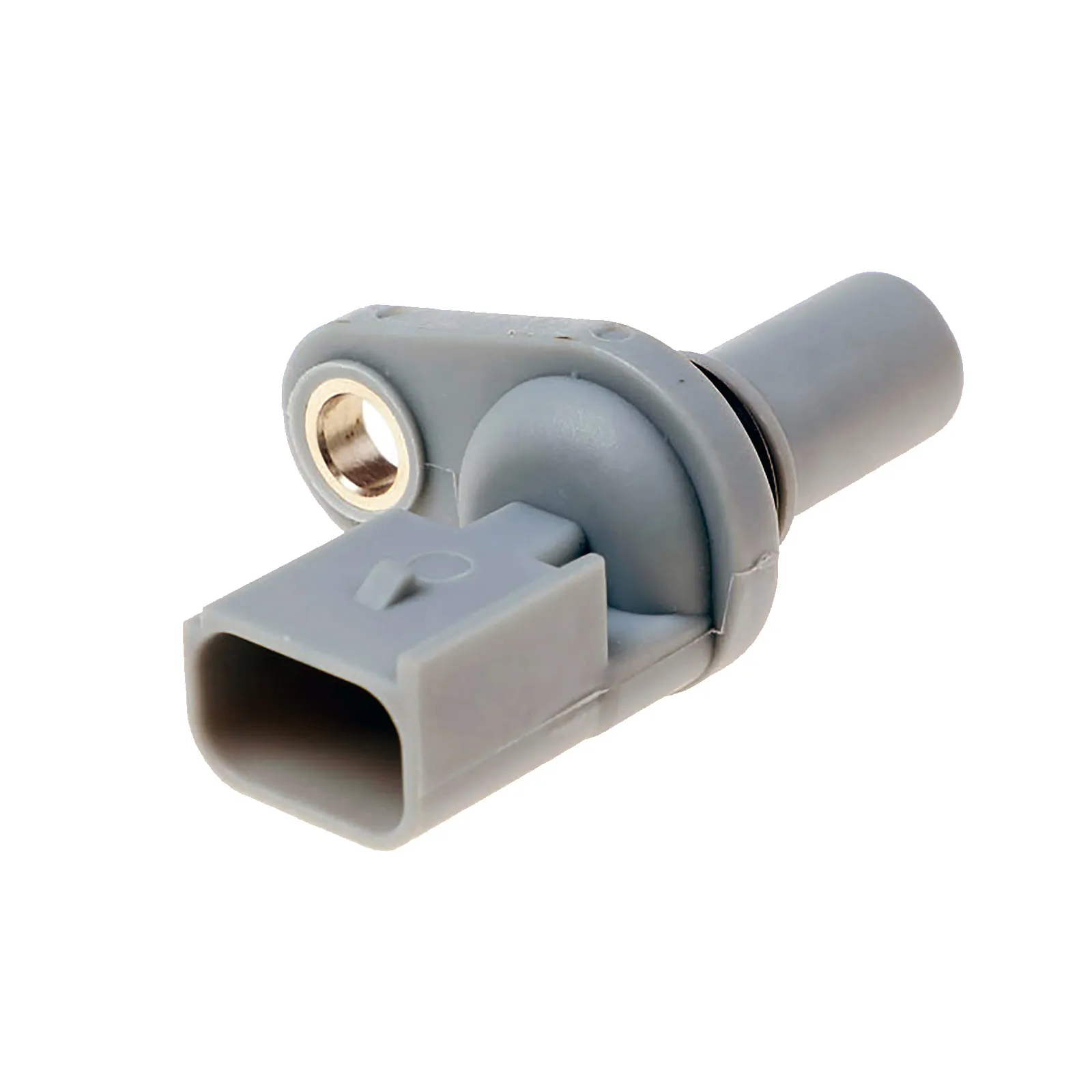

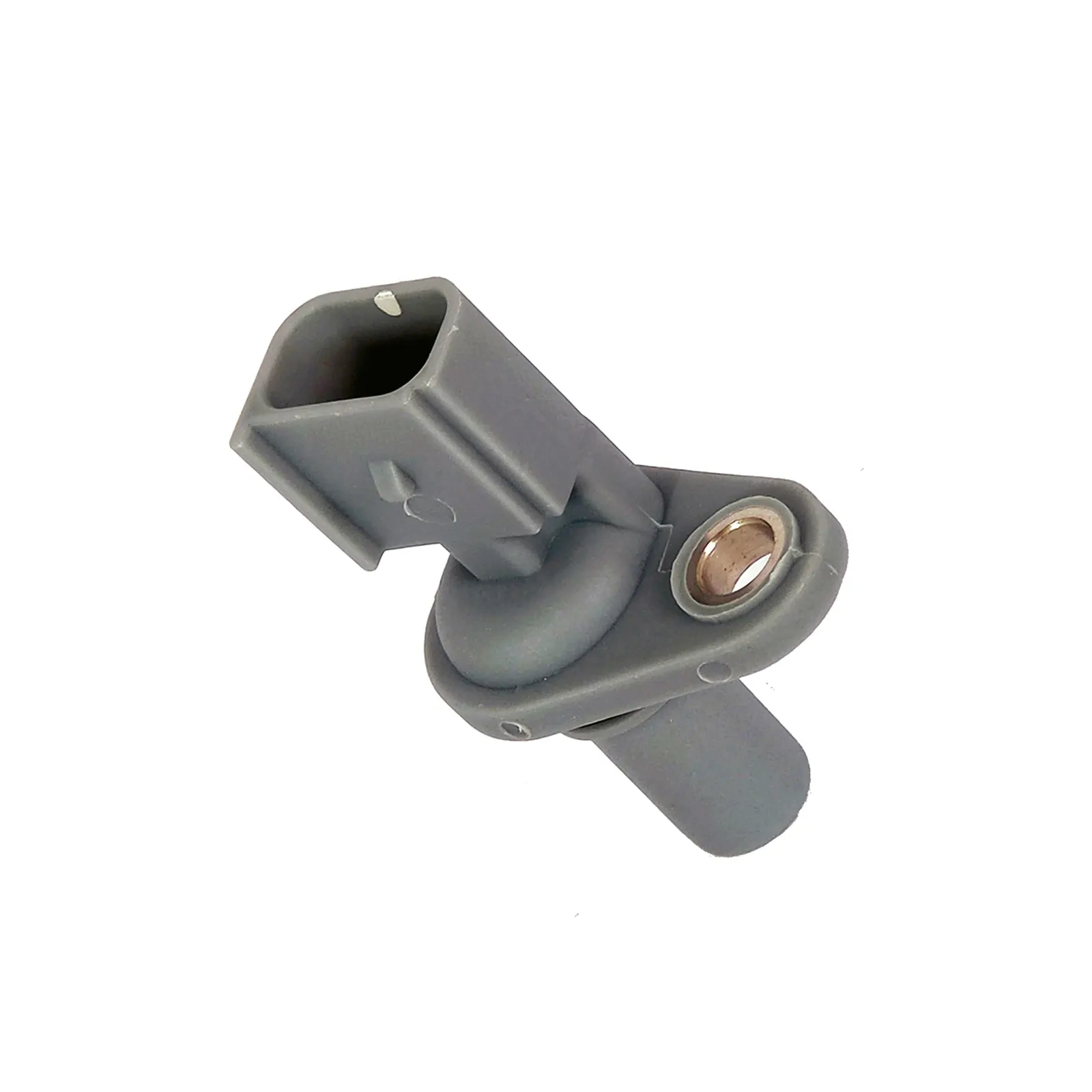

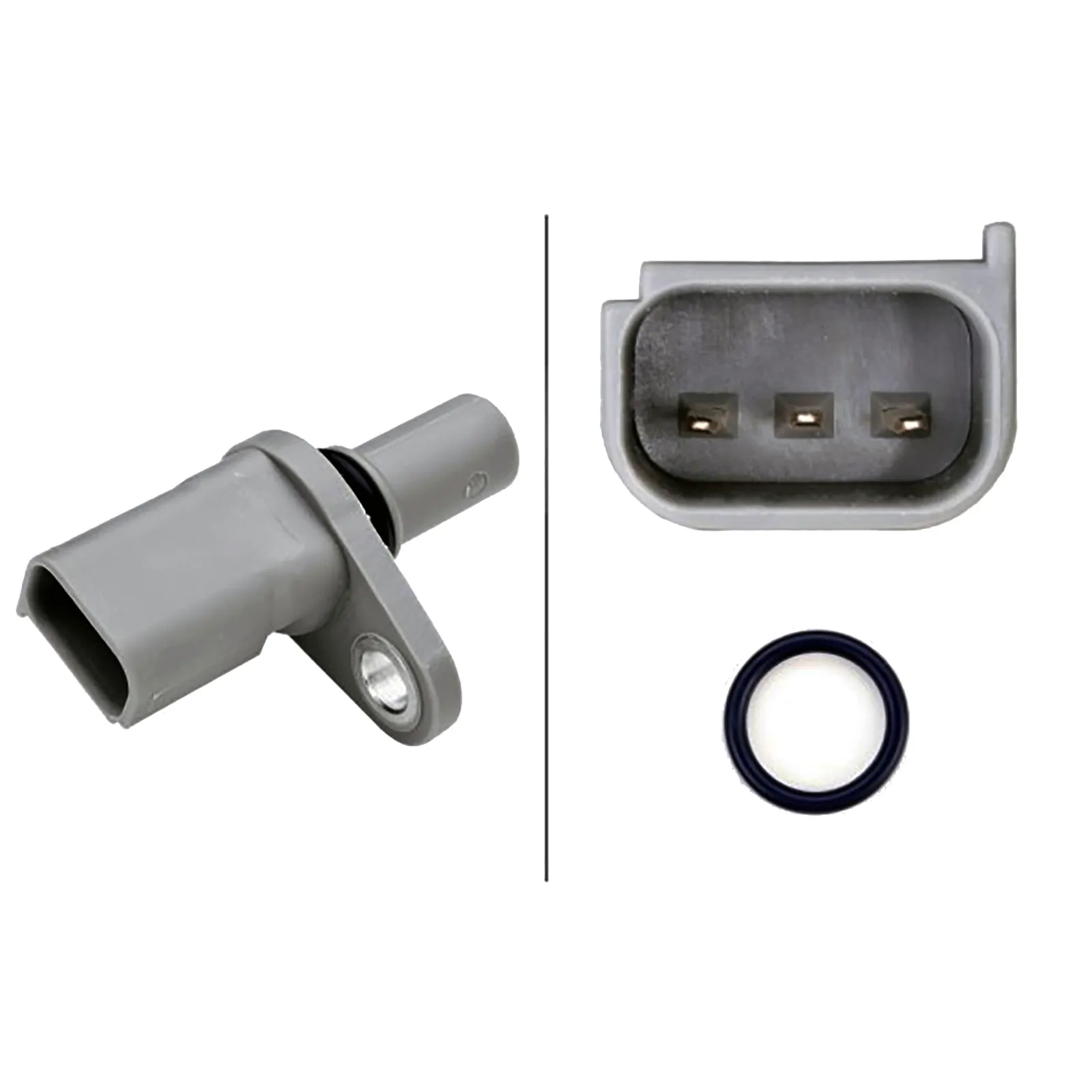

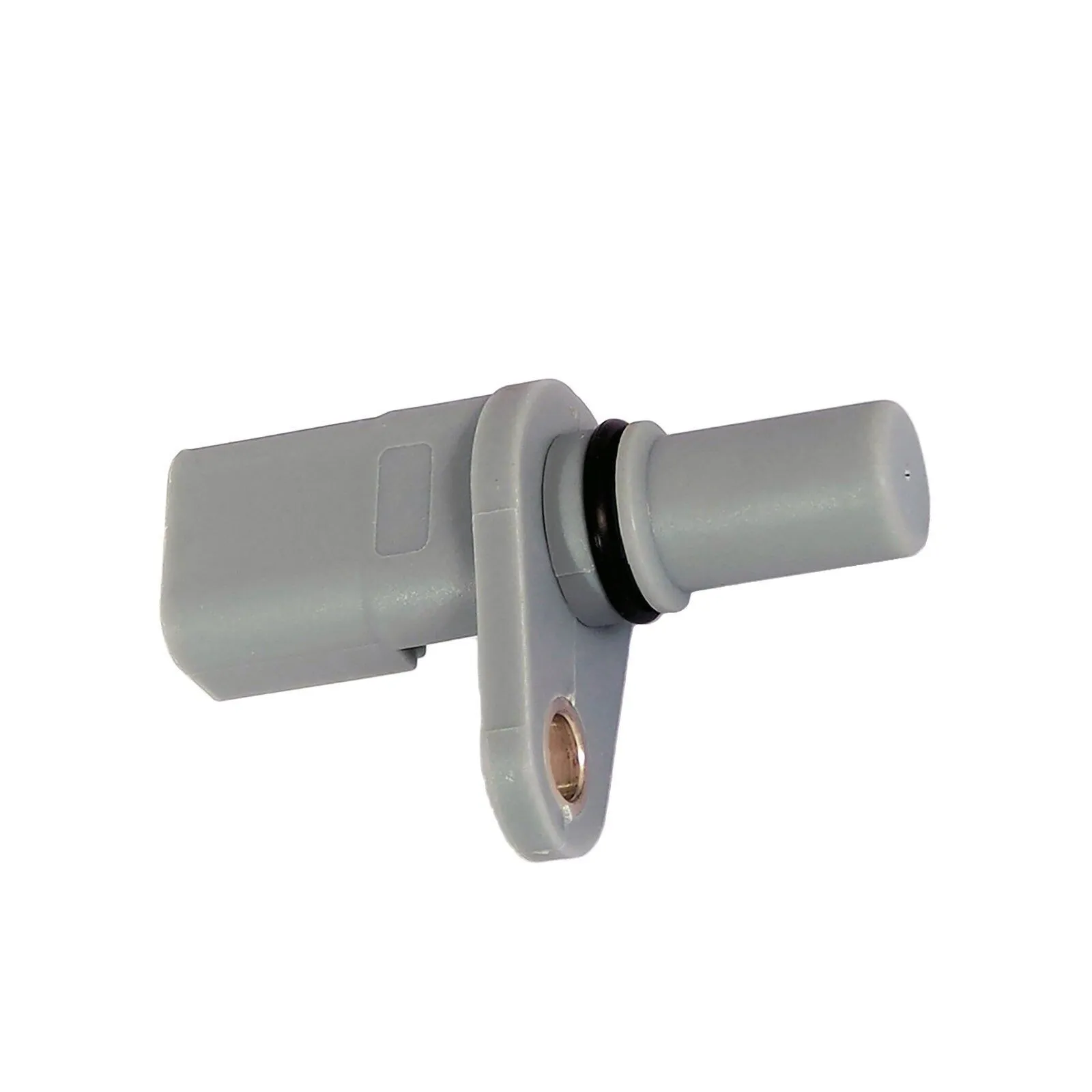

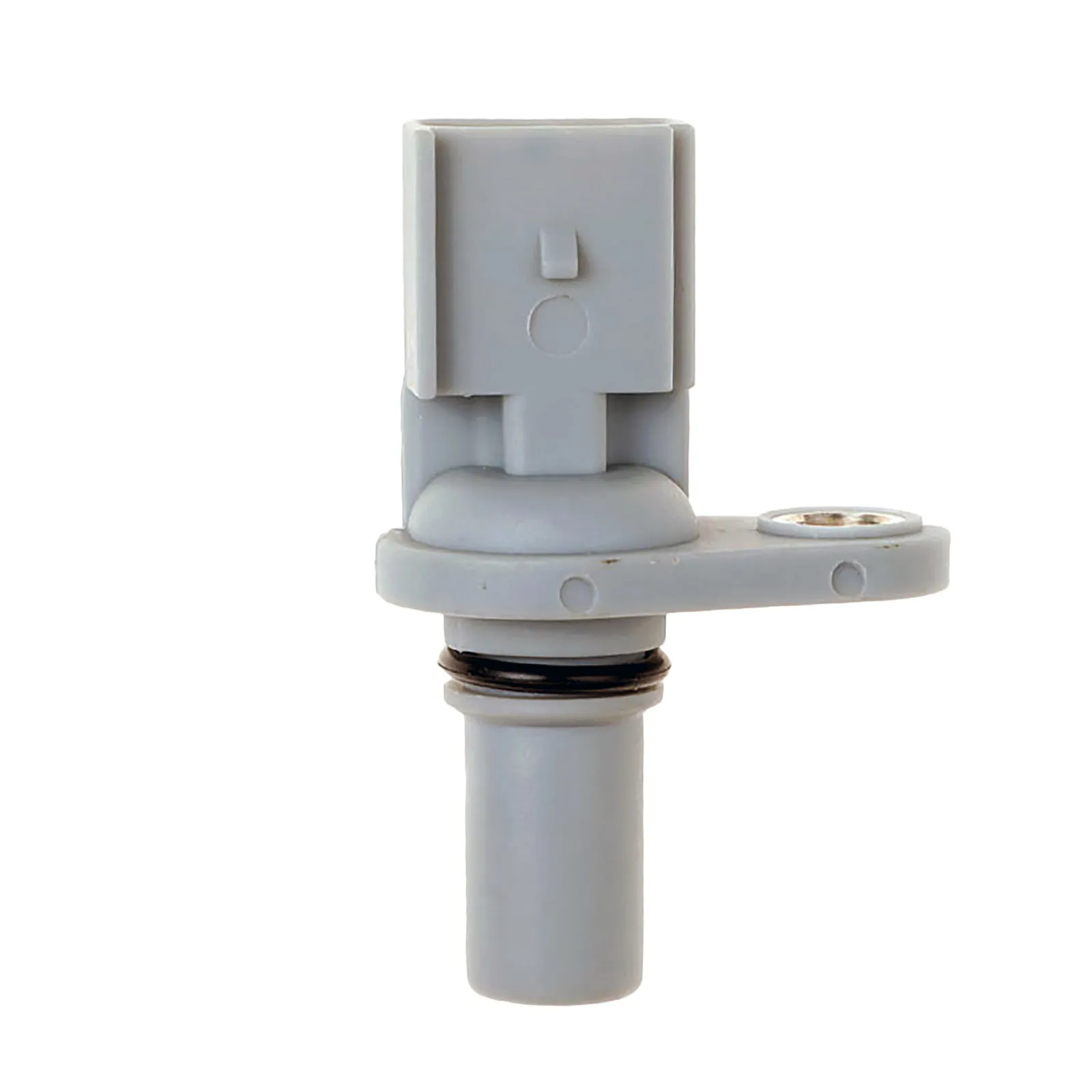

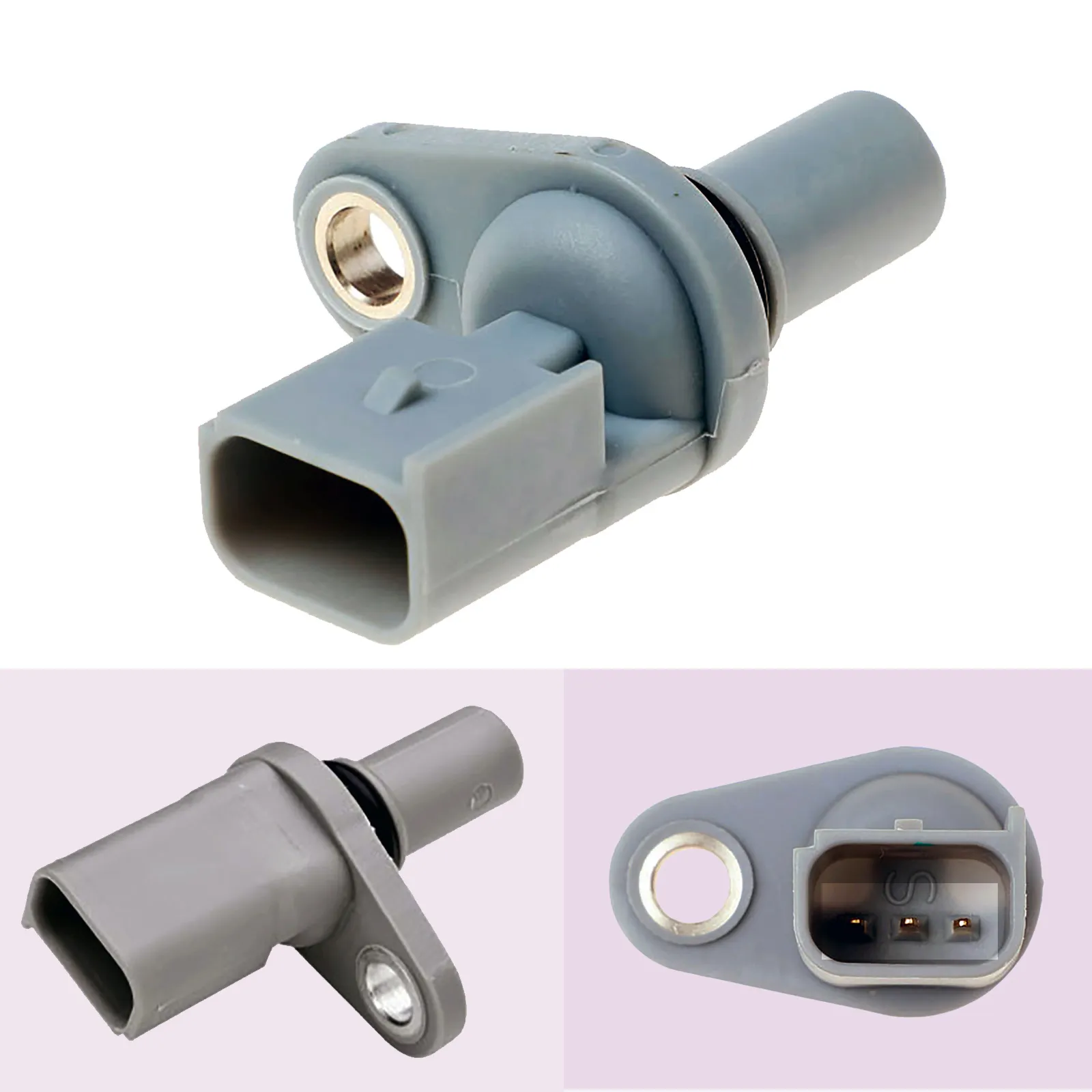

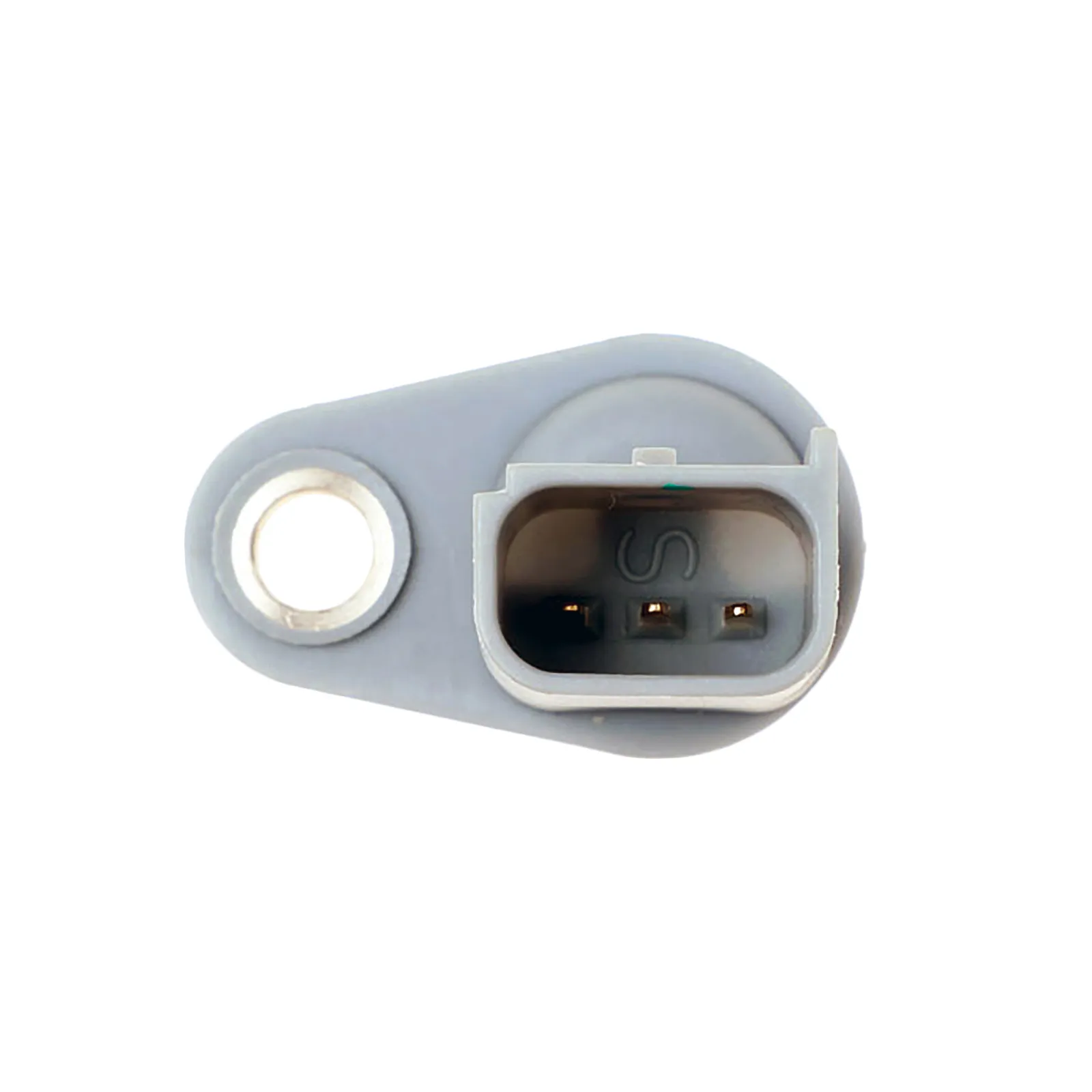

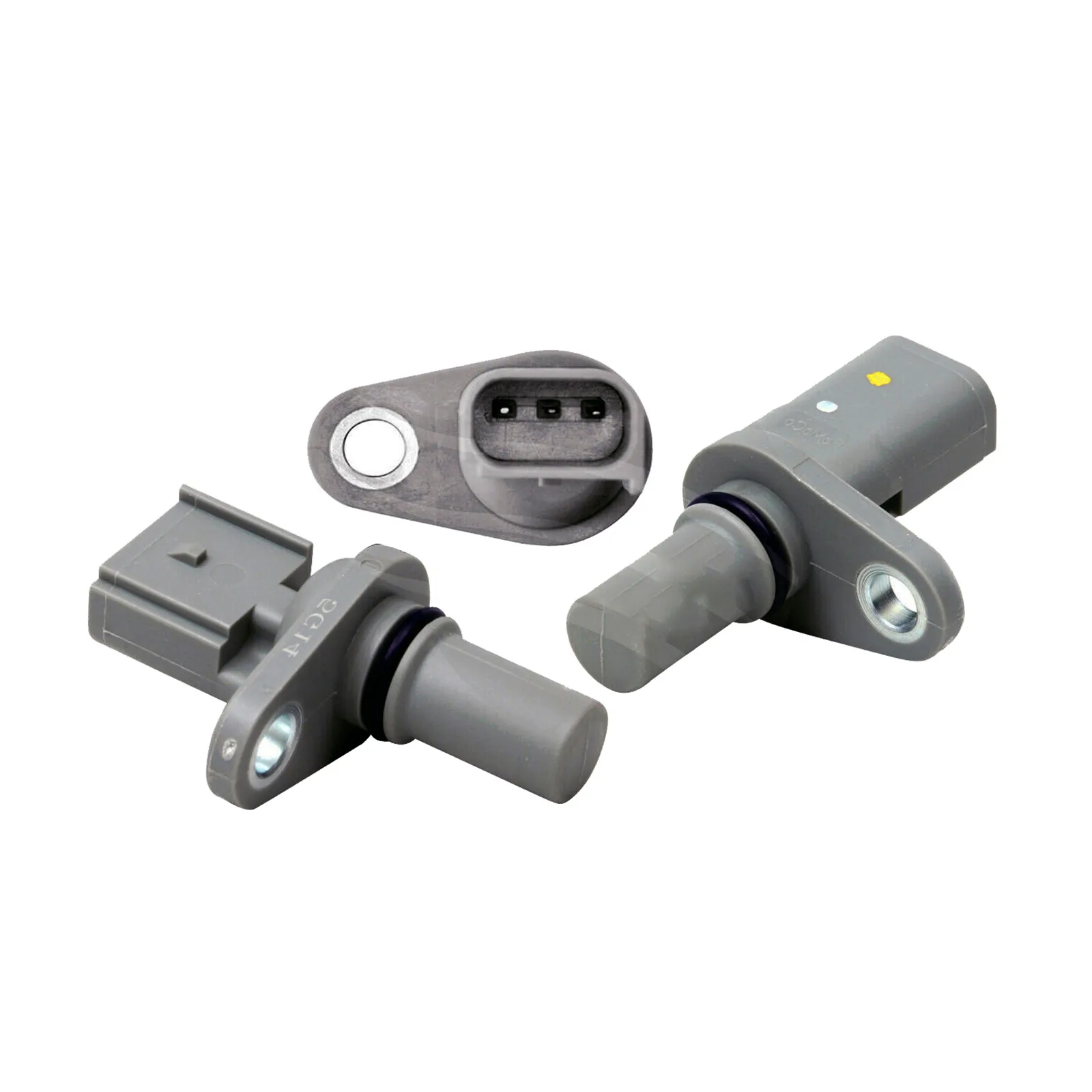

1 x OEM Quality Camshaft Position Sensor - 3-pin oval connector, grey housing.

ABOUT THIS SENSOR

The camshaft position sensor on Ford Transit Duratorq engines provides timing reference data to the engine control module. On Transit VM and VO models with the 2.2L TDCi, the CMP signal is used for cylinder-specific injection sequencing - loss of signal causes the ECM to flag a fault and either run in fixed-timing mode or shut down injection entirely.

This replacement is specified to OEM dimensions with a direct 3-pin oval connector match for Transit models from the VH/VJ 2.4L through to the VO 2.2L TDCi. Independently verified against TecDoc catalogue. Low fault rate across Australian Transit workshop orders.

COMMON SYMPTOMS OF FAILURE

P0340 or P0345 fault codes (camshaft position sensor circuit)
Transit fails to start or cranks without firing
Intermittent stalling when engine reaches operating temperature
Rough idle or hunting at low revs under load
Black or excessive exhaust smoke
Limp mode with reduced engine output

[01/00 - 09/06] FORD TRANSIT VH,VJ D 2.4L 4cyl F4FA/DOFA/FXFA/H9FA
[09/06 - 12/14] FORD TRANSIT VM TD 2.2L 4cyl QVFA/CYFA/CYFB/CYFC 81-92kW
[09/06 - 12/14] FORD TRANSIT VM TDCi 2.2L 4cyl SRFA/CVRB/CVRC/CVRA 85-114kW
[07/06 - 12/14] FORD TRANSIT VM TD 2.4L 4cyl H9FB 103kW
[09/13 - 04/16] FORD TRANSIT CUSTOM VN TDCi 2.2L 4cyl CYFF,CYF4 92kW
[09/14 - ON] FORD TRANSIT VO TDCi 2.2L 4cyl CV24,CVR5,UYR6 114kW

How do I test a crankshaft or camshaft position sensor?

Use an OBD2 scanner to check for fault codes P0335 to P0338 (crankshaft) or P0340 to P0349 (camshaft). You can also test the sensor with a multimeter - inductive sensors should show resistance between 200 and 1,000 ohms, while Hall effect sensors require a live voltage test with the engine cranking. Erratic or absent RPM signal on a live data scanner is a strong indicator of sensor failure.

Can a cam or crank sensor fault cause my vehicle to go into limp mode?

Yes. A faulty crankshaft position sensor in particular can cause the ECU to lose engine speed and position data entirely, which may trigger limp mode or prevent the engine from starting. A faulty camshaft sensor on variable valve timing engines can cause the VVT system to default to a fixed position, significantly reducing power and fuel economy.

Do cam and crank sensors need to be programmed after replacement?

In most cases no - aftermarket OEM replacement sensors are direct plug-in replacements that require no programming. However some vehicles, particularly late model European makes including BMW and Mercedes-Benz, may require a crankshaft adaptation reset using a dealer-level scan tool after replacement. Check your vehicle service information before replacing the sensor.

What are the symptoms of a faulty crankshaft position sensor?

Symptoms include intermittent stalling, engine not starting, rough idle, misfires, and a Check Engine light with codes P0335-P0338. In severe cases the engine will crank but not start as the ECU cannot determine crank position for ignition timing.

What are the symptoms of a faulty camshaft position sensor?

Symptoms include poor performance, misfires, difficulty starting, rough idle, and fault codes P0340-P0343. Variable valve timing systems (VVT) will also be affected, causing sluggish response and increased fuel consumption.

Can I drive with a bad crankshaft position sensor?

If the sensor has failed completely the engine will not start or will stall and not restart. If it is intermittently failing, driving is dangerous - the engine can cut out without warning. Replace it immediately.

Do I need to replace both the cam and crank sensor at the same time?

Not necessarily - replace whichever has failed based on fault codes and diagnosis. However, if your vehicle has high kilometres and one has failed, it is worth considering replacing both as they are similar in age and condition.

Identification
SKU	CSCA432-2
Barcode #	4046001500268
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	6C1112K073AC
Reference OEM Number	6C11-12K073-AC
Other OEM Numbers	6C1112K073AC, 6C1112K073AA, 6C1112K073AB, 1780382, 2S7Q12K073AA
Related Part Numbers	CHN3-A076, CSCS432, SC433
Trade Part Numbers	BOSCH: 0986280732, VEMO: V25-72-1049, WALKER: 235-1927
Product Specifics
Product Type	SENSOR
Sensor Type	CAMSHAFT POSITION SENSOR
Manufacturer Warranty	1 Year
Fitting Position	Cam Sensor
Number of pins	3-Pin
Connector Shape	oval
Housing Colour	Grey
Number of mounting bores	1
Compatible Makes	Ford
Fitment Type	Direct Replacement
Other Details
Note	Always verify fitment using your vehicle's OEM part number.
Unit Of Measure	ea
