Name: Camshaft Position Sensor Commodore VZ VE VF GEN4 6.0 6.2 V8
Brand: Aftermarket OEM Replacement
SKU: CSCA354
Price: 81.90 AUD
Availability: InStock

BRAND NEW OEM Quality CAMSHAFT POSITION SENSOR TO SUIT HOLDEN / HSV /GM GEN4 6.0L & 6.2L V8 ENGINES

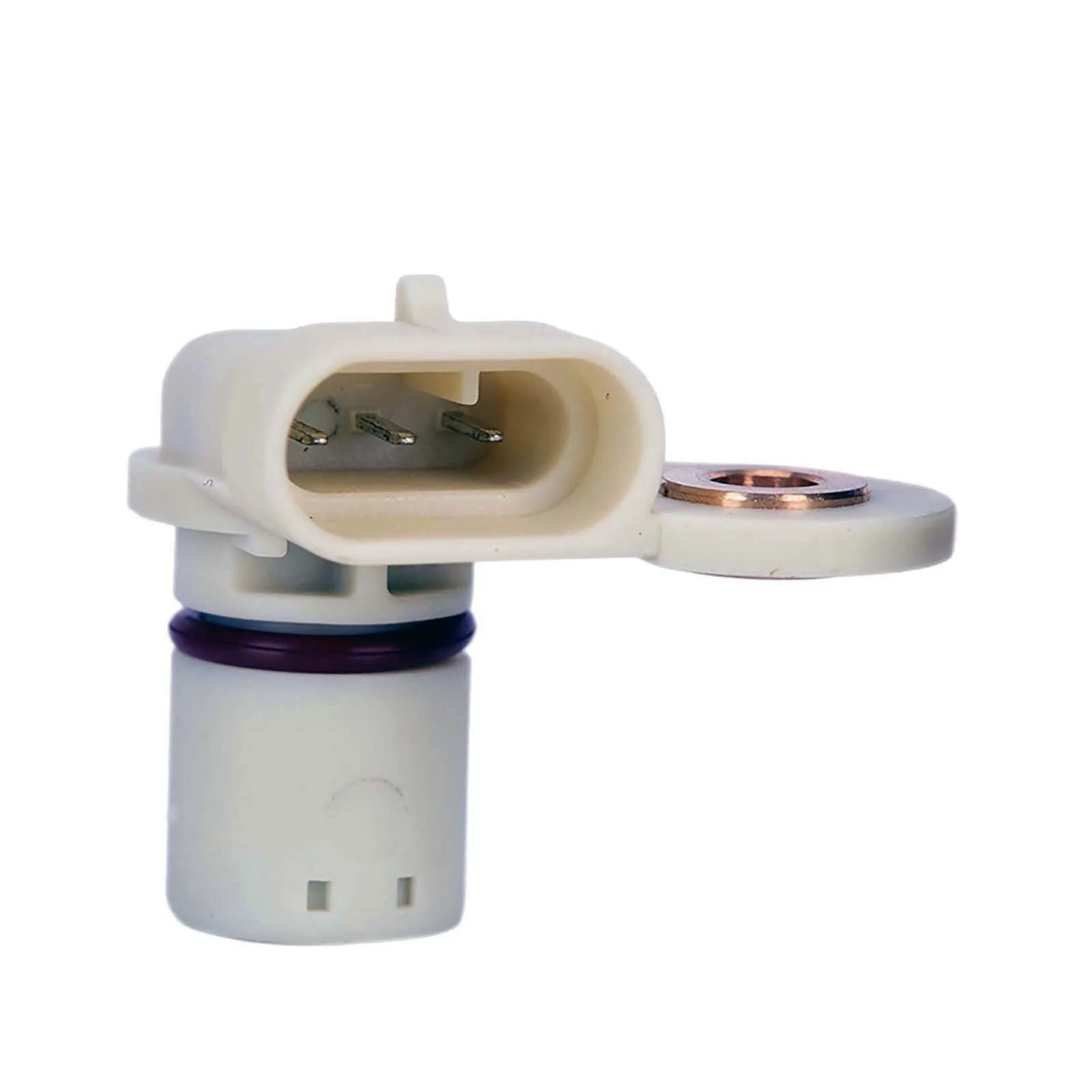

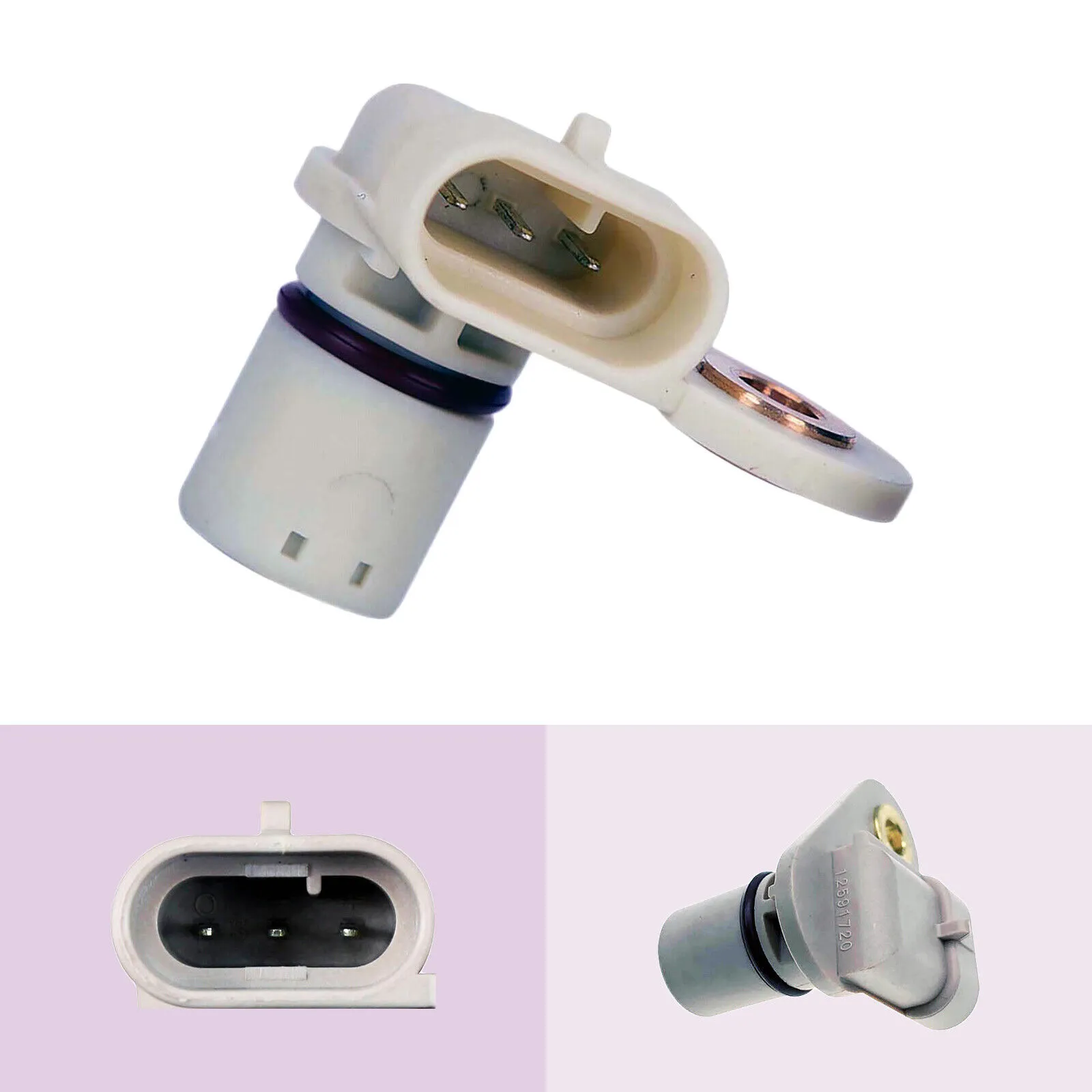

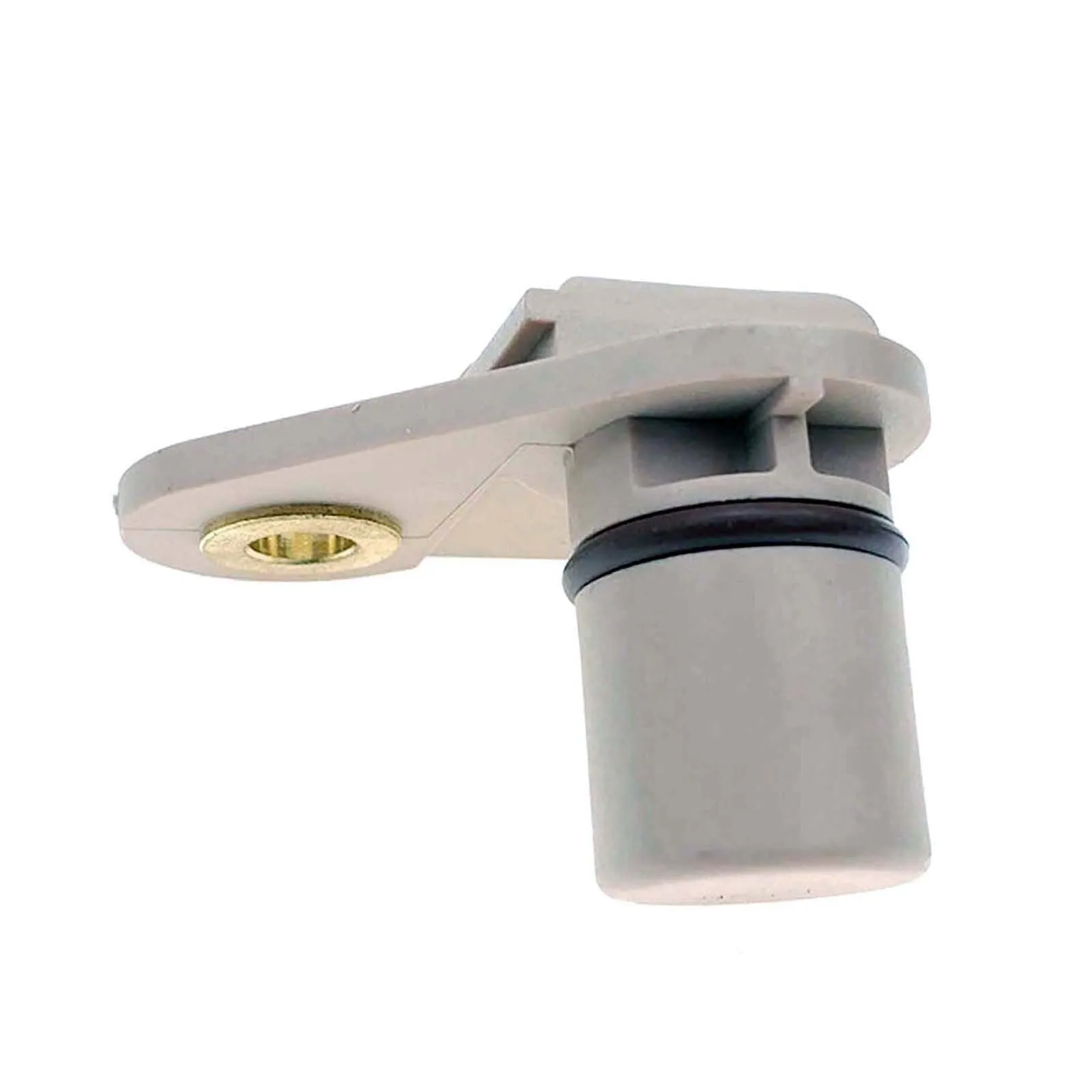

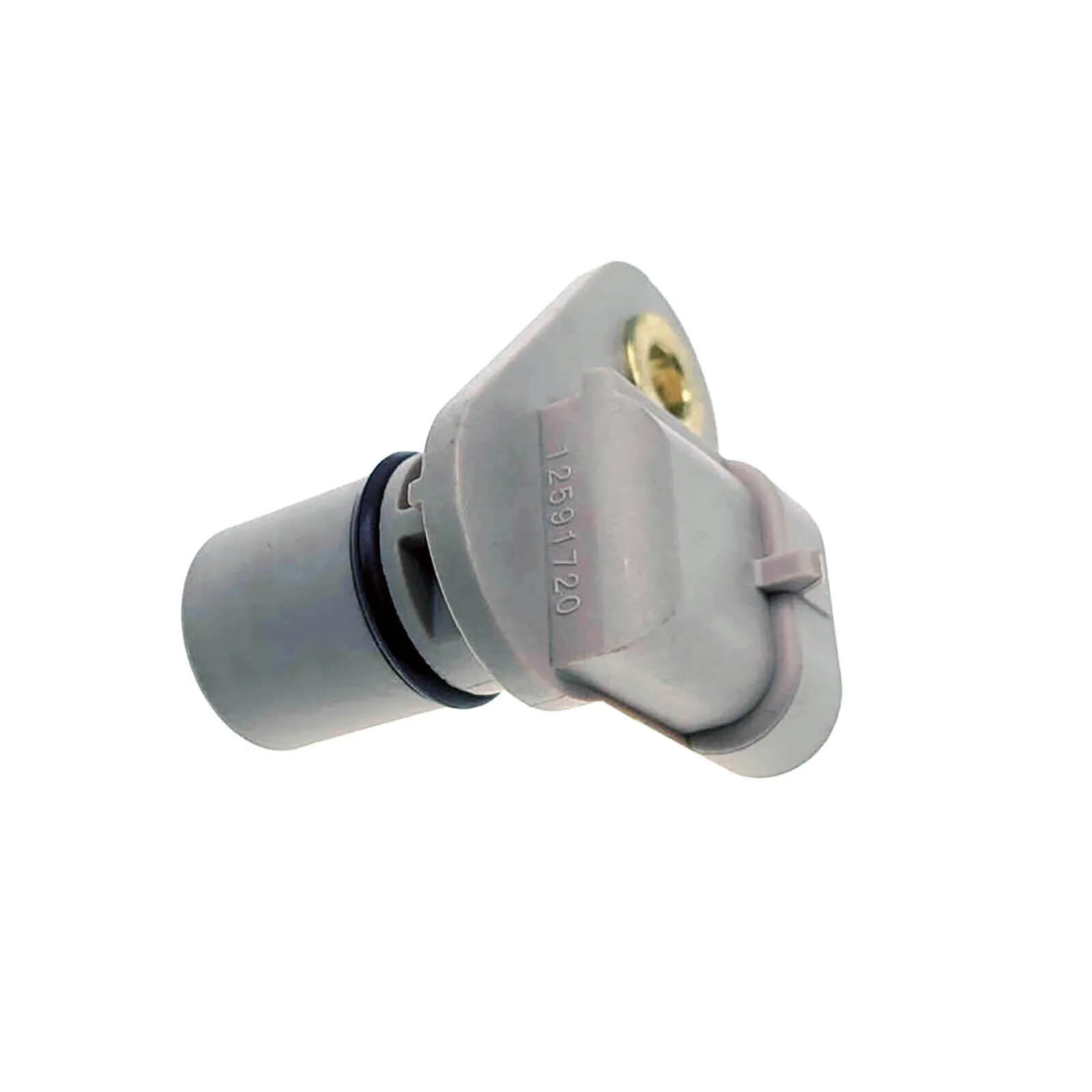

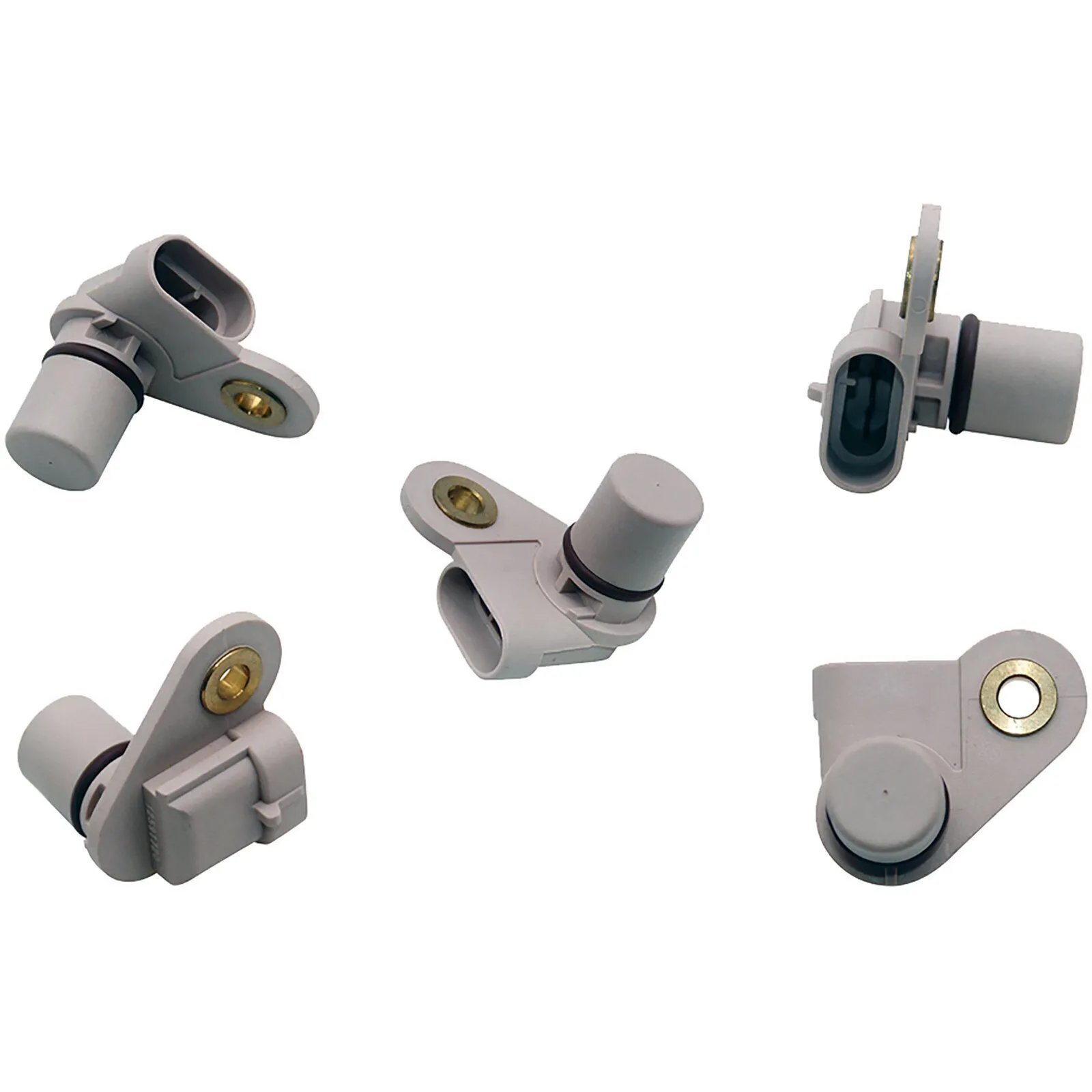

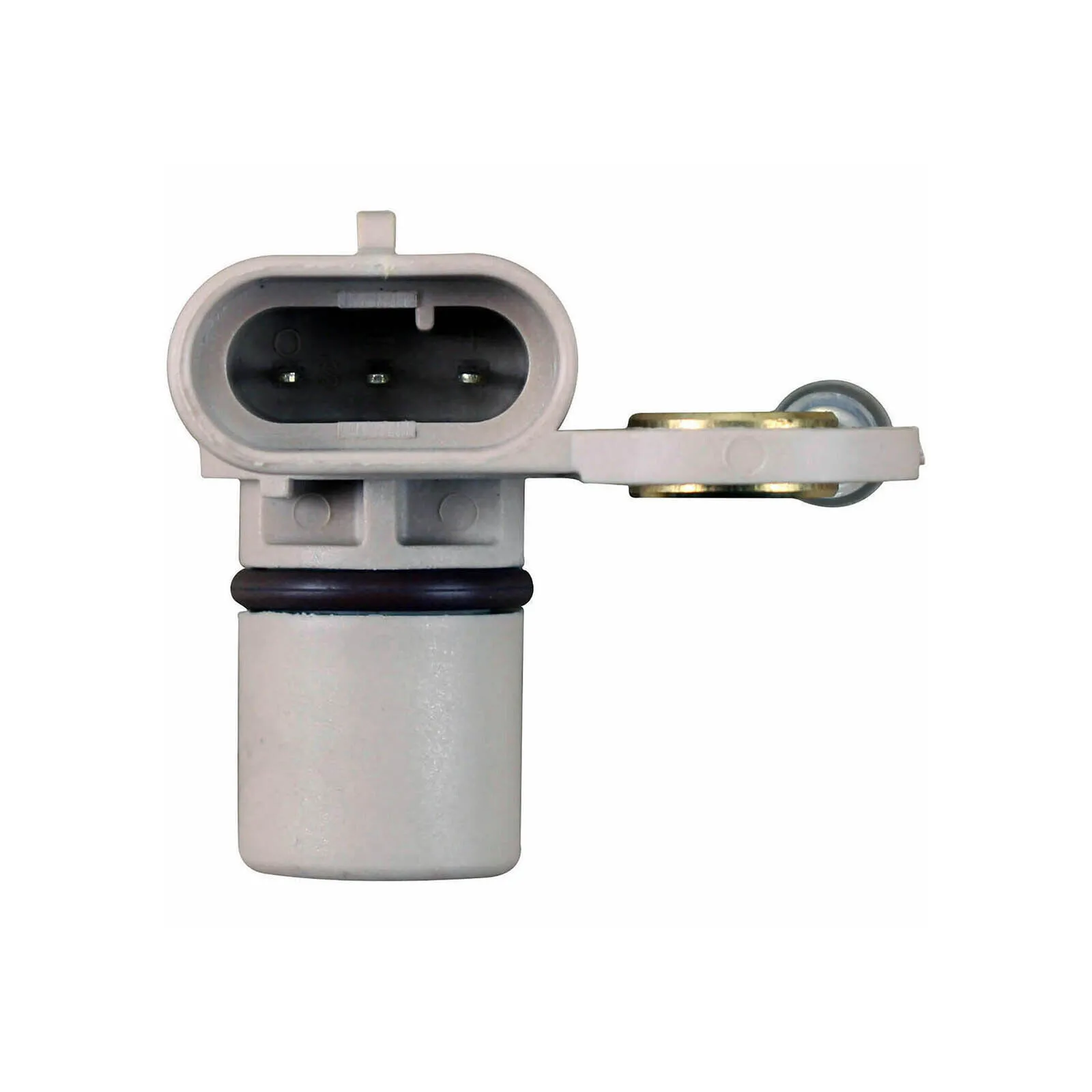

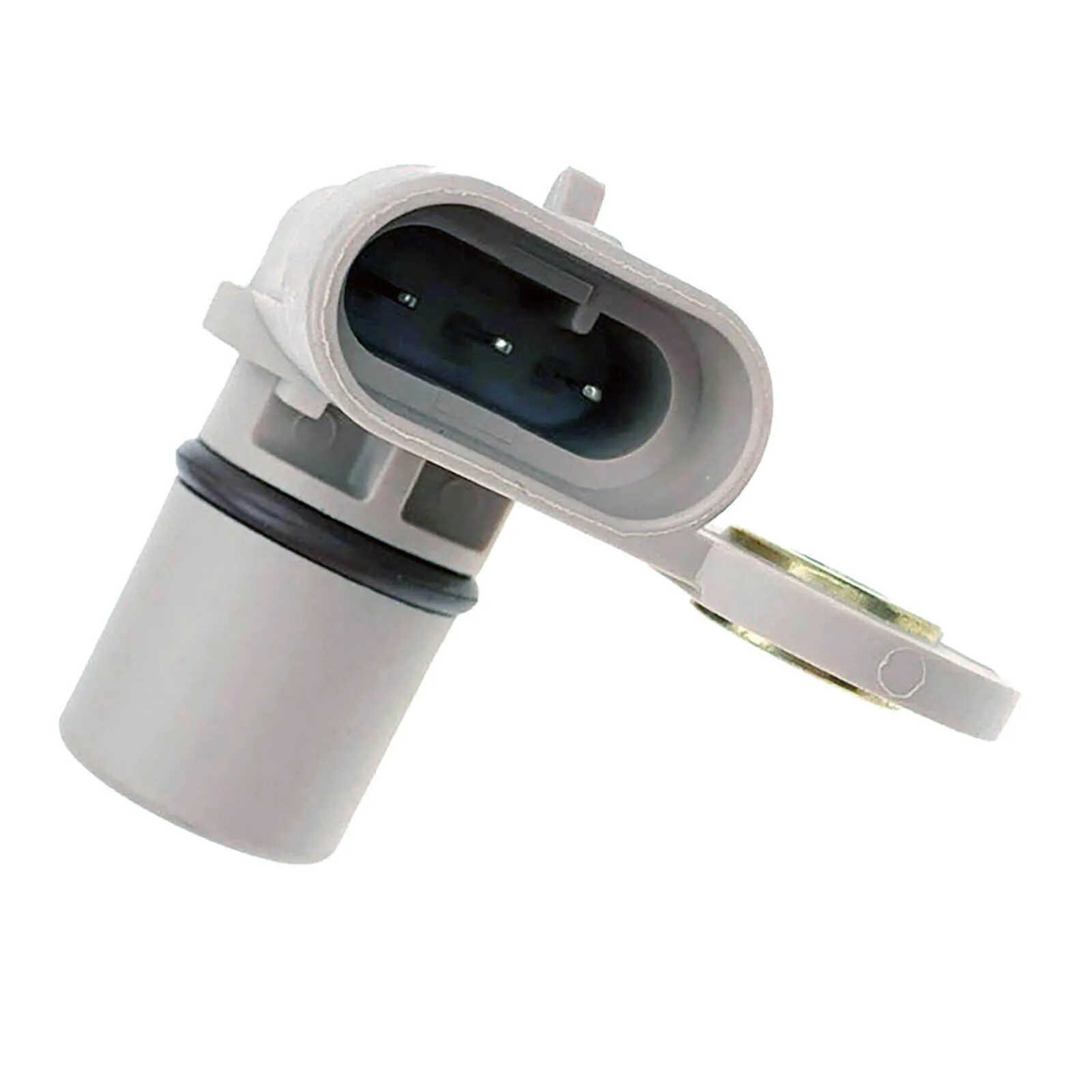

PLEASE COMPARE YOUR ORIGINAL SENSOR WITH THE IMAGES WE PROVIDED IN THE LISTING AND CHECK THE DETAILED VEHICLE LIST IN THE SUITABILITY SECTION.

TO SUIT:

HOLDEN GEN4 (L76 / L77 / L98) 6.0 V8 Engines

[2007-2017] COMMODORE VE VF + SS/SSV BERLINA / CALAIS
[2004-2007] COMMODORE VZ 6.0 V8 BERLINA / CALAIS / CREWMAN
[2006-2017] STATESMAN / CAPRICE WL WM WN INC 6.2 LS3

HOLDEN / HSV GEN4 (LS2 LS3 LSA) 6.0 & 6.2 V8 Engines

[2004-2007] VZ 6.0 V8 GEN4 LS2 (CLUBSPORT COUPE MALOO SENATOR)
[2006-2017] HSV VE VF 6.0 6.2 V8 GEN4 LS2 LS3 (CLUBSPORT GTS MALOO SENATOR)
[2004-2017] HSV GRANGE WM WN 6.2 LS3

OEM# 12591720, 12585545, 12568983

for OE No: 12591720
Voltage: 12 V
Sensor Type: Hall Sensor
Housing Colour: Brown
Fitting Depth: 25.6 mm
Number of pins: 3-pin connector
Operating Mode: Electric
Supplementary Article Info: without cable

Features:

High Quality
OEM Fit and Design
Easy install
Simple operation
AU Seller-Fast and Free Shipping

Package Includes:

1* CAMSHAFT POSITION SENSOR (3-PIN PLUG). COMPARE WITH YOUR ORIGINAL SENSOR.

COMPATIBLE VEHICLES

HOLDEN BERLINA VZ 6.0L V8 Gen4 L76 [08/04 - 07/06] 260kW
HOLDEN BERLINA VZ 6.0L V8 Gen4 L76 [08/04 - 07/07] 260kW
HOLDEN CALAIS VE SERIES 1 MY10 6.0L V8 Gen4 L76 [08/09 - 08/10] 260kW
HOLDEN CALAIS VZ 6.0L V8 Gen4 L76 [08/04 - 07/06] 260kW
HOLDEN CAPRICE WL 6.0L V8 Gen4 L76 [01/06 - 08/06] 260kW
HOLDEN CAPRICE WM SERIES 1 6.0L V8 Gen4 L76 [08/06 - 08/10] 260kW
HOLDEN COMMODORE VE SERIES 1 SS/SSV MY9.5-MY10 6.0L V8 Gen4 L76 [01/09 - 08/10] 260kW
HOLDEN COMMODORE VZ 6.0L V8 Gen4 L76 [08/04 - 07/06] 260kW
HOLDEN CREWMAN VZ CROSS 8 6.0L V8 Gen4 L76 [08/04 - 07/06] 260kW
HOLDEN CREWMAN VZ SS 6.0L V8 Gen4 L76 [01/06 - 07/07] 260kW
HOLDEN STATESMAN WL 6.0L V8 Gen4 L76 [01/06 - 08/06] 260kW
HOLDEN STATESMAN WM SERIES 1 6.0L V8 Gen4 L76 [08/06 - 08/10] 260kW
HDT VC RETRO VE GROUP 2 6.0L V8 Gen4 L76 [01/09 - 12/09] 260kW

HOLDEN CALAIS VE SERIES 2 6.0L V8 Gen4 L77 [09/10 - 04/13] 260kW
HOLDEN CALAIS VF SERIES 1 6.0L V8 Gen4 L77 [05/13 - 07/15] 260kW
HOLDEN CAPRICE WM SERIES 2 6.0L V8 Gen4 L77 [09/10 - 04/13] 260kW
HOLDEN CAPRICE WN SERIES 1 6.0L V8 Gen4 L77 [05/13 - 07/15] 260kW
HOLDEN COMMODORE VE SERIES 2 SS/SSV 6.0L V8 Gen4 L77 [09/10 - 04/13] 260kW
HOLDEN COMMODORE VF SERIES 1 SS/SSV 6.0L V8 Gen4 L77 [05/13 - 07/15] 260kW

HOLDEN BERLINA VE SERIES 1 6.0L V8 Gen4 L98 [08/06 - 07/09] 270kW
HOLDEN CALAIS VE SERIES 1 6.0L V8 Gen4 L98 [08/06 - 07/09] 270kW
HOLDEN CALAIS VE SERIES 1 6.0L V8 Gen4 L98 [01/08 - 07/09] 270kW
HOLDEN COMMODORE VE SERIES 1 SS/SSV MY9.5-MY10 6.0L V8 Gen4 L98 [01/09 - 08/10] 270kW
HOLDEN COMMODORE VE SERIES 1 SS/SSV to MY09 6.0L V8 Gen4 L98 [09/07 - 12/08] 270kW
HOLDEN COMMODORE VE SERIES 1 SS/SSV to MY09 6.0L V8 Gen4 L98 [08/06 - 12/08] 270kW
HOLDEN COMMODORE VE SERIES 1 SS/SSV to MY09 6.0L V8 Gen4 L98 [01/08 - 12/08] 270kW
HOLDEN COMMODORE VZ 6.0L V8 Gen4 L98 [08/06 - 08/07] 270kW
HOLDEN CREWMAN VZ THUNDER SS 6.0L V8 Gen4 L98 [01/06 - 07/07] 270kW
HDT VC RETRO VE GROUP 2 6.0L V8 Gen4 L98 [01/08 - 12/09] 270kW
HDT VC RETRO VE GROUP 3 6.0L V8 Gen4 L98 [01/09 - 12/10] 270kW
HDT VH RETRO VE GROUP 2 6.0L V8 Gen4 L98 [01/08 - 12/09] 270kW
HDT VH RETRO VE GROUP 3 6.0L V8 Gen4 L98 [01/09 - 12/10] 270kW

HSV CLUBSPORT VE E-SERIES SERIES 1 6.0L V8 Gen4 LS2 [08/06 - 03/08]
HSV CLUBSPORT VZ Z-SERIES 6.0L V8 Gen4 LS2 [10/04 - 07/06]
HSV COUPE GTO VZ Z-SERIES 6.0L V8 Gen4 LS2 [10/04 - 07/07]
HSV GRANGE WL 6.0L V8 Gen4 LS2 [10/04 - 03/07]
HSV GTS VE E-SERIES SERIES 1 6.0L V8 Gen4 LS2 [08/06 - 03/08]
HSV MALOO VE E-SERIES SERIES 1 6.0L V8 Gen4 LS2 [10/07 - 03/08]
HSV MALOO VZ Z-SERIES 6.0L V8 Gen4 LS2 [10/04 - 07/07]
HSV SENATOR VE E-SERIES SERIES 1 6.0L V8 Gen4 LS2 [08/06 - 03/08]
HSV SENATOR VZ Z-SERIES 6.0L V8 Gen4 LS2 [10/04 - 07/06]
HSV SV6000 VZ Z-SERIES 6.0L V8 Gen4 LS2 [10/04 - 07/06]
HSV GRANGE WM SERIES 1 6.0L V8 Gen4 LS2 [03/07 - 03/08]

HOLDEN CAPRICE WN SERIES 2 6.2L V8 Gen4 LS3 [08/15 - 12/17]
HSV CLUBSPORT VE E-SERIES SERIES 1 6.2L V8 Gen4 LS3 [04/08 - 08/09]
HSV CLUBSPORT VE E-SERIES SERIES 2 6.2L V8 Gen4 LS3 [09/09 - 08/10]
HSV CLUBSPORT VE E-SERIES SERIES 3 6.2L V8 Gen4 LS3 [09/10 - 04/13]
HSV GRANGE WM SERIES 1 6.2L V8 Gen4 LS3 [04/08 - 08/09]
HSV GRANGE WM SERIES 2 6.2L V8 Gen4 LS3 [09/09 - 08/11]
HSV GRANGE WM SERIES 3 6.2L V8 Gen4 LS3 [09/11 - 05/13]
HSV GTS VE E-SERIES SERIES 1 6.2L V8 Gen4 LS3 [04/08 - 08/09]
HSV GTS VE E-SERIES SERIES 2 6.2L V8 Gen4 LS3 [09/09 - 08/10]
HSV GTS VE E-SERIES SERIES 3 6.2L V8 Gen4 LS3 [09/10 - 04/13]
HSV MALOO VE E-SERIES SERIES 1 6.2L V8 Gen4 LS3 [04/08 - 08/09]
HSV MALOO VE E-SERIES SERIES 2 6.2L V8 Gen4 LS3 [09/09 - 08/10]
HSV MALOO VE E-SERIES SERIES 3 6.2L V8 Gen4 LS3 [09/10 - 04/13]
HSV MALOO VF GEN-F SERIES 1 6.2L V8 Gen4 LS3 [06/13 - 08/15]
HSV SENATOR VE E-SERIES SERIES 1 6.2L V8 Gen4 LS3 [04/08 - 08/09]
HSV SENATOR VE E-SERIES SERIES 2 6.2L V8 Gen4 LS3 [09/09 - 08/10]
HSV SENATOR VE E-SERIES SERIES 3 6.2L V8 Gen4 LS3 [09/10 - 04/13]
HSV SENATOR VF GEN-F SERIES 1 6.2L V8 Gen4 LS3 [06/13 - 08/15]
HSV CLUBSPORT VF GEN-F SERIES 1 6.2L V8 Gen4 LS3 [06/13 - 08/15]
HSV GRANGE WN GEN-F SERIES 1 6.2L V8 Gen4 LS3 [06/13 - 08/15]

HSV CLUBSPORT VE E-SERIES SERIES 3 6.2L V8 Gen4 LS3 Bi-Fuel [09/12 - 04/13]
HSV GRANGE WM SERIES 3 6.2L V8 Gen4 LS3 Bi-Fuel [09/11 - 05/13]
HSV GTS VE E-SERIES SERIES 3 6.2L V8 Gen4 LS3 Bi-Fuel [09/12 - 04/13]
HSV MALOO VE E-SERIES SERIES 3 6.2L V8 Gen4 LS3 Bi-Fuel [09/12 - 04/13]
HSV SENATOR VE E-SERIES SERIES 3 6.2L V8 Gen4 LS3 Bi-Fuel [09/12 - 04/13]
HSV W427 VE E-SERIES SERIES 1 7.0L V8 Gen4 LS7 [04/08 - 08/09]

HSV SENATOR VF GEN-F2 SERIES 2 6.2L V8 Gen4 LSA [09/15 - 12/17]
HSV GTS MALOO VF GEN-F SERIES 1 6.2L V8 Gen4 LSA [11/14 - 08/15]
HSV GTS VF GEN-F SERIES 1 6.2L V8 Gen4 LSA [06/13 - 08/15]

ABOUT YOUR VEHICLE'S CAMSHAFT / CRANKSHAFT POSITION SENSOR

What does a Camshaft/Crankshaft Position Sensor do?
The Camshaft sensor determines which cylinder is firing to establish injector synchronization and coil firing sequence in DIS systems. Crankshaft sensors set ignition timing, supply the RPM signal, and determine engine speed.

Where are these sensors located?
The Camshaft Position sensor is typically located in the cylinder head of the engine and has a cylindrical portion that inserts into the head. The Crankshaft Position sensor is normally located in the timing cover or on the side of the block with a cylindrical portion that inserts into the block.

Will a malfunctioning Cam or Crank Sensor illuminate the check engine light or affect vehicle operation?
Yes, a failing sensor can illuminate the MIL and may cause vehicle stalling or a no-start condition.

What are the common causes of failure?
Typically these sensors fail due to exposure to high heat.

How to determine if these sensors are malfunctioning?
Look for RPM on a scan tool while cranking the engine. If the engine runs, a scope is the best diagnostic tool. Typical trouble codes: Crankshaft P0335; Camshaft P0340.

What makes Our Standard Camshaft and Crankshaft Position Sensors the best?
Integrated A/D converter and digital signal processing with a dynamically adaptive switch point improves accuracy and operation
Advanced circuitry protects the system from stray electro-magnetic fields and power spikes
Custom magnetic circuit programming calibrates the sensor while performance testing for improved timing accuracy between the target wheel and sensor output
100% environmental, endurance, and end-of-line testing for Timing, Pulse Width, and Signal Amplitude ensures consistent product reliability

How do I test a crankshaft or camshaft position sensor?

Use an OBD2 scanner to check for fault codes P0335 to P0338 (crankshaft) or P0340 to P0349 (camshaft). You can also test the sensor with a multimeter - inductive sensors should show resistance between 200 and 1,000 ohms, while Hall effect sensors require a live voltage test with the engine cranking. Erratic or absent RPM signal on a live data scanner is a strong indicator of sensor failure.

Can a cam or crank sensor fault cause my vehicle to go into limp mode?

Yes. A faulty crankshaft position sensor in particular can cause the ECU to lose engine speed and position data entirely, which may trigger limp mode or prevent the engine from starting. A faulty camshaft sensor on variable valve timing engines can cause the VVT system to default to a fixed position, significantly reducing power and fuel economy.

Do cam and crank sensors need to be programmed after replacement?

In most cases no - aftermarket OEM replacement sensors are direct plug-in replacements that require no programming. However some vehicles, particularly late model European makes including BMW and Mercedes-Benz, may require a crankshaft adaptation reset using a dealer-level scan tool after replacement. Check your vehicle service information before replacing the sensor.

What are the symptoms of a faulty crankshaft position sensor?

Symptoms include intermittent stalling, engine not starting, rough idle, misfires, and a Check Engine light with codes P0335-P0338. In severe cases the engine will crank but not start as the ECU cannot determine crank position for ignition timing.

What are the symptoms of a faulty camshaft position sensor?

Symptoms include poor performance, misfires, difficulty starting, rough idle, and fault codes P0340-P0343. Variable valve timing systems (VVT) will also be affected, causing sluggish response and increased fuel consumption.

Can I drive with a bad crankshaft position sensor?

If the sensor has failed completely the engine will not start or will stall and not restart. If it is intermittently failing, driving is dangerous - the engine can cut out without warning. Replace it immediately.

Do I need to replace both the cam and crank sensor at the same time?

Not necessarily - replace whichever has failed based on fault codes and diagnosis. However, if your vehicle has high kilometres and one has failed, it is worth considering replacing both as they are similar in age and condition.

Identification
SKU	CSCA354
Barcode #	9314258977511
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	12591720
Reference OEM Number	12591720
Other OEM Numbers	12568983, 12585545, 12591720
Related Part Numbers	CAM-066, CSCA354, EC0321, SC233
Product Specifics
Sensor Type	CAMSHAFT POSITION SENSOR
Type	Sensor
Features	Direct Fit
Reference Oe/oem Number	12591720
Manufacturer Warranty	1 Year
Oem	12591720
Ean	9314258977511
Make	SAAB
Note	CHECK IMAGES. CONFIRM WITH OE NUMBER
Model	HOLDEN COMMODORE VZ VE VF 2006-17
Second Part Number	SC233
Compatible Vehicles	HOLDEN V8 GEN IV LS2 6.0L & LS3 6.2L MOTOR
Other Details
Note	Always verify fitment using your vehicle's OEM part number.
Unit Of Measure	ea
