Name: Cam Angle Sensor Toyota Landcruiser WORKMATE VDJ79R 1VDFTV
Brand: Aftermarket OEM Replacement
SKU: SC461-8
Price: 139.97 AUD
Availability: InStock

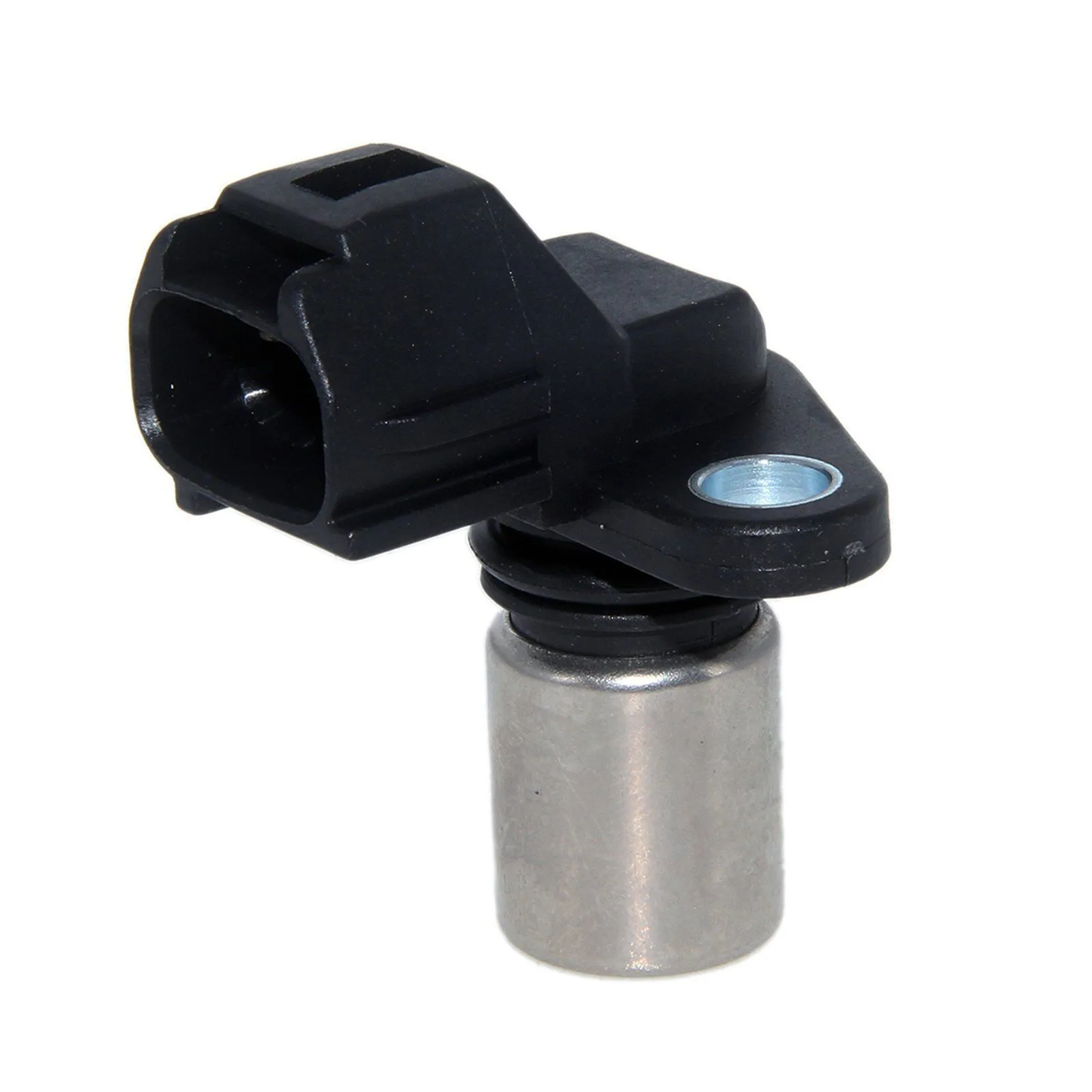

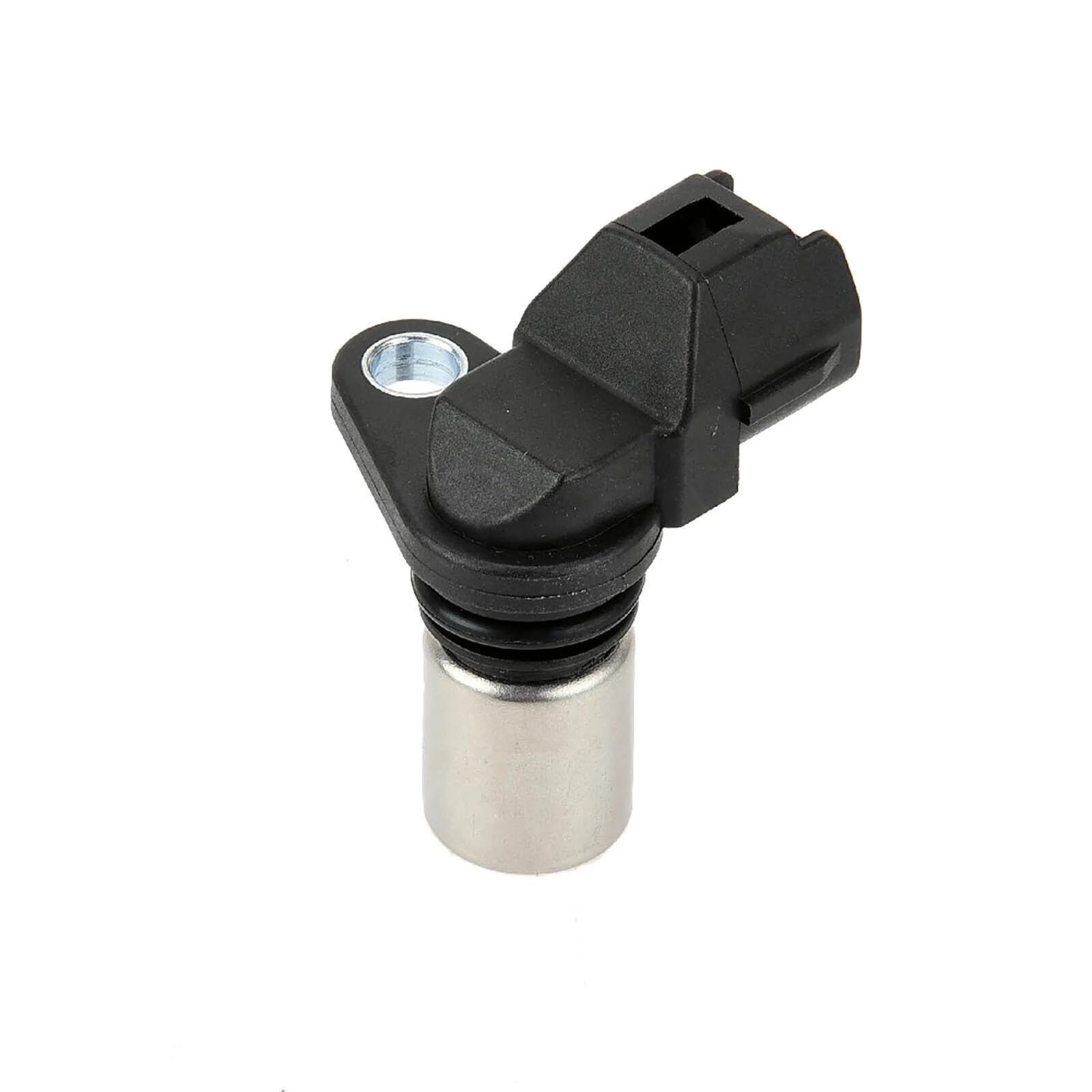

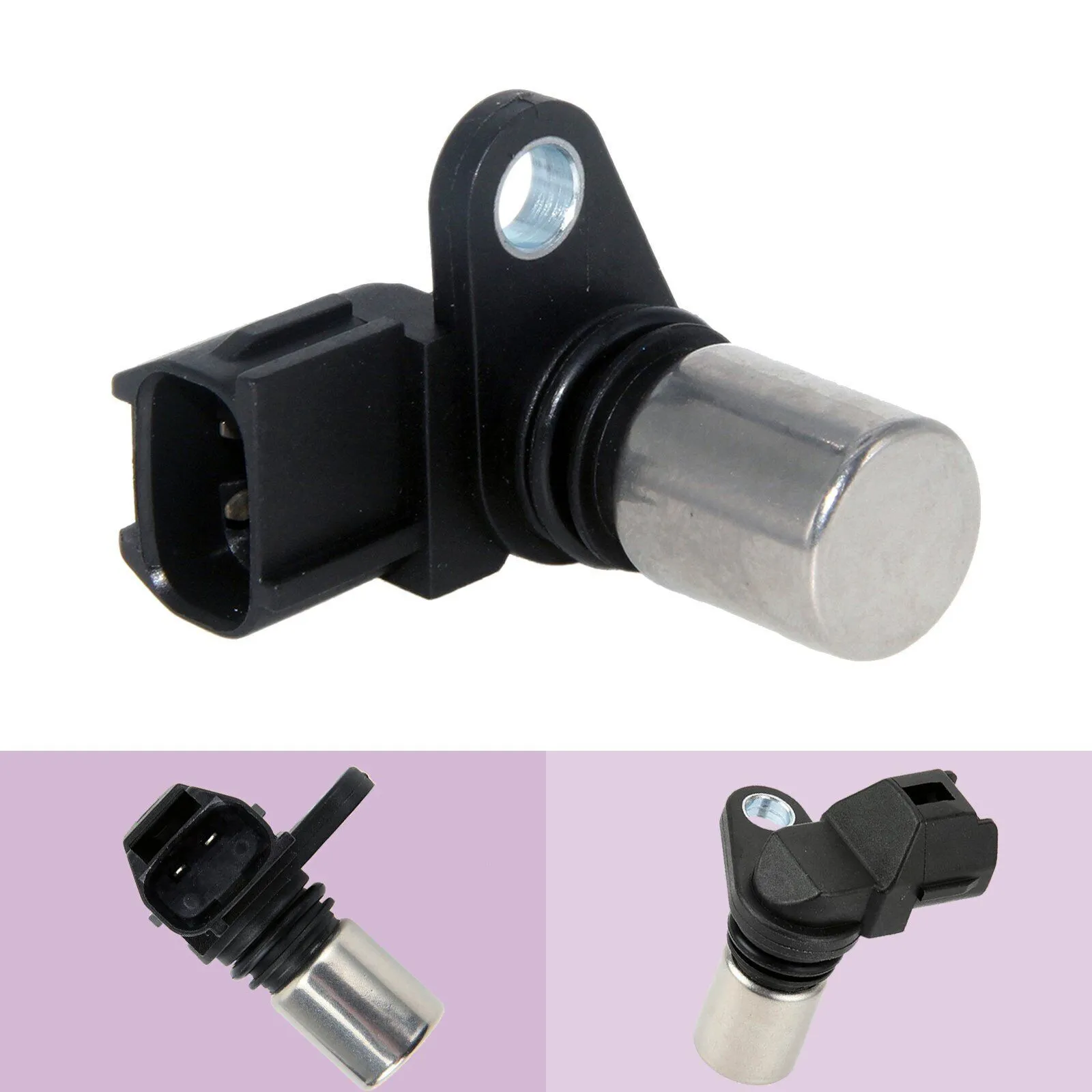

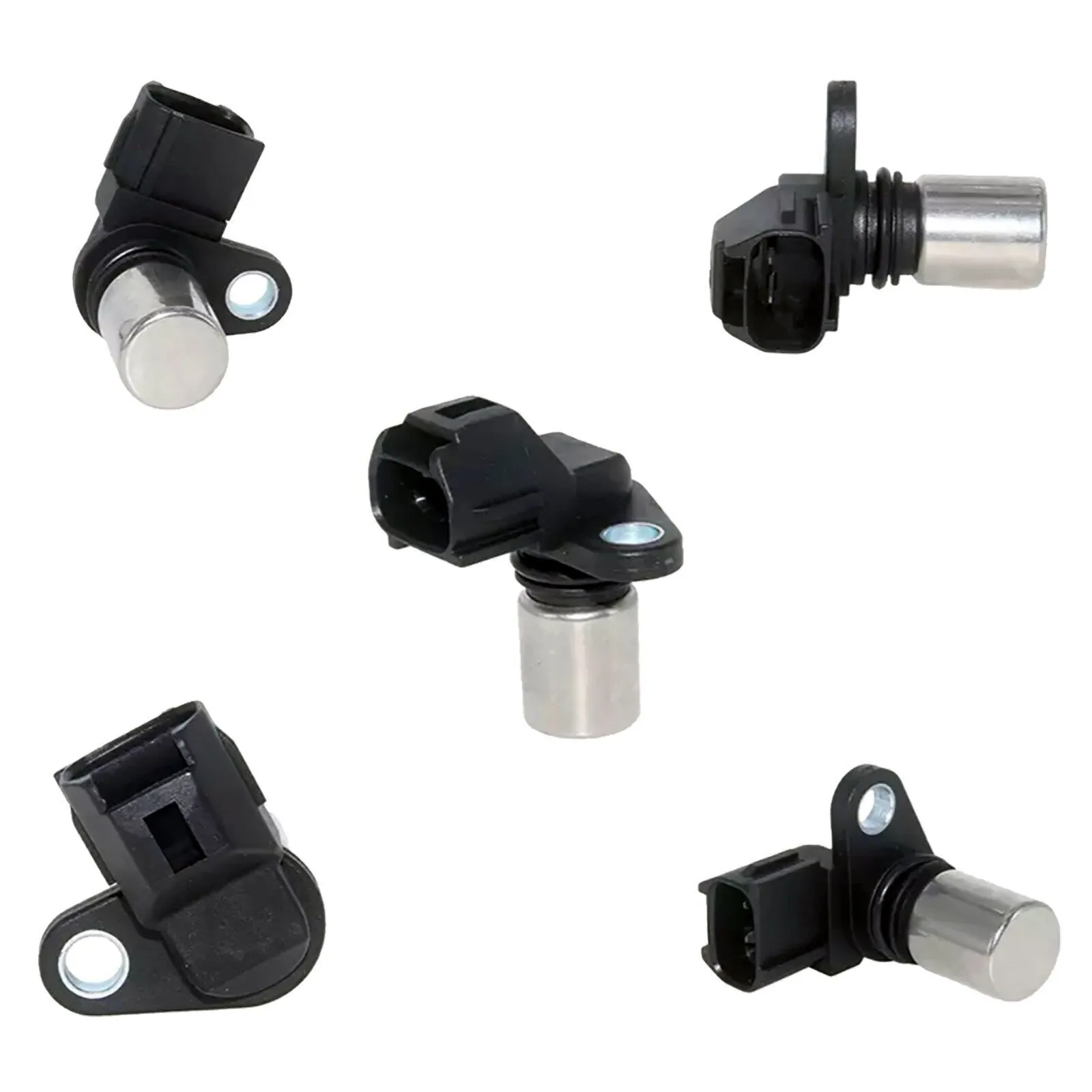

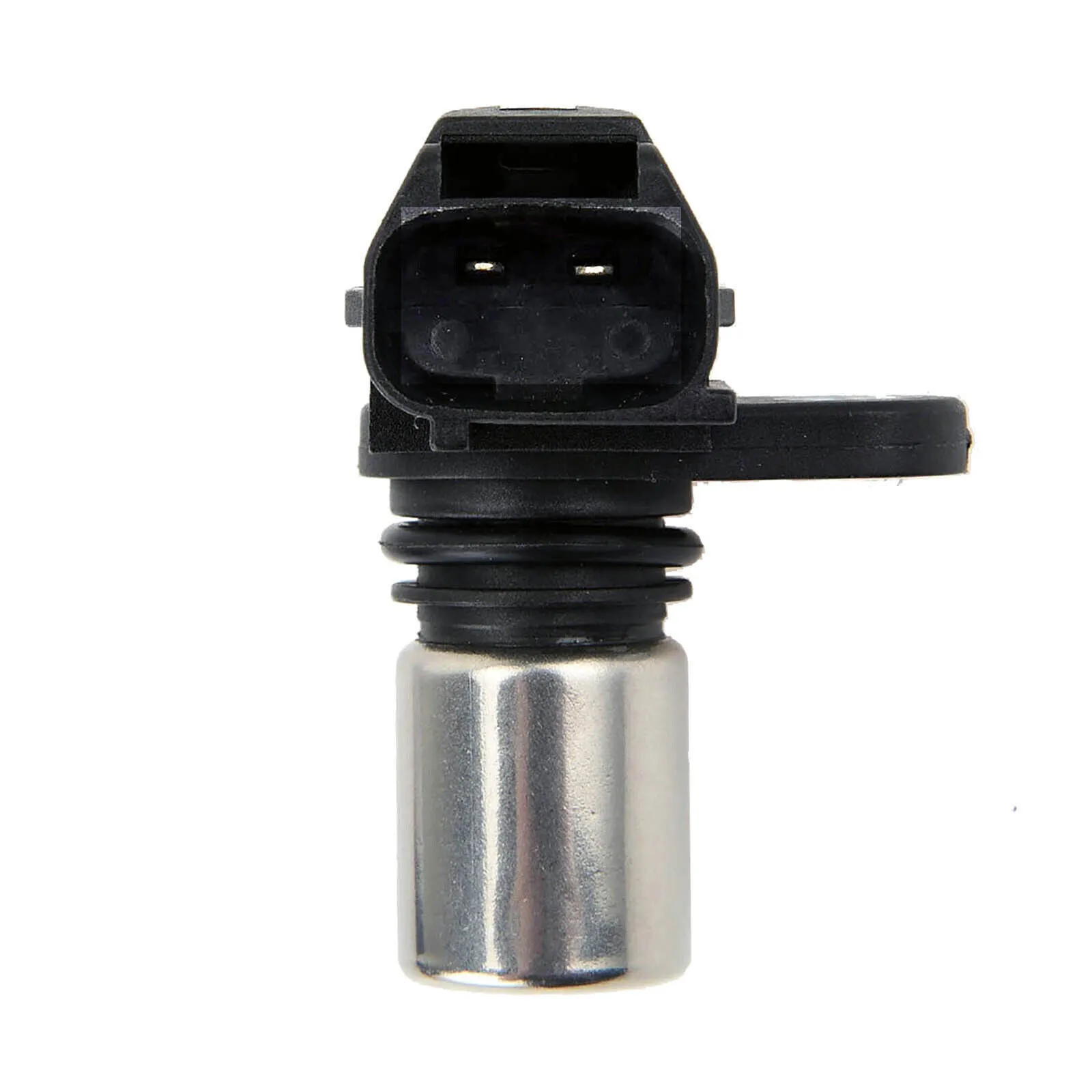

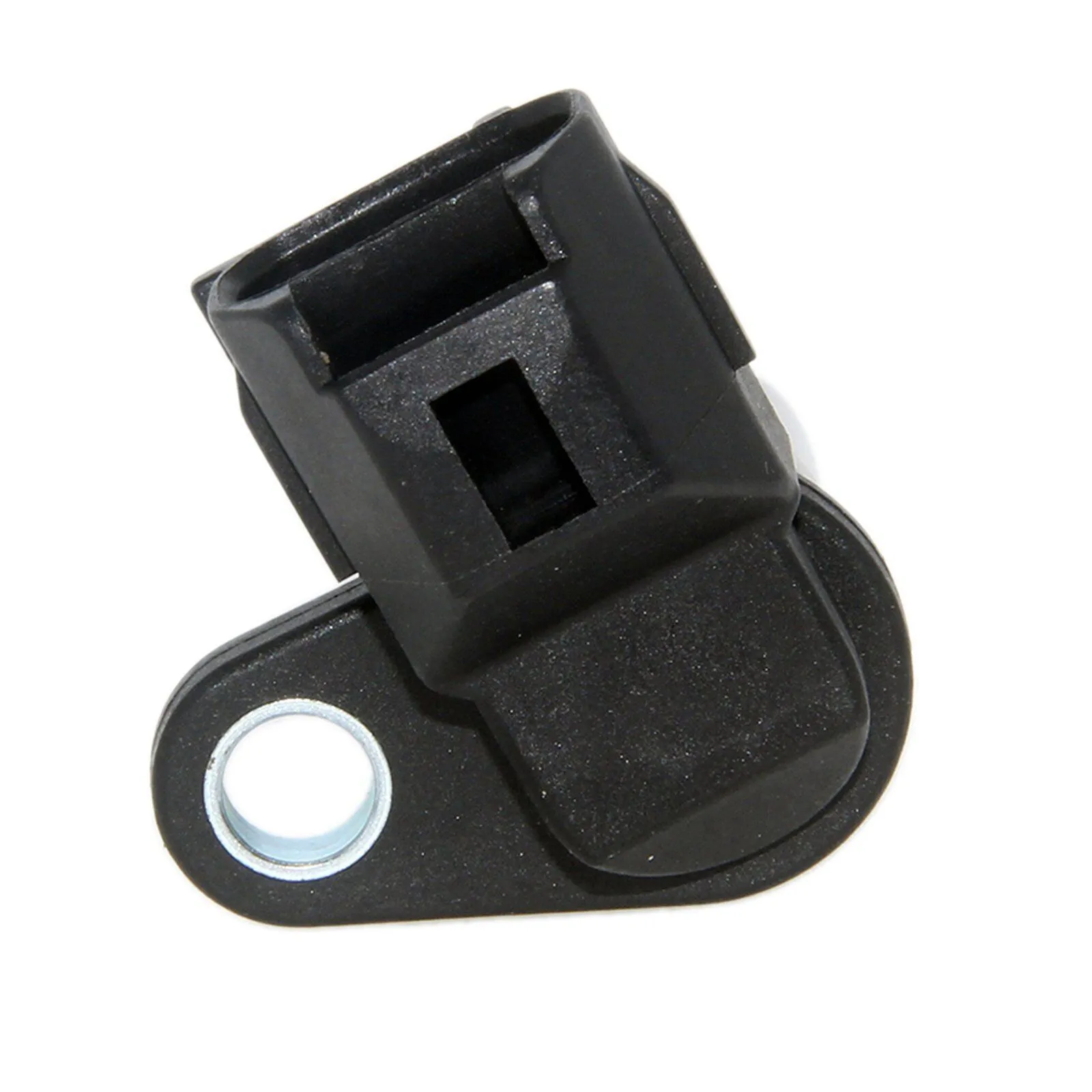

BRAND NEW OEM Quality CAMSHAFT POSITION SENSOR TO SUIT TOYOTA & LEXUS

PLEASE COMPARE YOUR ORIGINAL SENSOR WITH THE IMAGES WE PROVIDED IN THE LISTING AND CHECK THE DETAILED VEHICLE LIST IN THE SUITABILITY SECTION.

TO SUIT:

[2007-2021] TOYOTA LANDCRUISER 4.5L V8 1VD-FTV (VDJ76R VDJ78R VDJ79R VDJ200R)
[2013-2019] TOYOTA RAV4 CRUISER ALA49R 2.2L 2AD-FHV 2AD-FTV
[2013-2019] TOYOTA RAV4 GXL ALA49R 2.2L 2AD-FHV 2AD-FTV

TOYOTA DIESEL ENGINES
ENGINE CODES: 2AD-FTV, 2AD-FHV, 1VD-FTV, 1ND-TV, 1AD-FTV
LANDCRUISER, RAV4, COROLLA, YARIS

OEM# 9091905029, 9091905061

for OE No: 90919-05029
Sensor Type: Inductive Sensor
Resistance: 1.1 kOhm
Number of Poles: 2 -pin connector
Fitting Depth: 30 mm
Connector Shape: Oval
Number of mounting bores: 1
Supplementary Article Info: without cable pull

Features:

High Quality
OEM Fit and Design
Easy install
Simple operation
AU Seller-Fast and Free Shipping

Package Includes:

1* CRANKSHAFT POSITION SENSOR (2-PIN PLUG)

The crankshaft position sensor is an engine management component found on virtually all modern vehicles with internal combustion engines. It monitors the position and rotational speed of the crankshaft and sends the information to the engine control unit so it can make appropriate adjustments based on operating conditions. The crankshaft speed and position are some of the most important parameters used in engine management calculations, and many engines cannot run if the crankshaft position sensor is not providing an accurate signal.

Faulty crankshaft position sensor symptoms:

Issues Starting the Vehicle
Intermittent Stalling
Check Engine Light Comes On
Uneven Acceleration
Engine Misfires or Vibrates
Rough Idle and/or Vibrating Engine
Reduced Gas Mileage

COMPATIBLE VEHICLES:

LEXUS GS (_L1_) 250 (GRL11_) 01.2012- - Note: Model year: from 03.2012 , Fitting Position: Front
LEXUS GS (_L1_) F (URL10_) 09.2015- - Note: Model year: from 10.2015 , Fitting Position: Intake Side
LEXUS GS Sedan (_S19_) 300 (GRS190_) 04.2005-11.2011 - Note: Fitting Position: Front
LEXUS GS Sedan (_S19_) 350 (GRS191_) 05.2008-11.2011 - Note: Fitting Position: Front
LEXUS GS Sedan (_S19_) 450h (GRS191_, GWS191_) 02.2006-11.2011 - Note: Fitting Position: Left
LEXUS GS Sedan (_S19_) 460 (UZS190_, URS190_) 09.2007-11.2011 - Note: Fitting Position: Front
LEXUS IS C (GSE2_) 250 (GSE20) 04.2009-06.2015 - Note: Model year: until 04.2013, Fitting Position: Front
LEXUS IS II Sedan (_E2_) 250 (GSE20) 08.2005-03.2013 - Note: Fitting Position: Front
LEXUS IS II Sedan (_E2_) 350 (GSE21) 01.2008-03.2013 - Note: Fitting Position: Front
LEXUS IS II Sedan (_E2_) IS F (USE20) 11.2007-03.2013 - Note: Fitting Position: Front
LEXUS IS III (_E3_) 250 (GSE30_) 04.2013- - Note: Model year: until 08.2015, Fitting Position: Front
LEXUS IS III (_E3_) 350 (GSE31_) 04.2013- - Note: Fitting Position: Front
LEXUS LC Coupe (_Z10_) 500 (URZ100_) 11.2016- - Note: Model year: from 05.2017, Fitting Position: Intake Side
LEXUS LS (_F5_) 500h (GVF50, GVF50_) 11.2017- - Note: Fitting Position: Intake Side
LEXUS LS (_F5_) 500h (GVF50_) 10.2017- - Note: Fitting Position: Intake Side
LEXUS LS Sedan (_F4_) 460 (USF40) 04.2006- - Note: Model year: from 08.2006, until 09.2017 , Fitting Position: Front
LEXUS LS Sedan (_F4_) 460 (USF40, USF41) 09.2012- - Note: Model year: until 09.2017 , Fitting Position: Front
LEXUS LS Sedan (_F4_) 600h AWD (UVF45, UVF46) 09.2007- - Note: Model year: until 09.2017 , Fitting Position: Front
LEXUS LX (_J2_) 450d (VDJ201) 09.2015- - Note:
LEXUS RC (_C1_) 350 (GSC10) 08.2014- - Note: Model year: from 09.2014, until 10.2018 , Fitting Position: Front
LEXUS RC (_C1_) F (USC10_) 08.2014- - Note: Model year: from 09.2014 , Fitting Position: Intake Side
LEXUS RC (_C1_) F (USC10_) 08.2014- - Note: Model year: from 09.2014 , Fitting Position: Intake Side
LEXUS RX (_L2_) 350 4WD (GGL25_, GGL26_) 10.2015- - Note: Fitting Position: Intake Side
LEXUS RX (_L2_) 350L 4WD (GGL25, GGL26) 10.2015- - Note: Fitting Position: Intake Side
LEXUS RX (_L2_) 450h AWD (GYL25_, GYL26_, GYL25, GYL26) 11.2015- - Note: Fitting Position: Intake Side

TOYOTA RAV 4 IV (_A4_) 2.2 D 4WD (ALA49) 12.2012- - Note: Model year: until 10.2018
TOYOTA LAND CRUISER Pick-up (_J7_) 4.5 TD 24V 4×4 (VDJ79, VDJ79R) 01.2007- - Note: Model year: until 09.2017
TOYOTA LAND CRUISER (_J7_) 4.5 TD 24V 4×4 (VDJ76, VDJ78, VDJ76R, VDJ78R) 01.2007- - Note: Engine Code: 1VD-FTV , Model year: from 03.2007
TOYOTA LAND CRUISER (_J2_) 4.5 D-4D (VDJ200) 01.2012- - Note: Model year: until 04.2021
TOYOTA LAND CRUISER (_J2_) 4.5 D-4D (VDJ200) 09.2007- - Note: Model year: until 04.2021
TOYOTA HILUX VIII Platform/Chassis (_N1_) 2.7 (TGN111_, TGN121_) 05.2015- - Note: Model year: until 05.2020 , Fitting Position: Lower
TOYOTA HILUX VIII Pickup (_N1_) 2.7 (TGN111_, TGN121_, TGN136_) 05.2015- - Note: Model year: until 10.2020 , Fitting Position: Lower
TOYOTA HIACE VI Bus (__H3__) 3.5 VVTi (GRH322, GRH303) 03.2019- - Note: for OE No.: 90919 05061
TOYOTA HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__) 2.7 (TRH2__, TRH223) 01.2015- - Note: for OE No.: 90919 05061
TOYOTA CENTURY (_G5_) 5.0 (GZG50) 04.1997-12.2016 - Note: Fitting Position: Left
TOYOTA C-HR (_X1_) 1.2 4WD (NGX50_) 10.2016- - Note: for OE No.: 90919 05061
TOYOTA C-HR (_X1_) 1.2 (NGX10_) 10.2016- - Note: for OE No.: 90919 05061

Identification
SKU	SC461-8
Barcode #	4046001824296
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	CAM-171
Reference OEM Number	90919-05029
Other OEM Numbers	90919-05029, 9091905029
Trade Part Numbers	623 108, ADT37241, V70-72-0253
Product Specifics
Sensor Type	CAMSHAFT POSITION SENSOR
Type	Sensor
Features	Direct Fit
Reference Oe/oem Number	90919-05029
Manufacturer Warranty	1 Year
Oem	9091905029
Ean	4046001824296
Make	Toyota
Note	CHECK IMAGES. CONFIRM WITH OE NUMBER
Model	RAV4
Other Part Number	V70-72-0253
Other Details
Note	Verify fitment using the OEM part number before ordering.
Unit Of Measure	ea

How do I test a crankshaft or camshaft position sensor?

Use an OBD2 scanner to check for fault codes P0335 to P0338 (crankshaft) or P0340 to P0349 (camshaft). You can also test the sensor with a multimeter - inductive sensors should show resistance between 200 and 1,000 ohms, while Hall effect sensors require a live voltage test with the engine cranking. Erratic or absent RPM signal on a live data scanner is a strong indicator of sensor failure.

Can a cam or crank sensor fault cause my vehicle to go into limp mode?

Yes. A faulty crankshaft position sensor in particular can cause the ECU to lose engine speed and position data entirely, which may trigger limp mode or prevent the engine from starting. A faulty camshaft sensor on variable valve timing engines can cause the VVT system to default to a fixed position, significantly reducing power and fuel economy.

Do cam and crank sensors need to be programmed after replacement?

In most cases no - aftermarket OEM replacement sensors are direct plug-in replacements that require no programming. However some vehicles, particularly late model European makes including BMW and Mercedes-Benz, may require a crankshaft adaptation reset using a dealer-level scan tool after replacement. Check your vehicle service information before replacing the sensor.

What are the symptoms of a faulty crankshaft position sensor?

Symptoms include intermittent stalling, engine not starting, rough idle, misfires, and a Check Engine light with codes P0335-P0338. In severe cases the engine will crank but not start as the ECU cannot determine crank position for ignition timing.

What are the symptoms of a faulty camshaft position sensor?

Symptoms include poor performance, misfires, difficulty starting, rough idle, and fault codes P0340-P0343. Variable valve timing systems (VVT) will also be affected, causing sluggish response and increased fuel consumption.

Can I drive with a bad crankshaft position sensor?

If the sensor has failed completely the engine will not start or will stall and not restart. If it is intermittently failing, driving is dangerous - the engine can cut out without warning. Replace it immediately.

Do I need to replace both the cam and crank sensor at the same time?

Not necessarily - replace whichever has failed based on fault codes and diagnosis. However, if your vehicle has high kilometres and one has failed, it is worth considering replacing both as they are similar in age and condition.
