BRAND NEW *OEM Quality* throttle position sensor to suit Hyundai Elantra XD 1.8L G4GB and 2.0L G4GC, and Elantra Lavita FC 1.8L G4GB engines (2000-2006).

On the Elantra XD and Lavita FC, a drifting TPS is frequently found alongside idle air control issues - if a replacement TPS alone doesn't fully settle a rough idle, it's worth checking the IAC valve on the same throttle body. A correctly matched sensor rules out the TPS as the cause, dispatched same-day from Cranbourne VIC.

TO SUIT

Hyundai Elantra XD 2000-2003 - 1.8L 4cyl G4GB (97kW)
Hyundai Elantra XD 2000-2003 - 2.0L 4cyl G4GC (104kW)
Hyundai Elantra XD 2003-2006 - 2.0L 4cyl G4GC (105kW)
Hyundai Elantra Lavita FC 2001-2004 - 1.8L 4cyl G4GB (90kW)

FITMENT CHECK

Verify your existing sensor matches OEM 35170-22600 or 35170-23500 before purchase. Check engine code and connector type - this sensor suits XD and Lavita FC series Elantra only.

OEM PART NUMBERS

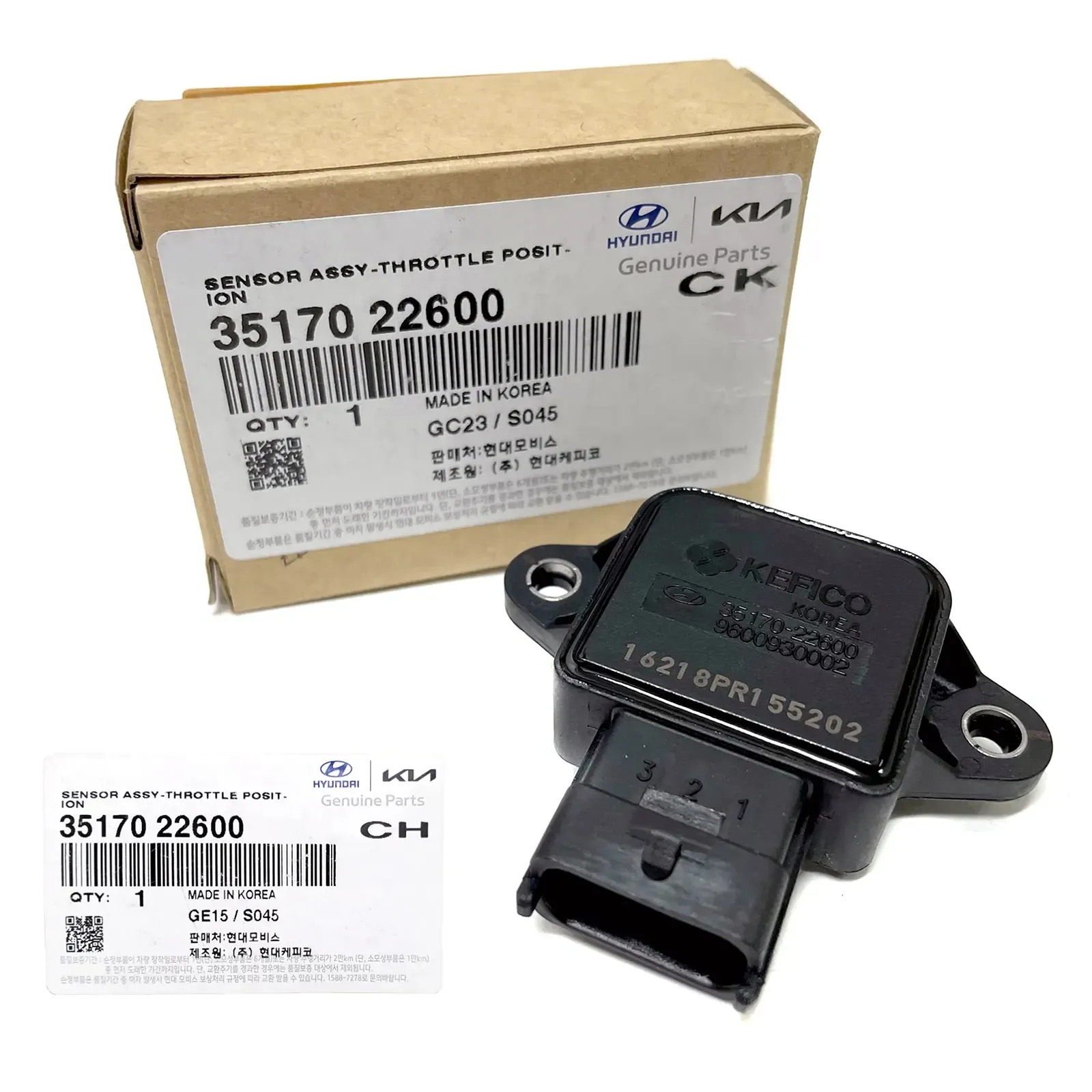

35170-22600
3517022600
35170-23500
3517023500

OTHER PART NUMBERS

BOSCH: 0280122014
DELPHI: SS10563-12B1
VEMO: V40-72-0384
VEMO: V40-72-0384-1
PIERBURG: 4.02003.53.0
WALKER PRODUCTS: 200-1322
WALKER PRODUCTS: 200-1422
Aftermarket: TPS9006
Aftermarket: TP050GEN

PACKAGE INCLUDES

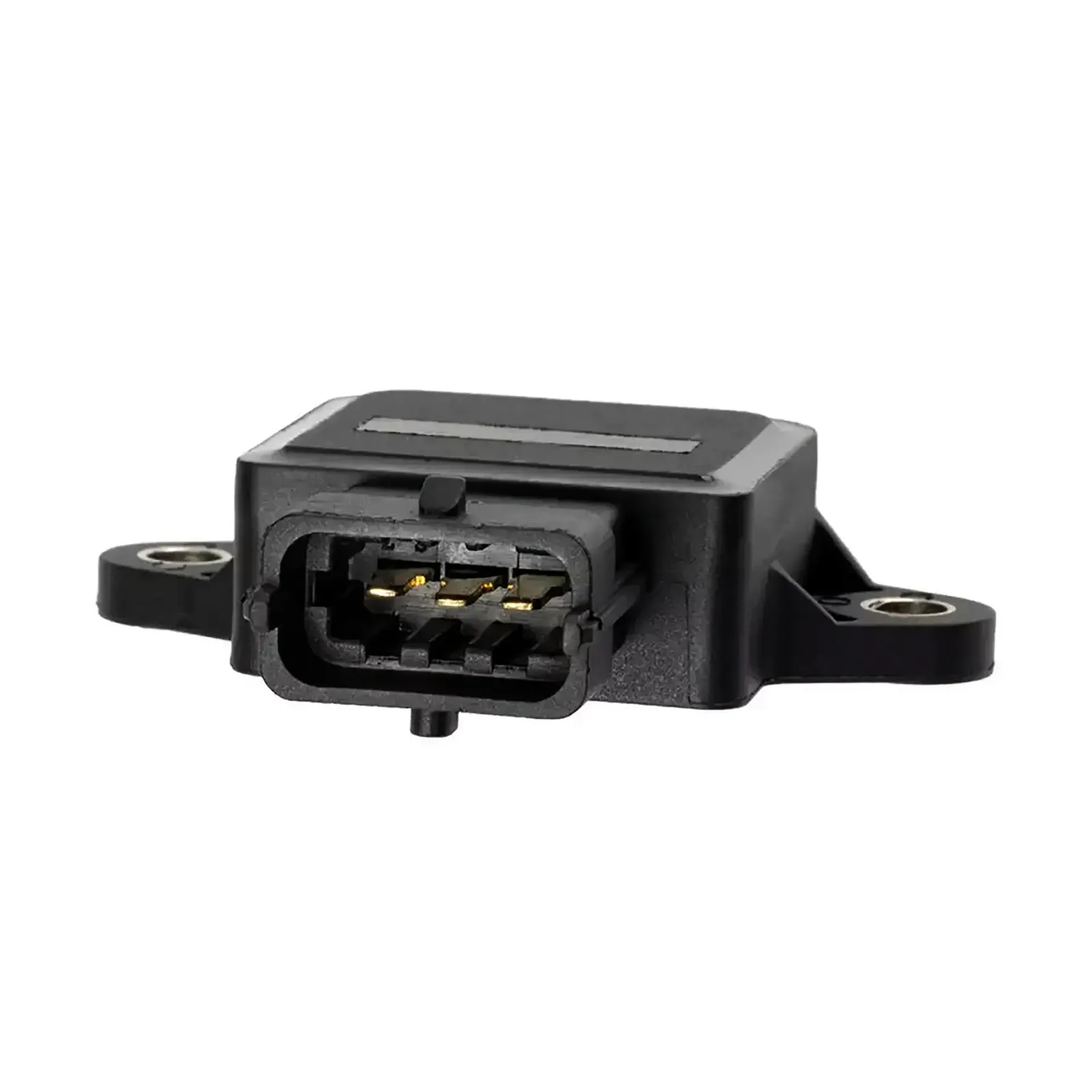

1 x Throttle Position Sensor - 3-pin rectangular connector

ABOUT THIS SENSOR

The throttle position sensor monitors the angle of the throttle plate and sends a continuous signal to the ECU to determine correct fuel delivery and ignition timing.

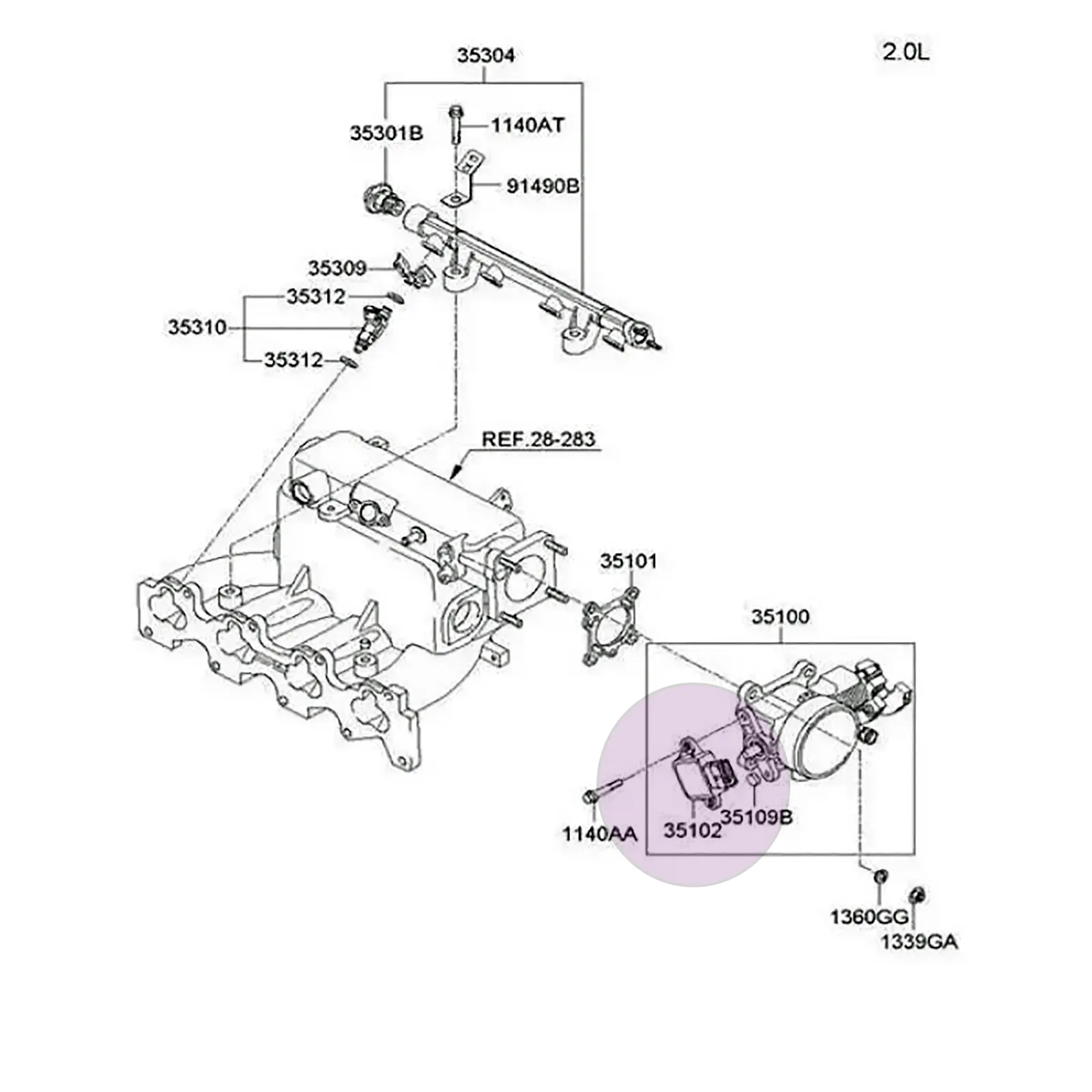

The G4GB and G4GC engines shared across the Elantra XD and Lavita FC use the same throttle body and sensor mounting, so wear patterns are identical across both models - watch for hesitation building gradually over months rather than failing outright.

COMMON SYMPTOMS OF FAILURE

Rough or unstable idle
Hesitation or stumble during acceleration
Idle that doesn't fully resolve after an IAC valve clean
Poor fuel economy
Sudden loss of power or limp mode
Fault codes P0121 P0122 P0123

[2000 - 2003] HYUNDAI ELANTRA XD 1.8L 4cyl G4BB G4GB 97kW
[2000 - 2003] HYUNDAI ELANTRA XD 2.0L 4cyl G4GC 104kW
[2003 - 2006] HYUNDAI ELANTRA XD 2.0L 4cyl G4GC 105kW
[2001 - 2004] HYUNDAI ELANTRA LAVITA FC 1.8L 4cyl G4GB 90kW

What fault codes does a faulty TPS trigger?

A faulty throttle position sensor typically triggers codes P0120 to P0124. P0120 and P0121 indicate the TPS signal is out of range, P0122 and P0123 indicate the signal is too low or too high, and P0124 indicates an intermittent signal. On drive-by-wire vehicles additional codes related to the electronic throttle control system may also be present.

Can a faulty TPS cause my automatic transmission to shift incorrectly?

Yes. The ECU shares throttle position data with the transmission control module to determine when to upshift and downshift. A faulty TPS sending incorrect throttle angle data can cause erratic shift points, harsh gear changes, the transmission hunting between gears, or the vehicle remaining in a fixed gear. Replacing the TPS often resolves transmission behaviour issues that appear unrelated.

Is it safe to drive with a faulty throttle position sensor?

It depends on how severely the sensor has failed. A partially failed TPS may cause hesitation and poor throttle response but the vehicle remains driveable. A fully failed TPS on a drive-by-wire vehicle can trigger limp mode, restricting the engine to a fixed low throttle position to prevent runaway acceleration. In either case replace the sensor as soon as possible as the fault can worsen without warning.

What are the symptoms of a faulty throttle position sensor?

Symptoms include jerky or hesitant acceleration, rough idle, unexpected surging, poor throttle response, stalling, and fault codes P0120-P0124. Drive-by-wire vehicles may also enter a limp mode limiting engine power.

Can I clean a throttle position sensor instead of replacing it?

TPS sensors are sealed units and cannot be cleaned or adjusted reliably. If the sensor is producing erratic signals or fault codes, replacement is the correct solution. Attempting to clean or adjust it usually results in continued faults.

Do I need to calibrate the throttle position sensor after replacement?

Many vehicles require a TPS calibration or throttle body relearn procedure after replacement. This is usually done with an OBD2 scanner or by following a specific ignition on/off sequence. Check your vehicle's service manual or contact us for guidance.

Identification
SKU	3517022600-Elantra
Brand	OEM
Part Numbers
Part Number	CTPS108
Reference OEM Number	35170-22600
Other OEM Numbers	35170-22600, 3517022600, 35170-23500, 3517023500
Related Part Numbers	CTPS108,TPS9006,TP050GEN,SS10563
Trade Part Numbers	BOSCH: 0280122014, VEMO: V40-72-0384, WALKER: 200-1322
Product Specifics
Product Type	SENSOR
Sensor Type	Throttle position sensor

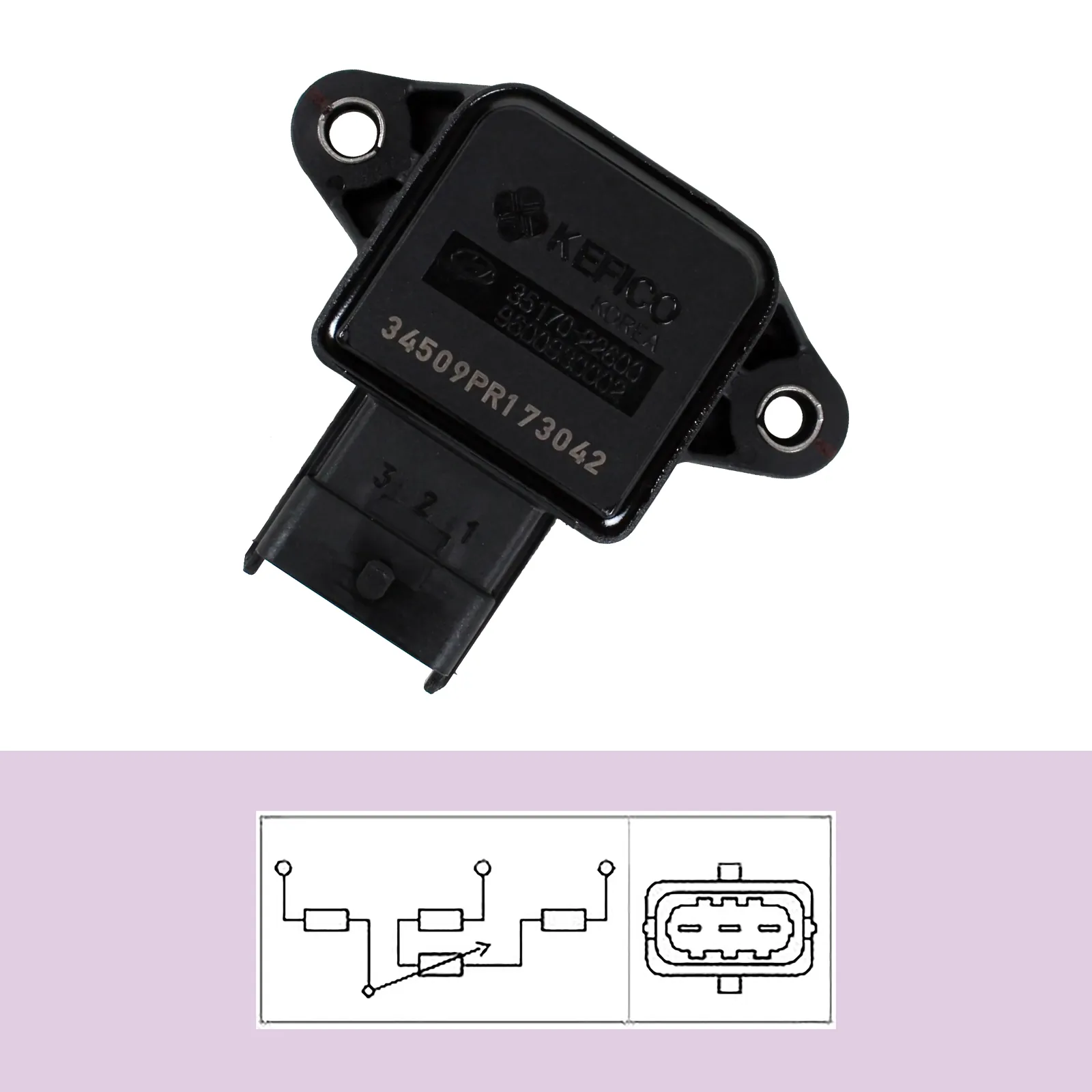

Number of pins	3-pin connector
Connector Shape	rectangular
Supplementary Article Info	without cable
Rated Voltage	12 V

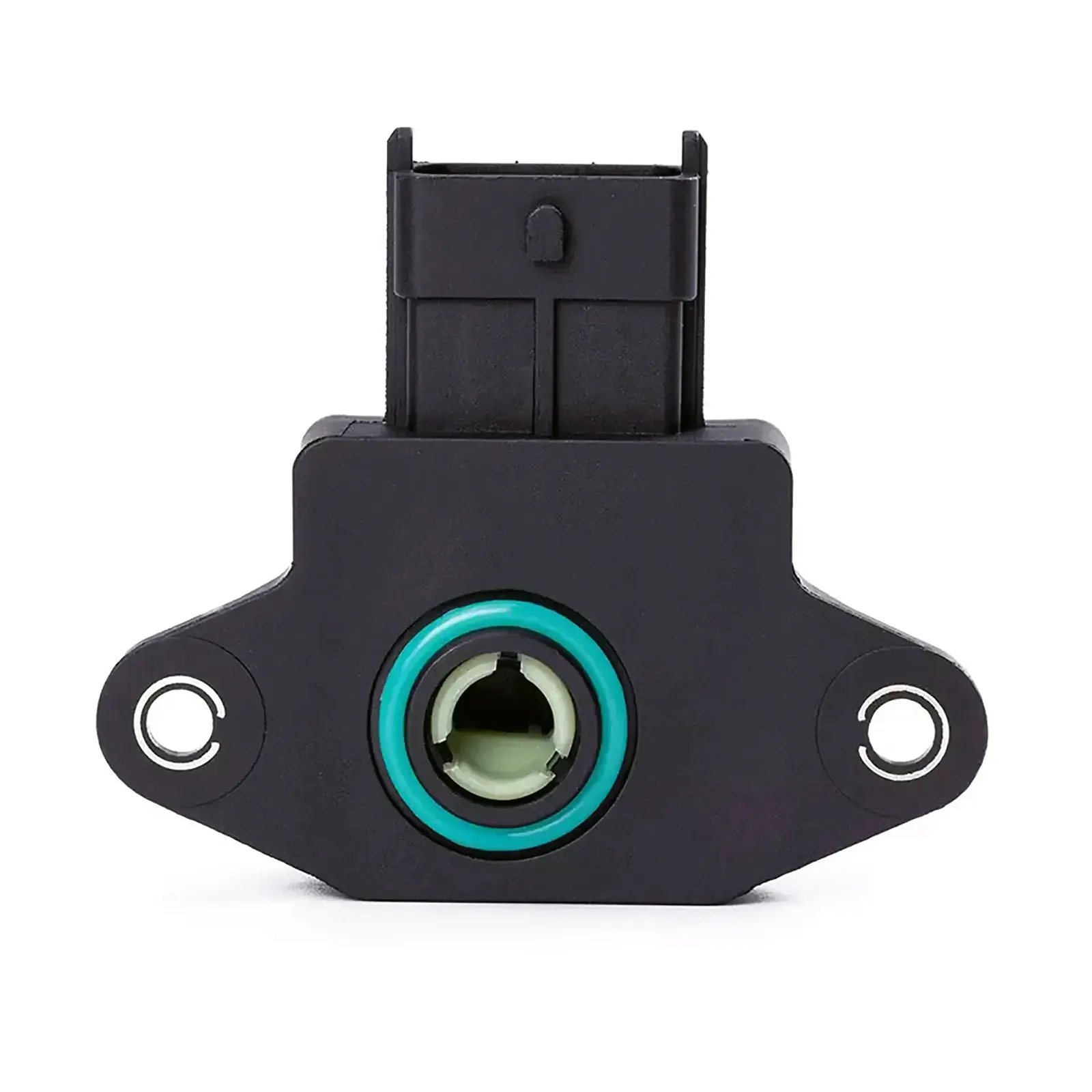

Number of mounting bores	2

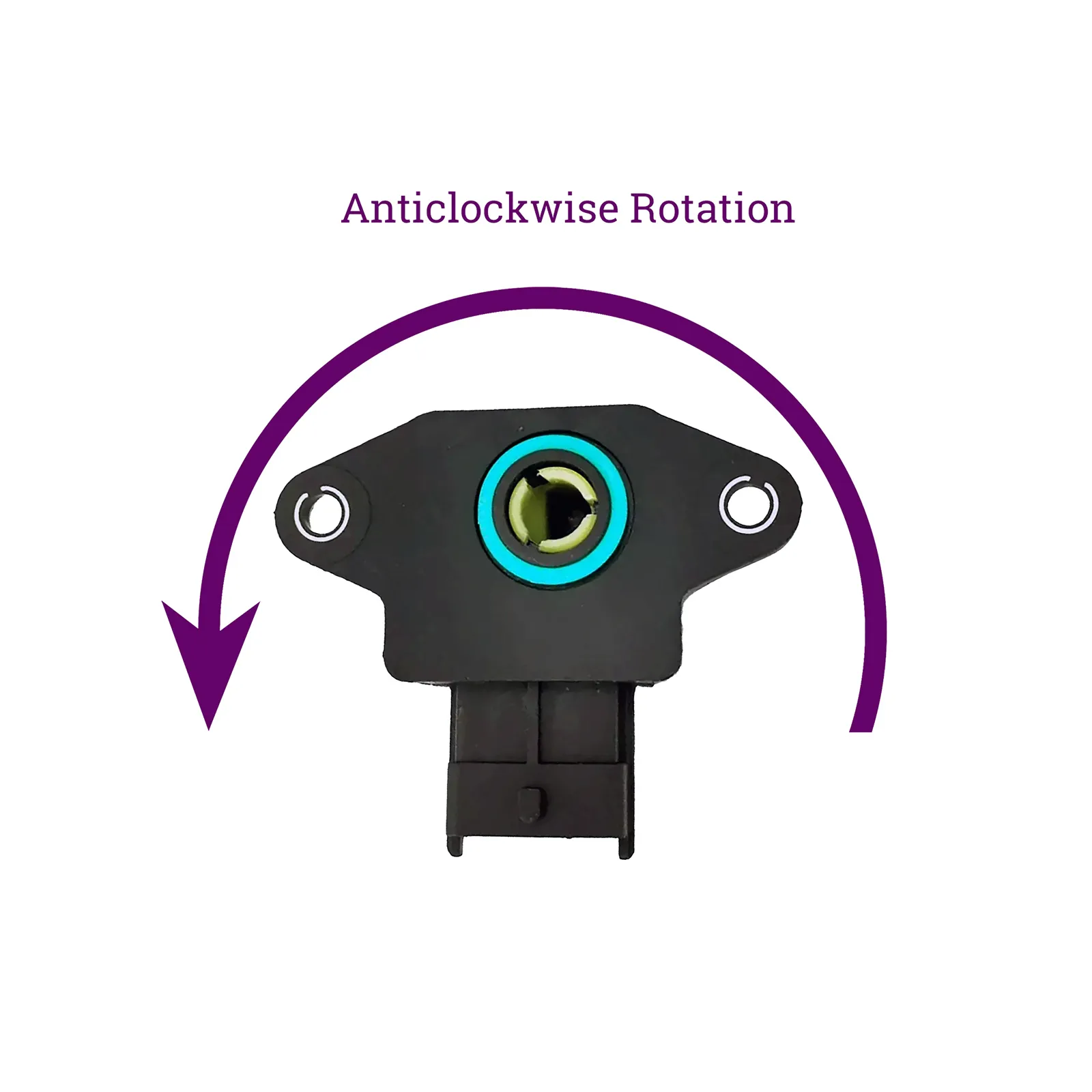

Rotation Direction	Anticlockwise rotation
Fitment Type	Direct Replacement
Other Details

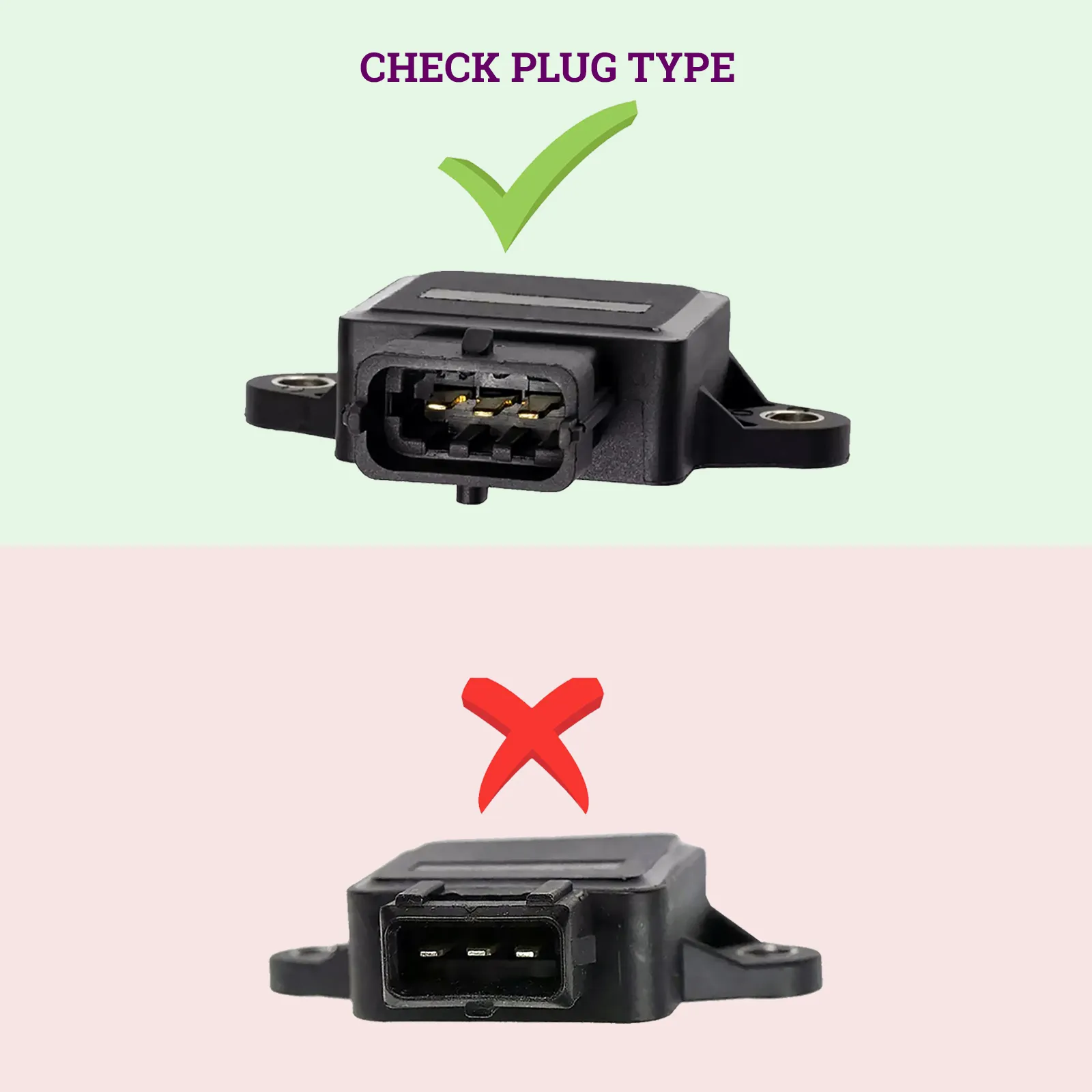

Note	Ribbed plug housing, 3 gold pins. Not the flat-blade type.
