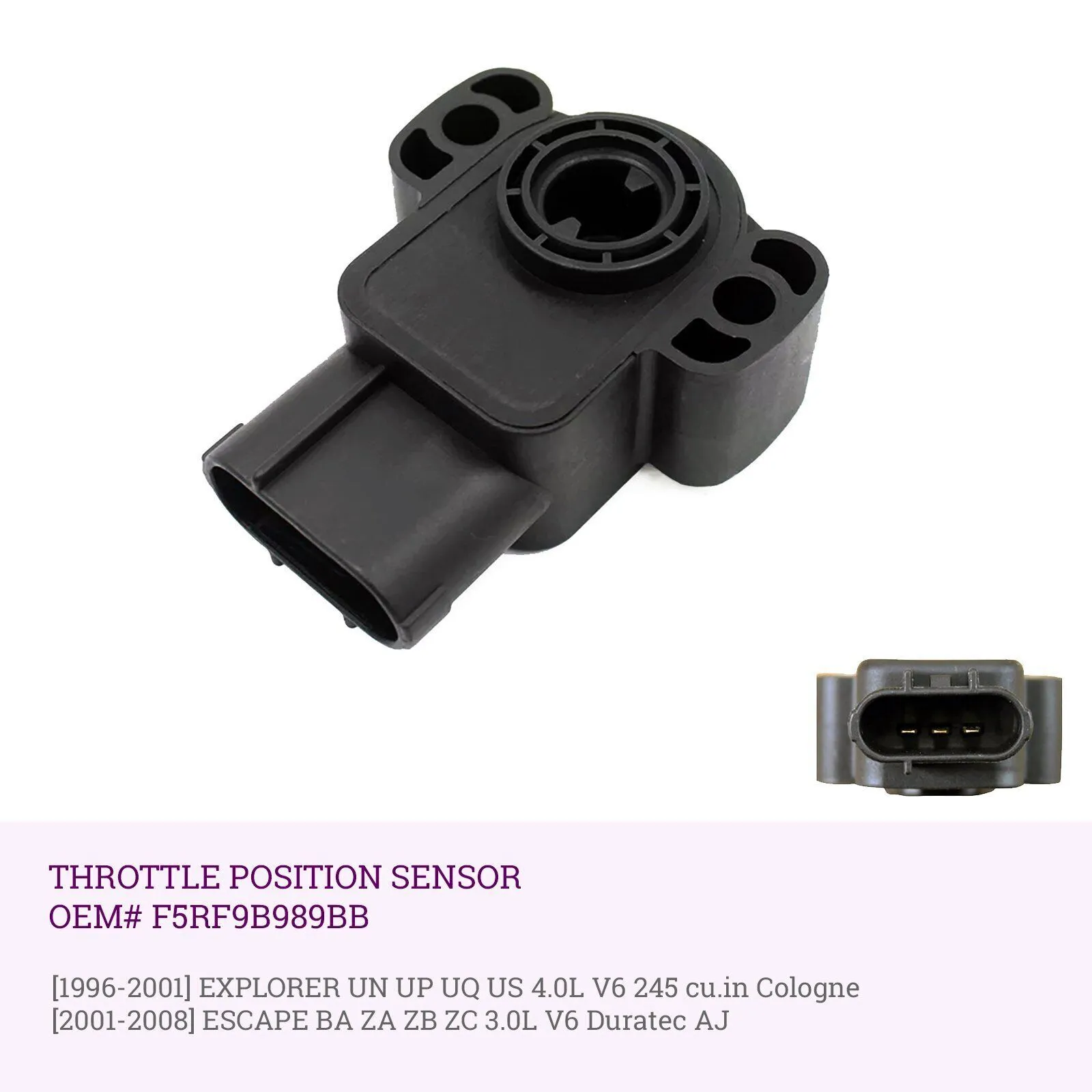

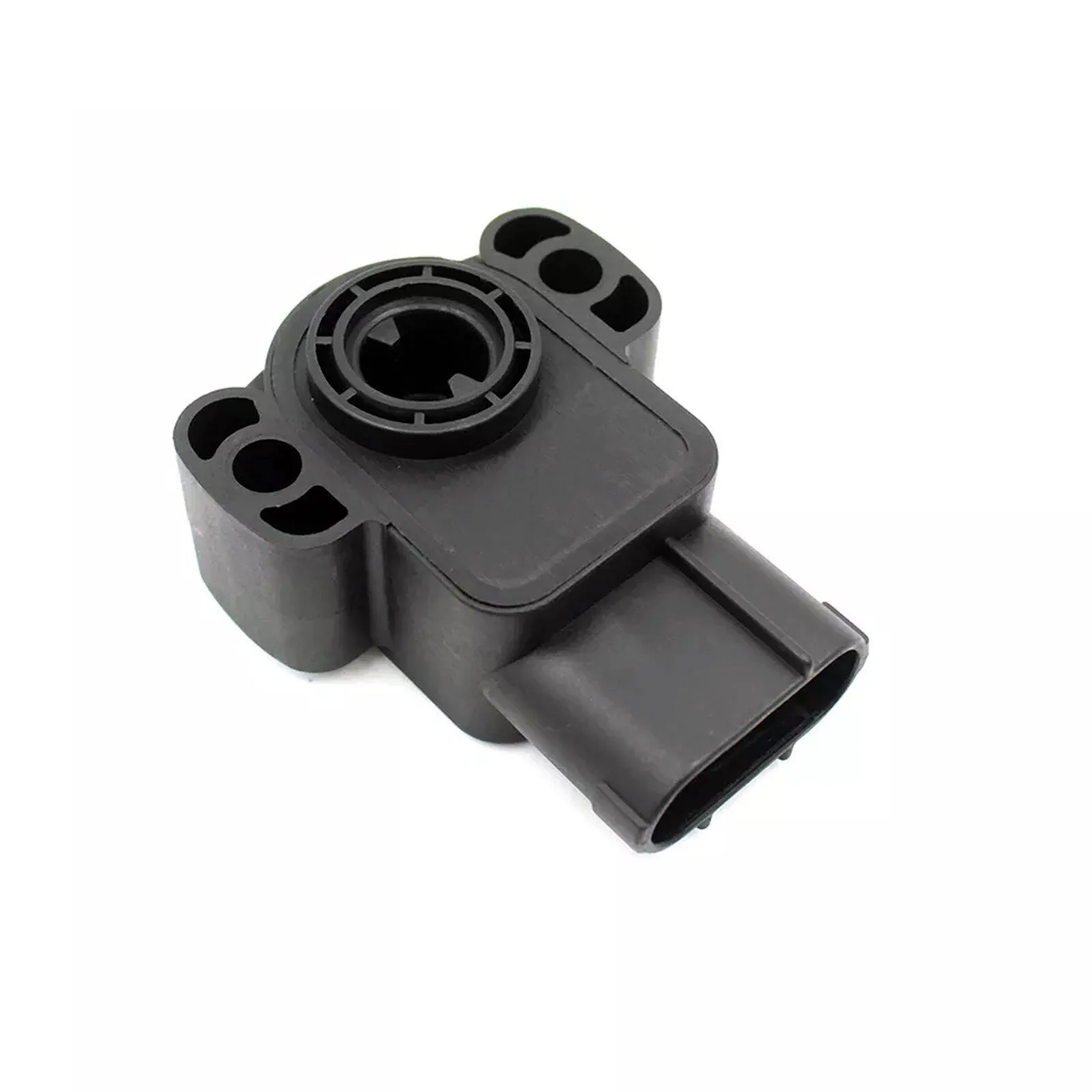

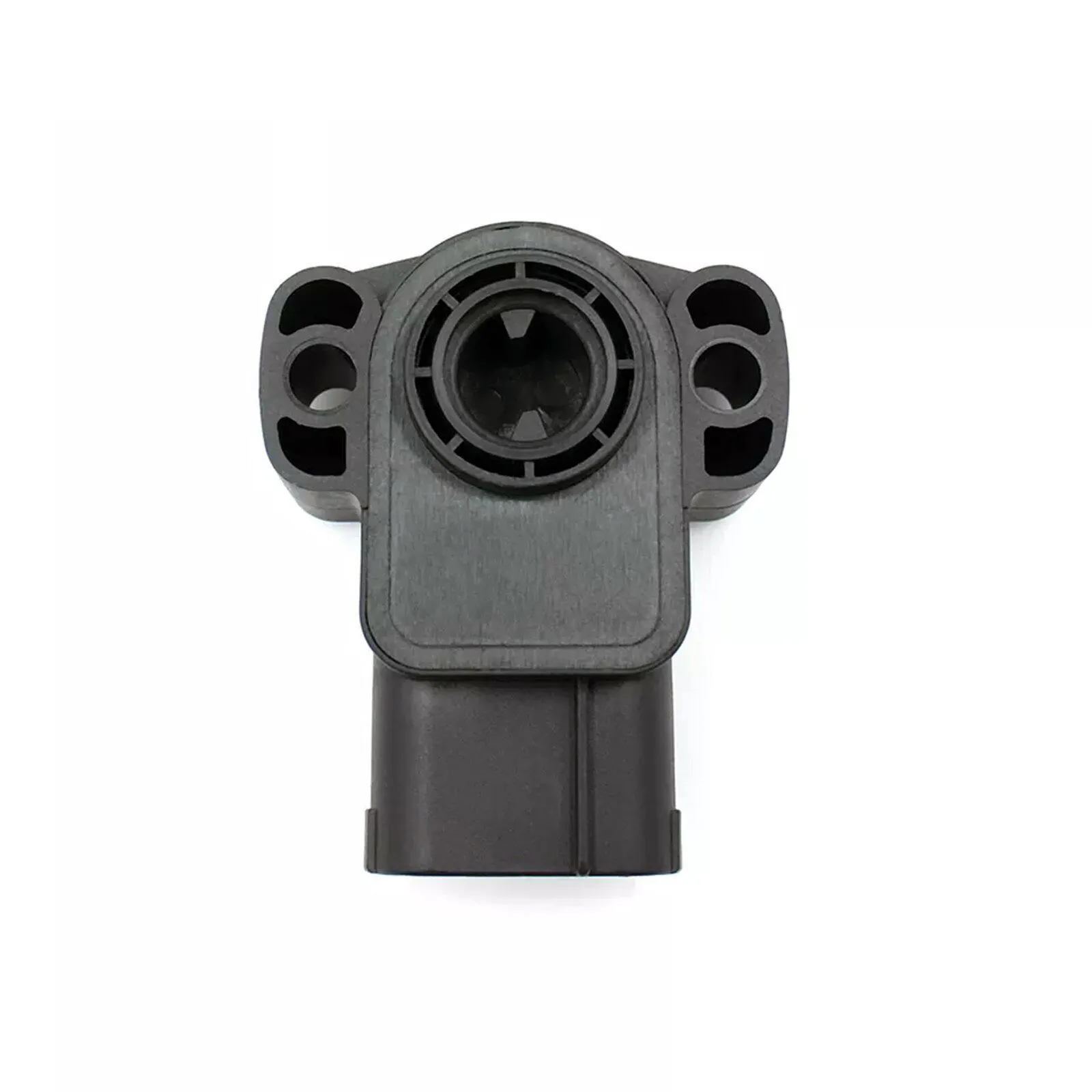

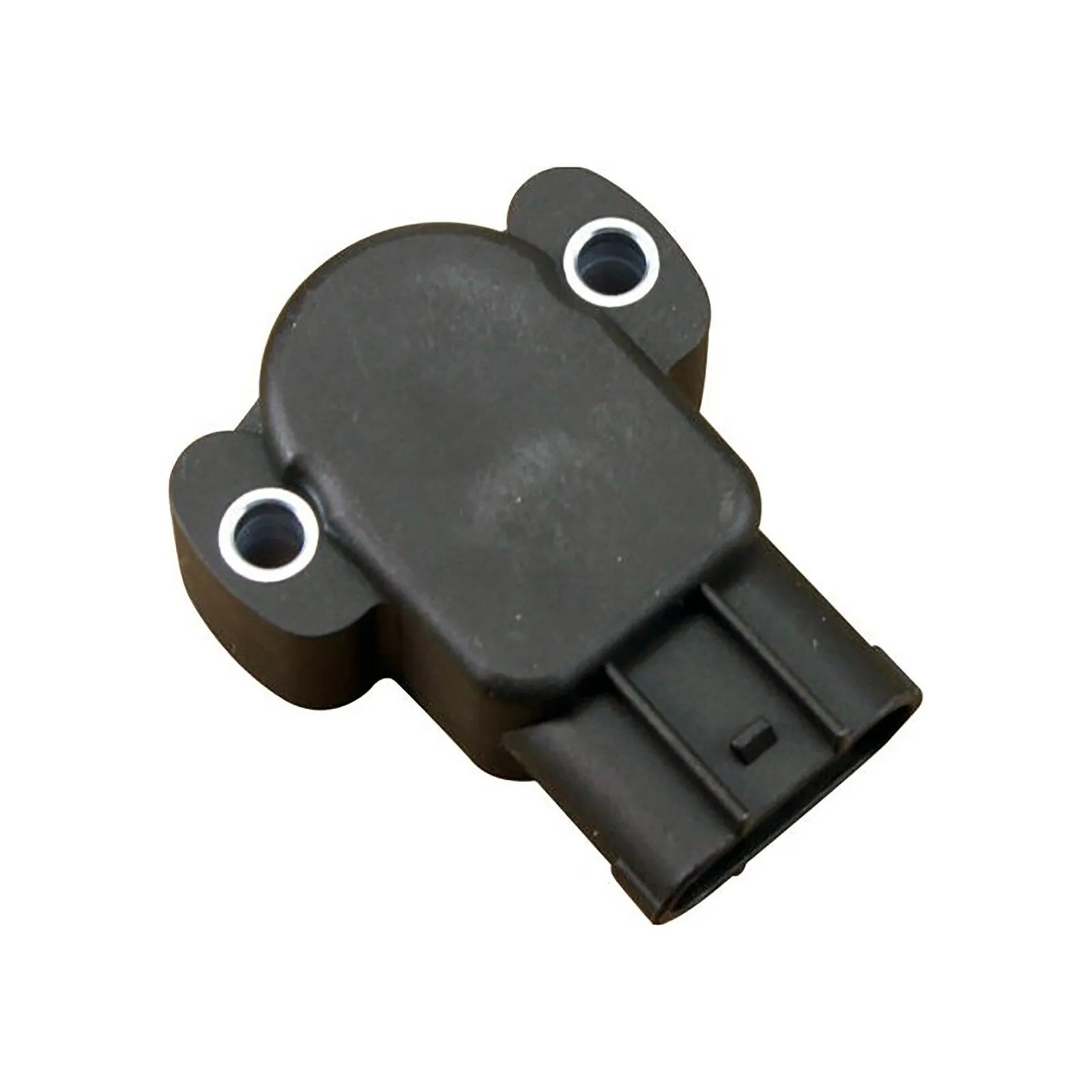

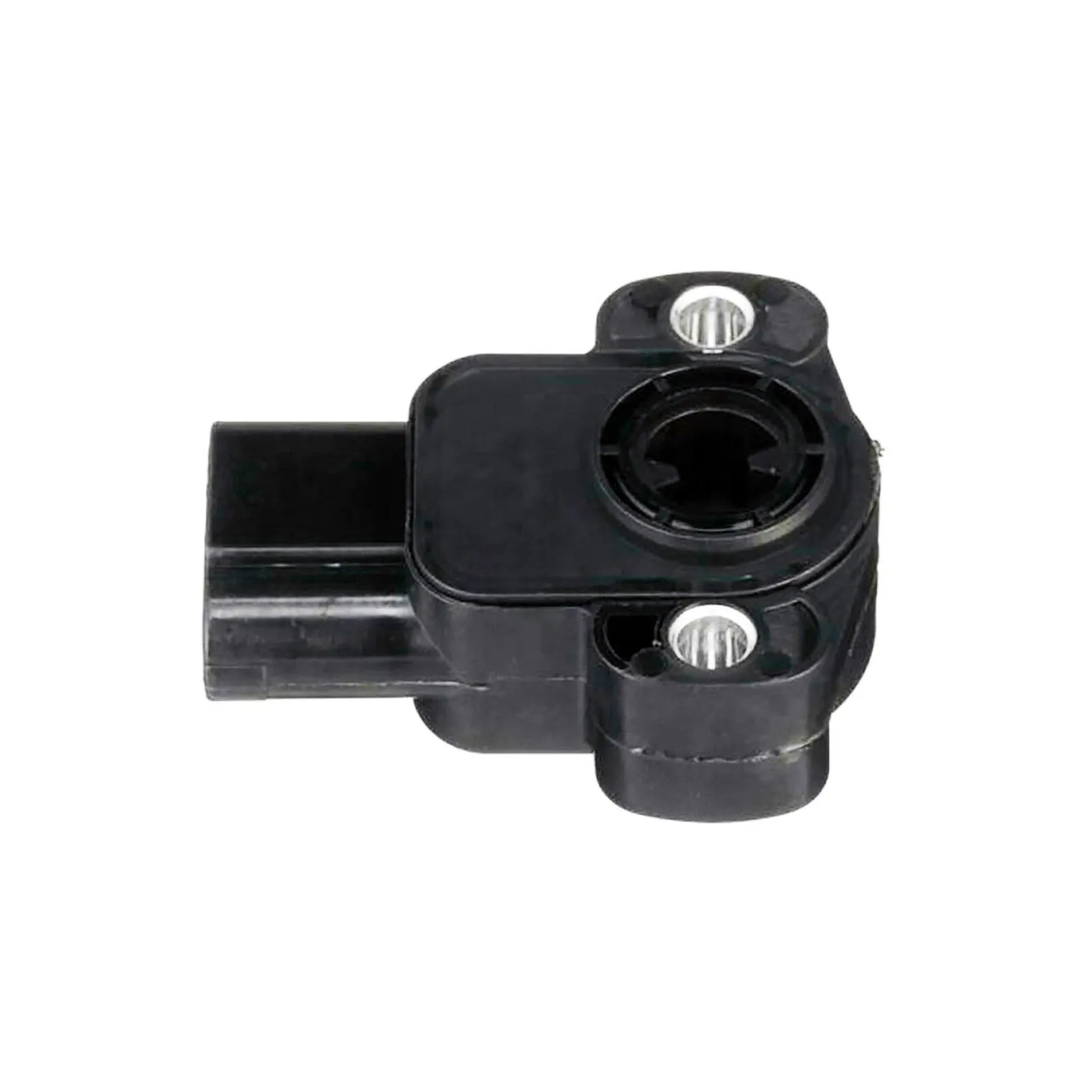

BRAND NEW OEM Quality THROTTLE POSITION SENSOR TO SUIT FORD / MAZDA

PLEASE COMPARE YOUR ORIGINAL SENSOR WITH THE IMAGES WE PROVIDED IN THE LISTING AND CHECK THE DETAILED VEHICLE LIST IN THE SUITABILITY SECTION.

TO SUIT:

[2004-2006] FORD COURIER PH 4.0L V6 1V 154kw
[1999-2002] FORD COUGAR SW SX 2.5L V6 Duratec
[2000-2002] FORD MONDEO HE ST24 2.5L V6 Duratec SEA 125kw
[1996-2001] FORD EXPLORER UN UP UQ US 4.0L V6 245 cu.in Cologne
[2001-2008] FORD ESCAPE BA ZA ZB ZC 3.0L V6 Duratec AJ

[2002-2006] MAZDA MPV LW 3.0L V6 AJ
[2001-2008] MAZDA TRIBUTE EP 3.0L V6 AJ

OEM# F5RF9B989BB

for OE No: F5RF 9B989 BB, AJ03 18 911A
Number of pins: 3 -pin connector
Connector Shape: oval
Number of mounting bores: 2

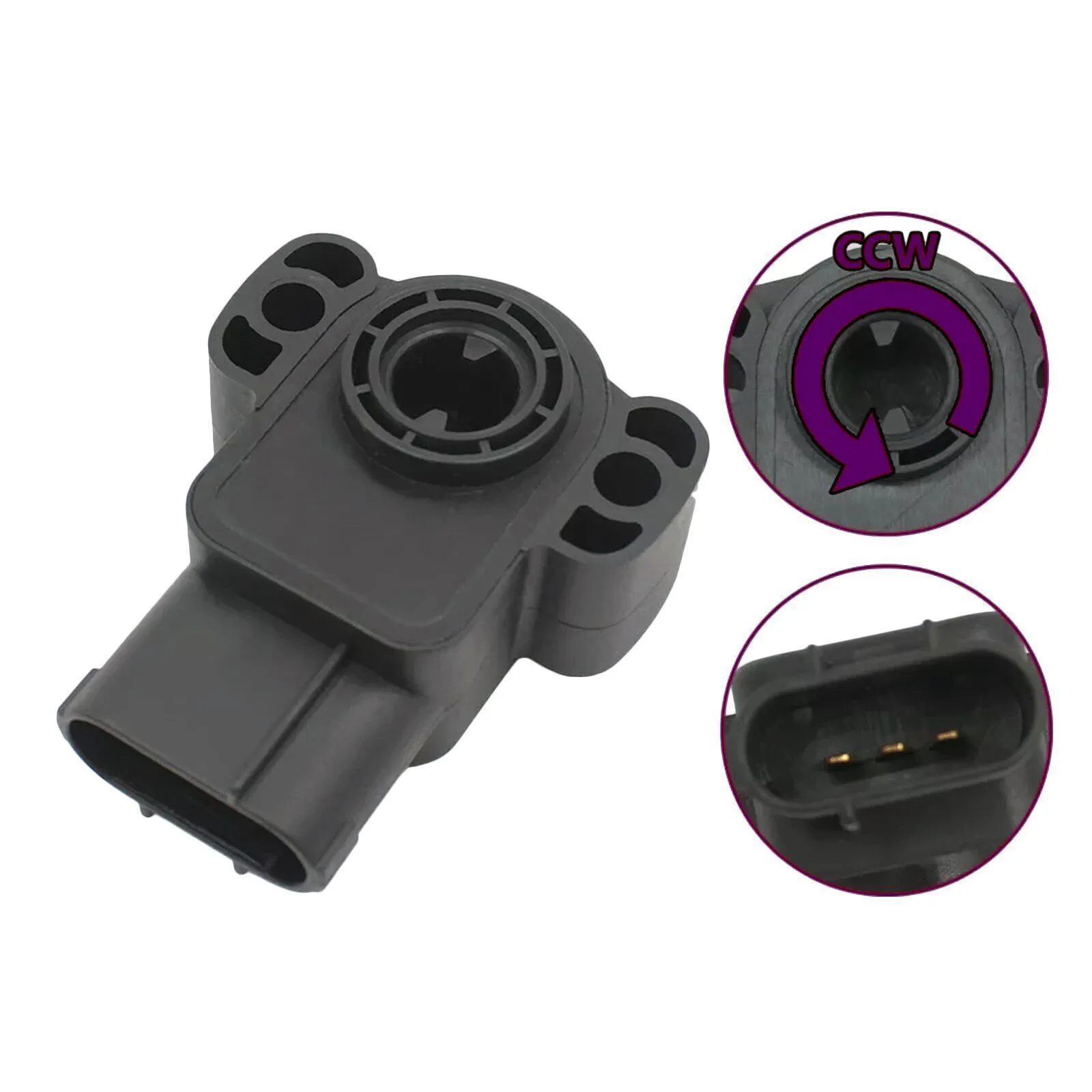

Rotation Direction: Anticlockwise rotation
Supplementary Article/Info 2: without cable

Features:

High Quality
OEM Fit and Design
Easy install
Simple operation
AU Seller-Fast and Free Shipping

Package Includes:

1* THROTTLE POSITION SENSOR. (3 PIN PLUG) A throttle position sensor (TPS) is located on the throttle body to monitor the air intake of an engine. It detects the position of the throttle body butterfly, plate, or spindle, and sends it to the ECU. The ECU utilizes this input to decide the fuel requirement and spark timing to ensure safe and smooth engine performance.

ABOUT YOUR VEHICLE'S THROTTLE POSITION SENSOR

What does a Throttle Position Sensor do?
The Throttle Position sensor moves with the throttle and sends a voltage signal to the computer indicating throttle angle and speed of movement data. The computer uses this data to measure engine load, adjust timing, fuel delivery, EGR, converter clutch operation, and transparent flood mode.

Where is the Throttle Position Sensor located?
The TPS is mounted on the throttle body.

Will a malfunctioning TPS illuminate the check engine light or affect vehicle operation?
A failing TPS can illuminate the MIL, and cause the engine to hesitate upon acceleration or experience idling problems.

What are the common causes of failure?
Typically these sensors fail due to the constant contact of the movable wiper arm over the sensor element and the exposure to the high underhood heat.

How to determine if the TPS is malfunctioning?
Look for smooth voltage changes on the signal wire as the throttle plate opens and closes. The diagnostic codes range from P0120 through P0125.

What fault codes does a faulty TPS trigger?

A faulty throttle position sensor typically triggers codes P0120 to P0124. P0120 and P0121 indicate the TPS signal is out of range, P0122 and P0123 indicate the signal is too low or too high, and P0124 indicates an intermittent signal. On drive-by-wire vehicles additional codes related to the electronic throttle control system may also be present.

Can a faulty TPS cause my automatic transmission to shift incorrectly?

Yes. The ECU shares throttle position data with the transmission control module to determine when to upshift and downshift. A faulty TPS sending incorrect throttle angle data can cause erratic shift points, harsh gear changes, the transmission hunting between gears, or the vehicle remaining in a fixed gear. Replacing the TPS often resolves transmission behaviour issues that appear unrelated.

Is it safe to drive with a faulty throttle position sensor?

It depends on how severely the sensor has failed. A partially failed TPS may cause hesitation and poor throttle response but the vehicle remains driveable. A fully failed TPS on a drive-by-wire vehicle can trigger limp mode, restricting the engine to a fixed low throttle position to prevent runaway acceleration. In either case replace the sensor as soon as possible as the fault can worsen without warning.

What are the symptoms of a faulty throttle position sensor?

Symptoms include jerky or hesitant acceleration, rough idle, unexpected surging, poor throttle response, stalling, and fault codes P0120-P0124. Drive-by-wire vehicles may also enter a limp mode limiting engine power.

Can I clean a throttle position sensor instead of replacing it?

TPS sensors are sealed units and cannot be cleaned or adjusted reliably. If the sensor is producing erratic signals or fault codes, replacement is the correct solution. Attempting to clean or adjust it usually results in continued faults.

Do I need to calibrate the throttle position sensor after replacement?

Many vehicles require a TPS calibration or throttle body relearn procedure after replacement. This is usually done with an OBD2 scanner or by following a specific ignition on/off sequence. Check your vehicle's service manual or contact us for guidance.

Identification
SKU	CTPS202-3
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	F5RF9B989BB
Reference OEM Number	AJ0318911A
Other OEM Numbers	AJ0318911A, DY968, F5RF9B989BB
Related Part Numbers	CTPS202, DY-968, TP082
Product Specifics
Sensor Type	Throttle position sensor
Placement On Vehicle	Throttle Body
Type	Sensor
Features	Direct Fit
Reference Oe/oem Number	AJ0318911A
Manufacturer Warranty	1 Year
Oem	F5RF9B989BB
Make	Mazda
Interchange Part Number	TP082
Other Details
Note	Always verify fitment using your vehicle's OEM part number.
Unit Of Measure	ea
