Name: Crank Angle Sensor 1KDFTV Landcruiser Prado KDJ120R KDJ150R 06-15
Brand: Aftermarket OEM Replacement
SKU: CSCA410-1
Price: 94.50 AUD
Availability: InStock

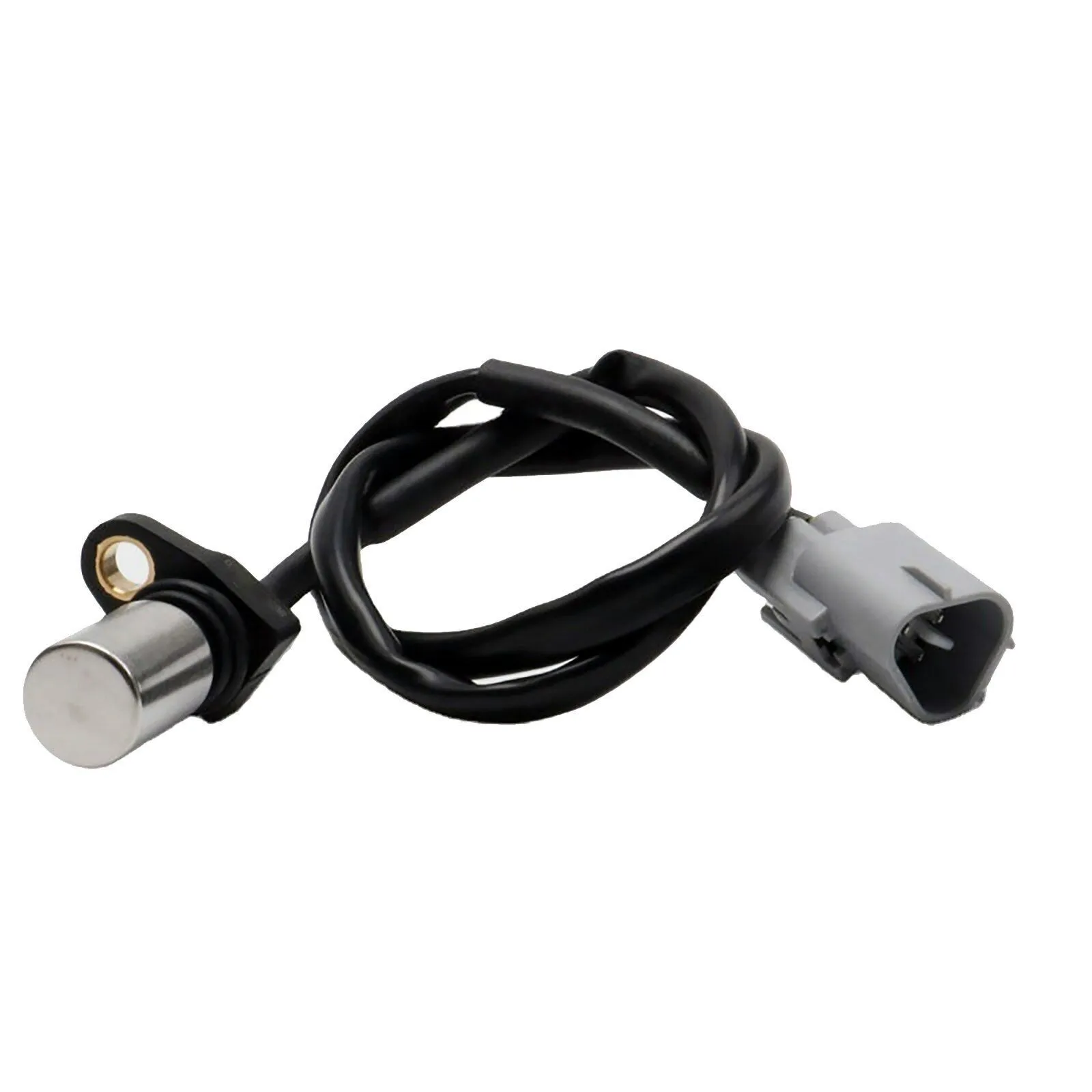

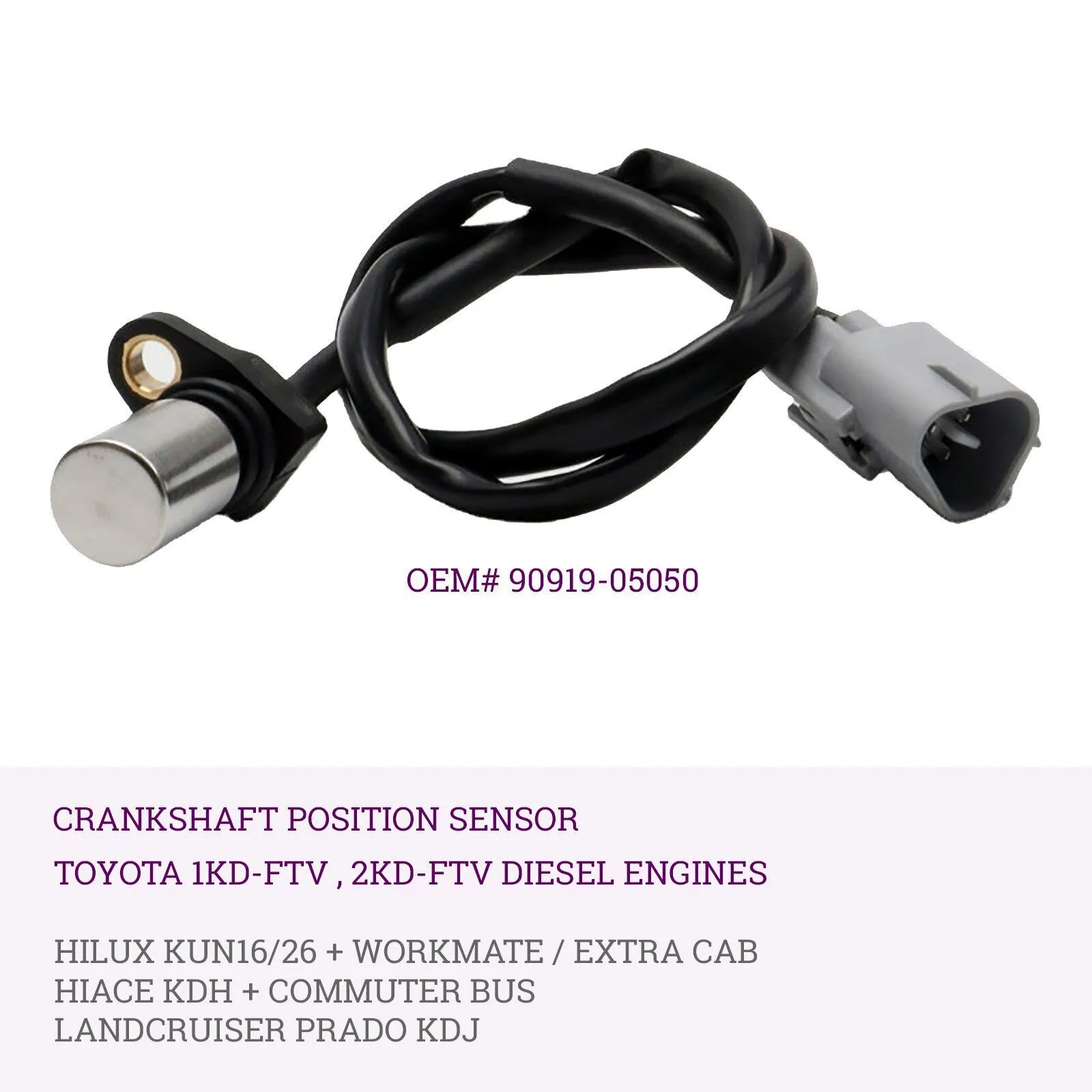

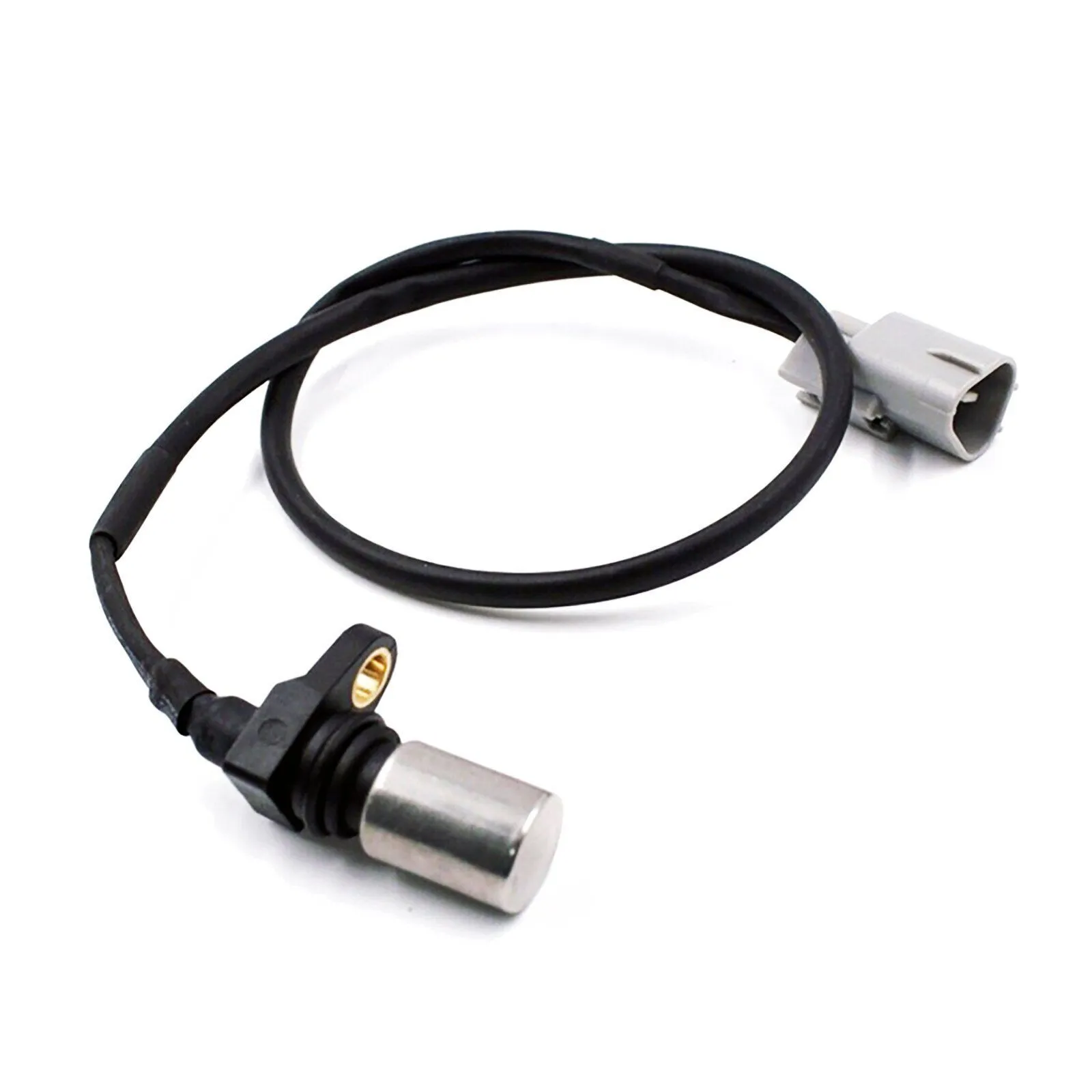

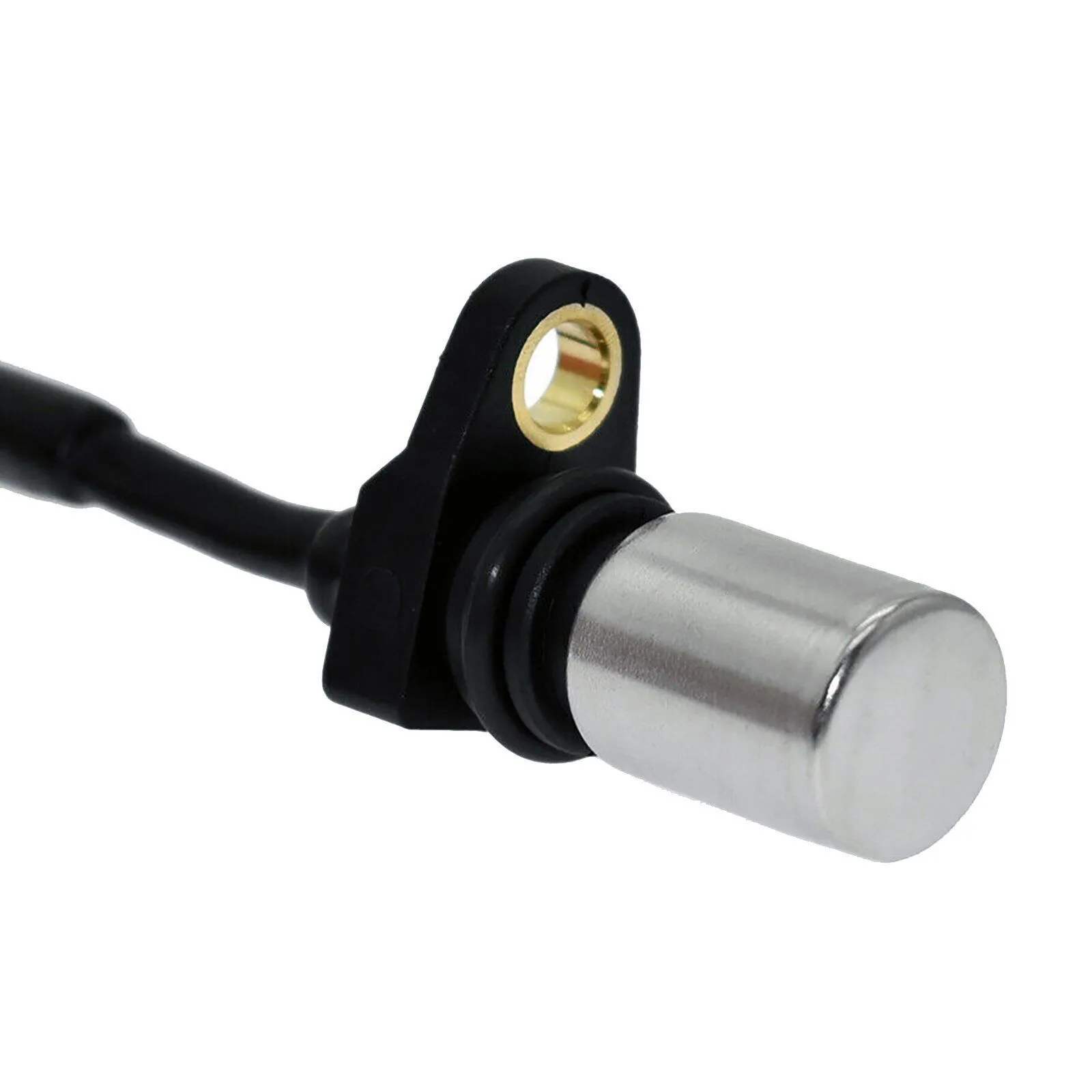

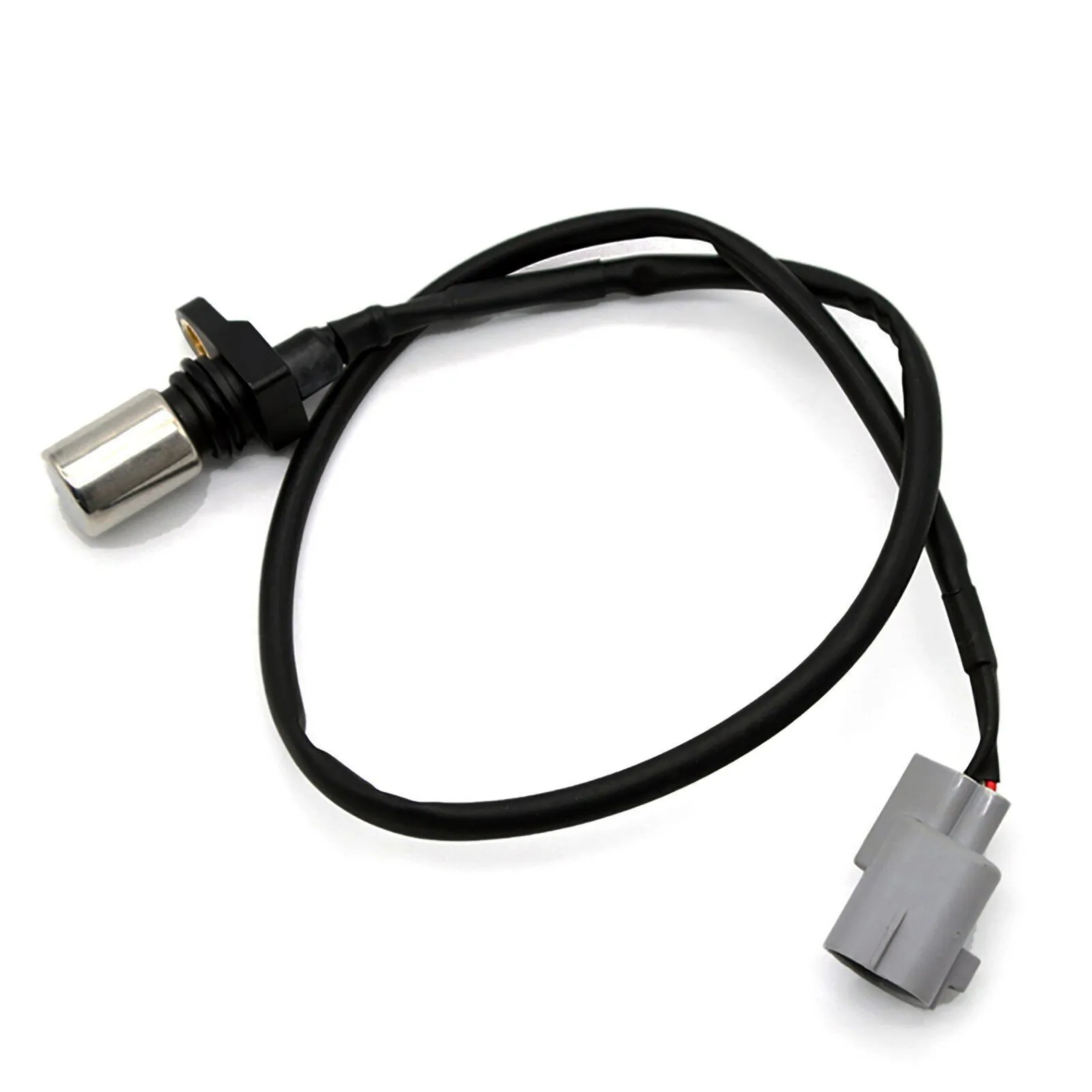

BRAND NEW OEM Quality CRANKSHAFT POSITION SENSOR TO SUIT TOYOTA 1KD-FTV / 2KD-FTV DIESEL ENGINES

PLEASE COMPARE YOUR ORIGINAL SENSOR WITH THE IMAGES WE PROVIDED IN THE LISTING AND CHECK THE DETAILED VEHICLE LIST IN THE SUITABILITY SECTION.

TO SUIT:

TOYOTA 3.0L 1KD-FTV ENGINE
[2005-2015] HILUX KUN16R / KUN26R + WORKMATE / EXTRA CAB
[2006-2015] LANDCRUISER PRADO KDJ120R / KDJ150R
[2006-2019] HIACE KDH201R / KDH223R

TOYOTA 2.5L 2KD-FTV ENGINE
[2005-2006] HIACE KDH200R / KDH220R / KDH222R

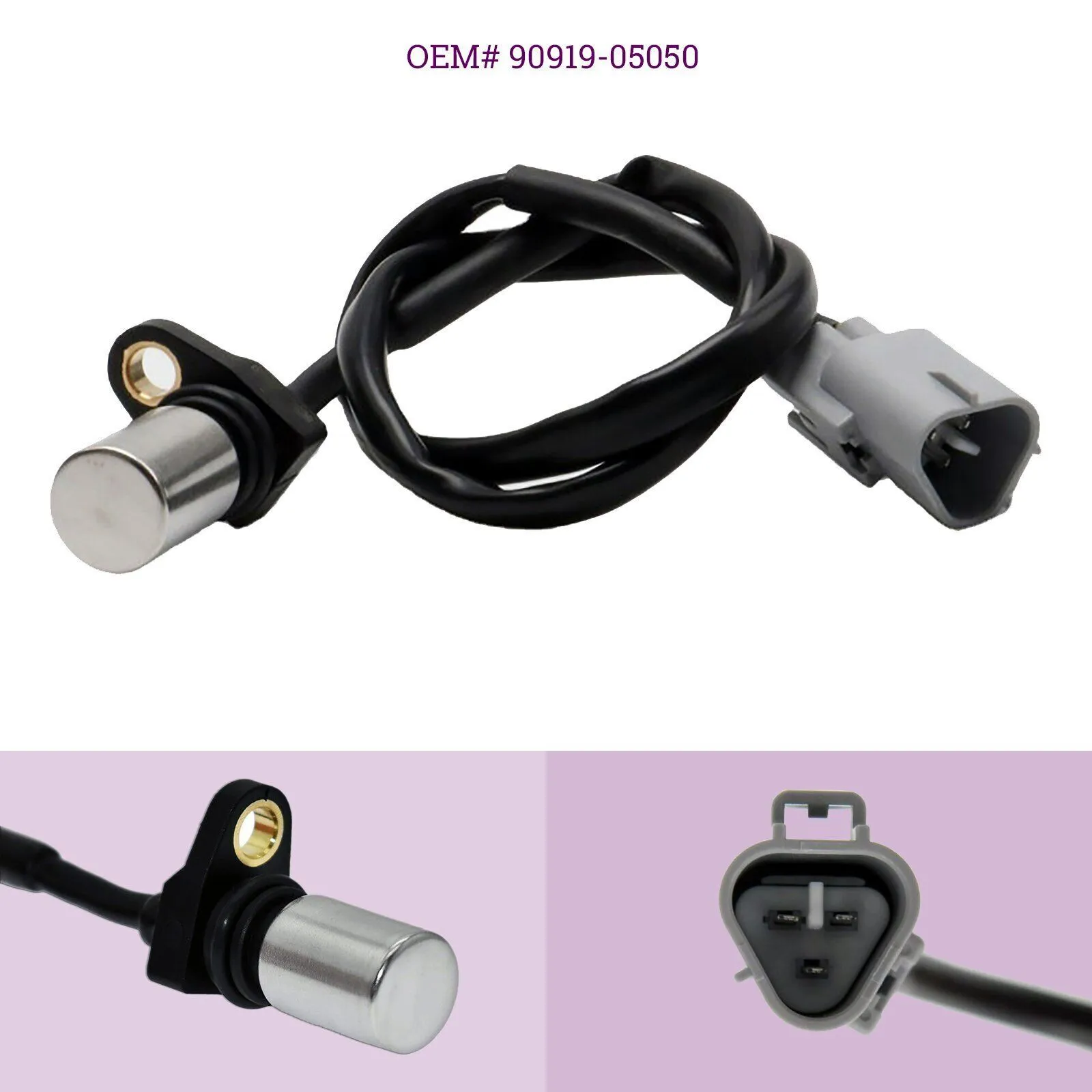

OEM# 9091905050, 90919-05066, 029600-1151

for OE No: 90919-05050

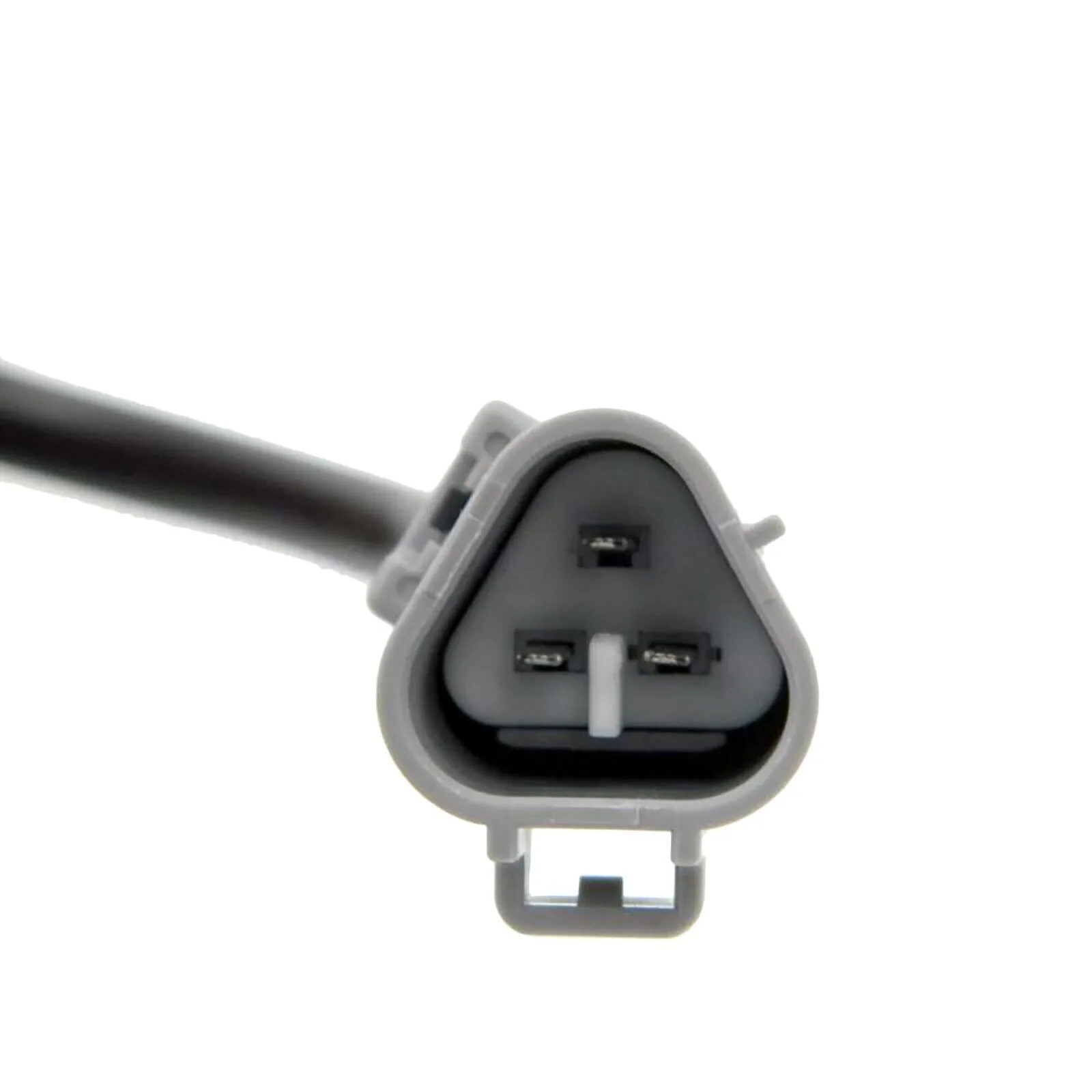

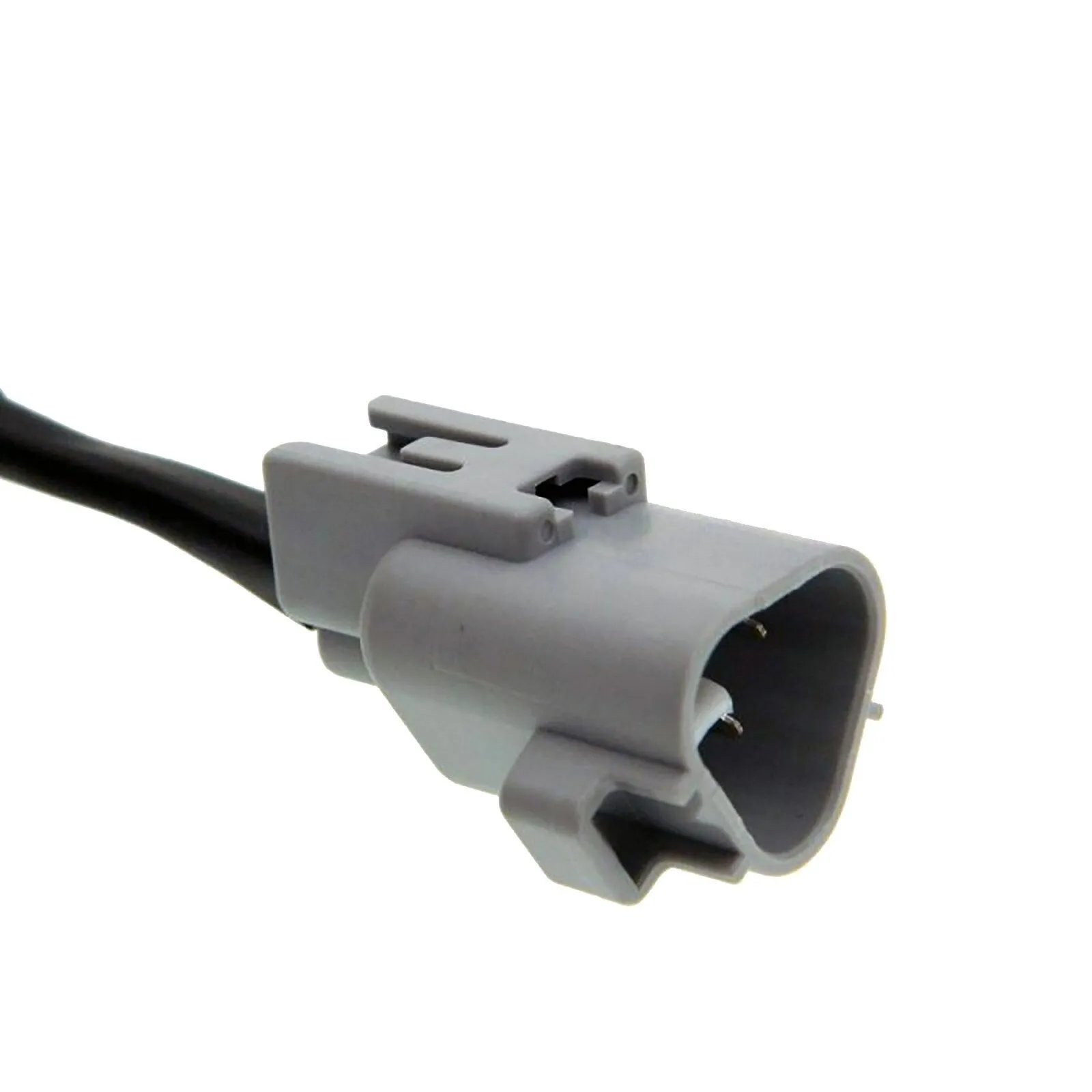

Number of pins: 3 -pin connector
Connector Shape: triangular
Cable Length: 550 mm
Sensor Type: Inductive Sensor
Resistor: 2.3 kOhm
Fitting Depth: 36 mm

Features:

High Quality
OEM Fit and Design
Easy install
Simple operation
AU Seller-Fast and Free Shipping

Package Includes:

1* CRANKSHAFT POSITION SENSOR (3-PIN PLUG)

The crankshaft position sensor is an engine management component found on virtually all modern vehicles with internal combustion engines. It monitors the position and rotational speed of the crankshaft and sends the information to the engine control unit so it can make appropriate adjustments based on operating conditions. The crankshaft speed and position are some of the most important parameters used in engine management calculations, and many engines cannot run if the crankshaft position sensor is not providing an accurate signal.

Faulty crankshaft position sensor symptoms:

Issues Starting the Vehicle
Intermittent Stalling
Check Engine Light Comes On
Uneven Acceleration
Engine Misfires or Vibrates
Rough Idle and/or Vibrating Engine
Reduced Gas Mileage

COMPATIBLE VEHICLES:

TOYOTA HIACE KDH200R 2.5L 4cyl 2KD-FTV [01/05 - 12/06]
TOYOTA HIACE KDH201R 3.0L 4cyl 1KD-FTV [01/06 - 12/19]
TOYOTA HIACE KDH220R 2.5L 4cyl 2KD-FTV [01/05 - 12/06]
TOYOTA HIACE KDH222R 2.5L 4cyl 2KD-FTV [01/05 - 12/06]
TOYOTA HIACE KDH223R 3.0L 4cyl 1KD-FTV [01/06 - 12/19]

TOYOTA HILUX KUN16R 3.0L 4cyl 1KD-FTV [01/05 - 12/15]
TOYOTA HILUX KUN26R 3.0L 4cyl 1KD-FTV [01/05 - 12/13]
TOYOTA HILUX KUN26R 3.0L 4cyl 1KD-FTV [01/05 - 12/15]
TOYOTA HILUX KUN26R 3.0L 4cyl 1KD-FTV [01/13 - 12/15]

TOYOTA LANDCRUISER PRADO KDJ120R 3.0L 4cyl 1KD-FTV [11/06 - 10/09] 127kW
TOYOTA LANDCRUISER PRADO KDJ150R 3.0L 4cyl 1KD-FTV [11/09 - 05/15] 127kW

How do I test a crankshaft or camshaft position sensor?

Use an OBD2 scanner to check for fault codes P0335 to P0338 (crankshaft) or P0340 to P0349 (camshaft). You can also test the sensor with a multimeter - inductive sensors should show resistance between 200 and 1,000 ohms, while Hall effect sensors require a live voltage test with the engine cranking. Erratic or absent RPM signal on a live data scanner is a strong indicator of sensor failure.

Can a cam or crank sensor fault cause my vehicle to go into limp mode?

Yes. A faulty crankshaft position sensor in particular can cause the ECU to lose engine speed and position data entirely, which may trigger limp mode or prevent the engine from starting. A faulty camshaft sensor on variable valve timing engines can cause the VVT system to default to a fixed position, significantly reducing power and fuel economy.

Do cam and crank sensors need to be programmed after replacement?

In most cases no - aftermarket OEM replacement sensors are direct plug-in replacements that require no programming. However some vehicles, particularly late model European makes including BMW and Mercedes-Benz, may require a crankshaft adaptation reset using a dealer-level scan tool after replacement. Check your vehicle service information before replacing the sensor.

What are the symptoms of a faulty crankshaft position sensor?

Symptoms include intermittent stalling, engine not starting, rough idle, misfires, and a Check Engine light with codes P0335-P0338. In severe cases the engine will crank but not start as the ECU cannot determine crank position for ignition timing.

What are the symptoms of a faulty camshaft position sensor?

Symptoms include poor performance, misfires, difficulty starting, rough idle, and fault codes P0340-P0343. Variable valve timing systems (VVT) will also be affected, causing sluggish response and increased fuel consumption.

Can I drive with a bad crankshaft position sensor?

If the sensor has failed completely the engine will not start or will stall and not restart. If it is intermittently failing, driving is dangerous - the engine can cut out without warning. Replace it immediately.

Do I need to replace both the cam and crank sensor at the same time?

Not necessarily - replace whichever has failed based on fault codes and diagnosis. However, if your vehicle has high kilometres and one has failed, it is worth considering replacing both as they are similar in age and condition.

Identification
SKU	CSCA410-1
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	CSCA410
Reference OEM Number	90919-05050
Other OEM Numbers	029600-1151, 90919-05066, 9091905050
Related Part Numbers	CAS-267, CAS-278, CSCA410, SC487, TCAS236
Product Specifics
Sensor Type	CRANKSHAFT POSITION SENSOR
Type	Sensor
Features	Direct Fit
Reference Oe/oem Number	90919-05050
Manufacturer Warranty	1 Year
Oem	9091905050
Make	Toyota
Model	HILUX
Second Part Number	TCAS236
Compatible Vehicles	TOYOTA 1KD-FTV 2KD-FTV HILUX HIACE PRADO
Other Details
Note	Always verify fitment using your vehicle's OEM part number.
Unit Of Measure	ea
