MAP Sensor for Jeep Grand Cherokee Wrangler Cherokee Commander Dodge Nitro CRD
Heavy Duty Fit Replaces 5149203AA
BRAND NEW *OEM Quality* MAP sensor to suit Jeep Cherokee, Commander, Grand Cherokee and Wrangler and the Dodge Nitro with 2.8L and 3.0L CRD diesel engines.
A diesel Jeep that loses power on a hill or sits in limp mode is a real problem off the beaten track. This direct fit replacement ships Australia-wide by express.
TO SUIT
- Jeep Cherokee KJ 2.8L ENR CRD (110kW and 120kW), 11/2002 to 01/2008
- Jeep Cherokee KK 2.8L ENS CRD (130kW and 147kW), 05/2008 to 11/2013
- Jeep Commander XH XK 3.0L EXL CRD V6 (160kW), 04/2006 to 12/2010
- Jeep Grand Cherokee WH WK 3.0L EXL CRD V6 (160kW), 06/2005 to 12/2010
- Jeep Wrangler JK 2.8L ENS CRD (130kW), 04/2007 to 02/2011
- Dodge Nitro 2.8L ENR ENS CRD (130kW), 06/2007 to 12/2012
FITMENT CHECK

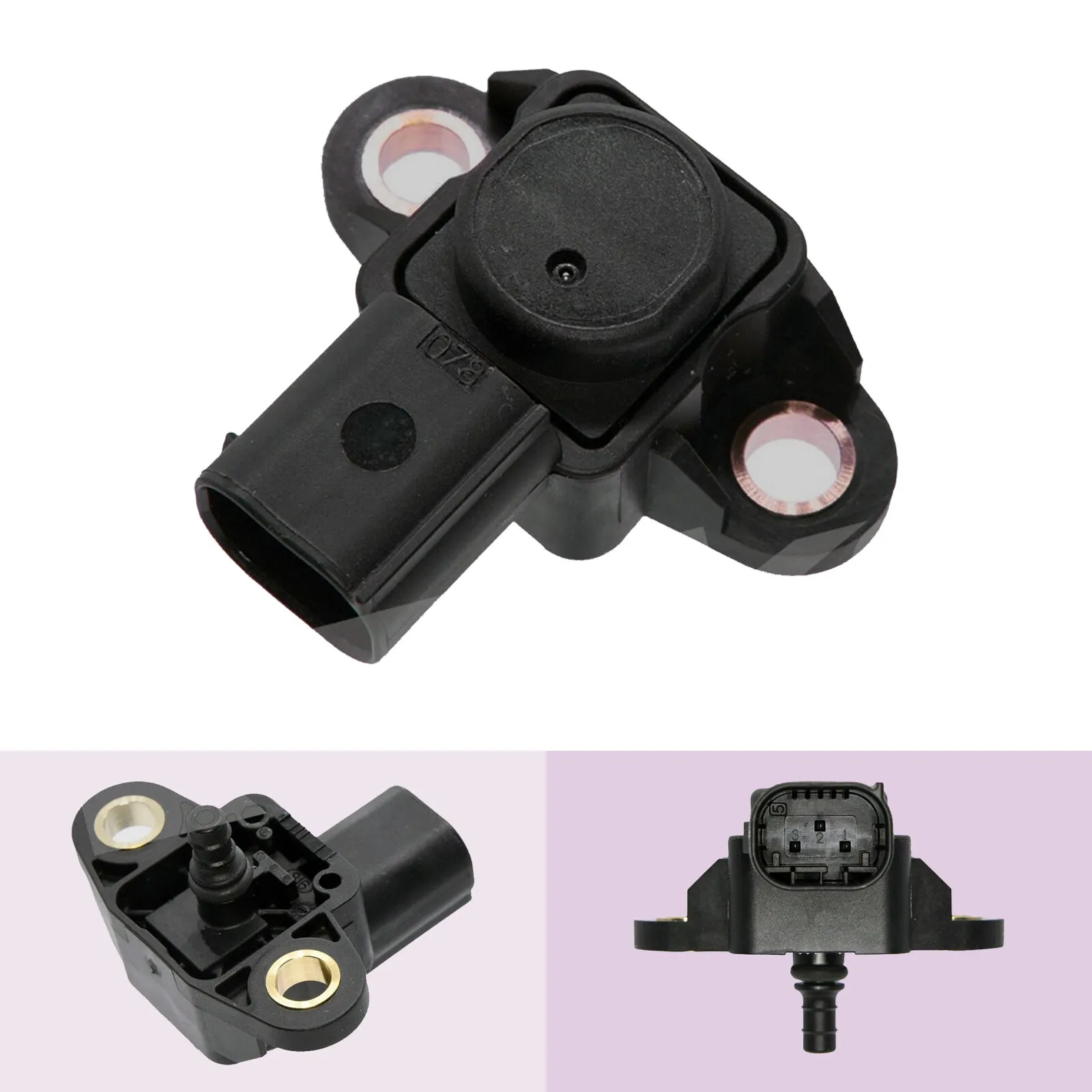

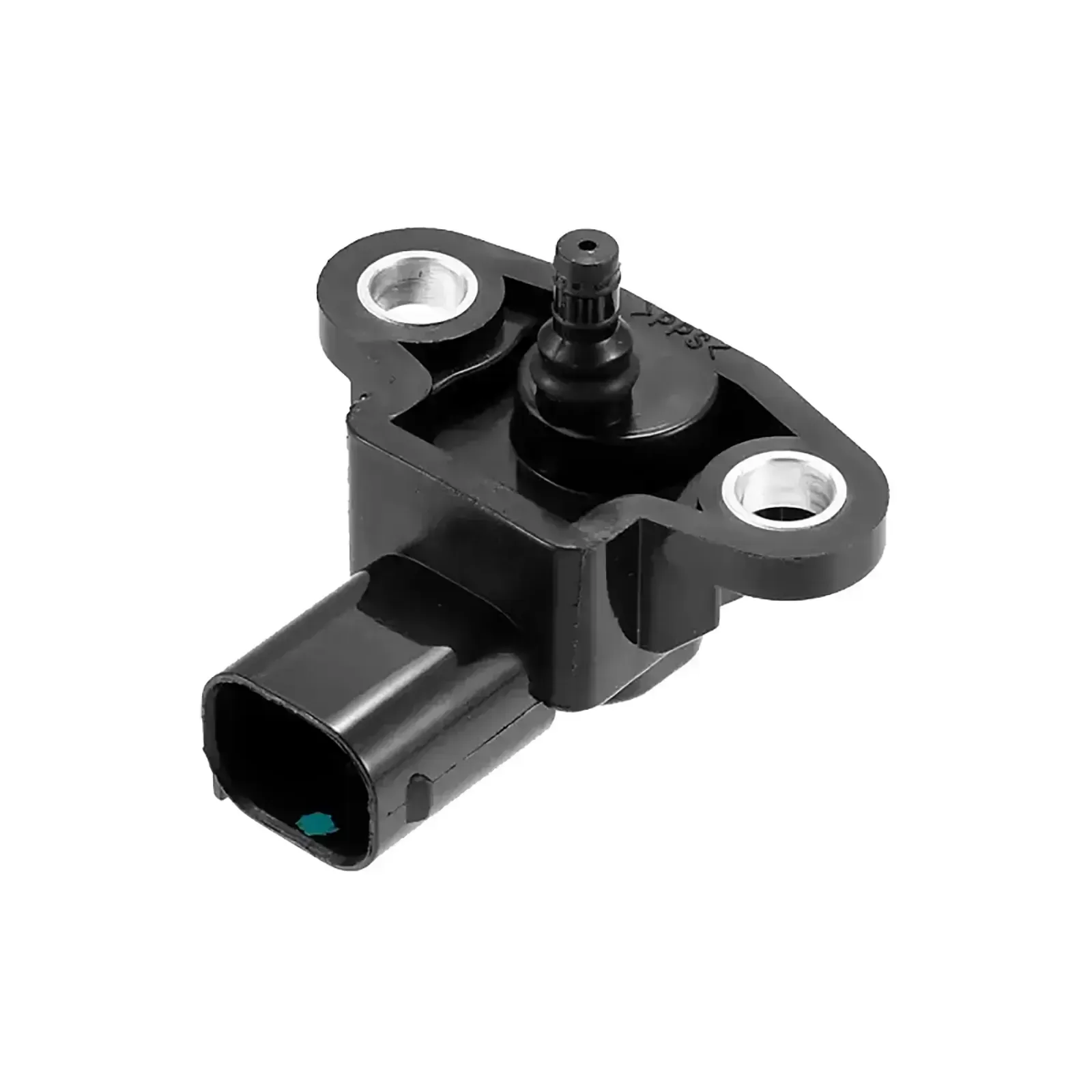

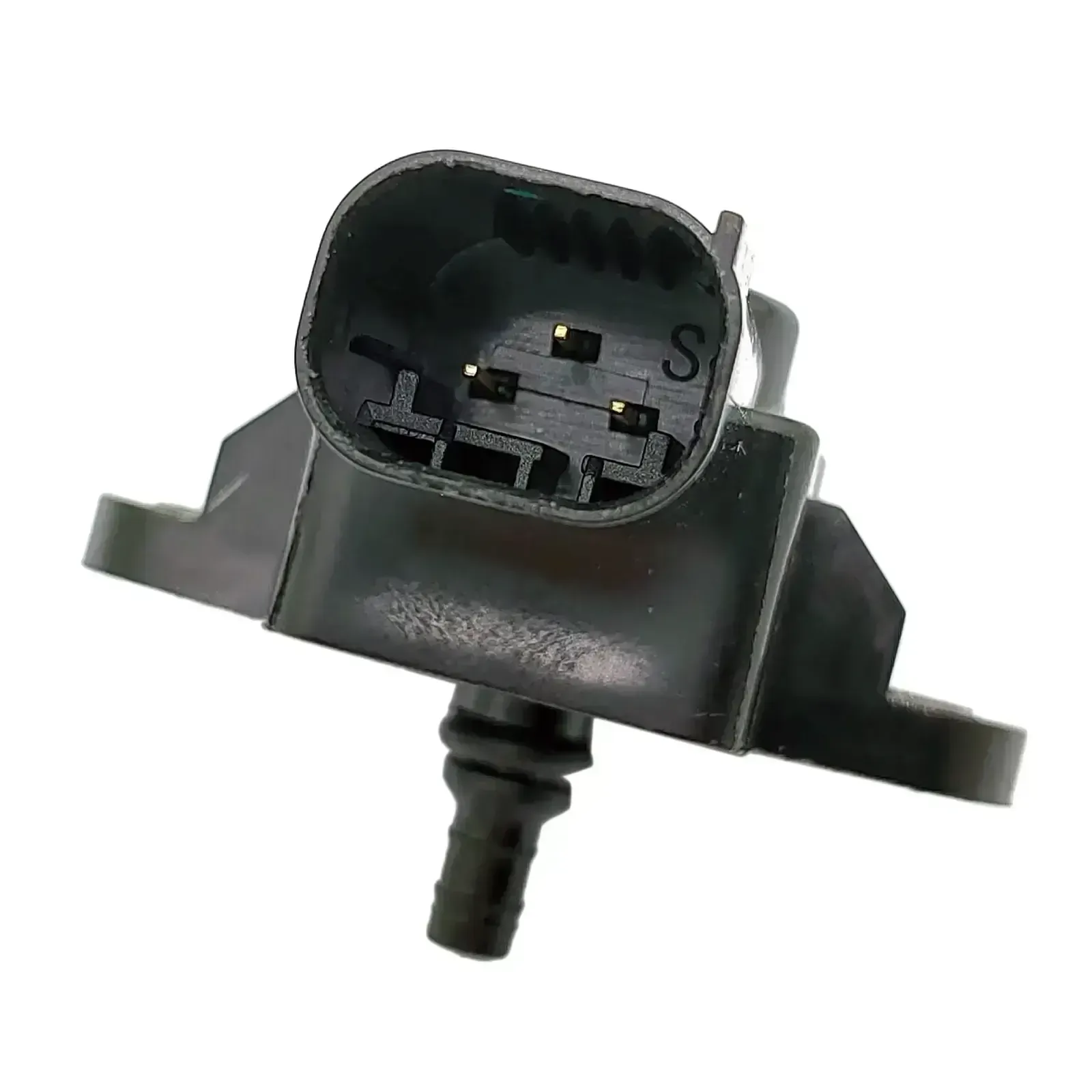

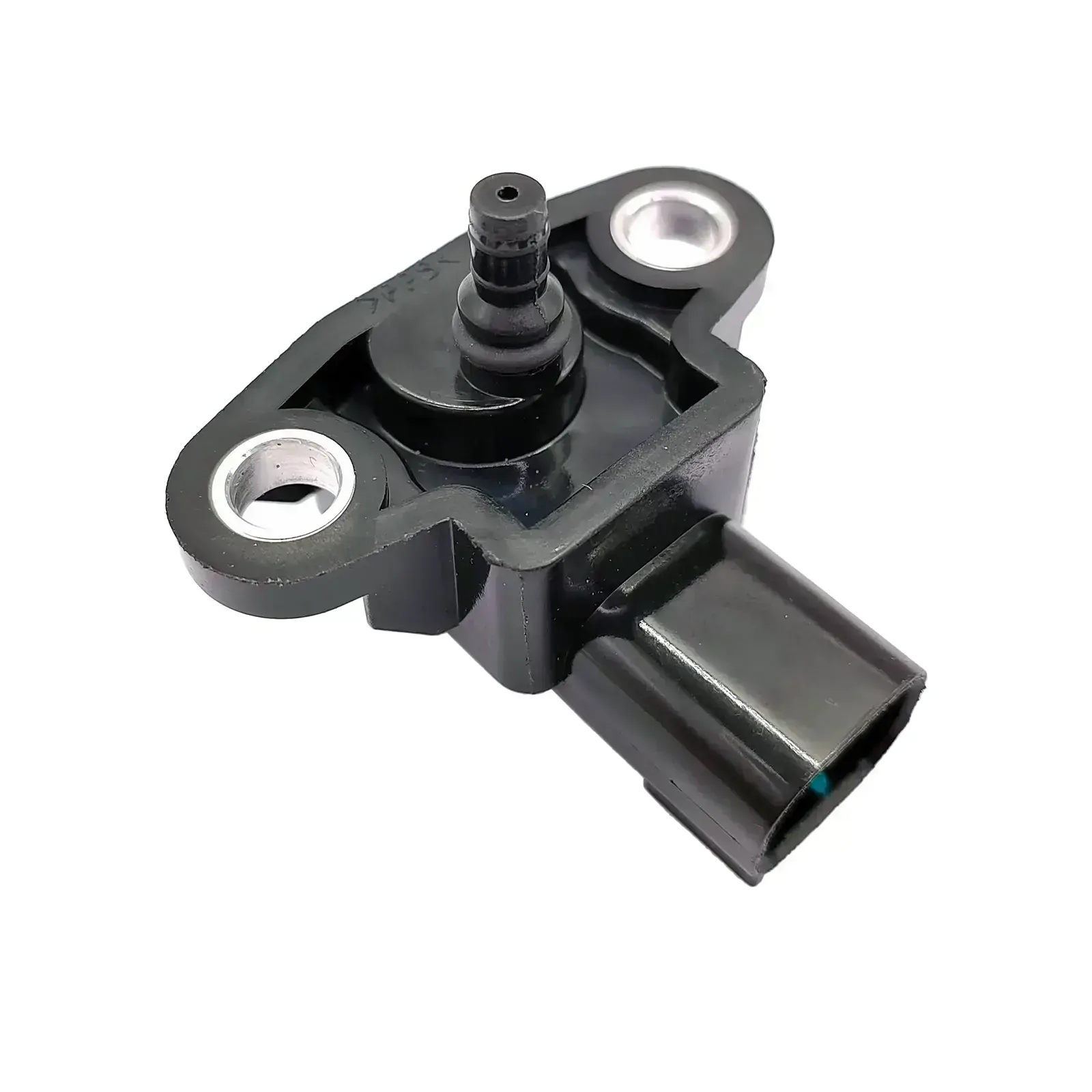

This sensor has a 3-pin oval connector and 2 mounting bores, and it sits in the air filter box. Please confirm against your existing sensor and the OEM part numbers below before ordering.
OEM PART NUMBERS
- 5149203AA
- K05149203AA
- 5101120AA
- 5101120AB
- 56044591AA
- K05101120AA
- K05101120AB
- K56044591AA
OTHER PART NUMBERS
- V30-72-0153
- 225-1074
- ECM-ME-000
- MA0142
- TMP001
- 10937056
- 0261230189
PACKAGE INCLUDES
1 x MAP sensor with 3-pin oval connector.
ABOUT THIS SENSOR
The 2.8L and 3.0L CRD diesels use this sensor to read manifold pressure so fuel and turbo output follow the load, whether you are towing, crawling or cruising.
If it drifts you can see flat power, smoke and limp mode with codes such as P0107 or P0238. Replacing it is a simple job with basic tools.
COMMON SYMPTOMS OF FAILURE
- Check engine light with P0107 or P0238
- Flat power on hills
- Limp mode
- Smoke from the exhaust
- Higher diesel consumption
- [2007 - 2012] DODGE NITRO SUV 2.8 CRD 4WD AWD Diesel 2.8L 4cyl 130kW ENR,ENS
- [2008 - 2012] JEEP CHEROKEE KK SUV 2.8 CRD 4x4 AWD Diesel 2.8L 4cyl 130kW ENS
- [2010 - 2013] JEEP CHEROKEE KK SUV 2.8 CRD 4x4 AWD Diesel 2.8L 4cyl 147kW ENS
- [2006 - 2010] JEEP COMMANDER XH,XK SUV 3.0 CRD 4x4 AWD Diesel 3.0L 6cyl 160kW EXL
- [2005 - 2010] JEEP GRAND CHEROKEE WK,WH SUV 3.0 CRD 4x4 AWD Diesel 3.0L 6cyl 160kW EXL
- [2007 - 2011] JEEP WRANGLER JK Open Off-Road Vehicle 2.8 CRD AWD Diesel 2.8L 4cyl 130kW ENS
- [2010 - 2019] JEEP WRANGLER JK Open Off-Road Vehicle 2.8 CRD AWD Diesel 2.8L 4cyl 147kW ENS
What fault codes does a faulty MAP sensor trigger?
A faulty MAP sensor typically triggers codes P0105 to P0109. P0105 indicates a circuit malfunction, P0106 indicates the signal is out of range, P0107 and P0108 indicate the signal is too low or too high respectively, and P0109 indicates an intermittent circuit fault. These codes combined with symptoms such as poor idle and black smoke are strong indicators of MAP sensor failure.
How do I test a MAP sensor?
With an OBD2 scanner in live data mode, the MAP sensor should read close to atmospheric pressure (around 101 kPa) with the engine off, and drop to 30 to 50 kPa at idle with the engine running due to manifold vacuum. Under wide open throttle the reading should rise back toward atmospheric. A sensor that reads flat or does not respond to throttle changes has failed. You can also test supply voltage and signal output with a multimeter.
Can I drive with a faulty MAP sensor?
You can drive short distances but engine performance will be noticeably degraded. The ECU uses the MAP sensor to calculate fuel delivery - a faulty sensor causes incorrect fuelling which leads to poor economy, rough running, and increased emissions. On turbocharged engines a faulty MAP sensor can also prevent boost control from operating correctly. Replace it as soon as possible to avoid further damage.
What does a MAP sensor do?
The Manifold Absolute Pressure (MAP) sensor measures intake manifold pressure to help the ECU calculate the correct fuel and ignition timing. It is critical for engine efficiency, particularly on turbocharged and supercharged vehicles.
What are the symptoms of a faulty MAP sensor?
Symptoms include poor acceleration, rough idle, excessive fuel consumption, black smoke, engine hesitation, and a Check Engine light with codes P0105-P0109. Turbocharged vehicles may also experience boost control issues.
What is the difference between a MAP sensor and a MAF sensor?
A MAF (Mass Air Flow) sensor directly measures the mass of air entering the engine. A MAP sensor measures manifold pressure and the ECU calculates air mass from that reading. Many vehicles use one or the other; some use both. They are not interchangeable.
| Identification | |
|---|---|
| Brand | Aftermarket OEM Replacement |
| Part Numbers | |
| Part Number | SCMS345 |
| Reference OEM Number | 5149203AA |
| Other OEM Numbers | 5101120AA, 5101120AB, 56044591AA |
| Related Part Numbers | MP212, 0261230189, MA0142, TMP001, CMS345 |
| Interchange Part Numbers | V30-72-0153, 225-1074, ECM-ME-000, MA0142, TMP001, 10937056 |
| Product Specifics | |
| Product Type | SENSOR |
| Sensor Type | Manifold Absolute Pressure (MAP) Sensor |
| Number of pins | 3-Pin |
| Connector Shape | oval |

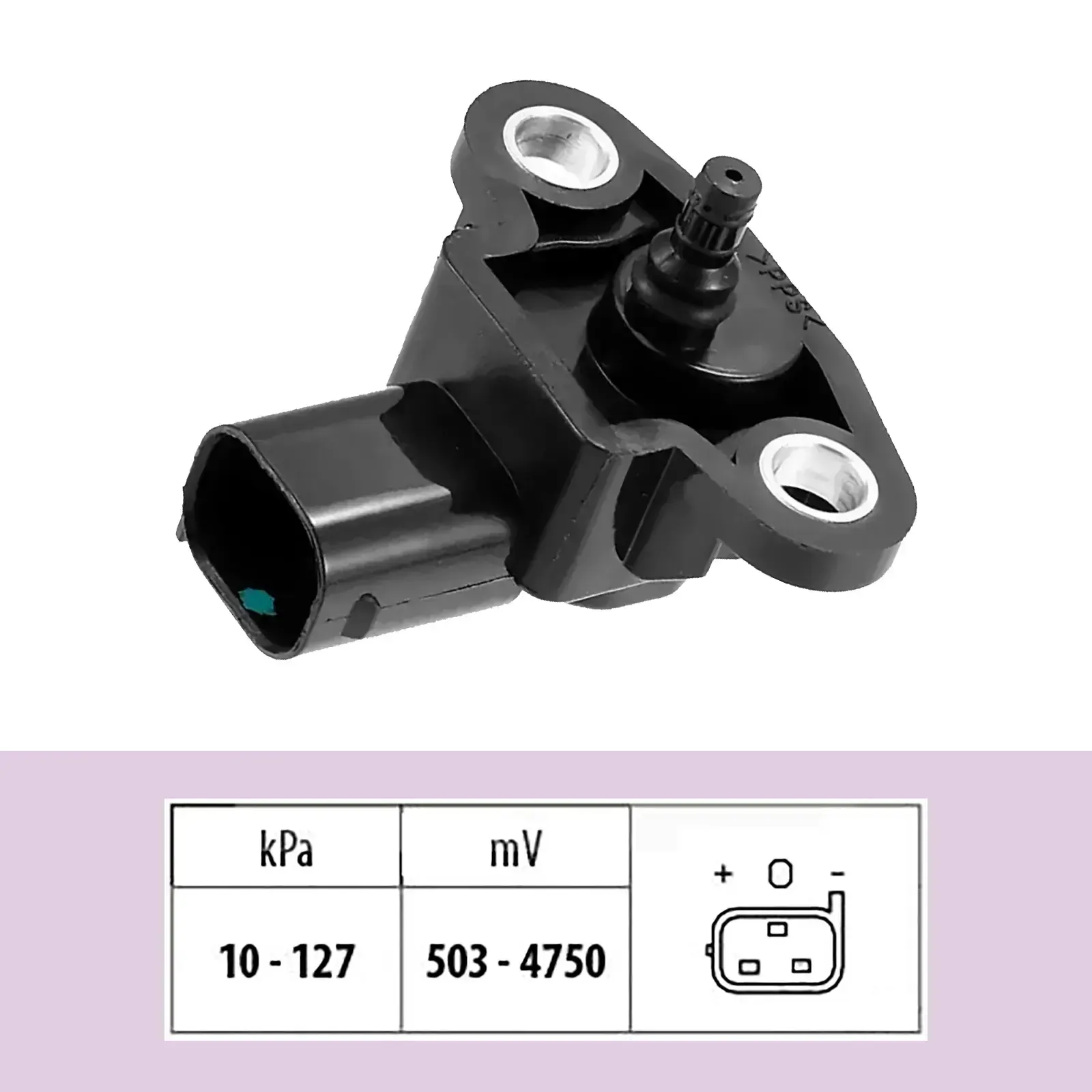

| Pressure Range | 10 kPa, until 127 kPa |
| Number of mounting bores | 2 |
| Compatible Makes | Jeep, Dodge |
| Fitment Type | Direct Replacement |
| Other Details | |
| Note | 3-pin plug in air filter box: confirm vs your sensor |
