BRAND NEW *OEM Quality* mass airflow sensor to suit Mazda 2, 3, 6, 323, CX-7, MX-5, RX-8, Tribute, BT-50, B-Series and E-Series with the WLS113215A-family petrol and diesel engines.

A failing MAF sensor on these Mazda models causes rough idle, hesitation under load and increased fuel consumption - usually with a P0100-series fault code stored. This BRAND NEW direct-fit unit restores correct air metering with no wiring modification. Most orders dispatched same day and delivered express Australia-wide.

TO SUIT

This sensor suits a wide range of Mazda petrol models including the Mazda 2 DE/DY, 3 BK/BL, 6 GG/GH/GY, 323 Astina/Protege BJ, CX-7 ER, MX-5 NC, RX-8 FE/SE3P and Tribute EP, plus the BT-50/B-Series/E-Series diesel range with the WL-T/WEAT/WLAT engines. This is the same MAF sensor fitted to the Ford Ranger, Escape and Laser platforms of the same era - see full vehicle list above.

OEM PART NUMBERS

WLS113215
WLS113215A
ZL01-13-215
ZLY1-13-215
197400-2010
L321-13-215
WLS1-13-215

OTHER PART NUMBERS

DENSO: DMA-0108
NTY: EPP-TY-000

PACKAGE INCLUDES

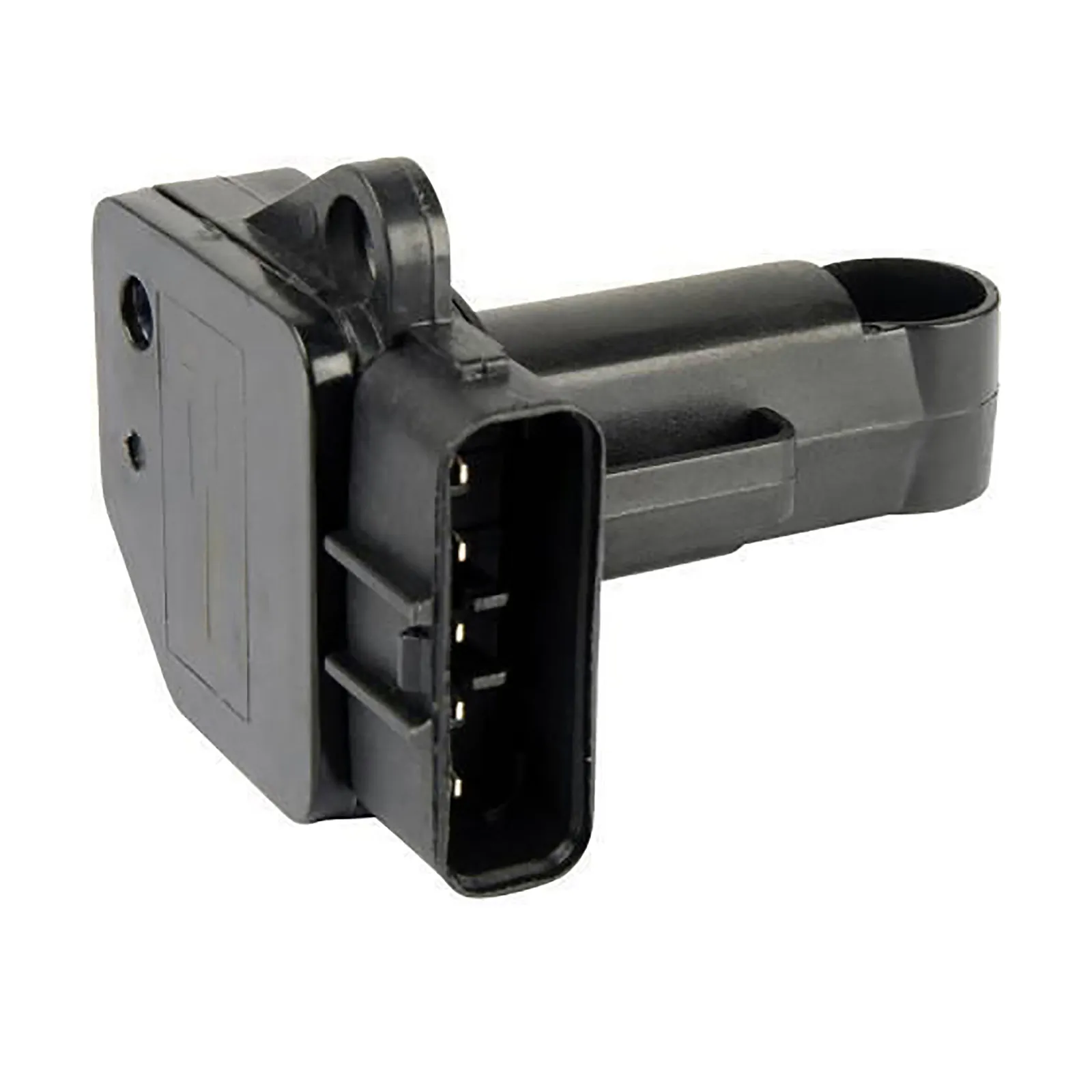

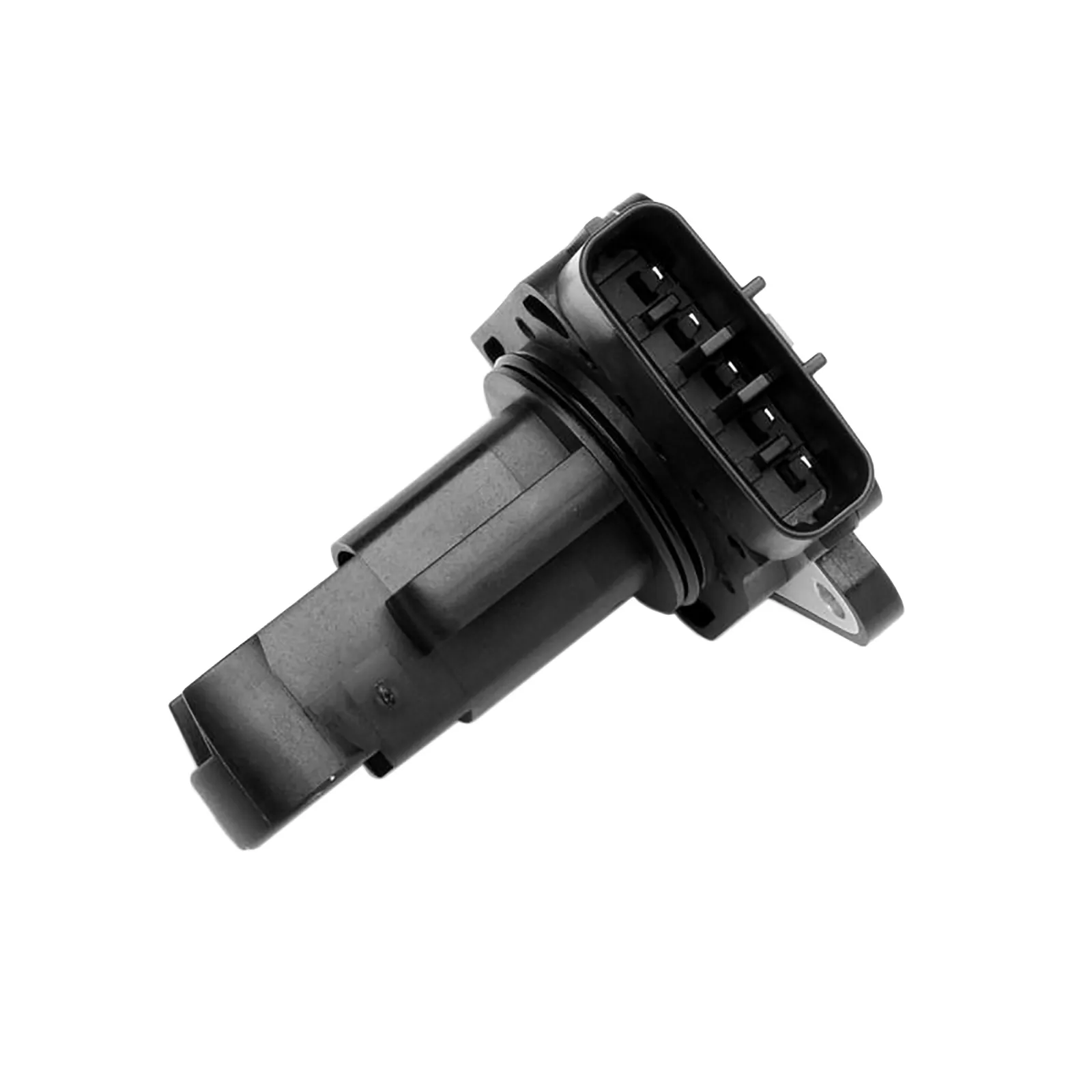

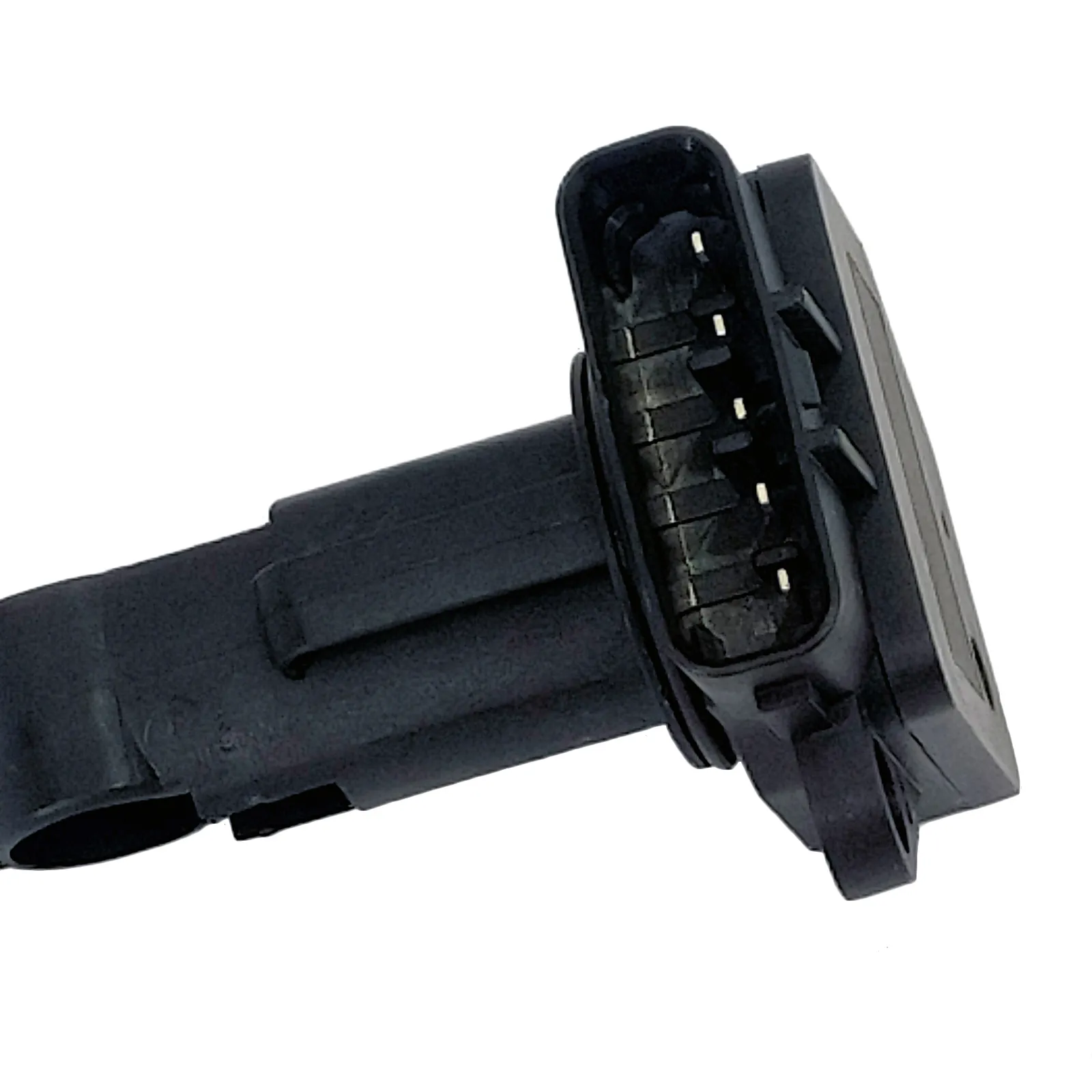

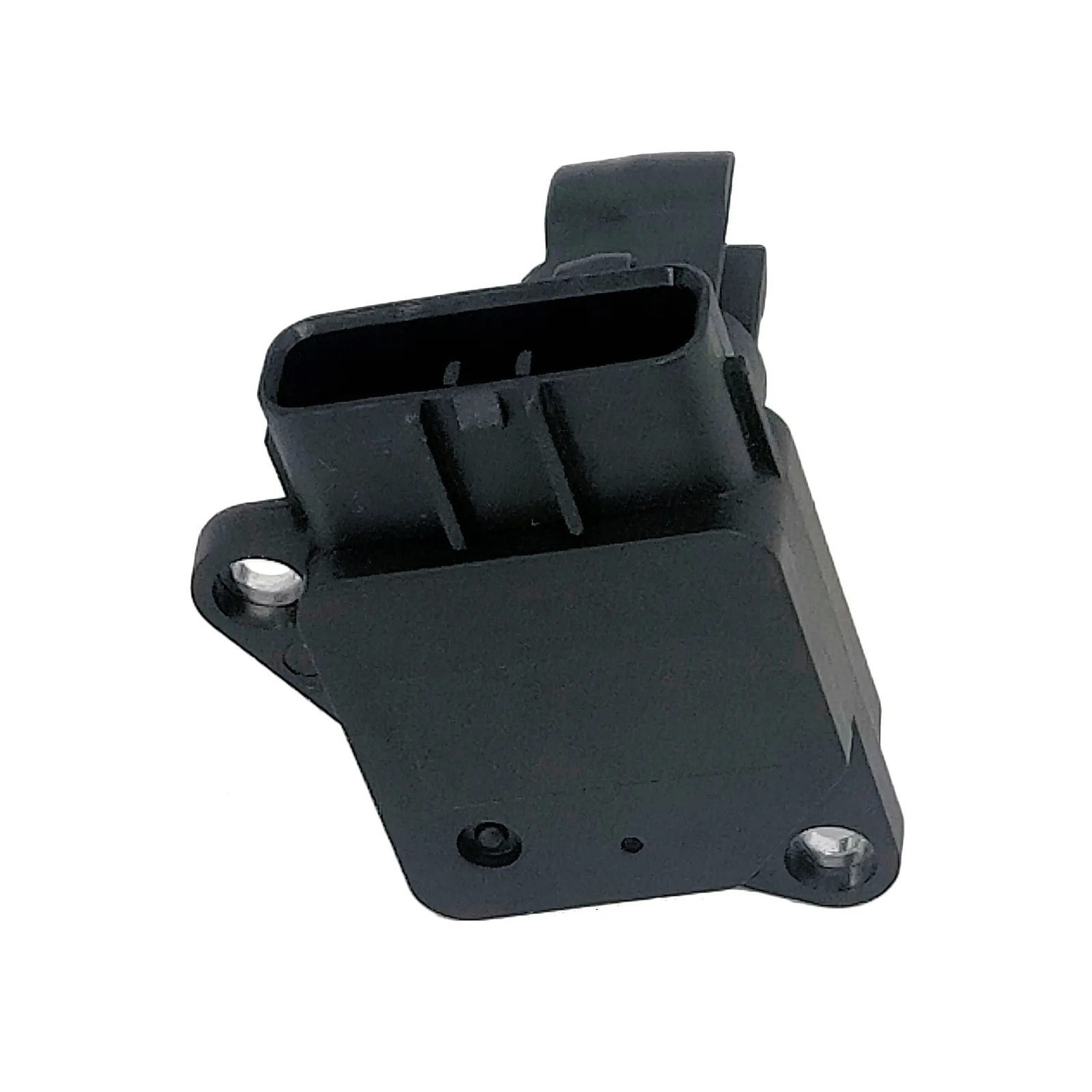

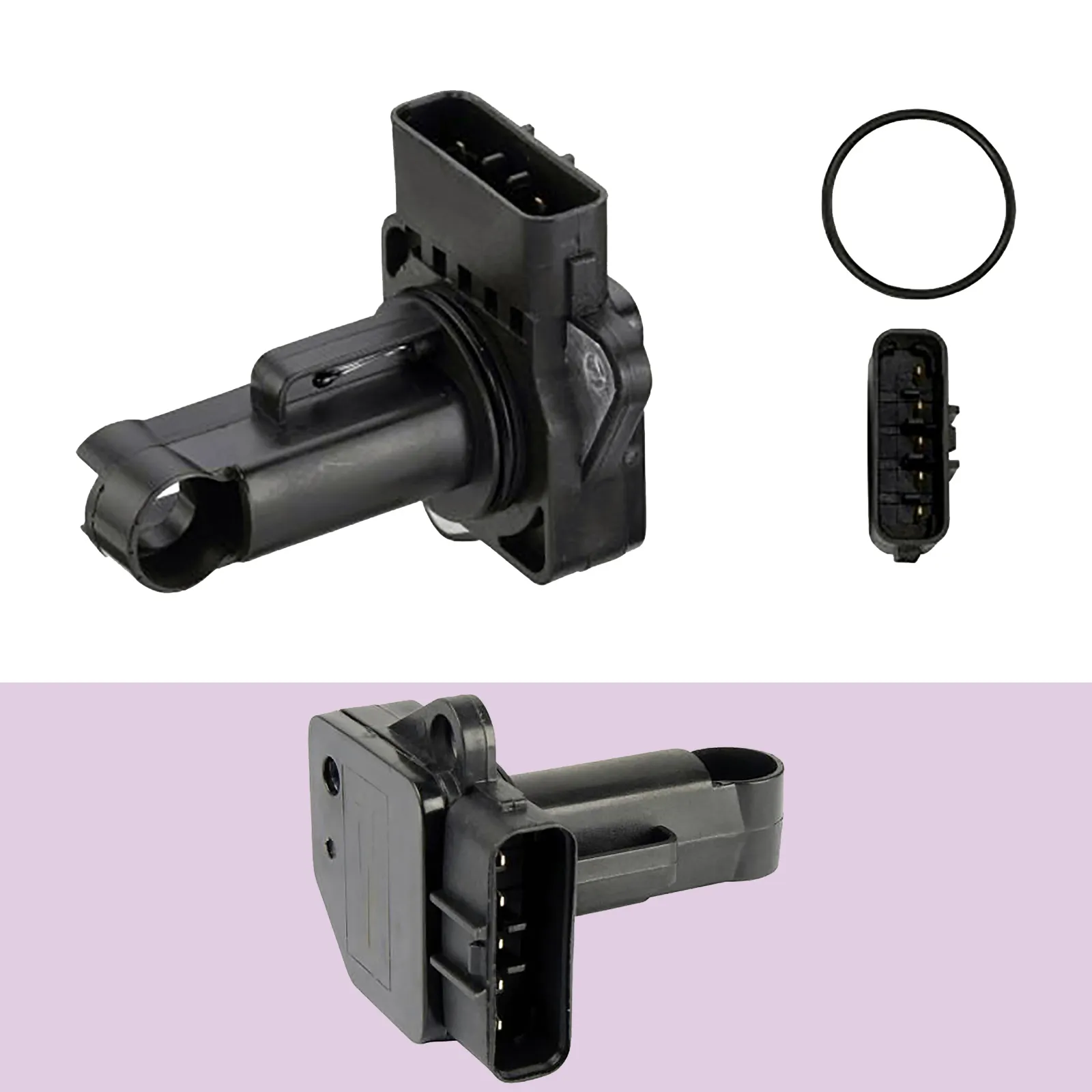

1 x BRAND NEW mass airflow sensor (5-pin rectangular connector, without housing/insert only).

ABOUT THIS SENSOR

The MAF sensor across this Mazda petrol and diesel range measures intake air volume so the ECU can calculate correct fuel injection quantity for each operating condition. It is a bolted 12V insert type with an integrated air temperature element.

When this sensor drifts or fails the ECU falls back to default fuelling tables, causing rough idle, hesitation on acceleration and increased fuel consumption (or heavy black smoke on turbo-diesel variants).

COMMON SYMPTOMS OF FAILURE

Check engine light with codes P0100-P0103
Rough or erratic idle
Hesitation and stumble under acceleration
Poor throttle response
Increased fuel consumption
Black smoke under load (diesel variants)

[05/10 - 11/14] MAZDA 2 DE 1.5L 4cyl ZY-DE,ZY-VE 76kW
[07/07 - 11/14] MAZDA 2 DE5FS 1.5L 4cyl ZY84,ZY66,ZY-VE 76kW
[04/03 - 06/07] MAZDA 2 DY5W 1.5L 4cyl ZY-VE 82kW
[10/03 - 06/06] MAZDA 3 BK 2.0L 4cyl LF-DE,LF72 104kW
[07/06 - 04/09] MAZDA 3 BK12 MZR-CD 2.0L 4cyl RF8G,RF7J Euro 4 105kW
[07/06 - 04/09] MAZDA 3 BK14 MPS 2.3L 4cyl L3M6,L3-VDT 191kW
[07/06 - 04/09] MAZDA 3 BK14 MZR-CD 2.0L 4cyl RF8G,RF7J Euro 4 105kW
[10/03 - 03/09] MAZDA 3 BK3P SP23 2.3L 4cyl L3-VE 115kW
[10/03 - 04/09] MAZDA 3 BK3P SP23 2.3L 4cyl L3-VE 115kW
[07/06 - 04/09] MAZDA 3 BKEP 2.0L 4cyl LF-VE,LF-DE,LF50,LF72,LFN7,LFN8 110kW
[04/09 - 10/13] MAZDA 3 BL10 MZR CD 2.2L 4cyl R2AA 110kW
[04/09 - 10/13] MAZDA 3 BL10 SP25 2.5L 4cyl L5-VE 122kW
[04/09 - 10/13] MAZDA 3 BLEFP MZR 2.0L 4cyl LF5H,LF-VE,LF5W Euro 4 108kW
[04/09 - 10/13] MAZDA 3 BLEFW MZR 2.0L 4cyl LF5H,LF-VE,LF5W Euro 4 108kW
[09/11 - 10/13] MAZDA 3 BLFFP SP20 2.0L 4cyl PE-VPS,PEY2 Euro 6 113kW
[09/11 - 10/13] MAZDA 3 BLFFW SP20 2.0L 4cyl PE-VPS,PEY7 Euro 6 113kW
[09/98 - 06/02] MAZDA 323 ASTINA BJ10M VI 1.6L 4cyl ZM 72kW
[09/98 - 12/03] MAZDA 323 PROTEGE BJ10M VI 1.6L 4cyl ZM 78kW
[10/06 - 02/08] MAZDA 6 GG14 DI 2.0L 4cyl RF7J Euro 4 105kW
[06/02 - 02/08] MAZDA 6 GG3P 2.3L 4cyl L3C1,L3-VE 122kW
[08/05 - 02/08] MAZDA 6 GG3P MPS Turbo 2.3L 4cyl L3-VDT,L3KG 191kW
[08/02 - 02/08] MAZDA 6 GG3S 2.3L 4cyl L3C1,L3-VE 122kW
[01/10 - 12/12] MAZDA 6 GH10 MZR-CD 2.2L 4cyl R2AA 132kW
[01/09 - 10/11] MAZDA 6 GH10 MZR-CD 2.2L 4cyl R2AA 136kW
[08/08 - 10/11] MAZDA 6 GH10 MZR-CD 2.2L 4cyl R2AA 136kW
[02/08 - 12/12] MAZDA 6 GH5FS MZR 2.5L 4cyl L5-VE 125kW
[02/08 - 12/12] MAZDA 6 GH5FW MZR 2.5L 4cyl L5-VE 125kW
[10/06 - 02/08] MAZDA 6 GY19 DI 2.0L 4cyl RF7J Euro 4 105kW
[01/02 - 02/08] MAZDA 6 GY3W 2.3L 4cyl L3C1,L3-VE 122kW
[05/96 - 02/99] MAZDA B-SERIES UF B2500 BRAVO TD 2.5L 4cyl WL-T 64kW
[04/96 - 02/99] MAZDA B-SERIES UFY0 B2500 BRAVO TD 2.5L 4cyl WL-T 64kW
[02/99 - 03/05] MAZDA B-SERIES UN B2500 BRAVO TD 2.5L 4cyl WLF5 86kW
[02/99 - 03/05] MAZDA B-SERIES UN B2500 BRAVO TD 2.5L 4cyl WL-T 86kW
[02/99 - 10/06] MAZDA B-SERIES UN B2500 BRAVO TD 2.5L 4cyl WL-T 86kW
[12/06 - 12/11] MAZDA BT-50 UNY0E3 CDVi 3.0L 4cyl WEAT 115kW
[10/06 - 12/11] MAZDA BT-50 UNY0E3 CDVi 3.0L 4cyl WEAT 115kW
[12/06 - 12/11] MAZDA BT-50 UNY0W3 CDVi 2.5L 4cyl WLAT (16 V) 105kW
[08/06 - 06/13] MAZDA BT-50 UNY0W3 MRZ-CD 2.5L 4cyl WLAA 105kW
[09/09 - 03/13] MAZDA CX-7 ER MZR-CD 2.2L 4cyl R2AA 136kW
[07/09 - 03/13] MAZDA CX-7 ER10L MZR 2.5L 4cyl L5-VE 120kW
[08/97 - 07/99] MAZDA E-SERIES SD1 E2500 TD 2.5L 4cyl WL-T 61kW
[03/05 - 12/14] MAZDA MX-5 NC18 III 2.0L 4cyl LFY7,LFG8,LF-VE,LFG7,LFZD 118kW
[10/03 - 06/12] MAZDA RX-8 FE103,SE3P 1.3L 13B-MSP 141kW
[11/03 - 06/12] MAZDA RX-8 FE103,SE3P 1.3L 13B-MSP 158kW
[10/03 - 06/12] MAZDA RX-8 FE103,SE3P 1.3L 13B-MSP 170kW
[11/03 - 06/12] MAZDA RX-8 SE3P 1.3L 13B-MSP 177kW
[09/00 - 12/04] MAZDA TRIBUTE EP 2.0L 97kW
[04/04 - 05/08] MAZDA TRIBUTE EP3W 2.3L 4cyl L3-VE 110kW
[07/06 - 05/08] MAZDA TRIBUTE EP3W 2.3L 4cyl L3-VE,L3 109kW
[02/01 - 01/04] MAZDA TRIBUTE EPEW 2.0L 4cyl YF 91kW

Can I clean my MAF sensor instead of replacing it?

Yes - if the sensor is contaminated rather than electrically failed, cleaning with a dedicated MAF sensor cleaner spray can restore correct readings. Do not use brake cleaner or generic electrical contact cleaner as these leave residue that damages the sensing wire. Allow the sensor to dry completely before reinstalling. If cleaning does not resolve the fault codes, the sensor requires replacement.

What is the difference between a MAF sensor and a MAP sensor?

A MAF (Mass Air Flow) sensor directly measures the mass of air entering the engine using a hot wire element in the intake. A MAP (Manifold Absolute Pressure) sensor measures intake manifold pressure to calculate air density. Most modern engines use one or the other - some use both. Your vehicle service manual or OBD2 fault codes will confirm which sensor type your engine uses.

Will a faulty MAF sensor cause my vehicle to fail an emissions test?

Yes. A faulty MAF sensor causes the ECU to miscalculate fuel delivery, typically resulting in a rich running condition that increases CO and hydrocarbon emissions. Most roadworthy and emissions checks will fail a vehicle with an active MAF sensor fault code or visibly excessive exhaust smoke.

What are the symptoms of a bad MAF sensor?

Common symptoms include rough idle, hesitation or stumbling on acceleration, poor fuel economy, black smoke from the exhaust, and an illuminated Check Engine light. Your ECU may log fault codes P0100 to P0104.

Can I drive with a faulty MAF sensor?

You can drive short distances but it is not recommended. A faulty MAF sensor causes the ECU to run incorrect fuel mixtures, which can damage the catalytic converter and O2 sensors over time. Have it replaced as soon as possible.

How do I test if my MAF sensor is bad?

Use an OBD2 scanner to check for fault codes P0100-P0104. You can also use a multimeter or live data scanner to check the sensor output voltage against your vehicle's specification. A reading significantly outside spec confirms a faulty sensor.

What causes a MAF sensor to fail?

The most common causes are a dirty or contaminated sensing element (often from a missing or damaged air filter), oil contamination from an over-oiled aftermarket air filter, heat damage, or general wear over time.

Do I need to reset my ECU after replacing the MAF sensor?

It is good practice to clear any stored fault codes using an OBD2 scanner after replacement. Some vehicles will self-adapt within a short drive cycle, but clearing codes ensures the ECU recalibrates from a clean baseline.

Identification
SKU	CAF033-Mazda6
Brand	OEM
Part Numbers
Part Number	CAF033
Reference OEM Number	WLS113215A
Other OEM Numbers	WLS113215, WLS113215A, ZL01-13-215, ZLY1-13-215
Related Part Numbers	AMM9120, AF10135, AFM-135, TAF004, WLS113215A
Trade Part Numbers	NTY: EPP-TY-000, DENSO: DMA-0108
Product Specifics
Sensor Type	Hot-wire
Type	MAF Sensor

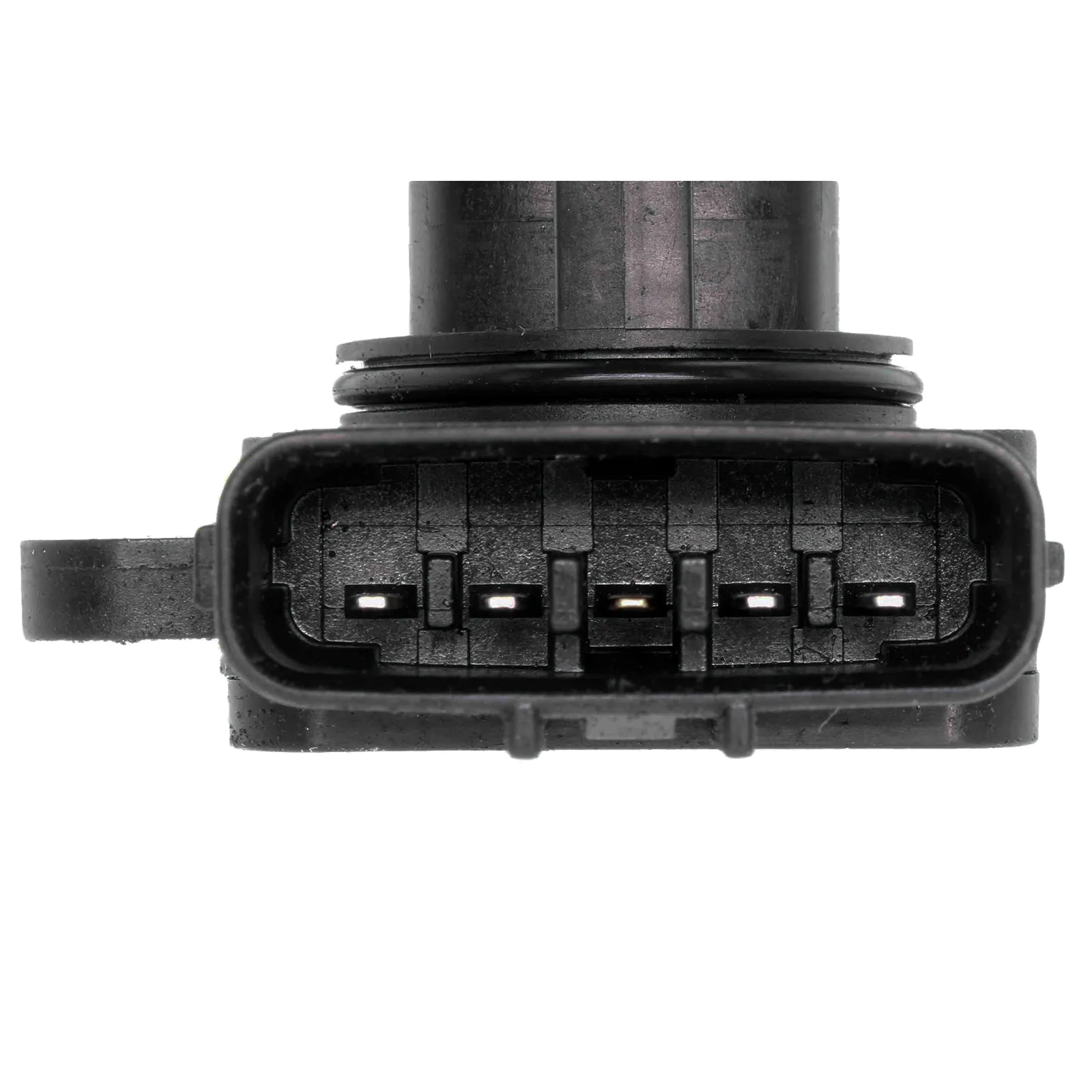

Number of pins	5
Connector Shape	rectangular
Housing Colour	Black
Housing Type	without housing
Compatible Makes	Mazda
Fitment Type	Direct Fit
Other Details
Note	Always verify fitment using your vehicle's OEM part number.
