BRAND NEW *OEM Quality* mass airflow sensor to suit BMW 1, 3 and 5 Series and Z4 with the N52, N54 and M54 six-cylinder petrol engines.

When the MAF on a six-cylinder BMW starts to drift you get a rough idle, lean codes and a flat spot that no amount of cleaning fixes. This insert-type replacement slots into your existing housing and is packed and shipped from Cranbourne VIC.

TO SUIT

BMW 1 Series E82 E88 125i and E87 130i 3.0L N52 (2005-2013)
BMW 3 Series E90 E91 E92 E93 320i 323i 325i 330i N46 and N52 (2004-2012)
BMW 5 Series E60 E61 523i 525i 530i M54 and N52 (2003-2009) and F10 528i N52 (2010-2013)
BMW Z4 E85 E86 M54 and N52 (2003-2008) and E89 sDrive23i 30i 35i 35is N52 and N54 (2009-2016)

FITMENT CHECK

Insert only - it bolts into your original MAF housing with the supplied seal ring. Not listed for the N53 direct-injection engine. Match OEM 13627520519 or 7520519 before ordering.

OEM PART NUMBERS

13627520519
7520519
5WK97502

OTHER PART NUMBERS

VEMO: V20-72-5141
HELLA: 8ET 009 142-641
NTY: EPP-BM-015
CONTINENTAL/VDO: 5WK97502Z
PIERBURG: 7.07759.71.0
DELPHI: AF10446
WALKER: 245-1188

PACKAGE INCLUDES

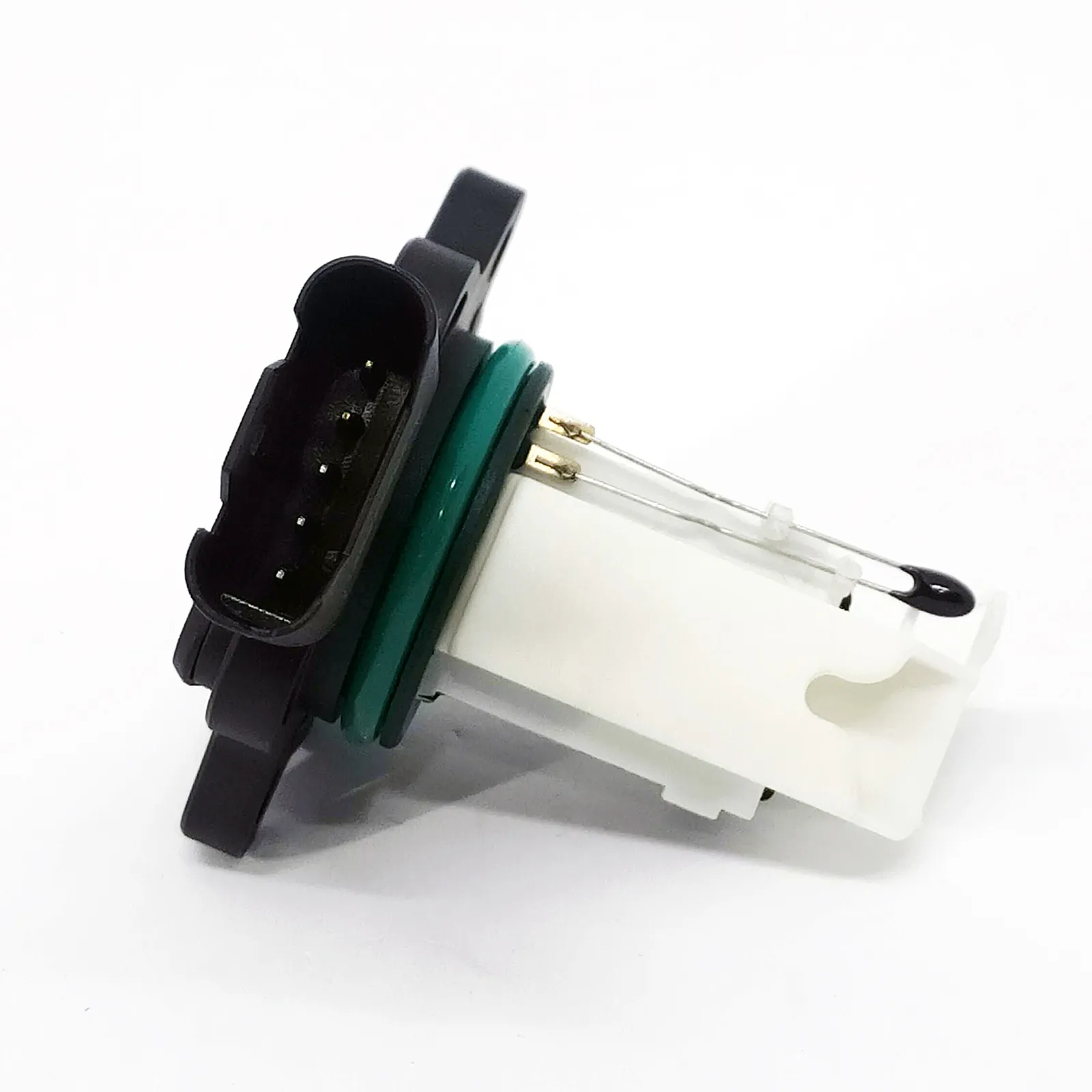

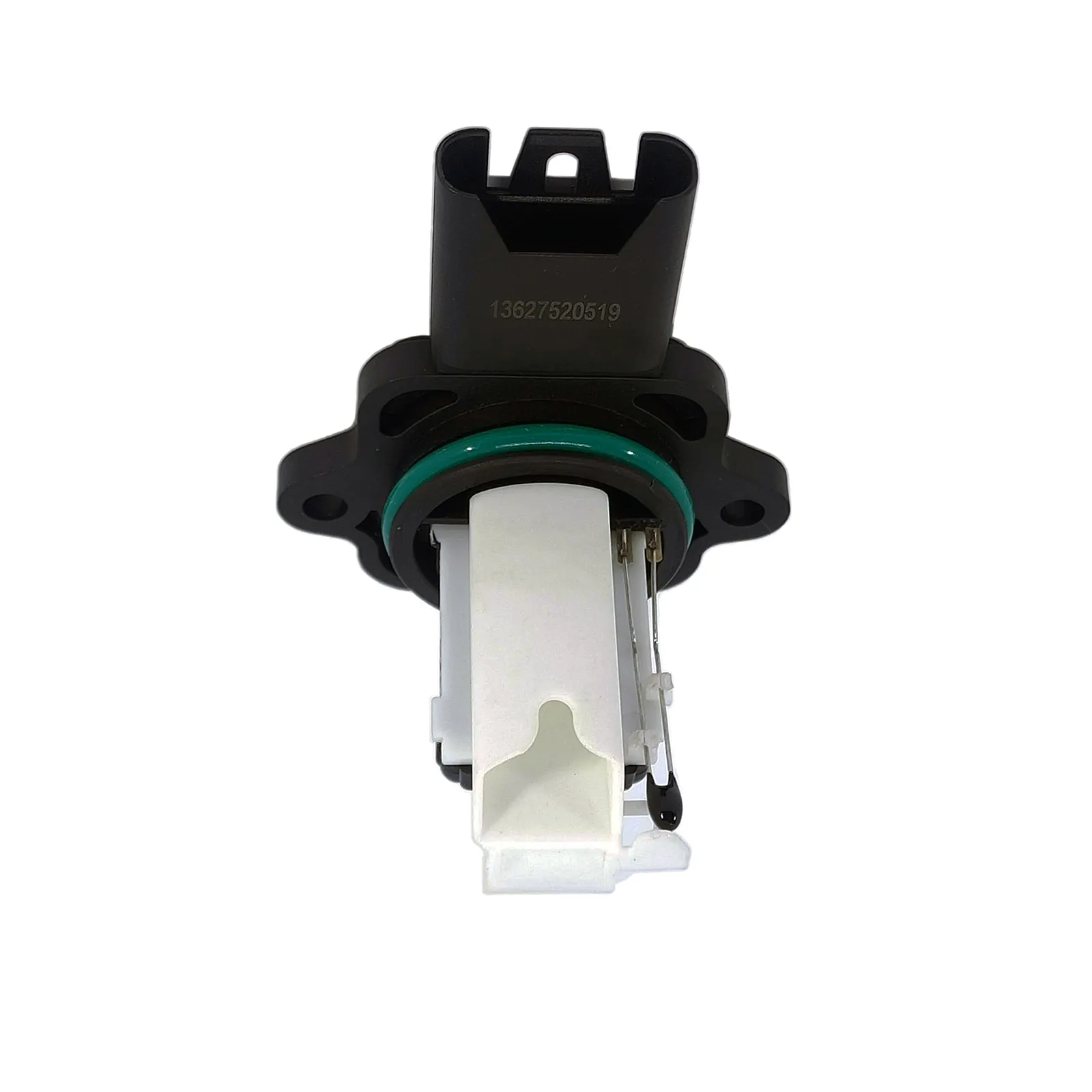

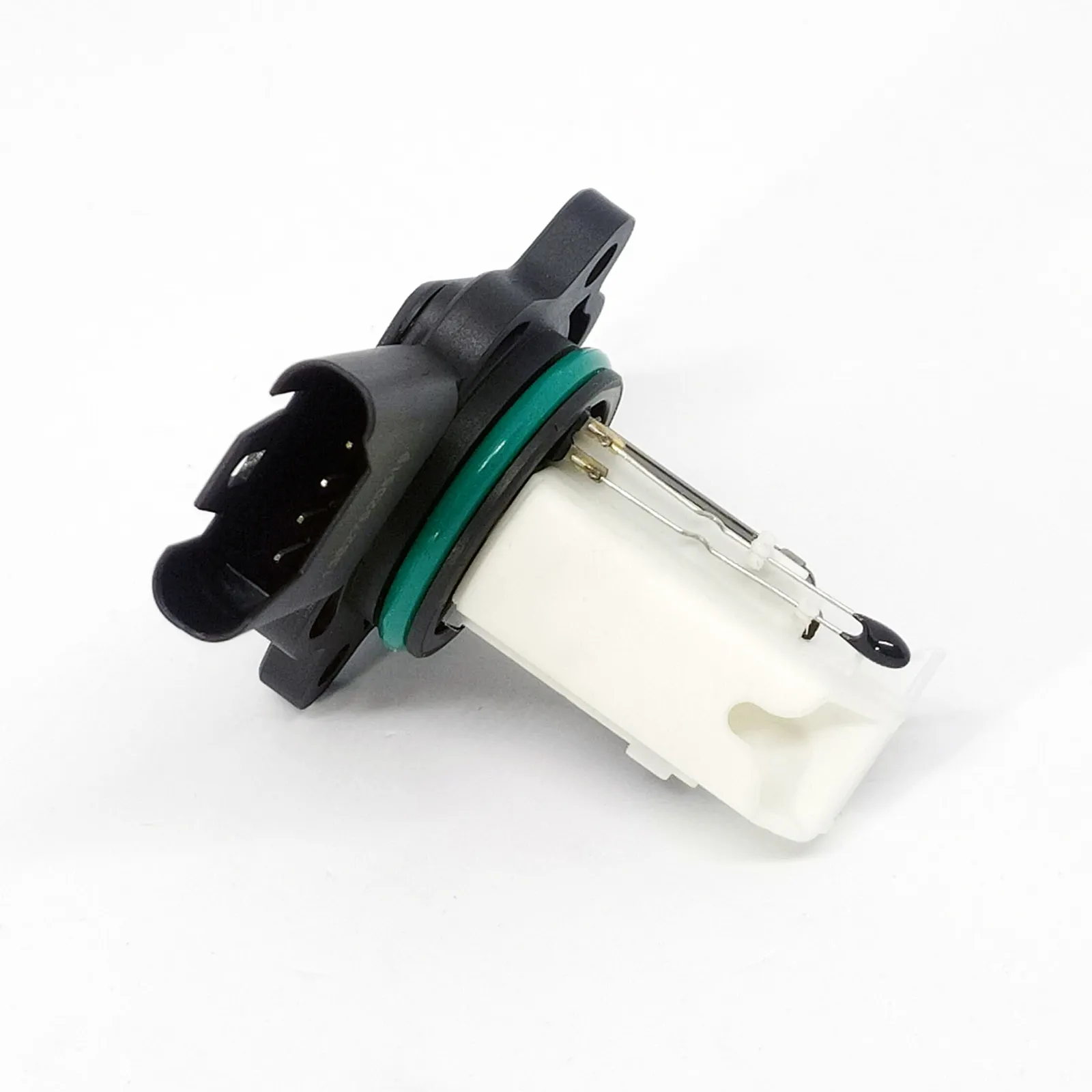

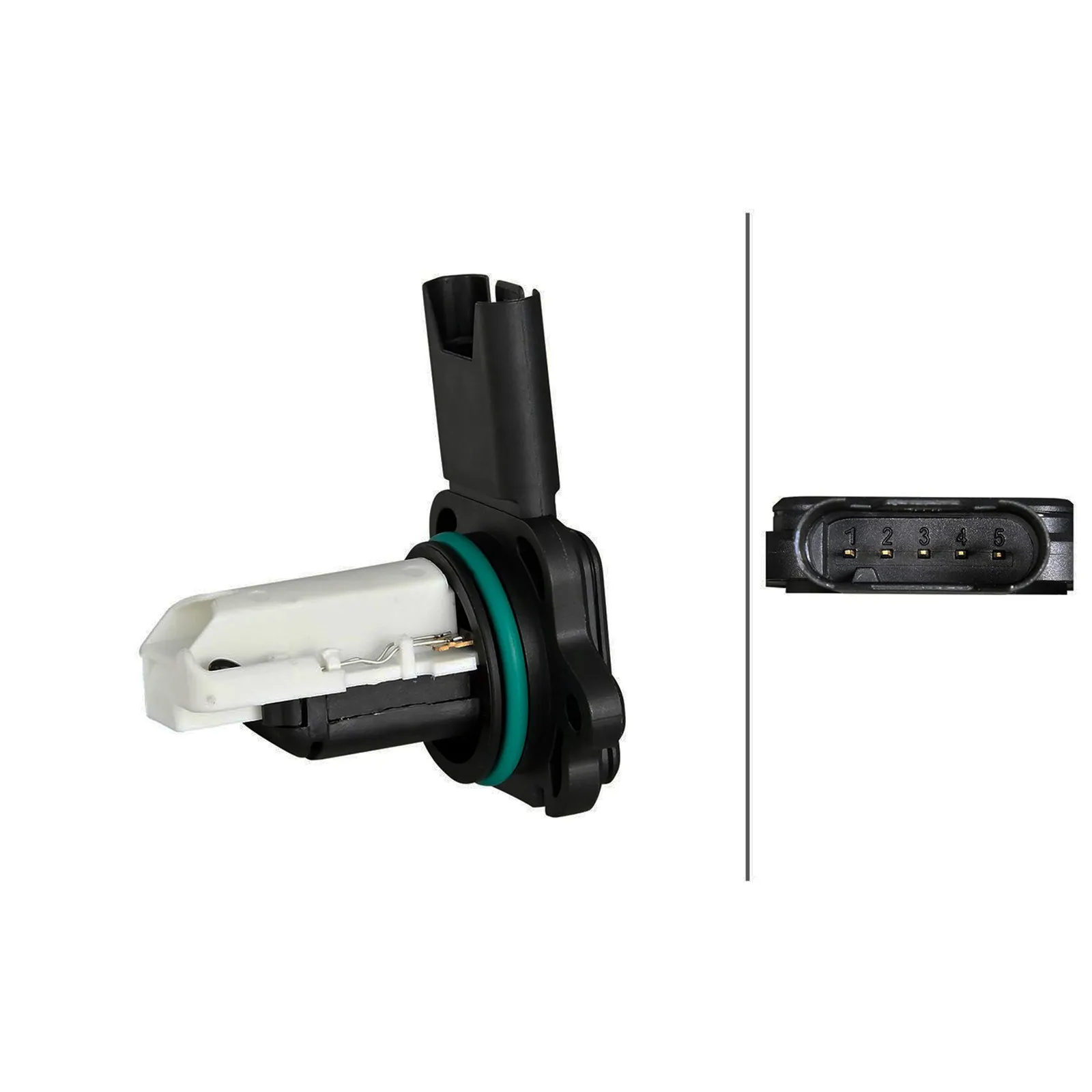

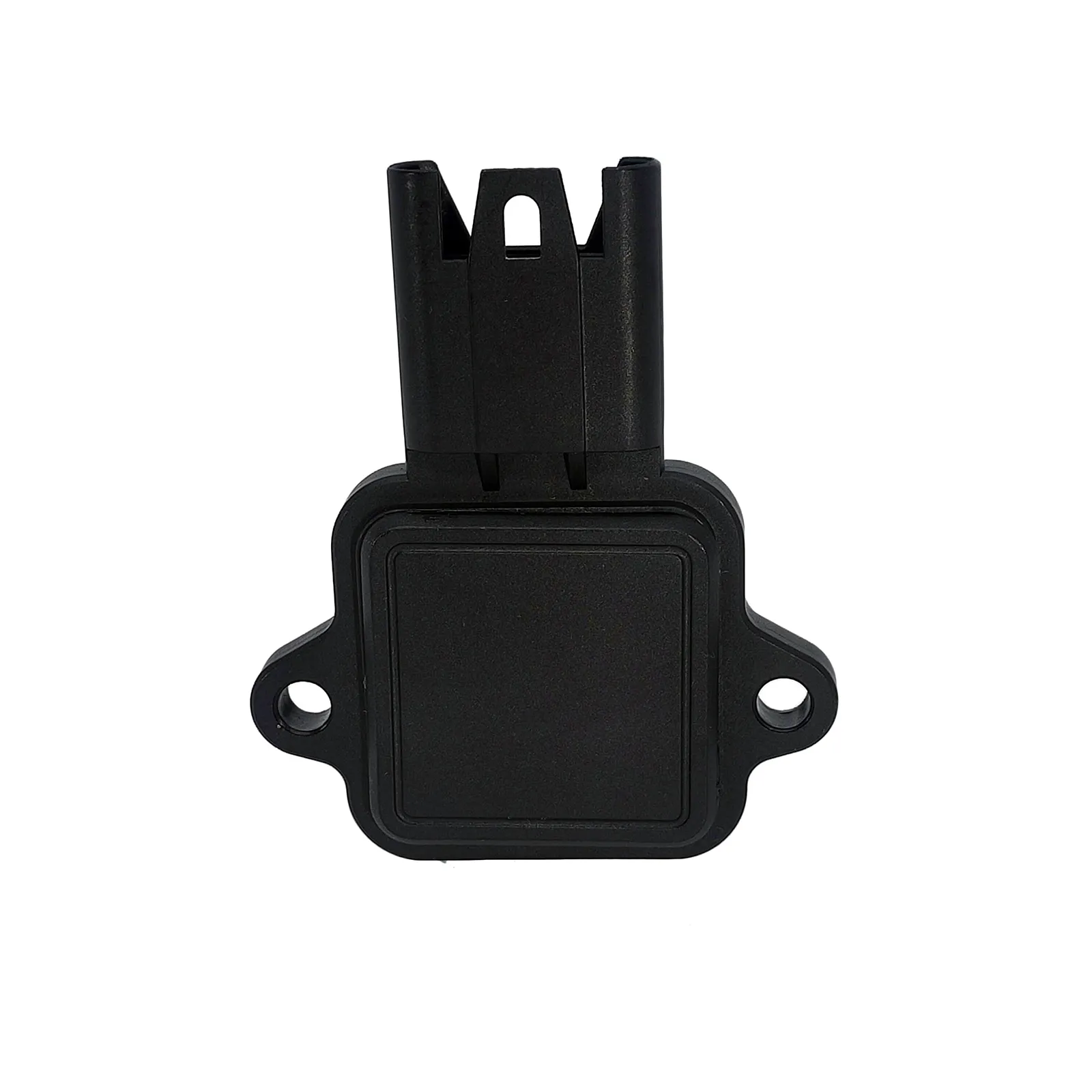

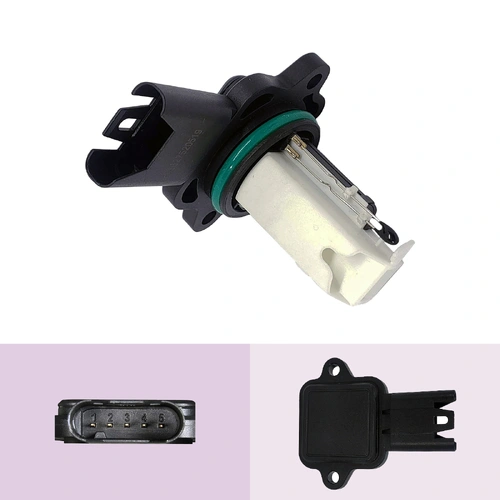

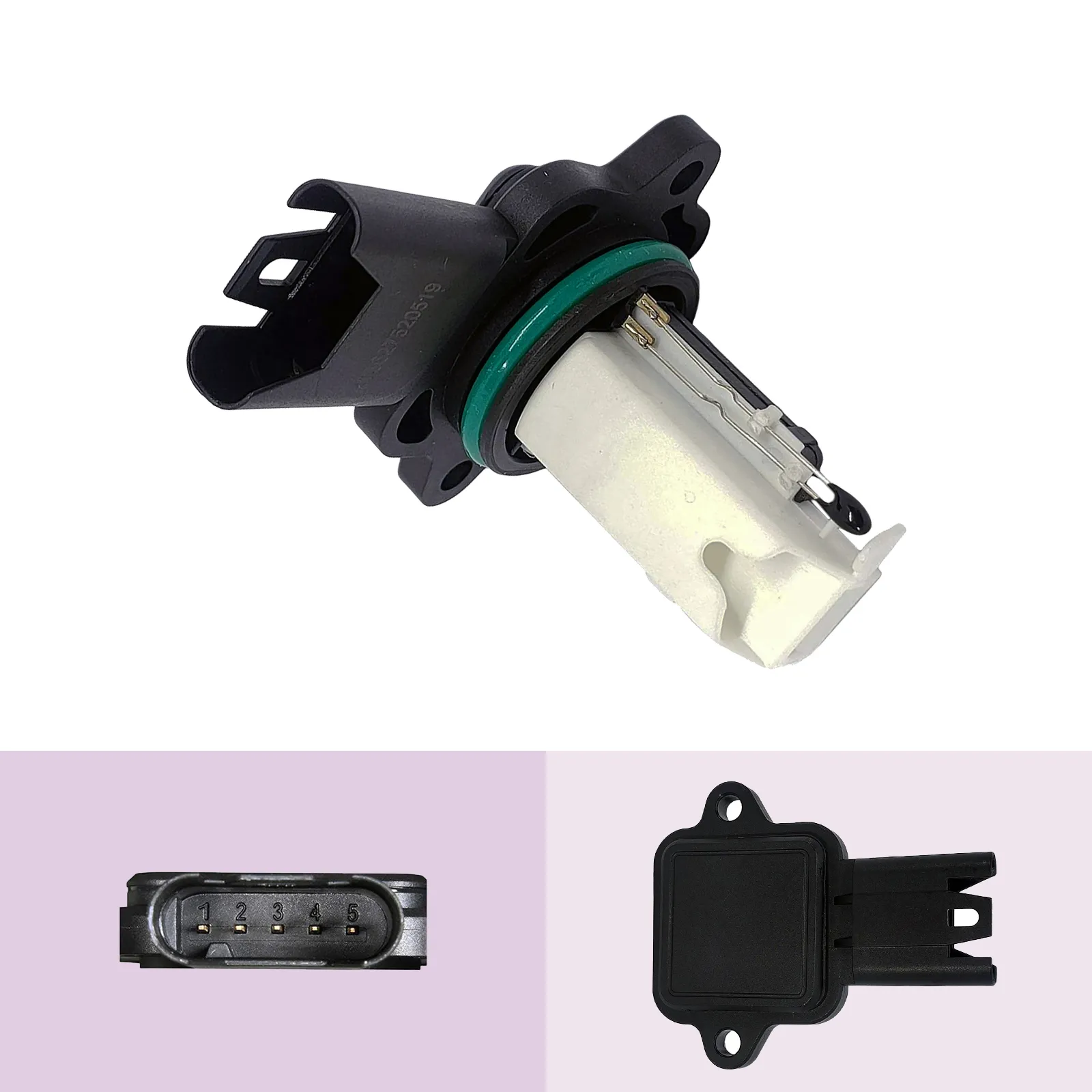

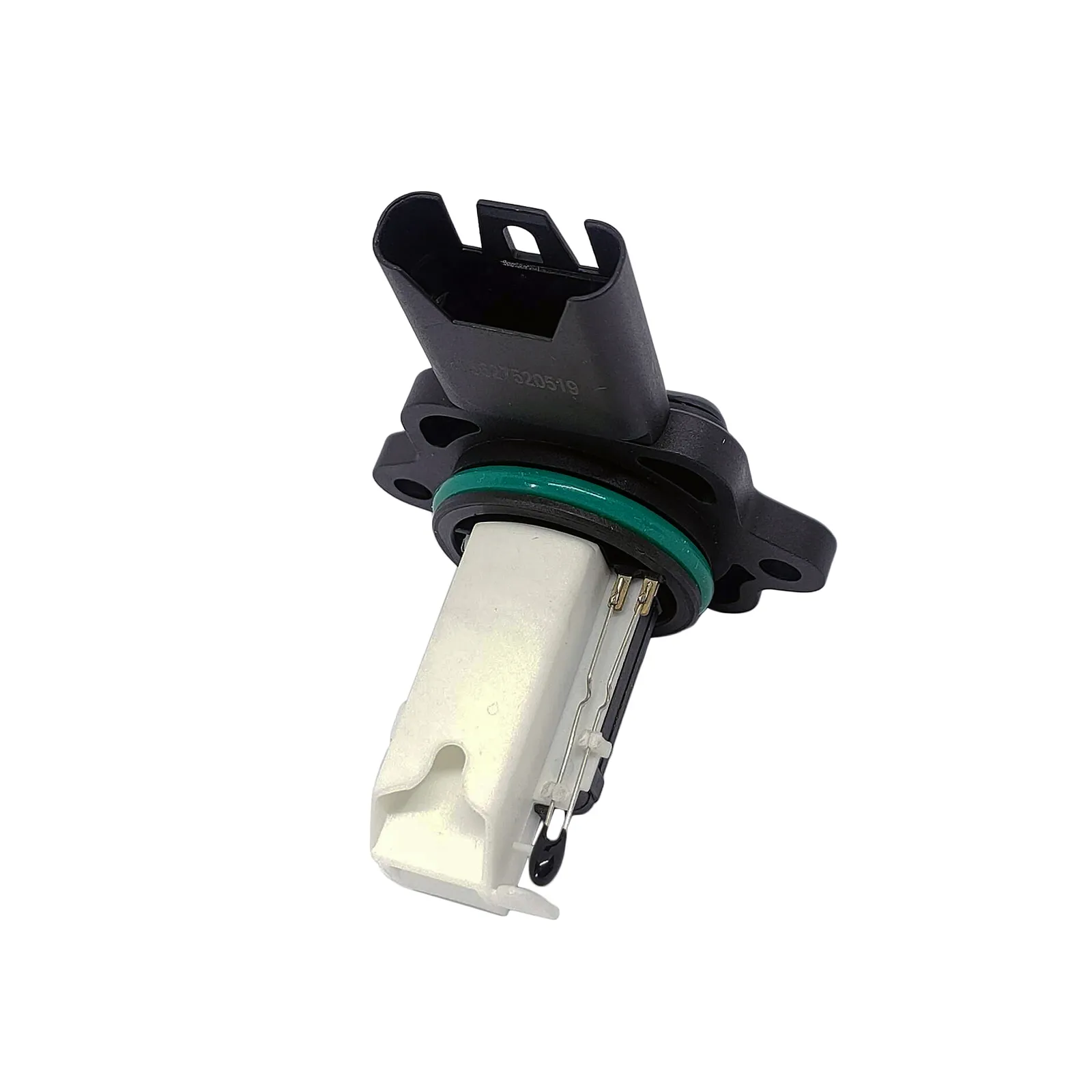

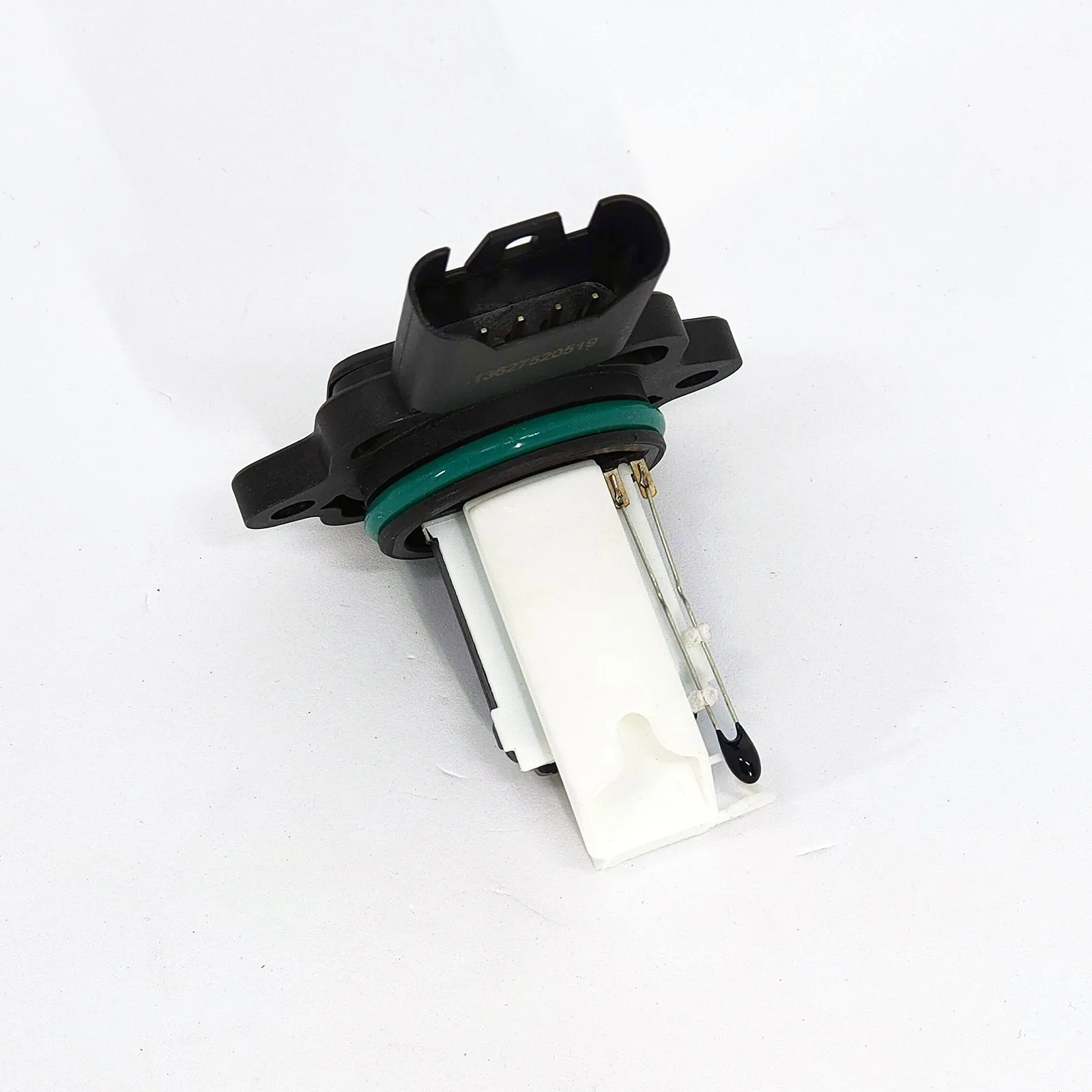

1 x BRAND NEW mass airflow sensor - insert only with seal ring, 5-pin connector and integrated air temperature sensor, 12V. Fits your original MAF housing.

ABOUT THIS SENSOR

This Continental/VDO-pattern hot-film sensor reads air mass and intake temperature for the DME on BMW's N52 and N54 six-cylinders and the late M54. Because it is an insert rather than a complete housing, it is a straight swap into the existing intake.

A worn element under-reads airflow, so the engine leans out and the DME pushes fuel trims to the limit - typically logging P0171 and P0174. Matched to the OEM part number and backed by our returns policy.

COMMON SYMPTOMS OF FAILURE

Check engine light - fault codes P0100 P0101 P0102 P0103 (MAF circuit)
Lean codes P0171 and P0174 on both banks
Rough or hunting idle
Hesitation on light throttle
Stalling when coming to a stop
Increased fuel consumption

[03/08 - 10/13] BMW 1 E82 125i 3.0L 6cyl N52 B30 BF / N52 B30 A / N52 B30 B 160kW
[09/05 - 02/07] BMW 1 E87 130i 3.0L 6cyl N52 B30 BF / N52 B30 A / N52 B30 AF 195kW
[12/07 - 10/13] BMW 1 E88 125i 3.0L 6cyl N52 B30 BF / N52 B30 A / N52 B30 B 160kW
[12/04 - 08/07] BMW 3 E90 320i 2.0L 4cyl N46 B20 B 110kW
[09/05 - 02/07] BMW 3 E90 323i 2.5L 6cyl N52 B25 A / N52 B25 B / N52 B25 BF / N52 B25 BE 130kW
[03/07 - 12/11] BMW 3 E90 323i 2.5L 6cyl N52 B25 A / N52 B25 BF 140kW
[12/04 - 12/11] BMW 3 E90 325i 2.5L 6cyl N52 B25 A / N52 B25 B / N52 B25 BF 160kW
[12/04 - 10/11] BMW 3 E90 330i 3.0L 6cyl N52 B30 BF / N52 B30 A 190kW
[04/06 - 06/07] BMW 3 E91 323i 2.5L 6cyl N52 B25 A 130kW
[09/06 - 12/12] BMW 3 E91 323i 2.5L 6cyl N52 B25 A 140kW
[12/04 - 08/08] BMW 3 E91 325i 2.5L 6cyl N52 B25 A 160kW
[08/05 - 08/07] BMW 3 E91 330i 3.0L 6cyl N52 B30 A 190kW
[04/06 - 02/12] BMW 3 E92 323i 2.5L 6cyl N52 B25 AE / N52 B25 BE 140kW
[06/06 - 02/10] BMW 3 E92 325i 2.5L 6cyl N52 B25 A / N52 B25 AF / N52 B25 BF 160kW
[12/06 - 02/10] BMW 3 E93 325i 2.5L 6cyl N52 B25 A 160kW
[03/07 - 12/09] BMW 5 E60 523i 2.5L 6cyl N52 B25 A / N52 B25 BE 140kW
[09/03 - 02/05] BMW 5 E60 525i 2.5L 6cyl M54 B25 (256S5) 141kW
[03/05 - 12/09] BMW 5 E60 525i 2.5L 6cyl N52 B25 A / N52 B25 B / N52 B25 BF 160kW
[09/03 - 02/05] BMW 5 E60 530i 3.0L 6cyl M54 B30 (306S3) 170kW
[03/05 - 03/07] BMW 5 E60 530i 3.0L 6cyl N52 B30 BF / N52 B30 A 190kW
[09/04 - 02/07] BMW 5 E61 530i 3.0L 6cyl N52 B30 BF / N52 B30 A 190kW
[03/10 - 06/13] BMW 5 F10 528i 3.0L 6cyl N52 B30 BF / N52 B30 A / N52 B30 AF 190kW
[07/03 - 12/06] BMW Z4 E85i 2.5L 6cyl M54 B25 (256S5) 141kW
[07/03 - 12/05] BMW Z4 E85i 3.0L 6cyl M54 B30 (306S3) 170kW
[01/06 - 08/08] BMW Z4 E85 si 2.5L 6cyl N52 B25 A 160kW
[01/06 - 08/08] BMW Z4 E85 si 3.0L 6cyl N52 B30 BF / N52 B30 A 195kW
[04/06 - 08/08] BMW Z4 E86 si 3.0L 6cyl N52 B30 BF / N52 B30 A 195kW
[03/09 - 08/11] BMW Z4 E89 sDrive 23i 2.5L 6cyl N52 B25 A / N52 B25 BF 150kW
[02/09 - 08/11] BMW Z4 E89 sDrive 30i 3.0L 6cyl N52 B30 BF / N52 B30 A / N52 B30 B 190kW
[02/09 - 02/12] BMW Z4 E89 sDrive 35i 3.0L 6cyl N54 B30 A 225kW
[03/10 - 08/16] BMW Z4 E89 sDrive 35is 3.0L 6cyl N54 B30 A 250kW

Can I clean my MAF sensor instead of replacing it?

Yes - if the sensor is contaminated rather than electrically failed, cleaning with a dedicated MAF sensor cleaner spray can restore correct readings. Do not use brake cleaner or generic electrical contact cleaner as these leave residue that damages the sensing wire. Allow the sensor to dry completely before reinstalling. If cleaning does not resolve the fault codes, the sensor requires replacement.

What is the difference between a MAF sensor and a MAP sensor?

A MAF (Mass Air Flow) sensor directly measures the mass of air entering the engine using a hot wire element in the intake. A MAP (Manifold Absolute Pressure) sensor measures intake manifold pressure to calculate air density. Most modern engines use one or the other - some use both. Your vehicle service manual or OBD2 fault codes will confirm which sensor type your engine uses.

Will a faulty MAF sensor cause my vehicle to fail an emissions test?

Yes. A faulty MAF sensor causes the ECU to miscalculate fuel delivery, typically resulting in a rich running condition that increases CO and hydrocarbon emissions. Most roadworthy and emissions checks will fail a vehicle with an active MAF sensor fault code or visibly excessive exhaust smoke.

What are the symptoms of a bad MAF sensor?

Common symptoms include rough idle, hesitation or stumbling on acceleration, poor fuel economy, black smoke from the exhaust, and an illuminated Check Engine light. Your ECU may log fault codes P0100 to P0104.

Can I drive with a faulty MAF sensor?

You can drive short distances but it is not recommended. A faulty MAF sensor causes the ECU to run incorrect fuel mixtures, which can damage the catalytic converter and O2 sensors over time. Have it replaced as soon as possible.

How do I test if my MAF sensor is bad?

Use an OBD2 scanner to check for fault codes P0100-P0104. You can also use a multimeter or live data scanner to check the sensor output voltage against your vehicle's specification. A reading significantly outside spec confirms a faulty sensor.

What causes a MAF sensor to fail?

The most common causes are a dirty or contaminated sensing element (often from a missing or damaged air filter), oil contamination from an over-oiled aftermarket air filter, heat damage, or general wear over time.

Do I need to reset my ECU after replacing the MAF sensor?

It is good practice to clear any stored fault codes using an OBD2 scanner after replacement. Some vehicles will self-adapt within a short drive cycle, but clearing codes ensures the ECU recalibrates from a clean baseline.

Identification
SKU	AM97502NG
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	AM97502NG
Reference OEM Number	13627520519
Other OEM Numbers	7520519, 13627520519, 5WK97502
Related Part Numbers	AFM-164M, AF10446, AM97502N, TAF022, MAS0286
Trade Part Numbers	VEMO: V20-72-5141, HELLA: 8ET 009 142-641, NTY: EPP-BM-015
Product Specifics
Product Type	SENSOR
Sensor Type	Mass Airflow Sensor
Number of pins	5
Connector Shape	oval
Voltage	12 V
Housing Colour	Black
Housing Type	without housing
Mounting Type	Bolted
Compatible Makes	BMW
Fitment Type	Direct Replacement
Outer Diameter	33 mm
Other Details
Note	Insert only with seal ring - fits your original MAF housing
