Mass Airflow Sensor for BMW Z3 E36 Roadster 2.0 2.2 2.8 3.0 M52 M54 13621432356

Part #: CAF016 OEM #: 13621432356 SKU: CAF016-Z3

OEM Spec Fit Replaces 13621432356

$148.45
RRP $302.95
SAVE $154.50 (51%)
In Stock

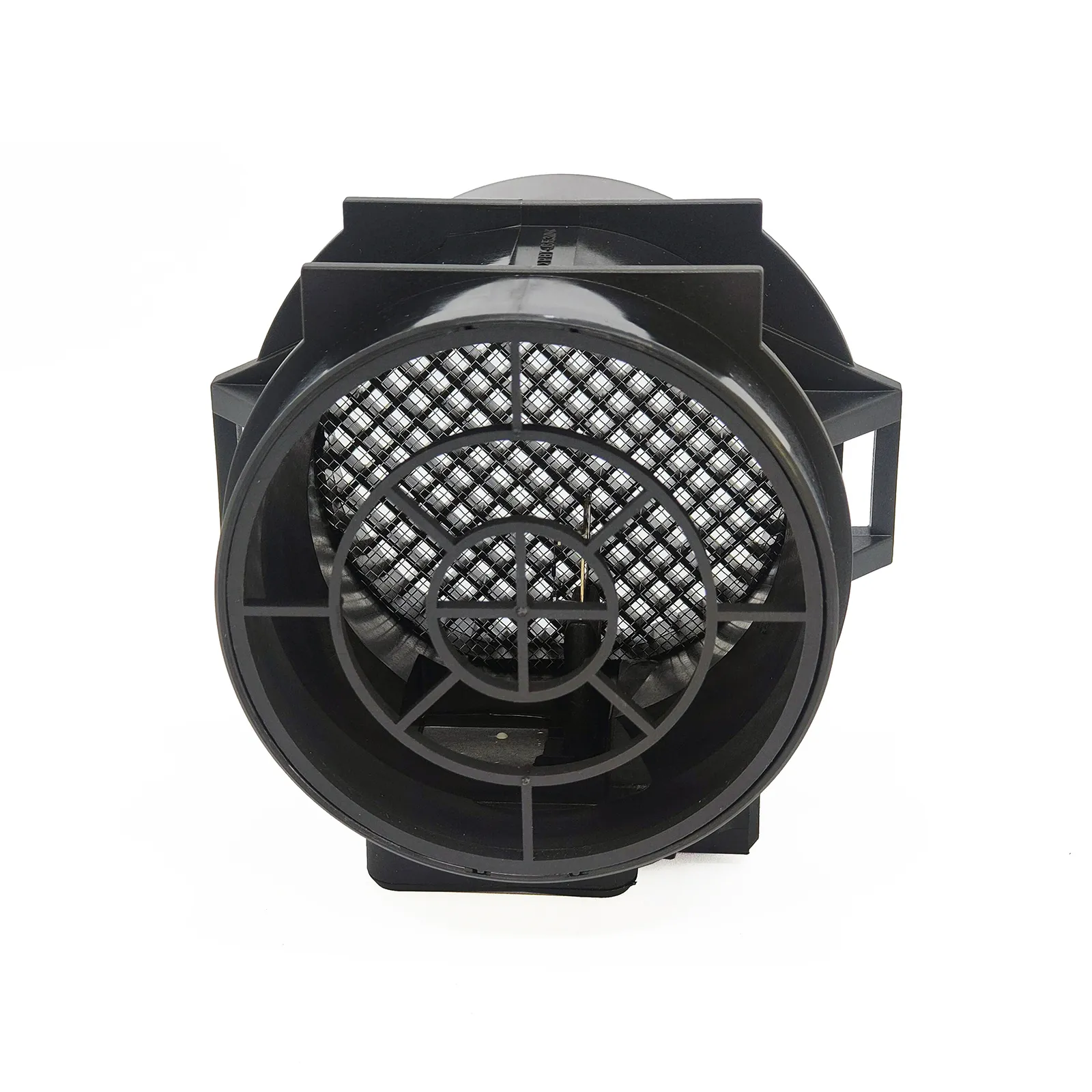

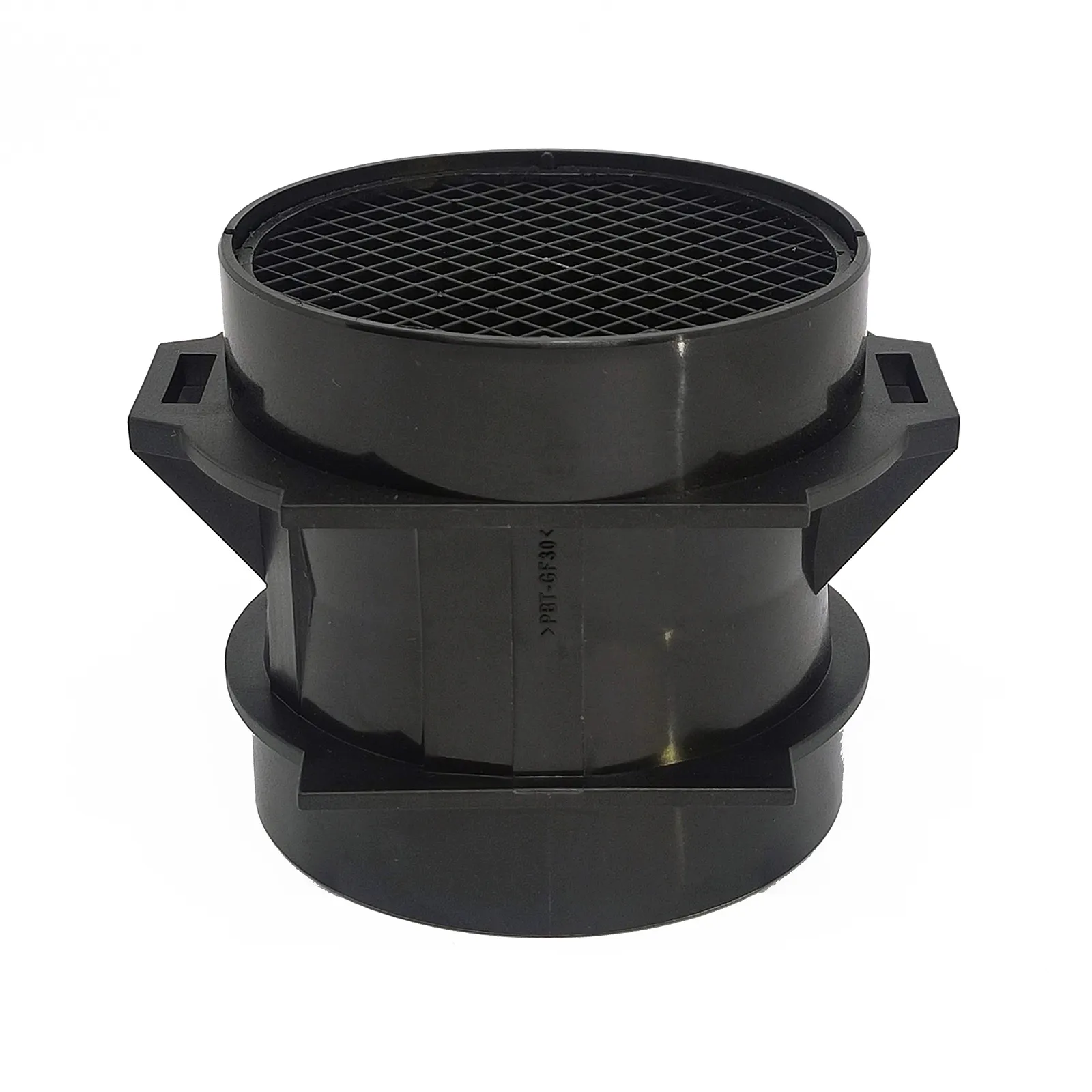

BRAND NEW *OEM Quality* mass airflow sensor to suit BMW Z3 Roadster E36 with the M52 and M54 six-cylinder engines.

When a Z3 starts surging at idle or loses its crisp throttle response, the air mass meter is a common culprit. This direct replacement brings the response back and goes out with same-day dispatch before 12pm from Cranbourne VIC.

TO SUIT

Fits the six-cylinder Z3 Roadster from 1998 to 2003: 2.0i (M52 B20), 2.2i (M54 B22), 2.8i (M52 B28, from 10/98 build) and 3.0i (M54 B30). Model dates are in the compatibility table.

FITMENT CHECK

Six-cylinder Z3 models only - the 1.8 and 1.9 four-cylinder cars are not listed for this part. Confirm OEM 13621432356 or 1432356 on your existing sensor before ordering.

OEM PART NUMBERS

  • 13621432356
  • 1432356

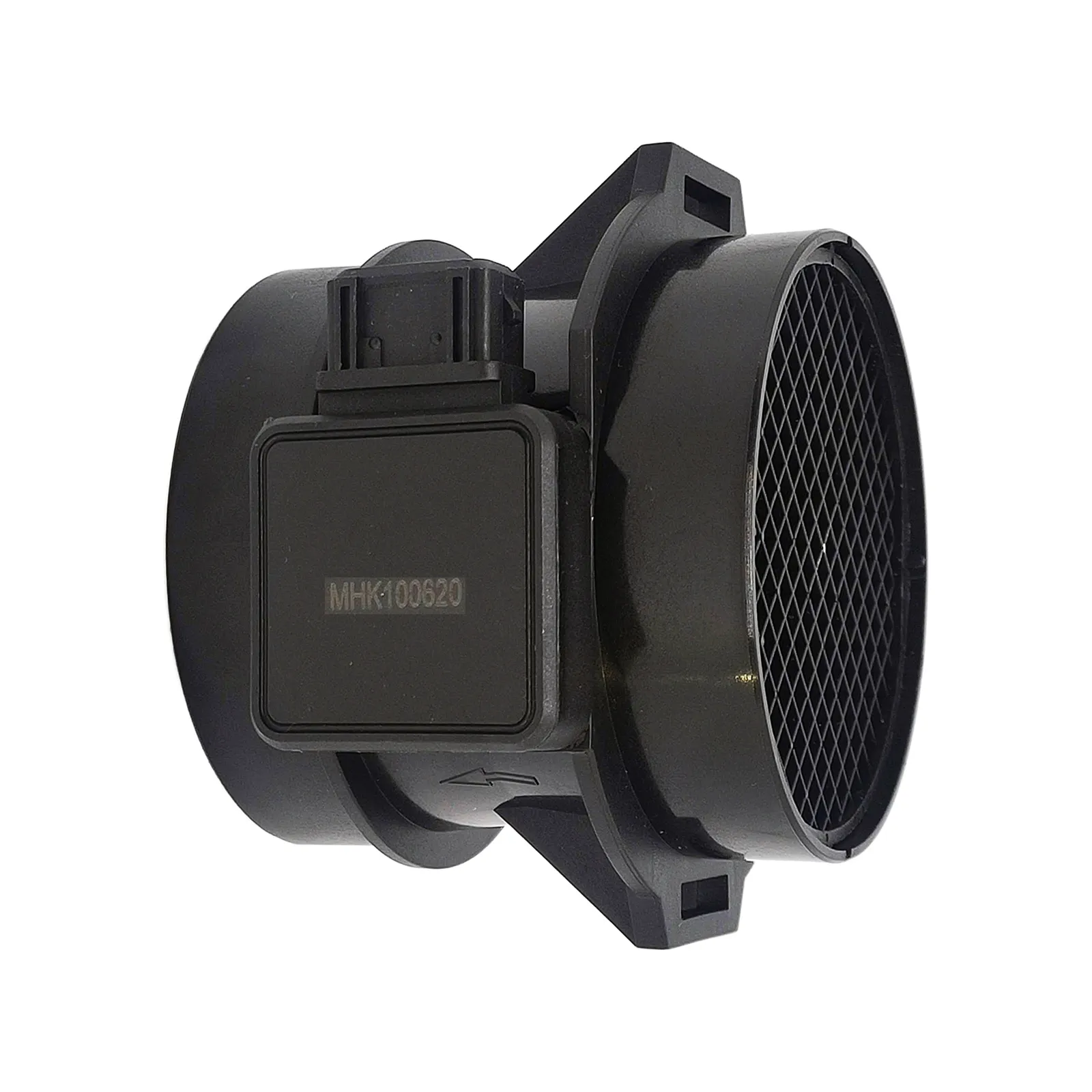

  • MHK100620

OTHER PART NUMBERS

  • VEMO: V48-72-0001
  • HELLA: 8ET 009 142-051
  • NTY: EPP-LR-004
  • CONTINENTAL/VDO: 5WK9607Z

PACKAGE INCLUDES

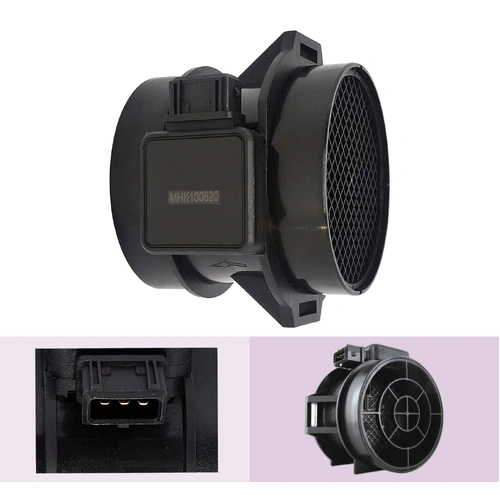

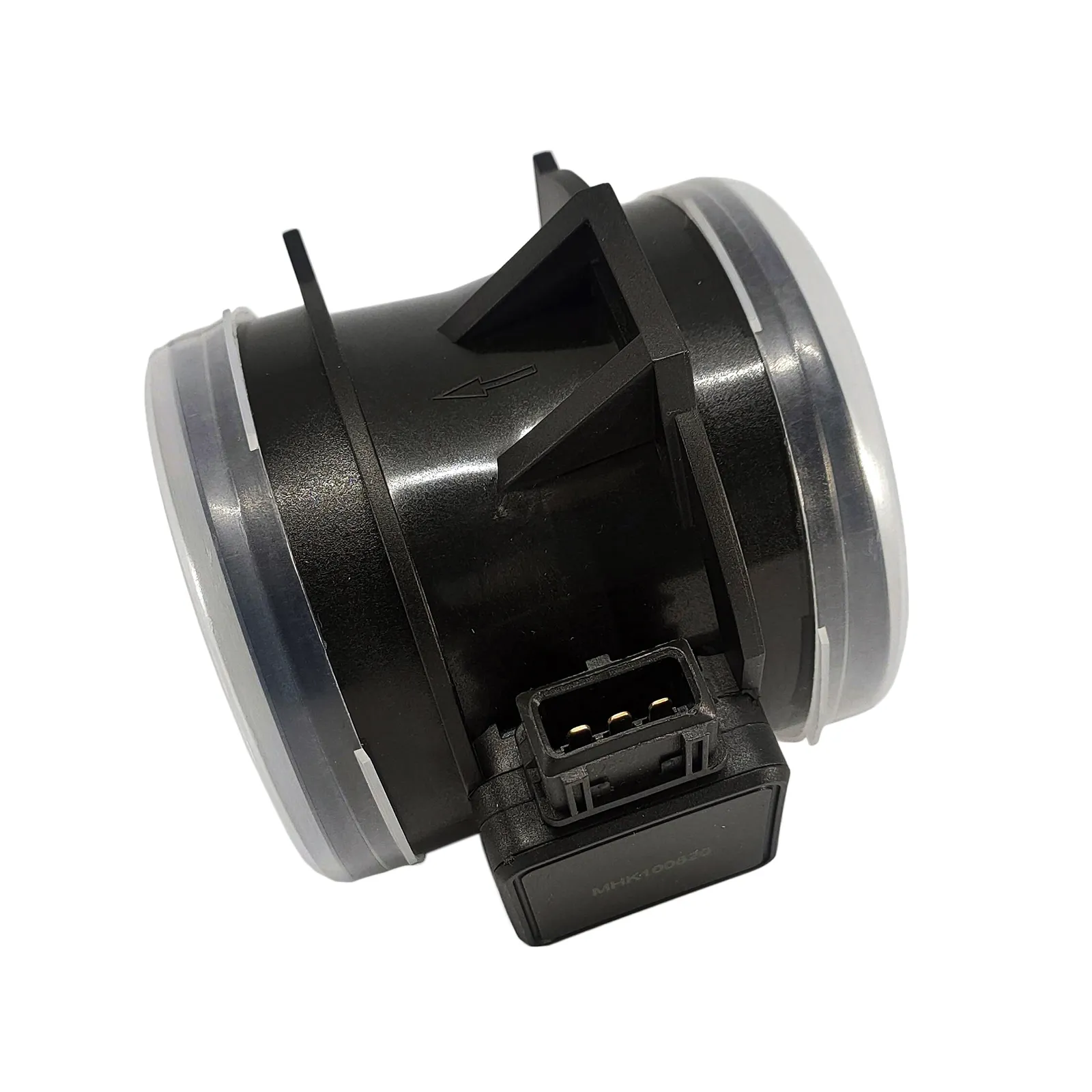

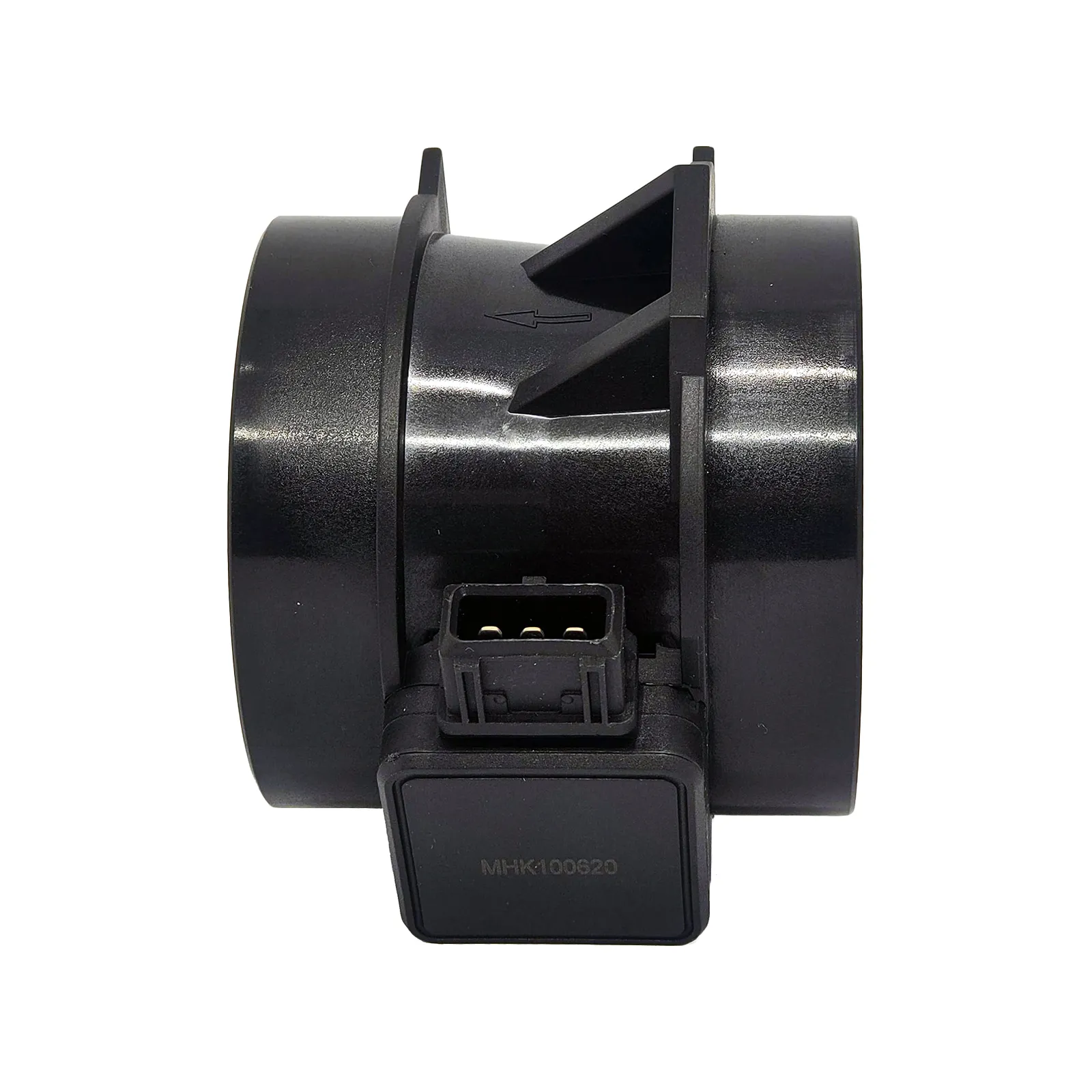

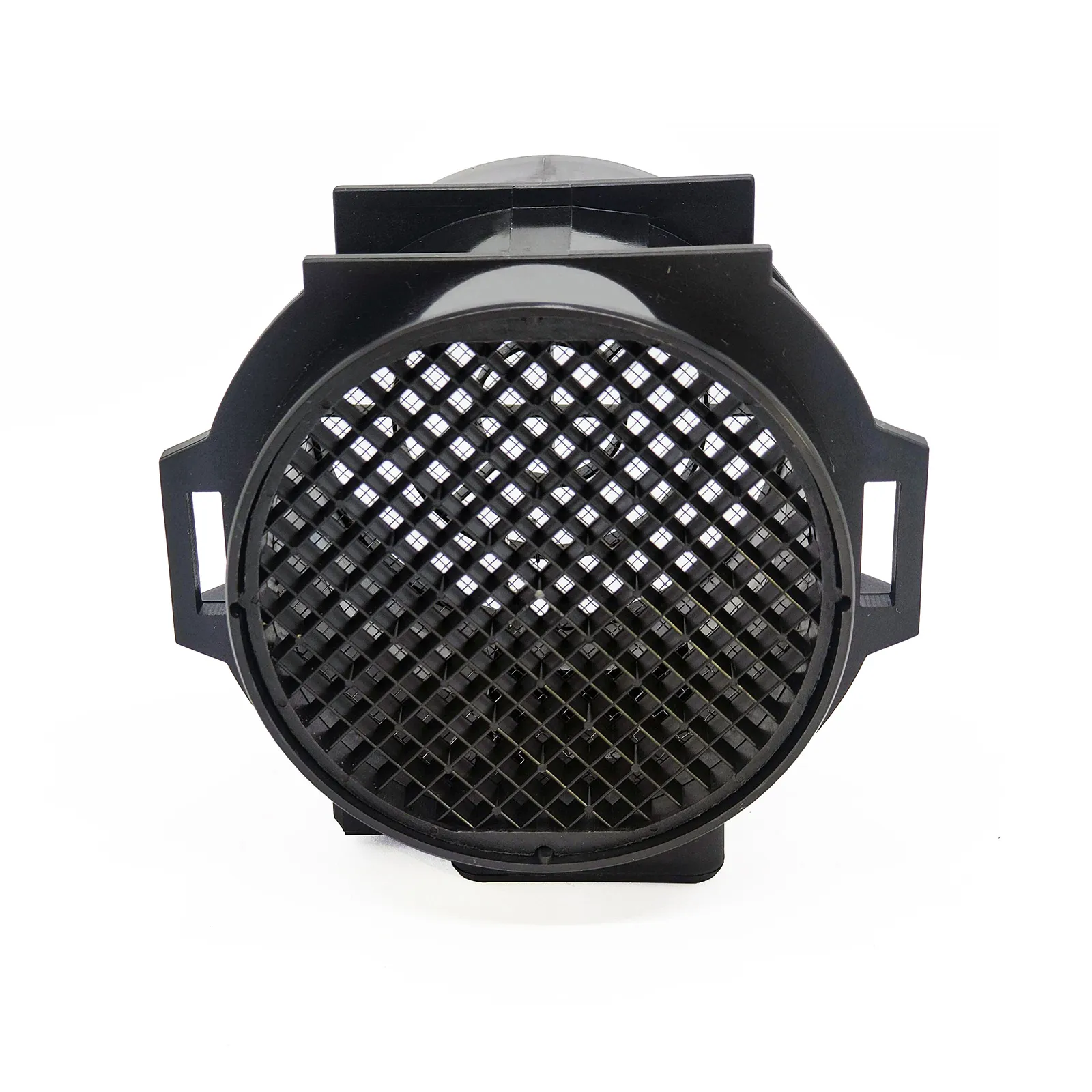

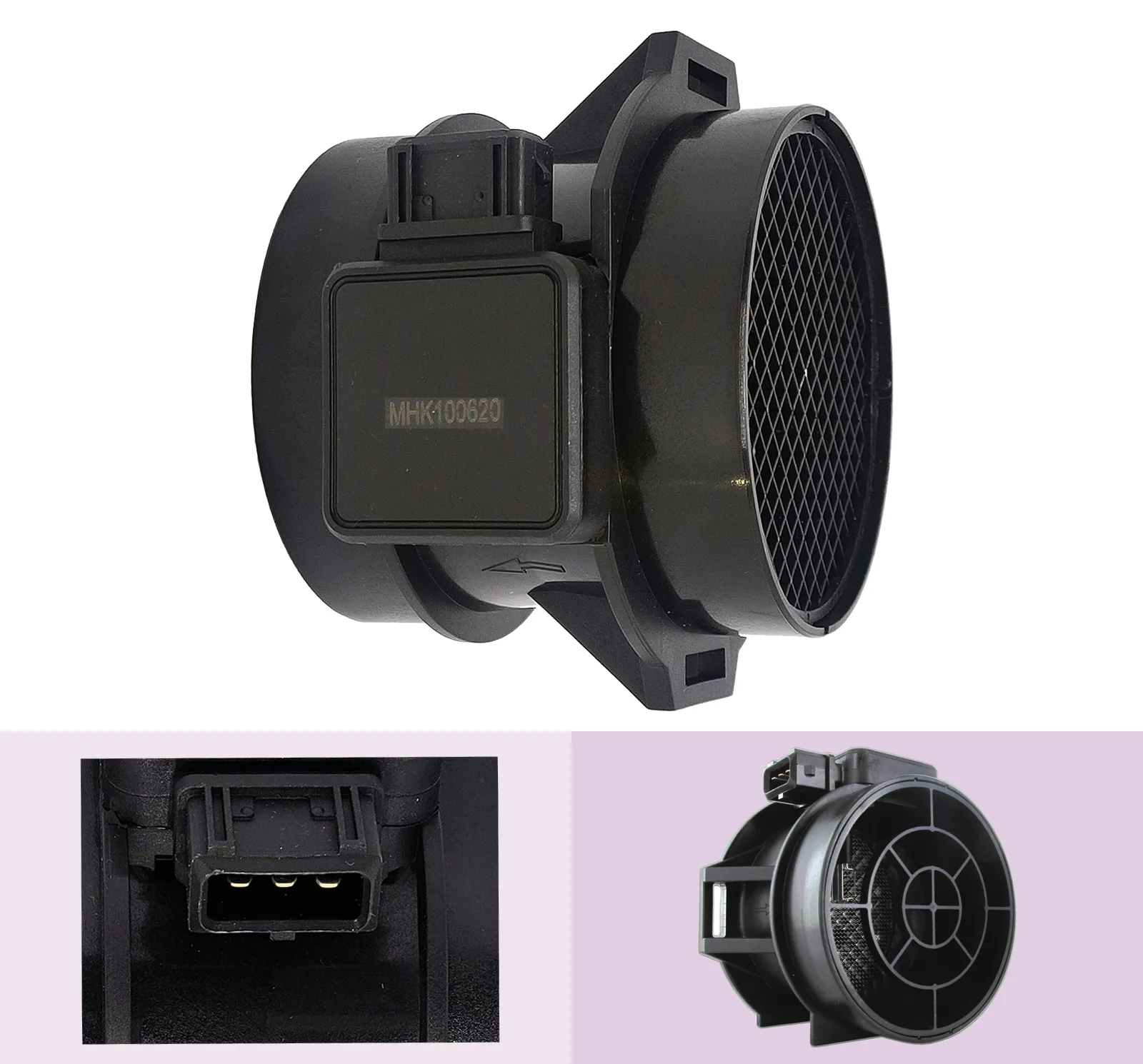

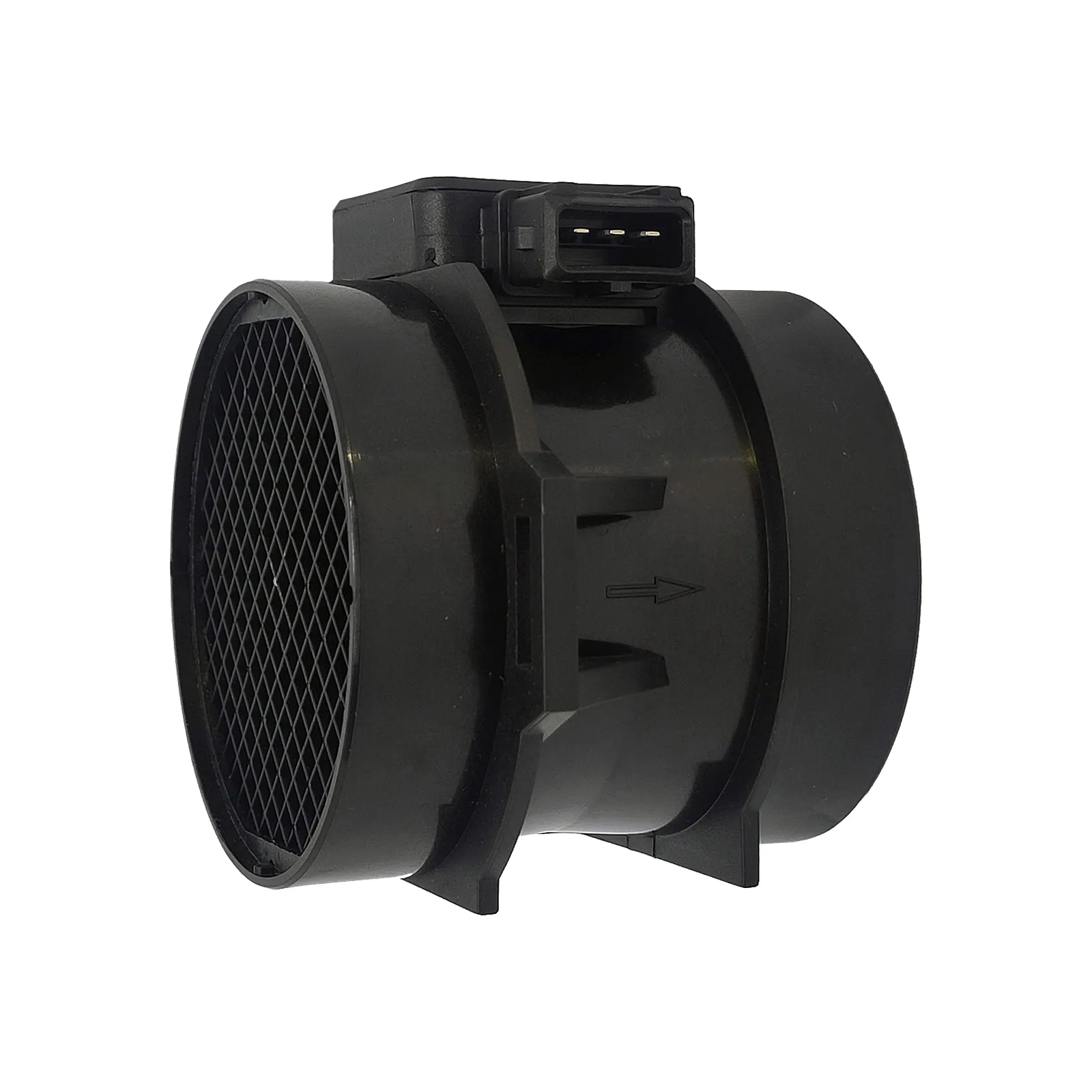

1 x BRAND NEW mass airflow sensor - complete unit with housing and 3-pin connector. 80mm intake neck. 12V operating voltage.

ABOUT THIS SENSOR

The Z3 shares its M52 and M54 air metering with the E36 and E46 sedans - the hot-film element reads intake air mass for the DME just ahead of the throttle body. On a lightweight roadster any drift is felt straight away as a soft or uneven throttle.

Left too long a bad sensor causes lean running, misfires under load and failed emissions tests. This unit plugs straight into the factory 3-pin connector and is backed by our returns policy.

COMMON SYMPTOMS OF FAILURE

  • Check engine light - fault codes P0100 P0101 P0102 P0103 (MAF circuit)
  • Surging or hunting idle
  • Soft or uneven throttle response
  • Misfire under load
  • Failed emissions test
  • Increased fuel consumption
  • [06/99 - 10/00] BMW Z3 E36 i 2.0L 6cyl M52 B20 (206S4) 110kW
  • [10/00 - 06/02] BMW Z3 E36 i 2.2L 6cyl M54 B22 (226S1) 125kW
  • [10/98 - 05/00] BMW Z3 E36 i 2.8L 6cyl M52 B28 (286S1) M52 B28 (286S2) 142kW
  • [06/00 - 01/03] BMW Z3 E36 i 3.0L 6cyl M54 B30 (306S3) 170kW
Can I clean my MAF sensor instead of replacing it?

Yes - if the sensor is contaminated rather than electrically failed, cleaning with a dedicated MAF sensor cleaner spray can restore correct readings. Do not use brake cleaner or generic electrical contact cleaner as these leave residue that damages the sensing wire. Allow the sensor to dry completely before reinstalling. If cleaning does not resolve the fault codes, the sensor requires replacement.

What is the difference between a MAF sensor and a MAP sensor?

A MAF (Mass Air Flow) sensor directly measures the mass of air entering the engine using a hot wire element in the intake. A MAP (Manifold Absolute Pressure) sensor measures intake manifold pressure to calculate air density. Most modern engines use one or the other - some use both. Your vehicle service manual or OBD2 fault codes will confirm which sensor type your engine uses.

Will a faulty MAF sensor cause my vehicle to fail an emissions test?

Yes. A faulty MAF sensor causes the ECU to miscalculate fuel delivery, typically resulting in a rich running condition that increases CO and hydrocarbon emissions. Most roadworthy and emissions checks will fail a vehicle with an active MAF sensor fault code or visibly excessive exhaust smoke.

What are the symptoms of a bad MAF sensor?

Common symptoms include rough idle, hesitation or stumbling on acceleration, poor fuel economy, black smoke from the exhaust, and an illuminated Check Engine light. Your ECU may log fault codes P0100 to P0104.

Can I drive with a faulty MAF sensor?

You can drive short distances but it is not recommended. A faulty MAF sensor causes the ECU to run incorrect fuel mixtures, which can damage the catalytic converter and O2 sensors over time. Have it replaced as soon as possible.

How do I test if my MAF sensor is bad?

Use an OBD2 scanner to check for fault codes P0100-P0104. You can also use a multimeter or live data scanner to check the sensor output voltage against your vehicle's specification. A reading significantly outside spec confirms a faulty sensor.

What causes a MAF sensor to fail?

The most common causes are a dirty or contaminated sensing element (often from a missing or damaged air filter), oil contamination from an over-oiled aftermarket air filter, heat damage, or general wear over time.

Do I need to reset my ECU after replacing the MAF sensor?

It is good practice to clear any stored fault codes using an OBD2 scanner after replacement. Some vehicles will self-adapt within a short drive cycle, but clearing codes ensures the ECU recalibrates from a clean baseline.

Identification
SKUCAF016-Z3
Barcode #9314258096342
BrandAftermarket OEM Replacement
Part Numbers
Part NumberCAF016
Reference OEM Number13621432356
Other OEM Numbers13621432356, 1432356, MHK100620
Related Part Numbers5WK9607Z, AM9607N, AMM9201, AF10185
Trade Part NumbersVEMO: V48-72-0001, HELLA: 8ET 009 142-051, NTY: EPP-LR-004
Product Specifics
Product TypeSENSOR
Sensor TypeMass Airflow Sensor
Number of pins3
Voltage12 V
Housing ColourBlack
Housing Typewith housing
Mounting TypePipe-neck
Compatible MakesBMW
Fitment TypeDirect Replacement
Other Details

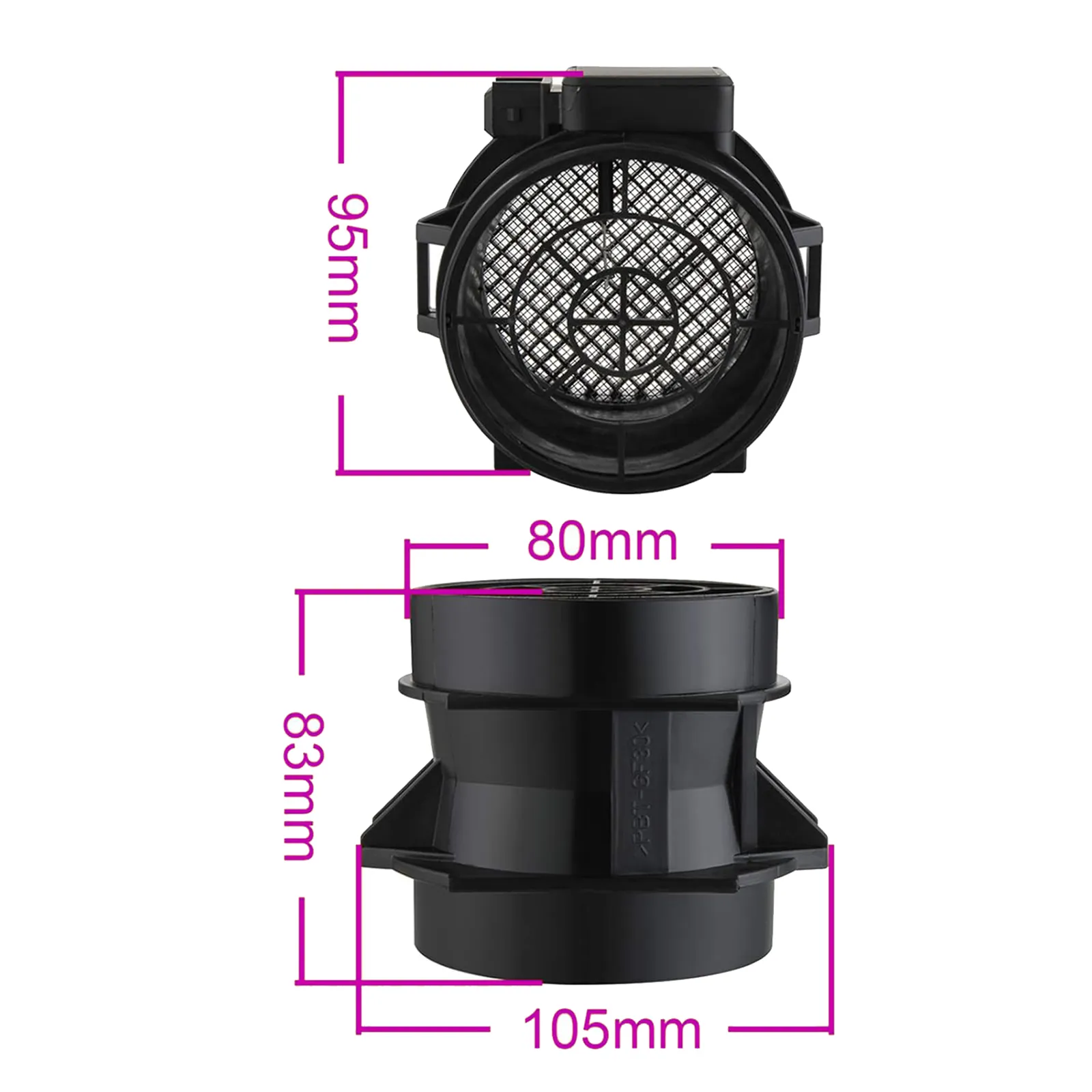

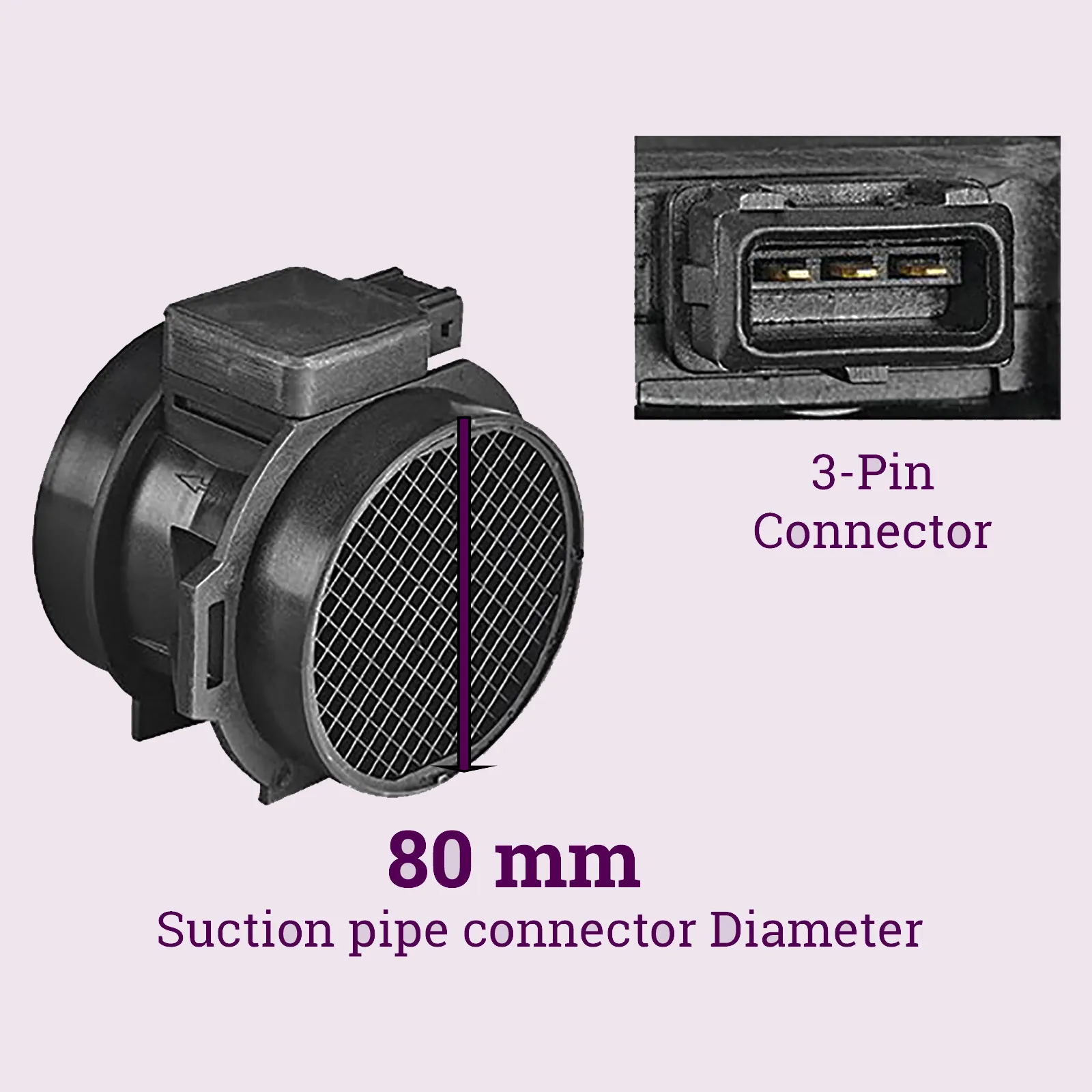

Note3-pin plug and 80mm intake neck - compare with your old sensor
