BRAND NEW *OEM Quality* mass airflow sensor to suit Toyota HiAce KDH201 KDH221 KDH223 and Commuter 3.0L 1KD-FTV diesel.

A failed MAF sensor on the 1KD diesel leaves the engine running rich, producing black smoke and logging MAF fault codes. This direct-fit replacement restores correct fuelling immediately. Backed by our returns policy - and most orders are dispatched same day express from Melbourne.

TO SUIT

This sensor suits the Toyota HiAce and Commuter KDH series with the 3.0L 1KD-FTV diesel engine, produced from August 2004 to January 2019. Covers the 80kW and 100kW power variants across KDH201, KDH221 and KDH223 chassis codes. Also suits the Landcruiser Prado KDJ120/KDJ125 and Hilux KUN16/KUN26 with the same 1KD-FTV engine. See full vehicle list above.

FITMENT CHECK

This listing covers models fitted with the 5-pin rectangular MAF connector. If your vehicle was built before August 2010 check the KDH chassis code against the vehicle list above - some early KDH203 variants used a different sensor family.

OEM PART NUMBERS

22204-0D030
22204-0J010
22204-0C020
22204-22010
197400-2120

OTHER PART NUMBERS

DENSO: DMA-0108
NTY: EPP-TY-000
AFI: AMM9120
GOSS: AMZL01N

PACKAGE INCLUDES

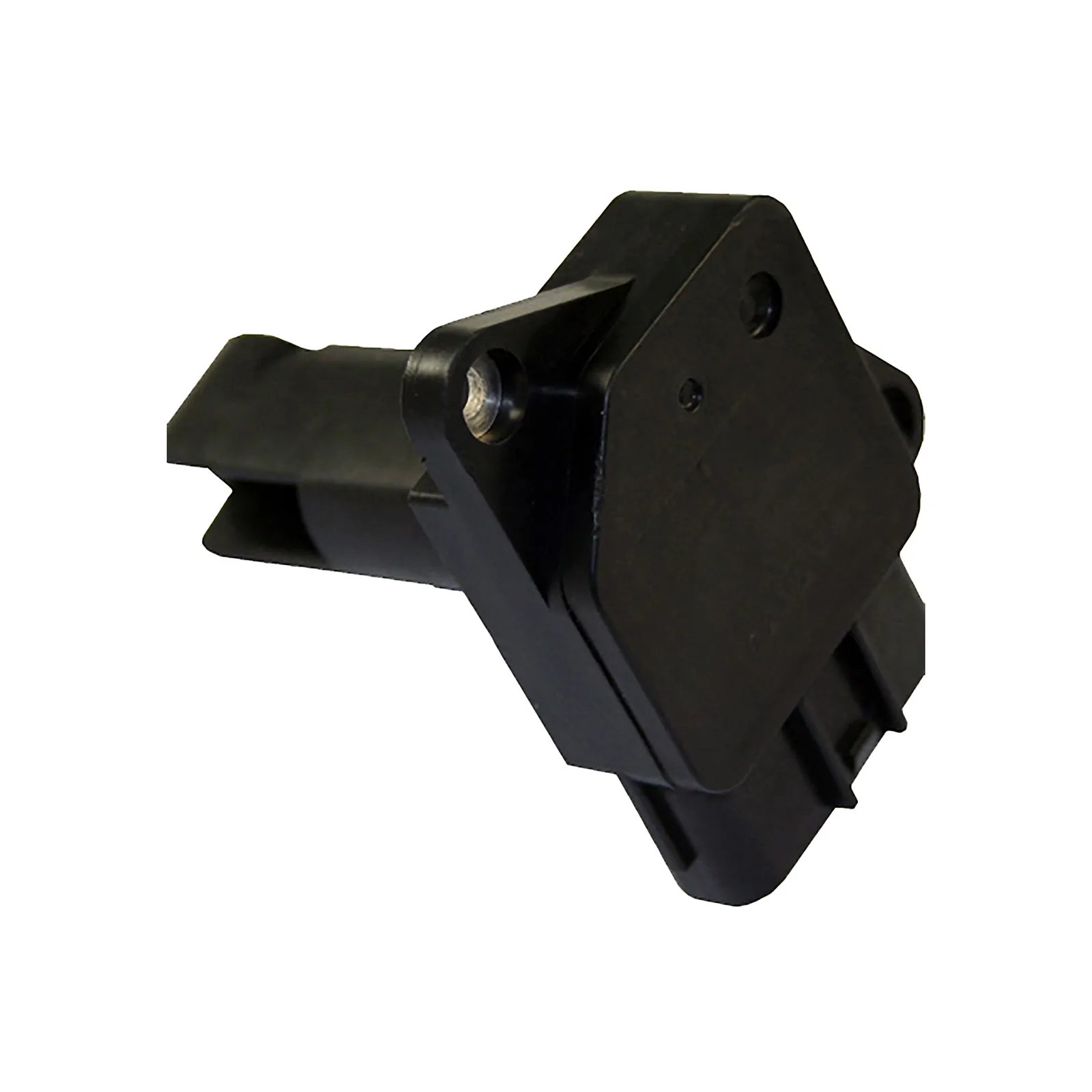

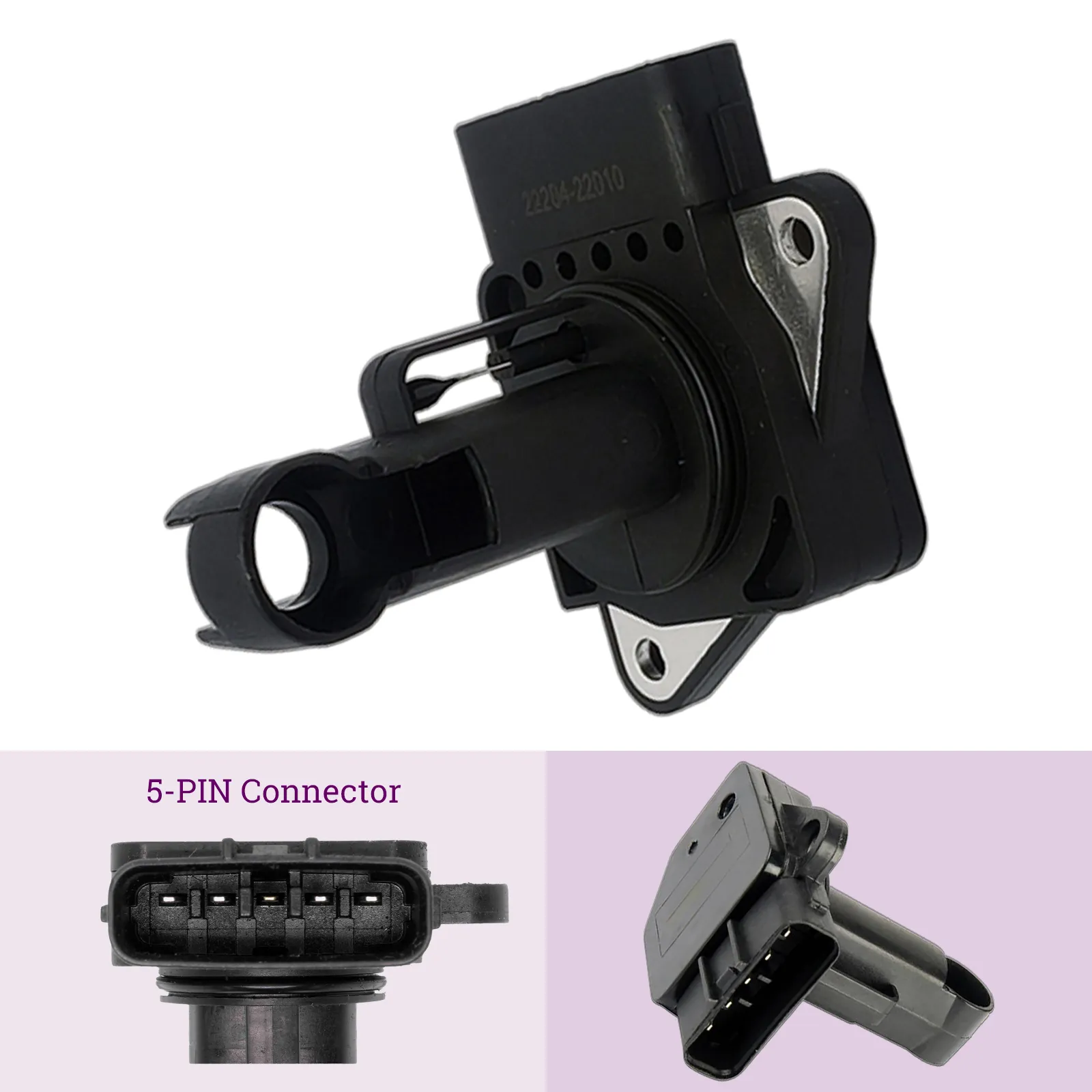

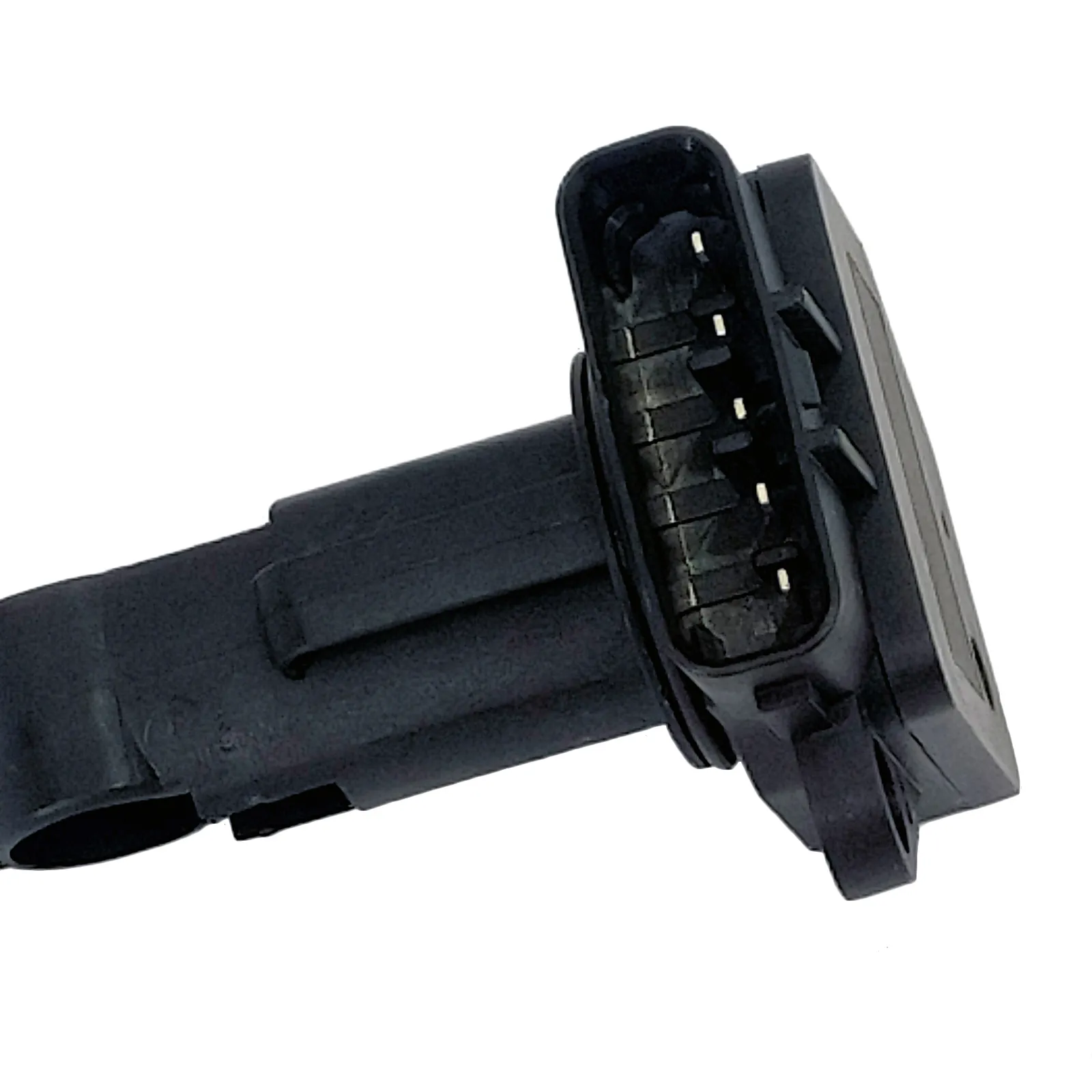

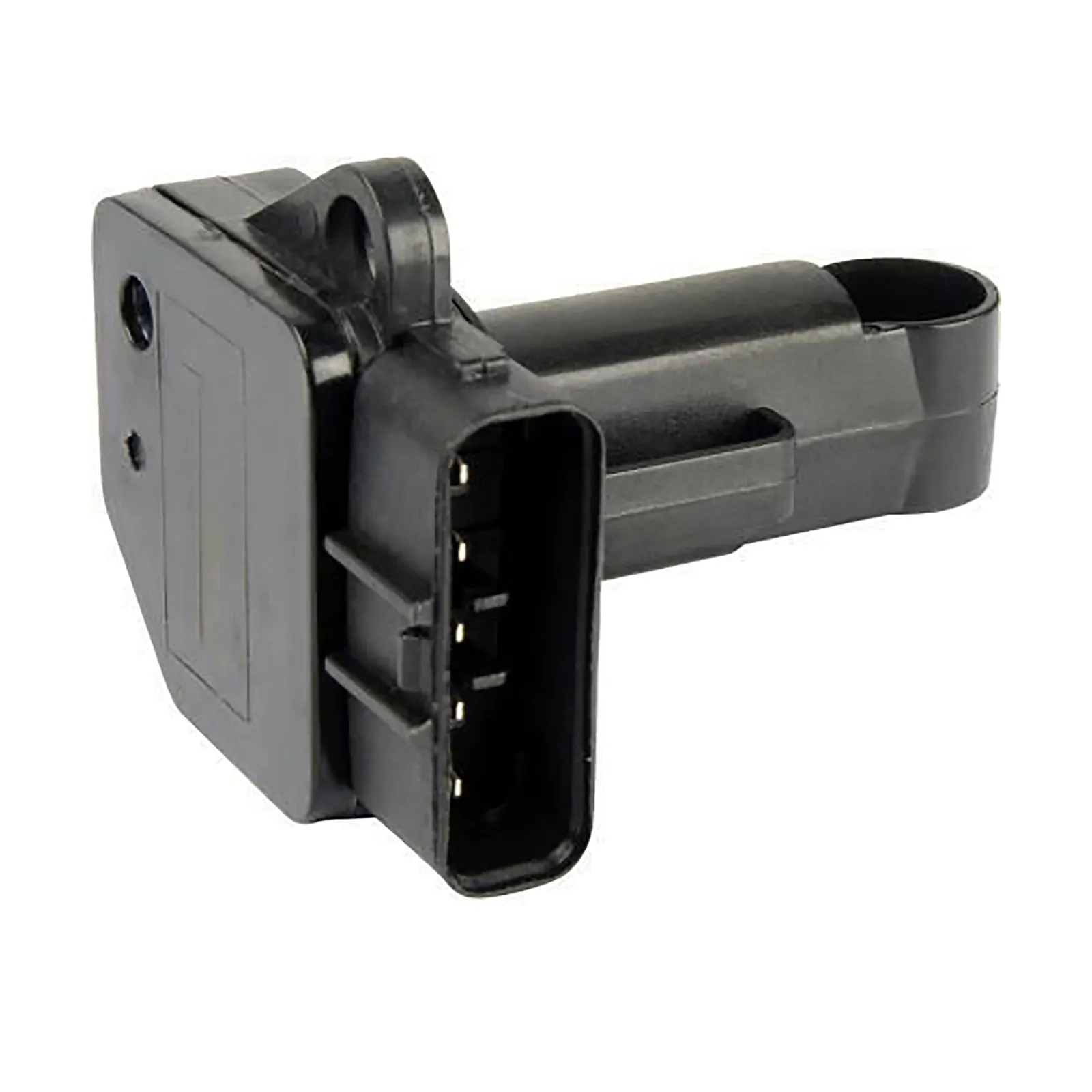

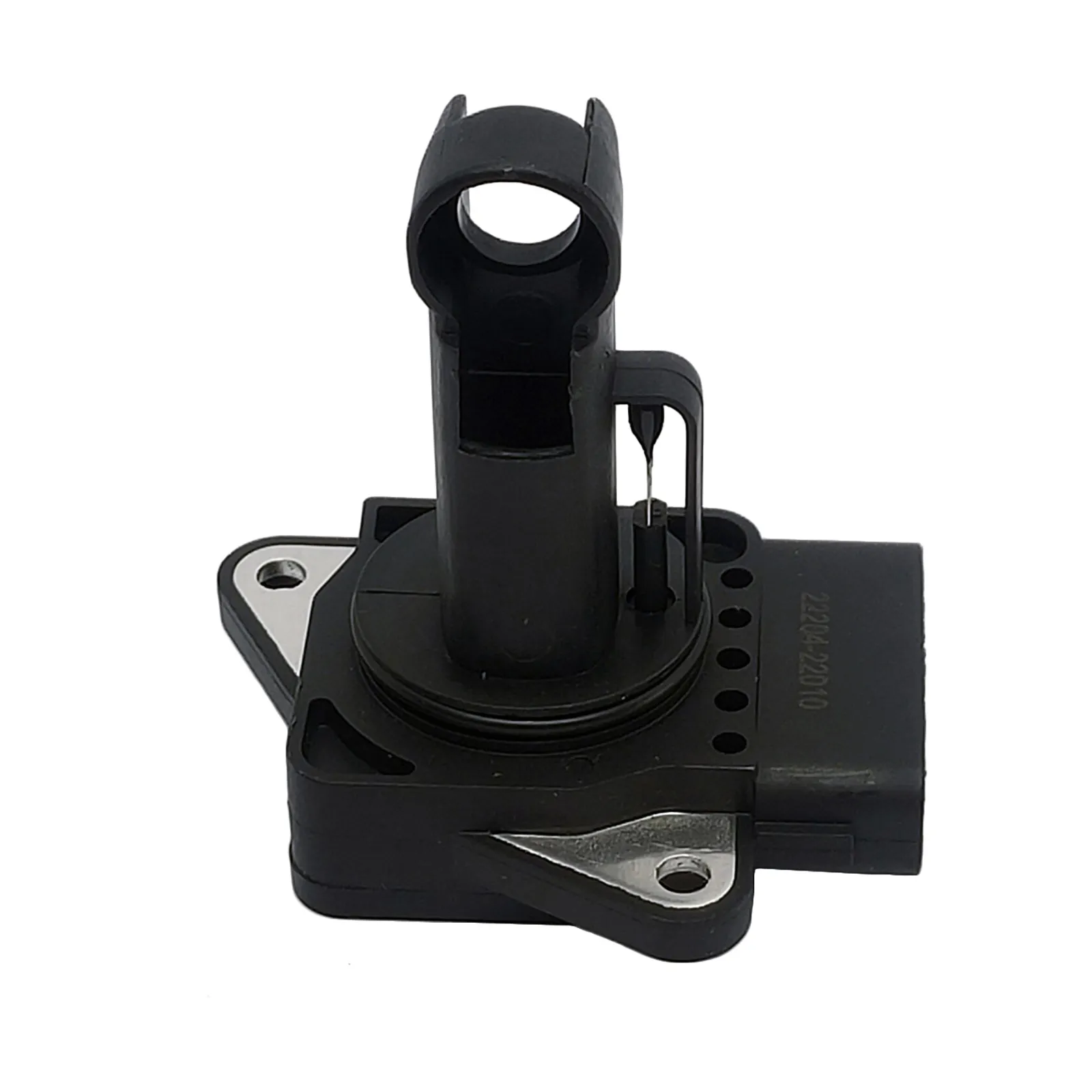

1 x BRAND NEW mass airflow sensor (5-pin rectangular connector, insert only - without housing).

ABOUT THIS SENSOR

The MAF sensor on the 1KD-FTV diesel measures intake air volume and temperature to allow the ECU to calculate precise fuel injection timing and quantity. It is bolted into the intake tract and runs at 12V with an integrated temperature element.

When this sensor drifts or fails the ECU falls back to default fuelling tables - causing rough idle, excessive black smoke, poor throttle response and increased fuel consumption on the 1KD engine.

COMMON SYMPTOMS OF FAILURE

Check engine light with codes P0100-P0103 (MAF sensor circuit)
Black smoke from exhaust under acceleration
Rough idle or engine hunting at low RPM
Poor throttle response or hesitation
Increased fuel consumption
Limp mode or reduced power warning

[05/10 - 01/19] TOYOTA HIACE KDH201,KDH221 V D 3.0L 4cyl 1KD-FTV 100kW
[08/04 - 01/19] TOYOTA COMMUTER,HIACE KDH203,KDH221,KDH223 V D 3.0L 4cyl 1KD-FTV 80kW
[05/10 - 12/14] TOYOTA COMMUTER,HIACE KDH223 V D 3.0L 4cyl 1KD-FTV 100kW

[07/15 - 07/17] TOYOTA HILUX GGN120R,GGN135R VIII 4.0L V6 1GR-FE 175kW
[07/15 - 07/17] TOYOTA HILUX GGN125,GGN135 VIII 4.0L V6 1GR-FE 175kW
[08/05 - 08/15] TOYOTA HILUX GGN15 VII 4.0L V6 1GR-FE 175kW
[02/05 - 06/15] TOYOTA HILUX GGN15R VII 4.0L V6 1GR-FE 175kW
[08/05 - 08/15] TOYOTA HILUX GGN25 VII 4.0L V6 1GR-FE 175kW
[02/05 - 06/15] TOYOTA HILUX GGN25R VII 4.0L V6 1GR-FE 175kW
[08/05 - 08/06] TOYOTA HILUX KUN16 VII D 3.0L 4cyl 1KD-FTV 120kW
[08/06 - 05/15] TOYOTA HILUX KUN16 VII D 3.0L 4cyl 1KD-FTV 126kW
[08/06 - 06/15] TOYOTA HILUX KUN16R VII D 3.0L 4cyl 1KD-FTV 126kW
[03/05 - 08/06] TOYOTA HILUX KUN26 VII D-4D 3.0L 4cyl 1KD-FTV 120kW
[08/06 - 09/15] TOYOTA HILUX KUN26 VII D-4D 3.0L 4cyl 1KD-FTV 126kW
[08/89 - 11/95] TOYOTA HILUX SURF VZN130 II 3.0L V6 3VZ-E 105kW
[08/89 - 11/95] TOYOTA HILUX SURF VZN130 II i 3.0L V6 3VZ-E 112kW
[11/95 - 10/02] TOYOTA HILUX SURF VZN185 III 3.4L V6 5VZ-FE 132kW
[11/95 - 07/00] TOYOTA HILUX SURF VZN185 III 3.4L V6 5VZ-FE 136kW
[08/05 - 05/15] TOYOTA HILUX TGN16 VII 2.7L 4cyl 2TR-FE 118kW
[02/05 - 06/15] TOYOTA HILUX TGN16R VII 2.7L 4cyl 2TR-FE 118kW
[08/01 - 07/05] TOYOTA HILUX VZN167,VZN172 VI 3.4L V6 5VZ-FE 131kW
[05/07 - 08/14] TOYOTA KLUGER GSU40R 3.5L V6 2GR-FE 201kW
[06/07 - 08/14] TOYOTA KLUGER GSU45R 3.5L V6 2GR-FE 201kW
[10/03 - 08/07] TOYOTA KLUGER MCU28R 3.3L V6 3MZ-FE 171kW
[03/03 - 08/09] TOYOTA LAND CRUISER PRADO GRJ120 V6 WTi 4.0L V6 1GR-FE 179kW
[08/09 - 06/15] TOYOTA LAND CRUISER PRADO GRJ150 V6 VVTi 4.0L V6 1GR-FE 202kW
[06/15 - 10/17] TOYOTA LAND CRUISER PRADO GRJ150 V6 VVT-i 4.0L V6 1GR-FE 207kW
[11/06 - 12/10] TOYOTA LAND CRUISER PRADO KDJ120,KDJ125 D-4D 3.0L 4cyl 1KD-FTV 127kW
[07/96 - 02/03] TOYOTA LAND CRUISER PRADO VZJ90R,VZJ90W,VZJ95R... i 24V 3.4L V6 5VZ-FE 131kW

[10/06 - 07/14] TOYOTA COROLLA ZRE152 1.8L 4cyl 2ZR-FE 100kW
[12/01 - 05/07] TOYOTA COROLLA ZZE122 1.8L 4cyl 1ZZ-FE 100kW
[12/01 - 05/07] TOYOTA COROLLA ZZE122R VVTi 1.8L 4cyl 1ZZ-FE 100kW
[05/03 - 05/07] TOYOTA COROLLA ZZE123 VVTL-i TS 1.8L 4cyl 2ZZ-GE 141kW
[09/03 - 04/08] TOYOTA ALPHARD ANH10W I 2.4L 4cyl 2AZ-FE 117kW
[04/03 - 04/08] TOYOTA ALPHARD MNH10 I 3.0L V6 1MZ-FE 162kW
[04/03 - 04/08] TOYOTA ALPHARD MNH15W I 3.0L V6 1MZ-FE 162kW
[05/08 - 12/14] TOYOTA ALPHARD,VELLFIRE ANH20,ANH20W 2.4L 4cyl 2AZ-FE 125kW
[02/99 - 11/05] TOYOTA ALTEZZA SXE10 VVTi 2.0L 4cyl 3S-GE 147kW
[02/99 - 11/05] TOYOTA ALTEZZA SXE10 VVTi 2.0L 4cyl 3S-GE 154kW
[03/06 - 09/11] TOYOTA AURION GSV40 3.5L V6 2GR-FE 200kW
[03/06 - 09/11] TOYOTA AURION GSV40 3.5L V6 2GR-FE 235kW
[03/95 - 05/05] TOYOTA AVALON MCX10R 3.0L V6 1MZ-FE 140kW
[04/00 - 06/05] TOYOTA AVALON MCX10R 3.0L V6 1MZ-FE 145kW
[12/01 - 10/03] TOYOTA AVENSIS VERSO ACM20R VVT-i 2.0L 4cyl 1AZ-FE 110kW
[11/03 - 08/07] TOYOTA AVENSIS VERSO ACM21 VVT-i 2.4L 4cyl 2AZ-FE 115kW
[05/01 - 12/11] TOYOTA AVENSIS VERSO ACM21R VVT-i 2.4L 4cyl 2AZ-FE 118kW
[09/02 - 06/06] TOYOTA CAMRY ACV36 2.4L 4cyl 2AZ-FE 112kW
[07/06 - 09/11] TOYOTA CAMRY ACV40 2.4L 4cyl 2AZ-FE 116kW
[07/09 - 09/11] TOYOTA CAMRY AHV40R Hybrid 2.4L 4cyl 2AZ-FXE 140kW
[08/97 - 11/01] TOYOTA CAMRY MCV20 Vienta 3.0L V6 1MZ-FE 140kW
[08/97 - 09/02] TOYOTA CAMRY MCV20 Vienta 3.0L V6 1MZ-FE 140kW
[09/02 - 11/06] TOYOTA CAMRY MCV30,MCV36 3.0L V6 1MZ-FE 141kW
[08/99 - 03/06] TOYOTA CELICA ZZT231R 16V TS 1.8L 4cyl 2ZZ-GE 141kW
[09/05 - 01/08] TOYOTA CROWN GRS184 3.5L V6 2GR-FSE 232kW
[08/99 - 11/05] TOYOTA ECHO NCP10,SCP12 1.3L 4cyl 2NZ-FE 63kW
[10/99 - 10/05] TOYOTA ECHO NCP12R 1.5L 4cyl 1NZ-FE 78kW
[04/01 - 10/05] TOYOTA ECHO NCP13R 1.5L 4cyl 1NZ-FE 78kW
[03/98 - 01/03] TOYOTA HARRIER MCU15 3.0L V6 1MZ-FE 164kW
[10/99 - 03/06] TOYOTA MR2 ZZW30 III 16V VT-i 1.8L 4cyl 1ZZ-FE 103kW
[11/01 - 06/07] TOYOTA NOAH,VOXY AZR60G 2.0L 4cyl 1AZ-FSE 112kW
[09/00 - 12/03] TOYOTA PRIUS NHW11 Hybrid 1.5L 4cyl 1NZ-FXE 85kW
[09/03 - 02/09] TOYOTA PRIUS NHW20 Hybrid 1.5L 4cyl 1NZ-FXE 82kW
[09/05 - 08/10] TOYOTA RACTIS NCP100 1.5L 4cyl 1NZ-FE 81kW
[11/10 - 10/16] TOYOTA RACTIS NSP120,NSP120R,NSP12... 1.3L 4cyl 1NR-FE 70kW
[07/00 - 09/03] TOYOTA RAV4 ACA20,ACA21 II 2.0L 4cyl 1AZ-FE 110kW
[08/03 - 11/05] TOYOTA RAV4 ACA22,ACA23 II 2.4L 4cyl 2AZ-FE 120kW
[11/05 - 12/12] TOYOTA RAV4 ACA33 III 2.4L 4cyl 2AZ-FE 125kW
[03/10 - 12/12] TOYOTA RAV4 ACA38 III 2.4L 4cyl 2AZ-FE 125kW
[09/07 - 12/12] TOYOTA RAV4 GSA33 III 3.5L V6 2GR-FE 201kW
[06/94 - 06/00] TOYOTA RAV4 SXA10,SXA11 I 16V 2.0L 4cyl 3S-FE 95kW
[02/98 - 06/00] TOYOTA RAV4 SXA11 I 2.0L 4cyl 3S-FE 94kW
[05/10 - 11/15] TOYOTA RUKUS AZE151 2.4L 4cyl 2AZ-FE 123kW
[02/00 - 02/06] TOYOTA TARAGO ACR30 II 16V 2.4L 4cyl 2AZ-FE 115kW
[02/00 - 01/06] TOYOTA TARAGO ACR30W II 2.4L 4cyl 2AZ-FE 118kW
[03/06 - 12/19] TOYOTA TARAGO ACR50R III 2.4L 4cyl 2AZ-FE 125kW
[02/07 - 12/19] TOYOTA TARAGO GSR50,GSR50W III 3.5L V6 2GR-FE 206kW
[01/06 - 12/19] TOYOTA TARAGO GSR50R III 3.5L V6 2GR-FE 202kW
[02/00 - 12/05] TOYOTA TARAGO MCR40W II 3.0L V6 1MZ-FE 162kW
[10/00 - 11/03] TOYOTA VEROSSA JZX110 VVTi 2.5L 6cyl 1JZ-GTE 206kW
[12/11 - 02/20] TOYOTA YARIS NCP130R 1.3L 4cyl 2NZ-FE 63kW
[12/10 - 02/20] TOYOTA YARIS NCP131R 1.5L 4cyl 1NZ-FE 80kW
[11/05 - 12/12] TOYOTA YARIS NCP90R VVT-i 1.3L 4cyl 2NZ-FE,2SZ-FE 63kW
[11/05 - 10/11] TOYOTA YARIS NCP91R 1.5L 4cyl 1NZ-FE 80kW
[01/06 - 06/16] TOYOTA YARIS NCP93 1.5L 4cyl 1NZ-FE 80kW

Can I clean my MAF sensor instead of replacing it?

Yes - if the sensor is contaminated rather than electrically failed, cleaning with a dedicated MAF sensor cleaner spray can restore correct readings. Do not use brake cleaner or generic electrical contact cleaner as these leave residue that damages the sensing wire. Allow the sensor to dry completely before reinstalling. If cleaning does not resolve the fault codes, the sensor requires replacement.

What is the difference between a MAF sensor and a MAP sensor?

A MAF (Mass Air Flow) sensor directly measures the mass of air entering the engine using a hot wire element in the intake. A MAP (Manifold Absolute Pressure) sensor measures intake manifold pressure to calculate air density. Most modern engines use one or the other - some use both. Your vehicle service manual or OBD2 fault codes will confirm which sensor type your engine uses.

Will a faulty MAF sensor cause my vehicle to fail an emissions test?

Yes. A faulty MAF sensor causes the ECU to miscalculate fuel delivery, typically resulting in a rich running condition that increases CO and hydrocarbon emissions. Most roadworthy and emissions checks will fail a vehicle with an active MAF sensor fault code or visibly excessive exhaust smoke.

What are the symptoms of a bad MAF sensor?

Common symptoms include rough idle, hesitation or stumbling on acceleration, poor fuel economy, black smoke from the exhaust, and an illuminated Check Engine light. Your ECU may log fault codes P0100 to P0104.

Can I drive with a faulty MAF sensor?

You can drive short distances but it is not recommended. A faulty MAF sensor causes the ECU to run incorrect fuel mixtures, which can damage the catalytic converter and O2 sensors over time. Have it replaced as soon as possible.

How do I test if my MAF sensor is bad?

Use an OBD2 scanner to check for fault codes P0100-P0104. You can also use a multimeter or live data scanner to check the sensor output voltage against your vehicle's specification. A reading significantly outside spec confirms a faulty sensor.

What causes a MAF sensor to fail?

The most common causes are a dirty or contaminated sensing element (often from a missing or damaged air filter), oil contamination from an over-oiled aftermarket air filter, heat damage, or general wear over time.

Do I need to reset my ECU after replacing the MAF sensor?

It is good practice to clear any stored fault codes using an OBD2 scanner after replacement. Some vehicles will self-adapt within a short drive cycle, but clearing codes ensures the ECU recalibrates from a clean baseline.

Identification
SKU	CAF034-Hiace
Brand	OEM
Part Numbers
Part Number	CAF034
Reference OEM Number	22204-22010
Other OEM Numbers	22204-0D030, 22204-0J010, 22204-22010, 22204-0C020
Trade Part Numbers	NTY: EPP-TY-000, DENSO: DMA-0108
Product Specifics
Sensor Type	Hot-wire
Type	MAF Sensor
Number of pins	5
Connector Shape	rectangular
Housing Colour	Black
Housing Type	without housing
Compatible Makes	Toyota
Fitment Type	Direct Fit
Other Details
Note	Always verify fitment using your vehicle's OEM part number.
