MAP Sensor for Jeep Cherokee XJ 4.0L 6cyl ERH MX 1997-2001
Heavy Duty Fit Replaces 56029405
BRAND NEW *OEM Quality* MAP sensor to suit the Jeep Cherokee XJ with the 4.0L 6 cylinder petrol engine.
The XJ is a tough old 4x4, and a rough idle or stall at the lights is a familiar fault. This plug-in replacement ships by Australia Post Express.
TO SUIT

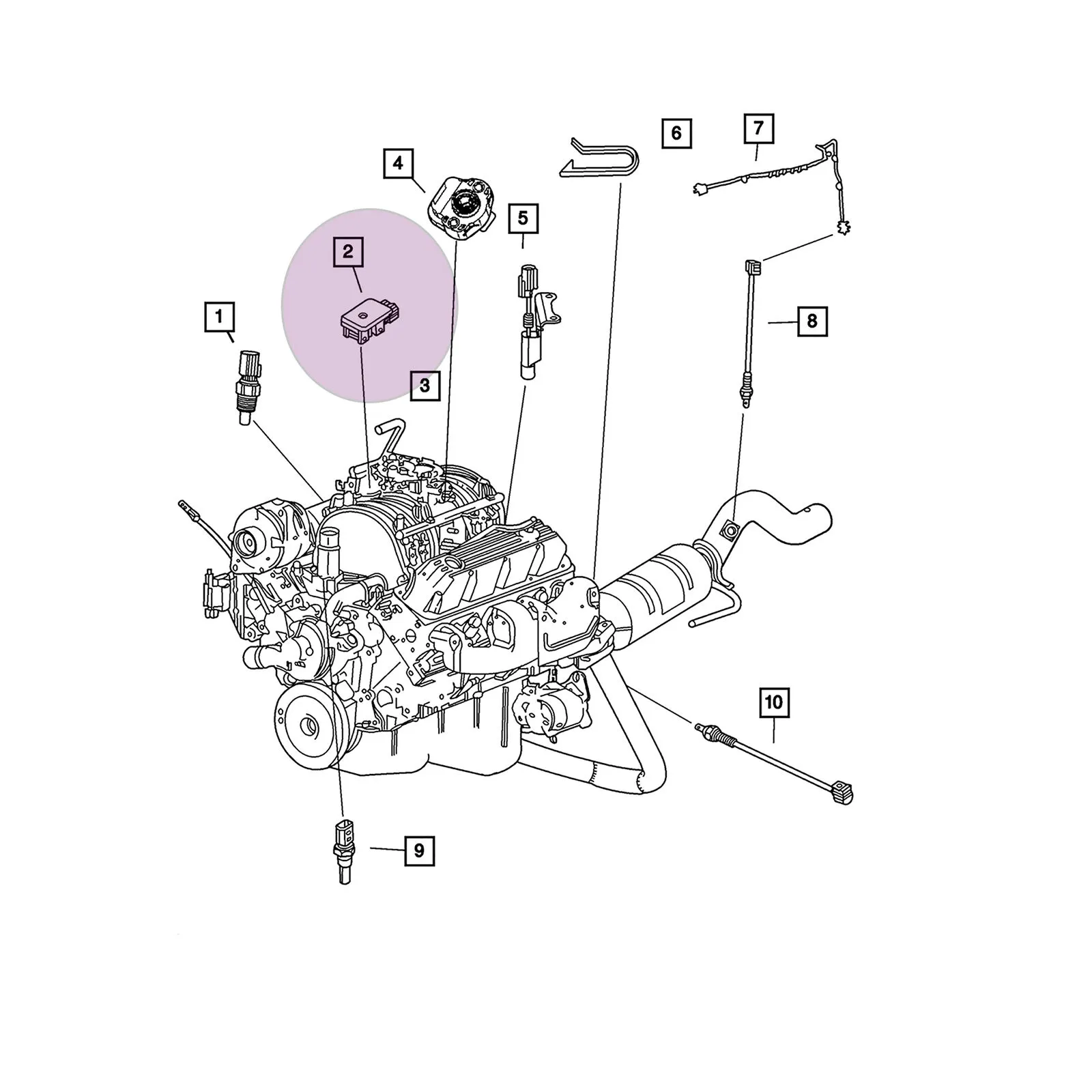

Jeep Cherokee XJ 4.0L ERH and MX 6 cylinder petrol, built 1997 to 2001. Some build dates differ, so please check the illustration and your old sensor.
FITMENT CHECK

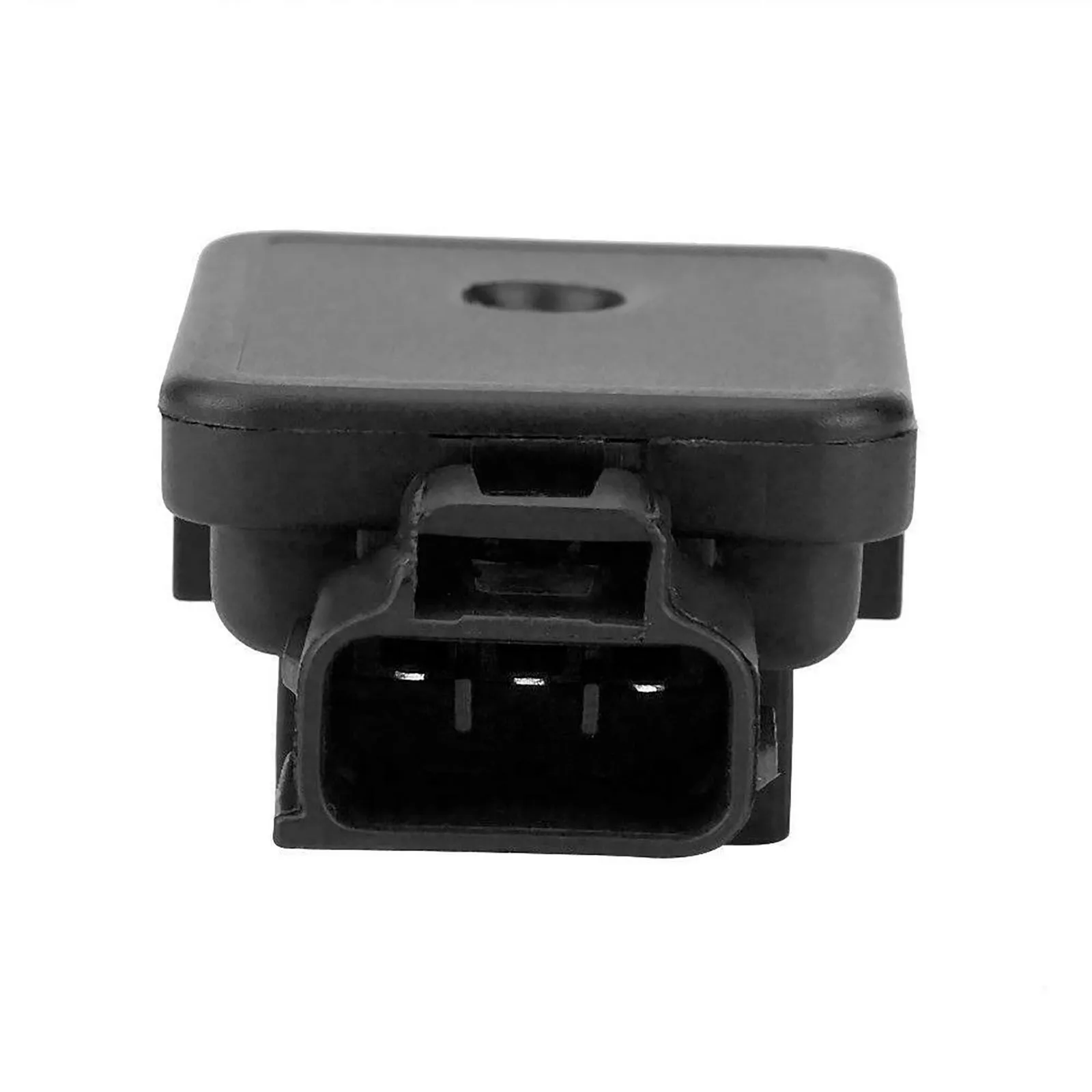

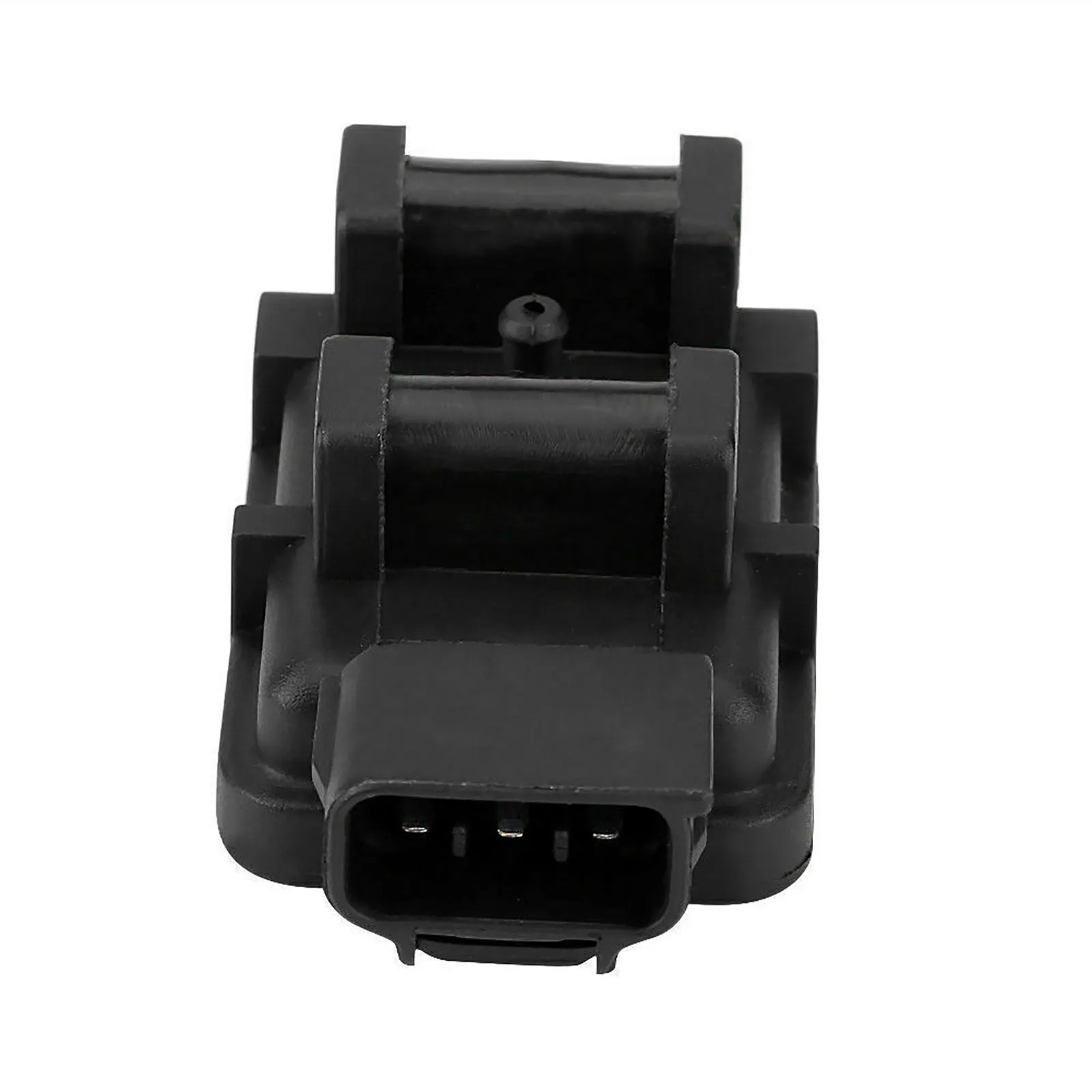

This sensor has a 3-pin rectangular plug and 4 mounting bores, and it bolts to the throttle housing on the side. It has no air temperature sensor. The full model and year list is in the compatibility table on this listing. Please confirm against your existing sensor and the OEM part numbers below.
OEM PART NUMBERS
- 56029405
- K56029405
- 2886AJ
- 64469D
- 2197BM
- 3418AC
OTHER PART NUMBERS
- ECM-CH-002
- V33-72-0008
- 225-1030
PACKAGE INCLUDES
1 x MAP sensor with 3-pin rectangular plug.
ABOUT THIS SENSOR
On the XJ the MAP sensor tells the computer how hard the 4.0L is working, so fuel and timing follow the load on road or trail. Heat soak over the years makes them drift.
Typical signs are a rough idle, hesitation and a rich smell.
COMMON SYMPTOMS OF FAILURE
- Check engine light where fitted
- Rough idle
- Hesitation
- Rich running
- Stalling when stopping
- 2001 Dodge Dakota Sport 2.5L L4 - Gas / 3.9L V6 - Gas / 5.9L V8 - Gas
- 2002 Dodge Dakota Base / SLT / Sport 2.5L L4 - Gas / 3.9L V6 - Gas / 5.9L V8 - Gas
- 2003 Dodge Dakota Base / R/T / SLT / Sport 3.9L V6 - Gas / 5.9L V8 - Gas
- 2001 Dodge Durango Base 5.9L V8 - Gas
- 2002 Dodge Durango R/T / SLT / SLT Plus / Sport 5.9L V8 - Gas
- 2003 Dodge Durango R/T / SLT / SLT Plus / Sport 5.9L V8 - Gas
- 2001 Dodge Ram 1500 WS 3.9L V6 - Gas
- 2002 Dodge Ram 1500 ST 5.9L V8 - Gas
- 2003 Dodge Ram 1500 SLT / ST 5.9L V8 - Gas
- 2001 Dodge Ram 2500 Base 5.9L L6 - Diesel / 5.9L V8 - Gas
- 2002 Dodge Ram 2500 Base 5.9L V8 - Gas
- 2001 Dodge Ram 3500 Base 5.9L L6 - Diesel / 5.9L V8 - Gas
- 2002 Dodge Ram 3500 Base 5.9L V8 - Gas
- 2001 Dodge Viper GTS / R/T-10 8.0L V10 - Gas
- 2002 Dodge Viper GTS / R/T-10 8.0L V10 - Gas
- 2001 Jeep Cherokee Limited / SE / Sport 4.0L L6 - Gas
- 2001 Jeep Grand Cherokee Laredo / Limited 4.0L L6 - Gas
- 2002 Jeep Grand Cherokee Laredo / Limited / Sport 4.0L L6 - Gas
- 2003 Jeep Grand Cherokee Laredo / Limited 4.0L L6 - Gas
- 2001 Jeep Wrangler SE / Sahara / Sport 2.5L L4 - Gas / 4.0L L6 - Gas
- 2002 Jeep Wrangler SE / Sahara / Sport / X 2.5L L4 - Gas / 4.0L L6 - Gas
- 2003 Jeep Wrangler Rubicon / Sahara / Sport / X 4.0L L6 - Gas
What fault codes does a faulty MAP sensor trigger?
A faulty MAP sensor typically triggers codes P0105 to P0109. P0105 indicates a circuit malfunction, P0106 indicates the signal is out of range, P0107 and P0108 indicate the signal is too low or too high respectively, and P0109 indicates an intermittent circuit fault. These codes combined with symptoms such as poor idle and black smoke are strong indicators of MAP sensor failure.
How do I test a MAP sensor?
With an OBD2 scanner in live data mode, the MAP sensor should read close to atmospheric pressure (around 101 kPa) with the engine off, and drop to 30 to 50 kPa at idle with the engine running due to manifold vacuum. Under wide open throttle the reading should rise back toward atmospheric. A sensor that reads flat or does not respond to throttle changes has failed. You can also test supply voltage and signal output with a multimeter.
Can I drive with a faulty MAP sensor?
You can drive short distances but engine performance will be noticeably degraded. The ECU uses the MAP sensor to calculate fuel delivery - a faulty sensor causes incorrect fuelling which leads to poor economy, rough running, and increased emissions. On turbocharged engines a faulty MAP sensor can also prevent boost control from operating correctly. Replace it as soon as possible to avoid further damage.
What does a MAP sensor do?
The Manifold Absolute Pressure (MAP) sensor measures intake manifold pressure to help the ECU calculate the correct fuel and ignition timing. It is critical for engine efficiency, particularly on turbocharged and supercharged vehicles.
What are the symptoms of a faulty MAP sensor?
Symptoms include poor acceleration, rough idle, excessive fuel consumption, black smoke, engine hesitation, and a Check Engine light with codes P0105-P0109. Turbocharged vehicles may also experience boost control issues.
What is the difference between a MAP sensor and a MAF sensor?
A MAF (Mass Air Flow) sensor directly measures the mass of air entering the engine. A MAP sensor measures manifold pressure and the ECU calculates air mass from that reading. Many vehicles use one or the other; some use both. They are not interchangeable.
| Identification | |
|---|---|
| Brand | Aftermarket OEM Replacement |
| Part Numbers | |
| Part Number | SCMS220 |
| Reference OEM Number | 56029405 |
| Other OEM Numbers | 56029405, K56029405, 2886AJ, 64469D, 2197BM, 3418AC |
| Related Part Numbers | MAP1014, CMS220, MP221, PS10022 |
| Interchange Part Numbers | ECM-CH-002, V33-72-0008, 225-1030 |
| Product Specifics | |
| Product Type | SENSOR |
| Sensor Type | Manifold Absolute Pressure (MAP) Sensor |
| Number of pins | 3-Pin |
| Connector Shape | rectangular |
| Pressure Range | 20 kPa, until 100 kPa |
| Number of mounting bores | 4 |
| Compatible Makes | Jeep |
| Fitment Type | Direct Replacement |
| Other Details | |
| Note | 3-pin rectangular plug, 4 bores: check old sensor |
| Unit Of Measure | ea |
