DPF Exhaust Pressure Sensor for Subaru Forester SH SJ Outback BR BS EE20
Direct Fit Replaces 22627AA500
BRAND NEW *OEM Quality* DPF exhaust pressure sensor to suit Subaru Forester SH SJ and Outback BR BS 2.0L EE20 boxer diesel.
A Forester or Outback with a DPF warning light, or a boxer diesel that feels flat and keeps regenerating, can have nothing worse than a tired pressure sensor. Check it before you pay for a filter. Packed and shipped from Cranbourne VIC.
TO SUIT
Subaru Forester SH (09/2008 to 12/2012) and SJ (03/2013 to 07/2018), and Outback BR (2009 to 04/2015) and BS (2014 to 12/2020), all with the 2.0L EE20 turbo diesel and a factory fitted DPF.
FITMENT CHECK

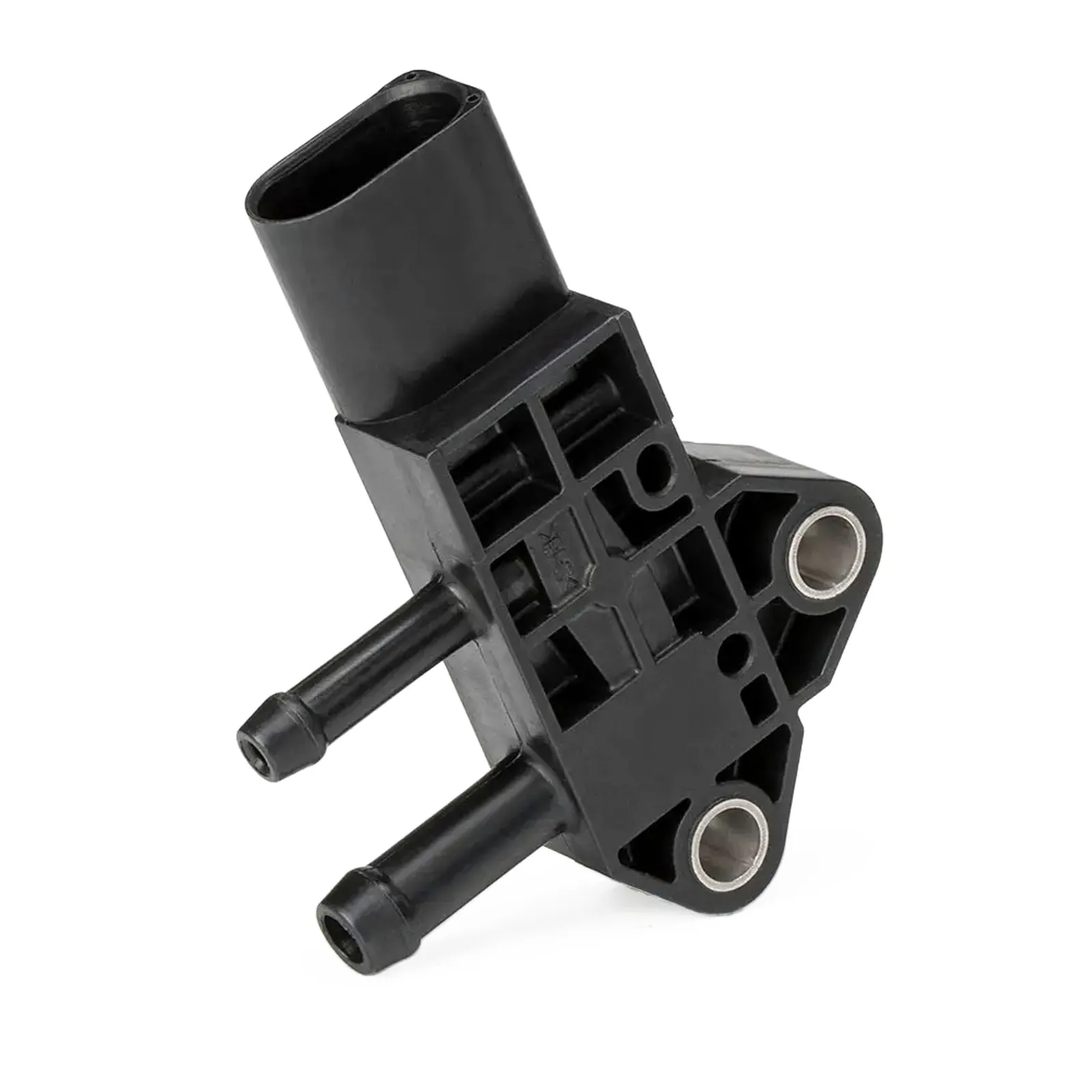

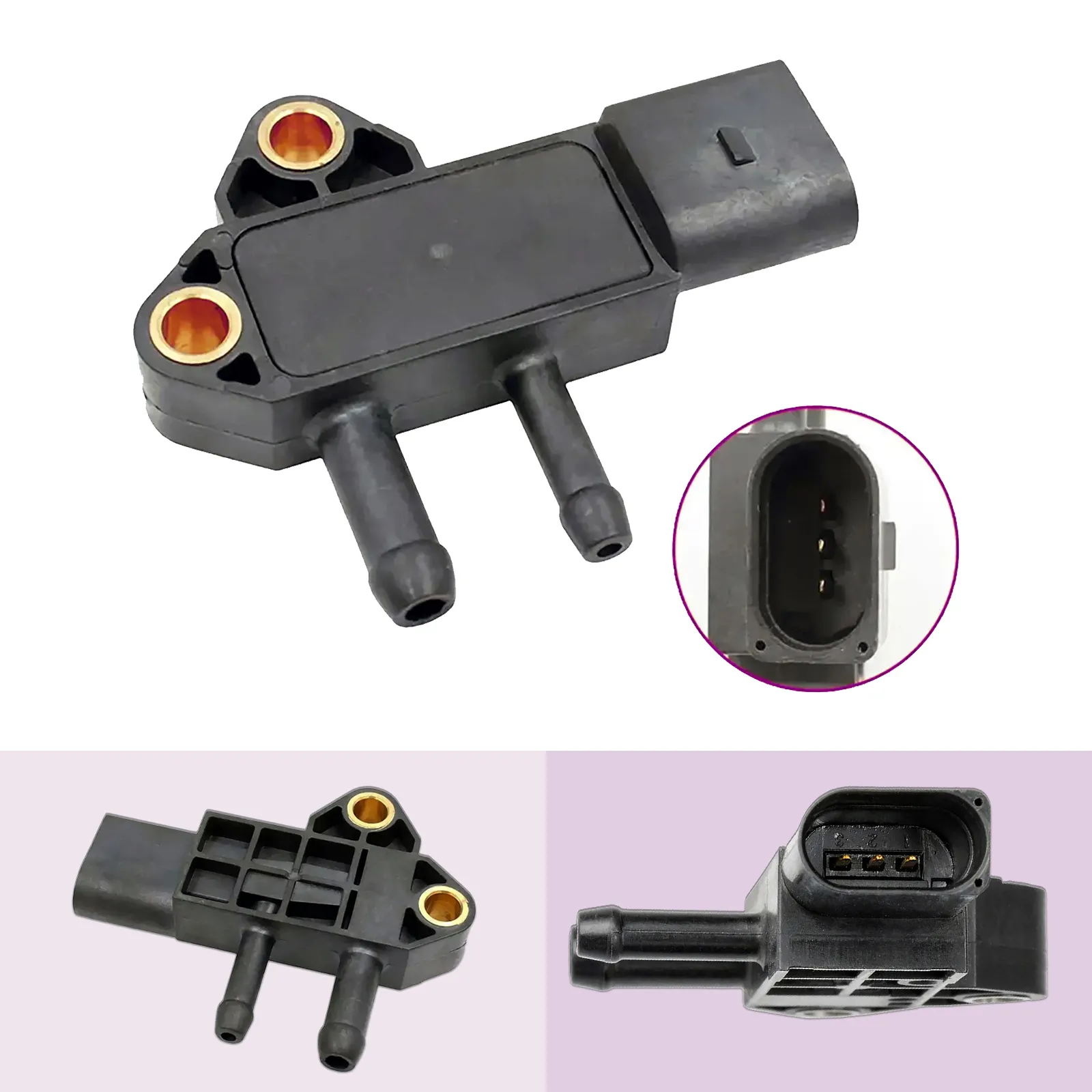

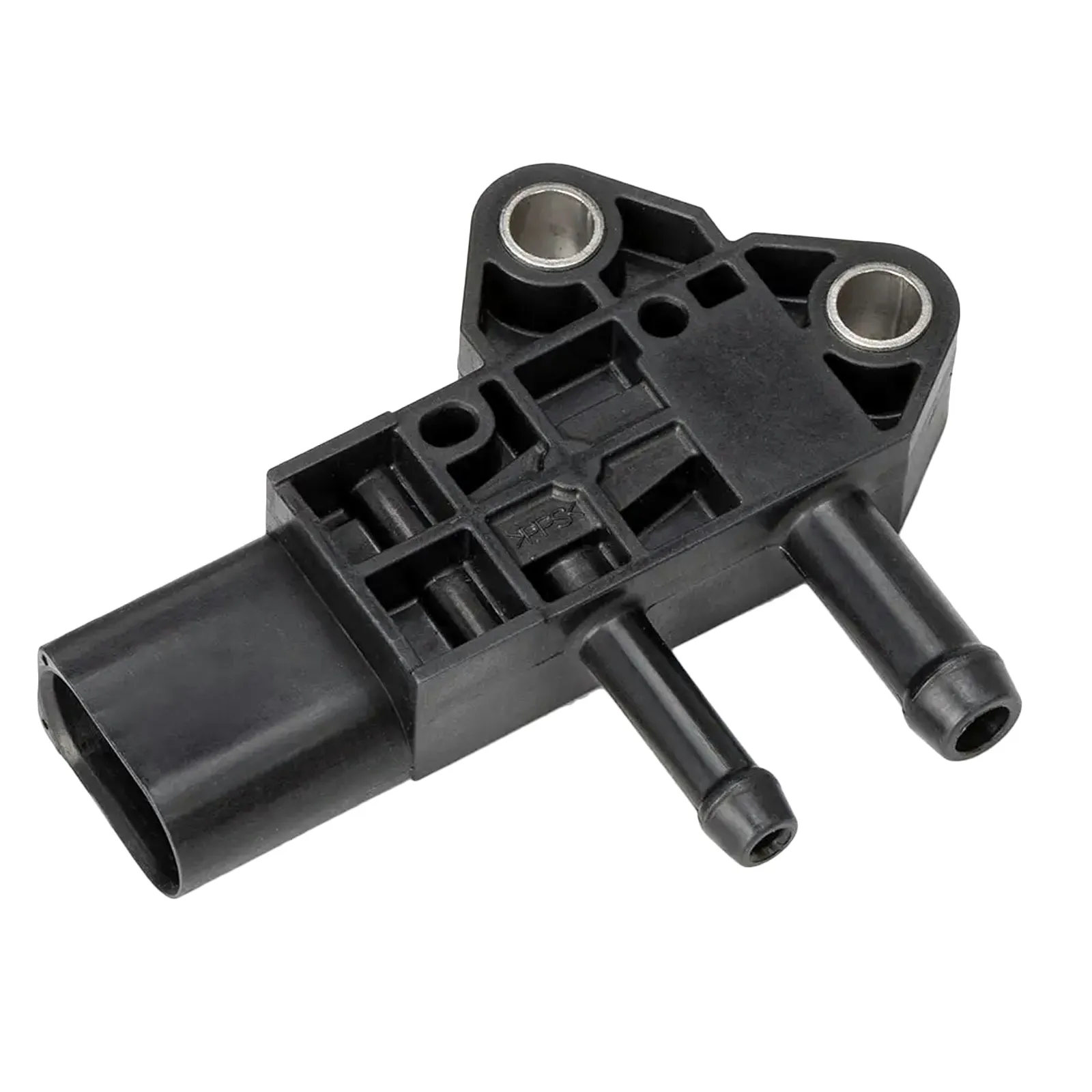

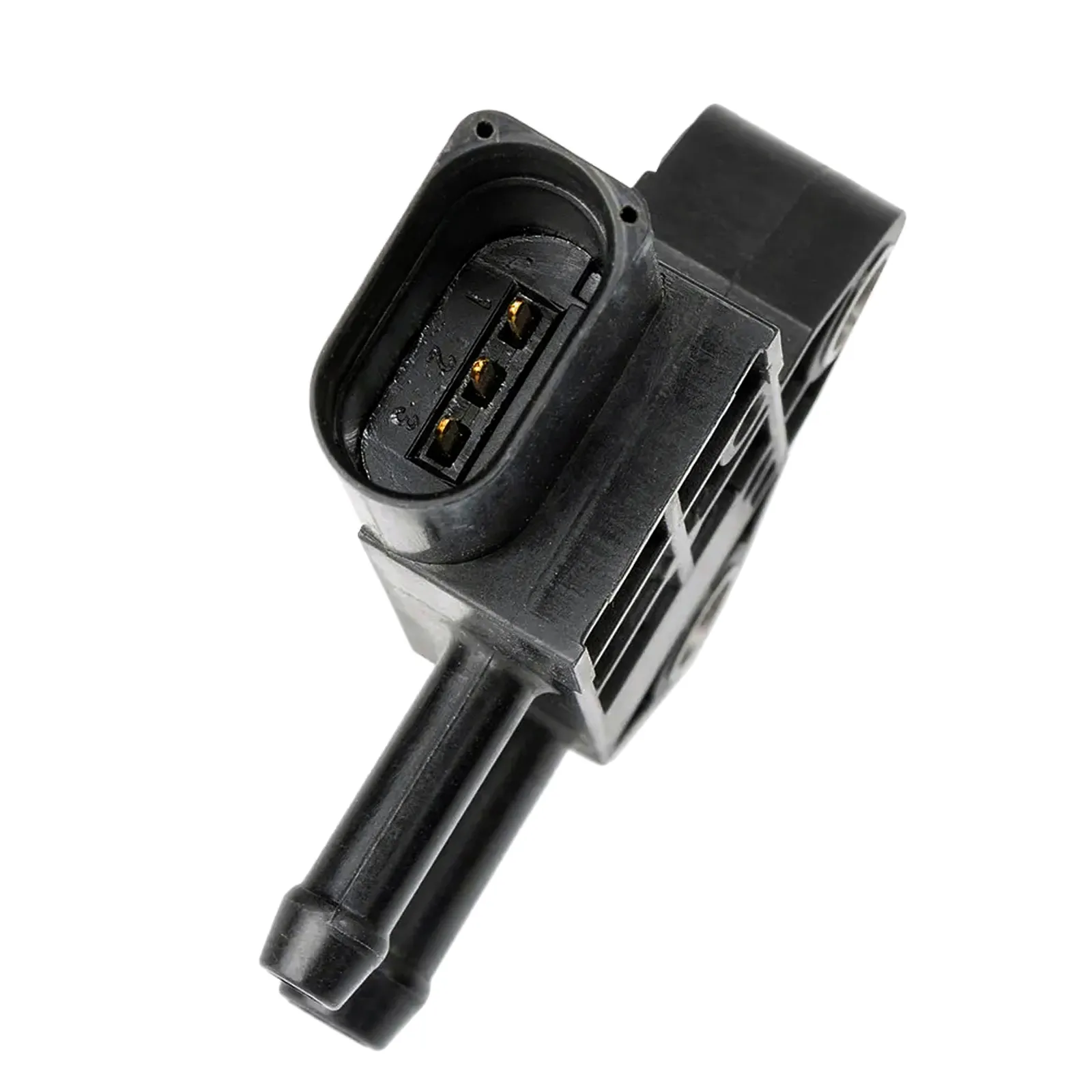

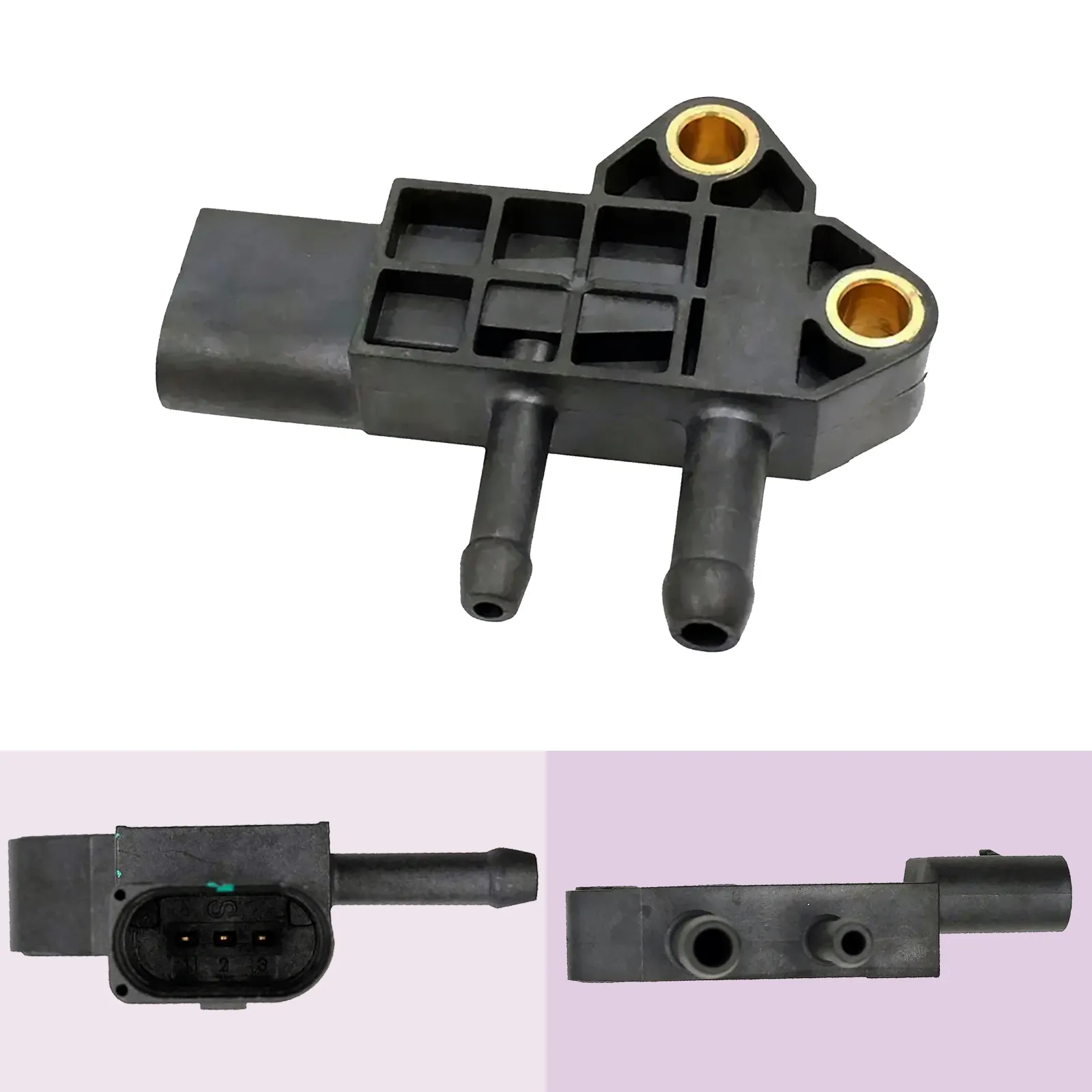

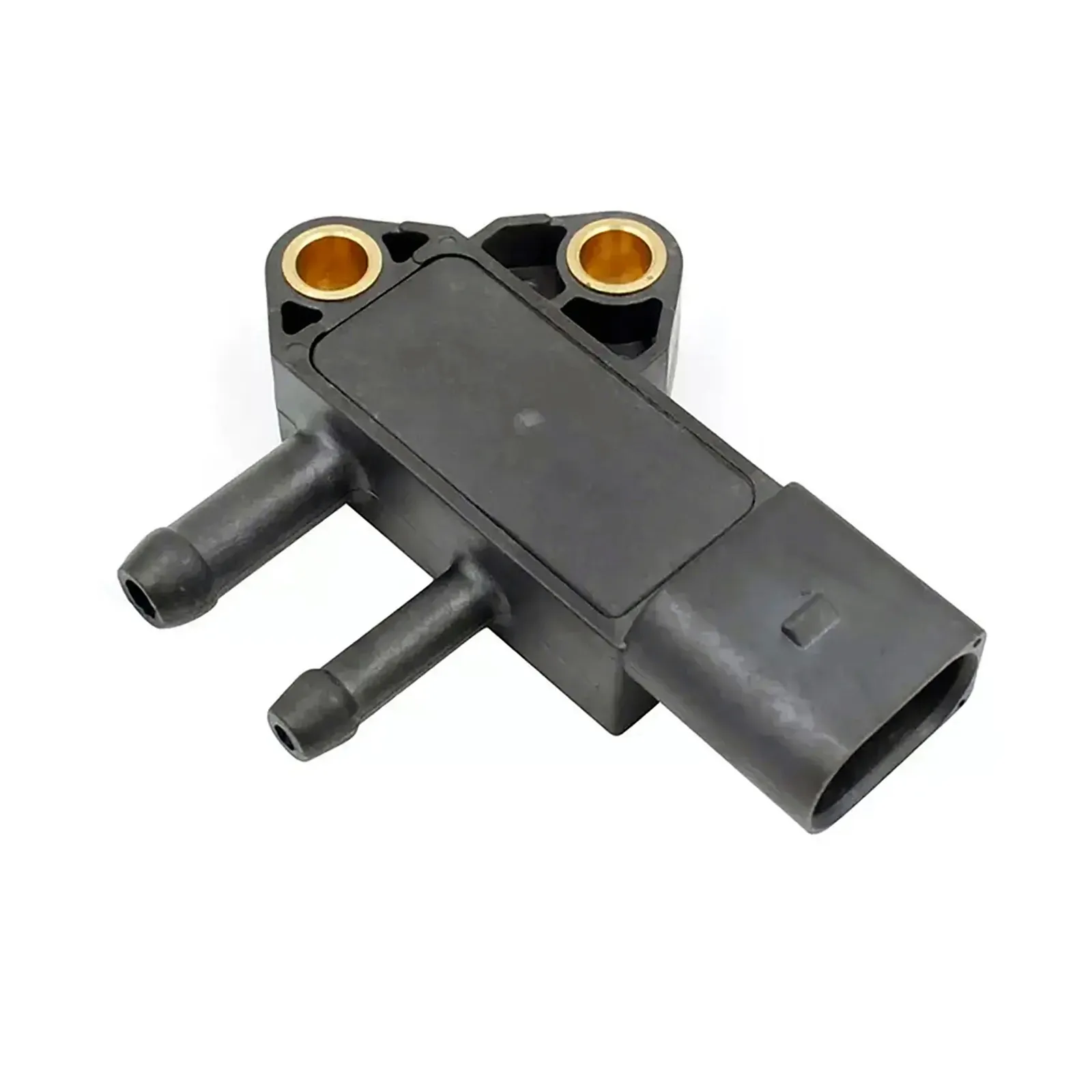

Factory DPF models only. Compare the sensor image and the OEM number printed on your original sensor before ordering. This sensor has a 3-pin D-shape connector and 2 mounting bores.
OEM PART NUMBERS
- 22627AA500
- 22627-AA500
- 1865A210
- 1609942680
- SH01-182B2
OTHER PART NUMBERS
- 0986280718
- V37-72-0112
- EPD3-D020
- 6PP009409-361
- DPS00005
- 137447
PACKAGE INCLUDES
1 x DPF differential pressure sensor with 3-pin D-shape connector. Mounting hardware and pressure hoses are not included.
ABOUT THIS SENSOR
The sensor measures the pressure difference across the particulate filter so the engine computer knows how loaded it is and when to regenerate.
On the EE20 diesel a false reading leads to regens that are too frequent or too late, and a filter that blocks early. Fault codes P2452 to P2455 point at this circuit.
COMMON SYMPTOMS OF FAILURE
- DPF warning light on the dash
- Limp mode and reduced power
- Regens too often or not starting
- Higher fuel consumption
- Fault codes P2452 P2453 P2454 P2455
- [09/08 - 12/12] SUBARU FORESTER SH SHD/SHH/SHN D (2.0L 4cyl EE20Z 108kW, SUV AWD)
- [03/13 - 07/18] SUBARU FORESTER SJ SJD D (2.0L 4cyl EE20Z 108kW, SUV AWD)
- [2009 - 04/15] SUBARU OUTBACK BR BRD D (2.0L 4cyl EE20Z 110kW, Wagon AWD)
- [2014 - 12/20] SUBARU OUTBACK BS BSD D (2.0L 4cyl EE20Z 110kW, Wagon AWD)
What is the difference between a DPF differential pressure sensor and an exhaust gas temperature sensor?
The DPF differential pressure sensor measures the pressure difference across the diesel particulate filter to determine how blocked it is with soot. The exhaust gas temperature (EGT) sensor measures the actual temperature of exhaust gases at a specific point in the exhaust system. Both sensors are used by the ECU to manage DPF regeneration - the pressure sensor triggers regeneration when the filter is blocked, and the temperature sensor monitors whether regeneration temperatures have been reached.
What are the symptoms of a faulty DPF pressure or temperature sensor?
Both sensor types can cause similar symptoms when they fail. Common signs include a DPF warning light on the dashboard, the engine entering limp mode with restricted power, failed or incomplete DPF regeneration cycles, increased fuel consumption from excessive regeneration attempts, loss of power under acceleration, and a Check Engine light with DPF or exhaust temperature fault codes. In some cases the vehicle may be locked out of further DPF regeneration until the fault is resolved.
Will a faulty DPF sensor damage the DPF itself?
Yes - indirectly. If the DPF pressure sensor fails and prevents the ECU from triggering regeneration correctly, soot accumulation will continue unmanaged. Over time an unmanaged DPF will become completely blocked, requiring forced regeneration by a workshop or DPF replacement. Similarly a faulty EGT sensor that prevents the ECU from confirming regeneration temperatures can cause repeated incomplete regeneration attempts that accelerate DPF loading.
Can I drive with a DPF or EGT sensor fault?
Short distances only. A DPF sensor fault will typically trigger limp mode on modern diesel vehicles, restricting power significantly. Even if limp mode is not triggered, driving with an unmanaged DPF blockage risks complete filter failure. EGT sensor faults can also prevent the turbocharger from receiving correct protection data, risking turbo damage under sustained high load. Both faults should be addressed promptly.
How many EGT sensors does my vehicle have?
Most modern diesel vehicles with a DPF have two or more EGT sensors - typically one upstream of the DPF and one downstream. Some vehicles also have additional sensors before and after the turbocharger and catalytic converter. Each sensor monitors a different temperature zone and feeds separate data to the ECU. A fault code will specify which sensor position has failed. Use the Vehicle Part Finder to confirm the correct sensor for your specific mounting position.
Do DPF and EGT sensors require programming after replacement?
No programming is required. Both are direct plug-in replacement sensors. Clear stored fault codes with an OBD2 scanner after replacement. If DPF regeneration was previously prevented by the sensor fault, you may need to initiate a forced regeneration using a scan tool to clear accumulated soot before returning the vehicle to normal service.
| Identification | |
|---|---|
| Brand | Aftermarket OEM Replacement |
| Part Numbers | |
| Part Number | SDP109 |
| Reference OEM Number | 22627-AA500 |
| Other OEM Numbers | 22627AA500, 1865A210, 1609942680, SH01-182B2 |
| Related Part Numbers | 0986280718, DP109, EPS-008, DEPS1006 |
| Interchange Part Numbers | 0986280718, V37-72-0112, EPD3-D020, 6PP009409-361, DPS00005 |
| Product Specifics | |
| Product Type | SENSOR |

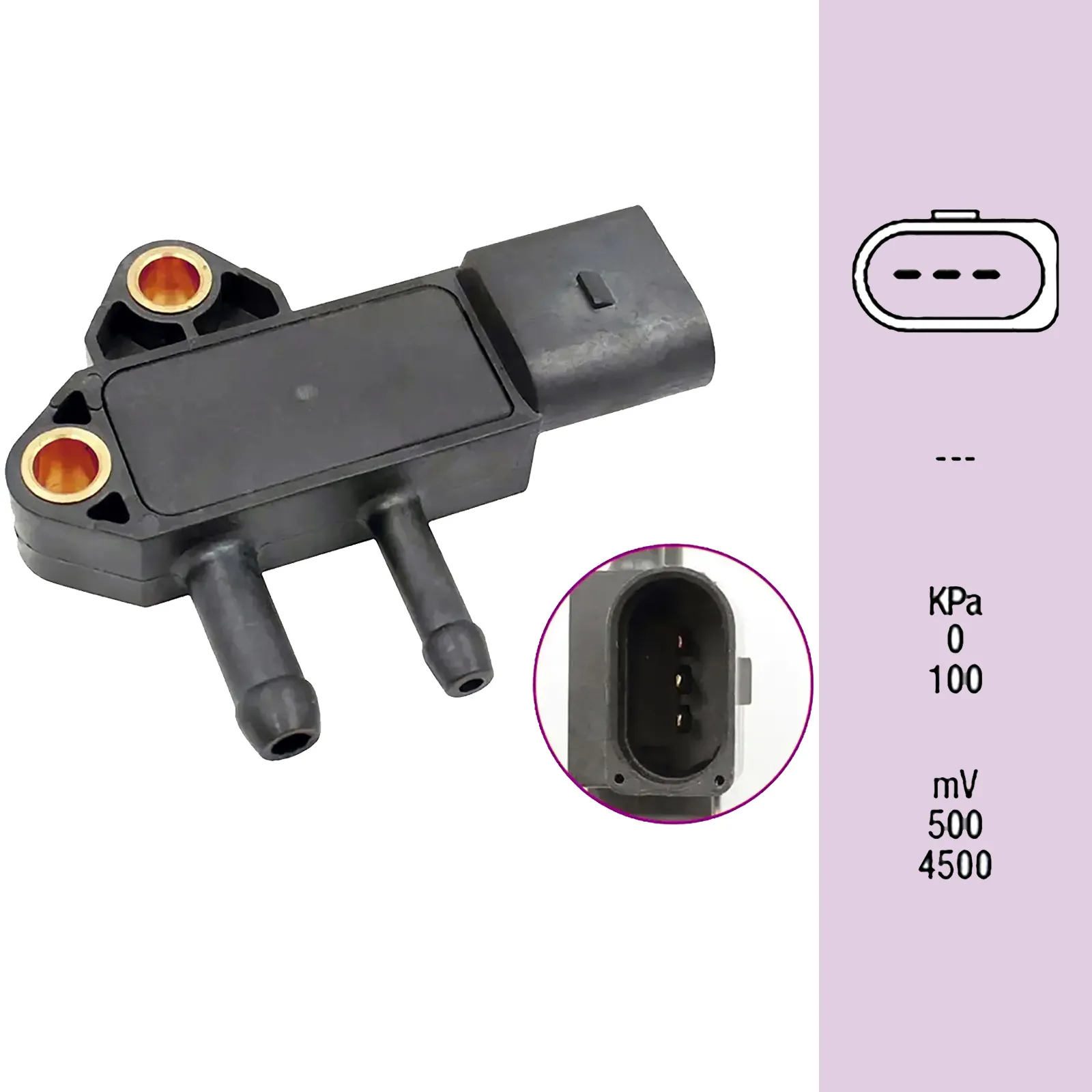

| Sensor Type | DPF Differential Pressure Sensor |
| Fitting Position | Soot Particle Filter |

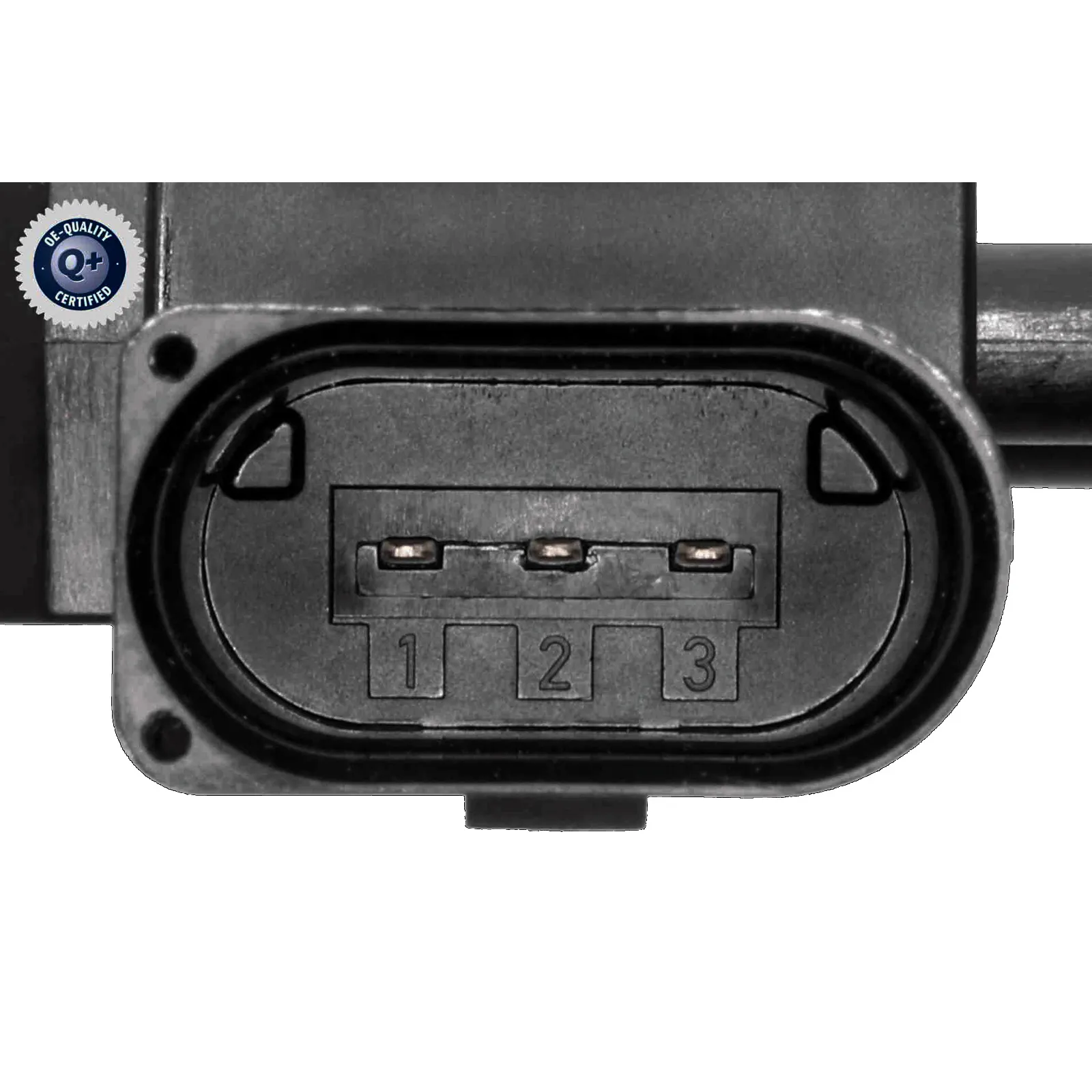

| Number of pins | 3-Pin |
| Connector Shape | D-shaped |
| Rated Voltage | 12 V |
| Number of mounting bores | 2 |
| Compatible Makes | Subaru |
| Fitment Type | Direct Replacement |
| Other Details | |
| Note | Factory DPF models only. 3-pin D-shape plug |
| Unit Of Measure | ea |
