DPF Exhaust Pressure Sensor for Mitsubishi Pajero NS NT NW NX Triton ML MN
Heavy Duty Fit Replaces 1865A210
BRAND NEW *OEM Quality* DPF exhaust pressure sensor to suit Mitsubishi Pajero NS NT NW NX 3.2L 4M41 and Triton ML MN diesel.
A Pajero or Triton that lights up the DPF warning or loses power when towing can often be fixed with a pressure sensor instead of a new filter. A cheap check that can save a big bill. Packed and shipped from Cranbourne VIC.
TO SUIT
Mitsubishi Pajero NS NT NW NX (V88W V98W) with the 3.2L 4M41 DI-D diesel, and Triton ML MN with the 2.5L 4D56 and 3.2L 4M41 diesel. The full year and engine list is in the compatibility table on this page.
FITMENT CHECK
Factory DPF models only. Some Pajero models use a different DPF sensor, so compare the sensor image and the OEM number printed on your original sensor before ordering. Older Pajero V60 V70 and Triton 2.5L fitment comes from the supplier catalogue, so check the number on your sensor first. This sensor has a 3-pin D-shape connector and 2 mounting bores.
OEM PART NUMBERS
- 1865A210
- 1609942680
- 22627-AA500
- SH01-182B2
OTHER PART NUMBERS
- 0986280718
- V37-72-0112
- EPD3-D020
- 6PP009409-361
- DPS00005
- 137447
PACKAGE INCLUDES

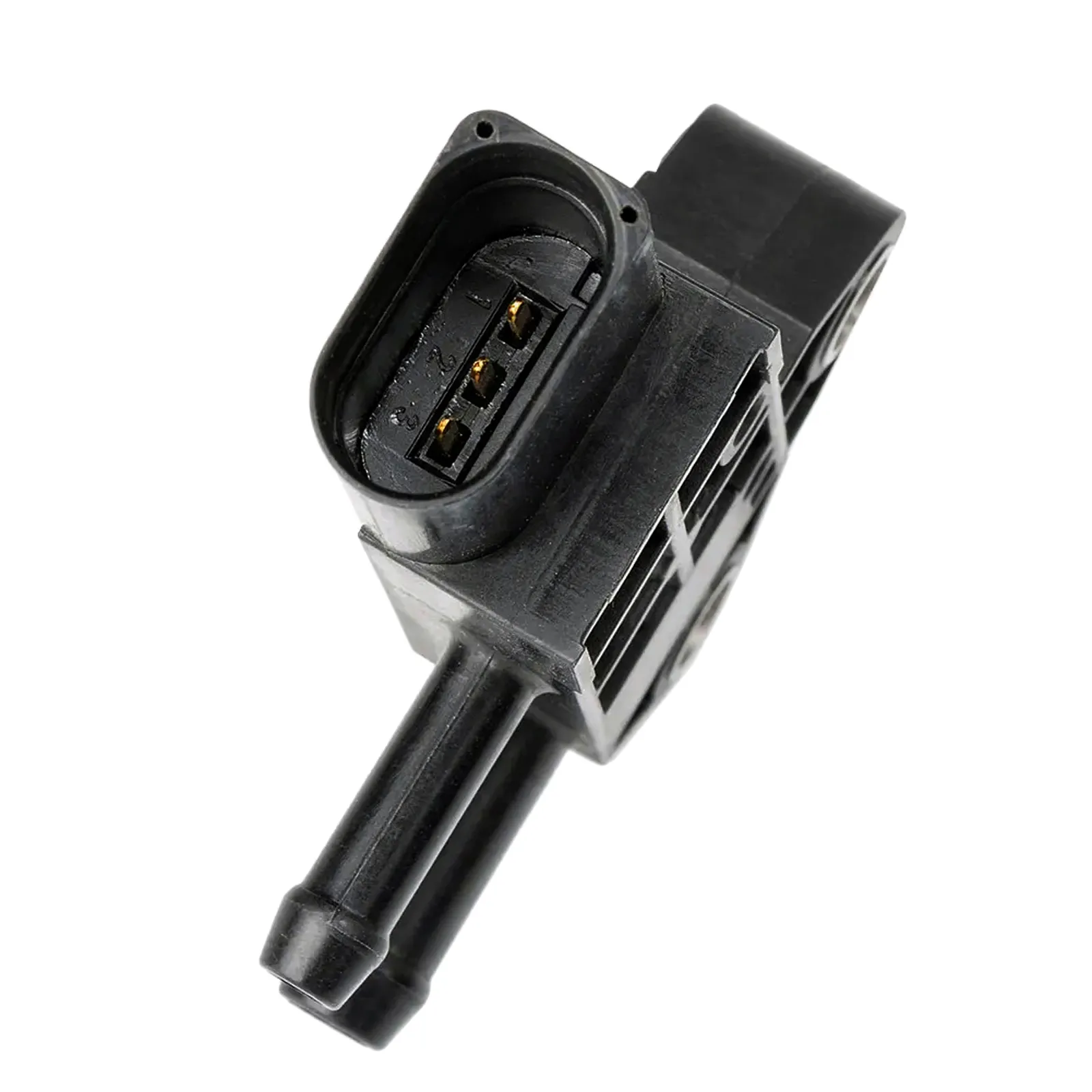

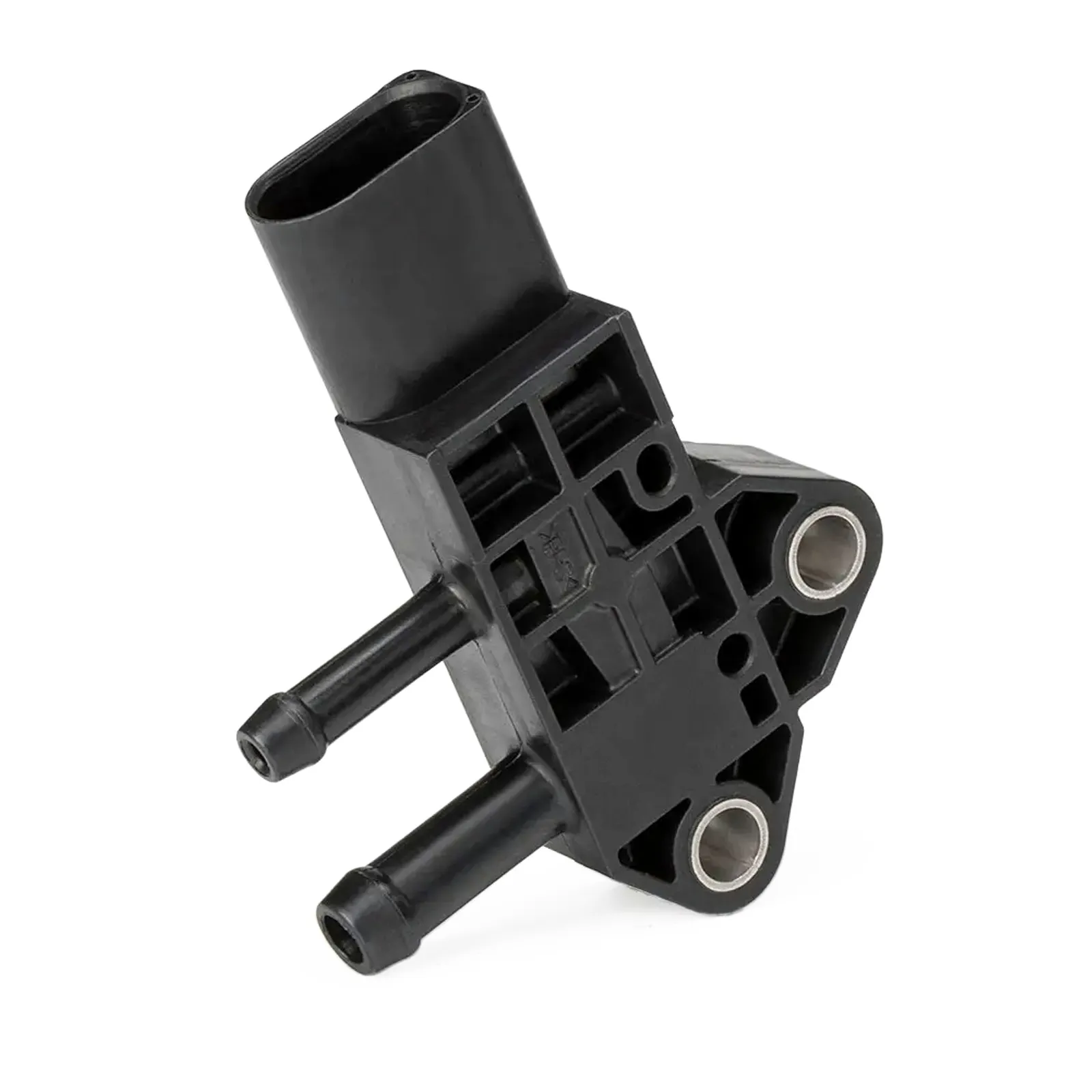

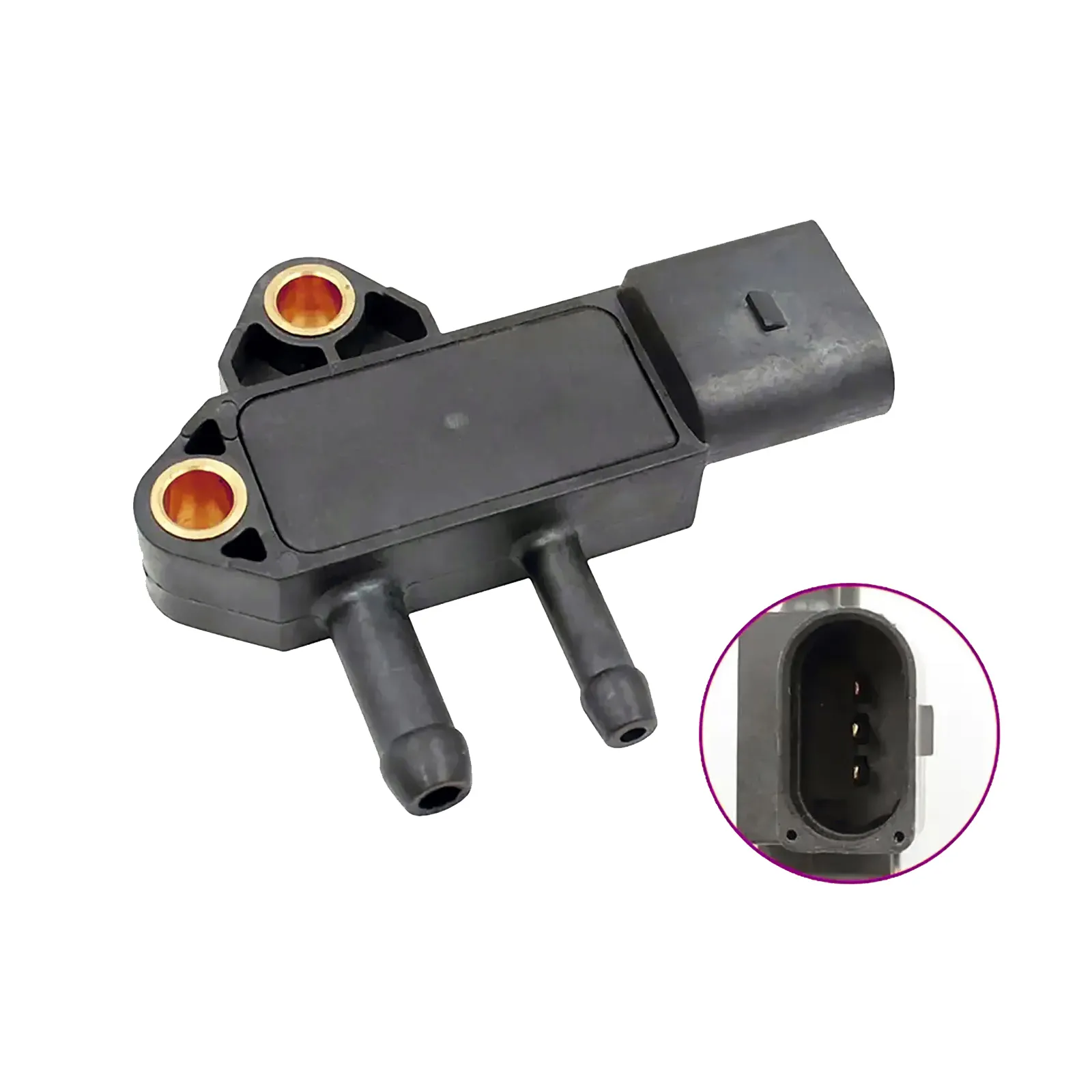

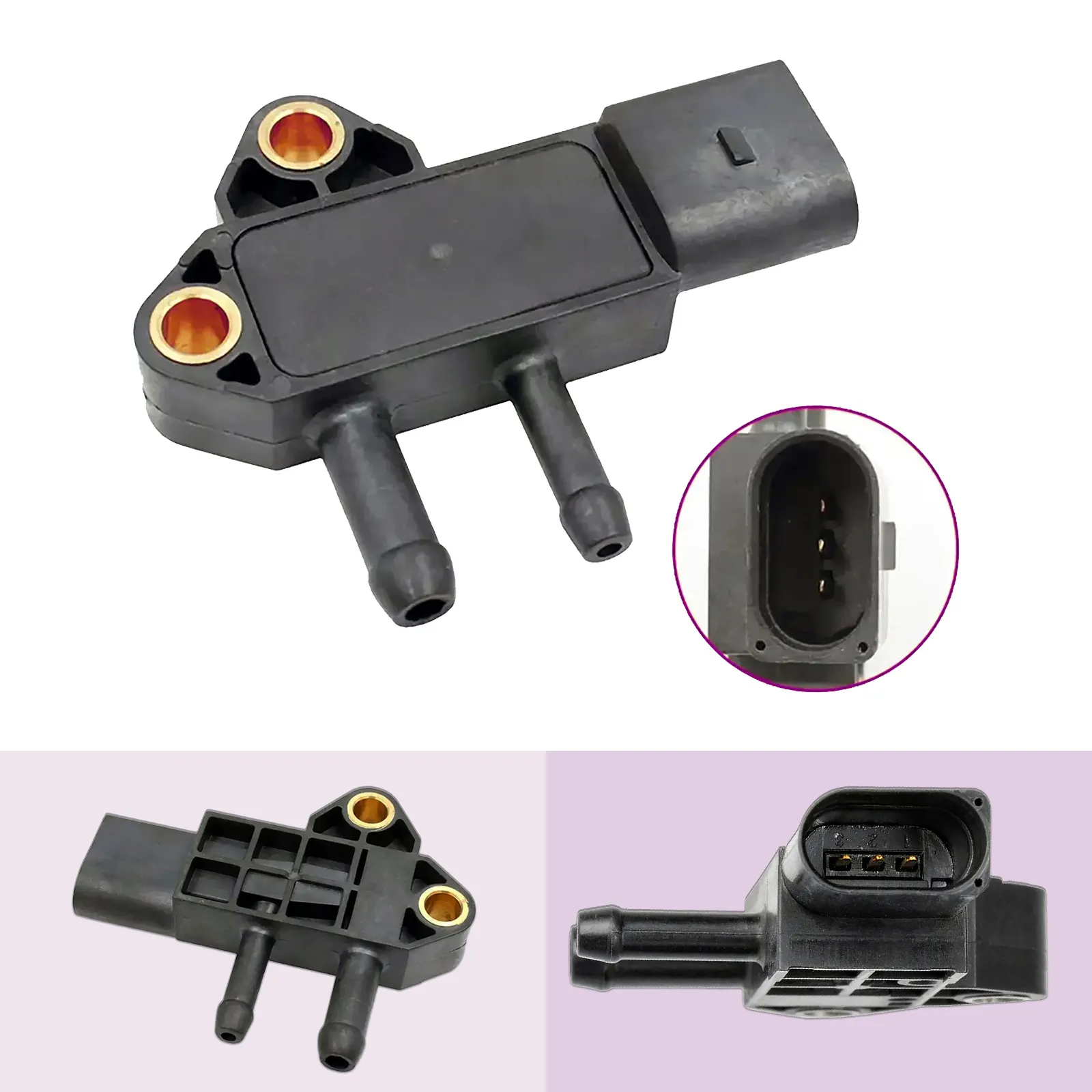

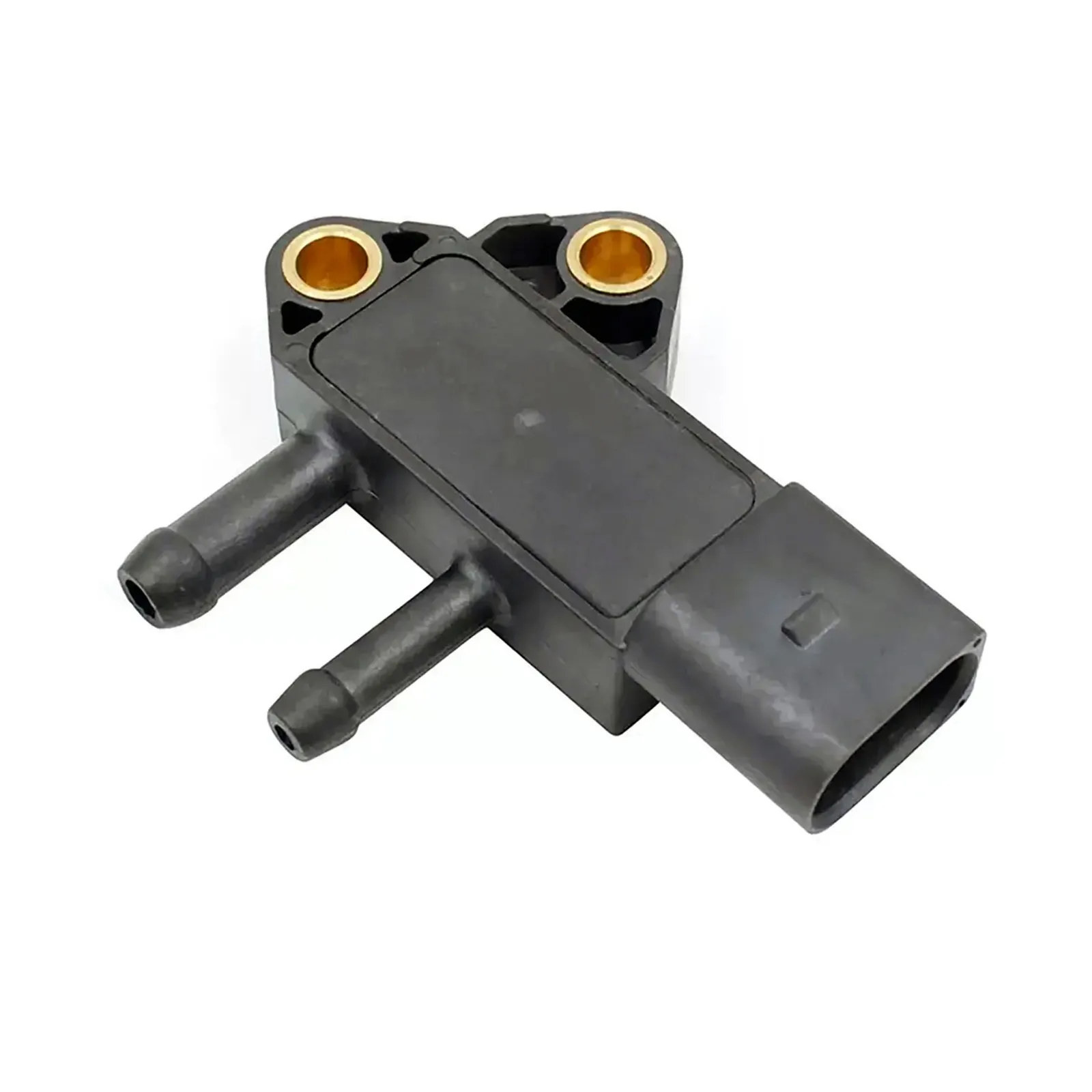

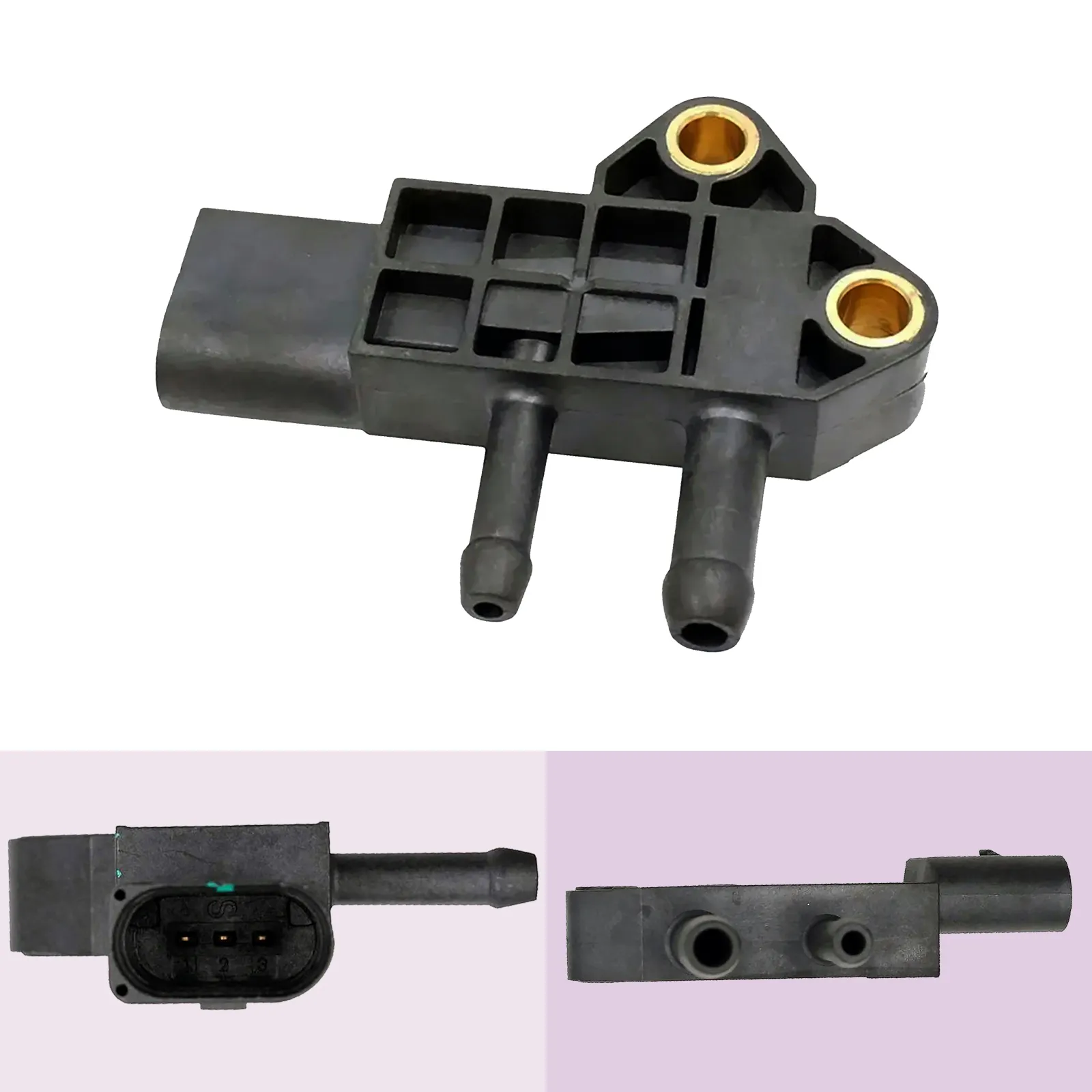

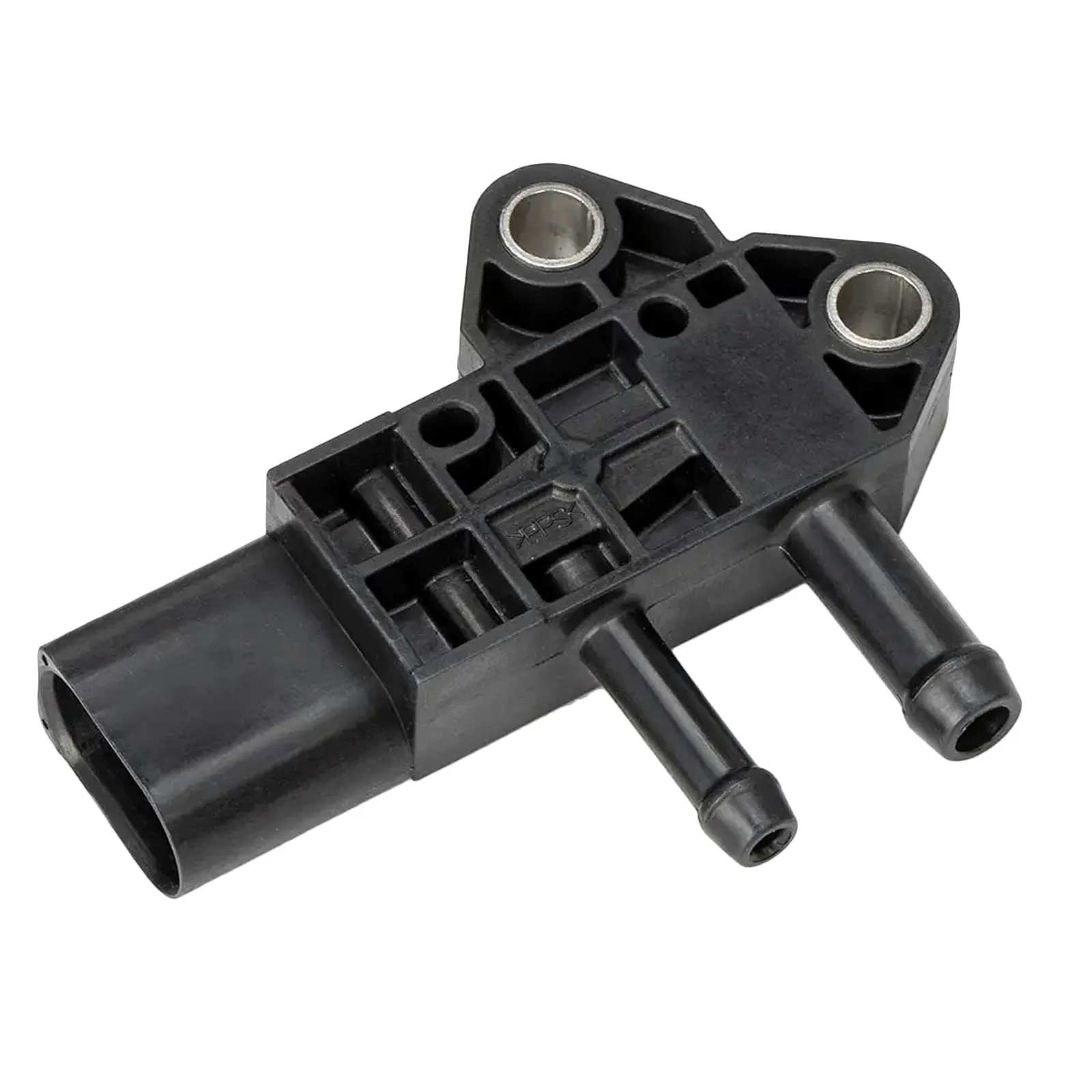

1 x DPF differential pressure sensor with 3-pin D-shape connector. Mounting hardware and pressure hoses are not included.
ABOUT THIS SENSOR
The sensor measures the pressure difference across the diesel particulate filter so the engine computer knows how loaded it is and when to regenerate.
On towing and work vehicles the filter loads fast, so a false reading leads to missed regens and a blocked filter. Fault codes P2452 to P2455 point at this circuit.
COMMON SYMPTOMS OF FAILURE
- DPF warning light on the dash
- Limp mode when towing or under load
- Regens too often or not starting
- Higher fuel consumption
- Fault codes P2452 P2453 P2454 P2455
- [1999 - 2006] MITSUBISHI PAJERO NM/NP/V6W/V7W V60/V70 DI-D (3.2L 4cyl 4M41 121kW, SUV AWD)
- [2006 - 2009] MITSUBISHI PAJERO NS/NT/NW/NX V88W/V98W DI-D (3.2L 4cyl 4M41 118kW, SUV AWD)
- [2006 - 2009] MITSUBISHI PAJERO NS/NT/NW/NX V88W/V98W DI-D (3.2L 4cyl 4M41 125kW, SUV AWD)
- [2009 - 2016] MITSUBISHI PAJERO NS/NT/NW/NX V88W/V98W DI-D (3.2L 4cyl 4M41 147kW, SUV AWD)
- [2012 - 2016] MITSUBISHI PAJERO NS/NT/NW/NX V98W DI-D (3.2L 4cyl 4M41 149kW, SUV AWD)
- [2016 - 2021] MITSUBISHI PAJERO NS/NT/NW/NX V98W (3.2L 4cyl 4M41 141kW, SUV AWD)
- [2022 - 2022] MITSUBISHI PAJERO NS/NT/NW/NX (3.2L 4cyl 4M41 141kW, SUV AWD)
- [2017 - 2019] MITSUBISHI PAJERO NS/NT/NW/NX TD (3.2L 4cyl 4M41 147kW, Van AWD)
- [2010 - 2016] MITSUBISHI PAJERO V88V/V98V TD (3.2L 4cyl 4M41 147kW, Van AWD)
- [2006 - 2009] MITSUBISHI TRITON ML/MN KB8T DI-D (3.2L 4cyl 4M41 118kW, Ute/Chassis AWD)
- [04/10 - 2015] MITSUBISHI TRITON ML/MN KA4T DI-D (2.5L 4cyl 4D56-HP 100kW, Chassis RWD)
- [04/10 - 2015] MITSUBISHI TRITON ML/MN KB4T DI-D (2.5L 4cyl 4D56-HP 131kW, Chassis AWD)
- [08/11 - 2015] MITSUBISHI TRITON ML/MN KA4T DI-D (2.5L 4cyl 4D56-HP 100kW, Ute RWD)
- [08/11 - 2015] MITSUBISHI TRITON ML/MN KA4T DI-D (2.5L 4cyl 4D56-HP 123kW, Ute RWD)
- [2010 - 2015] MITSUBISHI TRITON ML/MN KA4T DI-D (2.5L 4cyl 4D56-HP 103kW, Ute RWD)
- [08/11 - 2015] MITSUBISHI TRITON ML/MN KA4T DI-D (2.5L 4cyl 4D56-HP 94kW, Ute RWD)
- [08/11 - 2015] MITSUBISHI TRITON ML/MN KA4T DI-D (2.5L 4cyl 4D56 131kW, Ute RWD)
- [08/11 - 2015] MITSUBISHI TRITON ML/MN KB4T DI-D (2.5L 4cyl 4D56-HP 131kW, Ute AWD)
What is the difference between a DPF differential pressure sensor and an exhaust gas temperature sensor?
The DPF differential pressure sensor measures the pressure difference across the diesel particulate filter to determine how blocked it is with soot. The exhaust gas temperature (EGT) sensor measures the actual temperature of exhaust gases at a specific point in the exhaust system. Both sensors are used by the ECU to manage DPF regeneration - the pressure sensor triggers regeneration when the filter is blocked, and the temperature sensor monitors whether regeneration temperatures have been reached.
What are the symptoms of a faulty DPF pressure or temperature sensor?
Both sensor types can cause similar symptoms when they fail. Common signs include a DPF warning light on the dashboard, the engine entering limp mode with restricted power, failed or incomplete DPF regeneration cycles, increased fuel consumption from excessive regeneration attempts, loss of power under acceleration, and a Check Engine light with DPF or exhaust temperature fault codes. In some cases the vehicle may be locked out of further DPF regeneration until the fault is resolved.
Will a faulty DPF sensor damage the DPF itself?
Yes - indirectly. If the DPF pressure sensor fails and prevents the ECU from triggering regeneration correctly, soot accumulation will continue unmanaged. Over time an unmanaged DPF will become completely blocked, requiring forced regeneration by a workshop or DPF replacement. Similarly a faulty EGT sensor that prevents the ECU from confirming regeneration temperatures can cause repeated incomplete regeneration attempts that accelerate DPF loading.
Can I drive with a DPF or EGT sensor fault?
Short distances only. A DPF sensor fault will typically trigger limp mode on modern diesel vehicles, restricting power significantly. Even if limp mode is not triggered, driving with an unmanaged DPF blockage risks complete filter failure. EGT sensor faults can also prevent the turbocharger from receiving correct protection data, risking turbo damage under sustained high load. Both faults should be addressed promptly.
How many EGT sensors does my vehicle have?
Most modern diesel vehicles with a DPF have two or more EGT sensors - typically one upstream of the DPF and one downstream. Some vehicles also have additional sensors before and after the turbocharger and catalytic converter. Each sensor monitors a different temperature zone and feeds separate data to the ECU. A fault code will specify which sensor position has failed. Use the Vehicle Part Finder to confirm the correct sensor for your specific mounting position.
Do DPF and EGT sensors require programming after replacement?
No programming is required. Both are direct plug-in replacement sensors. Clear stored fault codes with an OBD2 scanner after replacement. If DPF regeneration was previously prevented by the sensor fault, you may need to initiate a forced regeneration using a scan tool to clear accumulated soot before returning the vehicle to normal service.
| Identification | |
|---|---|
| Brand | Aftermarket OEM Replacement |
| Part Numbers | |
| Part Number | SDP109 |
| Reference OEM Number | 1865A210 |
| Other OEM Numbers | 1865A210, 1609942680, 22627-AA500, SH01-182B2 |
| Related Part Numbers | 0986280718, DP109, EPS-008, DEPS1006 |
| Interchange Part Numbers | 0986280718, V37-72-0112, EPD3-D020, 6PP009409-361, DPS00005 |
| Product Specifics | |
| Product Type | SENSOR |

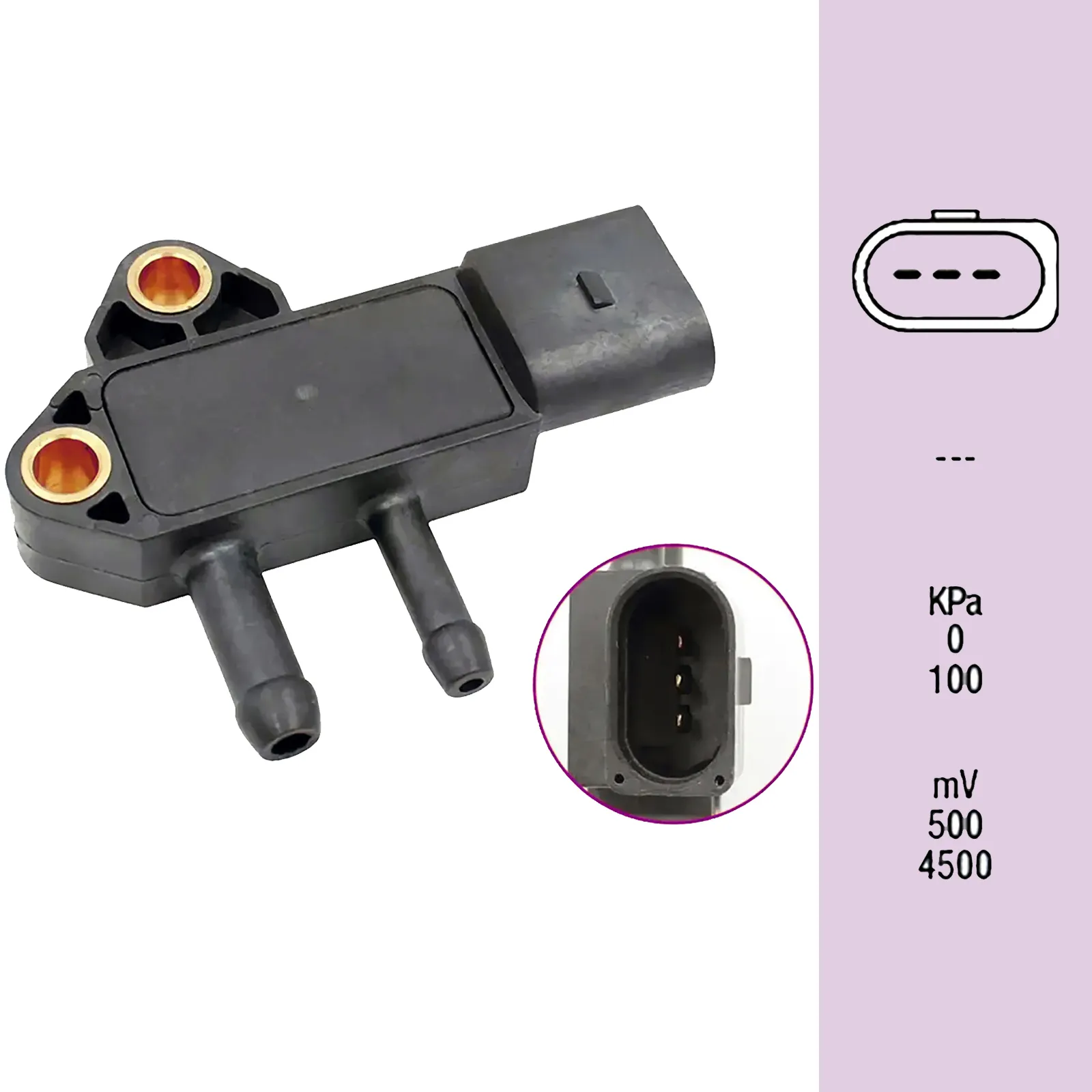

| Sensor Type | DPF Differential Pressure Sensor |
| Fitting Position | Soot Particle Filter |
| Number of pins | 3-Pin |

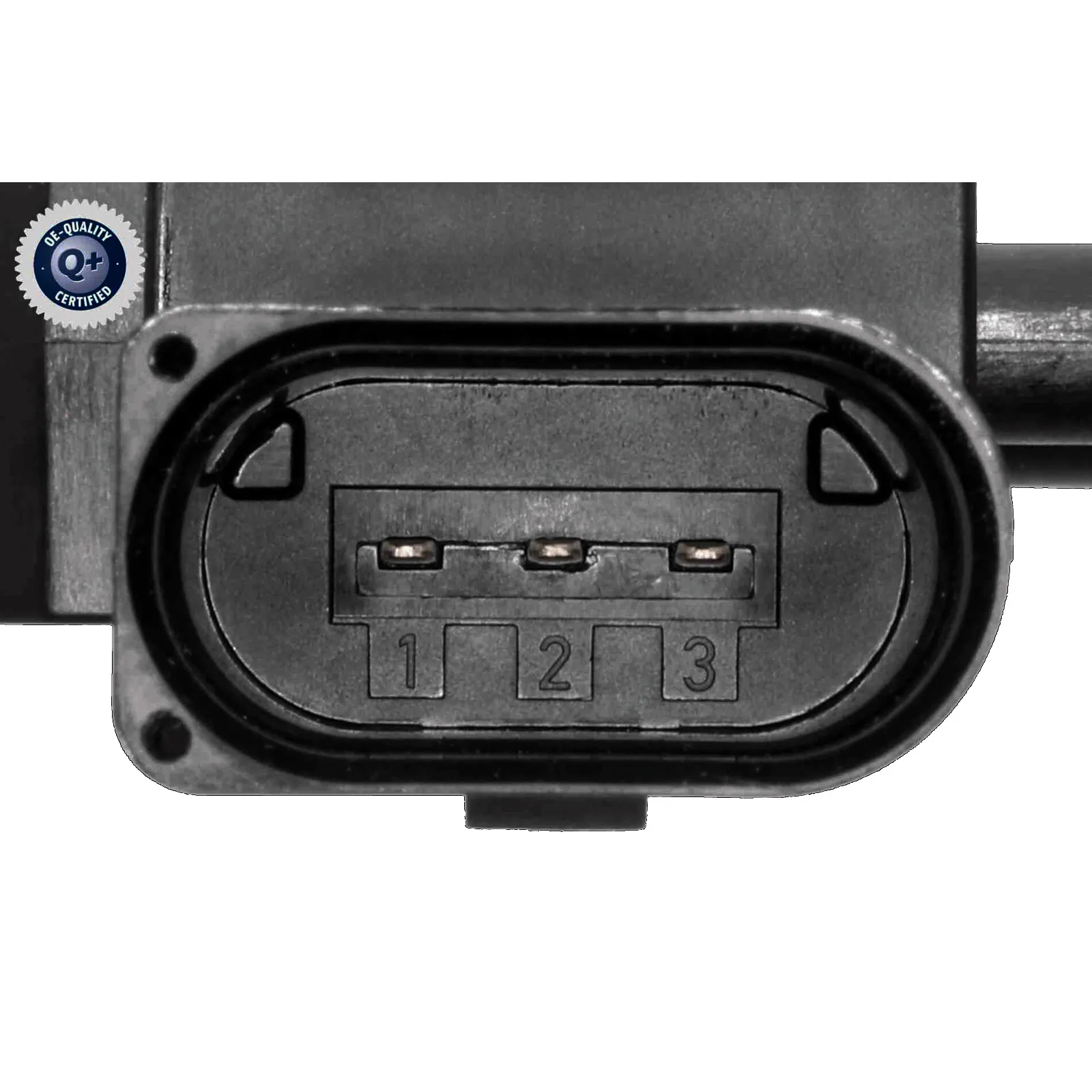

| Connector Shape | D-shaped |
| Rated Voltage | 12 V |
| Number of mounting bores | 2 |
| Compatible Makes | Mitsubishi |
| Fitment Type | Direct Replacement |
| Other Details | |
| Note | Factory DPF models only. 3-pin D-shape plug |
| Unit Of Measure | ea |
