Name: Crankshaft Position Sensor BMW 320i 325ci 330ci 525i 530i X3 X5
Brand: Aftermarket OEM Replacement
SKU: CSCA140_1
Price: 109.97 AUD
Availability: InStock

BRAND NEW OEM Quality CRANKSHAFT POSITION SENSOR TO SUIT BMW'S VARIOUS VEHICLES

TO SUIT:

OEM# 12141709616, 12141744492, 1709616

Package Includes:

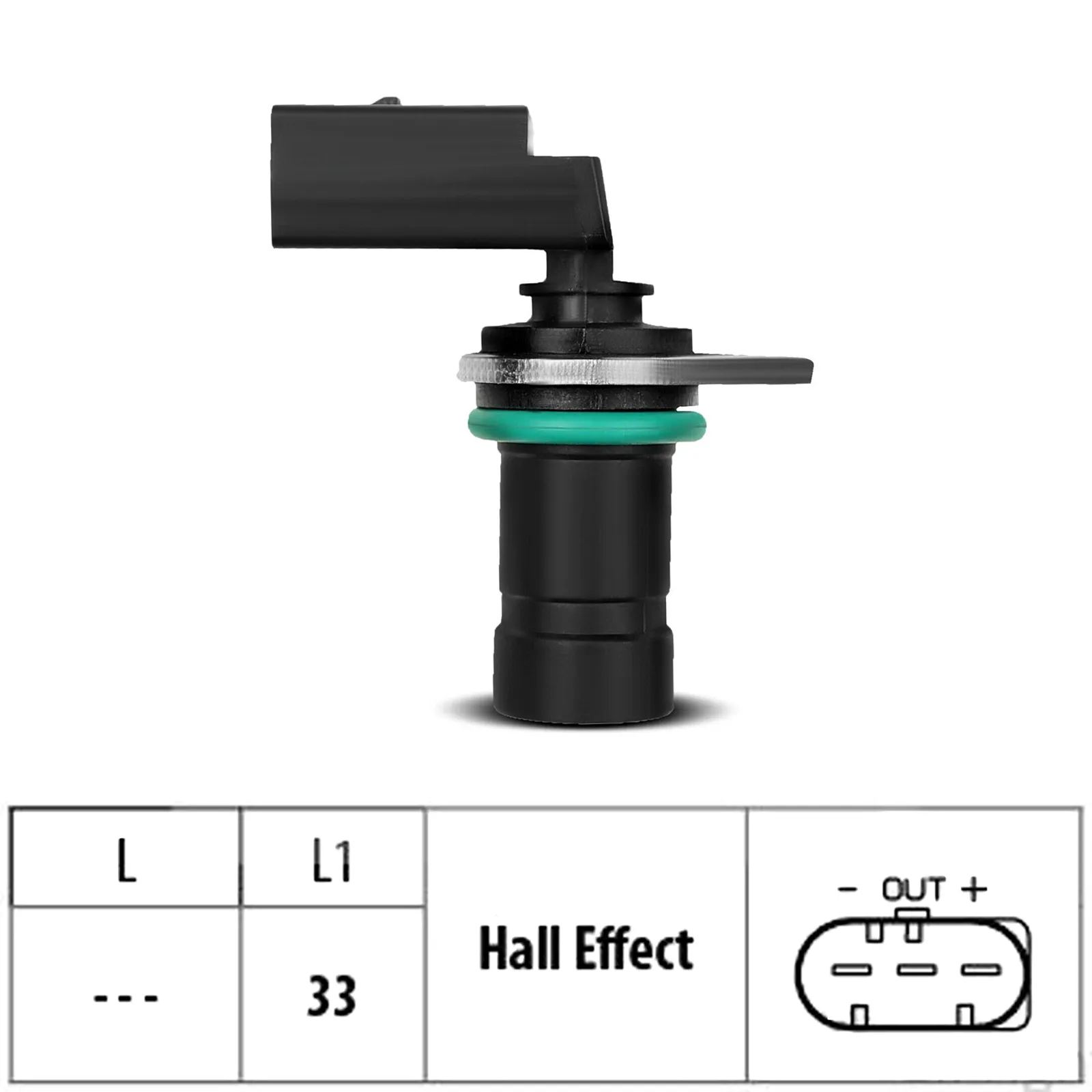

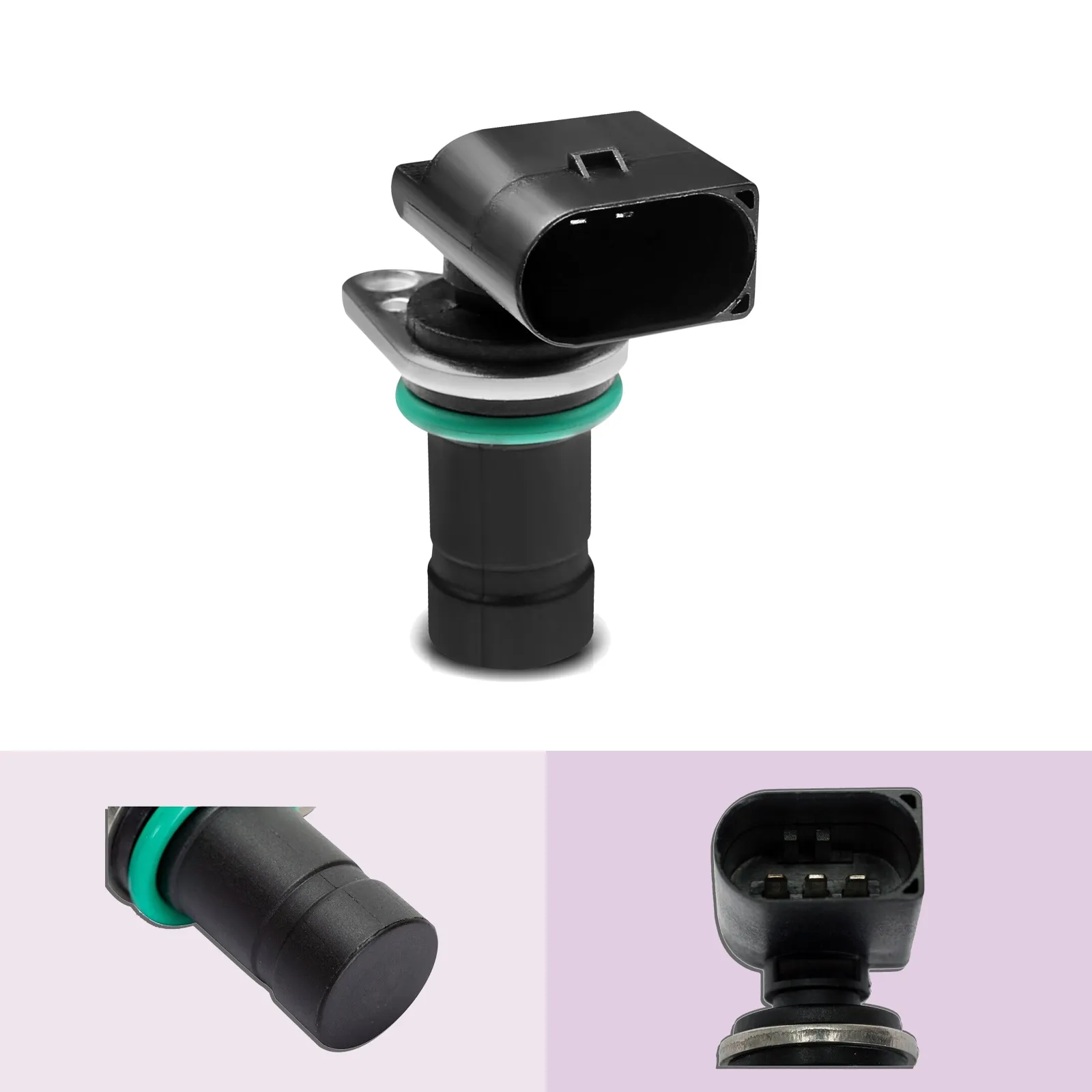

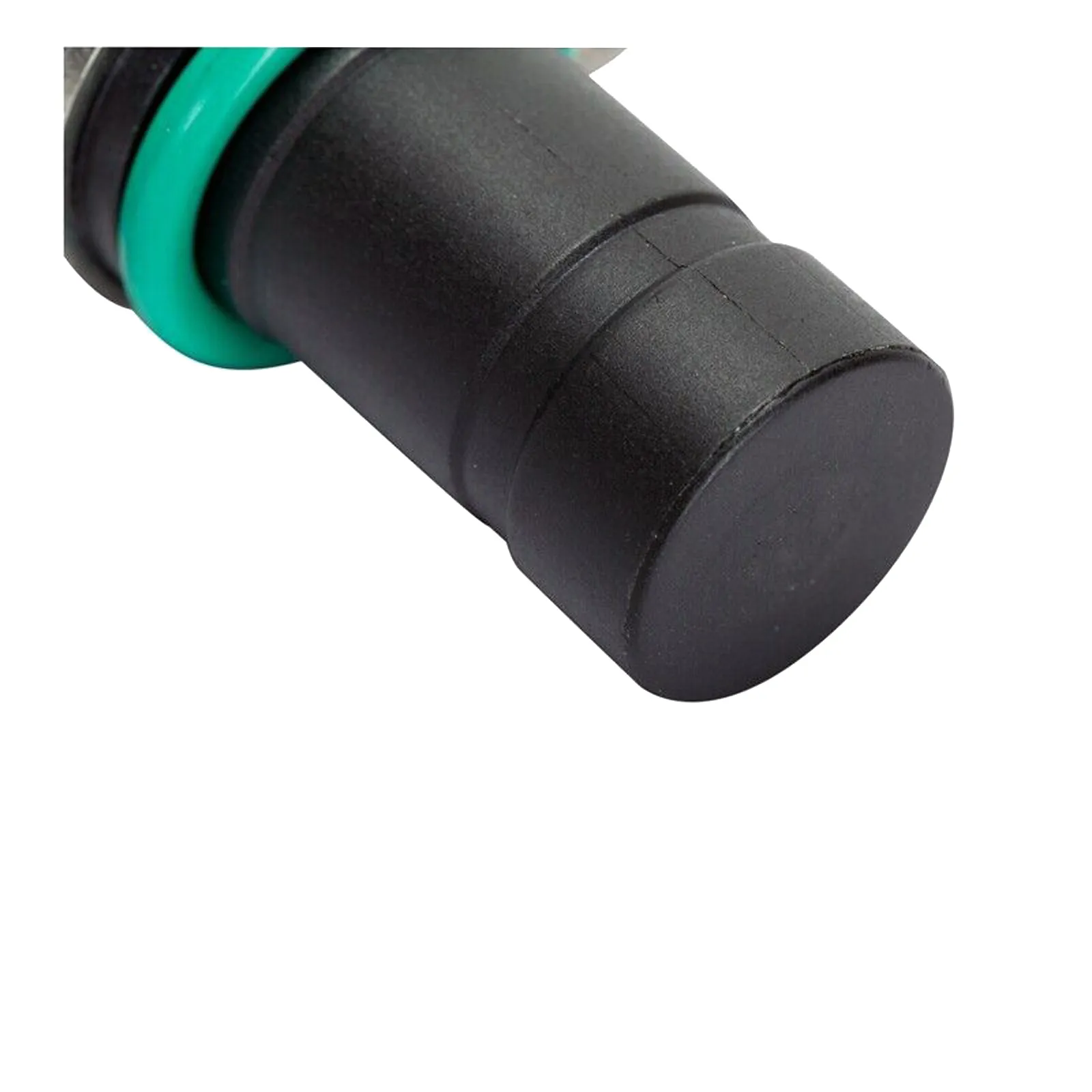

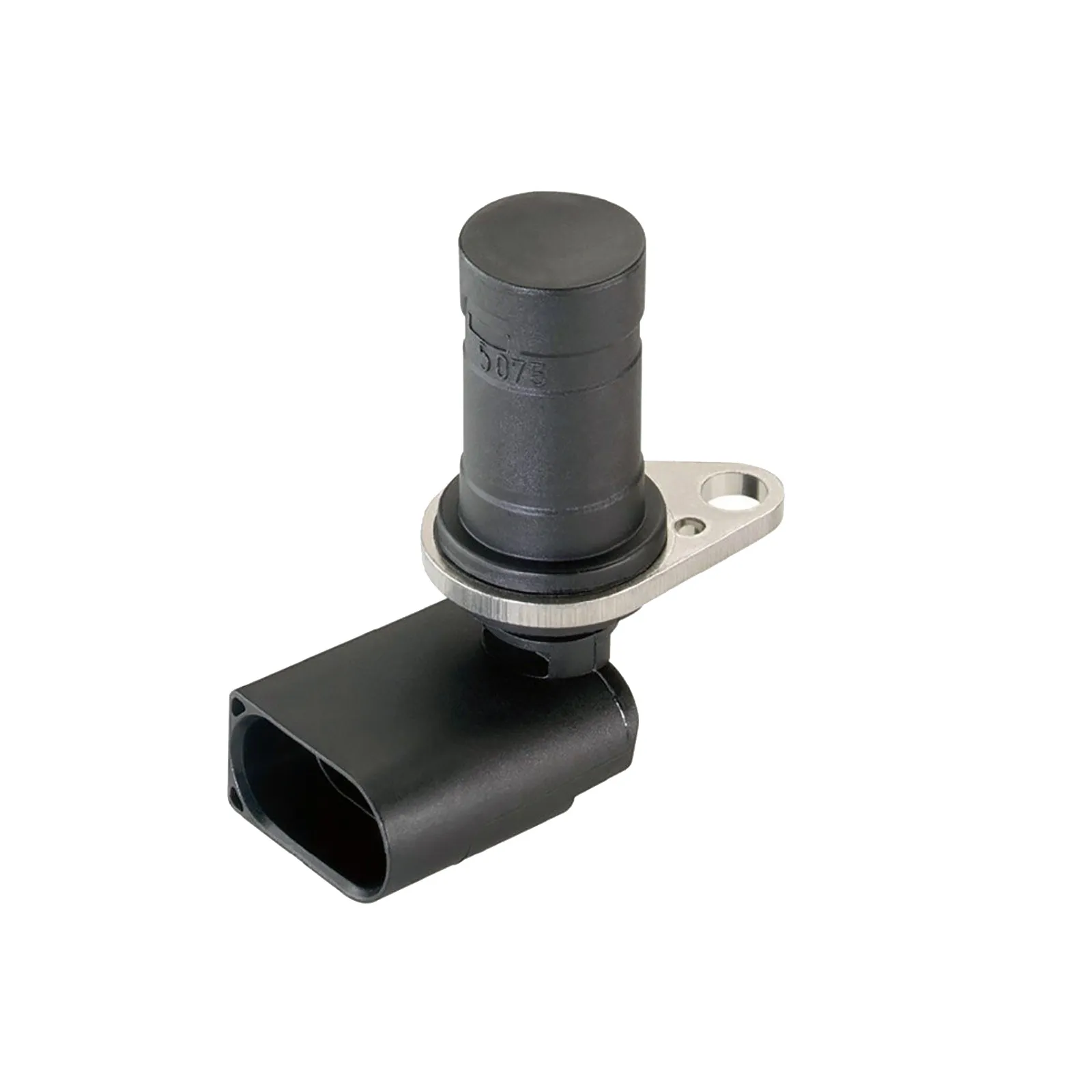

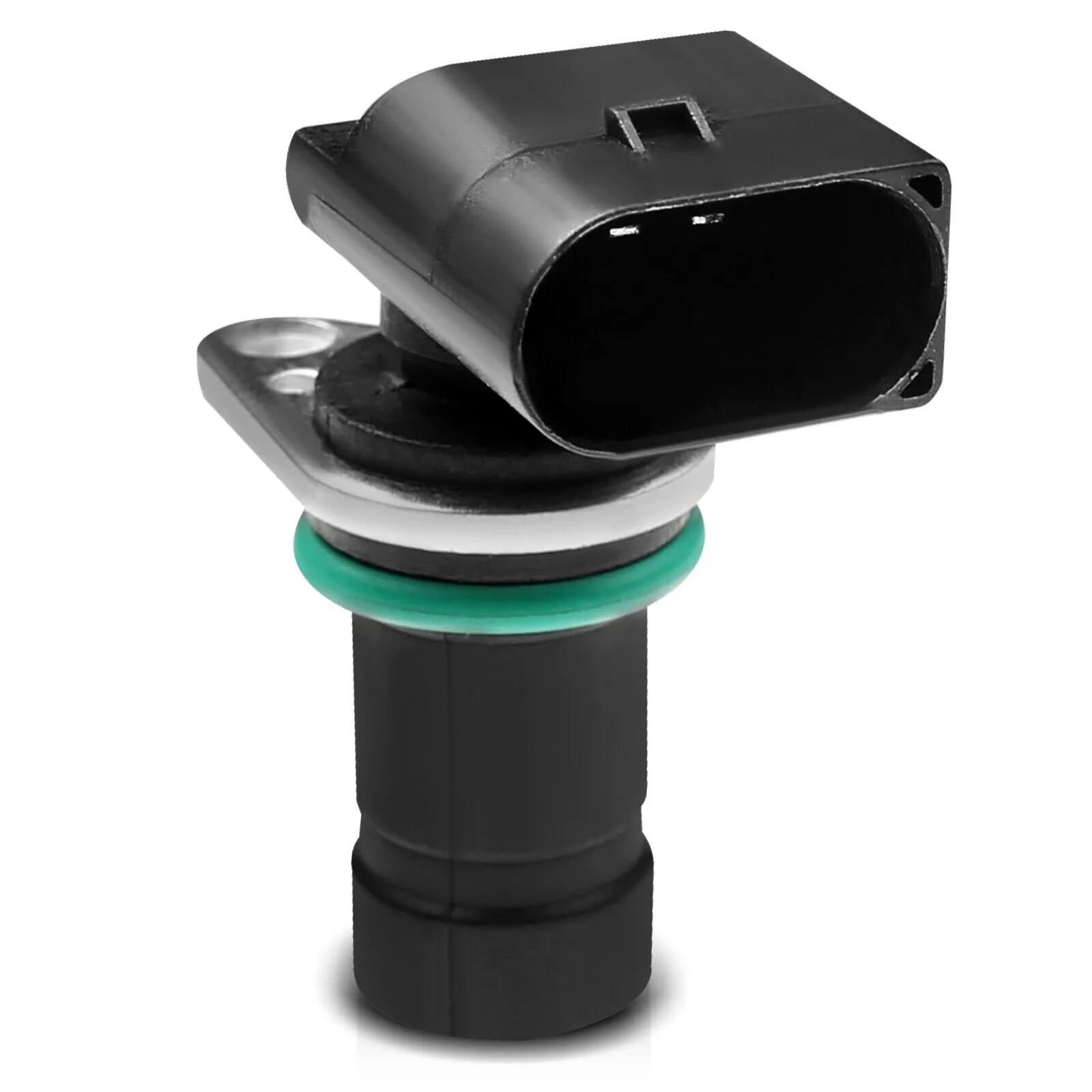

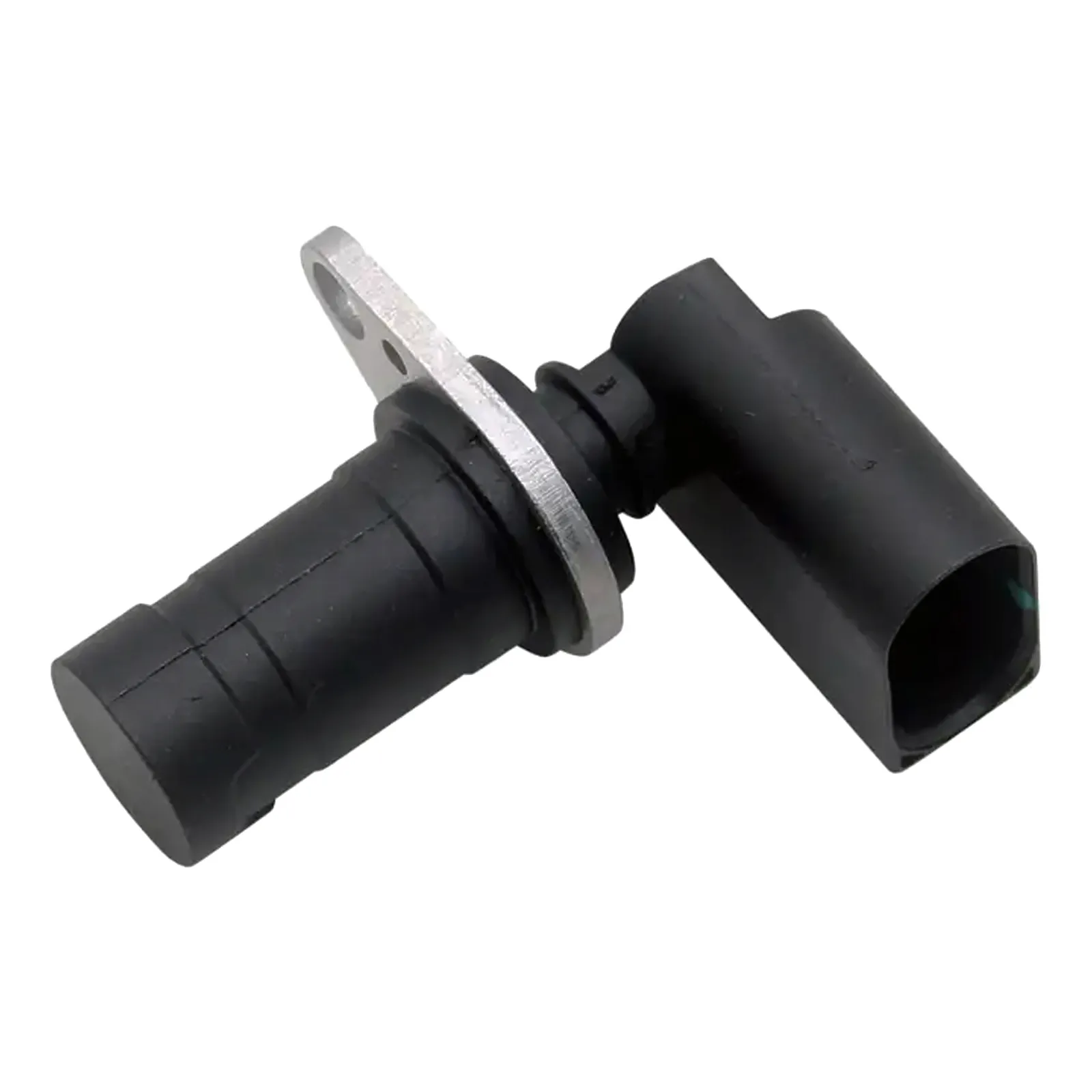

1* 'OEM Quality' CRANKSHAFT POSITION SENSOR (3-PIN PLUG). D-shaped Connector.

The crankshaft position sensor is an engine management component found on virtually all modern vehicles with internal combustion engines. It monitors the position and rotational speed of the crankshaft and sends the information to the engine control unit so it can make appropriate adjustments based on operating conditions. The crankshaft speed and position are some of the most important parameters used in engine management calculations, and many engines cannot run if the crankshaft position sensor is not providing an accurate signal.

[01/95 - 12/99] BMW 316i E36 1.6L 4cyl M43 B16 75kW
[01/99 - 12/00] BMW 316i E36 1.9L 4cyl M43 B19 TU 77kW
[01/98 - 12/01] BMW 318i E46 1.9L 4cyl M43 B19 TU 87kW
[01/00 - 12/06] BMW 320Ci E46 2.2L 6cyl M54 B22 125kW
[01/00 - 12/05] BMW 320i E46 2.2L 6cyl M54 B22 125kW
[01/02 - 12/05] BMW 320i E46 2.2L 6cyl M54 B22 125kW
[01/99 - 12/00] BMW 323Ci E46 2.5L 6cyl M52 B25 125kW
[01/96 - 12/98] BMW 323i E36 2.5L 6cyl M52 B25 125kW
[01/98 - 12/00] BMW 323i E46 2.5L 6cyl M52 B25 125kW
[01/04 - 12/06] BMW 325Ci E46 2.5L 6cyl M54 B25 141kW
[01/00 - 12/06] BMW 325Ci E46 2.5L 6cyl M54 B25 141kW
[01/03 - 12/06] BMW 325Ci E46 2.5L 6cyl M54 B25 141kW
[01/94 - 12/95] BMW 325i E36 2.5L 6cyl M50 B25 141kW
[01/92 - 12/95] BMW 325i E36 2.5L 6cyl M50 B25 141kW
[01/91 - 12/95] BMW 325i E36 2.5L 6cyl M50 B25 141kW
[01/91 - 12/92] BMW 325i E36 2.5L 6cyl M50 B25 141kW
[01/00 - 12/05] BMW 325i E46 2.5L 6cyl M54 B25 141kW
[01/04 - 12/05] BMW 325i E46 2.5L 6cyl M54 B25 141kW
[01/02 - 12/05] BMW 325ti E46 2.5L 6cyl M54 B25 141kW
[01/02 - 12/03] BMW 325ti E46 2.5L 6cyl M54 B25 141kW
[01/03 - 12/05] BMW 325ti E46 2.5L 6cyl M54 B25 141kW
[01/99 - 12/00] BMW 328Ci E46 2.8L 6cyl M52 B28 142kW
[01/95 - 12/00] BMW 328i E36 2.8L 6cyl M52 B28 142kW
[01/95 - 12/99] BMW 328i E36 2.8L 6cyl M52 B28 142kW
[01/95 - 12/98] BMW 328i E36 2.8L 6cyl M52 B28 142kW
[01/98 - 12/00] BMW 328i E46 2.8L 6cyl M52 B28 142kW
[01/00 - 12/06] BMW 330Ci E46 3.0L 6cyl M54 B30 170kW
[01/00 - 12/03] BMW 330Ci E46 3.0L 6cyl M54 B30 170kW
[01/03 - 12/06] BMW 330Ci E46 3.0L 6cyl M54 B30 170kW
[01/00 - 12/05] BMW 330i E46 3.0L 6cyl M54 B30 170kW
[01/96 - 12/00] BMW 523i E39 2.5L 6cyl M52 B25 125kW
[01/07 - 12/09] BMW 523i E60 2.5L 6cyl N52 B25 A 140kW
[01/90 - 12/96] BMW 525i E34 2.5L 6cyl M50 B25 141kW
[01/92 - 12/96] BMW 525i E34 2.5L 6cyl M50 B25 141kW
[01/90 - 12/94] BMW 525i E34 2.5L 6cyl M50 B25 141kW
[01/92 - 12/94] BMW 525i E34 2.5L 6cyl M50 B25 141kW
[01/00 - 12/03] BMW 525i E39 2.5L 6cyl M54 B25 141kW
[01/03 - 12/05] BMW 525i E60 2.5L 6cyl M54 B25 141kW
[01/96 - 12/00] BMW 528i E39 2.8L 6cyl M52 B28 142kW
[01/97 - 12/00] BMW 528i E39 2.8L 6cyl M52 B28 142kW
[01/00 - 12/03] BMW 530i E39 3.0L 6cyl M54 B30 170kW
[01/03 - 12/05] BMW 530i E60 3.0L 6cyl M54 B30 170kW
[01/04 - 12/06] BMW X3 E83 2.5i 2.5L 6cyl M54 B25 141kW
[01/04 - 12/06] BMW X3 E83 3.0i 3.0L 6cyl M54 B30 170kW
[01/06 - 12/10] BMW X3 E83 XDRIVE 25i/2.5si 2.5L 6cyl N52 B25 AF 160kW
[01/06 - 12/08] BMW X3 E83 XDRIVE 25i/2.5si 2.5L 6cyl N52 B25 AF 160kW
[01/06 - 12/10] BMW X3 E83 XDRIVE 30i/3.0si 3.0L 6cyl N52 B30 A 200kW
[01/01 - 12/06] BMW X5 E53 3.0i 3.0L 6cyl M54 B30 170kW
[01/01 - 12/03] BMW X5 E53 3.0i 3.0L 6cyl M54 B30 170kW
[01/03 - 12/06] BMW X5 E53 3.0i 3.0L 6cyl M54 B30 170kW
[01/02 - 12/03] BMW X5 E53 4.6iS 4.6L V8 M62 B46 255kW
[01/99 - 12/00] BMW Z3 E36-7 2.0L 6cyl M52 B20 110kW
[01/00 - 12/02] BMW Z3 E36-7 2.2L 6cyl M54 B22 125kW
[01/97 - 12/00] BMW Z3 E36-7 2.8L 6cyl M52 B28 142kW
[01/00 - 12/02] BMW Z3 E36-7 3.0L 6cyl M54 B30 170kW
[01/03 - 12/06] BMW Z4 E85 2.5L 6cyl M54 B25 141kW
[01/06 - 12/09] BMW Z4 E85 2.5L 6cyl N52 B25 AF 160kW
[01/03 - 12/06] BMW Z4 E85 3.0L 6cyl M54 B30 170kW
[01/06 - 12/09] BMW Z4 E85 3.0L 6cyl N52 B30 AF 195kW

LIST OF SUITABLE BMW ENGINES

BMW - M40 B16 (164E1)
BMW - M43 B16 (164E2)
BMW - M43 B16 (164E3)
BMW - M43 B18 (184E2)
BMW - M43 B19 (194E1)
BMW - M44 B19 (194S1)
BMW - M50 B20 (206S1)
BMW - M50 B20 (206S2)
BMW - M50 B25 (256S1)
BMW - M50 B25 (256S2)
BMW - M52 B20 (206S3)
BMW - M52 B20 (206S4)
BMW - M52 B25 (256S3)
BMW - M52 B25 (256S4)
BMW - M52 B28 (286S1)
BMW - M52 B28 (286S2)
BMW - M54 B22 (226S1)
BMW - M54 B25 (256S5)
BMW - M54 B30 (306S3)
BMW - M62 B44 (448S2)
BMW - M62 B46 (468S1)
BMW - N42 B18 A
BMW - N42 B20 A
BMW - N46 B18 A
BMW - N46 B20 A
BMW - N46 B20 C
BMW - N52 B25 A
BMW - N52 B25 B
BMW - N52 B25 BF
BMW - N52 B30 A
BMW - N52 B30 BF
BMW - N62 B40 A
BMW - N62 B44 A
BMW - S50 B32 (326S1)
BMW - S50 B32 (326S3)
BMW - S54 B32 (326S4)

How do I test a crankshaft or camshaft position sensor?

Use an OBD2 scanner to check for fault codes P0335 to P0338 (crankshaft) or P0340 to P0349 (camshaft). You can also test the sensor with a multimeter - inductive sensors should show resistance between 200 and 1,000 ohms, while Hall effect sensors require a live voltage test with the engine cranking. Erratic or absent RPM signal on a live data scanner is a strong indicator of sensor failure.

Can a cam or crank sensor fault cause my vehicle to go into limp mode?

Yes. A faulty crankshaft position sensor in particular can cause the ECU to lose engine speed and position data entirely, which may trigger limp mode or prevent the engine from starting. A faulty camshaft sensor on variable valve timing engines can cause the VVT system to default to a fixed position, significantly reducing power and fuel economy.

Do cam and crank sensors need to be programmed after replacement?

In most cases no - aftermarket OEM replacement sensors are direct plug-in replacements that require no programming. However some vehicles, particularly late model European makes including BMW and Mercedes-Benz, may require a crankshaft adaptation reset using a dealer-level scan tool after replacement. Check your vehicle service information before replacing the sensor.

What are the symptoms of a faulty crankshaft position sensor?

Symptoms include intermittent stalling, engine not starting, rough idle, misfires, and a Check Engine light with codes P0335-P0338. In severe cases the engine will crank but not start as the ECU cannot determine crank position for ignition timing.

What are the symptoms of a faulty camshaft position sensor?

Symptoms include poor performance, misfires, difficulty starting, rough idle, and fault codes P0340-P0343. Variable valve timing systems (VVT) will also be affected, causing sluggish response and increased fuel consumption.

Can I drive with a bad crankshaft position sensor?

If the sensor has failed completely the engine will not start or will stall and not restart. If it is intermittently failing, driving is dangerous - the engine can cut out without warning. Replace it immediately.

Do I need to replace both the cam and crank sensor at the same time?

Not necessarily - replace whichever has failed based on fault codes and diagnosis. However, if your vehicle has high kilometres and one has failed, it is worth considering replacing both as they are similar in age and condition.

Identification
SKU	CSCA140_1
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	CSCA140
Reference OEM Number	12141709616
Other OEM Numbers	12141709616, 12141744492, 1709616
Related Part Numbers	SC276, V20-72-0403, TCAS229
Trade Part Numbers	235-1252, S107230001Z
Product Specifics
Product Type	SENSOR
Sensor Type	CRANKSHAFT POSITION SENSOR
Number of pins	3 -pin connector

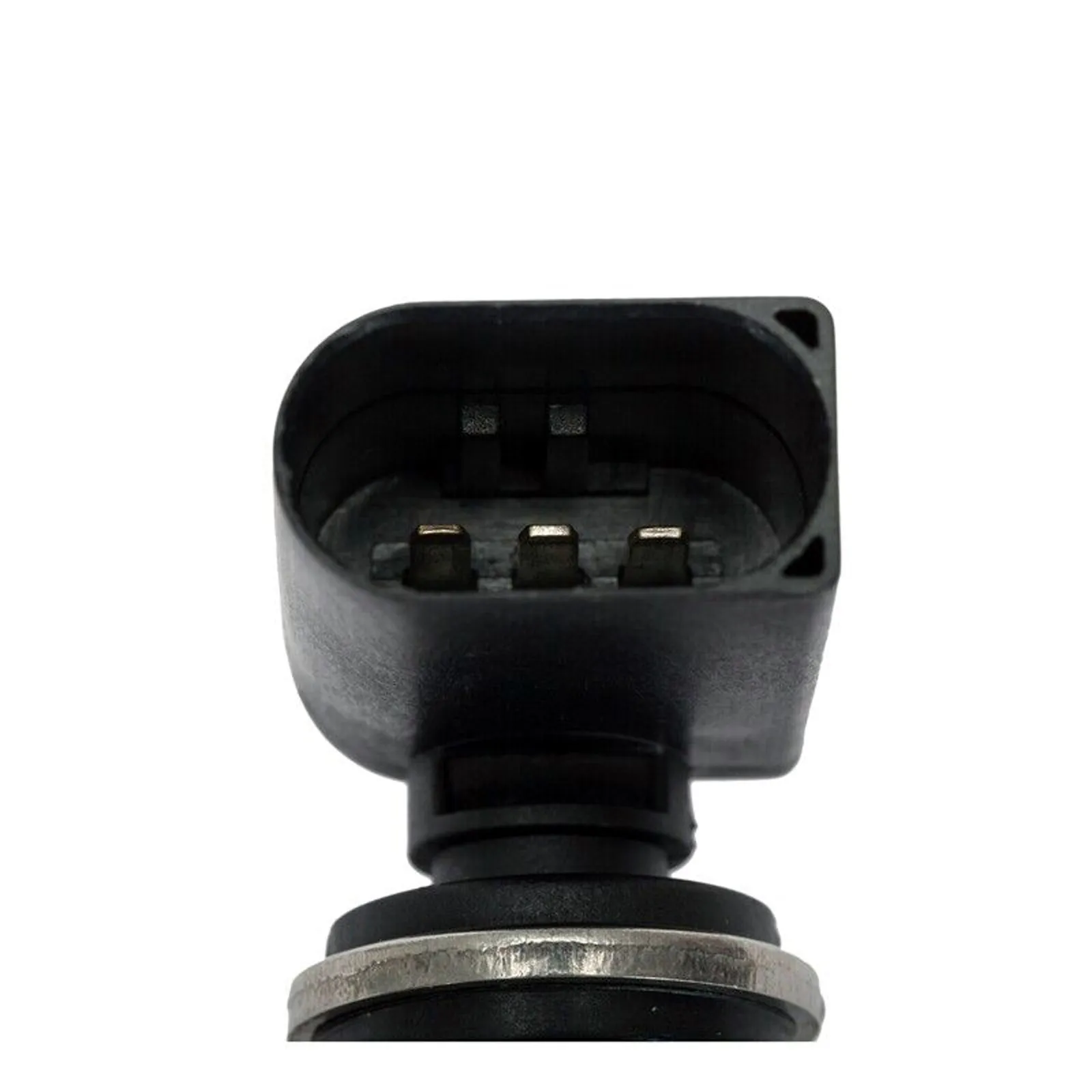

Connector Shape	D-shaped
Socket colour	Black
Supplementary Article Info	with seal, without cable
Fitting Depth	33 mm
Rated Voltage	12 V
Number of mounting bores	1
Other Details
Note	Always verify fitment using your vehicle's OEM part number.
