BRAND NEW *OEM Quality* Engine Coolant Temperature Sensor to suit Holden Commodore VE VF V8 6.0L LS2 and 6.2L LS3.

Overheating gauge, rough idle, or poor fuel economy on your V8 Commodore? A failing coolant temperature sensor is a common and inexpensive cause. This is a direct-fit replacement, express delivery Australia-wide.

TO SUIT

This sensor suits the Holden Commodore VE and VF, and WM WN Statesman/Caprice, with the Gen IV 6.0L LS2 or 6.2L LS3 V8 engine from 2006 to 2017. 2-pin connector.

OEM PART NUMBERS

96182634
12611420
15326388
15404280
96181508
12146897
12191170
15369305
25036898
25037062
12608814

OTHER PART NUMBERS

DELPHI: TS10076
HELLA: 6PT 009 107-271
VEMO: V40-72-0322
WALKER PRODUCTS: 211-2087

PACKAGE INCLUDES

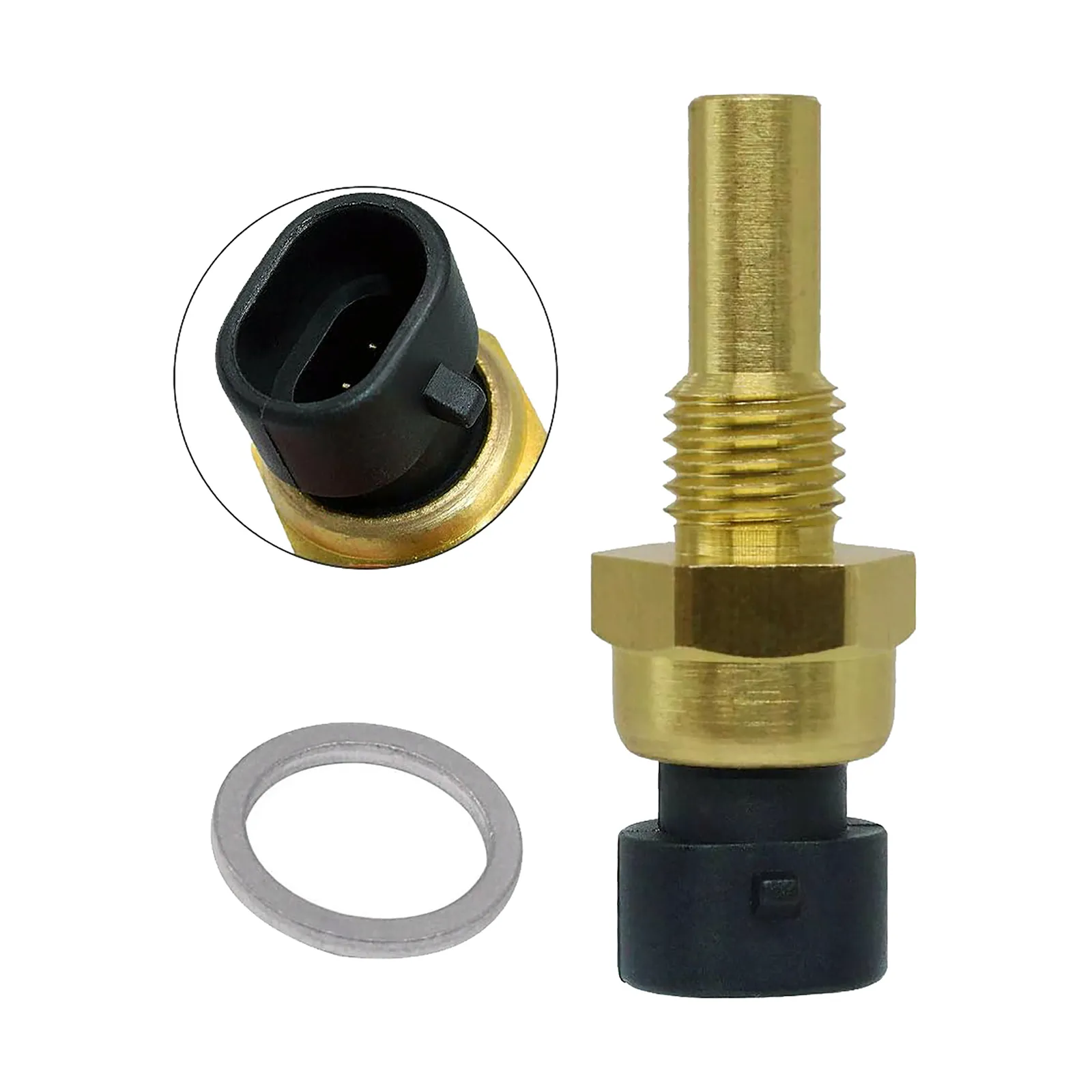

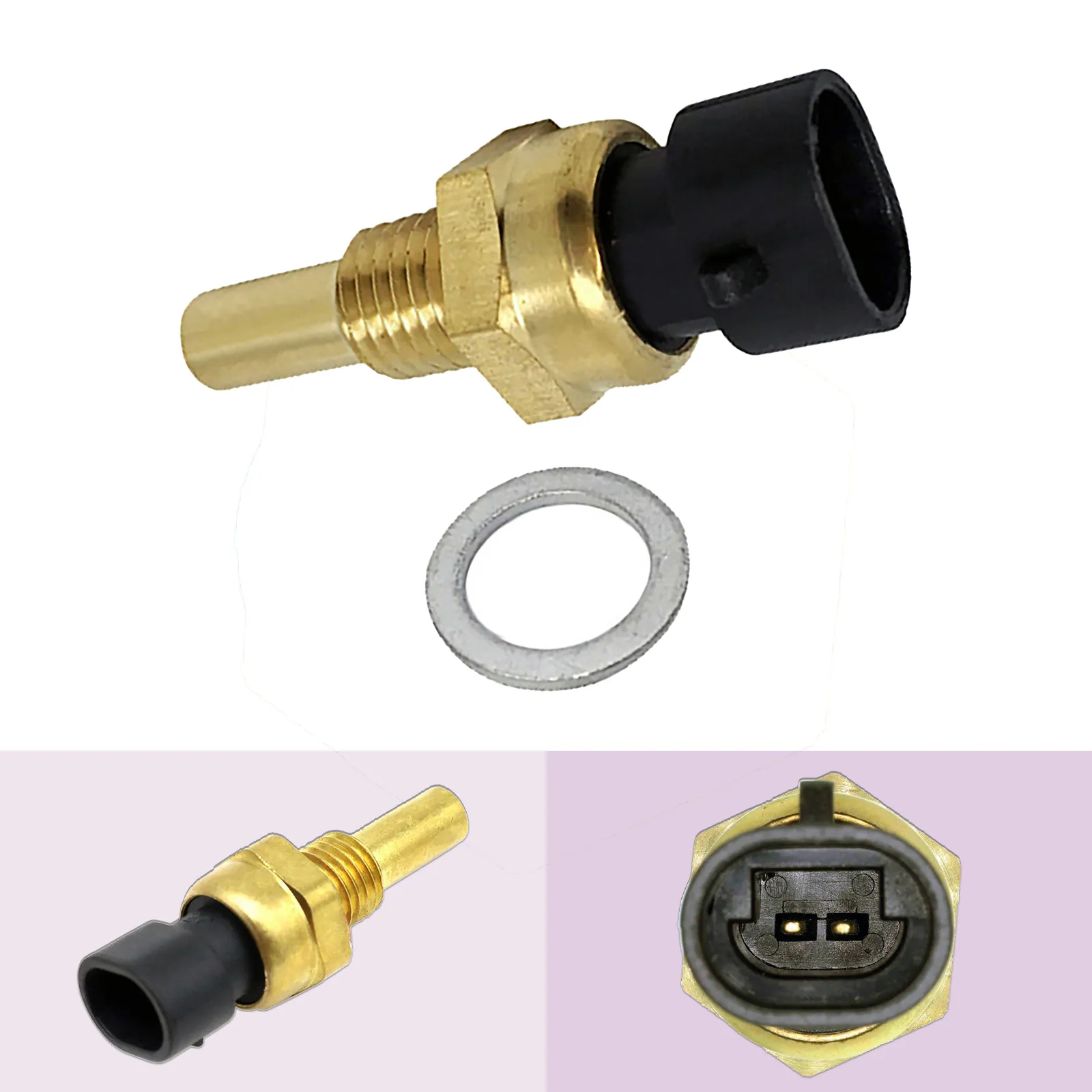

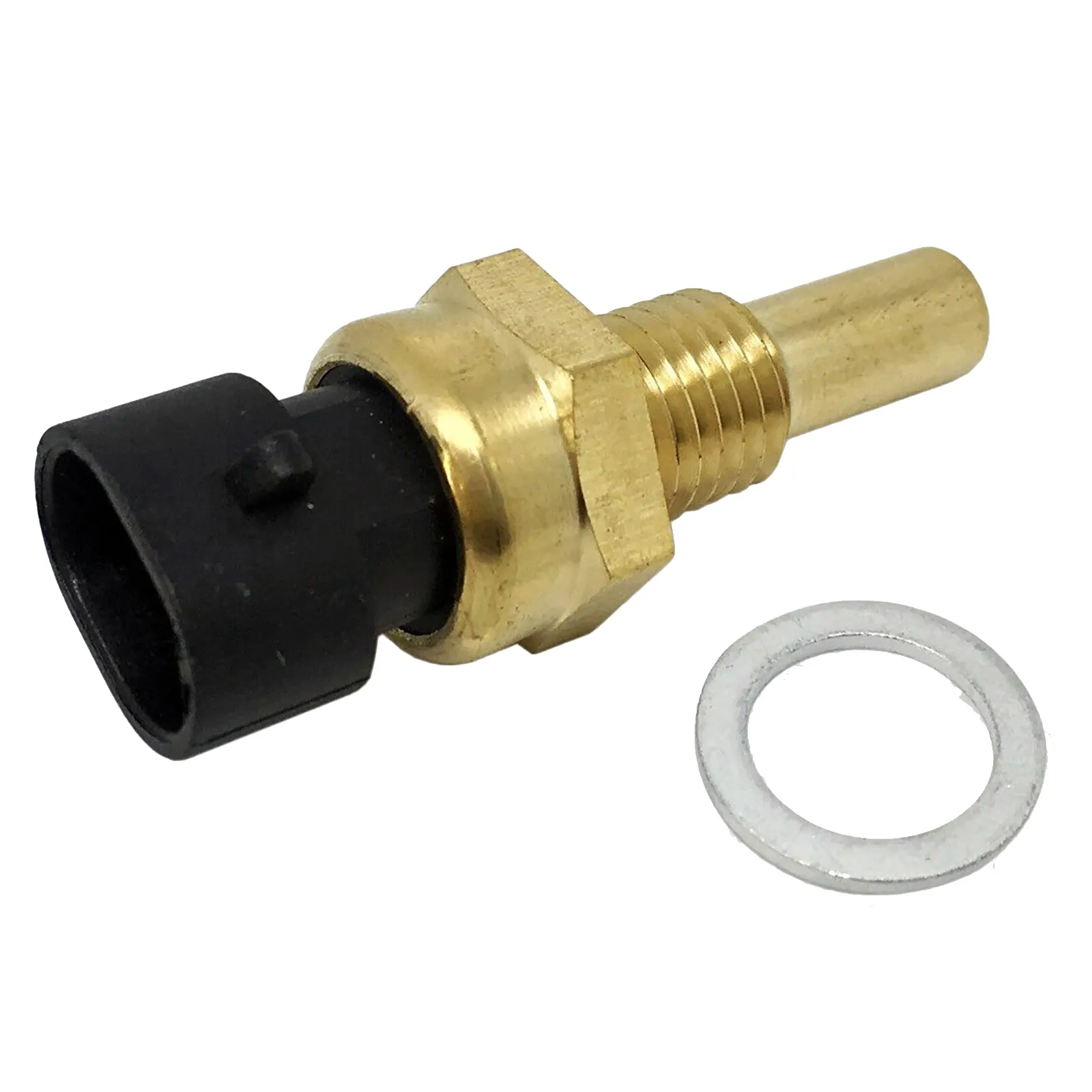

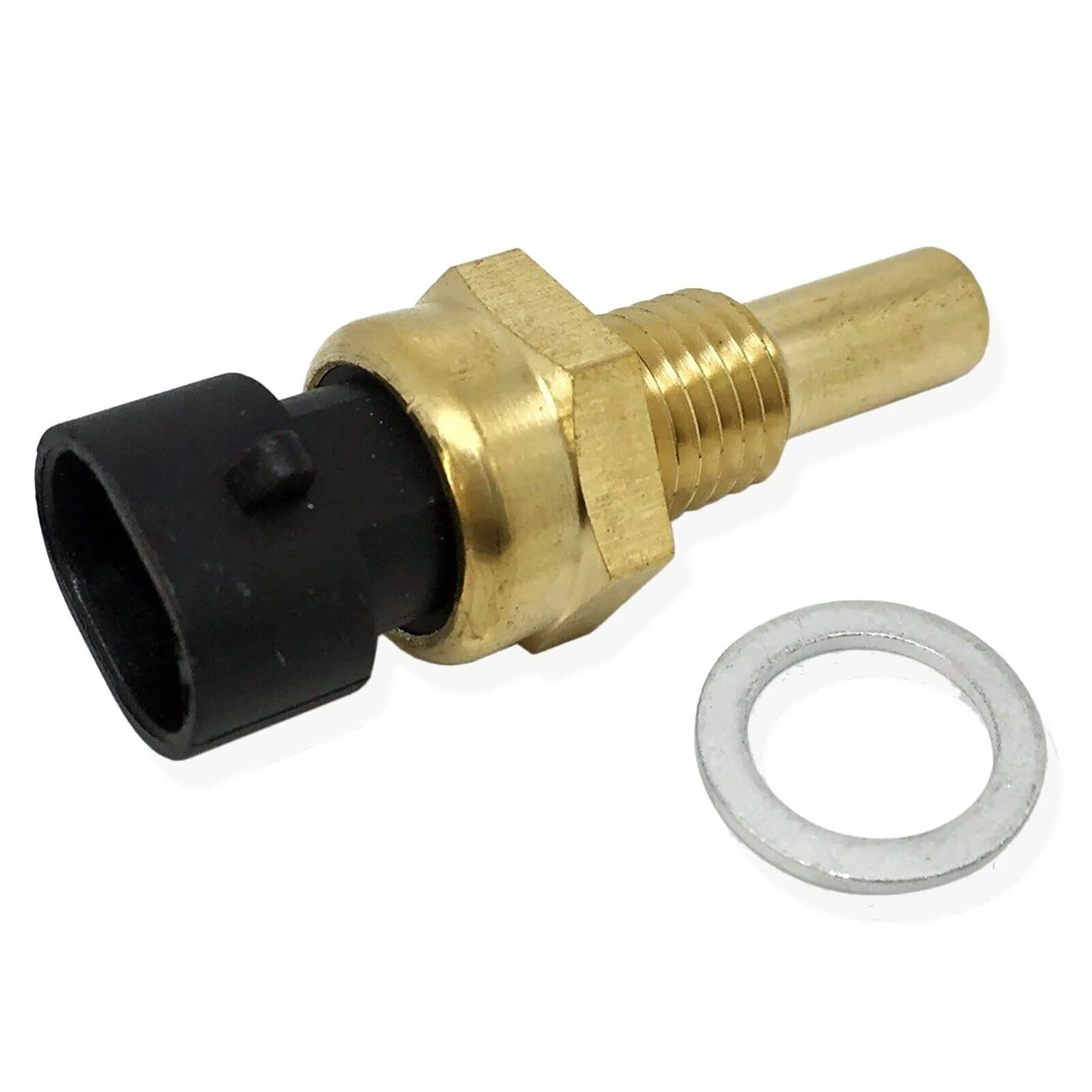

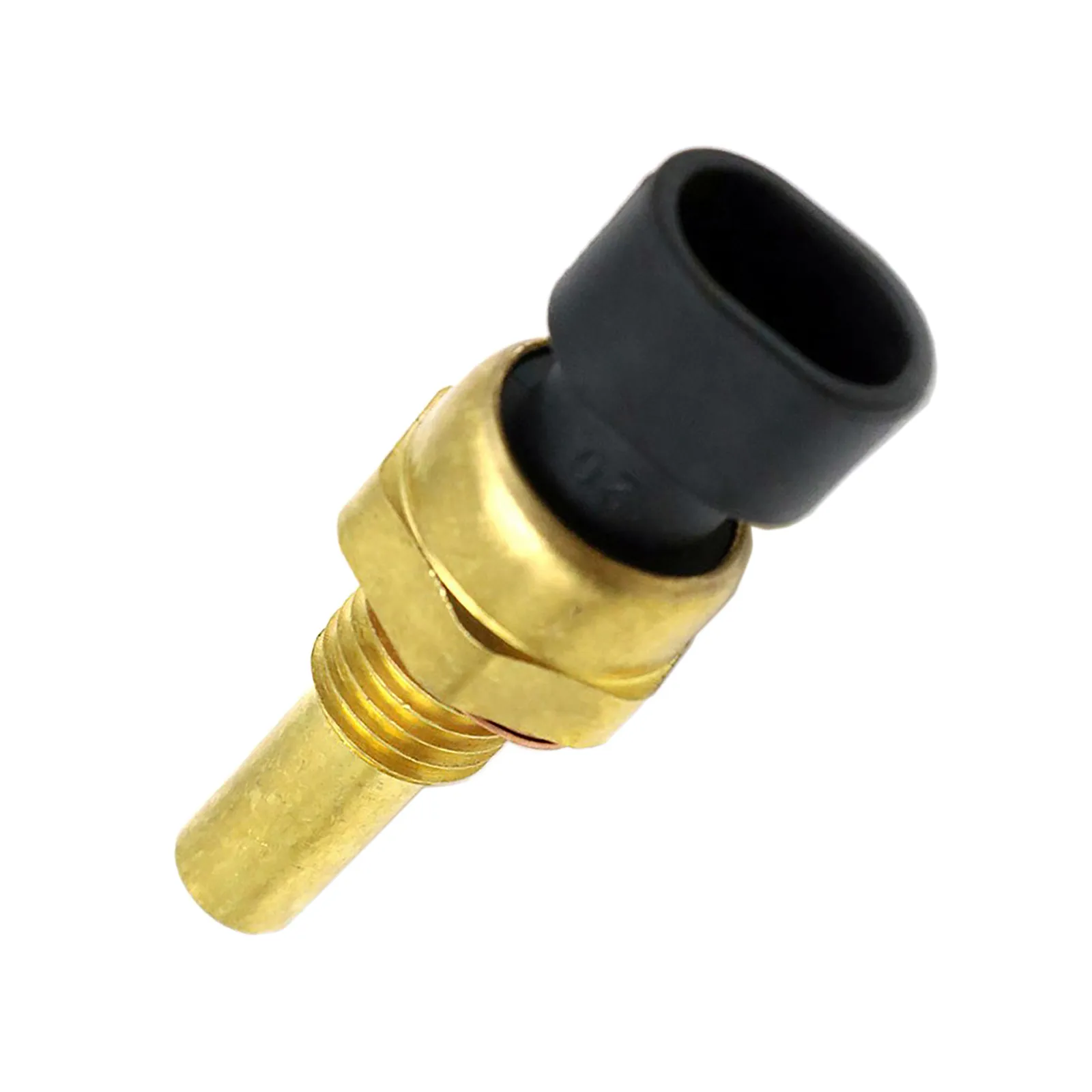

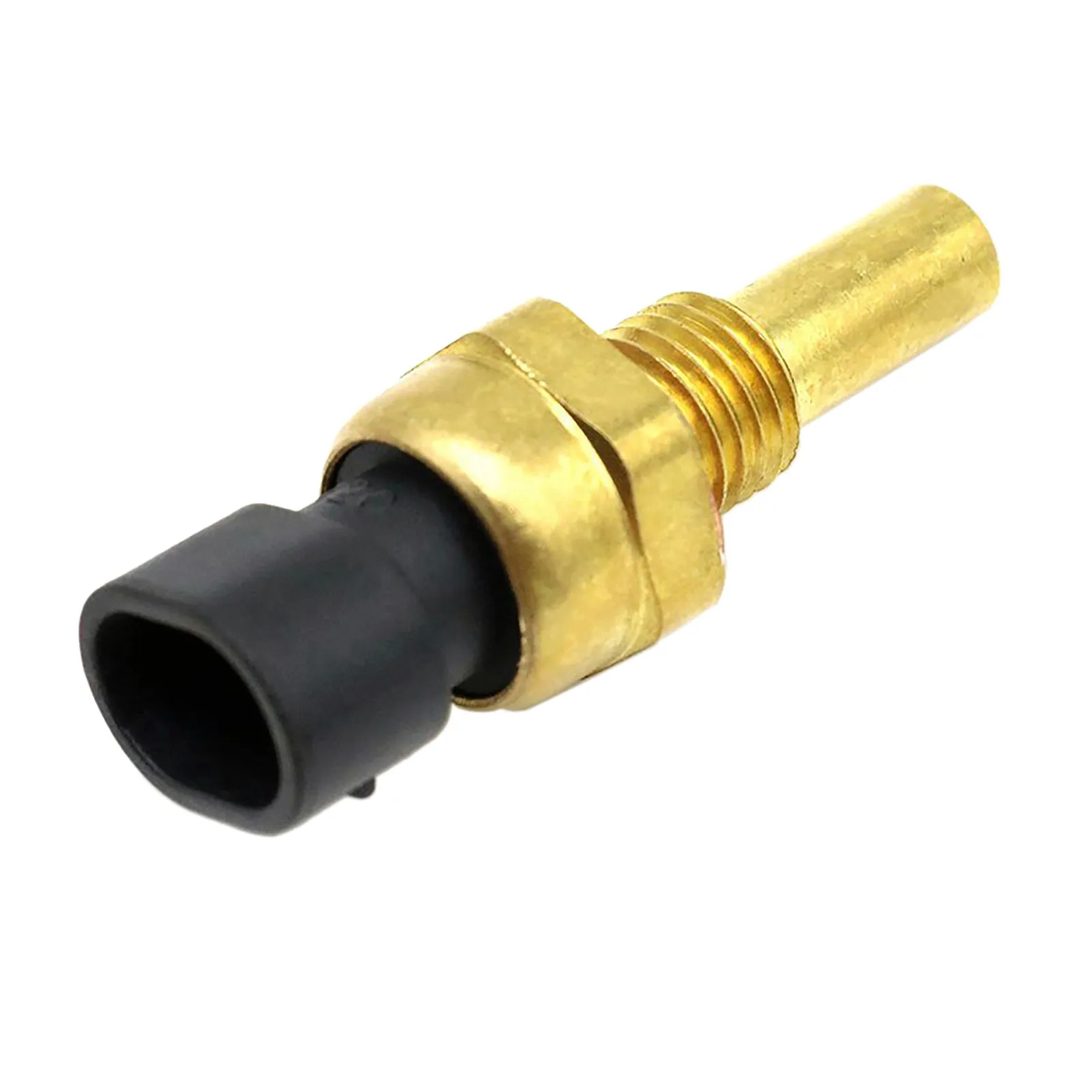

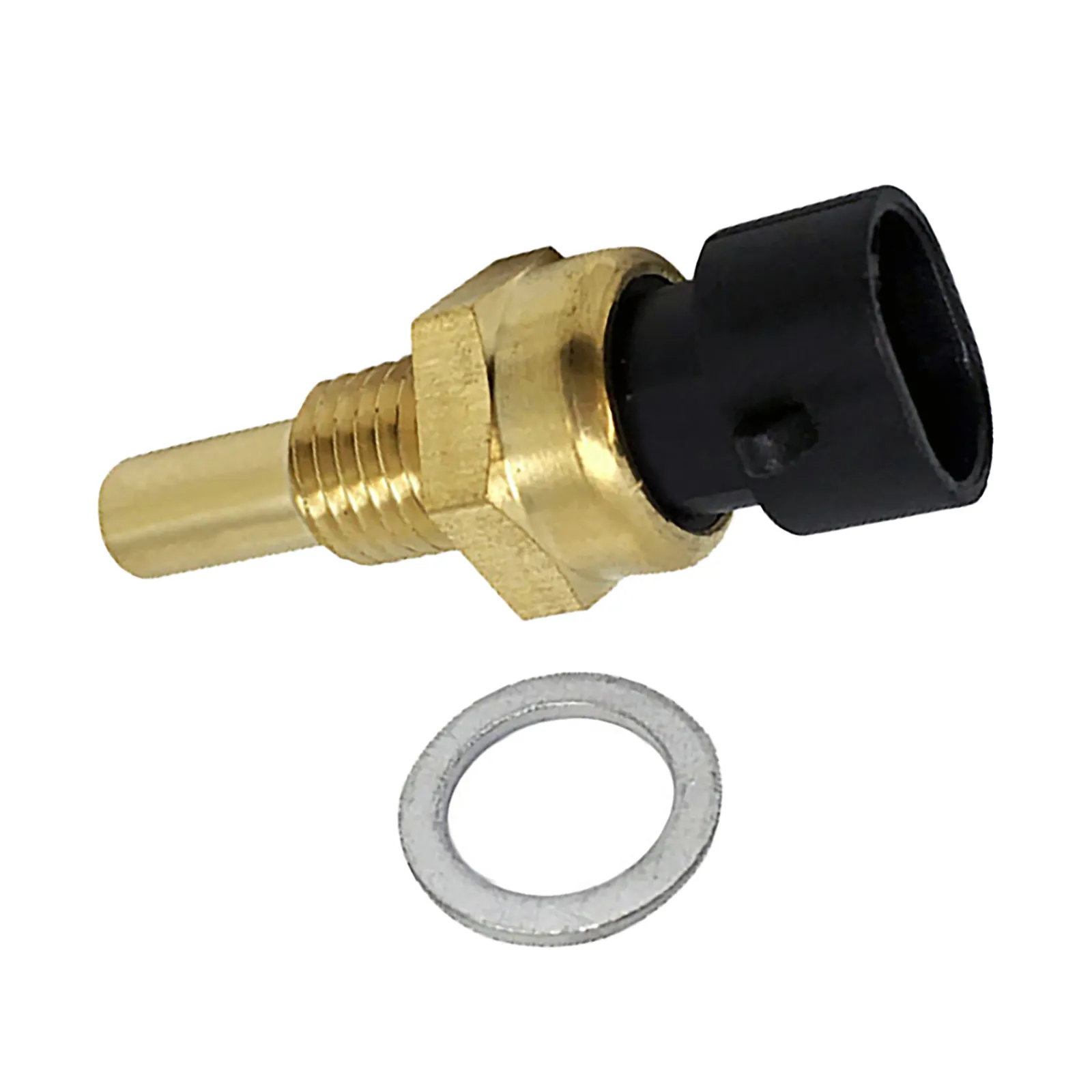

1 x Engine Coolant Temperature Sensor - 2-pin connector, M12x1.5 thread, 19mm spanner size.

ABOUT THIS SENSOR

The coolant temperature sensor reports engine coolant temperature to the ECU, which uses this data to adjust fuel injection and ignition timing for correct warm-up and running performance.

When the sensor fails or reads inaccurately, the ECU can run the engine too rich or too lean, causing poor performance, higher fuel use, and potential long-term engine wear.

COMMON SYMPTOMS OF FAILURE

Inaccurate temperature gauge reading
Check engine light on
Poor fuel economy
Rough idle or hard starting
Engine running too rich or too lean

[07/06 - 05/13] HDT COMMODORE VE VC Group 2 Retro (6.0L V8 L98(364CUV8) 270kW)
[07/06 - 05/13] HDT COMMODORE VE VC Group 3 Retro (6.0L V8 L98(364CUV8) 270kW)
[07/06 - 05/13] HDT COMMODORE VE VH Group 2 Retro (6.0L V8 L98(364CUV8) 270kW)
[07/06 - 05/13] HDT COMMODORE VE VH Group 3 Retro (6.0L V8 L98(364CUV8) 270kW)
[01/09 - 05/13] HOLDEN CALAIS VE i V8 (6.0L V8 L76,L77(364CUV8) 260kW)
[01/09 - 05/13] HOLDEN CALAIS VE i V8 (6.0L V8 L77(364CUV8),L76 260kW)
[08/06 - 05/13] HOLDEN CALAIS VE i V8 (6.0L V8 L98(364CUV8),L77(364CUV8) 270kW)
[06/08 - 05/13] HOLDEN CALAIS VE i V8 (6.0L V8 L98(364CUV8),L77(364CUV8) 270kW)
[06/13 - 09/15] HOLDEN CALAIS VF i V8 (6.0L V8 L77(364CUV8) 260kW)
[09/15 - 10/17] HOLDEN CALAIS VF i V8 (6.2L V8 LS3(376CUV8) 304kW)
[11/05 - 06/06] HOLDEN CALAIS VZ i V8 (6.0L V8 L76 260kW)
[02/06 - 07/06] HOLDEN CAPRICE WL i V8 (6.0L V8 L76 260kW)
[07/06 - 08/13] HOLDEN CAPRICE WM i V8 (6.0L V8 L76,L77(364CUV8) 260kW)
[08/06 - 08/13] HOLDEN CAPRICE WM i V8 (6.0L V8 L76,L98(364CUV8),L77(364CUV8) 270kW)
[05/13 - 08/15] HOLDEN CAPRICE WN i V8 (6.0L V8 L77(364CUV8) 260kW)
[09/15 - 10/17] HOLDEN CAPRICE WN i V8 (6.2L V8 LS3(376CUV8) 304kW)
[09/10 - 04/13] HOLDEN COMMODORE VE Flex (6.0L V8 L77(364CUV8) 260kW)
[09/07 - 09/10] HOLDEN COMMODORE VE i V8 SS, SS-V (6.0L V8 L76 260kW)
[07/06 - 05/13] HOLDEN COMMODORE VE i V8 SS, SS-V (6.0L V8 L76,L77(364CUV8) 260kW)
[07/06 - 05/13] HOLDEN COMMODORE VE i V8 SS, SS-V (6.0L V8 L98(364CUV8),L77(364CUV8) 270kW)
[09/07 - 10/13] HOLDEN COMMODORE VE i V8 SS, SS-V (6.0L V8 L98(364CUV8),L77(364CUV8) 270kW)
[04/08 - 05/13] HOLDEN COMMODORE VE i V8 SS, SS-V (6.0L V8 L98(364CUV8),L77(364CUV8) 270kW)
[05/13 - 09/15] HOLDEN COMMODORE VF i SS, SS-V (6.0L V8 L77(364CUV8) 260kW)
[05/13 - 09/15] HOLDEN COMMODORE VF i SS, SS-V (6.0L V8 L77(364CUV8) 270kW)
[09/15 - 10/17] HOLDEN COMMODORE VF i SS, SS-V (6.2L V8 LS3(376CUV8) 304kW)
[05/13 - 09/15] HOLDEN COMMODORE VF i V8 SS, SS-V (6.0L V8 L77(364CUV8) 260kW)
[11/05 - 08/07] HOLDEN COMMODORE VZ i V8 (6.0L V8 L76,LS2(364CUV8) 260kW)
[01/06 - 01/07] HOLDEN COMMODORE VZ i V8 (6.0L V8 L76,LS2(364CUV8) 260kW)
[08/06 - 08/07] HOLDEN COMMODORE VZ i V8 (6.0L V8 L98(364CUV8) 270kW)
[11/05 - 06/06] HOLDEN COMMODORE VZ i V8 SV8, SS (6.0L V8 L76,LS2(364CUV8) 260kW)
[11/05 - 07/06] HOLDEN CREWMAN VZ i V8 (6.0L V8 L76,LS2(364CUV8) 260kW)
[06/06 - 12/07] HOLDEN CREWMAN VZ i V8 (6.0L V8 L98(364CUV8) 270kW)
[11/05 - 07/06] HOLDEN CREWMAN VZ i V8 SS/SS Thunder (6.0L V8 L76,LS2(364CUV8) 260kW)
[02/06 - 07/06] HOLDEN STATESMAN WL i V8 (6.0L V8 L76 260kW)
[07/06 - 12/10] HOLDEN STATESMAN WM i V8 (6.0L V8 L76 260kW)
[08/06 - 06/08] HSV CLUBSPORT VE i V8 (6.0L V8 LS2(364CUV8) 307kW)
[04/08 - 05/13] HSV CLUBSPORT VE i V8 (6.2L V8 LS3(376CUV8) 317kW)
[02/12 - 05/13] HSV CLUBSPORT VE R8 (6.2L V8 LS3(376CUV8) 325kW)
[08/12 - 05/13] HSV CLUBSPORT VE R8 LPG (6.2L V8 LS3(376CUV8) 325kW)
[05/13 - 08/15] HSV CLUBSPORT VF i V8 (6.2L V8 LS3 340kW)
[05/13 - 10/14] HSV CLUBSPORT VF i V8 (6.2L V8 LS3(376CUV8) 317kW)
[06/13 - 08/15] HSV CLUBSPORT VF i V8 (6.2L V8 LS3(376CUV8) 325kW)
[05/13 - 10/14] HSV CLUBSPORT VF i V8 (6.2L V8 LS3(376CUV8) 325kW)
[10/04 - 12/06] HSV CLUBSPORT VZ i V8 (6.0L V8 LS2(364CUV8),L76 297kW)
[06/13 - 12/16] HSV GRANGE VF i V8 (6.2L V8 LS3 340kW)

How do I test a coolant temperature sensor?

The most common test is to measure the sensor resistance with a multimeter at a known coolant temperature and compare against the manufacturer resistance curve. A cold engine (20 degrees C) typically reads 2,000 to 3,000 ohms and drops to around 200 to 300 ohms at operating temperature (90 degrees C). An OBD2 scanner showing a fixed temperature reading that does not change as the engine warms up is also a strong indicator of sensor failure.

Can a faulty coolant temperature sensor cause my engine to overheat?

Indirectly yes. If the sensor reports a lower temperature than actual, the ECU may not activate the cooling fan at the correct time, allowing the engine to overheat. It can also suppress the dashboard warning light, meaning you may not be alerted until the engine is already at a dangerously high temperature. Replace a suspected faulty sensor promptly.

Do I need to drain the coolant to replace the sensor?

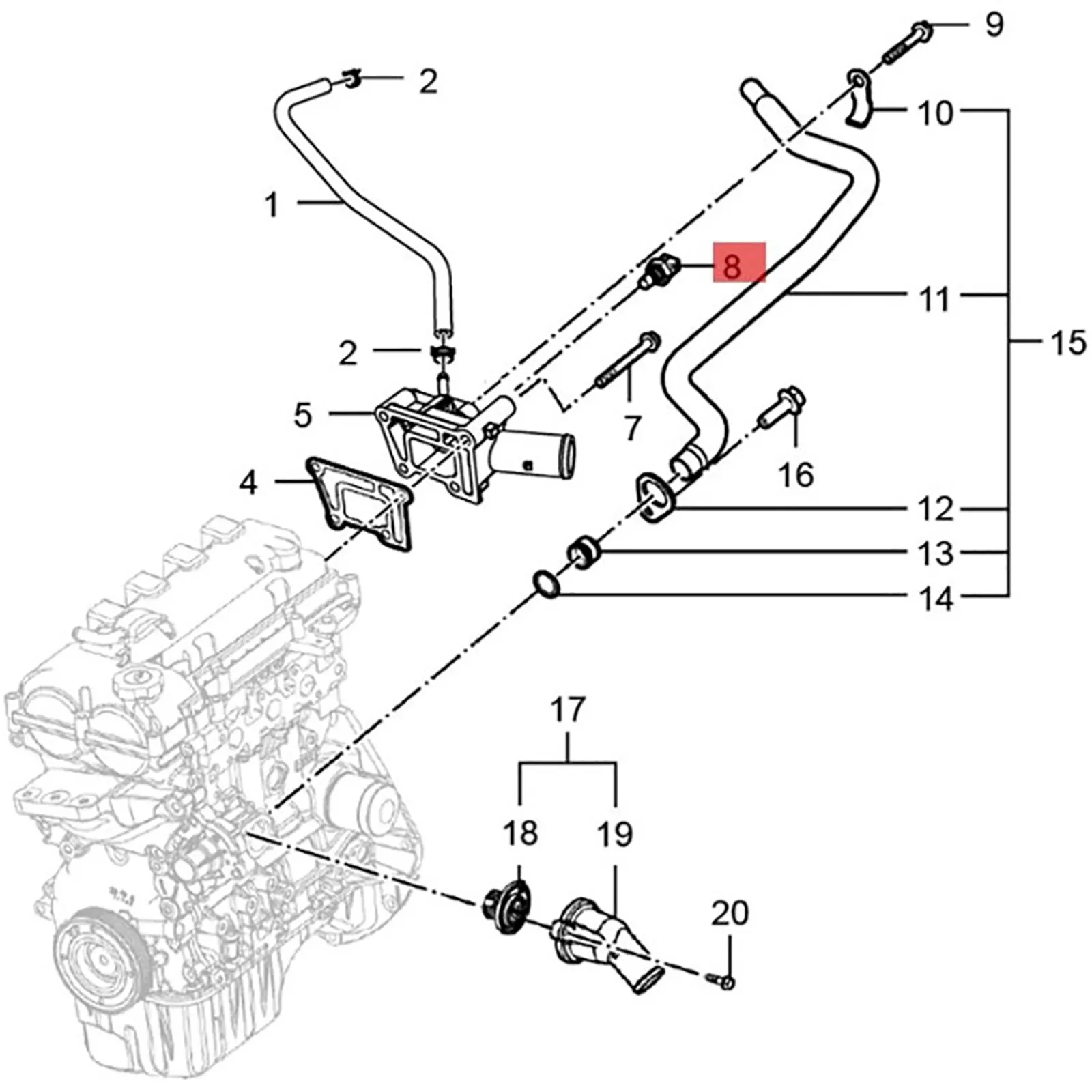

Not always - many coolant temperature sensors can be replaced quickly with minimal coolant loss if you work fast and have a replacement ready to thread in immediately. However on some vehicles the sensor location requires partial coolant drainage. Check the sensor position on your specific engine before starting. Always use fresh coolant when topping up after replacement.

What are the symptoms of a faulty coolant temperature sensor?

Symptoms include poor fuel economy, black smoke, engine overheating warning, incorrect temperature gauge reading, hard starting when cold, and rough idle. Fault codes P0115 to P0119 are commonly associated with coolant temperature sensor faults.

Is it safe to drive with a bad coolant temperature sensor?

A faulty coolant temperature sensor can cause the ECU to run rich fuel mixtures and prevent the cooling fan from operating correctly, risking engine overheating. Replace it promptly - it is a low-cost part that can prevent expensive engine damage.

How do I know if my coolant temperature sensor or my thermostat is faulty?

A faulty thermostat typically causes the engine to overheat or never reach operating temperature. A faulty coolant temp sensor causes incorrect gauge readings and running issues but the coolant itself may be at the correct temperature. An OBD2 scanner showing live coolant temp data helps distinguish between the two.

Are there two coolant temperature sensors on my vehicle?

Many vehicles have two sensors - one for the ECU (engine management) and one for the dashboard temperature gauge. They look similar but are not interchangeable. Check your vehicle's service manual or contact us with your vehicle details to confirm which sensor you need.

Identification
SKU	CCS31-1
Barcode #	9314258071905
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	CCS31-1
Reference OEM Number	96182634
Other OEM Numbers	96182634, 12611420, 15326388, 15404280, 96181508
Related Part Numbers	CCS31, CS843, TCS090, TS10076, 0280130014
Trade Part Numbers	VEMO: V40-72-0322, WALKER: 211-2087
Product Specifics
Sensor Type	ENGINE COOLANT TEMPERATURE SENSOR
Type	Sensor
Features	Direct Fit
Manufacturer Warranty	1 Year
Ean	9314258071905

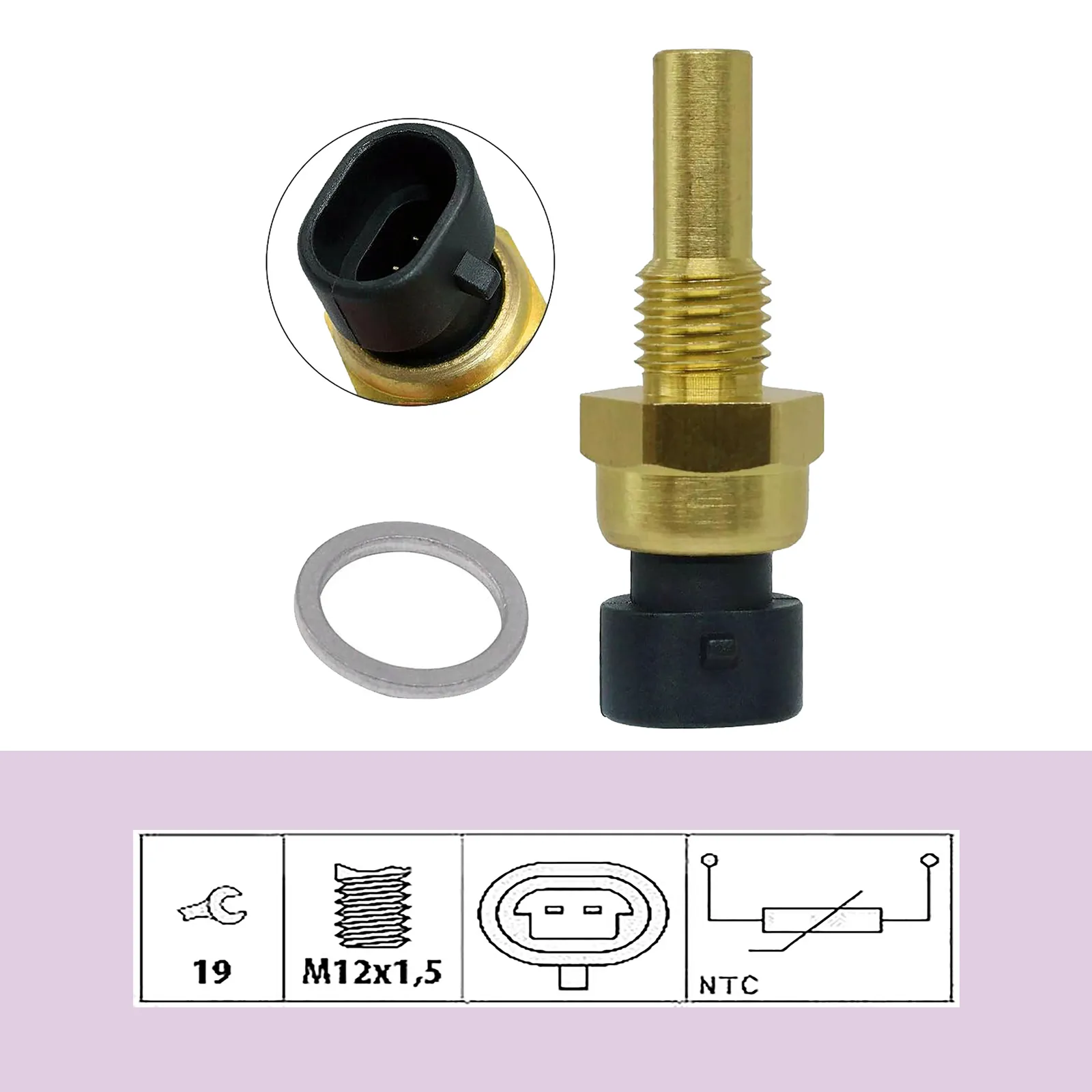

Thread Size	M12x1.5 mm
Spanner Size	19 mm

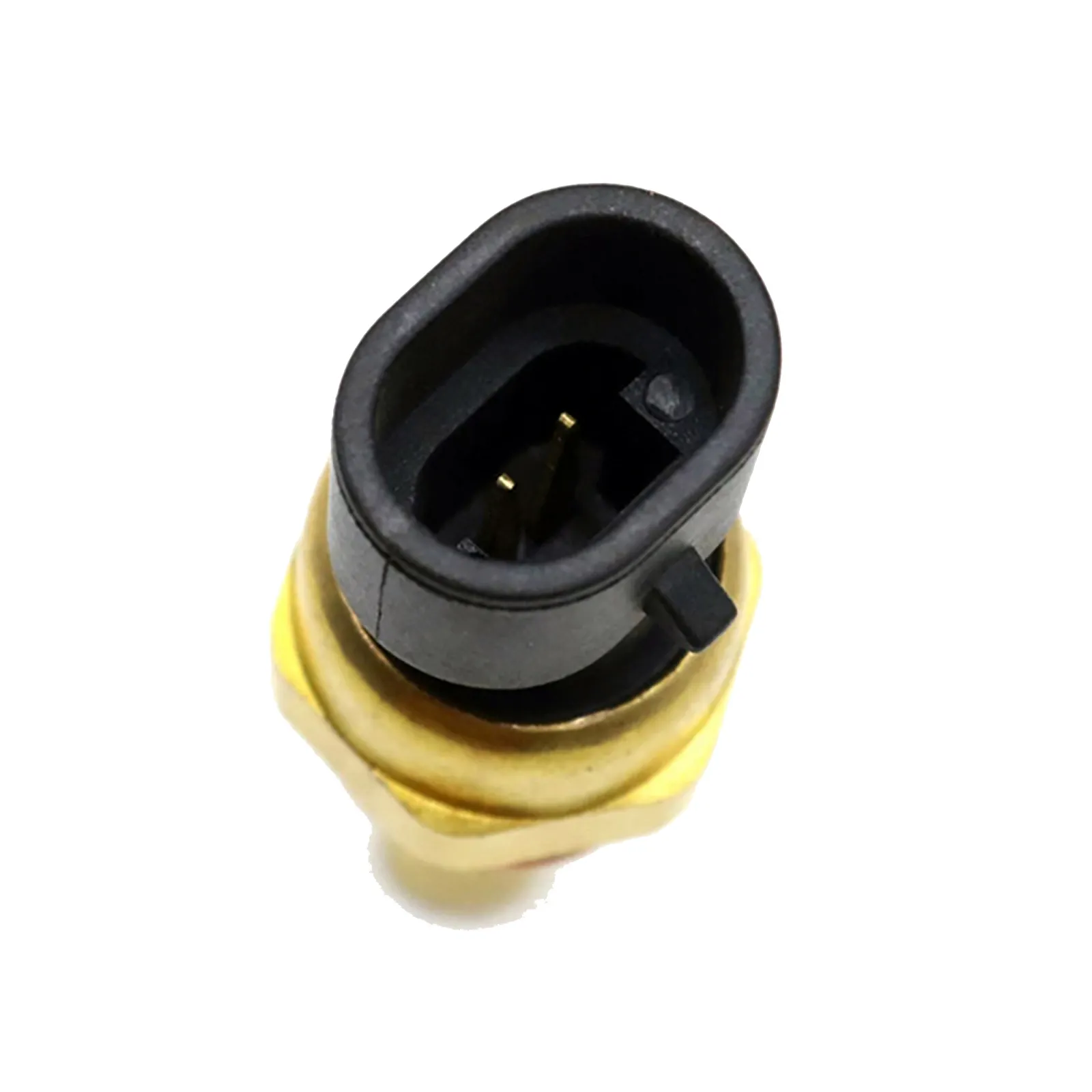

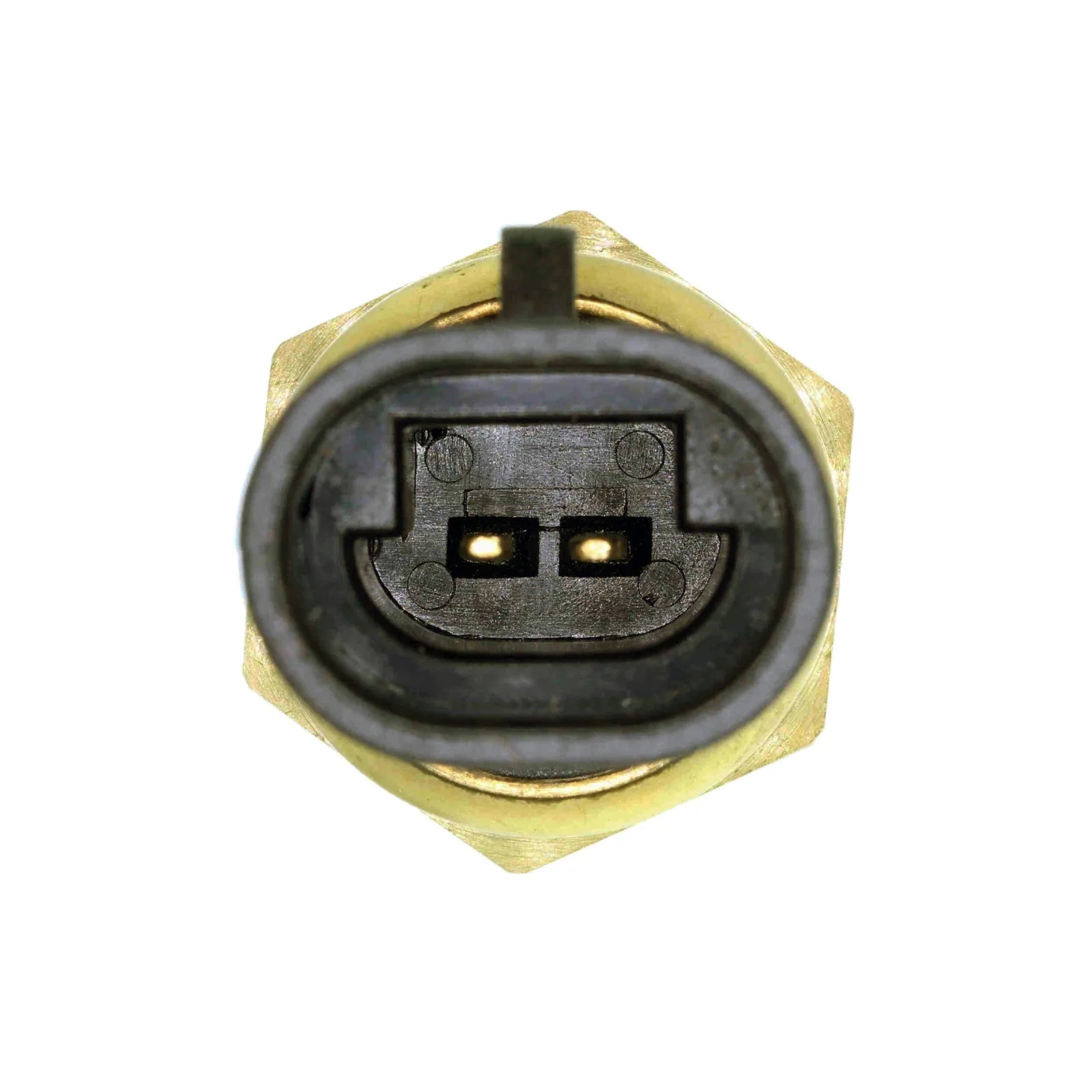

Number of pins	2 -pin connector
Connector Shape	oval
Supplementary Article Info	without cable
Housing Colour	Black
Other Details
Note	Always verify fitment using your vehicle's OEM part number.
Unit Of Measure	ea
