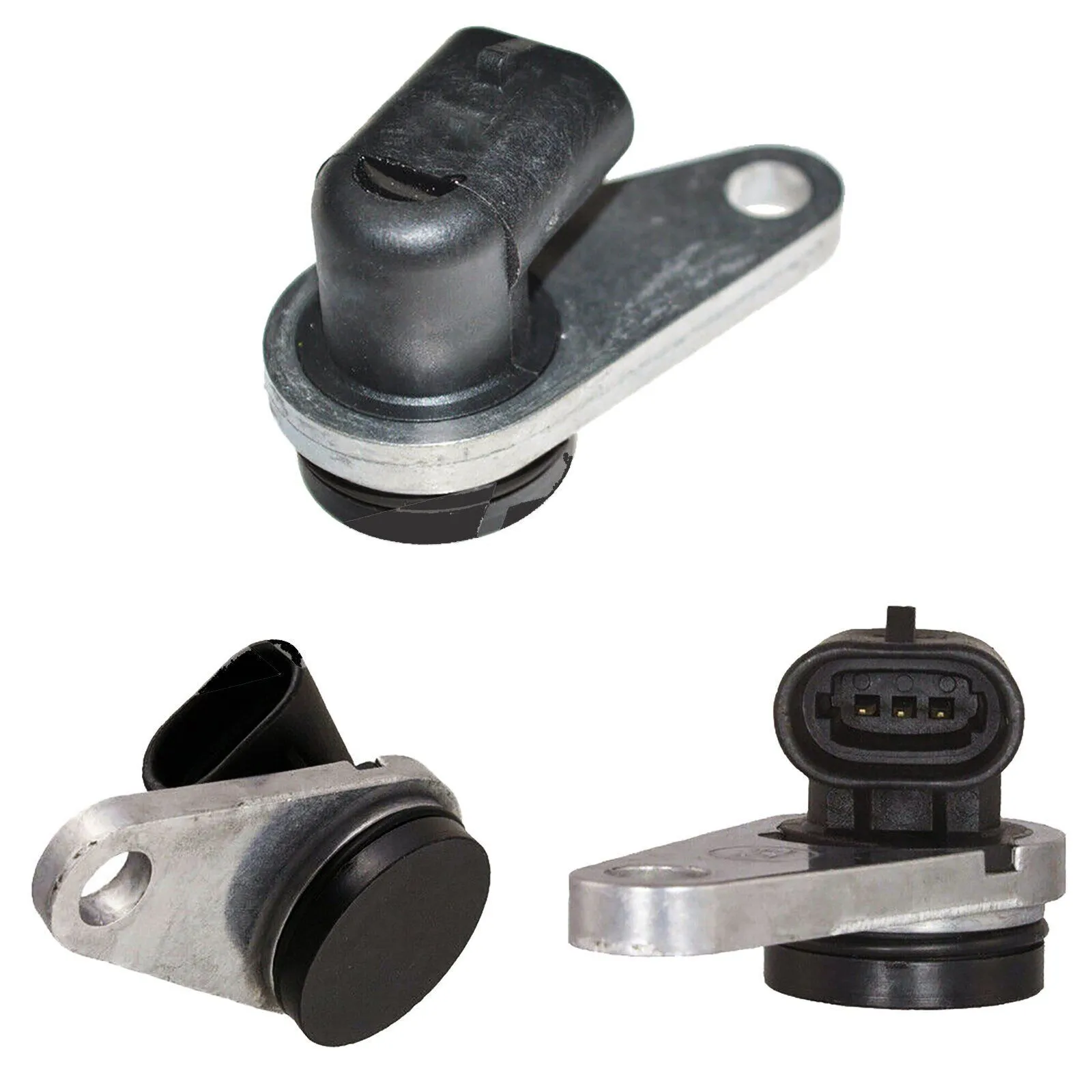

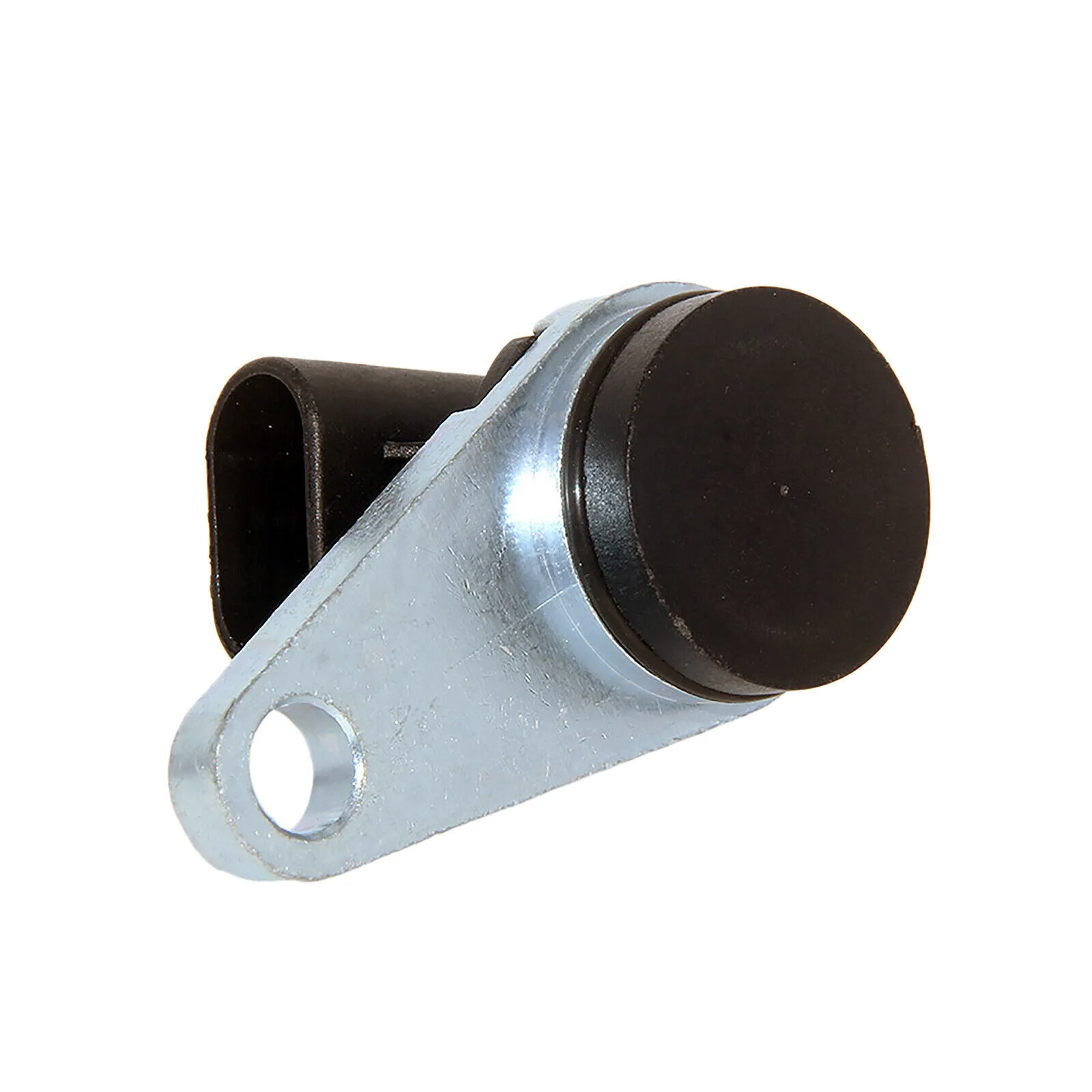

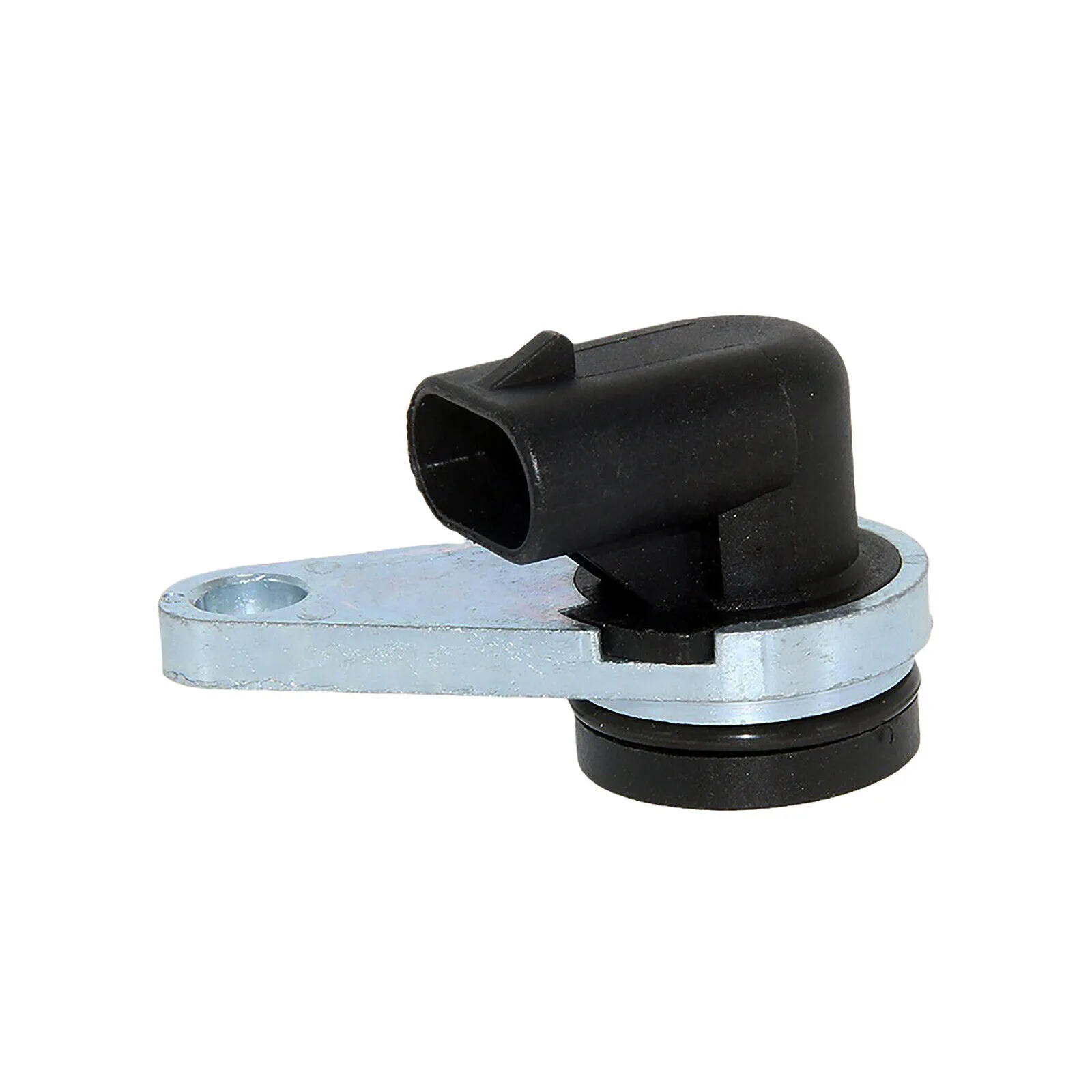

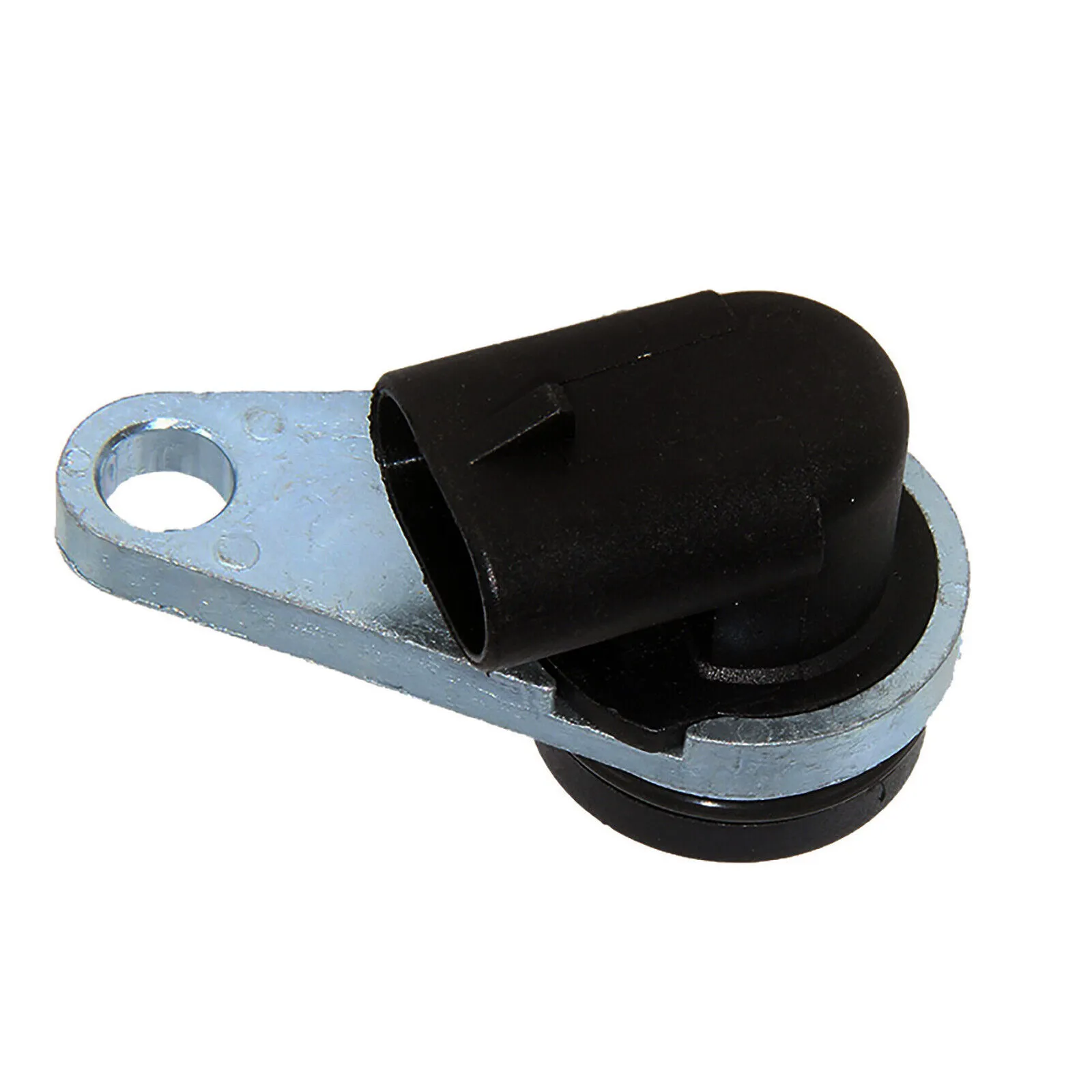

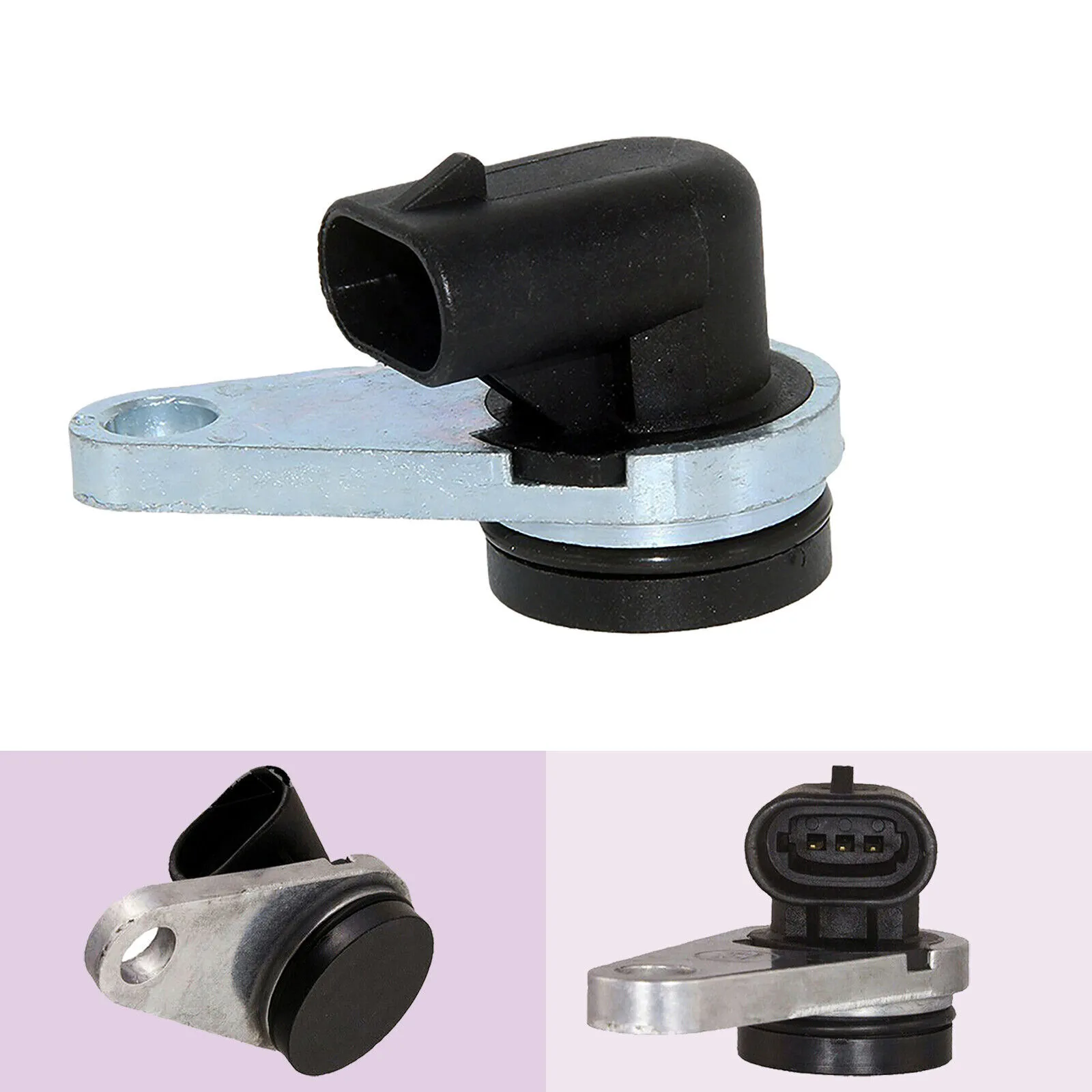

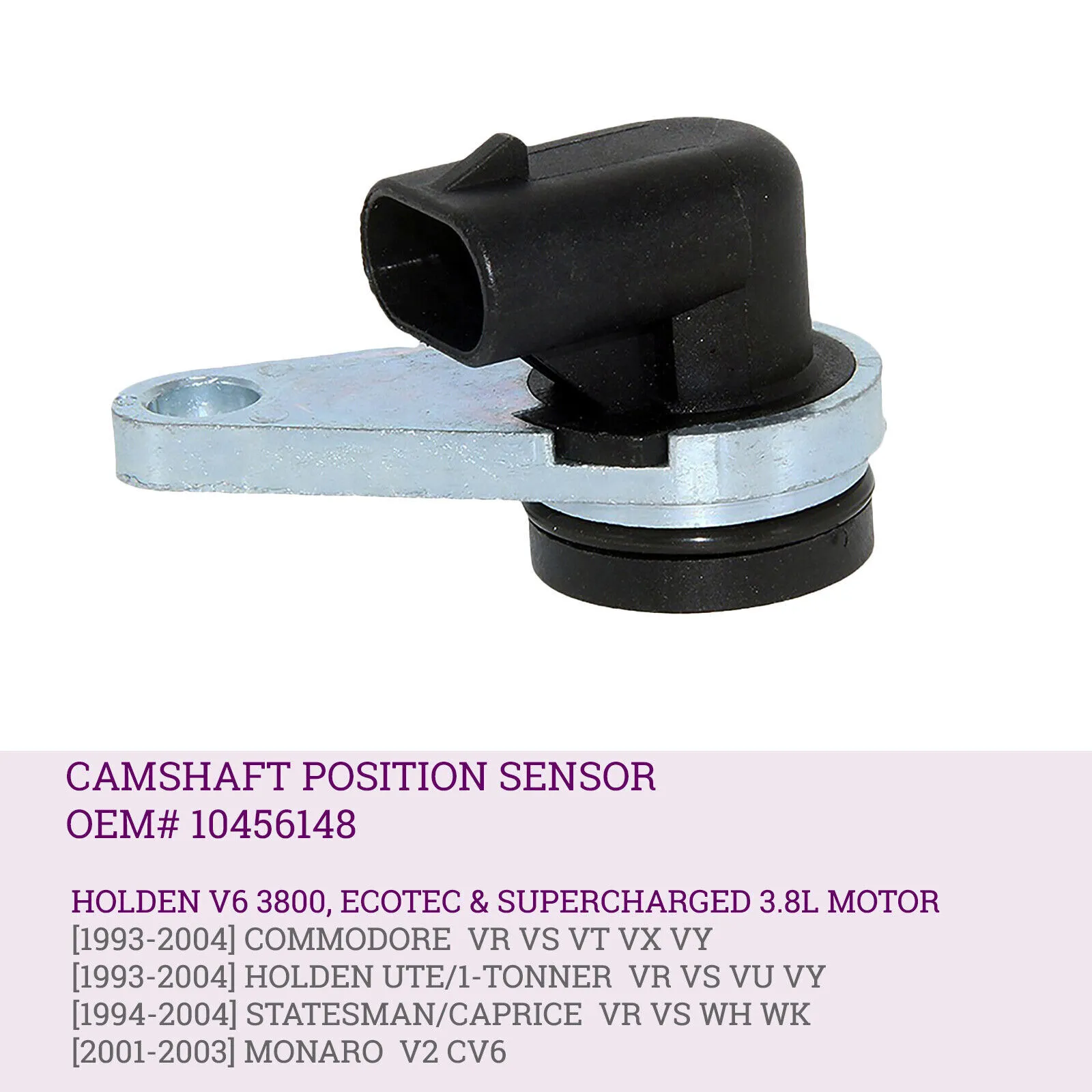

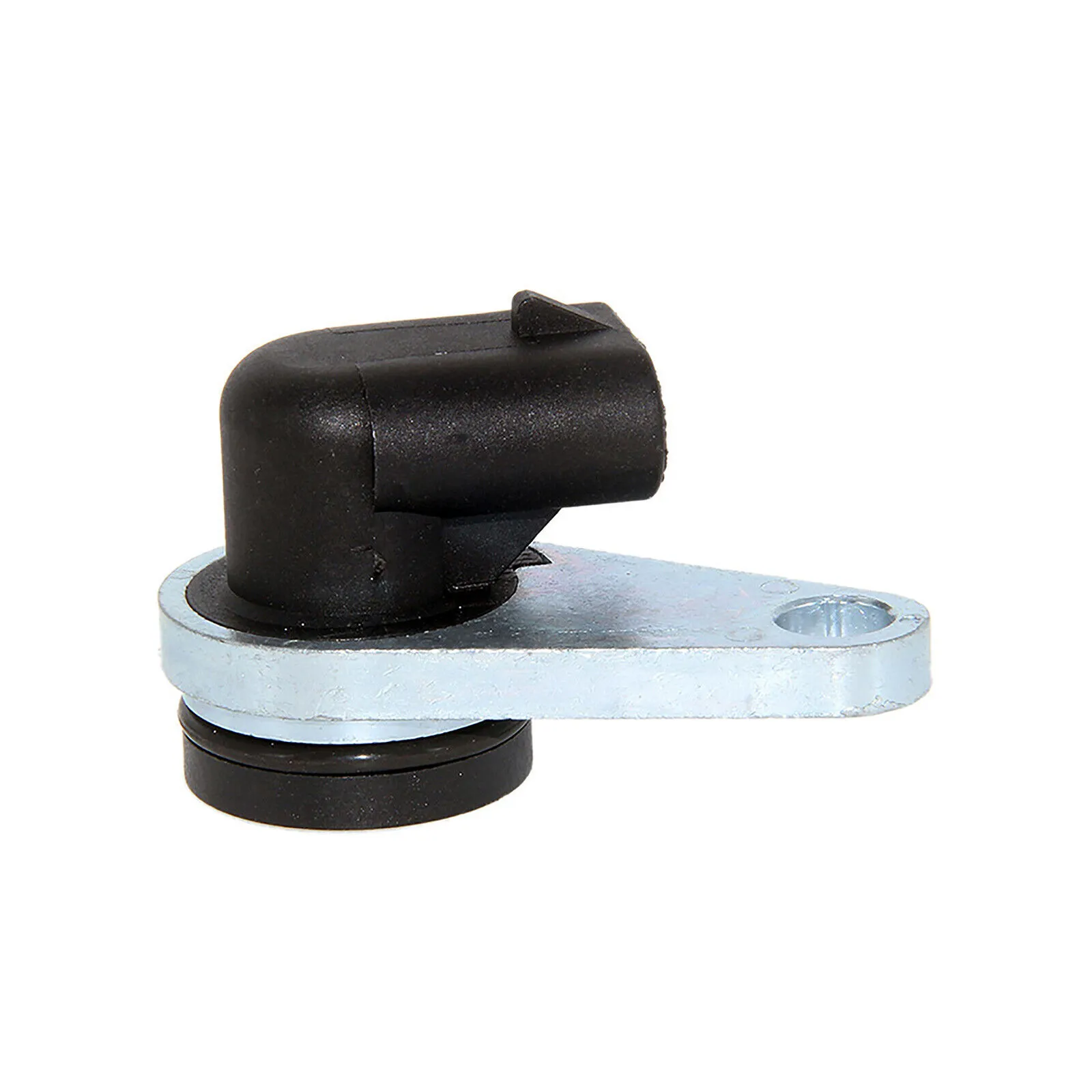

BRAND NEW *OEM QUALITY* CAMSHAFT POSITION SENSOR TO SUIT HOLDEN / GM 3.8L V6 3800, ECOTEC & SUPERCHARGED ENGINES

PLEASE COMPARE YOUR ORIGINAL SENSOR WITH THE IMAGES WE PROVIDED IN THE LISTING AND CHECK THE DETAILED VEHICLE LIST IN THE SUITABILITY SECTION.

TO SUIT:

L27 HOLDEN V6 3800 3.8L MOTOR
L36 HOLDEN V6 ECOTEC 3.8L MOTOR
L67 HOLDEN V6 SUPERCHARGED 3.8L MOTOR

HOLDEN V6 3800, ECOTEC & SUPERCHARGED 3.8L MOTOR

[1993-2004] COMMODORE VR VS VT VX VY
[1993-2004] HOLDEN UTE/1-TONNER VR VS VU VY
[1994-2004] STATESMAN/CAPRICE VR VS WH WK
[2001-2003] MONARO V2 CV6

OEM# 10456148

• for OE No: 10456148

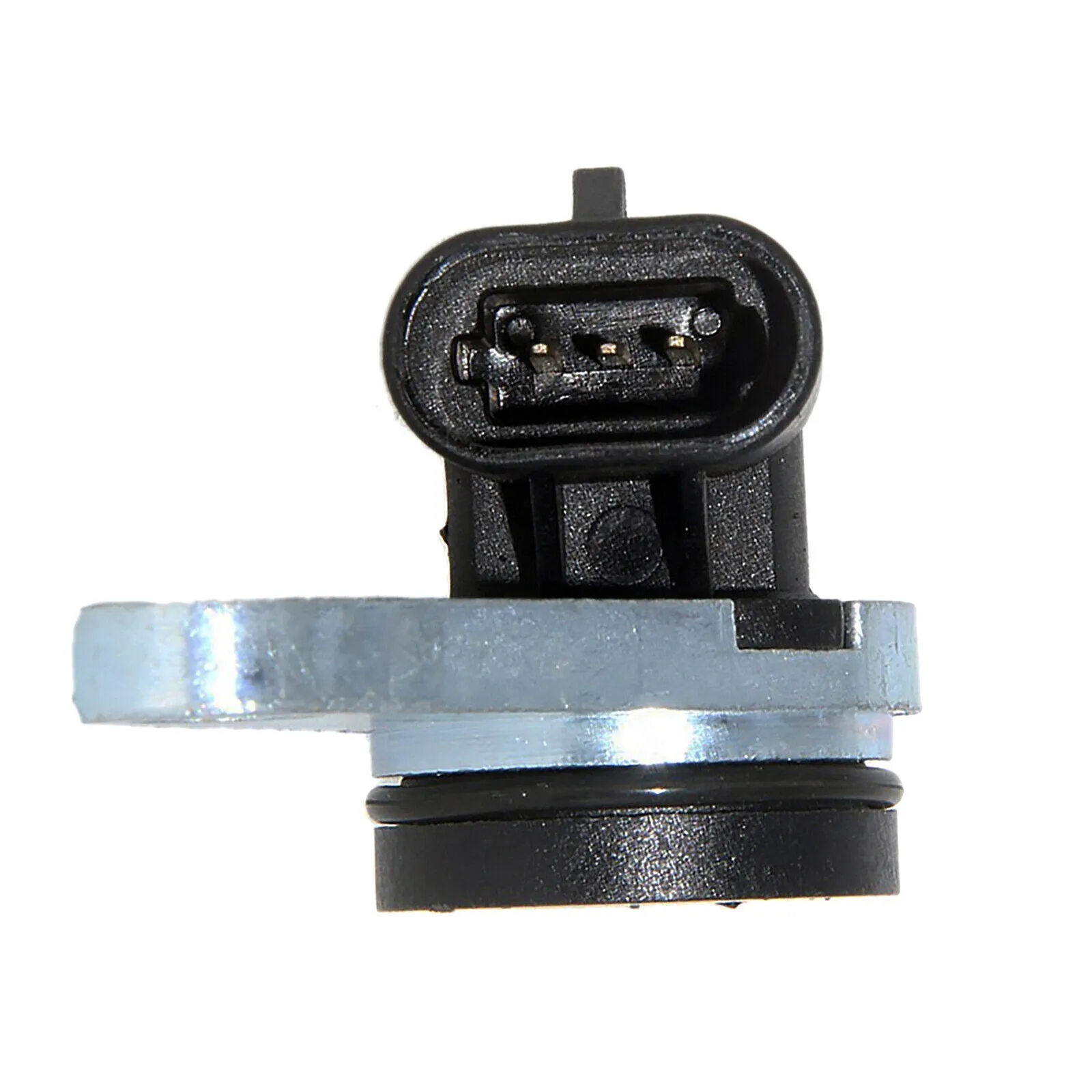

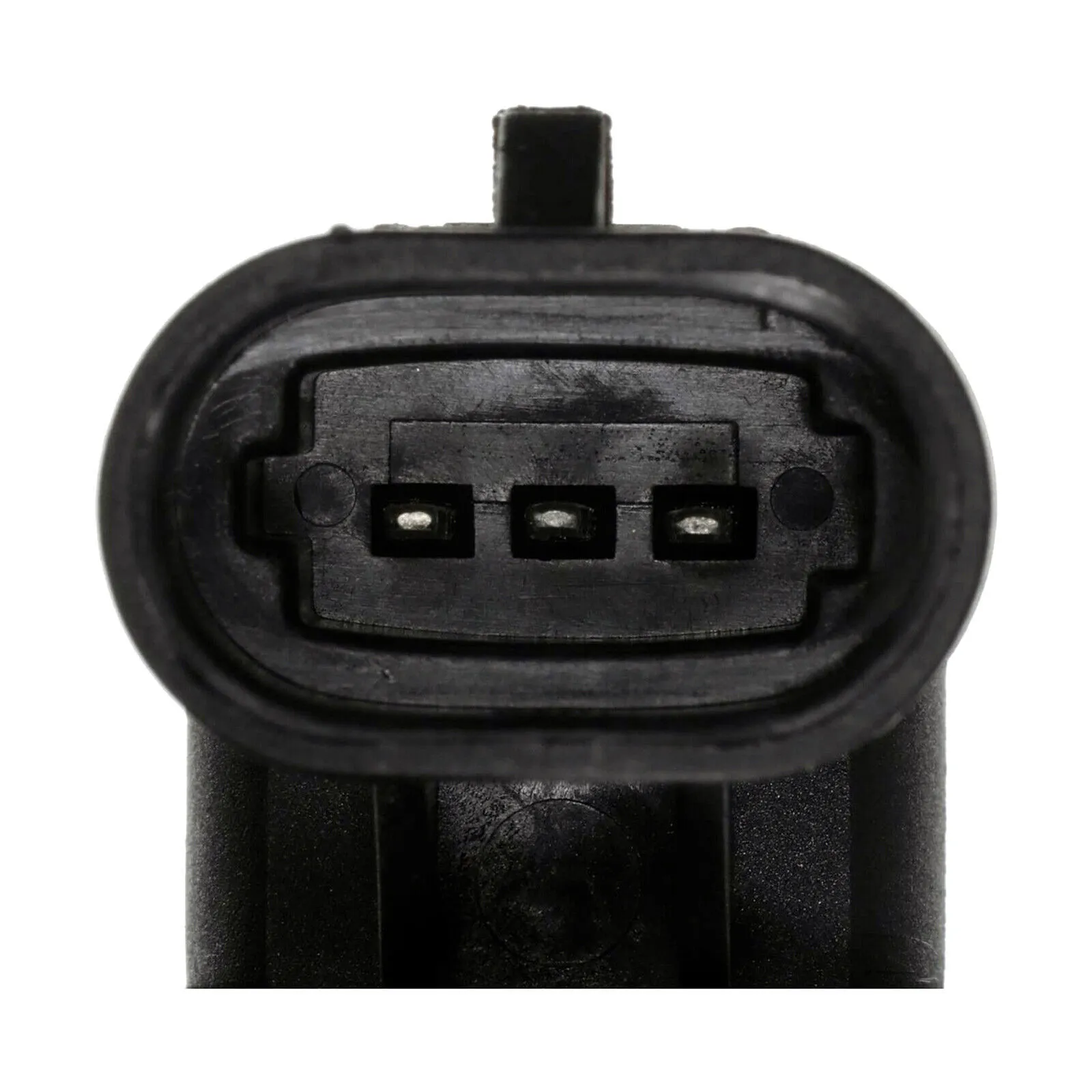

• Number of pins: 3 -pin connector
• Connector Shape: oval
• Supplementary Article Info: without cable

Package Includes:

1* CAMSHAFT POSITION SENSOR (3-PIN PLUG). COMPARE WITH YOUR ORIGINAL SENSOR.

ABOUT YOUR VEHICLE’S CAMSHAFT / CRANKSHAFT POSITION SENSOR

What does a Camshaft/Crankshaft Position Sensor do?
The Camshaft sensor determines which cylinder is firing to establish injector synchronization and coil firing sequence in DIS systems. Crankshaft sensors set ignition timing, supply the RPM signal, and determine engine speed.

Where are these sensors located?
The Camshaft Position sensor is typically located in the cylinder head of the engine and has a cylindrical portion that inserts into the head. The Crankshaft Position sensor is normally located in the timing cover or on the side of the block with a cylindrical portion that inserts into the block.

Will a malfunctioning Cam or Crank Sensor illuminate the check engine light or affect vehicle operation?
Yes, a failing sensor can illuminate the MIL and may cause vehicle stalling or a no-start condition.

What are the common causes of failure?
Typically these sensors fail due to exposure to high heat.

How to determine if these sensors are malfunctioning?
Look for RPM on a scan tool while cranking the engine. If the engine runs, a scope is the best diagnostic tool. Typical trouble codes: Crankshaft P0335; Camshaft P0340.

What makes Our Standard Camshaft and Crankshaft Position Sensors the best?
Integrated A/D converter and digital signal processing with a dynamically adaptive switch point improves accuracy and operation
Advanced circuitry protects the system from stray electro-magnetic fields and power spikes
Custom magnetic circuit programming calibrates the sensor while performance testing for improved timing accuracy between the target wheel and sensor output
100% environmental, endurance, and end-of-line testing for Timing, Pulse Width, and Signal Amplitude ensures consistent product reliability
