Boost Pressure Sensor for Subaru Impreza Forester Liberty Engine Code EJ255
Direct Fit Replaces 22012AA160
BRAND NEW *OEM Quality* boost pressure MAP sensor to suit the Subaru Impreza, Forester and Liberty with the EJ255 turbo engine.
Boost that comes and goes or a check engine light on a turbo Subaru is frustrating, and this sensor is an easy part to rule out. This direct fit replacement is dispatched same day from Cranbourne VIC.
TO SUIT
Subaru Impreza, Forester and Liberty turbo models with the EJ255 engine. The full model and year list is in the compatibility table on this listing. Please match the number on your existing sensor to the OEM part numbers below before ordering.
FITMENT CHECK
This is the sensor only, without a fastening clamp and without a built-in air temperature sensor.
OEM PART NUMBERS
- 22012AA160
- 22012AA210
- 22012AA220
OTHER PART NUMBERS
- V70-72-0141
- EPBMBN3-V004Z
- ECM-TY-004
- DAP-0112
PACKAGE INCLUDES

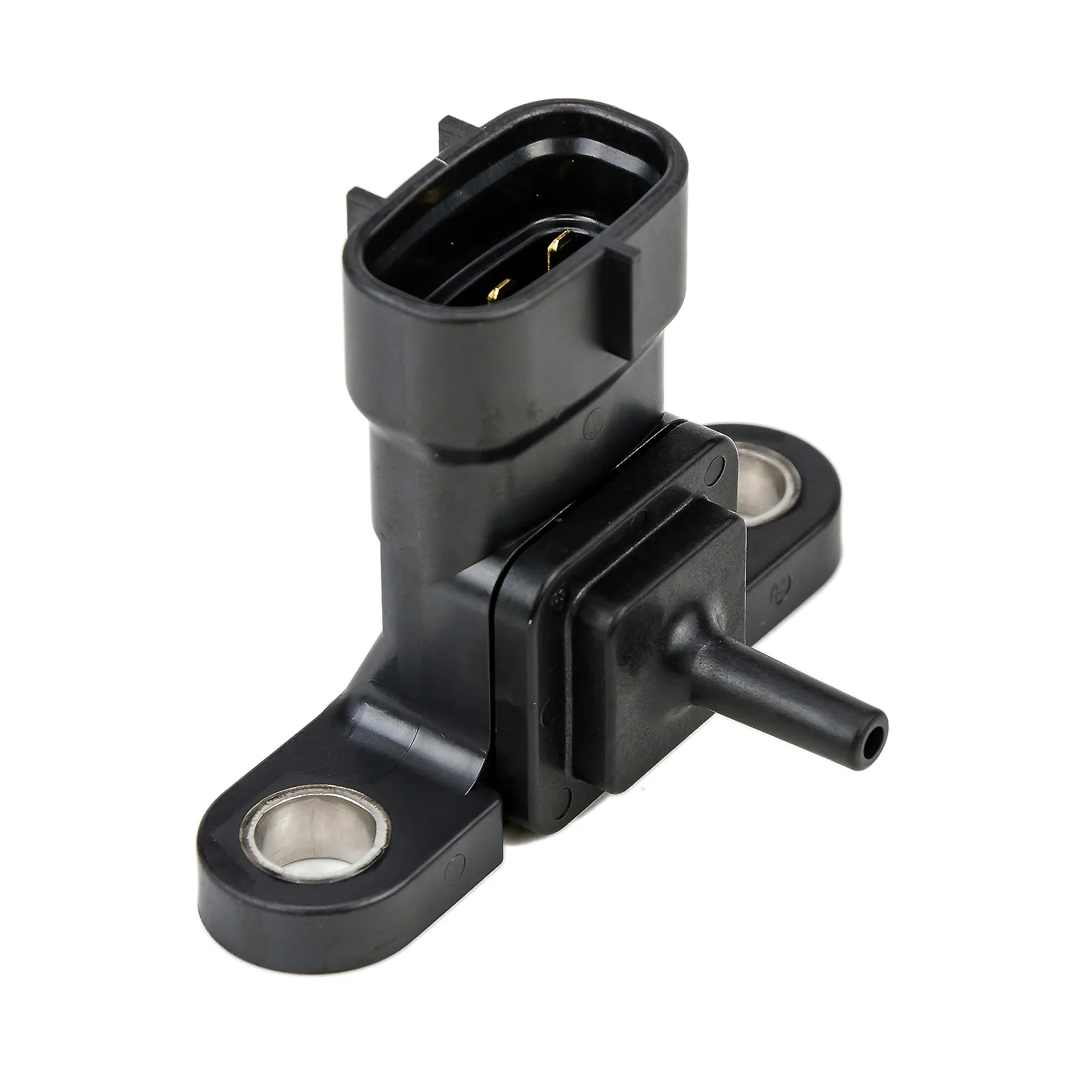

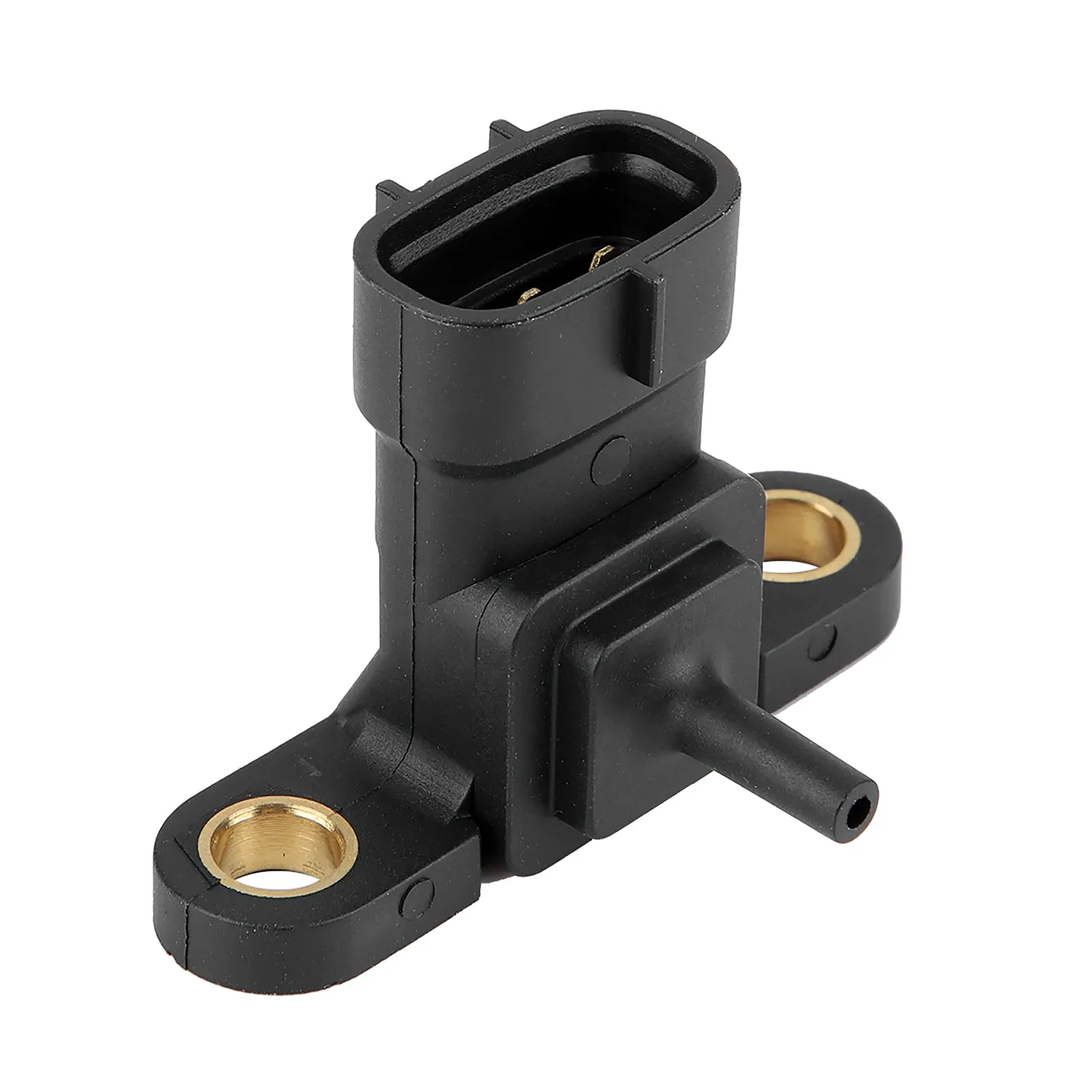

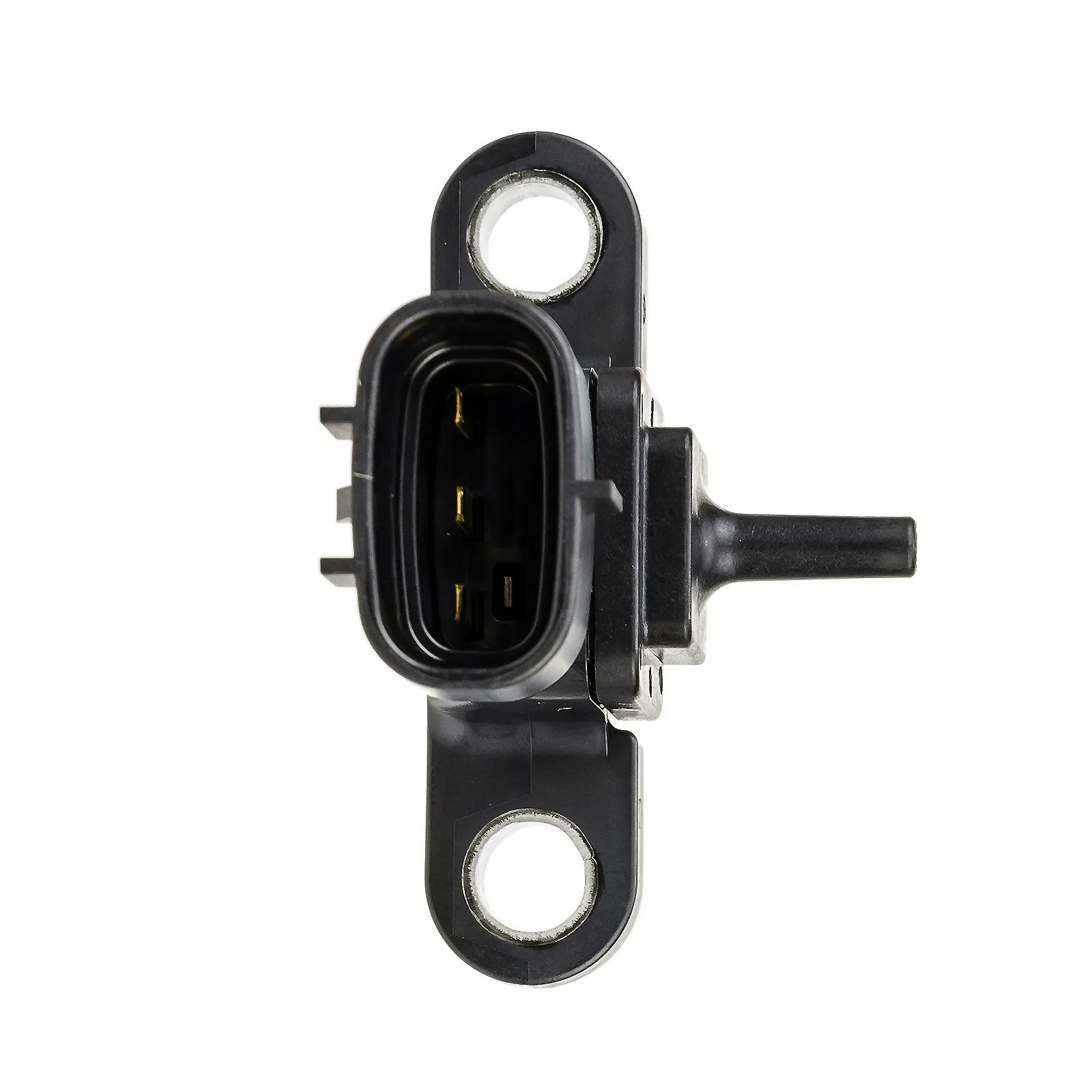

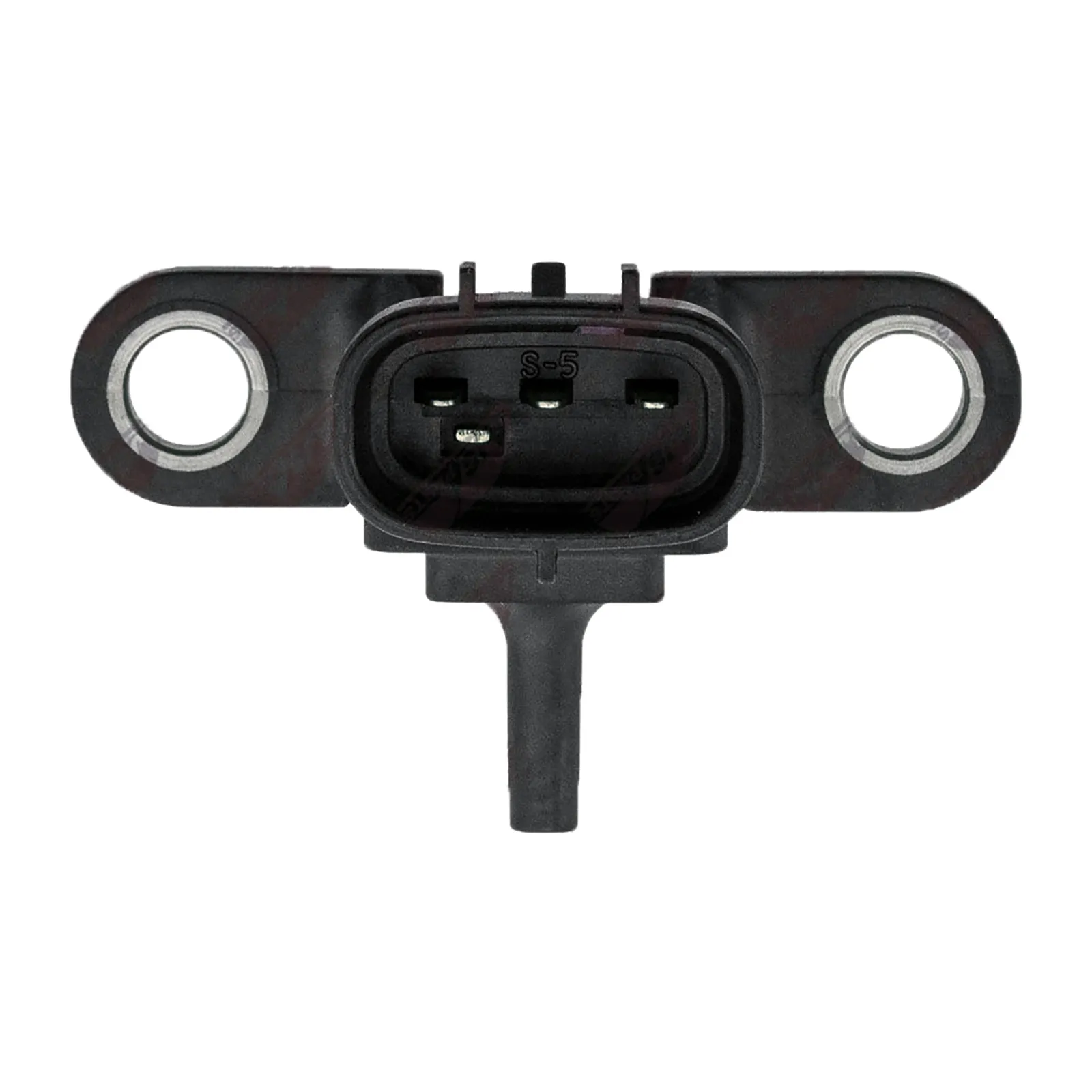

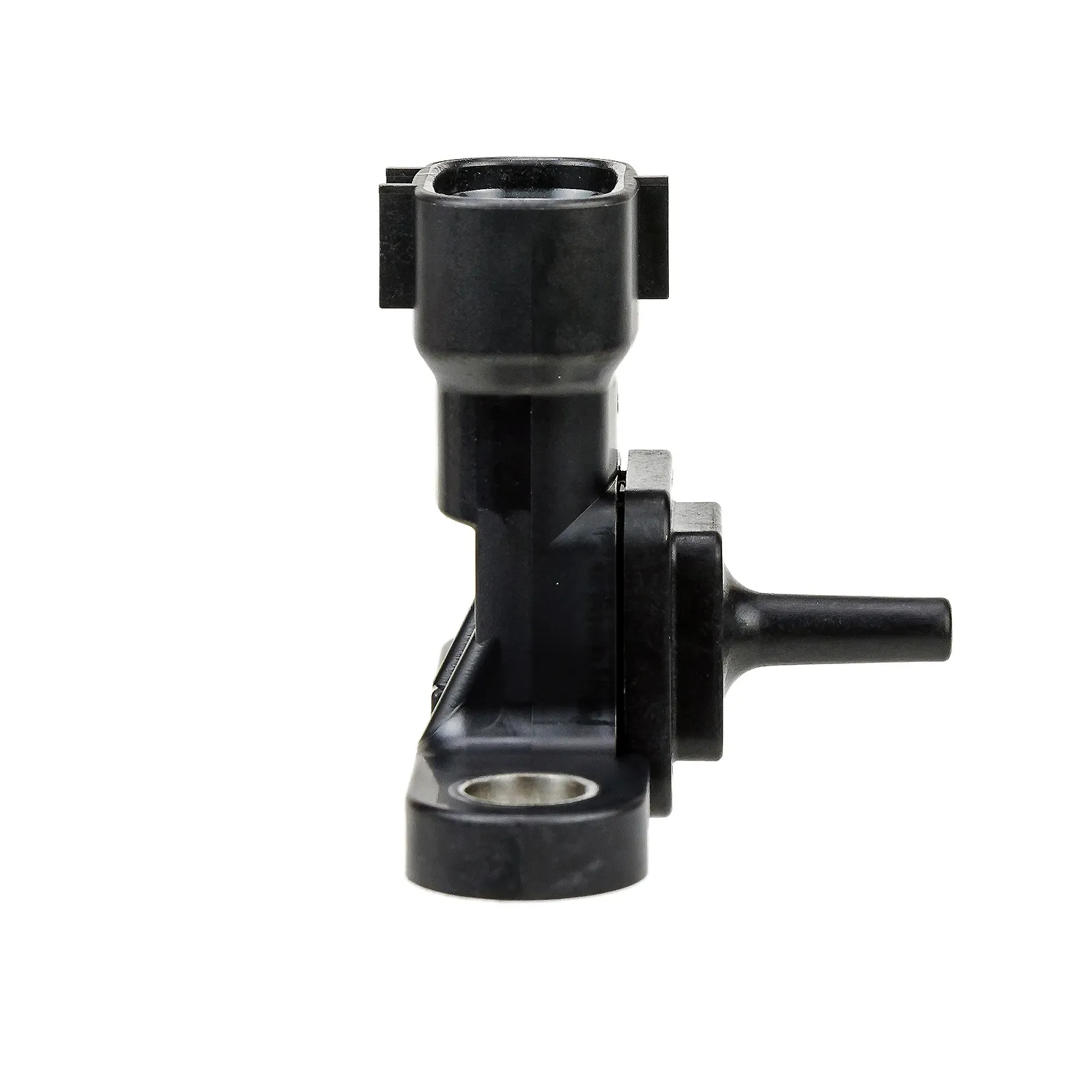

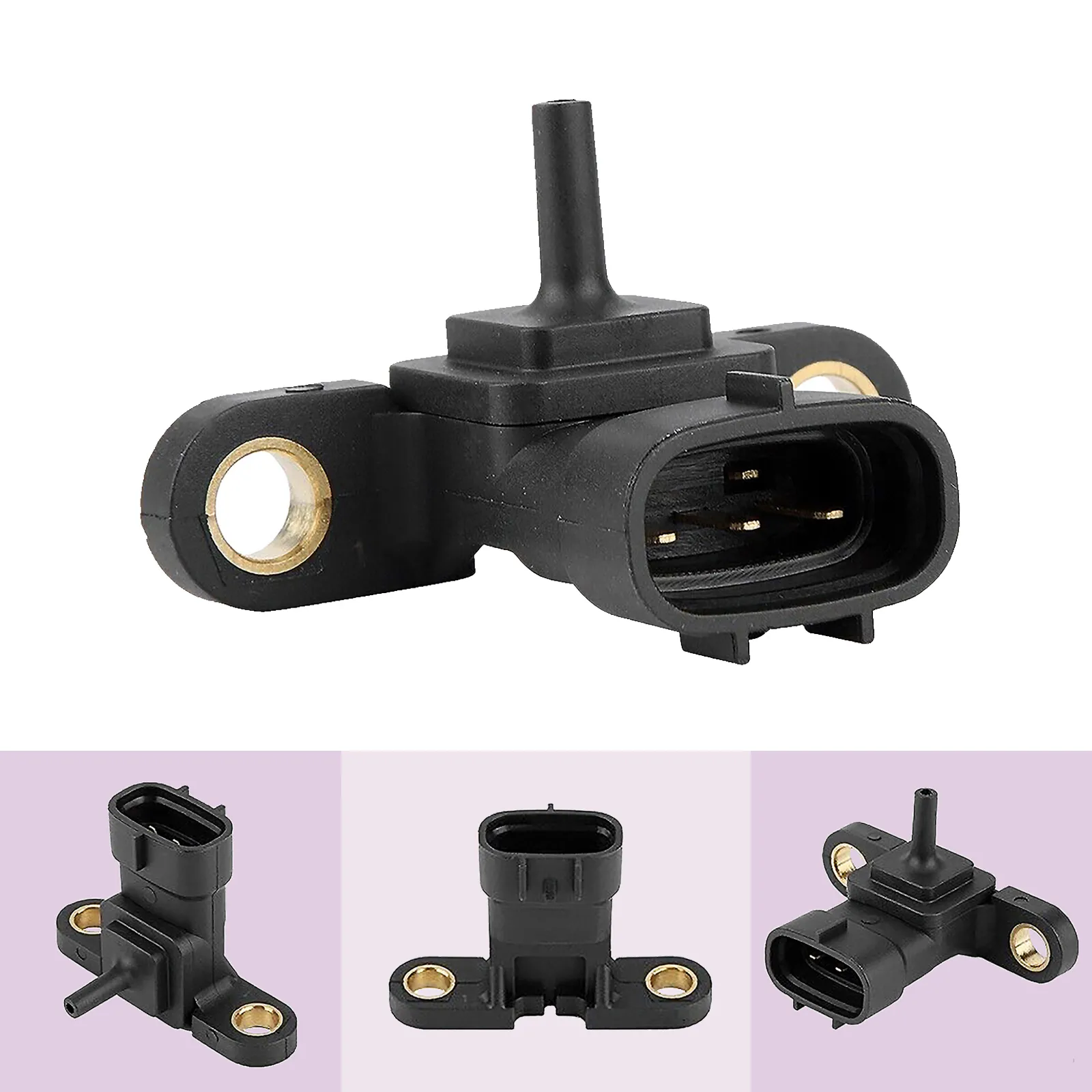

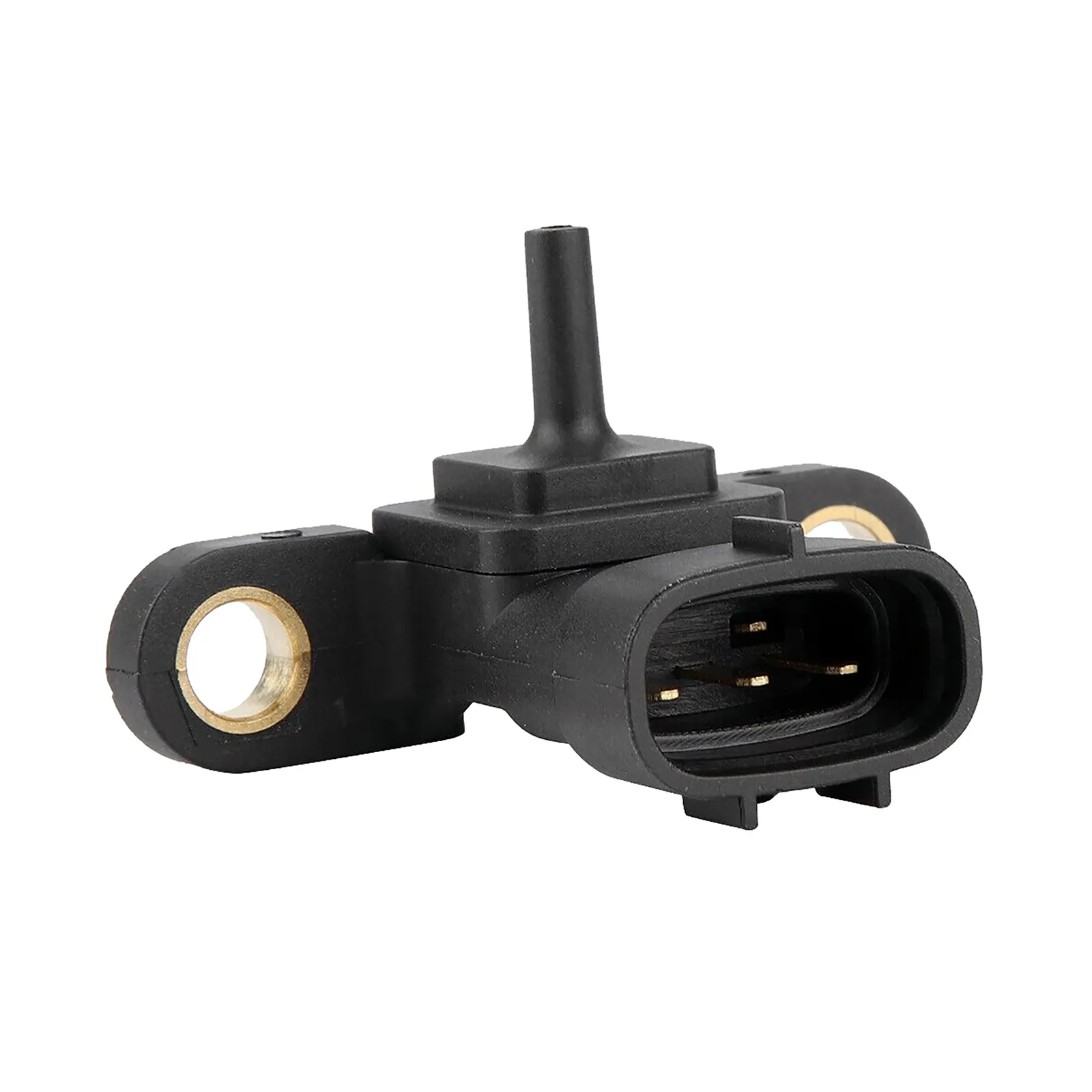

1 x boost pressure MAP sensor with 3-pin oval connector.
ABOUT THIS SENSOR
On the turbocharged EJ255 flat four this sensor measures intake and boost pressure and sends it to the engine computer. That reading helps the computer control fuel and boost correctly.
A weak sensor can cause poor boost, rough running and stored fault codes. Replacing it is a quick plug-in job.
COMMON SYMPTOMS OF FAILURE
- Check engine light
- Poor or inconsistent boost
- Rough idle
- Hesitation under load
- Higher fuel consumption
What fault codes does a faulty MAP sensor trigger?
A faulty MAP sensor typically triggers codes P0105 to P0109. P0105 indicates a circuit malfunction, P0106 indicates the signal is out of range, P0107 and P0108 indicate the signal is too low or too high respectively, and P0109 indicates an intermittent circuit fault. These codes combined with symptoms such as poor idle and black smoke are strong indicators of MAP sensor failure.
How do I test a MAP sensor?
With an OBD2 scanner in live data mode, the MAP sensor should read close to atmospheric pressure (around 101 kPa) with the engine off, and drop to 30 to 50 kPa at idle with the engine running due to manifold vacuum. Under wide open throttle the reading should rise back toward atmospheric. A sensor that reads flat or does not respond to throttle changes has failed. You can also test supply voltage and signal output with a multimeter.
Can I drive with a faulty MAP sensor?
You can drive short distances but engine performance will be noticeably degraded. The ECU uses the MAP sensor to calculate fuel delivery - a faulty sensor causes incorrect fuelling which leads to poor economy, rough running, and increased emissions. On turbocharged engines a faulty MAP sensor can also prevent boost control from operating correctly. Replace it as soon as possible to avoid further damage.
What does a MAP sensor do?
The Manifold Absolute Pressure (MAP) sensor measures intake manifold pressure to help the ECU calculate the correct fuel and ignition timing. It is critical for engine efficiency, particularly on turbocharged and supercharged vehicles.
What are the symptoms of a faulty MAP sensor?
Symptoms include poor acceleration, rough idle, excessive fuel consumption, black smoke, engine hesitation, and a Check Engine light with codes P0105-P0109. Turbocharged vehicles may also experience boost control issues.
What is the difference between a MAP sensor and a MAF sensor?
A MAF (Mass Air Flow) sensor directly measures the mass of air entering the engine. A MAP sensor measures manifold pressure and the ECU calculates air mass from that reading. Many vehicles use one or the other; some use both. They are not interchangeable.
| Identification | |
|---|---|
| Brand | Aftermarket OEM Replacement |
| Part Numbers | |
| Part Number | SCMS314 |
| Reference OEM Number | 22012AA160 |
| Other OEM Numbers | 22012-AA160, 22012-AA210, 22012-AA220 |
| Related Part Numbers | MP189 CMS314 |
| Interchange Part Numbers | V70-72-0141, EPBMBN3-V004Z, ECM-TY-004, DAP-0112 |
| Product Specifics | |
| Product Type | SENSOR |
| Sensor Type | Manifold Absolute Pressure (MAP) Sensor |
| Number of pins | 3-Pin |
| Connector Shape | oval |
| Supplementary Article Info | without cable, without integrated air temperature sensor |

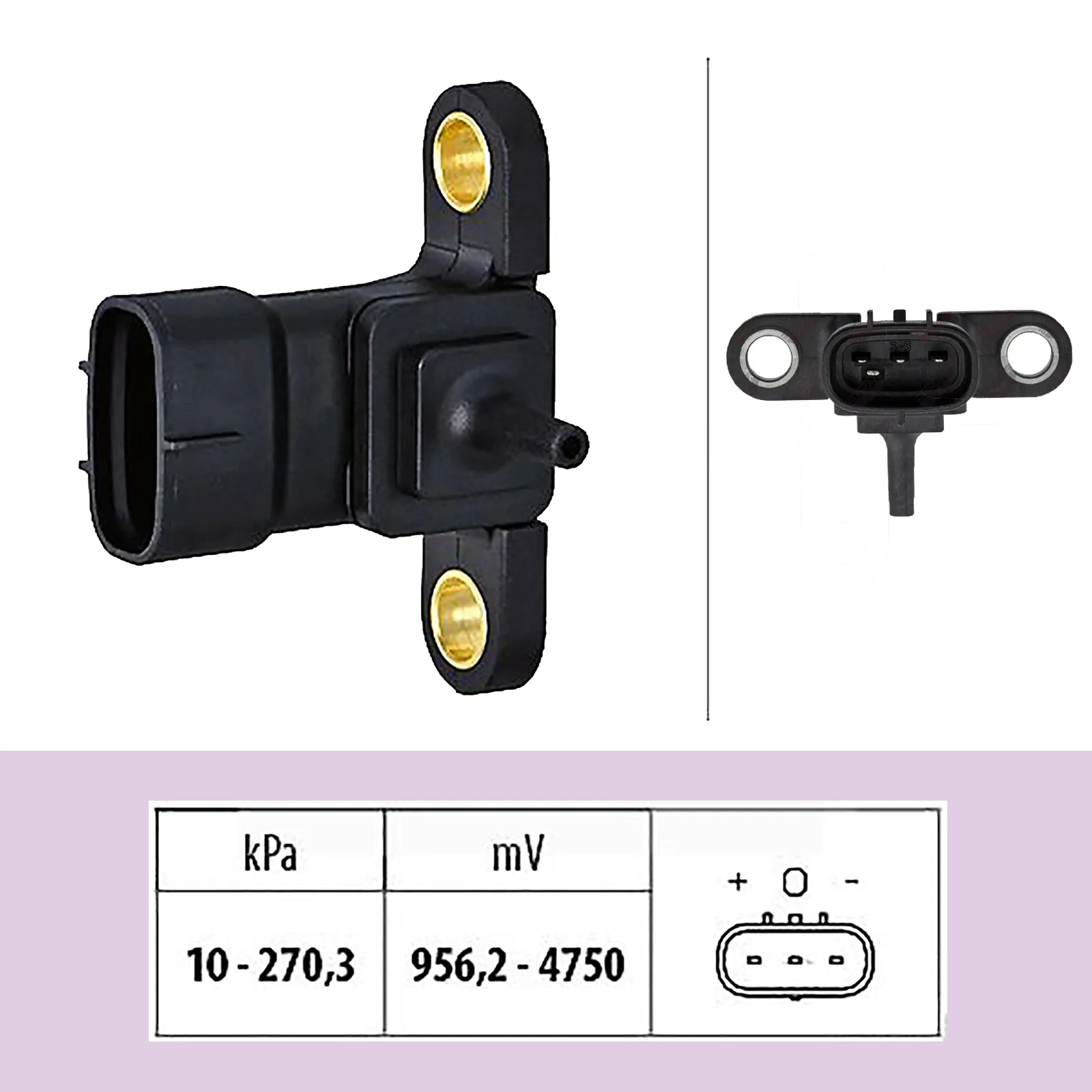

| Pressure Range | 10 kPa, until 270 kPa |
| Number of mounting bores | 2 |
| Compatible Makes | Subaru |
| Fitment Type | Direct Replacement |
| Other Details | |
| Note | Sensor only: no clamp and no built-in air temp sensor |
