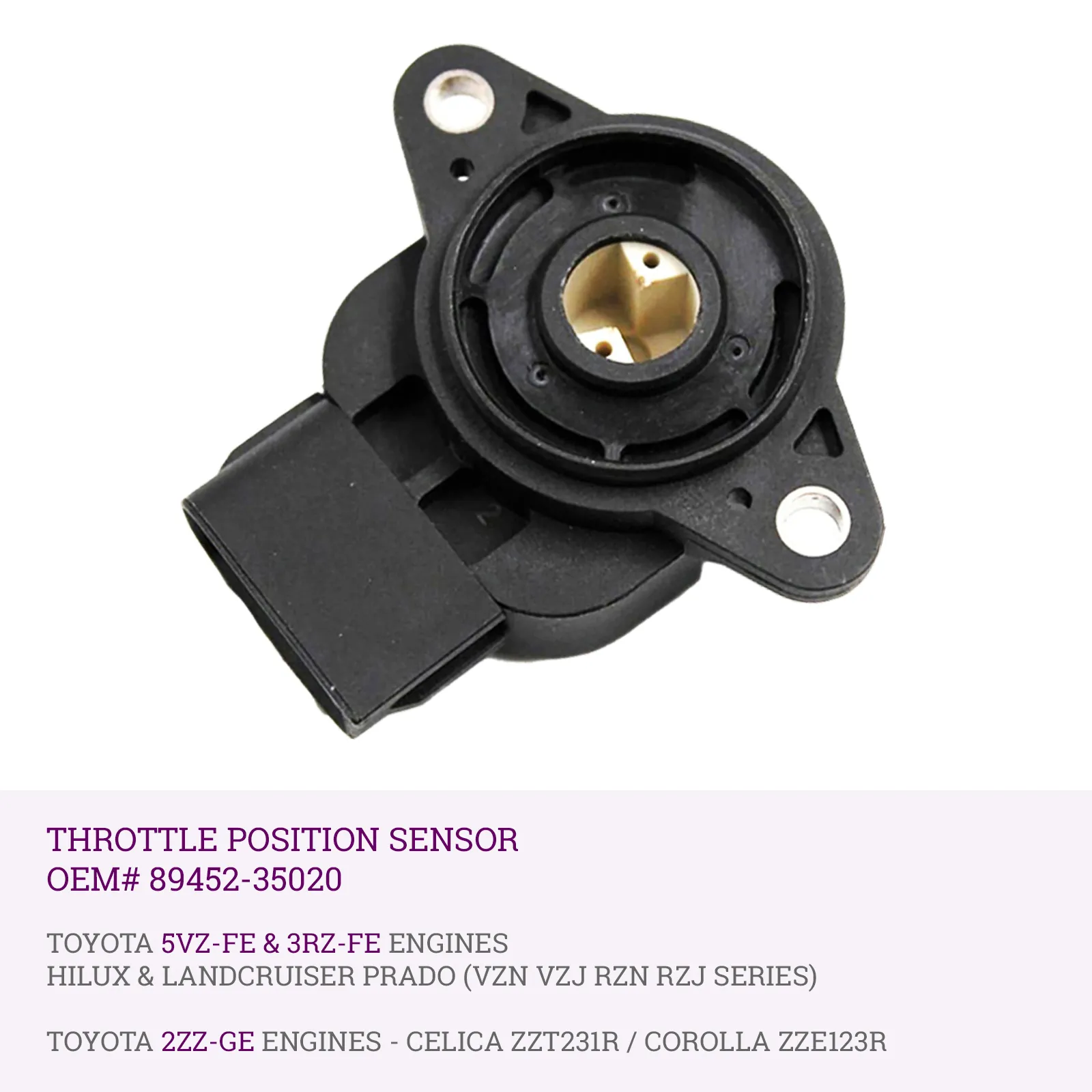

This throttle position sensor replaces Toyota OEM parts 89452-35020 and 89452-35100, covering the broadest range of Toyota petrol engines including the 3RZ-FE four-cylinder, the 5VZ-FE V6, and the high-output 2ZZ-GE. Vehicles covered include the Hilux, Land Cruiser Prado, Coaster, HiAce, Granvia, Dyna, Celica, Corolla, and Lotus Elise and Exige fitted with the Toyota-sourced 2ZZ-GE. A direct-connector replacement across all models — same 3-pin rectangular housing, same anticlockwise rotation.

This listing is the workshop and trade reference for the full 89452-35020 fitment range. A failing TPS causes erratic idle, hesitation, surge, and ECU fault codes across all these platforms. Replacing the sensor with a correctly calibrated unit restores accurate throttle-position data and full ECU control of fuelling and transmission.

TO SUIT

Toyota Celica

[08/99 - 03/06] Celica ZZT231R 16V TS 1.8L 4cyl 2ZZ-GE 141kW

Toyota Coaster

[01/93 - 12/03] Coaster RZB40/ RZB50 2.7L 4cyl 3RZ-FE 98kW

Toyota Corolla

[05/03 - 05/07] Corolla ZZE123 VVTL-i TS 1.8L 4cyl 2ZZ-GE 141kW

Toyota Dyna

[01/95 - 12/01] Dyna 200 RZU100 2.7L 4cyl 3RZ-FE 92kW
[01/95 - 12/99] Dyna 300 2.7L 4cyl 3RZ-FE 92kW

Toyota Granvia

[01/95 - 12/98] Granvia RCH11W 2.7L 4cyl 3RZ-FE 107kW

Toyota HiAce

[01/95 - 12/01] HiAce H100 VCH10 3.4L V6 5VZ-FE 131kW
[01/95 - 12/01] HiAce H100 VCH16 4WD 3.4L V6 5VZ-FE 131kW
[01/97 - 12/02] HiAce H40 RCH47 4WD 2.7L 4cyl 3RZ-FE 105kW

Toyota Hilux

[08/97 - 08/05] Hilux RZN149/ RZN154 2.7L 4cyl 3RZ-FE 107kW
[11/97 - 10/02] Hilux RZN169/ RZN174 2.7L 4cyl 3RZ-FE 108kW
[08/01 - 07/05] Hilux VZN1 3.4L V6 5VZ-FE 131kW
[08/01 - 07/05] Hilux VZN167/ VZN172 4WD 3.4L V6 5VZ-FE 131kW

Toyota Land Cruiser Prado

[07/96 - 05/02] Land Cruiser Prado RZJ90/ RZJ95 2.7L 4cyl 3RZ-FE 110kW
[09/02 - 08/04] Land Cruiser Prado RZJ120/ RZJ125 2.7L 4cyl 3RZ-FE 112kW
[07/96 - 02/03] Land Cruiser Prado VZJ90/ VZJ95 3.4L V6 5VZ-FE 131kW

Lotus

[01/04 - 12/11] Lotus Elise 1.8L 4cyl 2ZZ-GE 141kW
[01/01 - 12/08] Lotus Exige SCC 1.8L 4cyl 2ZZ-GE 141kW

FITMENT CHECK

All vehicles listed here use the 3-pin rectangular anticlockwise TPS with OEM number 89452-35020 or 89452-35100. Diesel Toyota variants (Hilux KZN, Prado KZJ and HZJ, Coaster HZB, HiAce KZH) do not use this sensor. For Lotus: covers 2ZZ-GE engine variants only. Standard 1ZZ-FE powered Celica and Corolla are not fitted by this sensor.

OEM PART NUMBERS

Toyota: 89452-35020
Toyota: 89452-35100

OTHER PART NUMBERS

VEMO: V70-72-0255
WALKER: 200-1238
SensorGal: CTPS192

PACKAGE INCLUDES

1 x Throttle Position Sensor

ABOUT THIS SENSOR

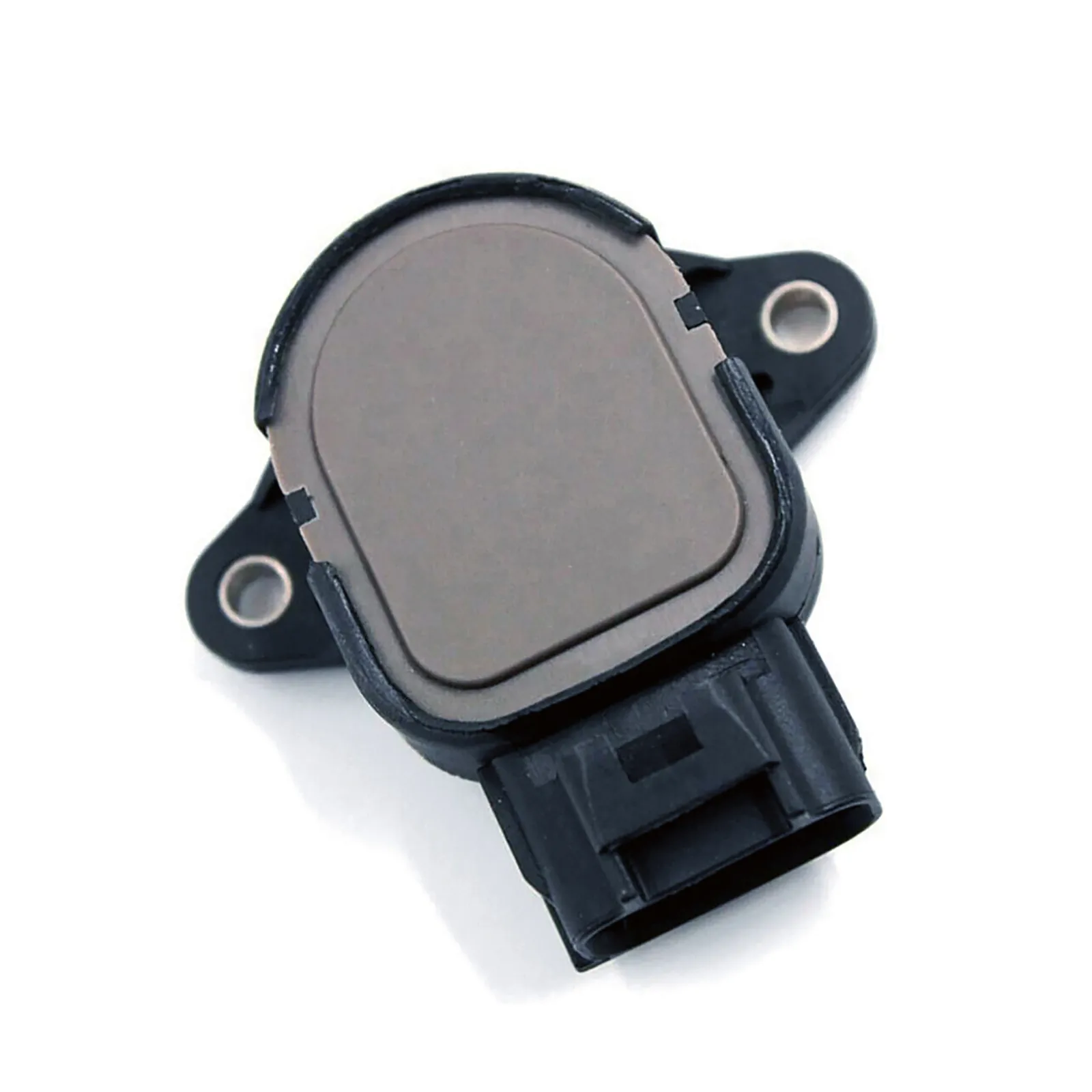

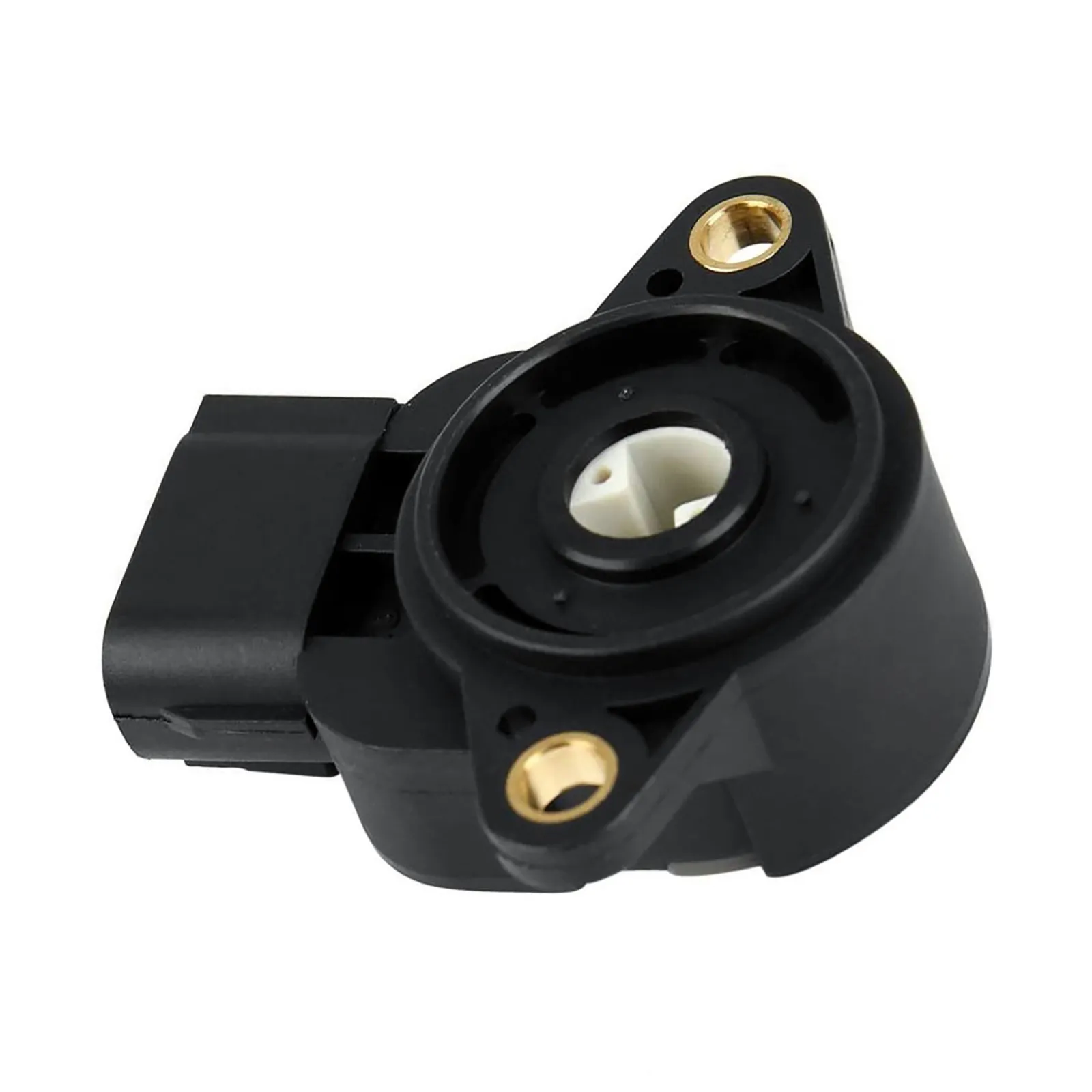

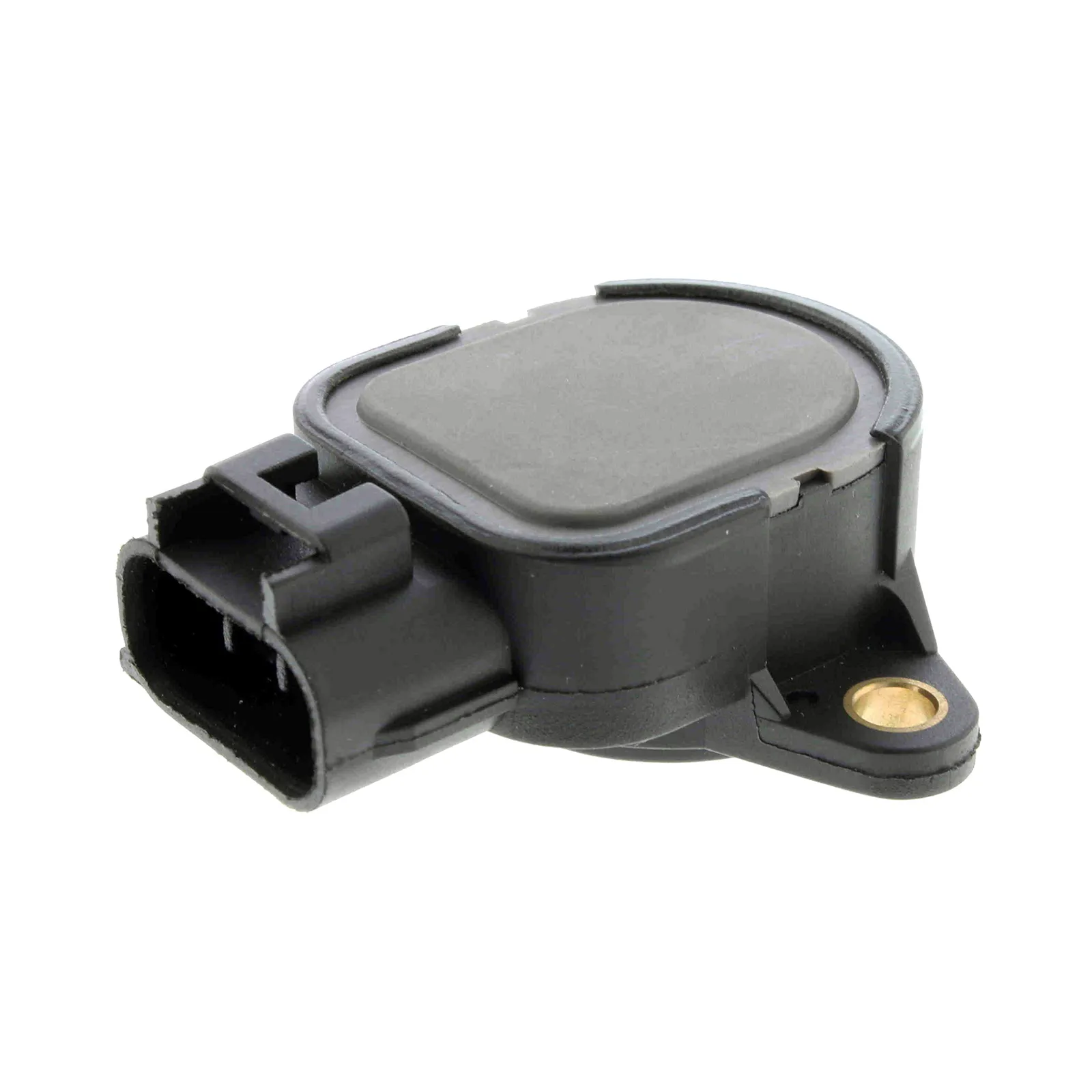

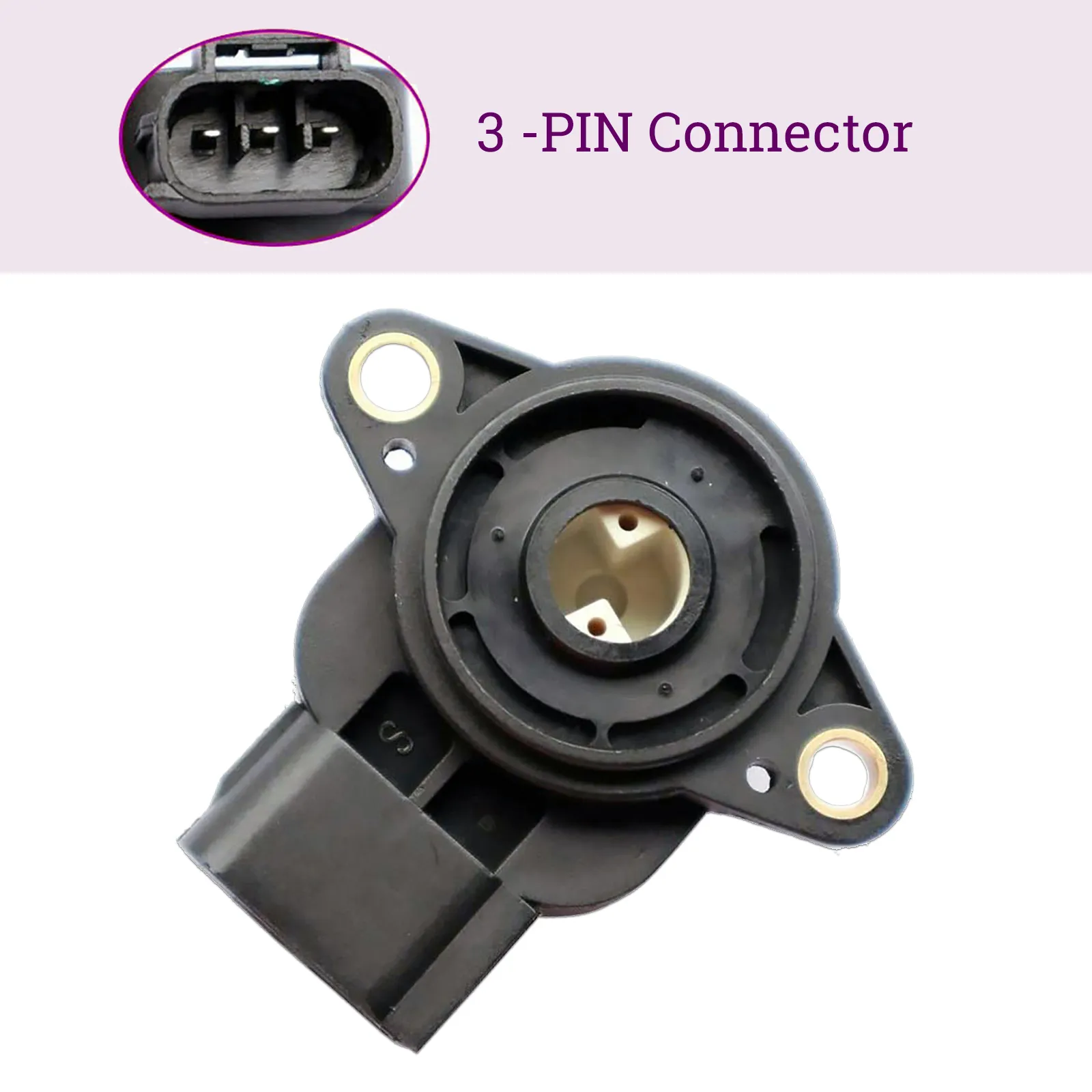

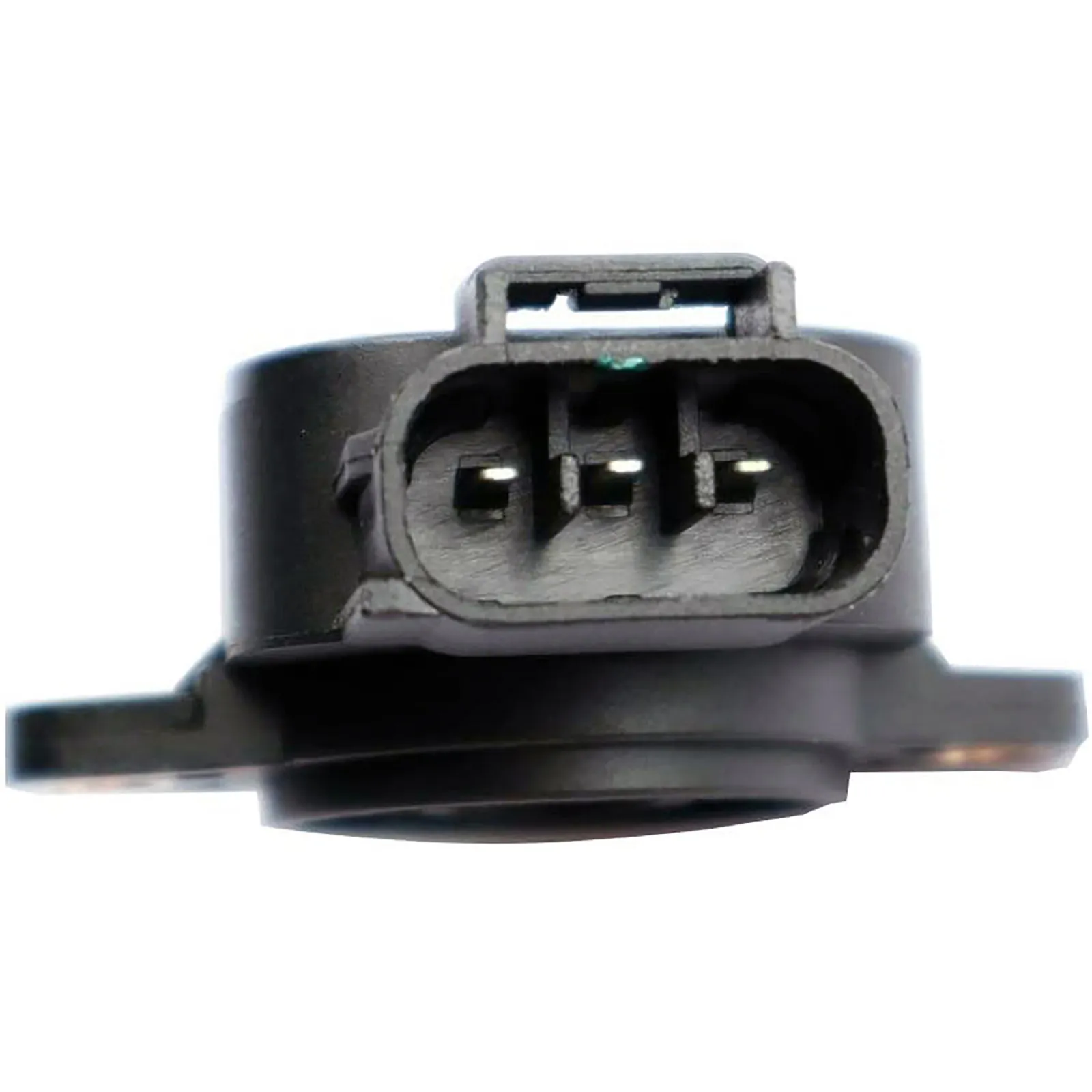

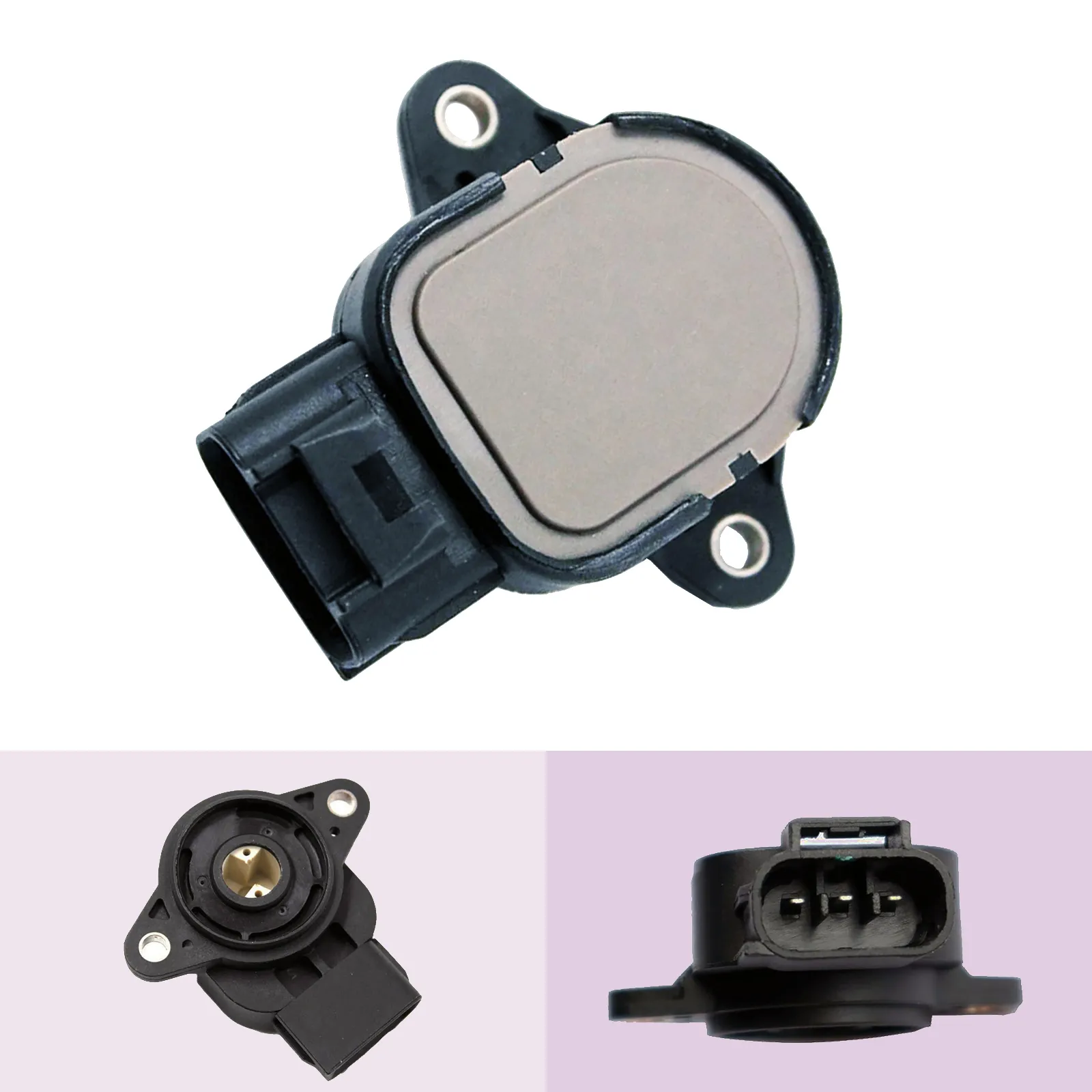

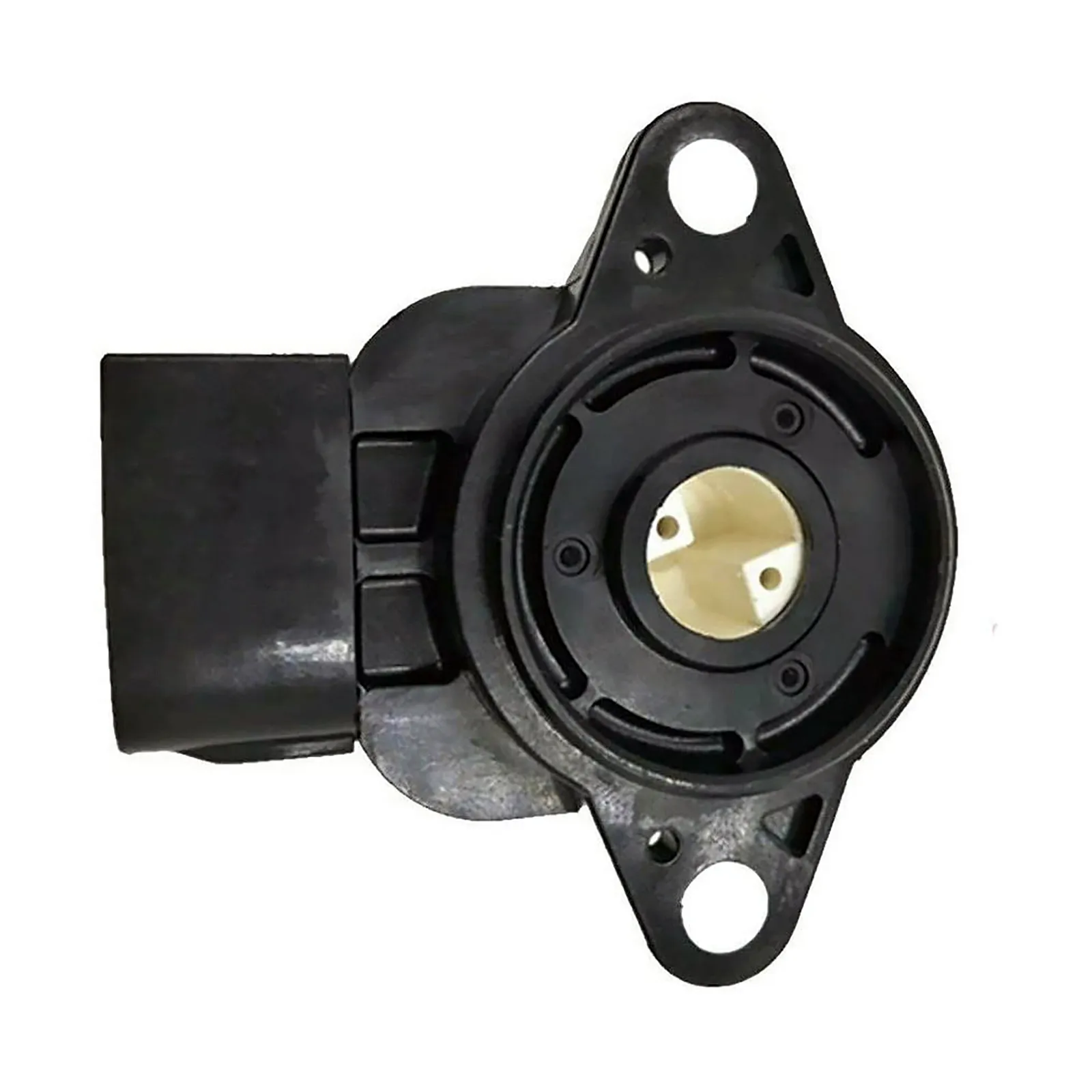

3-pin rectangular connector. Anticlockwise rotation. Supplied without cable. 2 mounting bores. OEM-specification resistance sweep for Toyota 89452-35020 across 3RZ-FE, 5VZ-FE, and 2ZZ-GE engine applications. One sensor — multiple platforms.

COMMON SYMPTOMS OF FAILURE

Rough or hunting idle across all covered platforms
Hesitation when pulling away from rest
Surge at constant speed
Unexplained increase in fuel consumption
Erratic automatic transmission behaviour
Check engine light — fault codes P0120, P0121, P0122, P0123

[08/99 - 03/06] TOYOTA CELICA ZZT231R 16V TS 1.8L 4cyl 2ZZ-GE 141kW
[01/93 - 12/03] TOYOTA COASTER RZB40/ RZB50 2.7L 4cyl 3RZ-FE 98kW
[05/03 - 05/07] TOYOTA COROLLA ZZE123 VVTL-i TS 1.8L 4cyl 2ZZ-GE 141kW
[01/95 - 12/01] TOYOTA DYNA 200 RZU100 2.7L 4cyl 3RZ-FE 92kW
[01/95 - 12/99] TOYOTA DYNA 300 2.7L 4cyl 3RZ-FE 92kW
[01/95 - 12/98] TOYOTA GRANVIA RCH11W 2.7L 4cyl 3RZ-FE 107kW
[01/95 - 12/01] TOYOTA HIACE H100 VCH10 3.4L V6 5VZ-FE 131kW
[01/95 - 12/01] TOYOTA HIACE H100 VCH16 4WD 3.4L V6 5VZ-FE 131kW
[01/97 - 12/02] TOYOTA HIACE H40 RCH47 4WD 2.7L 4cyl 3RZ-FE 105kW
[08/97 - 08/05] TOYOTA HILUX RZN149/ RZN154 2.7L 4cyl 3RZ-FE 107kW
[11/97 - 10/02] TOYOTA HILUX RZN169/ RZN174 2.7L 4cyl 3RZ-FE 108kW
[08/01 - 07/05] TOYOTA HILUX VZN1 3.4L V6 5VZ-FE 131kW
[08/01 - 07/05] TOYOTA HILUX VZN167/ VZN172 4WD 3.4L V6 5VZ-FE 131kW
[07/96 - 05/02] TOYOTA LAND CRUISER PRADO RZJ90/ RZJ95 2.7L 4cyl 3RZ-FE 110kW
[09/02 - 08/04] TOYOTA LAND CRUISER PRADO RZJ120/ RZJ125 2.7L 4cyl 3RZ-FE 112kW
[07/96 - 02/03] TOYOTA LAND CRUISER PRADO VZJ90/ VZJ95 3.4L V6 5VZ-FE 131kW
[01/04 - 12/11] LOTUS ELISE 1.8L 4cyl 2ZZ-GE 141kW
[01/01 - 12/08] LOTUS EXIGE SCC 1.8L 4cyl 2ZZ-GE 141kW

What fault codes does a faulty TPS trigger?

A faulty throttle position sensor typically triggers codes P0120 to P0124. P0120 and P0121 indicate the TPS signal is out of range, P0122 and P0123 indicate the signal is too low or too high, and P0124 indicates an intermittent signal. On drive-by-wire vehicles additional codes related to the electronic throttle control system may also be present.

Can a faulty TPS cause my automatic transmission to shift incorrectly?

Yes. The ECU shares throttle position data with the transmission control module to determine when to upshift and downshift. A faulty TPS sending incorrect throttle angle data can cause erratic shift points, harsh gear changes, the transmission hunting between gears, or the vehicle remaining in a fixed gear. Replacing the TPS often resolves transmission behaviour issues that appear unrelated.

Is it safe to drive with a faulty throttle position sensor?

It depends on how severely the sensor has failed. A partially failed TPS may cause hesitation and poor throttle response but the vehicle remains driveable. A fully failed TPS on a drive-by-wire vehicle can trigger limp mode, restricting the engine to a fixed low throttle position to prevent runaway acceleration. In either case replace the sensor as soon as possible as the fault can worsen without warning.

What are the symptoms of a faulty throttle position sensor?

Symptoms include jerky or hesitant acceleration, rough idle, unexpected surging, poor throttle response, stalling, and fault codes P0120-P0124. Drive-by-wire vehicles may also enter a limp mode limiting engine power.

Can I clean a throttle position sensor instead of replacing it?

TPS sensors are sealed units and cannot be cleaned or adjusted reliably. If the sensor is producing erratic signals or fault codes, replacement is the correct solution. Attempting to clean or adjust it usually results in continued faults.

Do I need to calibrate the throttle position sensor after replacement?

Many vehicles require a TPS calibration or throttle body relearn procedure after replacement. This is usually done with an OBD2 scanner or by following a specific ignition on/off sequence. Check your vehicle's service manual or contact us for guidance.

Identification
SKU	CTPS192-89452-35020
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	CTPS192
Reference OEM Number	89452-35020
Other OEM Numbers	89452-35020, 89452-35100, 8945235020, 8945235100
Related Part Numbers	CTPS192, TPS-041, TH207, TP074, TTH028
Trade Part Numbers	VEMO: V70-72-0255, WALKER: 200-1238
Product Specifics
Sensor Type	Throttle position sensor
Number of pins	3-pin connector
Connector Shape	rectangular
Supplementary Article Info	without cable
Number of mounting bores	2
Rotation Direction	Anticlockwise rotation
Other Details
Note	Always verify fitment using your vehicle's OEM part number.
Unit Of Measure	ea
