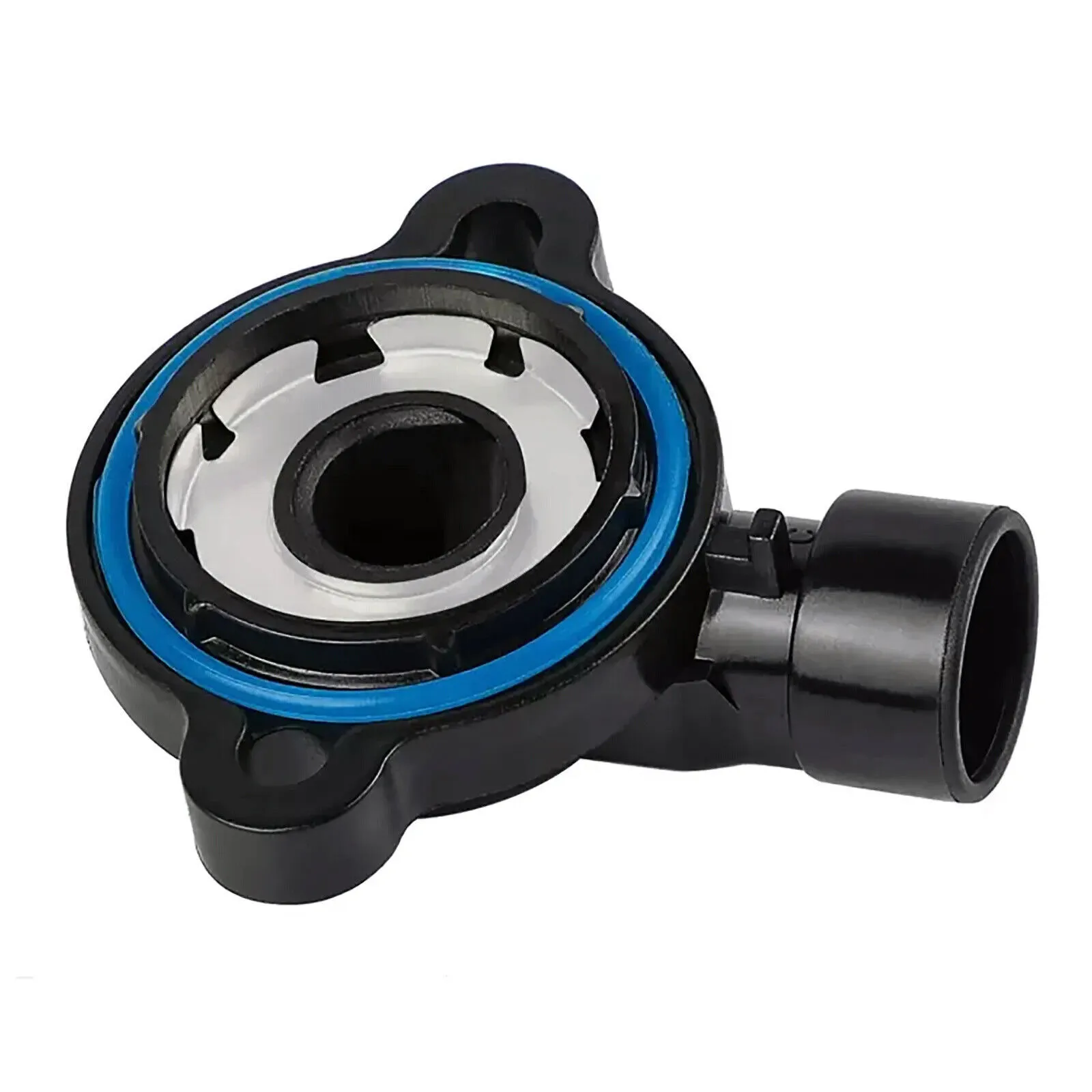

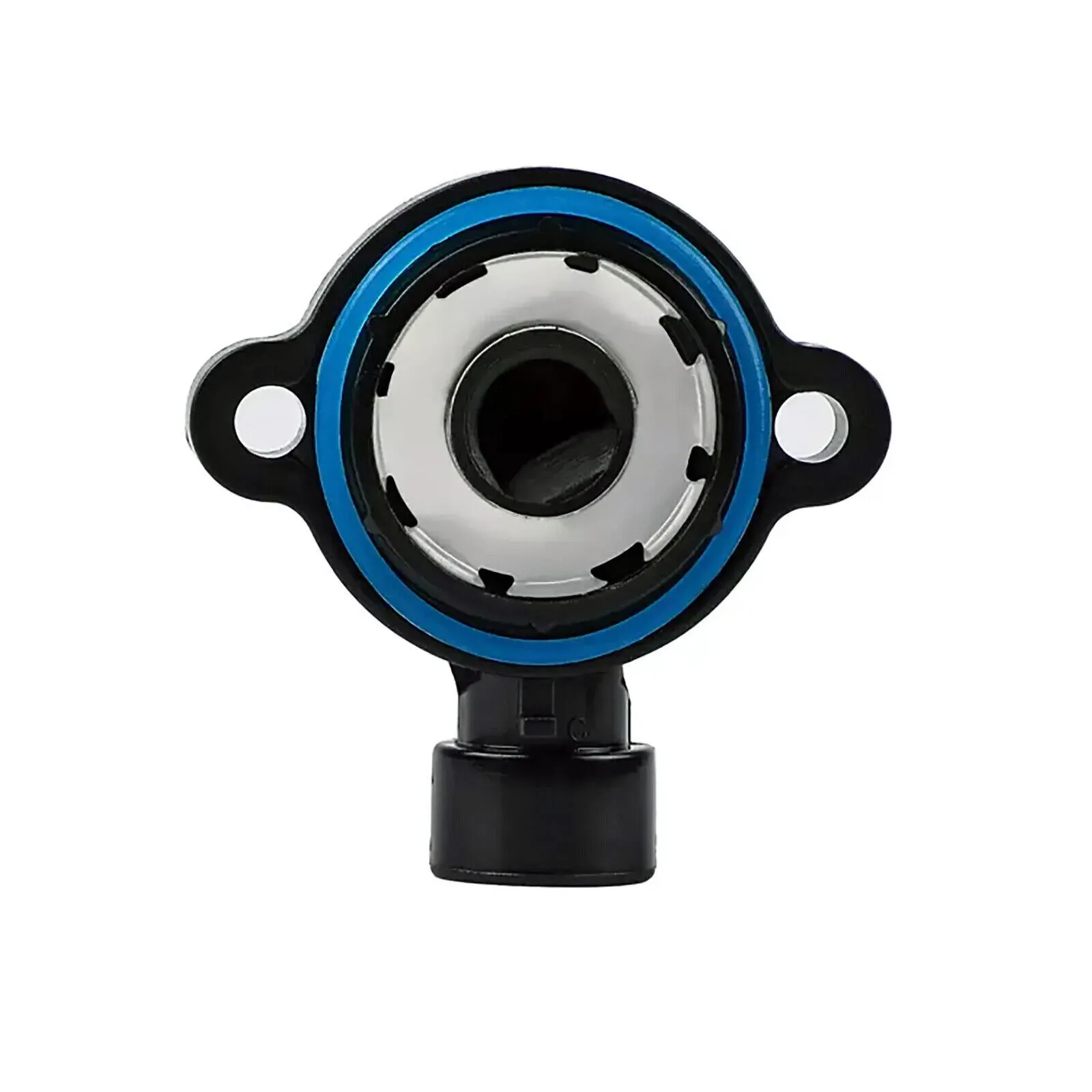

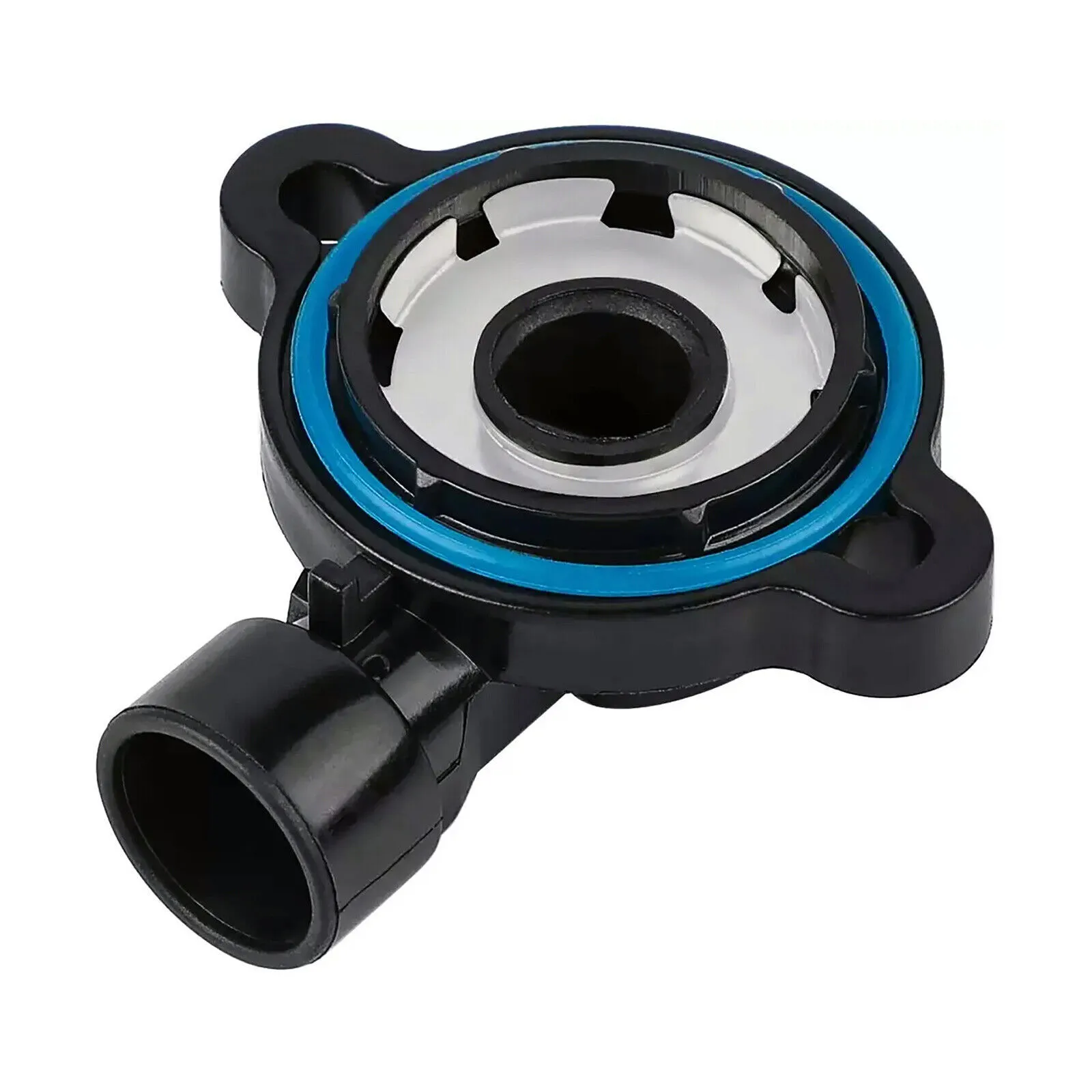

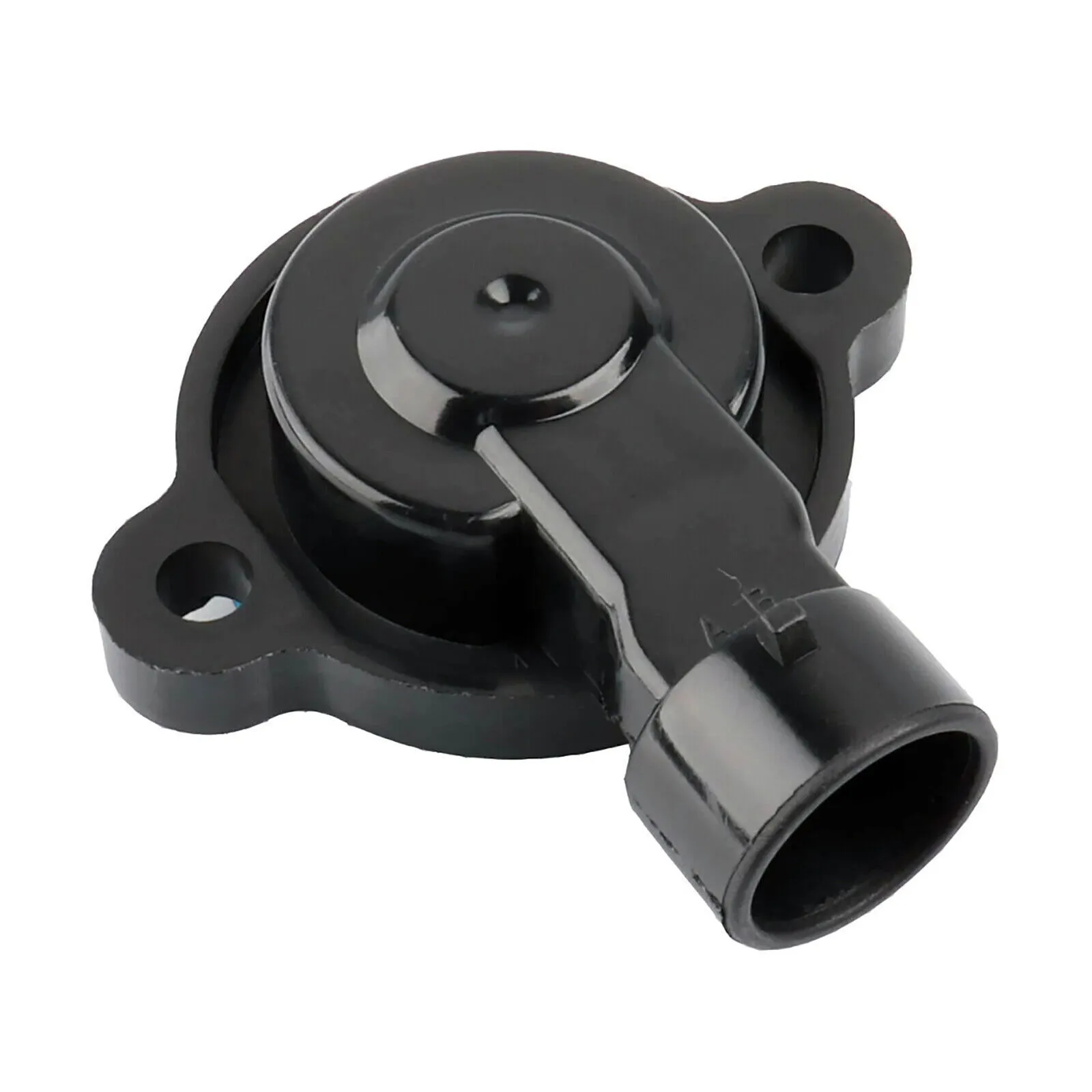

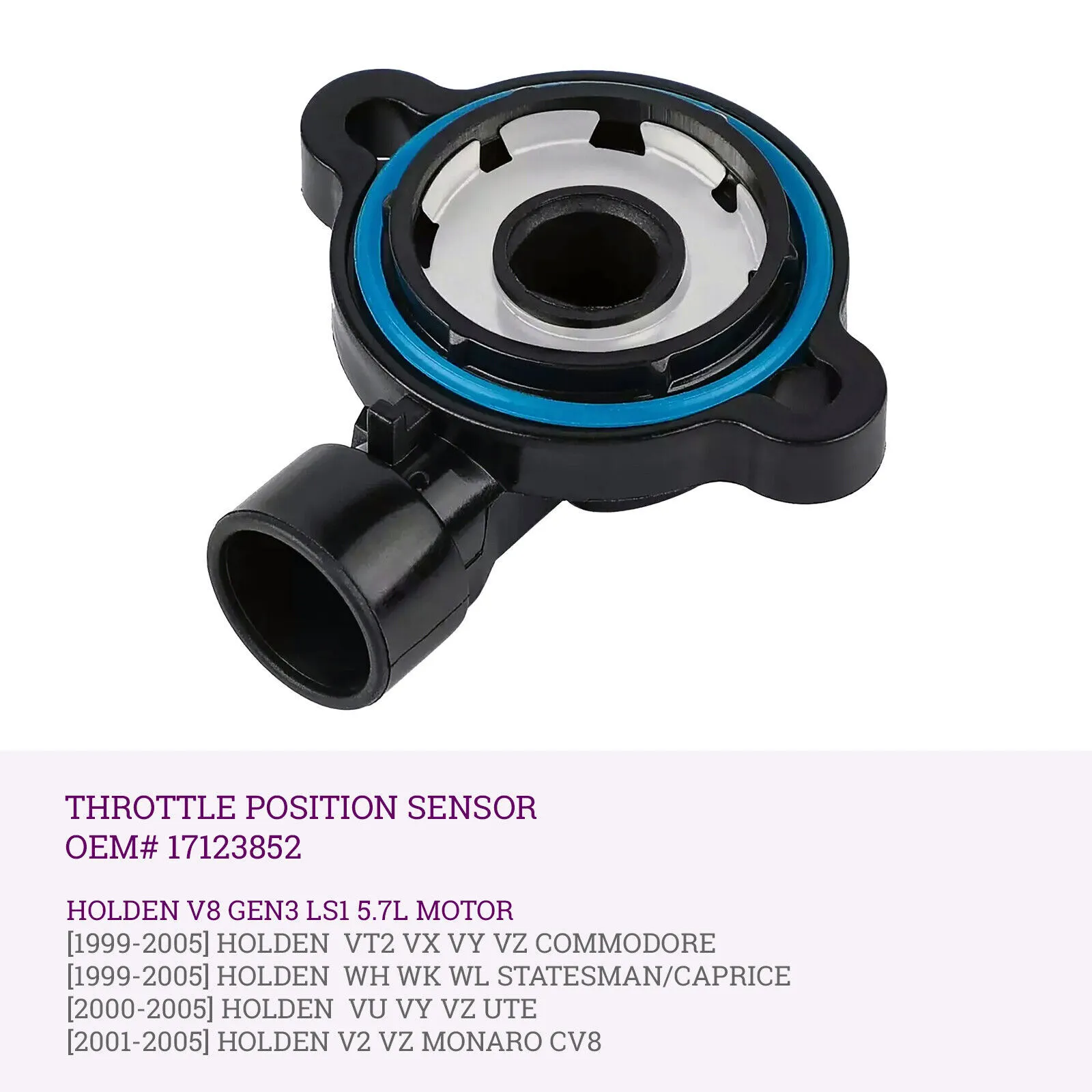

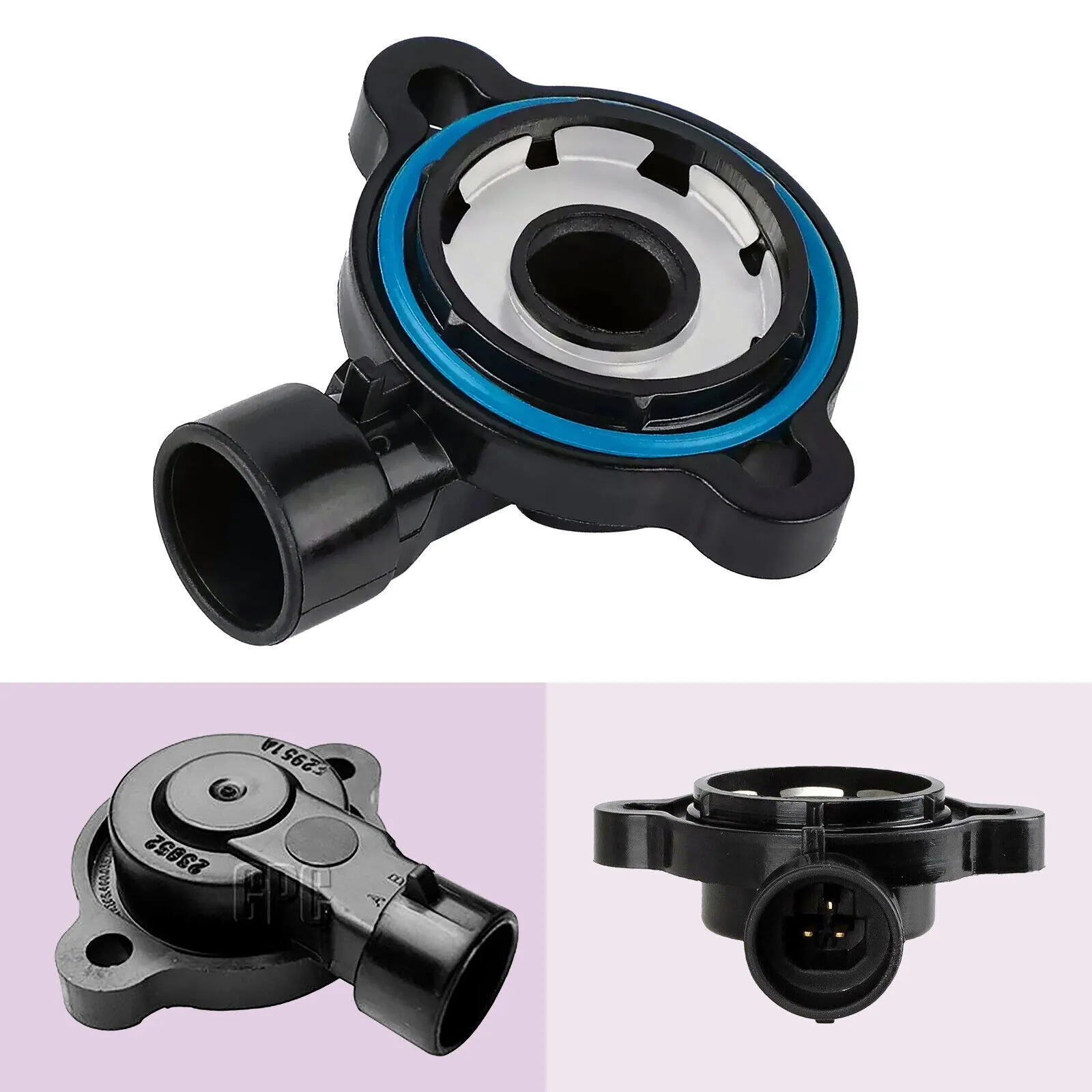

This throttle position sensor replaces Holden OEM part numbers 17123852 and 817206, covering the entire Gen3 LS1 5.7L V8 engine family used in the Commodore, Statesman, Caprice, Monaro, Adventra, Crewman, and all HSV performance variants from VT Series 2 through VZ. The LS1 uses a 3-pin round connector with anticlockwise rotation — this sensor matches that specification exactly and replaces the original without modification or recalibration.

The Gen3 LS1 relies on the TPS as the primary throttle-demand signal to the ECU — there is no mechanical fallback. A degraded sensor sends a corrupted voltage sweep, and the ECU cannot distinguish between a closed throttle and a partial-open position. On a Commodore SS or HSV performance model, this shows immediately: flat spots under hard acceleration, surge at highway cruise, erratic part-throttle response, and automatic transmission shift points that no longer match actual throttle demand.

TO SUIT

Holden Adventra

[08/03 - 07/04] Adventra VY Series 2 5.7L V8 Gen3 LS1
[08/04 - 07/07] Adventra VZ 5.7L V8 Gen3 LS1

Holden Berlina

[06/99 - 09/00] Berlina VT Series 2 5.7L V8 Gen3 LS1
[10/00 - 07/01] Berlina VX Series 1 5.7L V8 Gen3 LS1
[08/01 - 09/02] Berlina VX Series 2 5.7L V8 Gen3 LS1
[10/02 - 07/03] Berlina VY Series 1 5.7L V8 Gen3 LS1
[08/03 - 07/04] Berlina VY Series 2 5.7L V8 Gen3 LS1
[08/04 - 07/06] Berlina VZ 5.7L V8 Gen3 LS1

Holden Calais

[06/99 - 09/00] Calais VT Series 2 5.7L V8 Gen3 LS1
[10/00 - 07/01] Calais VX Series 1 5.7L V8 Gen3 LS1
[08/01 - 09/02] Calais VX Series 2 5.7L V8 Gen3 LS1
[10/02 - 07/03] Calais VY Series 1 5.7L V8 Gen3 LS1
[08/03 - 07/04] Calais VY Series 2 5.7L V8 Gen3 LS1
[08/04 - 07/06] Calais VZ 5.7L V8 Gen3 LS1

Holden Caprice

[06/99 - 07/01] Caprice WH Series 1 5.7L V8 Gen3 LS1
[08/01 - 04/03] Caprice WH Series 2 5.7L V8 Gen3 LS1
[05/03 - 07/04] Caprice WK 5.7L V8 Gen3 LS1
[08/04 - 12/05] Caprice WL 5.7L V8 Gen3 LS1

Holden Commodore

[06/99 - 09/00] Commodore VT Series 2 5.7L V8 Gen3 LS1
[11/00 - 08/01] Commodore VU Series 1 Ute 5.7L V8 Gen3 LS1
[08/01 - 09/02] Commodore VU Series 2 Ute 5.7L V8 Gen3 LS1
[10/00 - 07/01] Commodore VX Series 1 5.7L V8 Gen3 LS1
[08/01 - 09/02] Commodore VX Series 2 5.7L V8 Gen3 LS1
[10/02 - 07/03] Commodore VY Series 1 5.7L V8 Gen3 LS1
[08/03 - 07/04] Commodore VY Series 2 5.7L V8 Gen3 LS1
[08/04 - 07/07] Commodore VZ 5.7L V8 Gen3 LS1

Holden Crewman

[08/03 - 07/04] Crewman VY Series 2 5.7L V8 Gen3 LS1
[08/03 - 07/04] Crewman VY Series 2 Cross 8 5.7L V8 Gen3 LS1
[08/04 - 07/07] Crewman VZ Cross 8 5.7L V8 Gen3 LS1
[08/04 - 12/05] Crewman VZ SS/SSZ/SV8 5.7L V8 Gen3 LS1

Holden Monaro

[12/01 - 11/02] Monaro V2 Series 1 5.7L V8 Gen3 LS1
[12/02 - 07/03] Monaro V2 Series 2 5.7L V8 Gen3 LS1
[08/03 - 08/04] Monaro V2 Series 3 5.7L V8 Gen3 LS1
[09/04 - 12/05] Monaro VZ 5.7L V8 Gen3 LS1

Holden Statesman

[06/99 - 07/01] Statesman WH Series 1 5.7L V8 Gen3 LS1
[08/01 - 04/03] Statesman WH Series 2 5.7L V8 Gen3 LS1
[05/03 - 07/04] Statesman WK 5.7L V8 Gen3 LS1
[08/04 - 12/05] Statesman WL 5.7L V8 Gen3 LS1

Holden Suburban

[01/98 - 12/00] Suburban K8 1500 5.7L V8 Gen3 LS1
[01/98 - 12/00] Suburban K8 2500 5.7L V8 Gen3 LS1

HSV Avalanche

[09/03 - 09/04] HSV Avalanche VY Y-Series Series 2 5.7L V8 Gen3 LS1
[10/04 - 07/06] HSV Avalanche VZ Z-Series 5.7L V8 Gen3 LS1

HSV Clubsport

[06/99 - 09/00] HSV Clubsport VT Series 2 5.7L V8 Gen3 LS1
[09/00 - 09/01] HSV Clubsport VX Series 1 5.7L V8 Gen3 LS1
[09/01 - 10/02] HSV Clubsport VX Series 2 5.7L V8 Gen3 LS1
[10/02 - 08/03] HSV Clubsport VY Y-Series Series 1 5.7L V8 Gen3 LS1
[09/03 - 09/04] HSV Clubsport VY Y-Series Series 2 5.7L V8 Gen3 LS1

HSV Coupe

[02/04 - 09/04] HSV Coupe 4 V2 Series 3 5.7L V8 Gen3 LS1
[10/04 - 07/06] HSV Coupe 4 VZ Z-Series 5.7L V8 Gen3 LS1
[12/01 - 01/03] HSV Coupe GTO V2 Series 1 5.7L V8 Gen3 LS1
[02/03 - 08/03] HSV Coupe GTO V2 Series 2 5.7L V8 Gen3 LS1
[09/03 - 09/04] HSV Coupe GTO V2 Series 3 5.7L V8 Gen3 LS1
[12/01 - 01/03] HSV Coupe GTS V2 Series 1 5.7L V8 Gen3 LS1
[02/03 - 08/03] HSV Coupe GTS V2 Series 2 5.7L V8 Gen3 LS1
[02/04 - 09/04] HSV Coupe GTS V2 Series 3 5.7L V8 Gen3 LS1

HSV Grange

[07/99 - 09/01] HSV Grange WH Series 1 5.7L V8 Gen3 LS1
[09/01 - 07/03] HSV Grange WH Series 2 5.7L V8 Gen3 LS1
[08/03 - 10/04] HSV Grange WK 5.7L V8 Gen3 LS1

HSV GTS

[09/97 - 05/99] HSV GTS VT Series 1 5.7L V8 Gen3 LS1
[04/00 - 09/00] HSV GTS VT Series 2 5.7L V8 Gen3 LS1
[09/00 - 09/01] HSV GTS VX Series 1 5.7L V8 Gen3 LS1
[10/02 - 08/03] HSV GTS VY Y-Series Series 1 5.7L V8 Gen3 LS1
[09/03 - 09/04] HSV GTS VY Y-Series Series 2 5.7L V8 Gen3 LS1

HSV Maloo

[04/01 - 09/01] HSV Maloo VU Series 1 5.7L V8 Gen3 LS1
[09/01 - 10/02] HSV Maloo VU Series 2 5.7L V8 Gen3 LS1
[10/02 - 08/03] HSV Maloo VY Y-Series Series 1 5.7L V8 Gen3 LS1
[09/03 - 09/04] HSV Maloo VY Y-Series Series 2 5.7L V8 Gen3 LS1

HSV Senator

[06/99 - 09/00] HSV Senator VT Series 2 5.7L V8 Gen3 LS1
[09/00 - 09/01] HSV Senator VX Series 1 5.7L V8 Gen3 LS1
[09/01 - 10/02] HSV Senator VX Series 2 5.7L V8 Gen3 LS1
[10/02 - 08/03] HSV Senator VY Y-Series Series 1 5.7L V8 Gen3 LS1
[09/03 - 09/04] HSV Senator VY Y-Series Series 2 5.7L V8 Gen3 LS1

HSV SV99 / SV300

[06/99 - 09/00] HSV SV99 VT Series 2 5.7L V8 Gen3 LS1
[08/01 - 09/02] HSV SV300 VX Series 2 5.7L V8 Gen3 LS1

Kia

[01/97 - 12/98] Kia Mentor FA

FITMENT CHECK

This sensor fits the Gen3 LS1 5.7L V8 only. It does NOT fit the Gen IV LS2 (6.0L) or LS3 (6.2L) engines. The VZ Commodore, VZ HSV, and VZ Crewman were produced with both the LS1 5.7L and the LS2 6.0L — buyers must confirm their engine displacement before ordering. All VT, VU, VX, and VY V8 Commodore variants used only the LS1. Replaces OEM numbers 17123852 and 817206.

OEM PART NUMBERS

Holden: 17123852
Holden: 817206

OTHER PART NUMBERS

VEMO: V51-72-0077
SMP: SS10382
TP049
TPS-003
SensorGal: CTPS124

PACKAGE INCLUDES

1 x Throttle Position Sensor

ABOUT THIS SENSOR

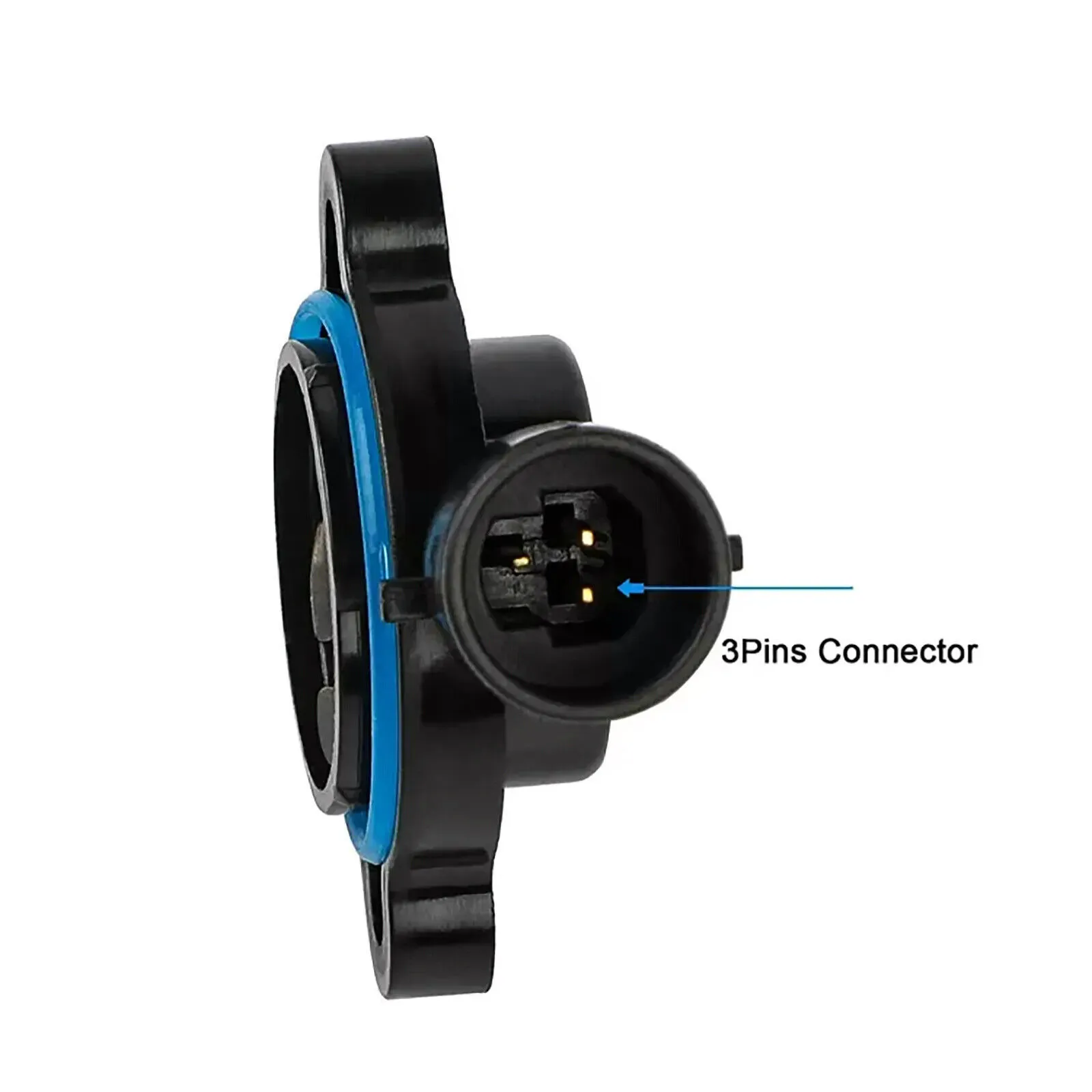

3-pin round connector. Anticlockwise rotation. Supplied without cable. 2 mounting bores. Calibrated to the OEM resistance specification for Holden 17123852 across the full throttle sweep of the Gen3 LS1 throttle body. The voltage output at closed throttle, part-throttle, and wide-open throttle matches the original — the ECU reads no difference on first start.

COMMON SYMPTOMS OF FAILURE

Flat spot or hesitation when pulling away from rest
Surge at constant highway speed
Rough or hunting idle
Automatic transmission shifting at wrong points or hunting between gears
Poor fuel economy without obvious cause
Check engine light — fault codes P0120, P0121, P0122, P0123

[08/03 - 07/04] HOLDEN ADVENTRA VY SERIES 2 5.7L V8 Gen3 LS1
[08/04 - 07/07] HOLDEN ADVENTRA VZ 5.7L V8 Gen3 LS1
[06/99 - 09/00] HOLDEN BERLINA VT SERIES 2 5.7L V8 Gen3 LS1
[10/00 - 07/01] HOLDEN BERLINA VX SERIES 1 5.7L V8 Gen3 LS1
[08/01 - 09/02] HOLDEN BERLINA VX SERIES 2 5.7L V8 Gen3 LS1
[10/02 - 07/03] HOLDEN BERLINA VY SERIES 1 5.7L V8 Gen3 LS1
[08/03 - 07/04] HOLDEN BERLINA VY SERIES 2 5.7L V8 Gen3 LS1
[08/04 - 07/06] HOLDEN BERLINA VZ 5.7L V8 Gen3 LS1
[06/99 - 09/00] HOLDEN CALAIS VT SERIES 2 5.7L V8 Gen3 LS1
[10/00 - 07/01] HOLDEN CALAIS VX SERIES 1 5.7L V8 Gen3 LS1
[08/01 - 09/02] HOLDEN CALAIS VX SERIES 2 5.7L V8 Gen3 LS1
[10/02 - 07/03] HOLDEN CALAIS VY SERIES 1 5.7L V8 Gen3 LS1
[08/03 - 07/04] HOLDEN CALAIS VY SERIES 2 5.7L V8 Gen3 LS1
[08/04 - 07/06] HOLDEN CALAIS VZ 5.7L V8 Gen3 LS1
[06/99 - 07/01] HOLDEN CAPRICE WH SERIES 1 5.7L V8 Gen3 LS1
[08/01 - 04/03] HOLDEN CAPRICE WH SERIES 2 5.7L V8 Gen3 LS1
[05/03 - 07/04] HOLDEN CAPRICE WK 5.7L V8 Gen3 LS1
[08/04 - 12/05] HOLDEN CAPRICE WL 5.7L V8 Gen3 LS1
[06/99 - 09/00] HOLDEN COMMODORE VT SERIES 2 5.7L V8 Gen3 LS1
[11/00 - 08/01] HOLDEN COMMODORE VU SERIES 1 UTE 5.7L V8 Gen3 LS1
[08/01 - 09/02] HOLDEN COMMODORE VU SERIES 2 UTE 5.7L V8 Gen3 LS1
[10/00 - 07/01] HOLDEN COMMODORE VX SERIES 1 5.7L V8 Gen3 LS1
[08/01 - 09/02] HOLDEN COMMODORE VX SERIES 2 5.7L V8 Gen3 LS1
[10/02 - 07/03] HOLDEN COMMODORE VY SERIES 1 5.7L V8 Gen3 LS1
[08/03 - 07/04] HOLDEN COMMODORE VY SERIES 2 5.7L V8 Gen3 LS1
[08/04 - 07/07] HOLDEN COMMODORE VZ 5.7L V8 Gen3 LS1
[08/03 - 07/04] HOLDEN CREWMAN VY SERIES 2 5.7L V8 Gen3 LS1
[08/03 - 07/04] HOLDEN CREWMAN VY SERIES 2 CROSS 8 5.7L V8 Gen3 LS1
[08/04 - 07/07] HOLDEN CREWMAN VZ CROSS 8 5.7L V8 Gen3 LS1
[08/04 - 12/05] HOLDEN CREWMAN VZ SS/SSZ/SV8 5.7L V8 Gen3 LS1
[12/01 - 11/02] HOLDEN MONARO V2 SERIES 1 5.7L V8 Gen3 LS1
[12/02 - 07/03] HOLDEN MONARO V2 SERIES 2 5.7L V8 Gen3 LS1
[08/03 - 08/04] HOLDEN MONARO V2 SERIES 3 5.7L V8 Gen3 LS1
[09/04 - 12/05] HOLDEN MONARO VZ 5.7L V8 Gen3 LS1
[06/99 - 07/01] HOLDEN STATESMAN WH SERIES 1 5.7L V8 Gen3 LS1
[08/01 - 04/03] HOLDEN STATESMAN WH SERIES 2 5.7L V8 Gen3 LS1
[05/03 - 07/04] HOLDEN STATESMAN WK 5.7L V8 Gen3 LS1
[08/04 - 12/05] HOLDEN STATESMAN WL 5.7L V8 Gen3 LS1
[01/98 - 12/00] HOLDEN SUBURBAN K8 1500 5.7L V8 Gen3 LS1
[01/98 - 12/00] HOLDEN SUBURBAN K8 2500 5.7L V8 Gen3 LS1
[09/03 - 09/04] HSV AVALANCHE VY Y-SERIES SERIES 2 5.7L V8 Gen3 LS1
[10/04 - 07/06] HSV AVALANCHE VZ Z-SERIES 5.7L V8 Gen3 LS1
[06/99 - 09/00] HSV CLUBSPORT VT SERIES 2 5.7L V8 Gen3 LS1
[09/00 - 09/01] HSV CLUBSPORT VX SERIES 1 5.7L V8 Gen3 LS1
[09/01 - 10/02] HSV CLUBSPORT VX SERIES 2 5.7L V8 Gen3 LS1
[10/02 - 08/03] HSV CLUBSPORT VY Y-SERIES SERIES 1 5.7L V8 Gen3 LS1
[09/03 - 09/04] HSV CLUBSPORT VY Y-SERIES SERIES 2 5.7L V8 Gen3 LS1
[02/04 - 09/04] HSV COUPE 4 V2 SERIES 3 5.7L V8 Gen3 LS1
[10/04 - 07/06] HSV COUPE 4 VZ Z-SERIES 5.7L V8 Gen3 LS1
[12/01 - 01/03] HSV COUPE GTO V2 SERIES 1 5.7L V8 Gen3 LS1
[02/03 - 08/03] HSV COUPE GTO V2 SERIES 2 5.7L V8 Gen3 LS1
[09/03 - 09/04] HSV COUPE GTO V2 SERIES 3 5.7L V8 Gen3 LS1
[12/01 - 01/03] HSV COUPE GTS V2 SERIES 1 5.7L V8 Gen3 LS1
[02/03 - 08/03] HSV COUPE GTS V2 SERIES 2 5.7L V8 Gen3 LS1
[02/04 - 09/04] HSV COUPE GTS V2 SERIES 3 5.7L V8 Gen3 LS1
[07/99 - 09/01] HSV GRANGE WH SERIES 1 5.7L V8 Gen3 LS1
[09/01 - 07/03] HSV GRANGE WH SERIES 2 5.7L V8 Gen3 LS1
[08/03 - 10/04] HSV GRANGE WK 5.7L V8 Gen3 LS1
[09/97 - 05/99] HSV GTS VT SERIES 1 5.7L V8 Gen3 LS1
[04/00 - 09/00] HSV GTS VT SERIES 2 5.7L V8 Gen3 LS1
[09/00 - 09/01] HSV GTS VX SERIES 1 5.7L V8 Gen3 LS1
[10/02 - 08/03] HSV GTS VY Y-SERIES SERIES 1 5.7L V8 Gen3 LS1
[09/03 - 09/04] HSV GTS VY Y-SERIES SERIES 2 5.7L V8 Gen3 LS1
[04/01 - 09/01] HSV MALOO VU SERIES 1 5.7L V8 Gen3 LS1
[09/01 - 10/02] HSV MALOO VU SERIES 2 5.7L V8 Gen3 LS1
[10/02 - 08/03] HSV MALOO VY Y-SERIES SERIES 1 5.7L V8 Gen3 LS1
[09/03 - 09/04] HSV MALOO VY Y-SERIES SERIES 2 5.7L V8 Gen3 LS1
[06/99 - 09/00] HSV SENATOR VT SERIES 2 5.7L V8 Gen3 LS1
[09/00 - 09/01] HSV SENATOR VX SERIES 1 5.7L V8 Gen3 LS1
[09/01 - 10/02] HSV SENATOR VX SERIES 2 5.7L V8 Gen3 LS1
[10/02 - 08/03] HSV SENATOR VY Y-SERIES SERIES 1 5.7L V8 Gen3 LS1
[09/03 - 09/04] HSV SENATOR VY Y-SERIES SERIES 2 5.7L V8 Gen3 LS1
[06/99 - 09/00] HSV SV99 VT SERIES 2 5.7L V8 Gen3 LS1
[08/01 - 09/02] HSV SV300 VX SERIES 2 5.7L V8 Gen3 LS1
[01/97 - 12/98] KIA MENTOR FA

What fault codes does a faulty TPS trigger?

A faulty throttle position sensor typically triggers codes P0120 to P0124. P0120 and P0121 indicate the TPS signal is out of range, P0122 and P0123 indicate the signal is too low or too high, and P0124 indicates an intermittent signal. On drive-by-wire vehicles additional codes related to the electronic throttle control system may also be present.

Can a faulty TPS cause my automatic transmission to shift incorrectly?

Yes. The ECU shares throttle position data with the transmission control module to determine when to upshift and downshift. A faulty TPS sending incorrect throttle angle data can cause erratic shift points, harsh gear changes, the transmission hunting between gears, or the vehicle remaining in a fixed gear. Replacing the TPS often resolves transmission behaviour issues that appear unrelated.

Is it safe to drive with a faulty throttle position sensor?

It depends on how severely the sensor has failed. A partially failed TPS may cause hesitation and poor throttle response but the vehicle remains driveable. A fully failed TPS on a drive-by-wire vehicle can trigger limp mode, restricting the engine to a fixed low throttle position to prevent runaway acceleration. In either case replace the sensor as soon as possible as the fault can worsen without warning.

What are the symptoms of a faulty throttle position sensor?

Symptoms include jerky or hesitant acceleration, rough idle, unexpected surging, poor throttle response, stalling, and fault codes P0120-P0124. Drive-by-wire vehicles may also enter a limp mode limiting engine power.

Can I clean a throttle position sensor instead of replacing it?

TPS sensors are sealed units and cannot be cleaned or adjusted reliably. If the sensor is producing erratic signals or fault codes, replacement is the correct solution. Attempting to clean or adjust it usually results in continued faults.

Do I need to calibrate the throttle position sensor after replacement?

Many vehicles require a TPS calibration or throttle body relearn procedure after replacement. This is usually done with an OBD2 scanner or by following a specific ignition on/off sequence. Check your vehicle's service manual or contact us for guidance.

Identification
SKU	CTPS124
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	CTPS124
Reference OEM Number	17123852
Other OEM Numbers	17123852, 817206
Related Part Numbers	CTPS124, SS10382, TP049, TPS-003, V51-72-0077
Trade Part Numbers	VEMO: V51-72-0077, SMP: SS10382, TP049
Product Specifics
Sensor Type	Throttle position sensor
Number of pins	3-pin connector
Connector Shape	Round
Supplementary Article Info	without cable
Number of mounting bores	2
Rotation Direction	Anticlockwise rotation
Other Details
Note	Always verify fitment using your vehicle's OEM part number.
Unit Of Measure	ea
