Suction Control Valve for Land Rover Defender Puma 2.4L DT244 TD4
Heavy Duty Fit Replaces LR009837
BRAND NEW *OEM Quality* suction control valve to suit Land Rover Defender Puma 2.4L DT244 TD4 diesel.
A Puma Defender that hunts at idle or stalls on descents often has a tired SCV. We pack and ship it from Cranbourne VIC.
TO SUIT
For the Land Rover Defender 90 110 and 130 L316/L317 with the Ford-built Puma 2.4L DT244 TD4 from late 2006 to 2016. The Puma engine shares this valve with the Ford Transit VM.
FITMENT CHECK

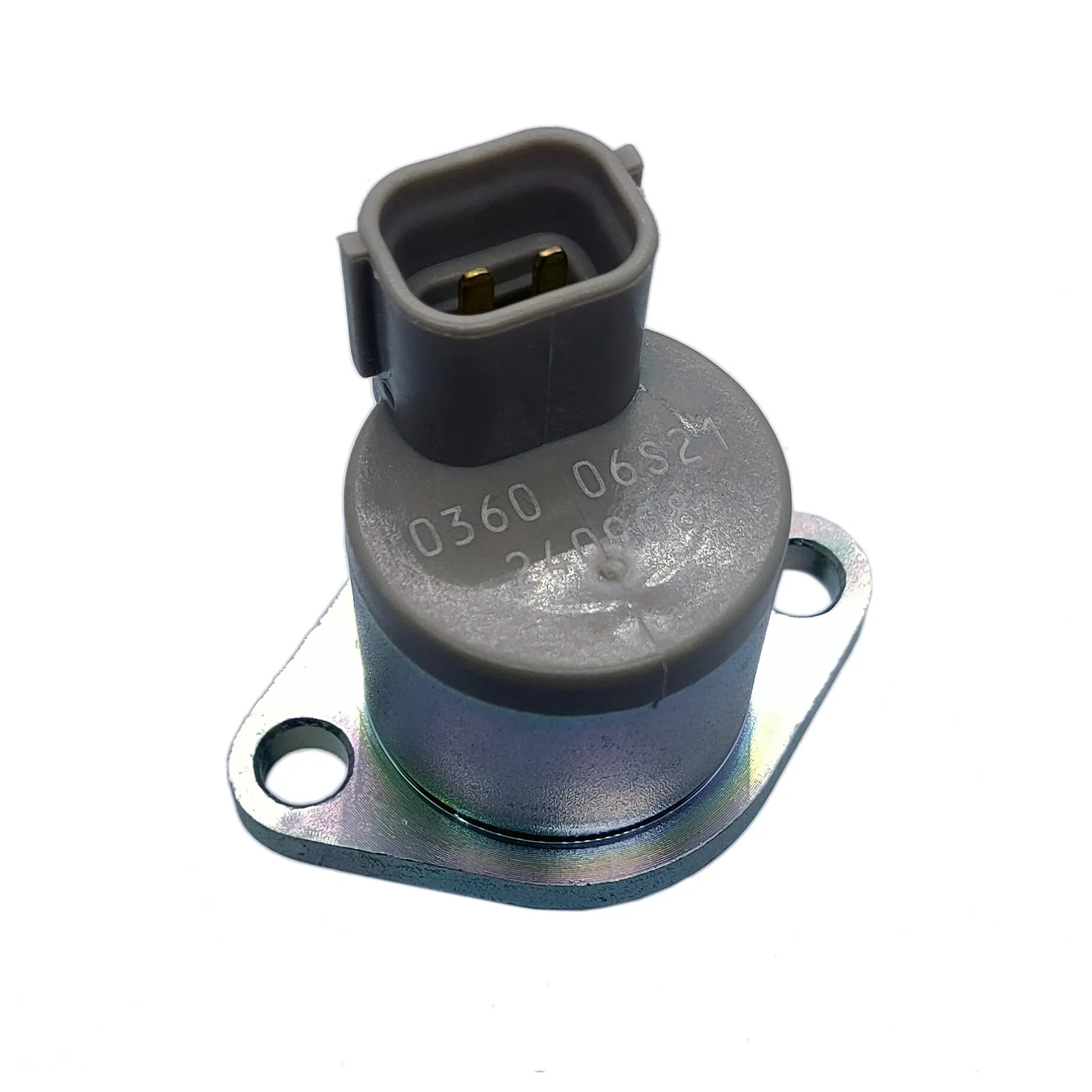

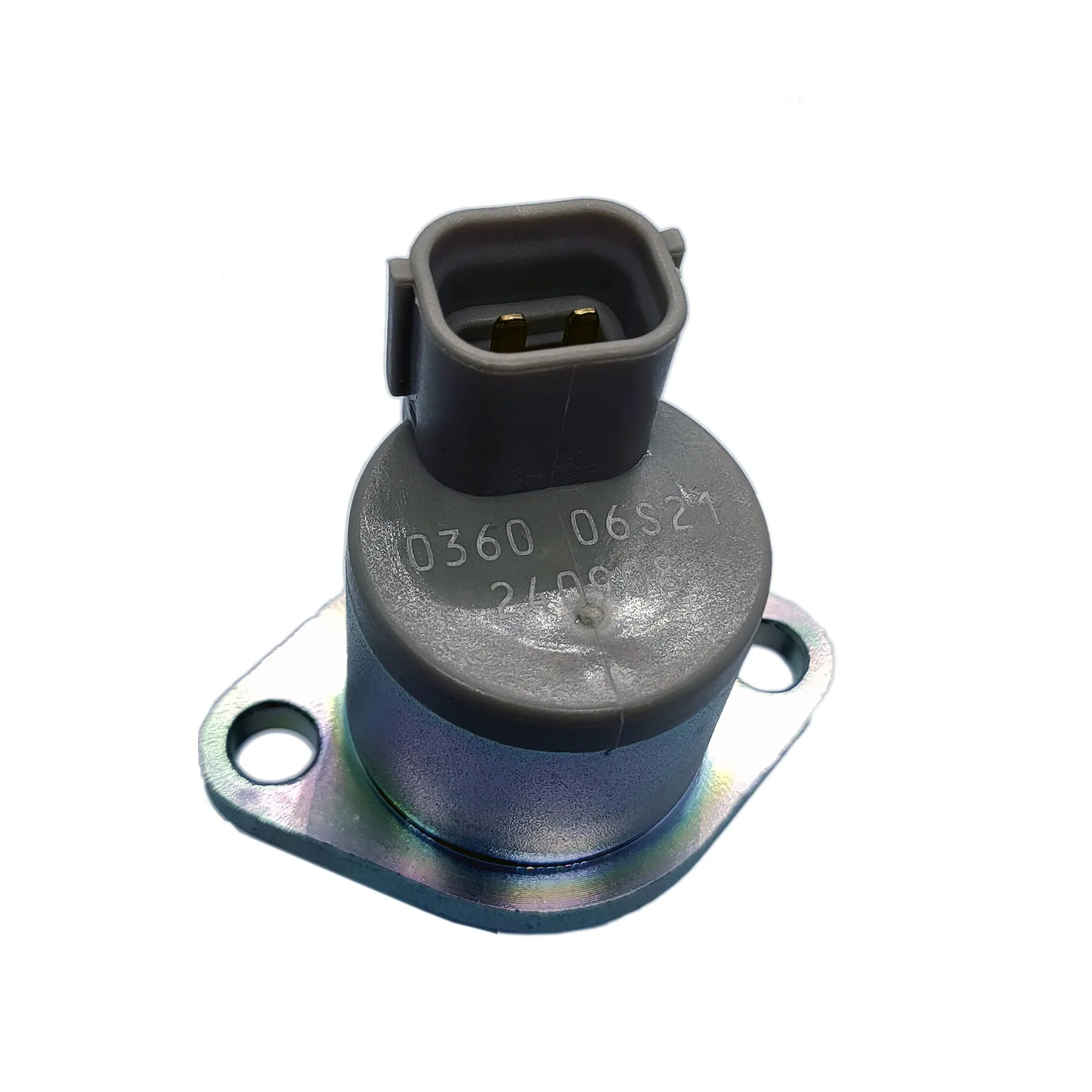

This is the short-body valve with a 2-pin plug. Compare it with your original before ordering - it matches numbers 294200-036#, 294200-016# and 294009-026#.
OEM PART NUMBERS
- LR009837
- 1514885
- 6C1Q-9358-AB
OTHER PART NUMBERS
- DCRS300260
- V22-11-0010
- ESCV-NS-000
- 12.24228

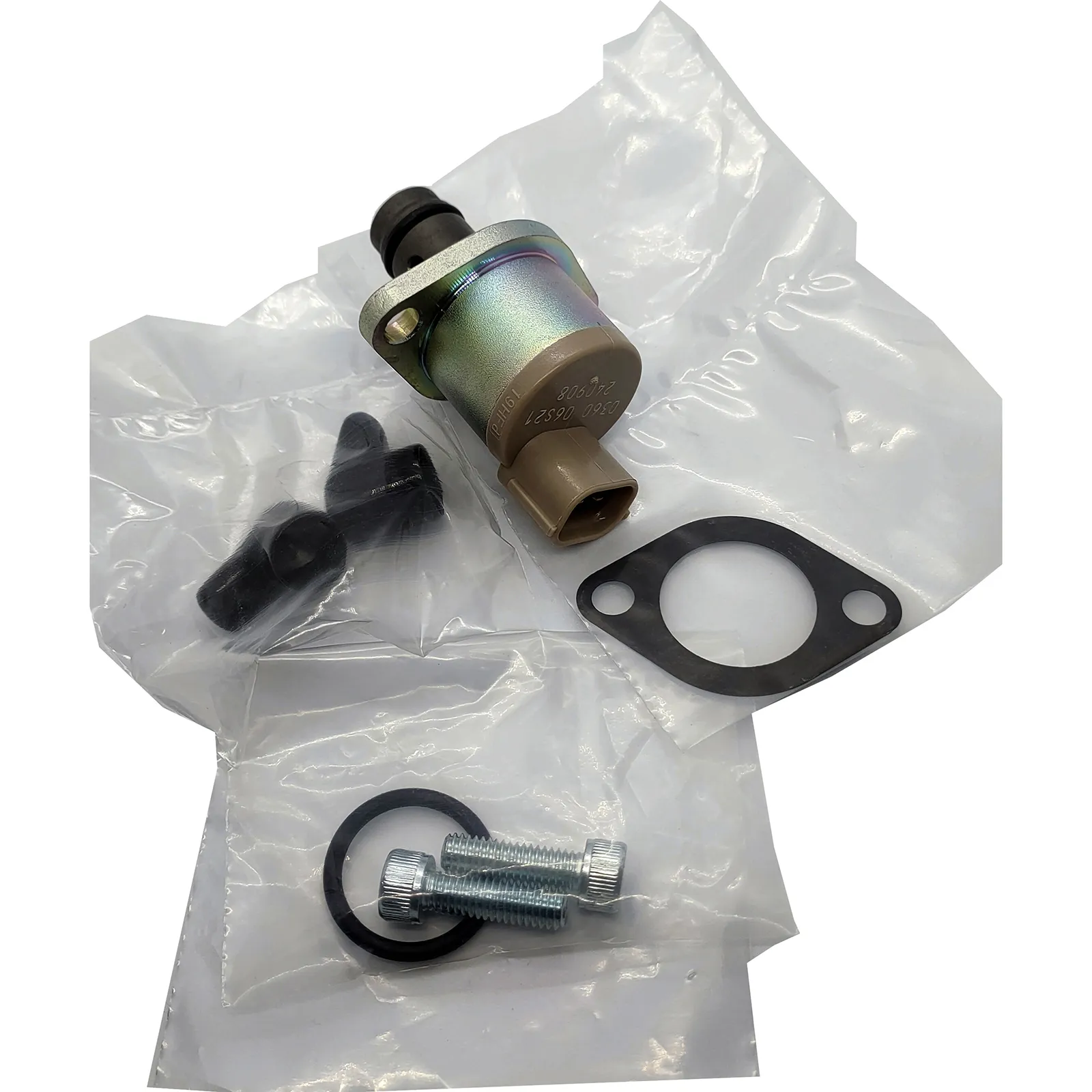

PACKAGE INCLUDES

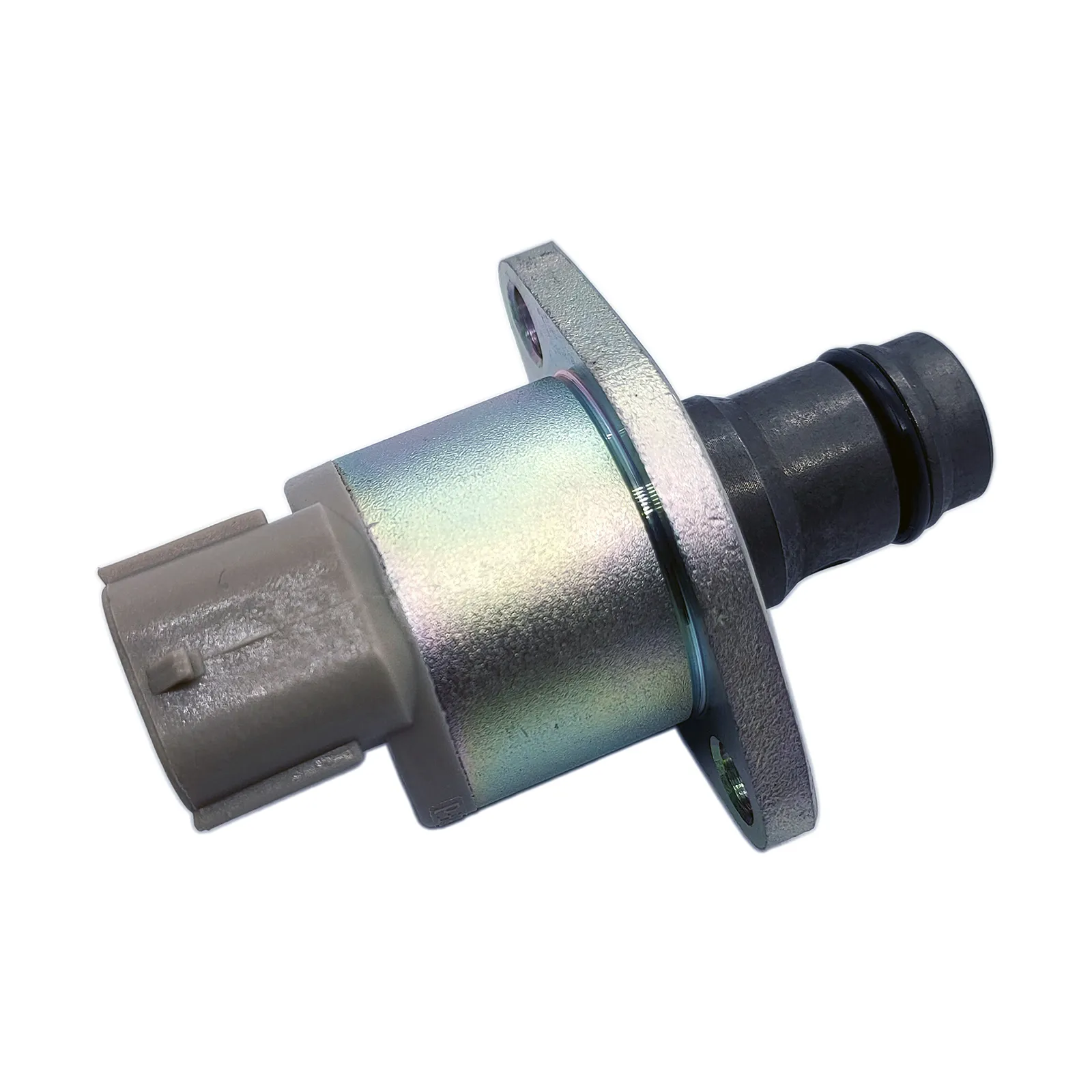

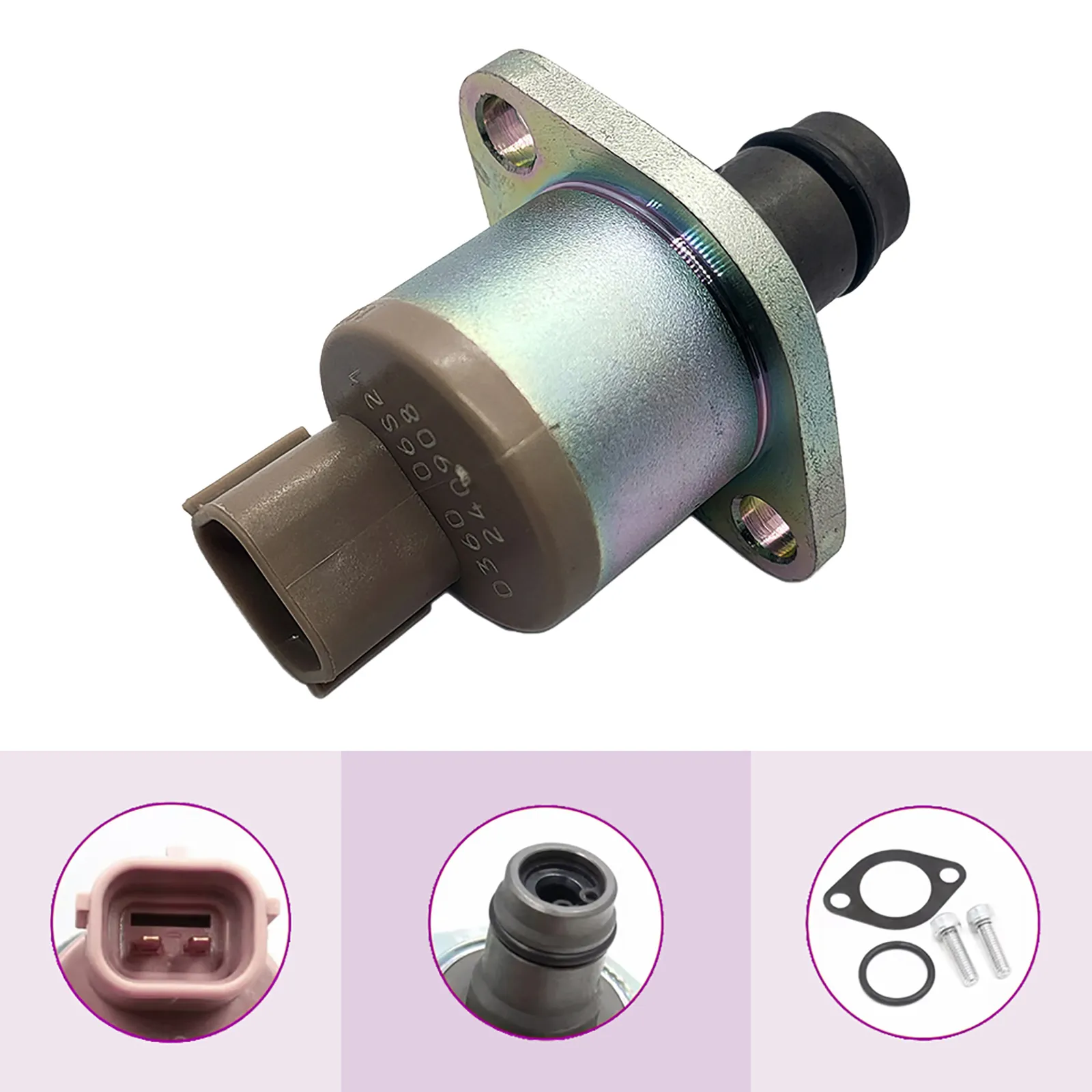

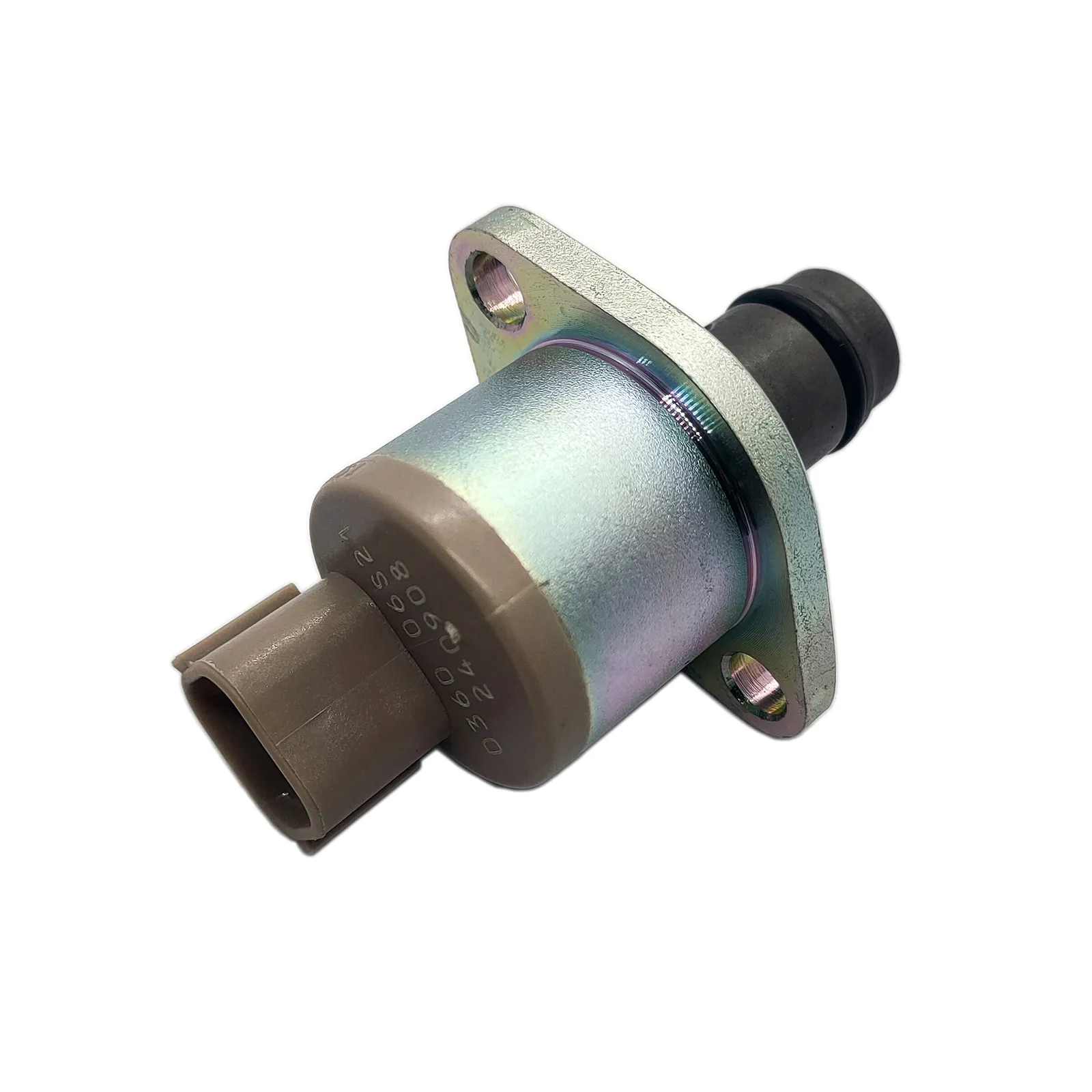

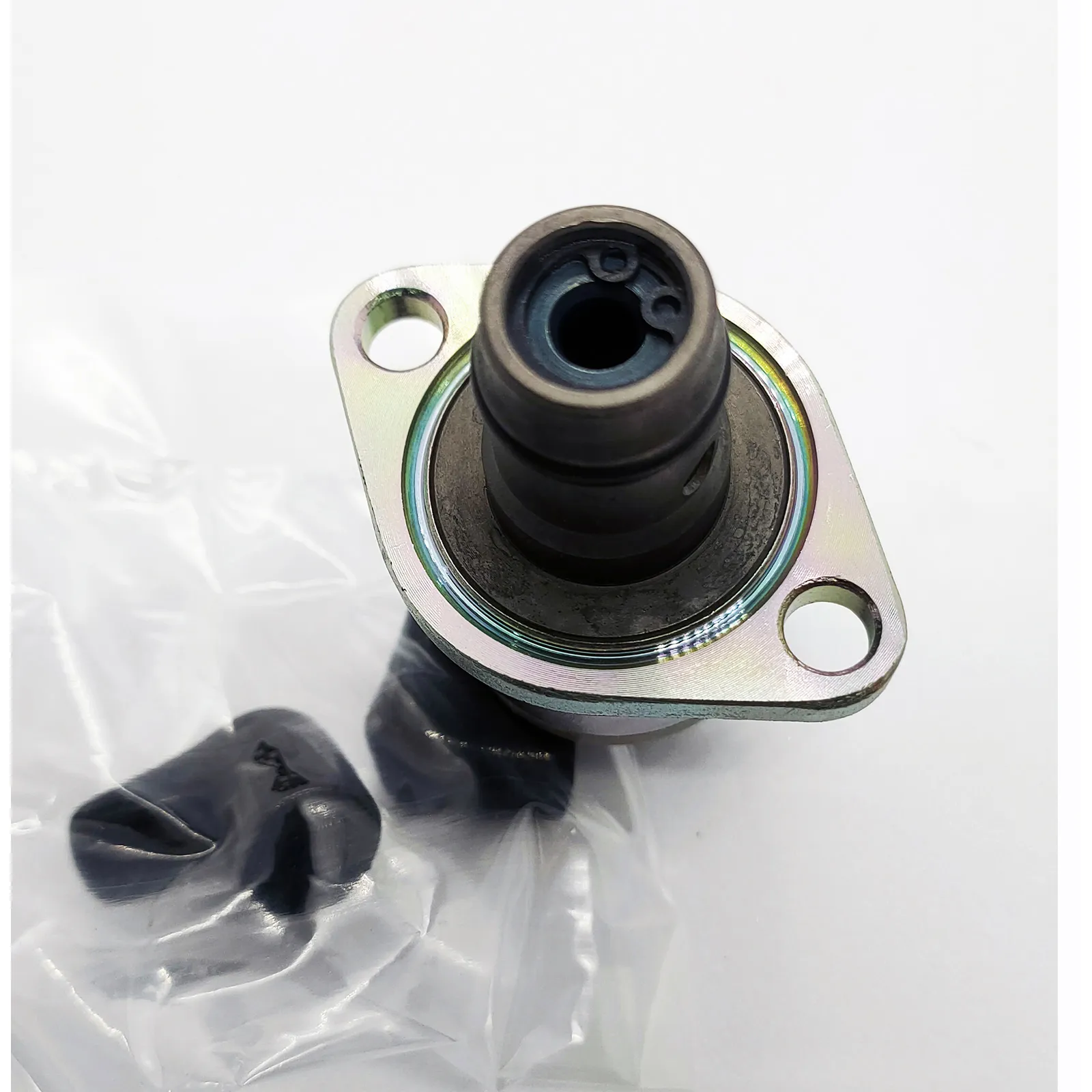

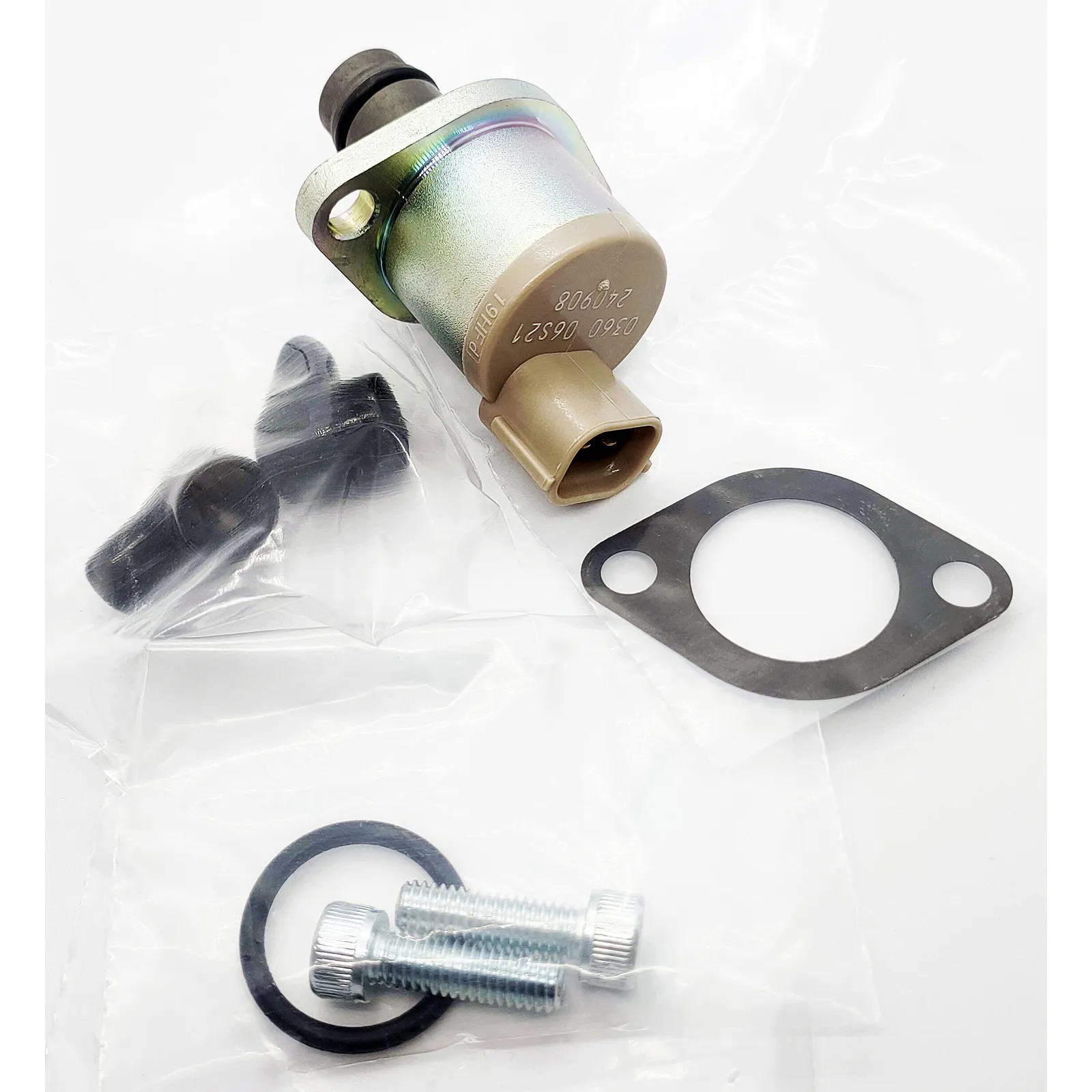

1 x suction control valve (SCV) with 2-pin connector.
ABOUT THIS SENSOR

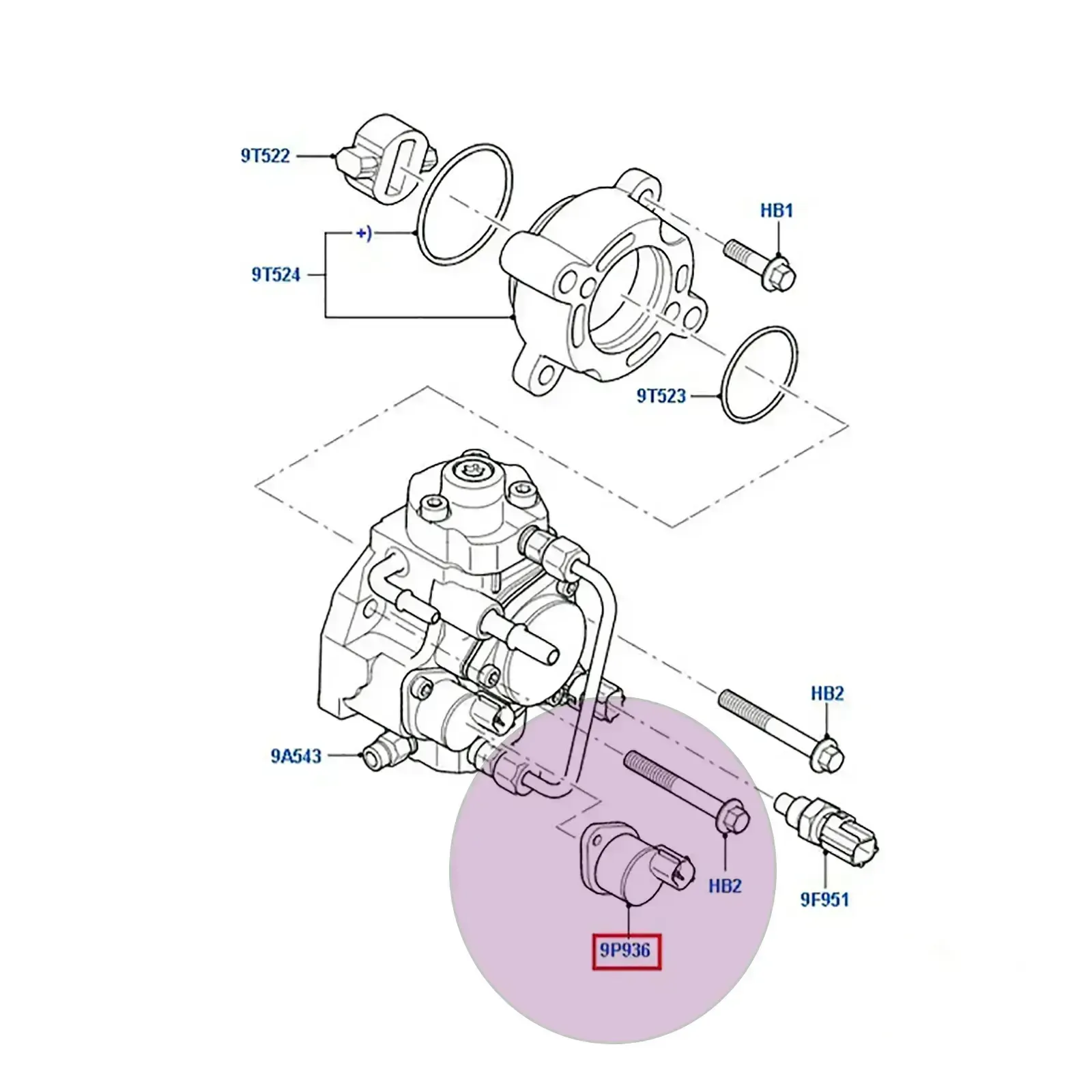

The Puma TD4 meters fuel into its high-pressure pump through this valve. It is what keeps rail pressure steady when the Defender is crawling or under heavy load.
A sticking valve shows up as an idle that rises and falls or a stall when you lift off on a descent. Many owners first see it after a tank of poor fuel.
COMMON SYMPTOMS OF FAILURE
- Hunting or surging idle
- Stalling when lifting off the throttle
- Hard starting
- Fault code P0087 or P0089
- Loss of power climbing
- [05/07 - 02/16] LAND ROVER DEFENDER L316 TD4 (2.4L 4cyl DT244(PUMA) 90kW)
- [10/06 - 02/16] LAND ROVER DEFENDER L316 Td4 (2.4L 4cyl DT244(PUMA) 90kW)
- [05/07 - 02/16] LAND ROVER DEFENDER L317 Td4 (2.4L 4cyl DT244(PUMA) 90kW)
What does a suction control valve (SCV) do?
The suction control valve (SCV) regulates the amount of fuel drawn into the high-pressure injection pump on common rail diesel engines. By controlling fuel intake at the pump inlet, the SCV allows the ECU to vary rail pressure from low idle pressure to maximum full-load pressure. This precise pressure control is essential for the accurate fuel metering that modern common rail diesel engines require for performance, fuel economy, and emissions compliance.
What are the symptoms of a failing suction control valve?
Common symptoms include rough or unstable idle, hard starting particularly from cold, the engine entering limp mode with reduced power, excessive black or white smoke from the exhaust, loss of power under load, and a Check Engine light with fuel rail pressure fault codes. SCVs can also fail intermittently due to contamination from degraded fuel, causing symptoms that appear and disappear without a consistent pattern.
Can a dirty suction control valve be cleaned?
Yes - if the SCV is sticking due to fuel contamination or varnish deposits rather than mechanical wear, cleaning with diesel injector cleaner or fuel system cleaner can sometimes restore operation. Remove the valve and spray cleaner through it while working the valve manually. However if the SCV solenoid has failed electrically or the valve body is mechanically worn, cleaning will not restore correct function and replacement is required.
Is there a difference between the suction control valve and the pressure control valve?
Yes - these are two different valves in the common rail fuel system. The suction control valve (SCV) is fitted to the inlet side of the high-pressure pump and controls how much fuel enters the pump. The pressure control valve (PCV) is fitted to the fuel rail or pump outlet and bleeds off excess pressure to maintain the correct rail pressure. Both affect fuel rail pressure but from opposite ends of the system. Fault codes will specify which valve is affected.
Will a faulty SCV cause the engine not to start?
A severely failed SCV can prevent the engine from starting if it causes rail pressure to be too low for injection to occur. More commonly a failing SCV causes hard starting with extended cranking before the engine fires. On cold mornings the symptoms are often worse as fuel viscosity is higher and rail pressure is harder to build. If the engine cranks normally but will not fire, checking fuel rail pressure with a scan tool will confirm if the SCV is the cause.
How long do suction control valves last?
SCVs are wear items that typically last the life of the vehicle under normal conditions with clean fuel. Premature failure is most commonly caused by contaminated fuel, extended oil service intervals (which affects fuel quality in the pump), or the use of poor-quality fuel. Vehicles used in dusty environments or operated with low fuel levels frequently are more susceptible to SCV wear. Replacing the SCV at the first sign of symptoms prevents more expensive injection pump damage.
| Identification | |
|---|---|
| Brand | Aftermarket OEM Replacement |
| Part Numbers | |
| Part Number | SVSC100 |
| Reference OEM Number | LR009837 |
| Other OEM Numbers | LR009837, 1514885, 6C1Q-9358-AB |
| Related Part Numbers | VSC100GEN VSC100 |
| Interchange Part Numbers | V22-11-0010, ESCV-NS-000, DCRS300260 |
| Product Specifics | |
| Product Type | SUCTION CONTROL VALVE |
| Fitting Position | Fuel Injection Pump |
| Number of pins | 2-Pin |
| Injection System | Common Rail |
| Valve Type | Control Valve |
| Compatible Makes | Land Rover |
| Fitment Type | Direct Replacement |
| Other Details | |
| Note | Short body valve - compare with your original before ordering |
