Name: Oxygen Sensor Holden Commodore VZ Adventra Berlina Crewman Calais 3.6L
Brand: Aftermarket OEM Replacement
SKU: EGO136-VZ
Price: 143.66 AUD
Availability: InStock

BRAND NEW *OEM Quality* wideband oxygen sensor (broadband lambda) to suit Holden Commodore VZ / Adventra VZ / Berlina VZ / Calais VZ / Crewman VZ / One Tonner VZ / Caprice WL / Statesman WL 3.6L V6.

If your VZ Commodore or Statesman has a Check Engine light with O2 sensor codes, is running rich, or showing poor fuel economy, a failed wideband lambda sensor is a common cause. This is the pre-cat upstream sensor - dispatched same-day before 12pm from Cranbourne VIC.

TO SUIT

Designed for Holden VZ Commodore Sedan/Ute/Wagon 3.6L V6 (HB/LE0/LY7 engines, 2004-2007), Adventra VZ Wagon 3.6L AWD, Berlina VZ Sedan and Wagon 3.6L, Calais VZ Sedan 3.6L, Crewman VZ Ute 3.6L (including 4x4), One Tonner VZ Ute 3.6L (FWD and AWD), Caprice WL Sedan 3.6L, and Statesman WL Sedan 3.6L VVT. Covers petrol and dual fuel LPG variants.

FITMENT CHECK

This sensor fits the left bank (pre-cat upstream) position on the Adventra VZ. Confirm which bank you are replacing before ordering. All other VZ/WL applications fit the single pre-cat position.

OEM PART NUMBERS

12575904
5JX0658290
92068286

OTHER PART NUMBERS

Bosch: 0258007200
Bosch: 0258987003
Bosch: 0258007057
Bosch: 0258017123
Continental/VDO: A2C59515232
Pierburg: 7.18222.11.0
HELLA: 6PP 009 400-531
VEMO: V25-72-0064-1
Tridon: EGO-136 / OX426
Walker Products: 225-1067
NTK-AU: EPBMPT4-A036Z

PACKAGE INCLUDES

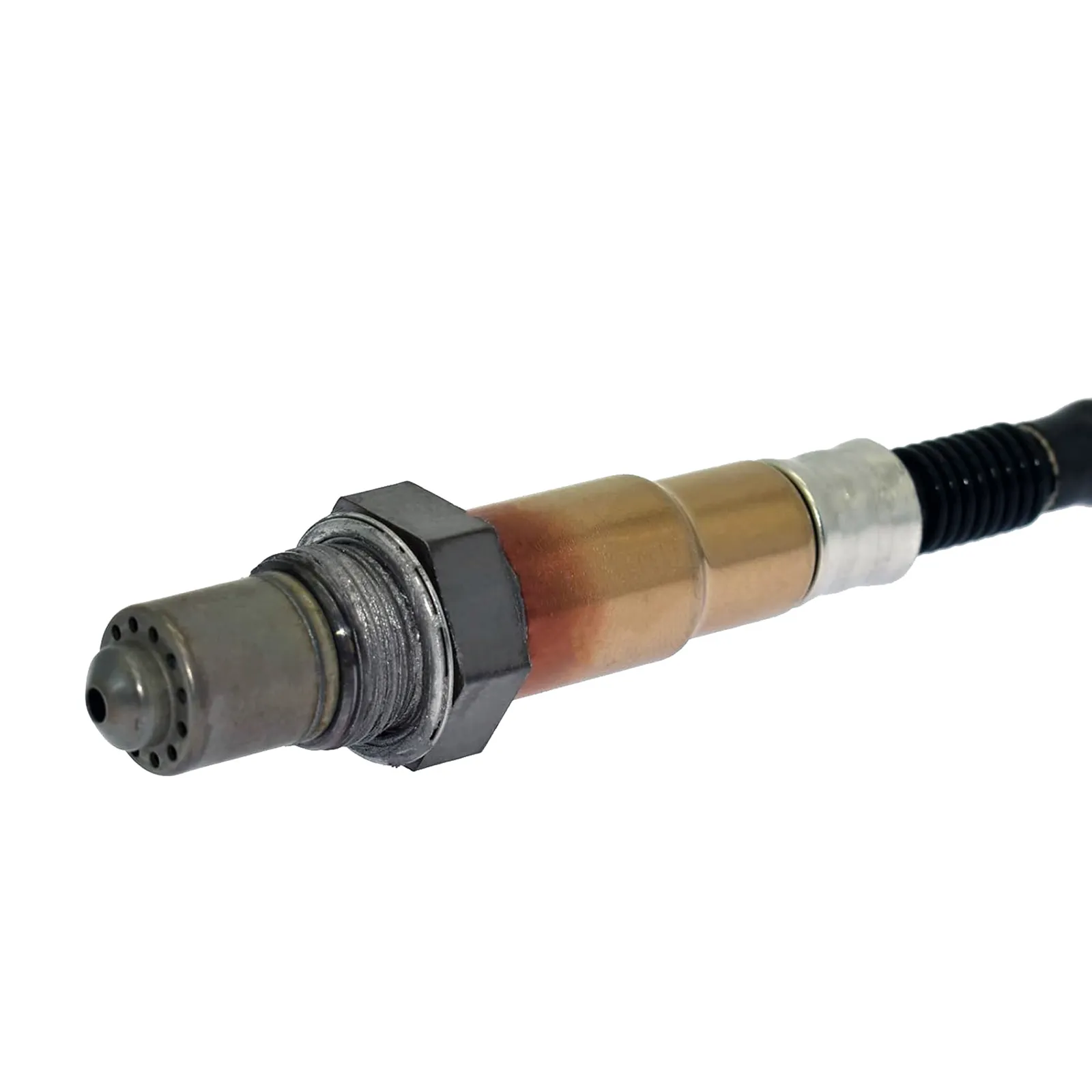

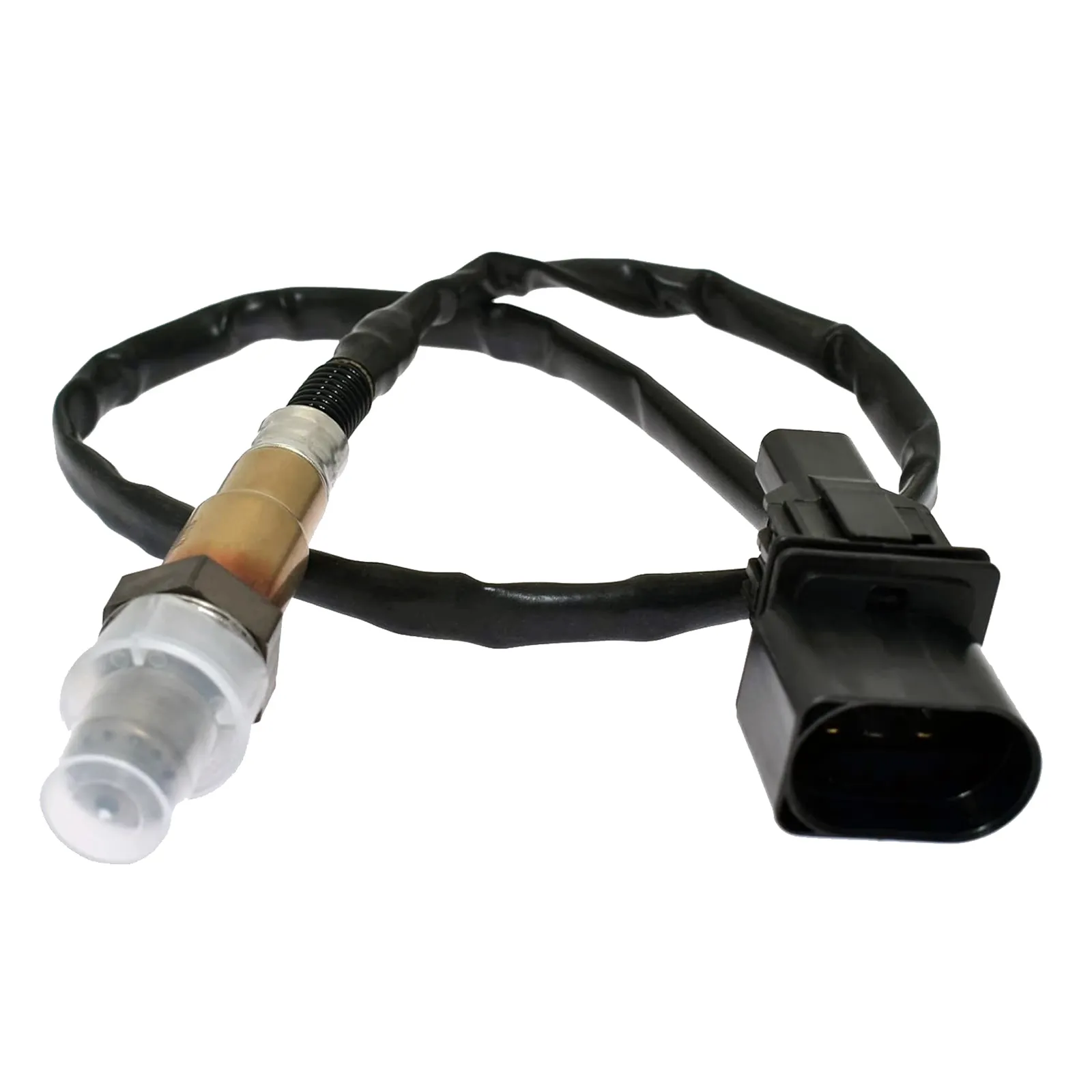

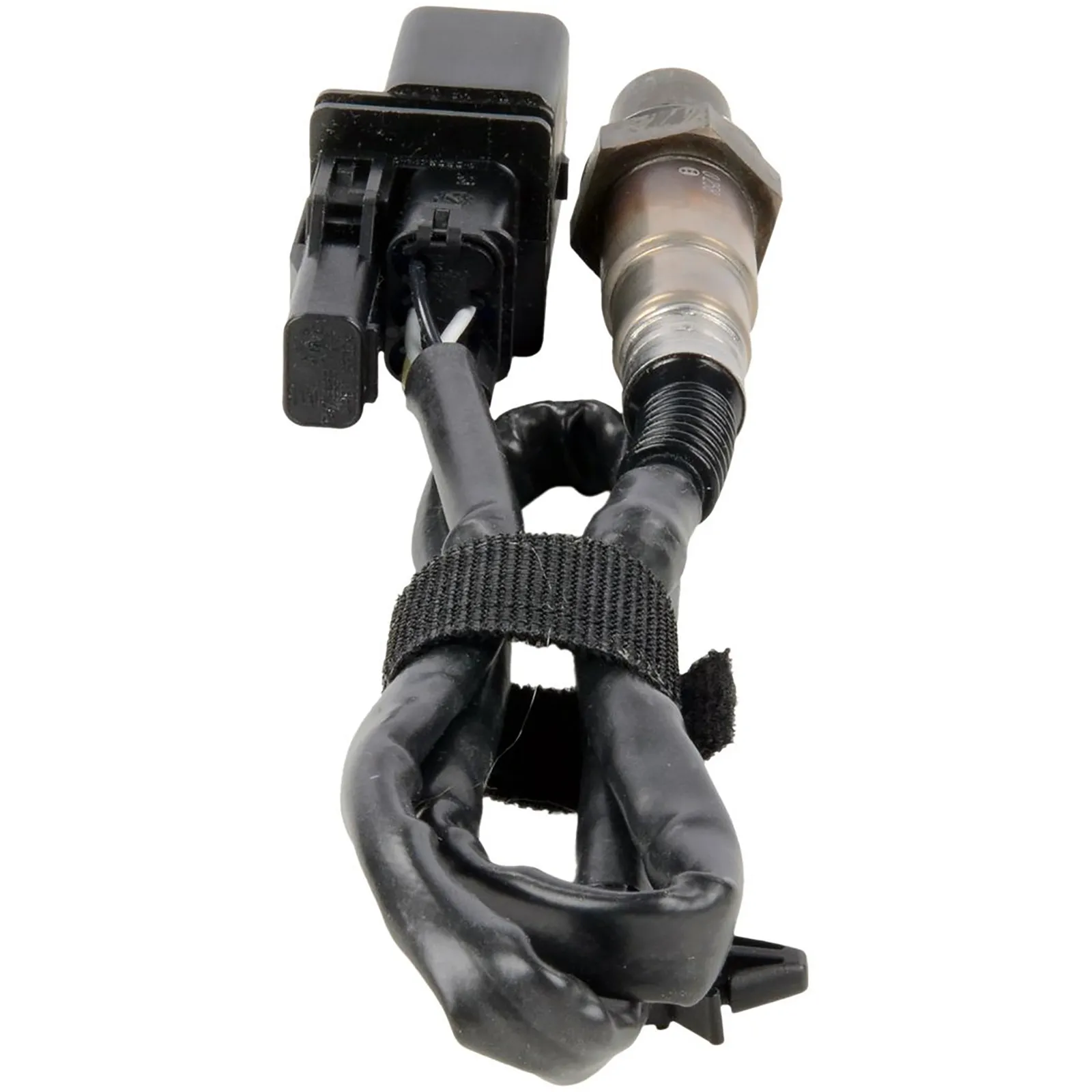

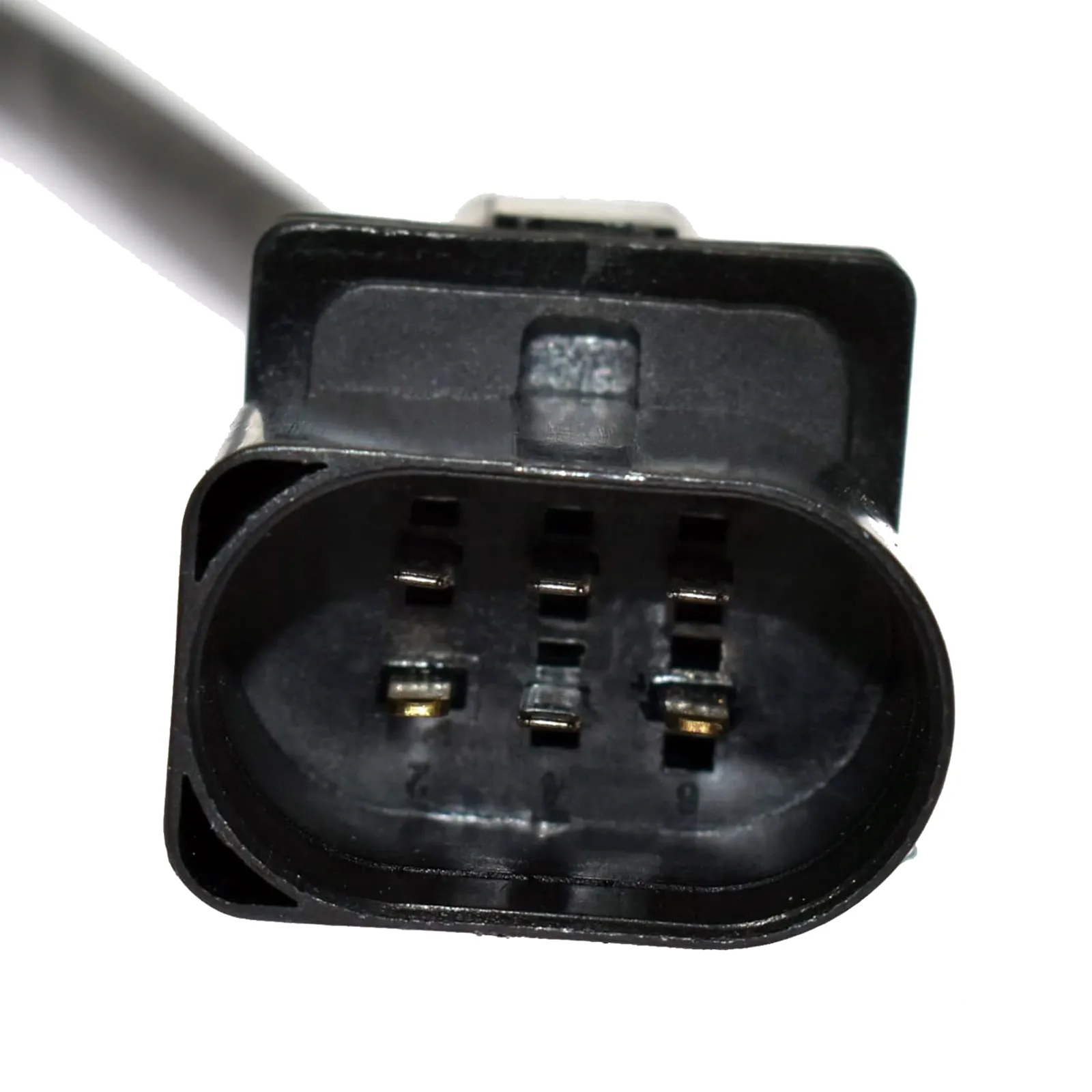

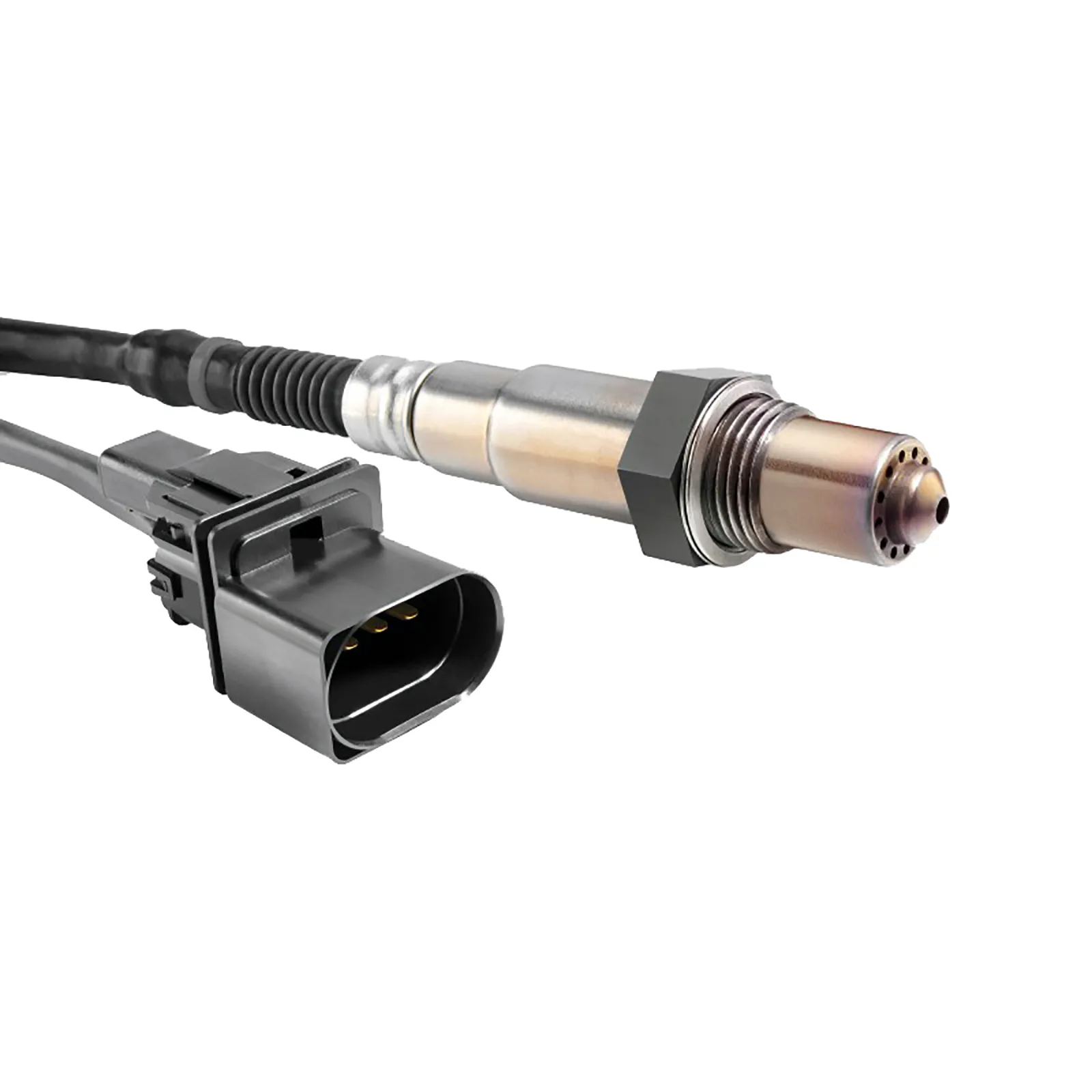

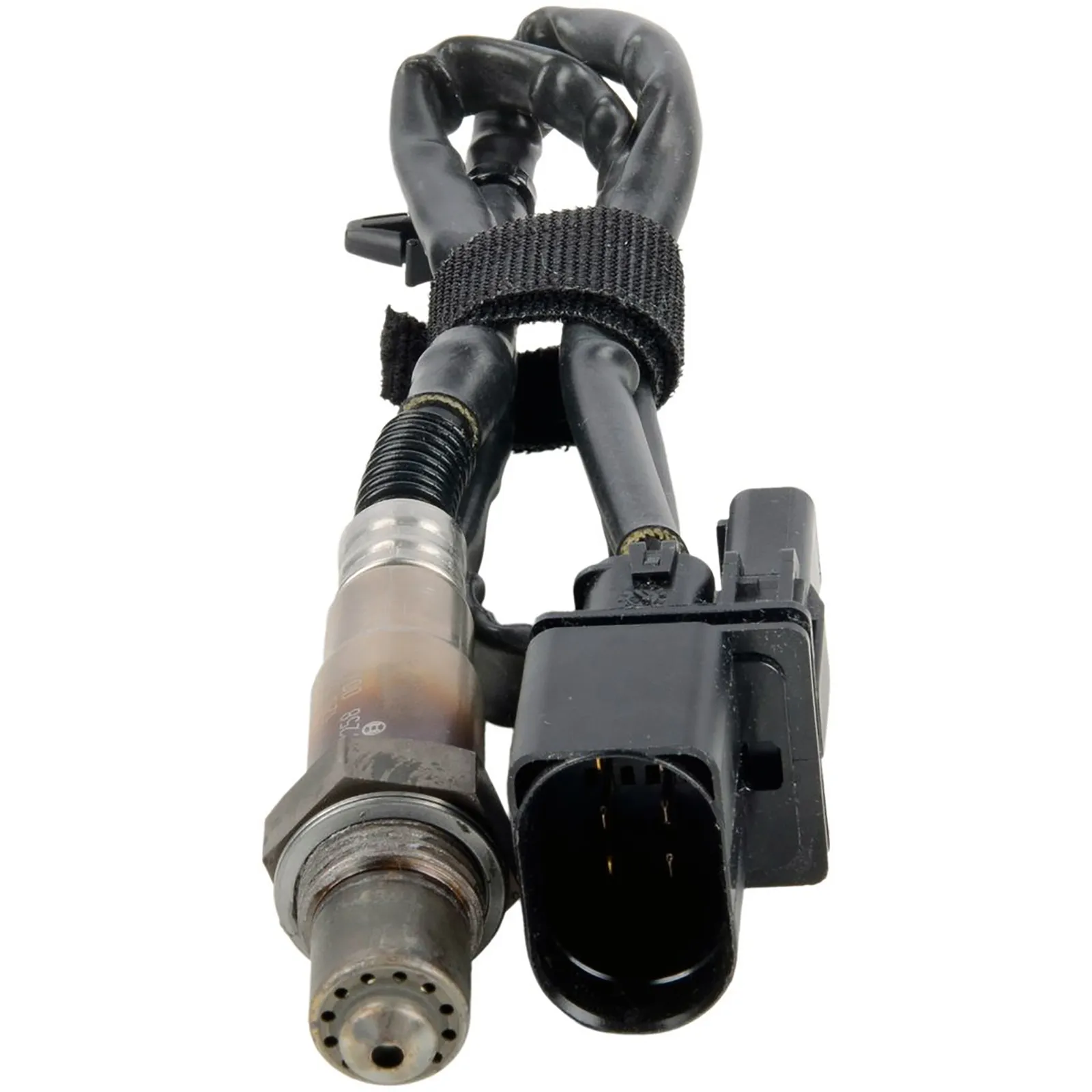

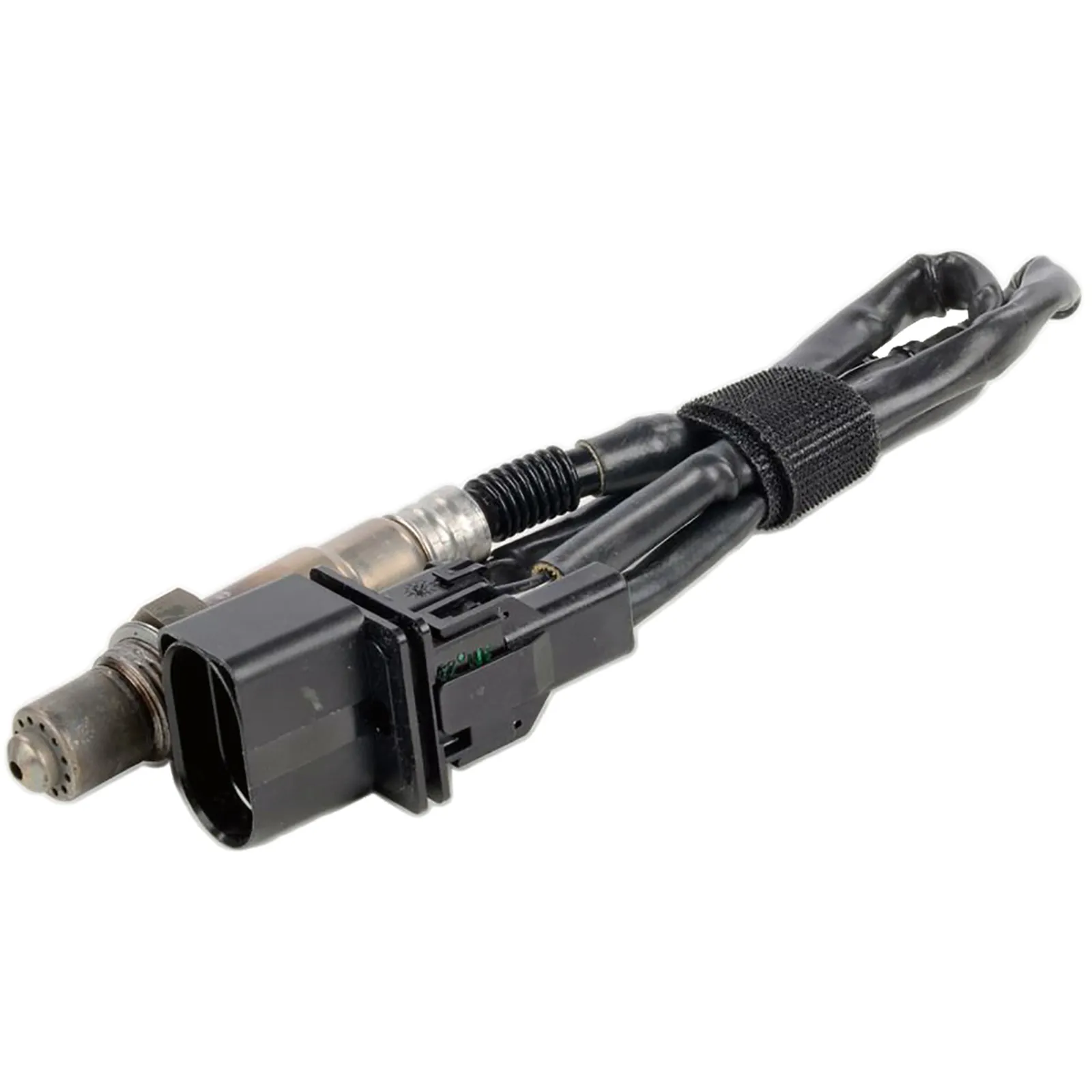

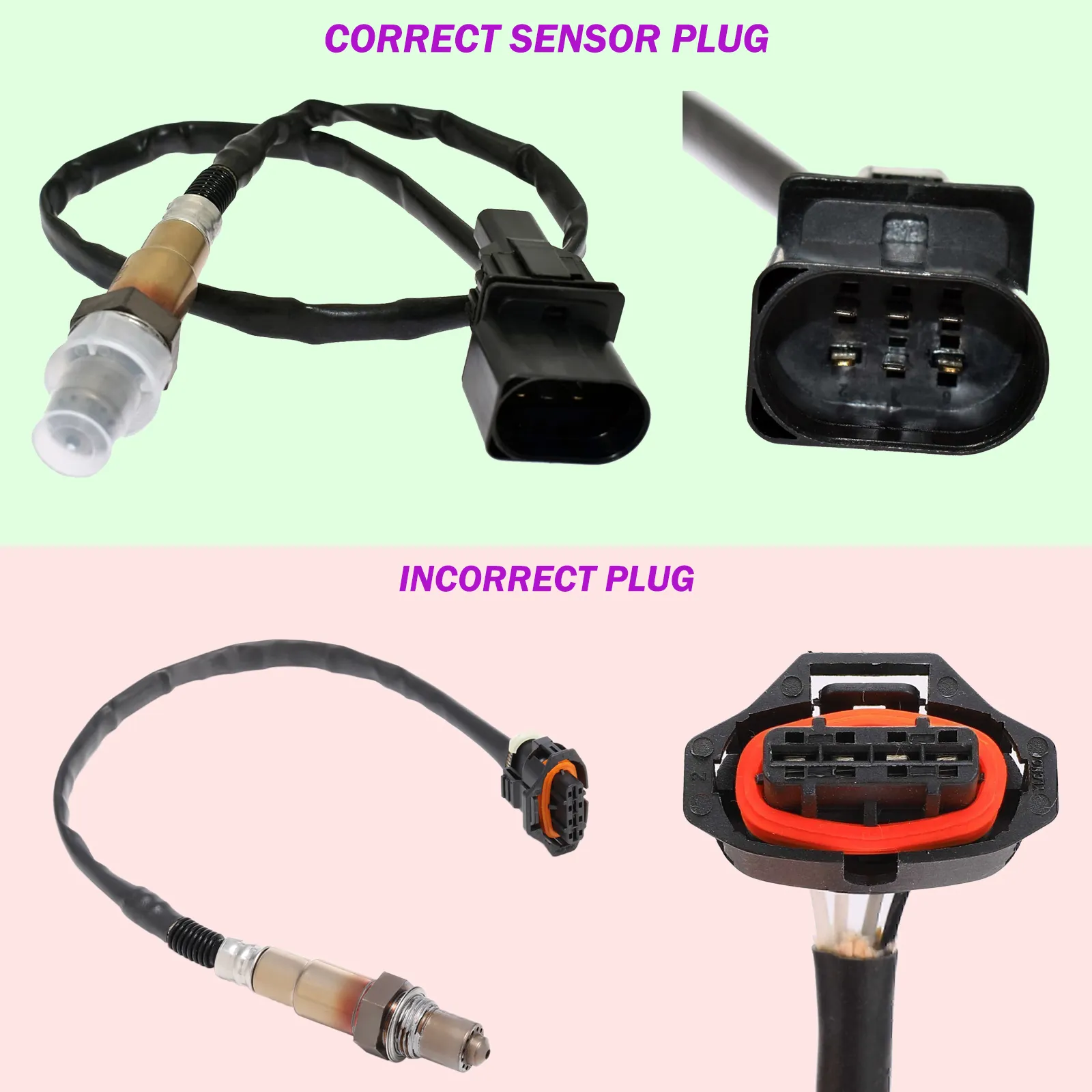

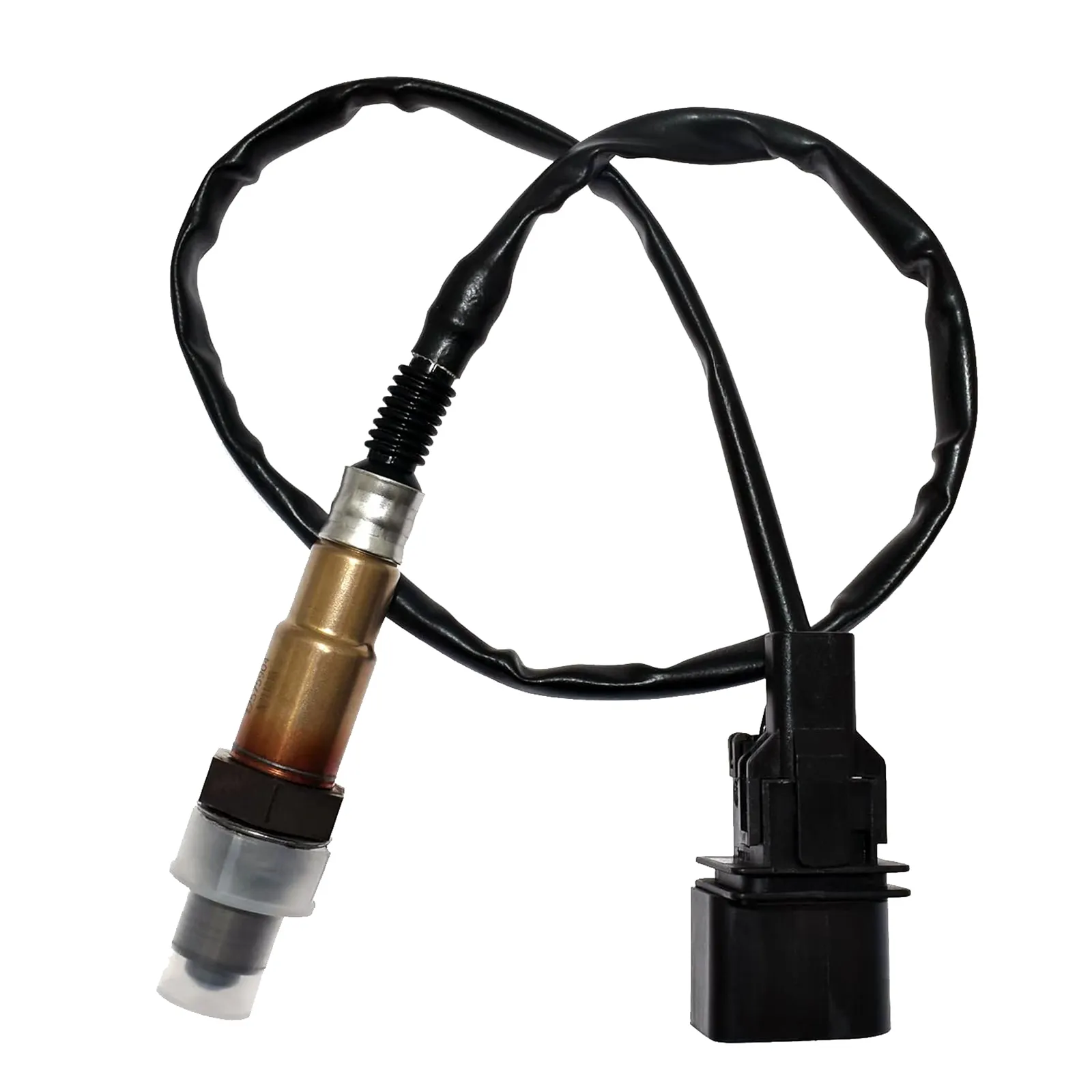

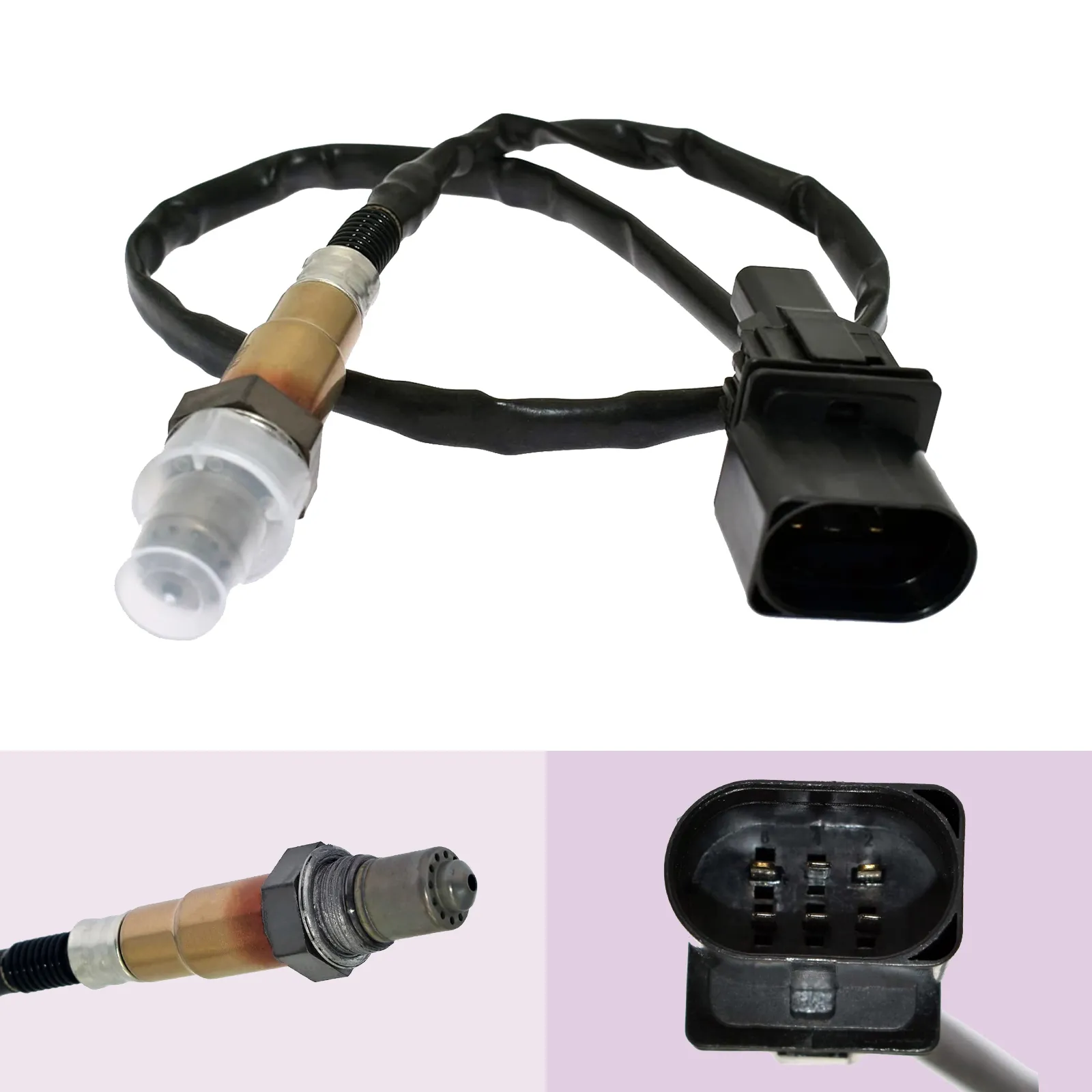

1 x BRAND NEW wideband oxygen / lambda sensor. 6-pin connector, 5-wire, M18x1.5 thread, 670mm cable. Pre-cat fitment. Direct plug-in replacement - no wiring modification required.

ABOUT THIS SENSOR

This is a broadband wideband lambda sensor (LSU 4.2 type) - not a standard narrowband O2 sensor. The wideband sensor measures a much wider range of air-fuel ratios, providing the ECU with precise fuel mixture feedback across the full operating range rather than just a rich/lean signal.

On the 3.6L Alloytec V6 engine in the VZ Commodore and WL Statesman, the wideband lambda sensor is mounted upstream before the catalytic converter. A failing sensor causes the ECU to run on open-loop fuel control, leading to rich running, increased fuel consumption, and loss of power.

COMMON SYMPTOMS OF FAILURE

Check Engine light with codes P0130 P0131 P0132 P0133 P0134 P0135 P0136
Engine running rich - increased fuel consumption or black smoke
Loss of power or flat spots in acceleration
Failed emissions test
Poor idle quality or hesitation
Catalytic converter damage from prolonged rich running

[09/04 - 07/07] HOLDEN COMMODORE VZ Sedan 3.6L V6 HB/ LE0 175kW
[09/04 - 07/06] HOLDEN COMMODORE VZ Sedan 3.6L V6 HB/ LE0 175kW
[09/04 - 06/06] HOLDEN COMMODORE VZ SV6 Sedan 3.6L V6 H7/ LY7 190kW
[02/06 - 08/07] HOLDEN COMMODORE VZ Sedan 3.6L V6 LY7 190kW
[09/04 - 07/07] HOLDEN COMMODORE VZ Sedan 3.6L V6 Dual Fuel LPG HN/ LE0/ LW2 175kW
[08/05 - 06/06] HOLDEN COMMODORE VZ Sedan 3.6L V6 Dual Fuel LPG HN/ LE0/ LW2 175kW
[09/04 - 07/07] HOLDEN COMMODORE VZ Ute 3.6L V6 HB/ LE0 175kW
[09/04 - 06/06] HOLDEN COMMODORE VZ Ute 3.6L V6 LY7 190kW AWD
[09/04 - 07/07] HOLDEN COMMODORE VZ Ute 3.6L V6 Dual Fuel LPG 175kW
[09/04 - 07/07] HOLDEN COMMODORE VZ Wagon 3.6L V6 175kW
[09/04 - 07/07] HOLDEN COMMODORE VZ Wagon 3.6L V6 Dual Fuel LPG 175kW
[02/06 - 07/06] HOLDEN ADVENTRA VZ Wagon 3.6L V6 H7/ LY7 188kW AWD
[03/05 - 01/06] HOLDEN ADVENTRA VZ Wagon 3.6L V6 H7/ LY7 190kW AWD
[05/06 - 07/09] HOLDEN ADVENTRA VZ Wagon 3.6L V6 H7/ LY7 195kW AWD
[09/04 - 06/06] HOLDEN BERLINA VZ Sedan 3.6L V6
[09/04 - 06/06] HOLDEN BERLINA VZ Wagon 3.6L V6
[09/04 - 06/06] HOLDEN CALAIS VZ Sedan 3.6L V6 HV 190kW
[08/04 - 12/07] HOLDEN CREWMAN VZ Ute 3.6L V6 HB/ LE0 175kW-180kW
[08/04 - 12/07] HOLDEN CREWMAN VZ Ute 3.6L V6 4x4 190kW
[11/04 - 12/05] HOLDEN ONE TONNER VZ Ute 3.6L V6 HB/ LE0 175kW
[11/04 - 12/05] HOLDEN ONE TONNER VZ Ute 3.6L V6 AWD 175kW
[08/04 - 07/06] HOLDEN CAPRICE WL Sedan 3.6L V6 H7/ LY7 190kW
[08/04 - 07/06] HOLDEN STATESMAN WL Sedan 3.6L V6 VVT H7/ LY7 190kW

How do I replace an oxygen sensor?

Most O2 sensors thread directly into the exhaust pipe or manifold. You will need an O2 sensor socket (22mm with a slot for the wire) and penetrating oil if the sensor is seized. Allow the exhaust to cool completely before starting. Some sensors also require a wiring harness connector to be unplugged. Always clear fault codes with an OBD2 scanner after replacement.

What fault codes does a faulty O2 sensor trigger?

A faulty O2 sensor typically triggers codes P0130 to P0167. The specific code indicates which sensor has failed - P0130 to P0138 relate to Bank 1 sensors and P0150 to P0158 relate to Bank 2 sensors. An OBD2 scanner will identify the exact sensor location.

Can I use a universal O2 sensor on my vehicle?

Universal sensors can work but require splicing the wiring harness which introduces risk of connection faults. A direct-fit aftermarket OEM replacement sensor with the correct connector plugs directly in with no cutting or splicing required. SensorGal stocks direct-fit sensors cross-referenced to OEM part numbers for most Australian vehicles.

How do I know if my O2 sensor is bad?

Common signs include poor fuel economy, rough idle, failed emissions test, rotten egg smell from the exhaust, and a Check Engine light with codes P0130-P0167. An OBD2 scanner showing a flat or sluggish O2 sensor waveform on live data also indicates a faulty sensor.

What is the difference between upstream and downstream O2 sensors?

The upstream (pre-cat) sensor monitors exhaust gases to help the ECU calculate fuel trim. The downstream (post-cat) sensor monitors catalytic converter efficiency. They serve different functions and are not interchangeable even if they look identical.

Can a bad O2 sensor damage my catalytic converter?

Yes. A faulty upstream O2 sensor can cause the engine to run rich, sending unburnt fuel into the catalytic converter. Over time this overheats and destroys the catalyst. Replacing the O2 sensor promptly protects your catalytic converter.

How many O2 sensors does my vehicle have?

Most 4-cylinder vehicles have two O2 sensors (one upstream, one downstream). V6 and V8 engines typically have four - one upstream and one downstream per bank. Contact us with your vehicle details and we will confirm the correct quantity and part numbers.

Identification
SKU	EGO136-VZ
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	EGO-136
Reference OEM Number	12575904
Other OEM Numbers	12575904, 5JX0658290
Related Part Numbers	EGO-136, OX426, 0258007200, 0258987003
Trade Part Numbers	Bosch: 0258007057, 0258017123
Product Specifics
Type	Oxygen / Lambda Sensor
Thread Size	M18x1.5
Number of pins	6-Pin
Emission Standard	Euro 3
Cable Length	670mm
Compatible Makes	Holden
Fitment Type	Direct Replacement
Brand	Aftermarket OEM Replacement
Sensor Sub-Type	Broadband Wideband Lambda
Placement	Pre-Catalytic Converter
Number of Wires	5-Wire
Other Details
Note	Left bank (pre-cat) only on Adventra VZ. Confirm bank before ordering.
