BRAND NEW OEM Quality MAP SENSOR (MANIFOLD ABSOLUTE PRESSURE SENSOR) FOR BMW F22, F23, F30, F32, G42, G87, G20, G80, G22, G82, G30, G01, G02, G05, G07, and G29 TURBOCHARGED models.

OEM# 13 62 8 637 900, 13628637900

PACKAGE INCLUDES:

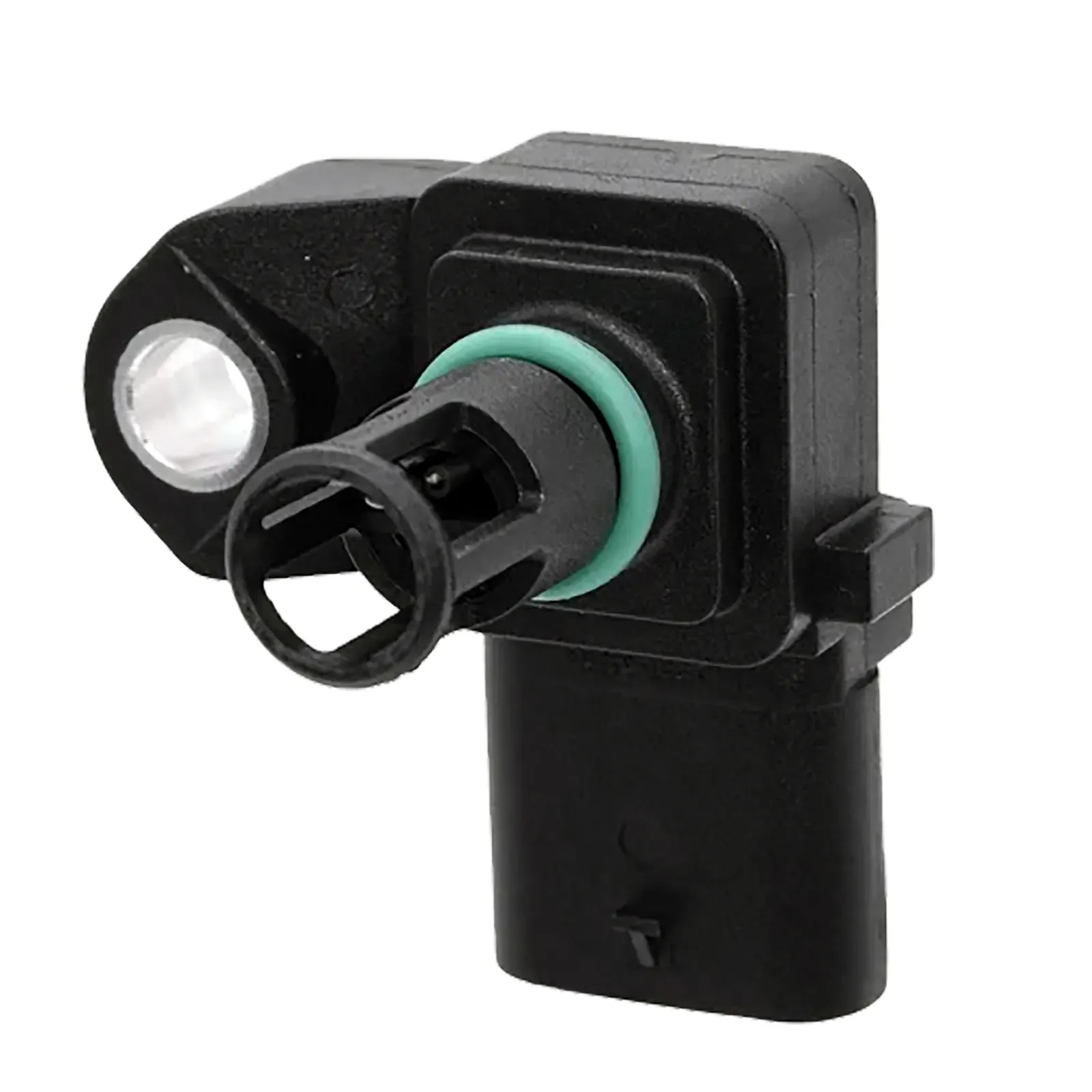

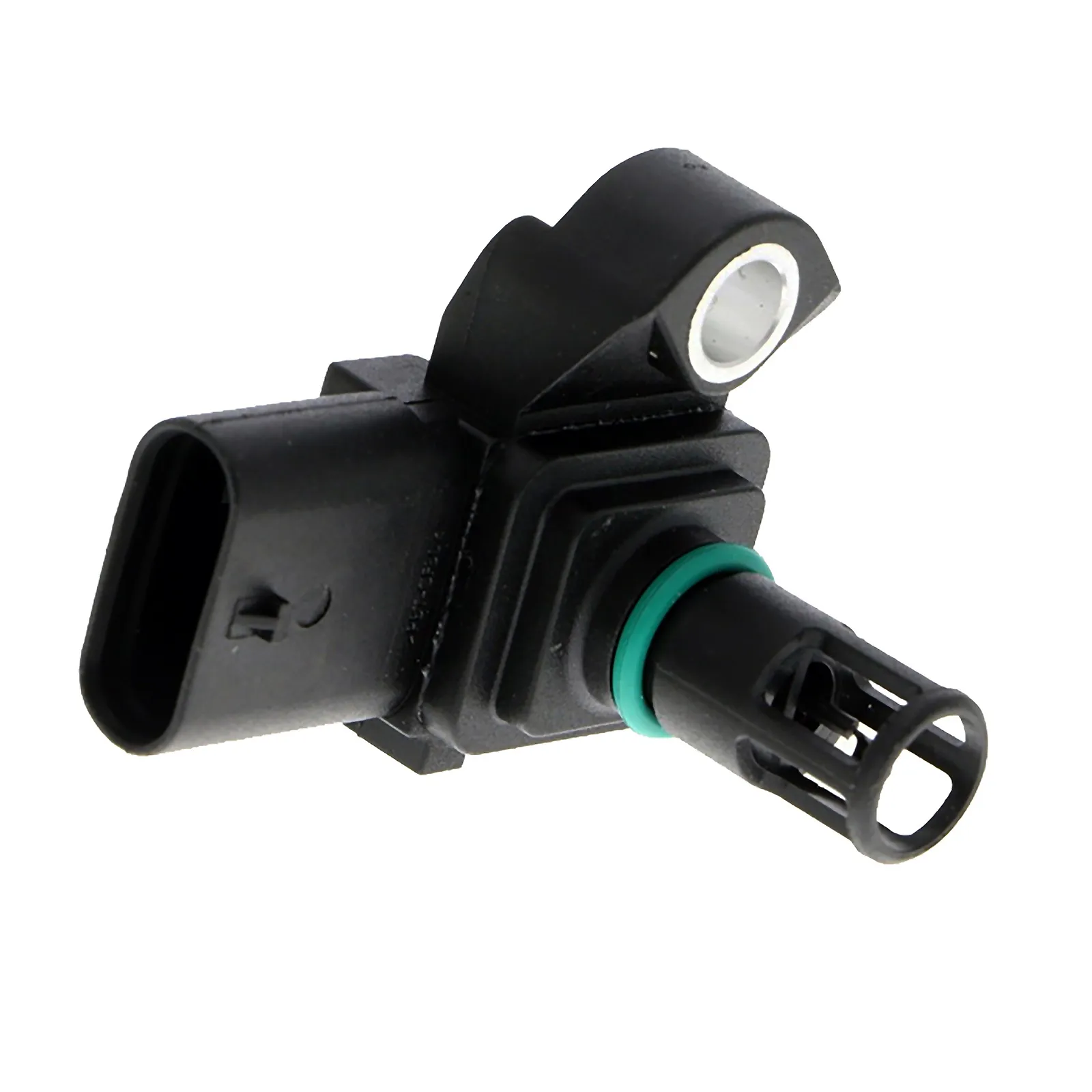

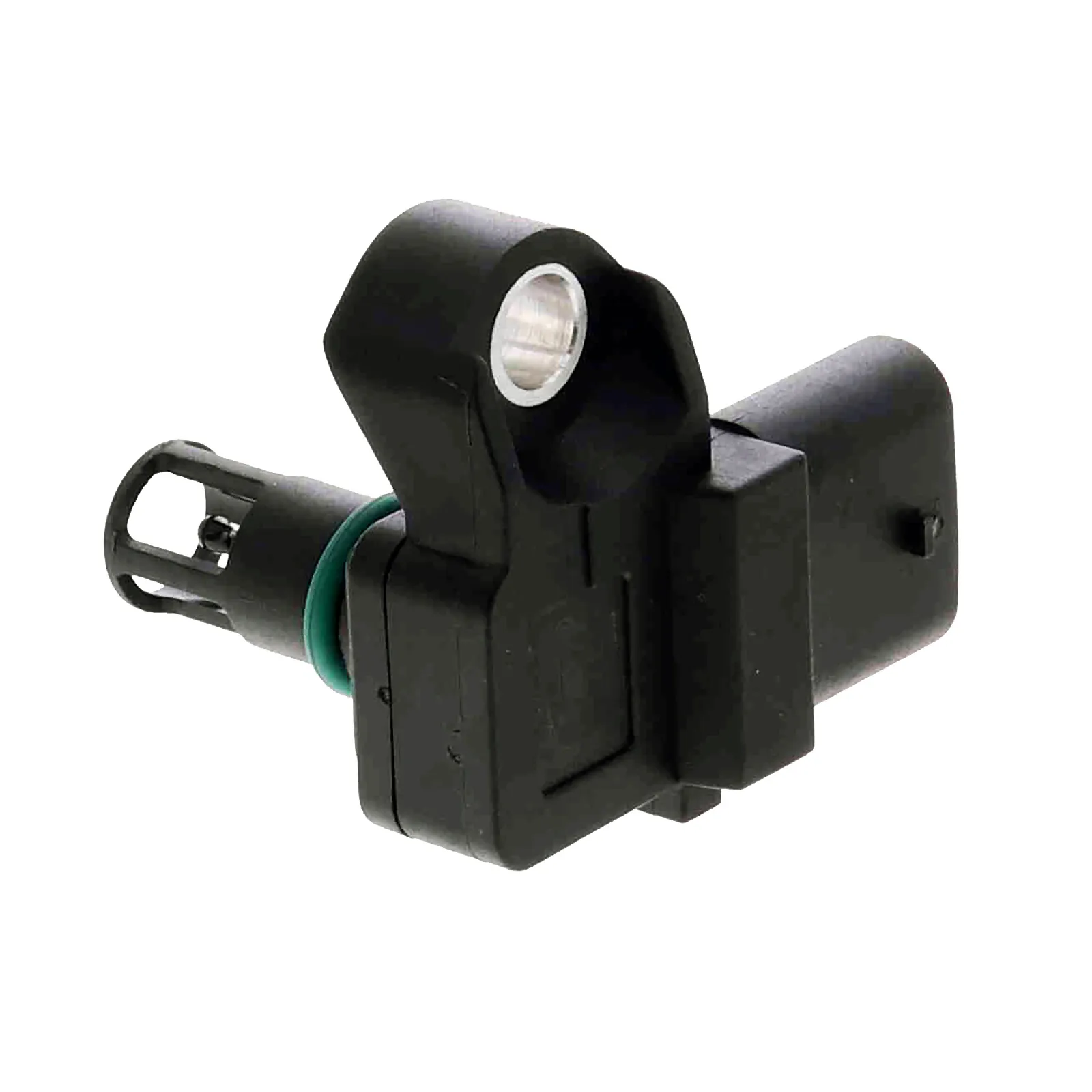

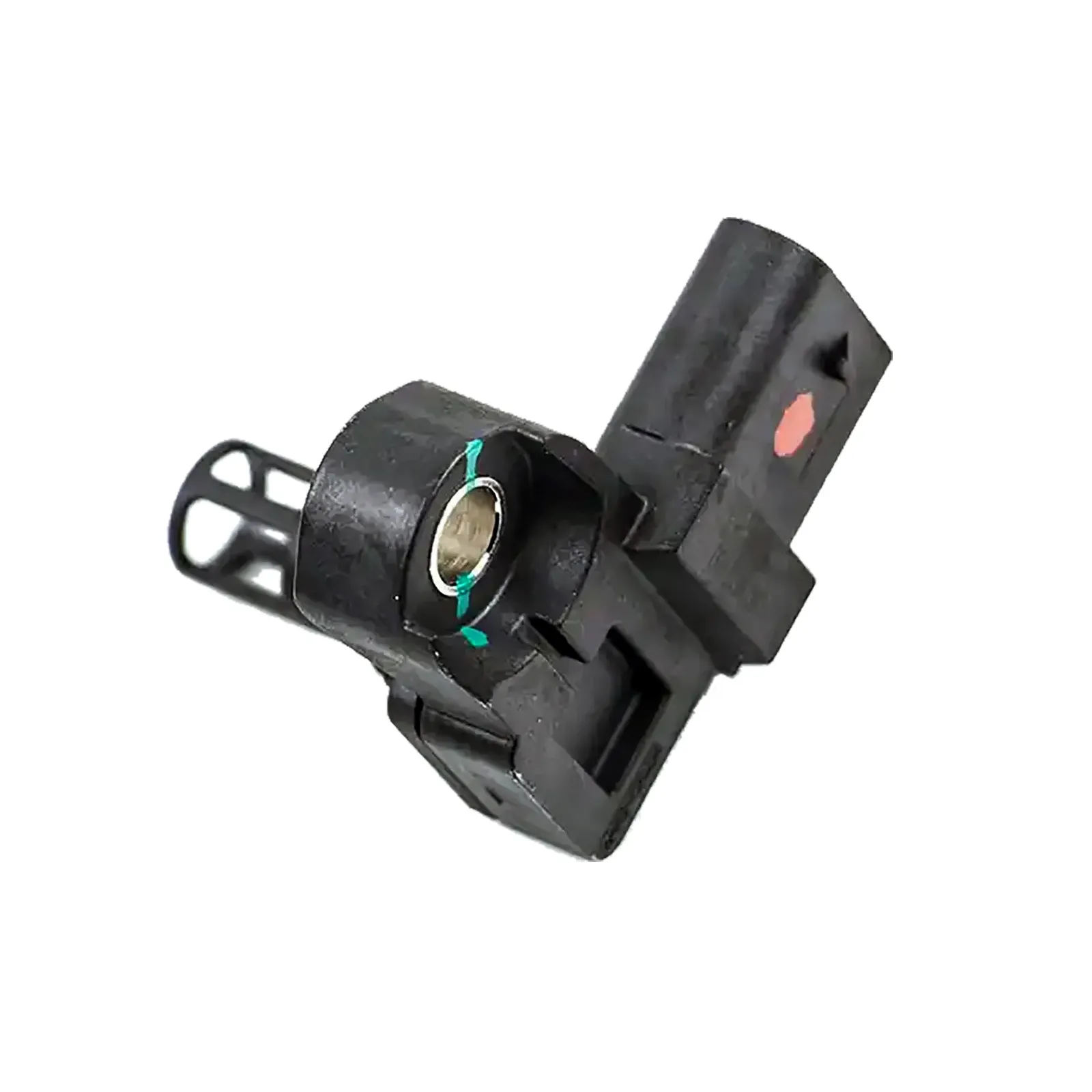

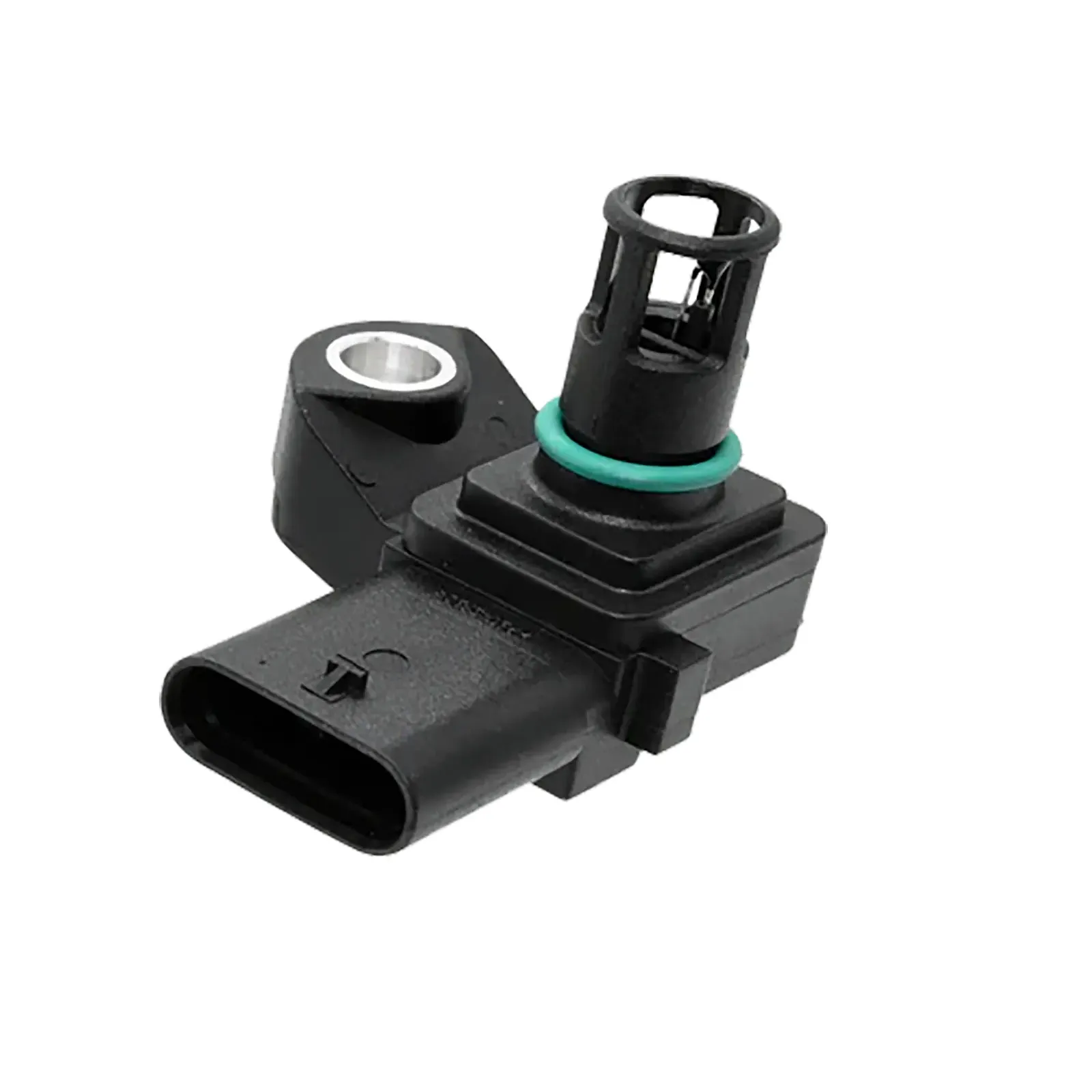

1 X OEM Quality MANIFOLD ABSOLUTE PRESSURE SENSOR (4-PIN PLUG). 2.5 BAR PRESSURE SENSOR

The boost pressure sensor is a crucial component in a turbocharged or supercharged engine system. It measures the pressure of the air entering the engine to ensure the proper functioning of the forced induction system. This sensor helps the engine control unit (ECU) optimize the air-fuel mixture for better performance and fuel efficiency, and to prevent any potential damage to the engine due to over-boosting.

If there are issues with this sensor, it can lead to poor engine performance, reduced power, or even trigger the engine warning light. Replacing or troubleshooting this sensor might be necessary if there are noticeable problems with the vehicle's performance.

2 Series

F22 / F23 (2014-2021) > 230i
F22 / F23 (2014-2021) > 230i xDrive
F22 / F23 (2014-2021) > M240i
F22 / F23 (2014-2021) > M240i xDrive

2 Series

G42 / G43 (2022+) > 230i
G42 / G43 (2022+) > 230i xDrive
G42 / G43 (2022+) > M240i
G42 / G43 (2022+) > M240i xDrive

2 Series

G87 (2024-) > M2 (2024+)

3 Series

F30 / F31 / F34 (2012-2019) > 330i
F30 / F31 / F34 (2012-2019) > 330i xDrive
F30 / F31 / F34 (2012-2019) > 340i
F30 / F31 / F34 (2012-2019) > 340i xDrive

3 Series

G20 (2019+) > 330i
G20 (2019+) > 330i xDrive
G20 (2019+) > M340i
G20 (2019+) > M340i xDrive

3 Series

G80 (2021-) > M3 (2021-)
G80 (2021-) > M3 Competition RWD (2021-)
G80 (2021-) > M3 xDrive Competition (2021-)

4 Series

F32 / F33 / F36 (14-20) > 430i
F32 / F33 / F36 (14-20) > 430i xDrive
F32 / F33 / F36 (14-20) > 440i
F32 / F33 / F36 (14-20) > 440i xDrive

4 Series

G22 / G23 (2021+) > 430i
G22 / G23 (2021+) > 430i xDrive
G22 / G23 (2021+) > M440i
G22 / G23 (2021+) > M440i xDrive

4 Series

G26 (2022+) > 430i Gran Coupe
G26 (2022+) > 430i xDrive Gran Coupe
G26 (2022+) > M440i xDrive Gran Coupe

4 Series

G82 / G83 (2021-) > M4 (2021-)
G82 / G83 (2021-) > M4 CSL
G82 / G83 (2021-) > M4 Competition RWD (2021-)
G82 / G83 (2021-) > M4 GT4 (2022+)
G82 / G83 (2021-) > M4 xDrive Competition (2021-)

5 Series

G30 (2017-2023) > 530i
G30 (2017-2023) > 530i xDrive
G30 (2017-2023) > 540i (B58A 2017-2019)
G30 (2017-2023) > 540i (B58C 2020-2023)
G30 (2017-2023) > 540i xDrive (B58A 2017-2019)
G30 (2017-2023) > 540i xDrive (B58C 2020-2023)

7 Series

G12 (2016-2023) > 740i
G12 (2016-2023) > 740i xDrive

8 Series

G14 / G15 / G16 (2019+) > 840i xDrive

X1 Series

F48 X1 (2016-2023) > X1 28i
F48 X1 (2016-2023) > X1 28i xDrive

X2 Series

F39 X2 (2018-2023) > X2 M35i (18-23)
F39 X2 (2018-2023) > X2 sDrive28i FWD (18-23)
F39 X2 (2018-2023) > X2 xDrive28i (18-23)

X3 Series

F97 X3M (2020+) > X3M

X3 Series

G01 X3 (2018+) > X3 M40i B58A (2018-2019)
G01 X3 (2018+) > X3 M40i B58D (2020+)
G01 X3 (2018+) > X3 xDrive30i

X4 Series

F98 X4M (2020+) > X4M

X4 Series

G02 X4 (2019+) > X4 M40i
G02 X4 (2019+) > X4 xDrive30i

X5 Series

G05 X5 (2019+) > X5 xDrive40i B58C (2019-2023)

X6 Series

G06 X6 (2020+) > X6 sDrive 40i B58C (2019-2023)
G06 X6 (2020+) > X6 xDrive 40i B58C (2019-2023)

X7 Series

G07 X7 (2019+) > X7 xDrive40i B58C (2019-2022)

Z Series

G29 Z4 (2019+) > Z4 M40i
G29 Z4 (2019+) > Z4 sDrive30i

What fault codes does a faulty MAP sensor trigger?

A faulty MAP sensor typically triggers codes P0105 to P0109. P0105 indicates a circuit malfunction, P0106 indicates the signal is out of range, P0107 and P0108 indicate the signal is too low or too high respectively, and P0109 indicates an intermittent circuit fault. These codes combined with symptoms such as poor idle and black smoke are strong indicators of MAP sensor failure.

How do I test a MAP sensor?

With an OBD2 scanner in live data mode, the MAP sensor should read close to atmospheric pressure (around 101 kPa) with the engine off, and drop to 30 to 50 kPa at idle with the engine running due to manifold vacuum. Under wide open throttle the reading should rise back toward atmospheric. A sensor that reads flat or does not respond to throttle changes has failed. You can also test supply voltage and signal output with a multimeter.

Can I drive with a faulty MAP sensor?

You can drive short distances but engine performance will be noticeably degraded. The ECU uses the MAP sensor to calculate fuel delivery - a faulty sensor causes incorrect fuelling which leads to poor economy, rough running, and increased emissions. On turbocharged engines a faulty MAP sensor can also prevent boost control from operating correctly. Replace it as soon as possible to avoid further damage.

What does a MAP sensor do?

The Manifold Absolute Pressure (MAP) sensor measures intake manifold pressure to help the ECU calculate the correct fuel and ignition timing. It is critical for engine efficiency, particularly on turbocharged and supercharged vehicles.

What are the symptoms of a faulty MAP sensor?

Symptoms include poor acceleration, rough idle, excessive fuel consumption, black smoke, engine hesitation, and a Check Engine light with codes P0105-P0109. Turbocharged vehicles may also experience boost control issues.

What is the difference between a MAP sensor and a MAF sensor?

A MAF (Mass Air Flow) sensor directly measures the mass of air entering the engine. A MAP sensor measures manifold pressure and the ECU calculates air mass from that reading. Many vehicles use one or the other; some use both. They are not interchangeable.

Identification
SKU	MS-E132
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	MS-E132
Reference OEM Number	13628637900
Other OEM Numbers	13 62 8 637 900, 13628637900
Related Part Numbers	V20-72-0046
Product Specifics
Product Type	SENSOR
Sensor Type	Manifold Absolute Pressure (MAP) Sensor

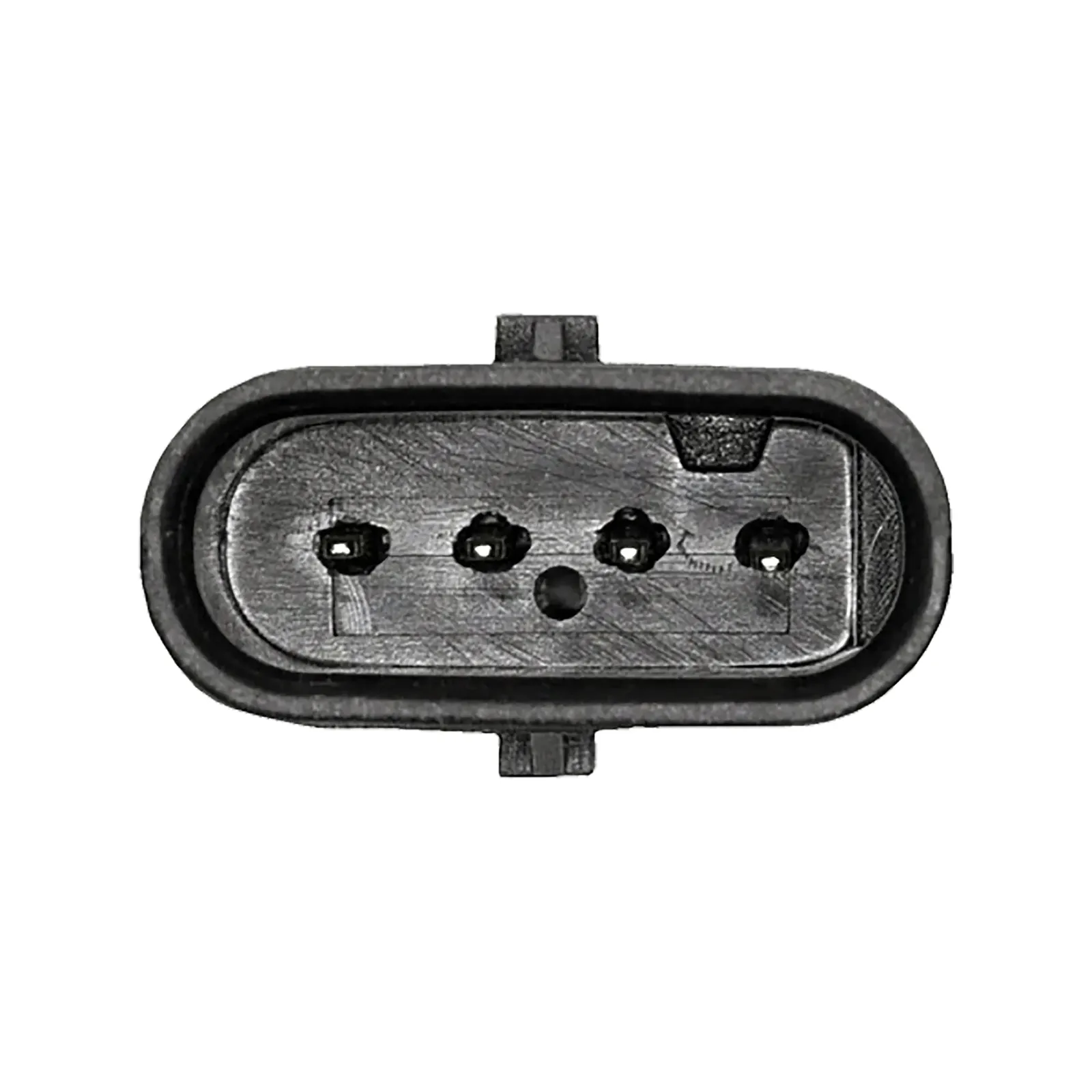

Number of pins	4 -pin connector
Connector Shape	oval
Supplementary Article Info	with integrated air temperature sensor
Pressure Range	2 kPa to 262 kPa
Number of mounting bores	1
Other Details
Note	Always verify fitment using your vehicle's OEM part number.
