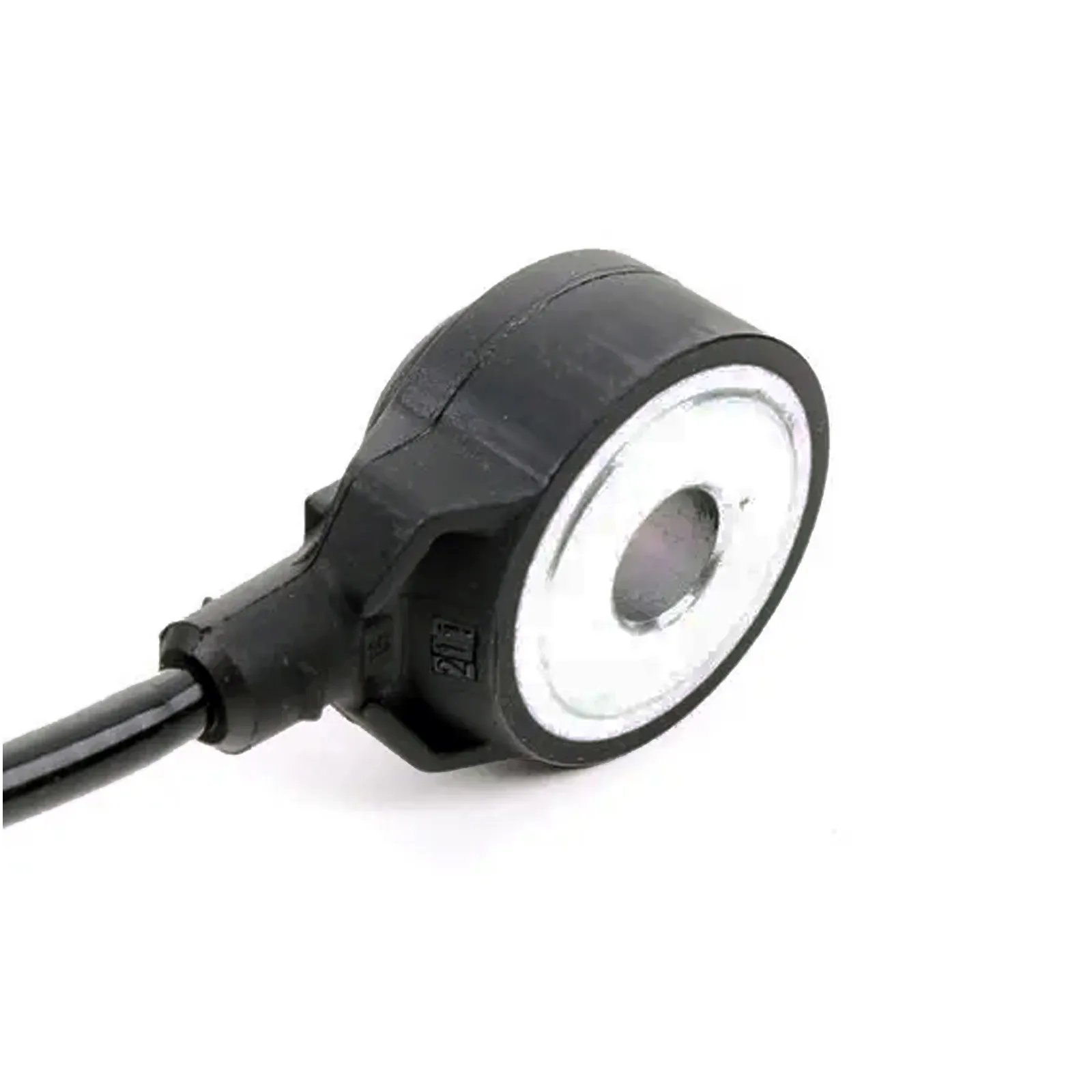

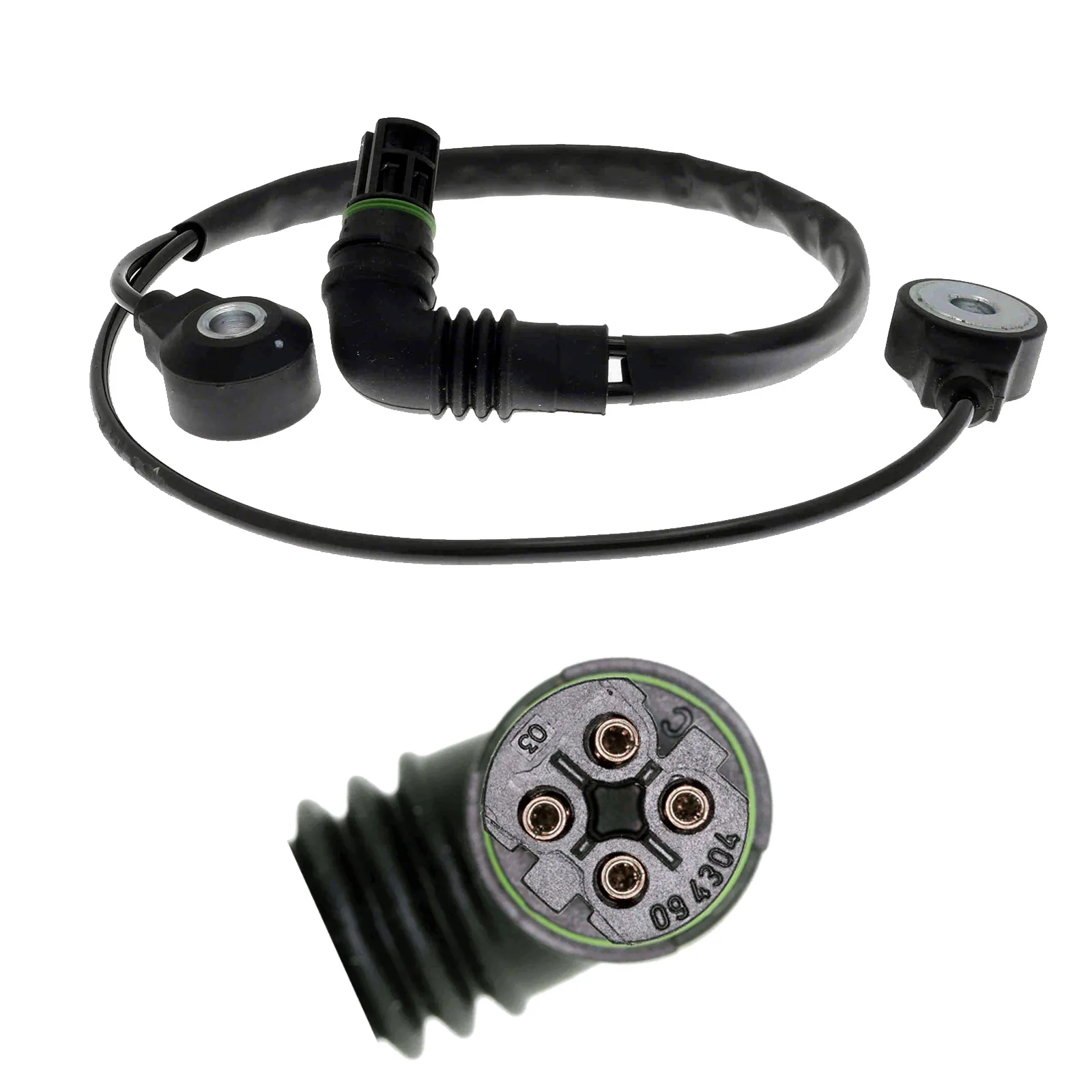

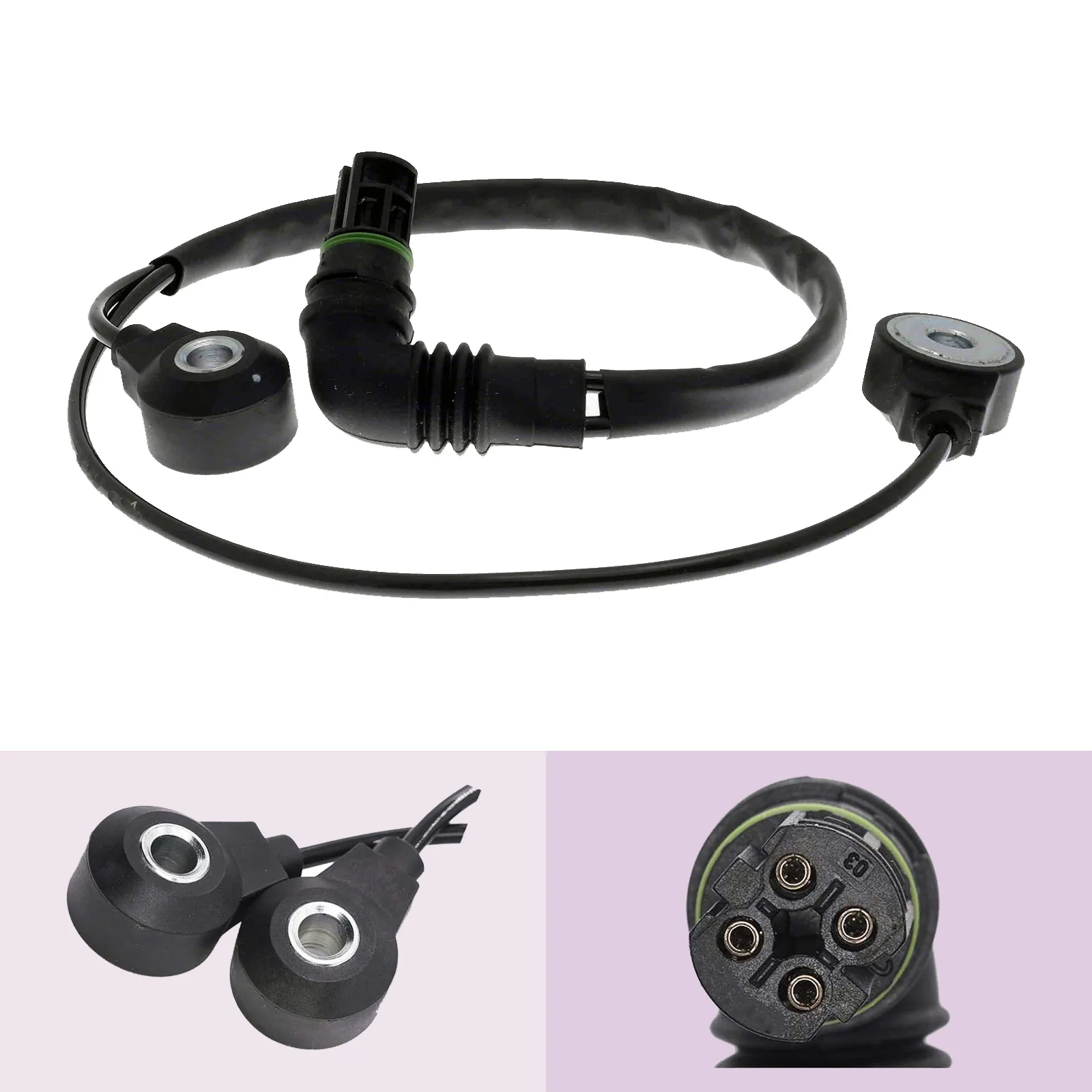

Knock Sensor for 4.8L V8 E60 E63 E64 E65 BMW Models

The knock sensor detects high-frequency engine vibrations caused by pre-ignition, commonly called engine knock, ping, or detonation. Pre-ignition occurs when the air-fuel mixture ignites before the spark plug fires. The sensor sends this signal to the ECU, which responds by retarding ignition timing until the knocking stops. This protects the engine from the internal damage that sustained detonation causes.

Because the ECU retards ignition timing as a safety measure when the knock sensor signal is lost or incorrect, symptoms are often performance-related rather than dramatic. Common signs include reduced power and sluggish acceleration particularly under load, increased fuel consumption, engine hesitation from low RPM, audible pinging under hard acceleration, and a Check Engine light with codes P0325 to P0334.

Short distances are possible but not recommended. The ECU retards timing across the board without knock sensor feedback, leaving the engine running significantly below its designed performance level. On vehicles that use lower octane fuel or in hot conditions, the engine is also vulnerable to undetected detonation which can cause serious internal damage including piston and ring damage. Replace the sensor promptly.

The knock sensor is typically bolted directly to the engine block, often on the side or beneath the intake manifold. On V6 and V8 engines there may be two sensors, one per cylinder bank. The location varies significantly between makes and models - some are easily accessible while others require partial intake manifold removal. Check a workshop manual for your specific engine before attempting replacement.

Use an OBD2 scanner to check for codes P0325 to P0334 and review live data for ignition timing retard values higher than normal. You can also test the sensor resistance with a multimeter - most knock sensors read between 100,000 and 200,000 ohms. A sensor reading open circuit or zero ohms has failed. Some scan tools can also activate a knock simulation test to verify the sensor is responding correctly.

No programming is required for the sensor itself - it is a passive device that plugs directly in. However it is important to clear stored fault codes with an OBD2 scanner after replacement so the ECU can return to normal timing operation. On some vehicles the ECU will take several drive cycles of varied load and speed to fully relearn optimal timing after the sensor has been replaced.
