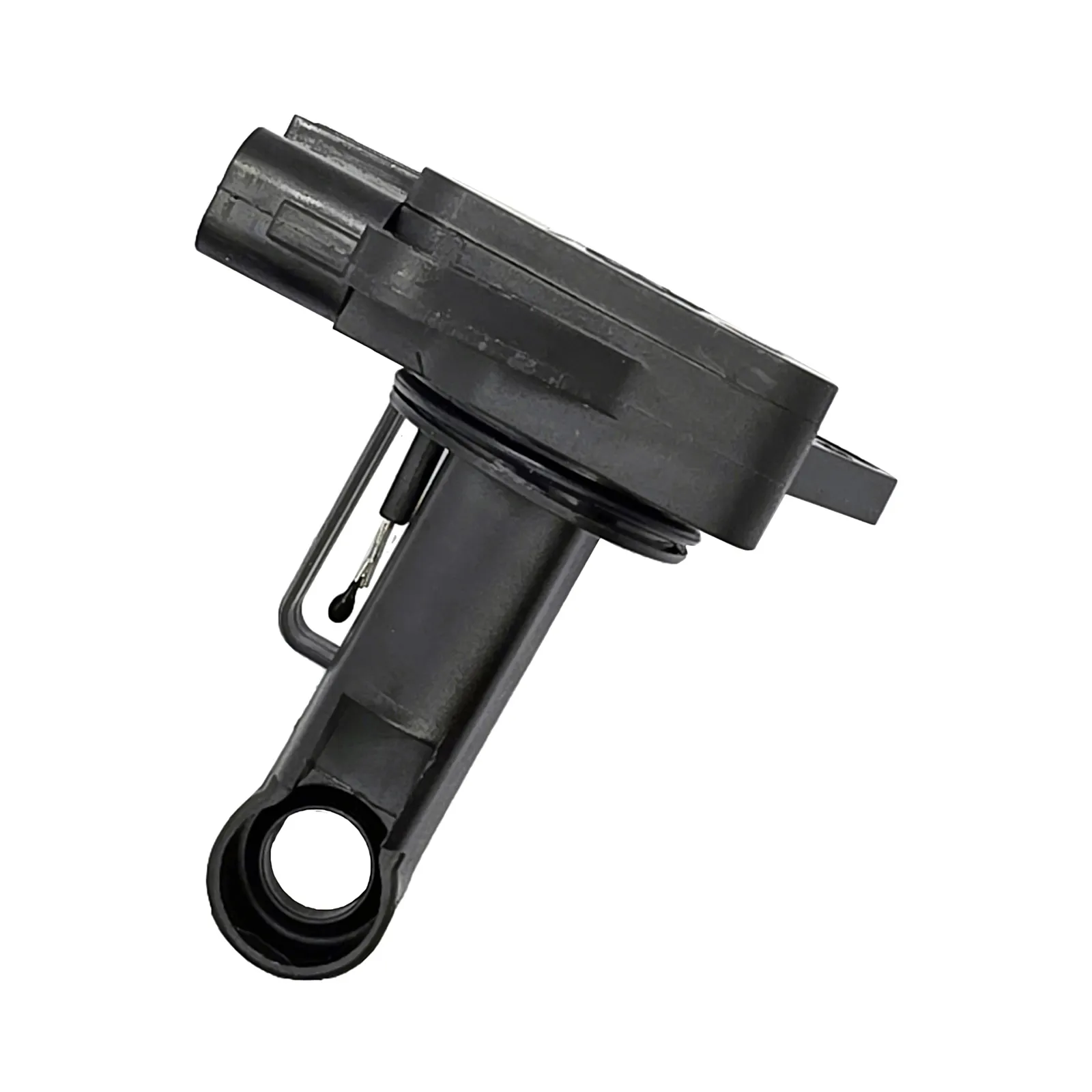

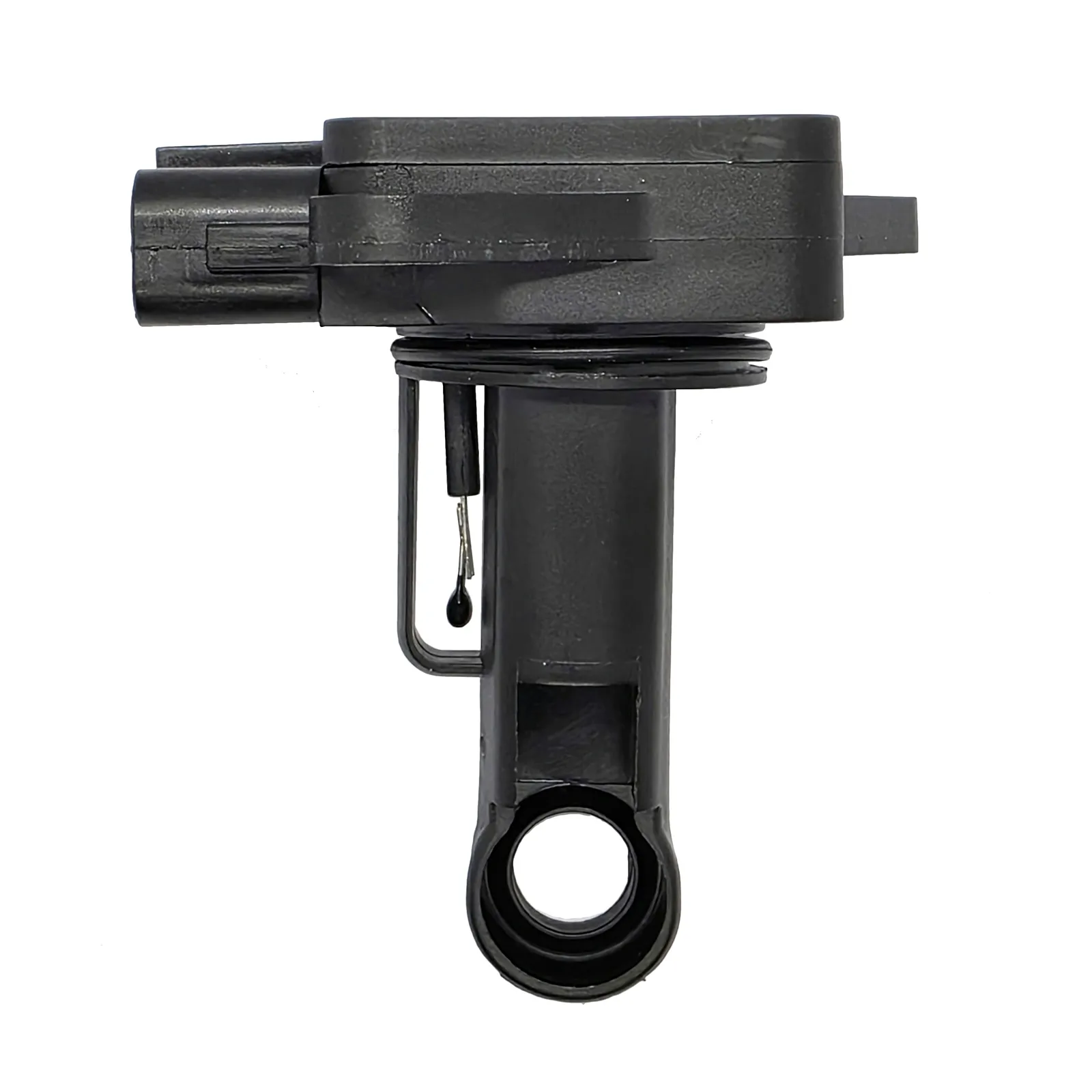

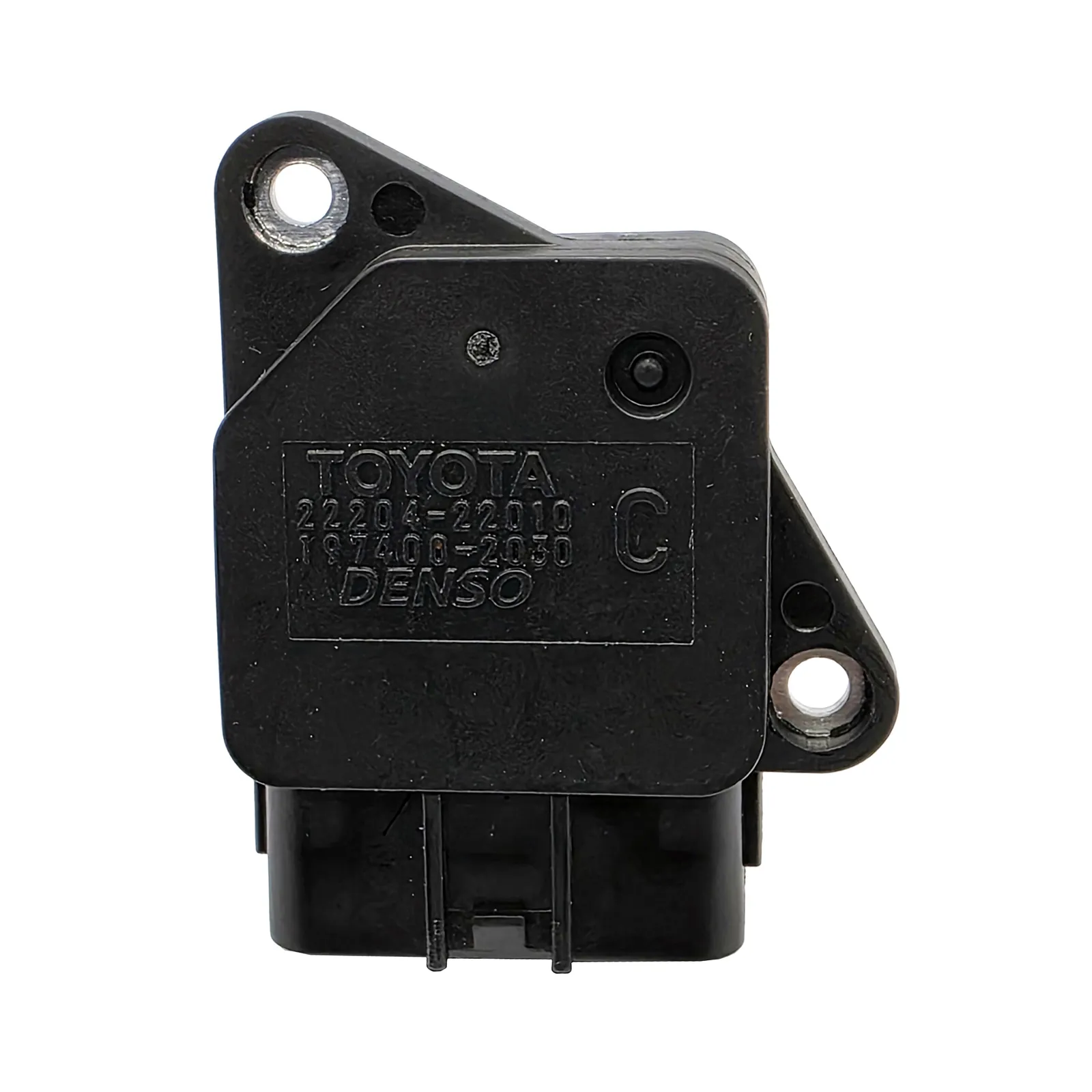

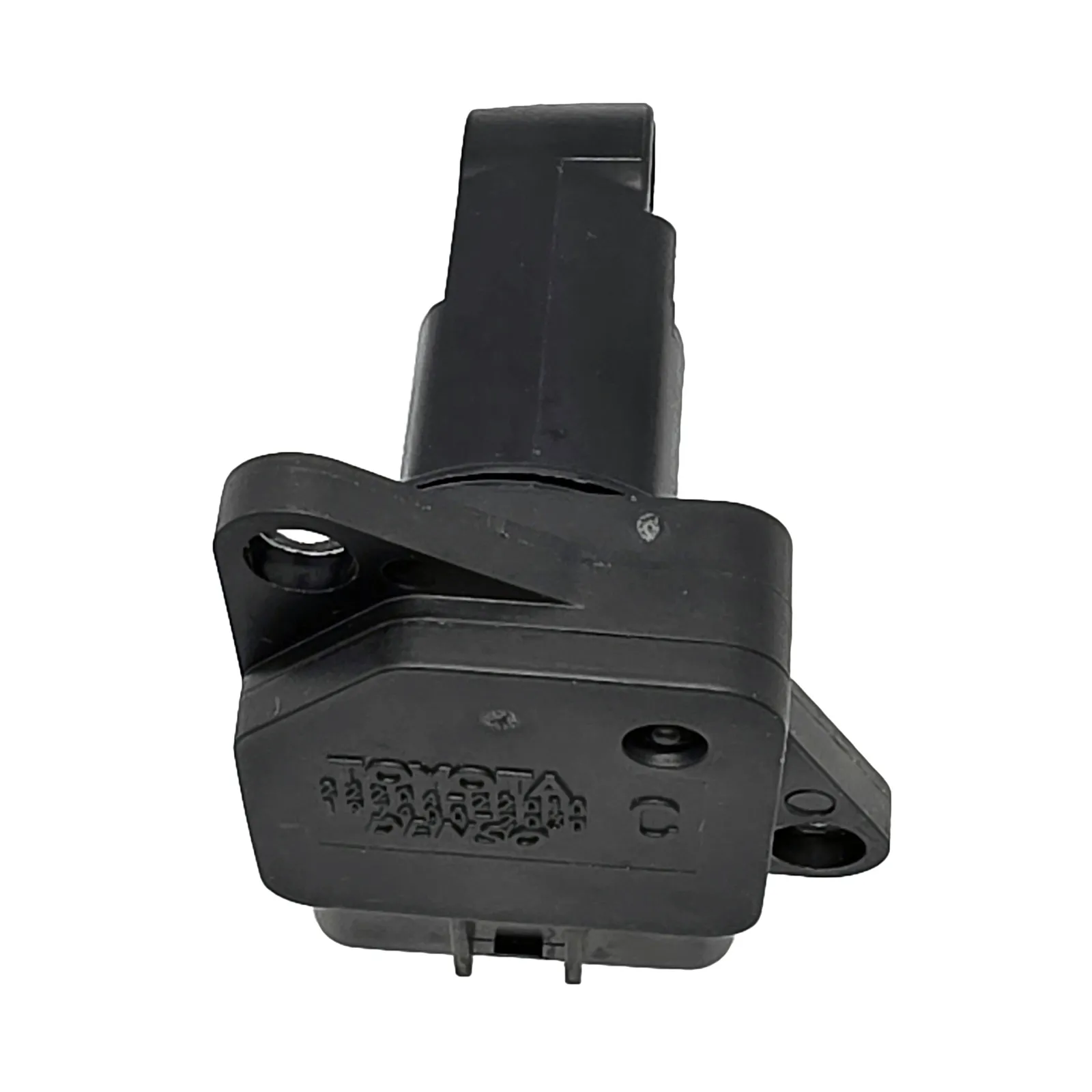

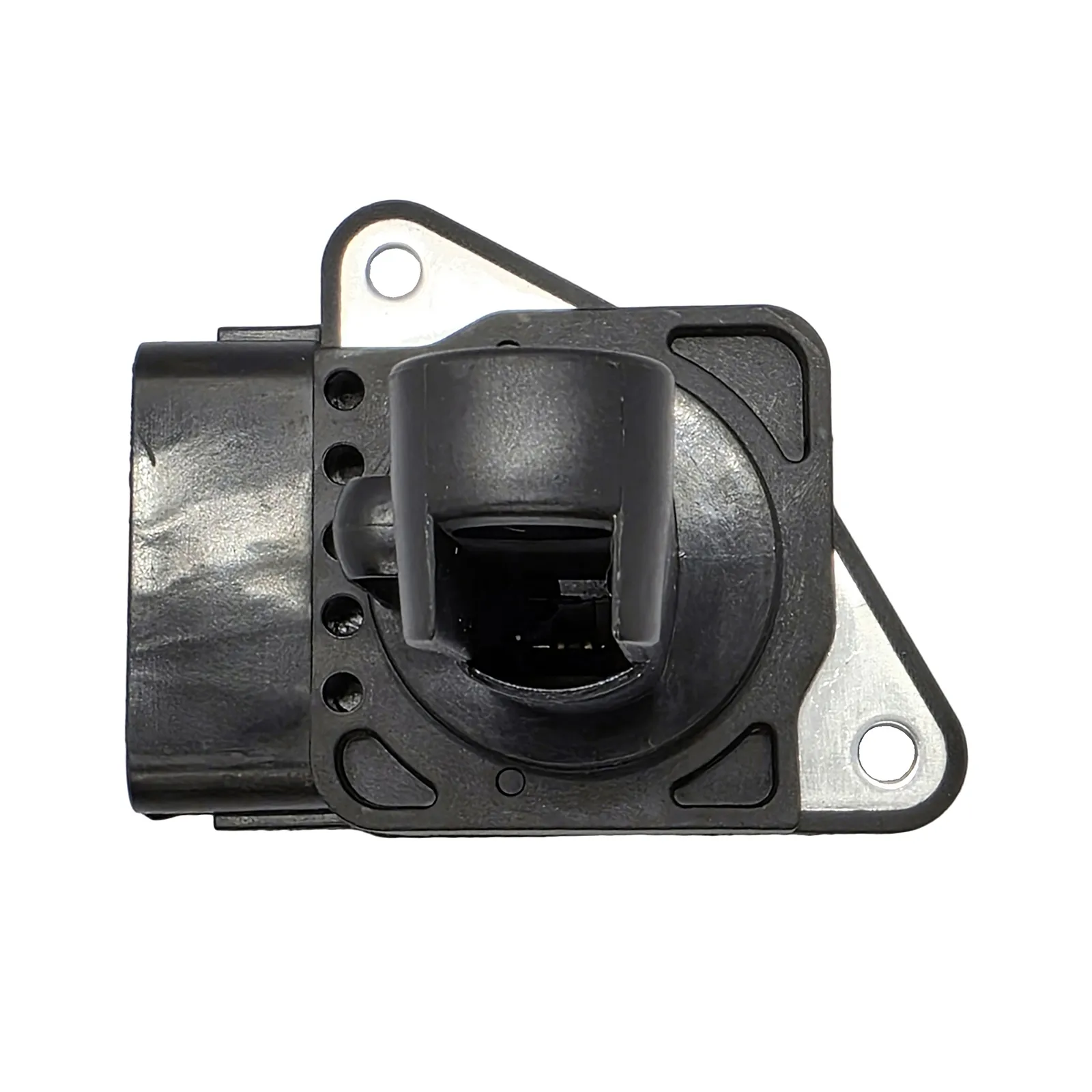

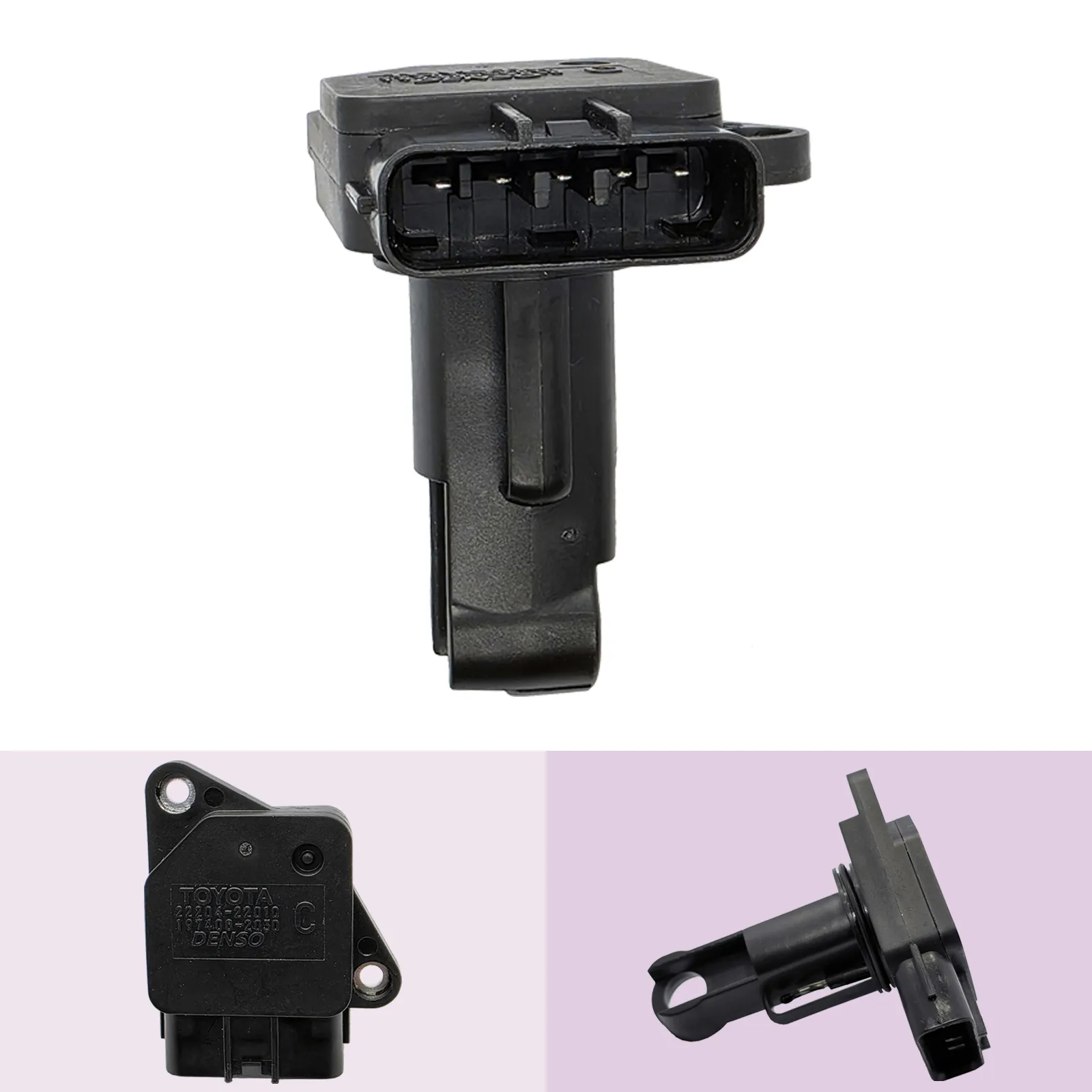

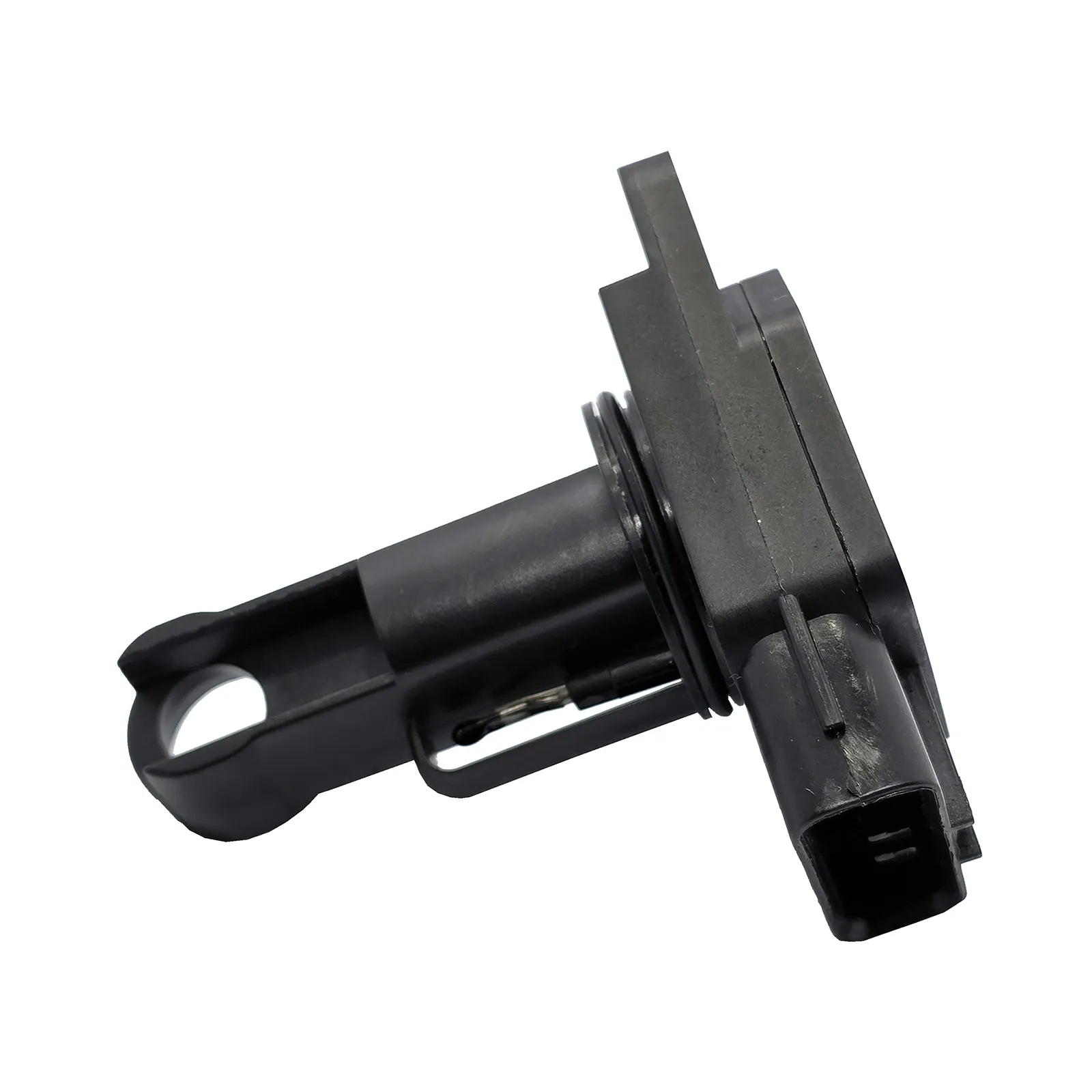

BRAND NEW OEM Quality MASS AIRFLOW SENSOR TO SUIT TOYOTA Landcruiser Prado 4.0L 1GR-FE / 3.0L 1KD-FTV and / 3.4L 5VZ-FE

SUITS

OEM#

22204-22010, 22204-0J010, 22204-0D030, 22204-0C020

PACKAGE INCLUDES:

1 X OEM Quality MASS AIR FLOW SENSOR (5-PIN CONNECTOR). Insert Only

A mass airflow sensor calculates the oxygen flowing to your engine for the ideal air-to-fuel ratio. The mass airflow sensor helps increase engine efficiency.

OUR MASS AIRFLOW SENSORS are:

Application specific for the perfect fit and form
Direct-fit OE replacement ensures proper fit, form, and function, which leads to a trouble-free installation
Premium components and durable materials withstand harsh engine conditions to resist leaks
Designed and manufactured to stringent quality standards at a certified facility so that you can install with confidence
Undergoes extensive testing and validation for proper performance and peak reliability

[03/03 - 08/09] TOYOTA LAND CRUISER PRADO GRJ120 V6 WTi 4.0L V6 1GR-FE 179kW
[08/09 - 06/15] TOYOTA LAND CRUISER PRADO GRJ150 V6 VVTi 4.0L V6 1GR-FE 202kW
[06/15 - 10/17] TOYOTA LAND CRUISER PRADO GRJ150 V6 VVT-i 4.0L V6 1GR-FE 207kW
[11/06 - 12/10] TOYOTA LAND CRUISER PRADO KDJ120/ KDJ125 D-4D 3.0L 4cyl 1KD-FTV 127kW
[07/96 - 02/03] TOYOTA LAND CRUISER PRADO VZJ90R/ VZJ90W/ VZJ95R 24V 3.4L V6 5VZ-FE 131kW

Identification
SKU	AMM9120-Prado
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	DMA-0108
Reference OEM Number	22204-22010
Other OEM Numbers	22204-22010, 22204-0J010, 22204-0D030, 22204-0C020
Related Part Numbers	AMM9120, AF10135, AMZL01N
Trade Part Numbers	WALKER: 245-1095, DENSO: DMA-0108, NTY: EPP-TY-000
Product Specifics
Product Type	AIR MASS METER / MAF SENSOR
Type	Sensor

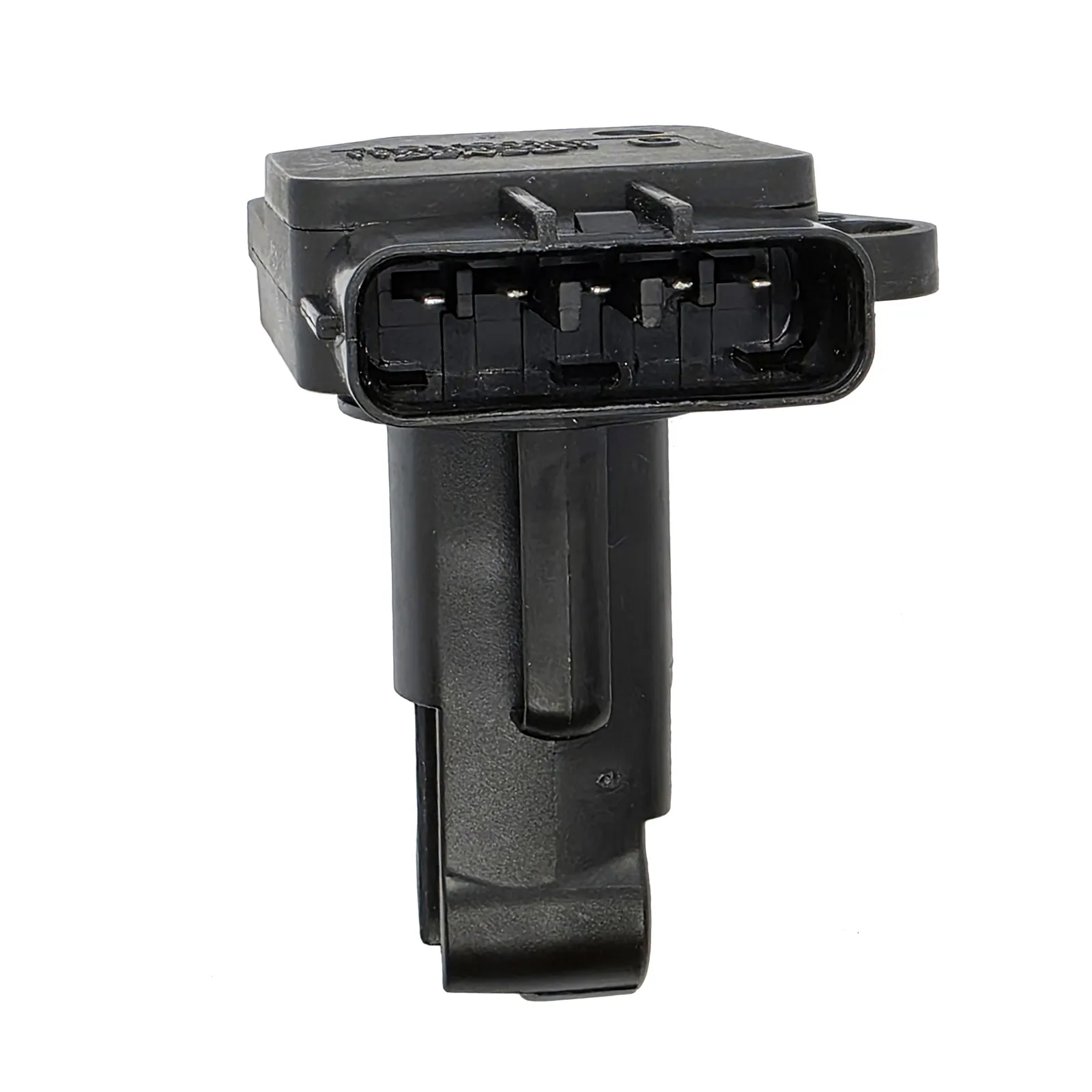

Number of pins	5 -pin connector
Connector Shape	rectangular
Supplementary Article Info	with integrated air temperature sensor, without suction pipe
Rated Voltage	12 V
Housing Colour	Black
Operating Mode	Electric
Housing Type	without housing, Insert Only
Recommended additional repairs	change Air Filter
Mounting Type	Bolted
Plug Type	Male
Shipping & Dimensions
Shipping Weight	0.5000 kg
Shipping Width	0.150 m
Shipping Height	0.150 m
Shipping Length	0.150 m
Other Details
Note	CHECK IMAGES. CONFIRM WITH OEM NUMBER.

Can I clean my MAF sensor instead of replacing it?

Yes - if the sensor is contaminated rather than electrically failed, cleaning with a dedicated MAF sensor cleaner spray can restore correct readings. Do not use brake cleaner or generic electrical contact cleaner as these leave residue that damages the sensing wire. Allow the sensor to dry completely before reinstalling. If cleaning does not resolve the fault codes, the sensor requires replacement.

What is the difference between a MAF sensor and a MAP sensor?

A MAF (Mass Air Flow) sensor directly measures the mass of air entering the engine using a hot wire element in the intake. A MAP (Manifold Absolute Pressure) sensor measures intake manifold pressure to calculate air density. Most modern engines use one or the other - some use both. Your vehicle service manual or OBD2 fault codes will confirm which sensor type your engine uses.

Will a faulty MAF sensor cause my vehicle to fail an emissions test?

Yes. A faulty MAF sensor causes the ECU to miscalculate fuel delivery, typically resulting in a rich running condition that increases CO and hydrocarbon emissions. Most roadworthy and emissions checks will fail a vehicle with an active MAF sensor fault code or visibly excessive exhaust smoke.

What are the symptoms of a bad MAF sensor?

Common symptoms include rough idle, hesitation or stumbling on acceleration, poor fuel economy, black smoke from the exhaust, and an illuminated Check Engine light. Your ECU may log fault codes P0100 to P0104.

Can I drive with a faulty MAF sensor?

You can drive short distances but it is not recommended. A faulty MAF sensor causes the ECU to run incorrect fuel mixtures, which can damage the catalytic converter and O2 sensors over time. Have it replaced as soon as possible.

How do I test if my MAF sensor is bad?

Use an OBD2 scanner to check for fault codes P0100-P0104. You can also use a multimeter or live data scanner to check the sensor output voltage against your vehicle's specification. A reading significantly outside spec confirms a faulty sensor.

What causes a MAF sensor to fail?

The most common causes are a dirty or contaminated sensing element (often from a missing or damaged air filter), oil contamination from an over-oiled aftermarket air filter, heat damage, or general wear over time.

Do I need to reset my ECU after replacing the MAF sensor?

It is good practice to clear any stored fault codes using an OBD2 scanner after replacement. Some vehicles will self-adapt within a short drive cycle, but clearing codes ensures the ECU recalibrates from a clean baseline.
