ABS DSC Brake Pressure Sensor for BMW 5 Series E60 E61 525i 530i 545i M5
OEM Spec Fit Replaces 34521164458
BRAND NEW *OEM Quality* DSC brake pressure sensor to suit BMW 5 Series E60 and E61.
A DSC warning on an E60 or E61 usually means hill start assist and brake standby have quit too. This direct fit sensor gets them back and is dispatched from Melbourne with metro delivery in 1-2 business days.
TO SUIT
Suits the BMW 5 Series E60 sedan and E61 touring from 2002 to 2010 - the 525i and 530i with the M54 and N52 sixes, the 540i, 545i and 550i with the N62 V8, the 520d and 530d diesels and the M5 with the S85 V10.
FITMENT CHECK
BMW fitted more than one DSC pressure sensor across the E60 and E61 run. Check the number on your old sensor matches 34521164458 or 1164458 before ordering.
OEM PART NUMBERS
- BMW: 34521164458
- BMW: 34 52 1 164 458
- BMW: 1164458
OTHER PART NUMBERS
- V20-72-0301
- 504740
PACKAGE INCLUDES

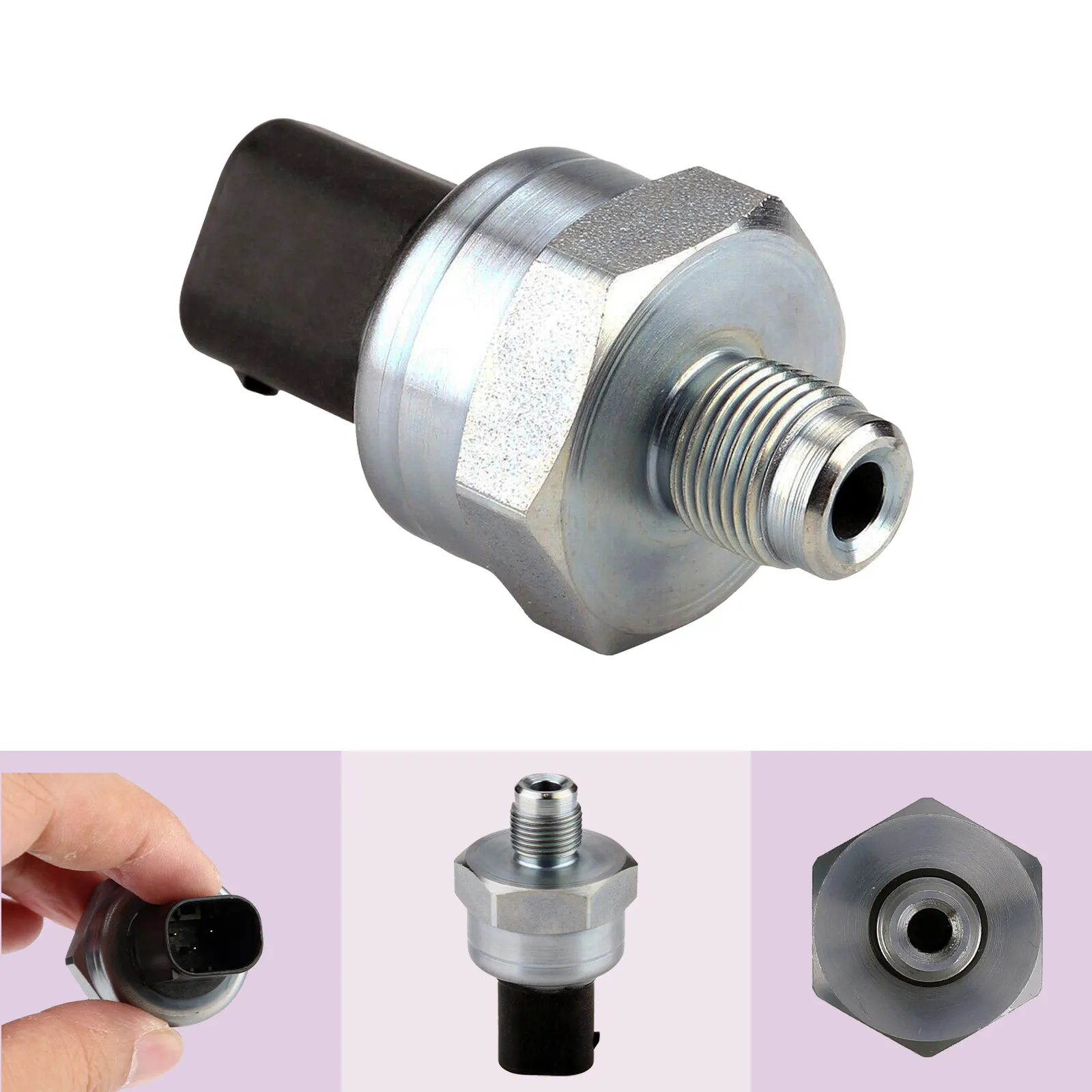

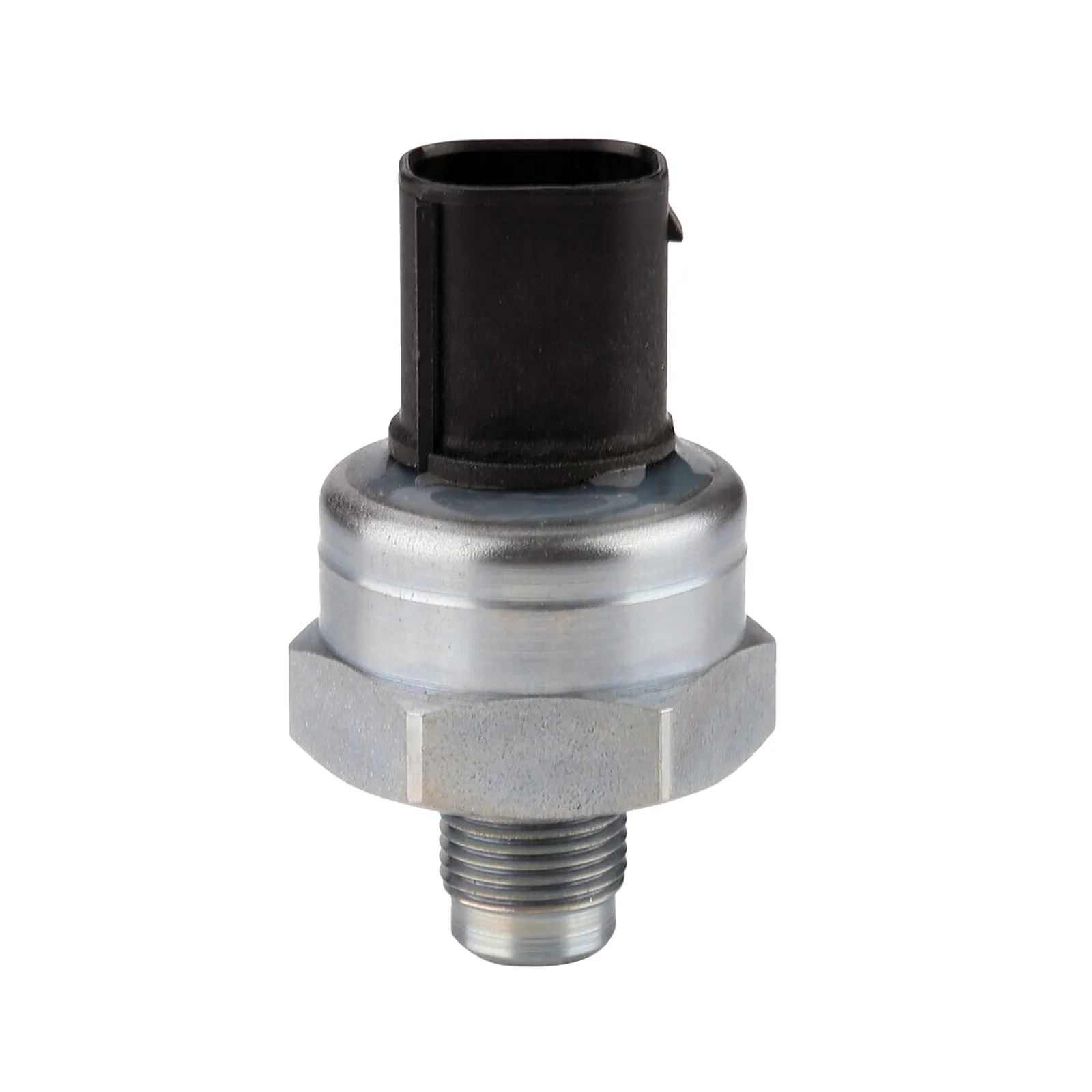

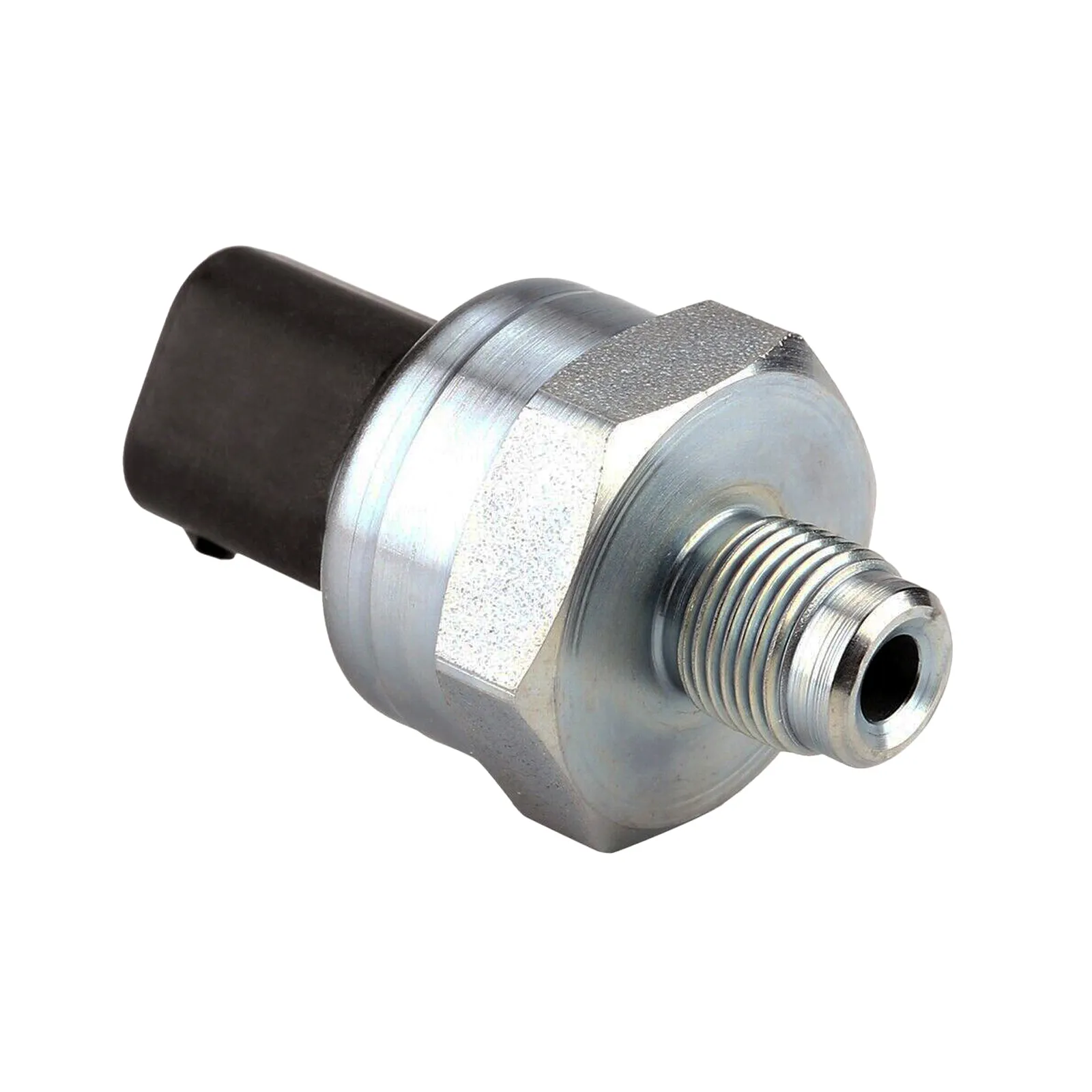

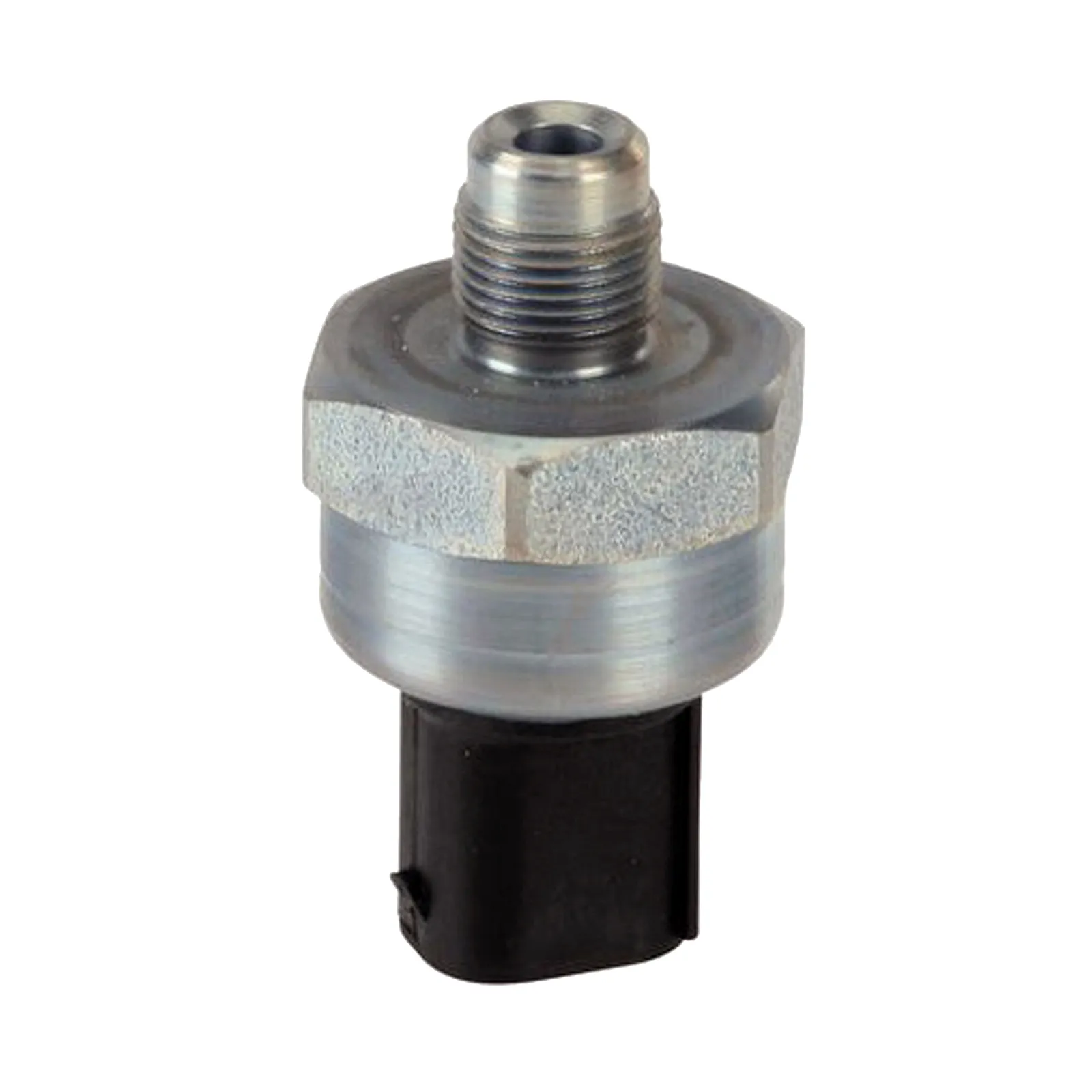

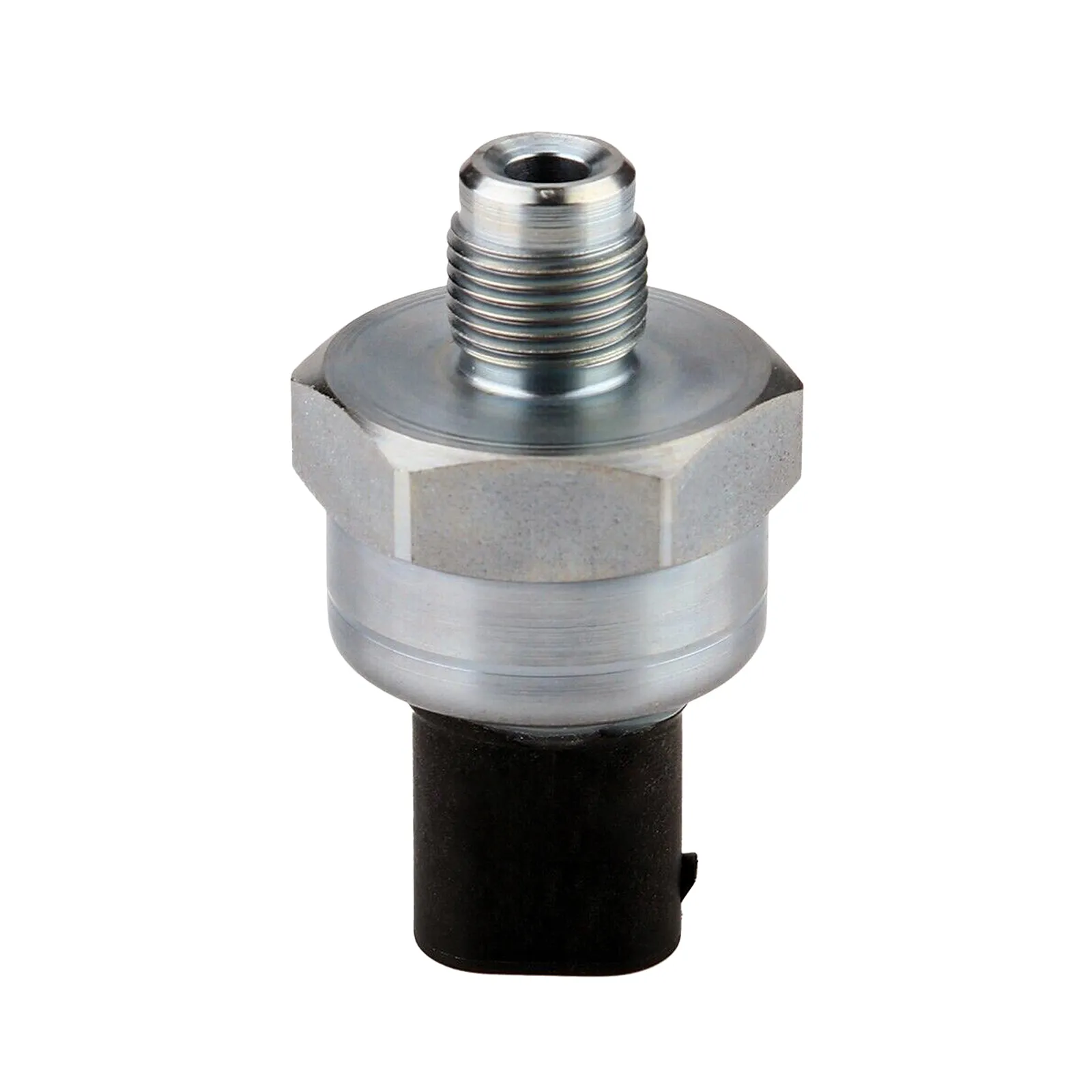

1 x DSC brake master cylinder pressure sensor with 3-pin connector.
ABOUT THIS SENSOR

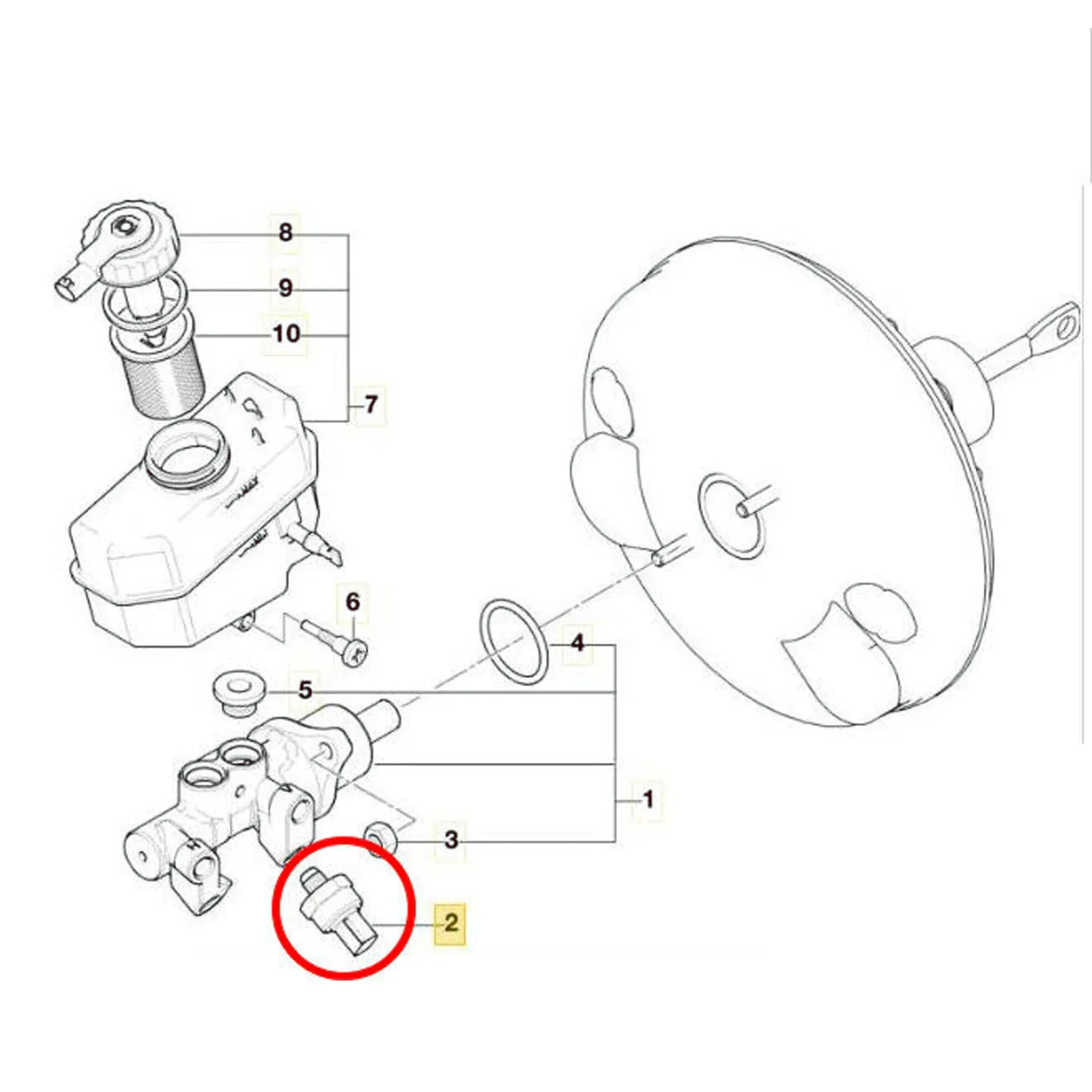

On the E60 and E61 the sensor sits on the brake master cylinder and feeds pedal pressure to the DSC module. Beyond ABS and DSC it supports hill start assist, brake drying in the wet, brake standby and fade compensation.
A failing sensor makes the DSC module log an implausible pressure signal and switch the whole system off, leaving a yellow DSC warning and a check control message on the iDrive.
COMMON SYMPTOMS OF FAILURE
- DSC failed - drive moderately check control message
- Yellow DSC and brake warning lamps
- Hill start assist not holding the car on a slope
- DSC pressure sensor fault in the DSC module memory
- DSC warning returning after the fault code is cleared
- [2007 - 2009] BMW 5 SERIES E60 SEDAN 520d (2.0L 4cyl diesel N47 D20 A / N47 D20 C 130kW)
- [2007 - 2009] BMW 5 SERIES E60 SEDAN 520i (2.0L 4cyl petrol N43 B20 A 125kW)
- [2007 - 2009] BMW 5 SERIES E60 SEDAN 523i (2.5L 6cyl petrol N52 B25 A / N52 B25 BE 140kW)
- [2007 - 2010] BMW 5 SERIES E60 SEDAN 523i (2.5L 6cyl petrol N53 B25 A 140kW)
- [2003 - 2005] BMW 5 SERIES E60 SEDAN 525i (2.5L 6cyl petrol M54 B25 141kW)
- [2005 - 2009] BMW 5 SERIES E60 SEDAN 525i (2.5L 6cyl petrol N52 B25 A / N52 B25 B / N52 B25 BF 160kW)
- [2002 - 2005] BMW 5 SERIES E60 SEDAN 530d (3.0L 6cyl diesel M57 D30 160kW)
- [2005 - 2007] BMW 5 SERIES E60 SEDAN 530d (3.0L 6cyl diesel M57 D30 170kW)
- [2007 - 2009] BMW 5 SERIES E60 SEDAN 530d (3.0L 6cyl diesel M57 D30 173kW)
- [2003 - 2005] BMW 5 SERIES E60 SEDAN 530i (3.0L 6cyl petrol M54 B30 170kW)
- [2005 - 2007] BMW 5 SERIES E60 SEDAN 530i (3.0L 6cyl petrol N52 B30 BF / N52 B30 A 190kW)
- [2006 - 2006] BMW 5 SERIES E60 SEDAN 530i (3.0L 6cyl petrol N52 B30 A / N52 B30 B / N52 B30 BF 200kW)
- [2007 - 2009] BMW 5 SERIES E60 SEDAN 530i (3.0L 6cyl petrol N52 B30 BF / N52 B30 A 200kW)
- [2007 - 2009] BMW 5 SERIES E60 SEDAN 530i (3.0L 6cyl petrol N53 B30 A 200kW)
- [2007 - 2009] BMW 5 SERIES E60 SEDAN 540i (4.0L 8cyl petrol N62 B40 A 225kW)
- [2003 - 2005] BMW 5 SERIES E60 SEDAN 545i (4.4L 8cyl petrol N62 B44 A 245kW)
- [2005 - 2009] BMW 5 SERIES E60 SEDAN 550i (4.8L 8cyl petrol N62 B48 B 270kW)
- [2005 - 2009] BMW 5 SERIES E60 SEDAN M5 (5.0L 10cyl petrol S85 B50 A 373kW)
- [2004 - 2007] BMW 5 SERIES E61 TOURING 530i (3.0L 6cyl petrol N52 B30 BF / N52 B30 A 190kW)
- [2006 - 2010] BMW 5 SERIES E61 TOURING 530i (3.0L 6cyl petrol N52 B30 A 200kW)
- [2007 - 2010] BMW 5 SERIES E61 TOURING 530i (3.0L 6cyl petrol N53 B30 A 200kW)
What is the difference between an oil pressure sensor and an oil pressure switch?
An oil pressure switch is a simple on/off device that triggers the oil pressure warning light when pressure drops below a fixed threshold. It provides no information about the actual pressure level - just whether it is above or below the activation point. An oil pressure sensor provides a continuous analogue signal to the ECU and instrument cluster, allowing the dashboard to display an actual pressure reading and giving the ECU real-time data for engine management decisions. Many vehicles use both - a switch for the warning light and a sensor for the gauge.
What are the symptoms of a faulty oil pressure sensor or switch?
The most common symptom is a false oil pressure warning light on the dashboard despite the engine having correct oil level and pressure. The light may be on constantly or may flicker particularly at idle when oil pressure is naturally at its lowest. An oil leak from around the sensor or switch body is also a common sign of failure. On vehicles with a pressure gauge rather than just a warning light, a faulty sensor may cause the gauge to read zero, maximum, or erratically.
How do I confirm if the oil pressure warning is a faulty sensor or actual low pressure?
Never assume a warning light is a faulty sensor without checking first. Turn the engine off immediately when the oil pressure light comes on and check the oil level on the dipstick. If oil level is correct, you can verify actual oil pressure by fitting a mechanical oil pressure gauge to the sending unit port and running the engine briefly. A reading within the normal range (typically 200 to 500 kPa at operating temperature and idle) confirms the warning is from a faulty sensor rather than actual low pressure.
Is it safe to continue driving with the oil pressure warning light on?
No - stop the engine as soon as it is safe to do so. An actual low oil pressure condition will cause catastrophic engine damage within minutes of continued running. Even if the fault turns out to be a faulty sensor, you cannot confirm this while driving. Always treat an oil pressure warning light as a critical fault requiring immediate attention until proven otherwise.
How difficult is it to replace an oil pressure sensor or switch?
Most oil pressure sensors and switches are threaded directly into the engine block or oil filter housing and can be replaced with basic tools - a socket or spanner of the correct size and some thread sealant. Allow the engine to cool before removal to avoid burns from hot oil. Have a rag ready to catch the small amount of oil that will spill when the old sensor is removed. The job typically takes 15 to 30 minutes on most vehicles.
Will a faulty oil pressure sensor damage the engine?
The sensor itself does not affect oil pressure or lubrication - it only monitors and reports pressure. A faulty sensor that gives a false low reading may cause unnecessary anxiety but will not damage the engine. However if the sensor gives a false normal reading when actual pressure is low, it will prevent the warning light from alerting you to a real low pressure condition that could cause serious engine damage. This is why verifying actual oil pressure is important before dismissing an oil pressure fault as a sensor issue.
| Identification | |
|---|---|
| Brand | Aftermarket OEM Replacement |
| Part Numbers | |
| Part Number | SDSC100 |
| Reference OEM Number | 34521164458 |
| Other OEM Numbers | 34521164458, 1164458 |
| Related Part Numbers | 55CP09-03 DSC100 |
| Interchange Part Numbers | V20-72-0301, 504740 |
| Product Specifics | |
| Product Type | SENSOR |
| Sensor Type | DSC Brake Master Cylinder Pressure Sensor |
| Fitting Position | BRAKE MASTER CYLINDER |

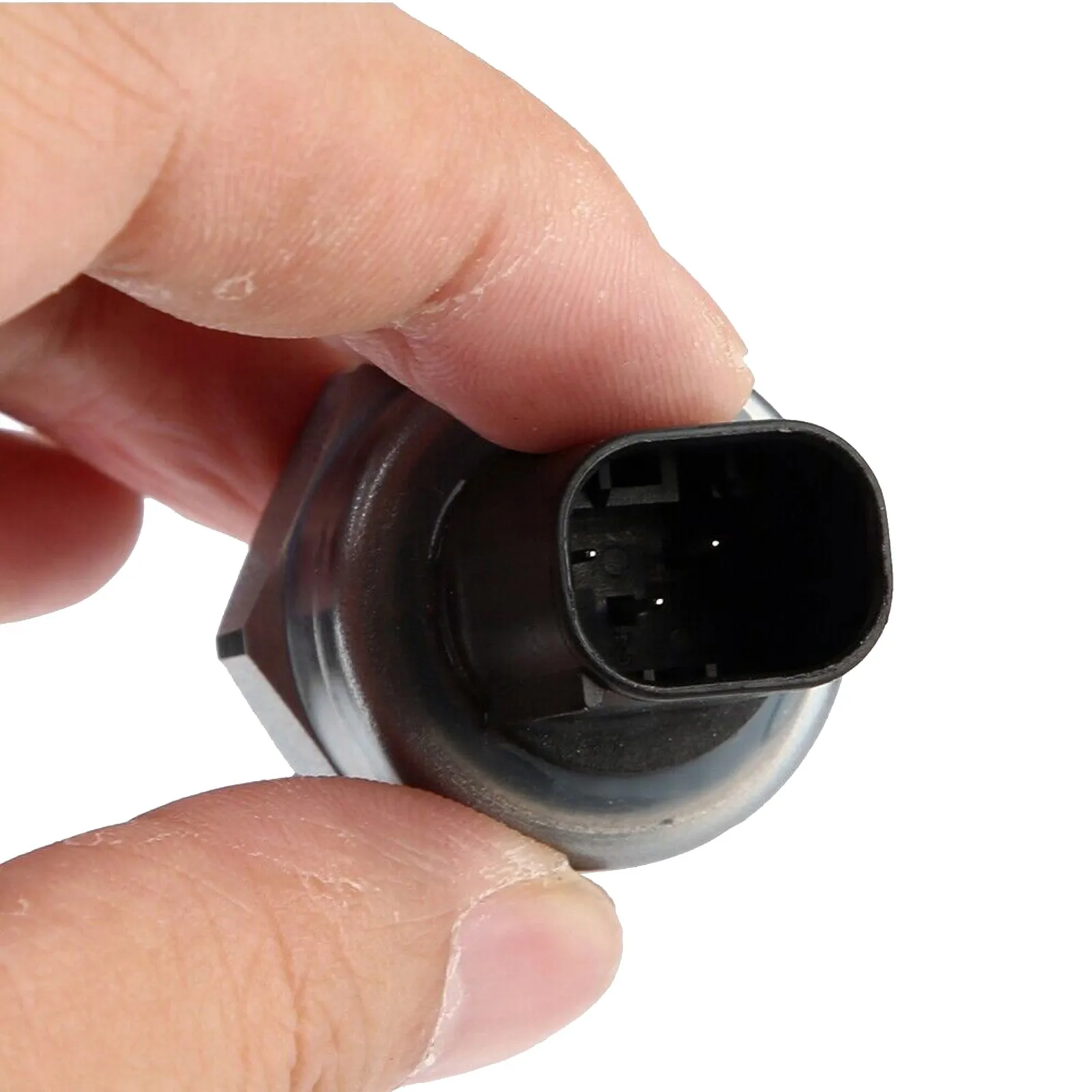

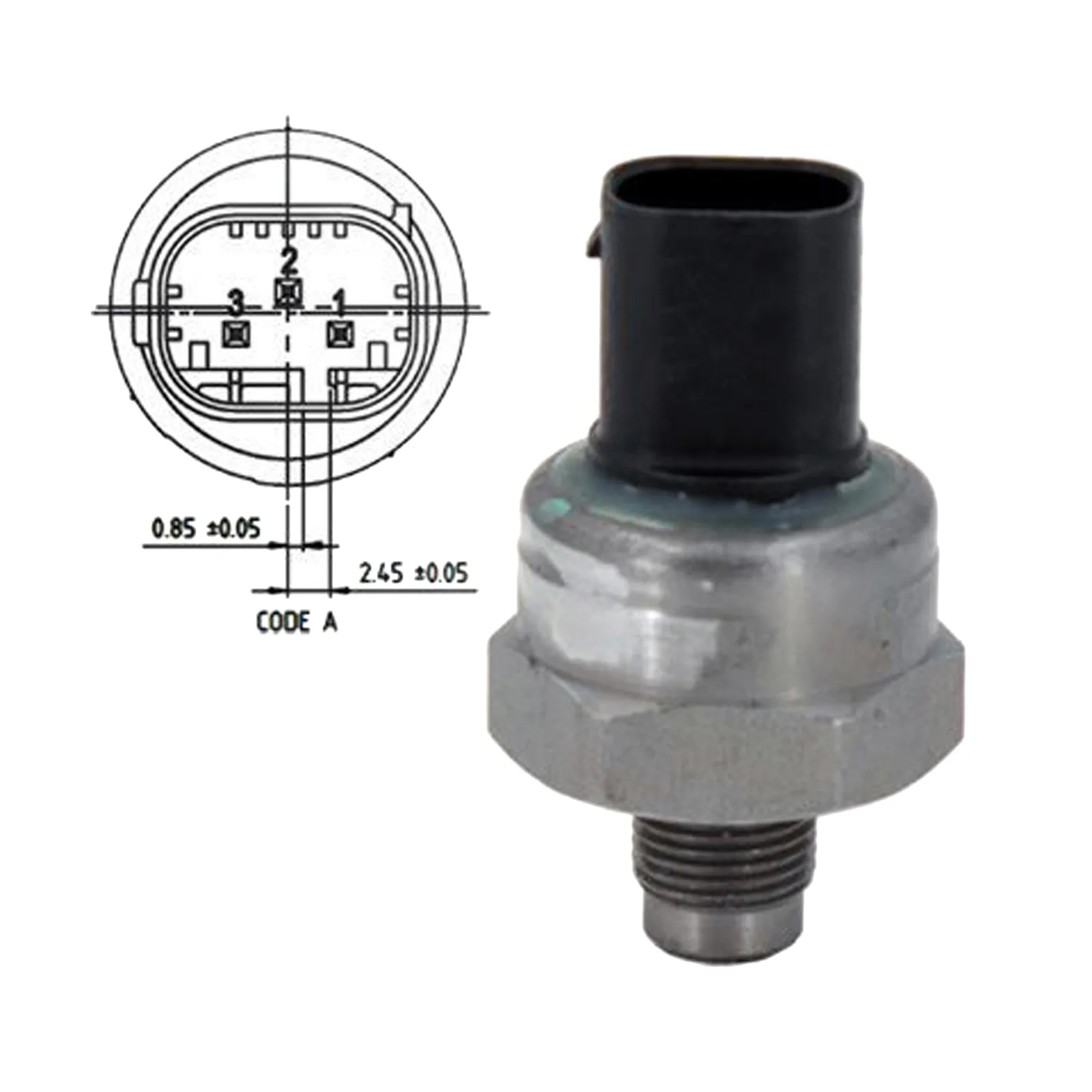

| Number of pins | 3-Pin |
| Connector Shape | Angular |
| Housing Colour | Black |
| Number of mounting bores | 2 |
| Compatible Makes | BMW |
| Fitment Type | Direct Replacement |
| Other Details | |
| Note | Late 2005-on E60 E61: confirm old sensor reads 34521164458 |
