Oil Pressure Switch for Toyota Dyna 77-99 Bu HU30 YU60 YH81 BU80 LY211 LY212

Part #: SCPS23 Replaces OEM: 83530-36011

Workshop Grade Replaces 83530-36011

$31.49
RRP $62.79
SAVE $31.30 (50%)
In Stock

BRAND NEW *OEM Quality* oil pressure switch to suit Toyota Dyna 77-99 Bu HU30 YU60 YH81 BU80 LY211 LY212.

Do not ignore an oil light that flickers on hot idle - confirm pressure with a gauge and if it is good the switch is at fault. This replacement is dispatched same day before 12pm from Cranbourne VIC.

TO SUIT

Suits the Toyota Dyna 77-99 Bu HU30 YU60 YH81 BU80 LY211 LY212. A common replacement on high-kilometre commercial vehicles where the switch sees constant heat cycles. Match the OEM number on your old part and see the compatibility tab for the full vehicle list.

FITMENT CHECK

This part has a 1-pin connector - check your plug before ordering.

OEM PART NUMBERS

  • 83530-36011
  • 8353010010
  • 8353010020
  • 8353012010
  • 8353012020

OTHER PART NUMBERS

  • 0986345000
  • V70-73-0005
  • 6ZL003259321
  • OS0026

PACKAGE INCLUDES

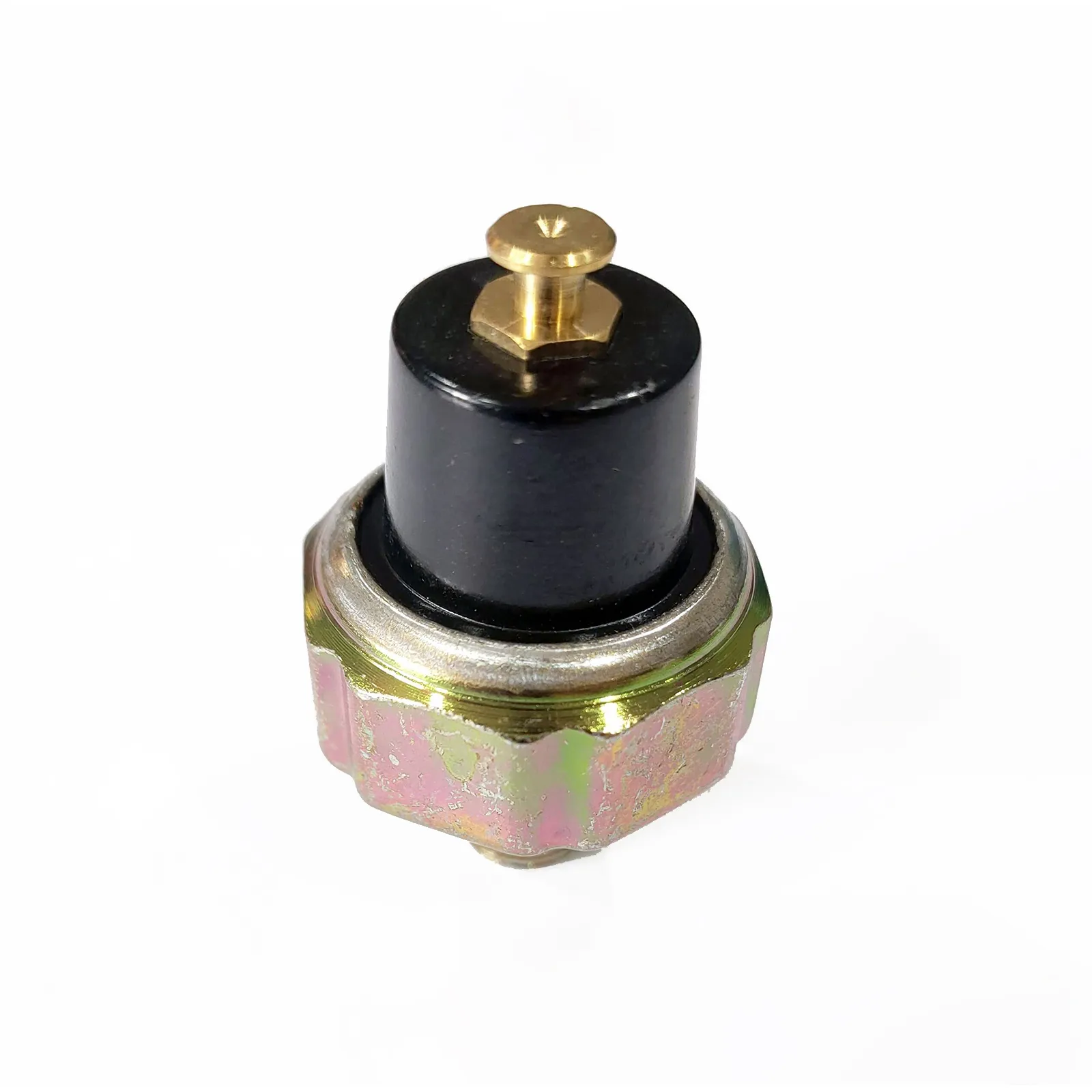

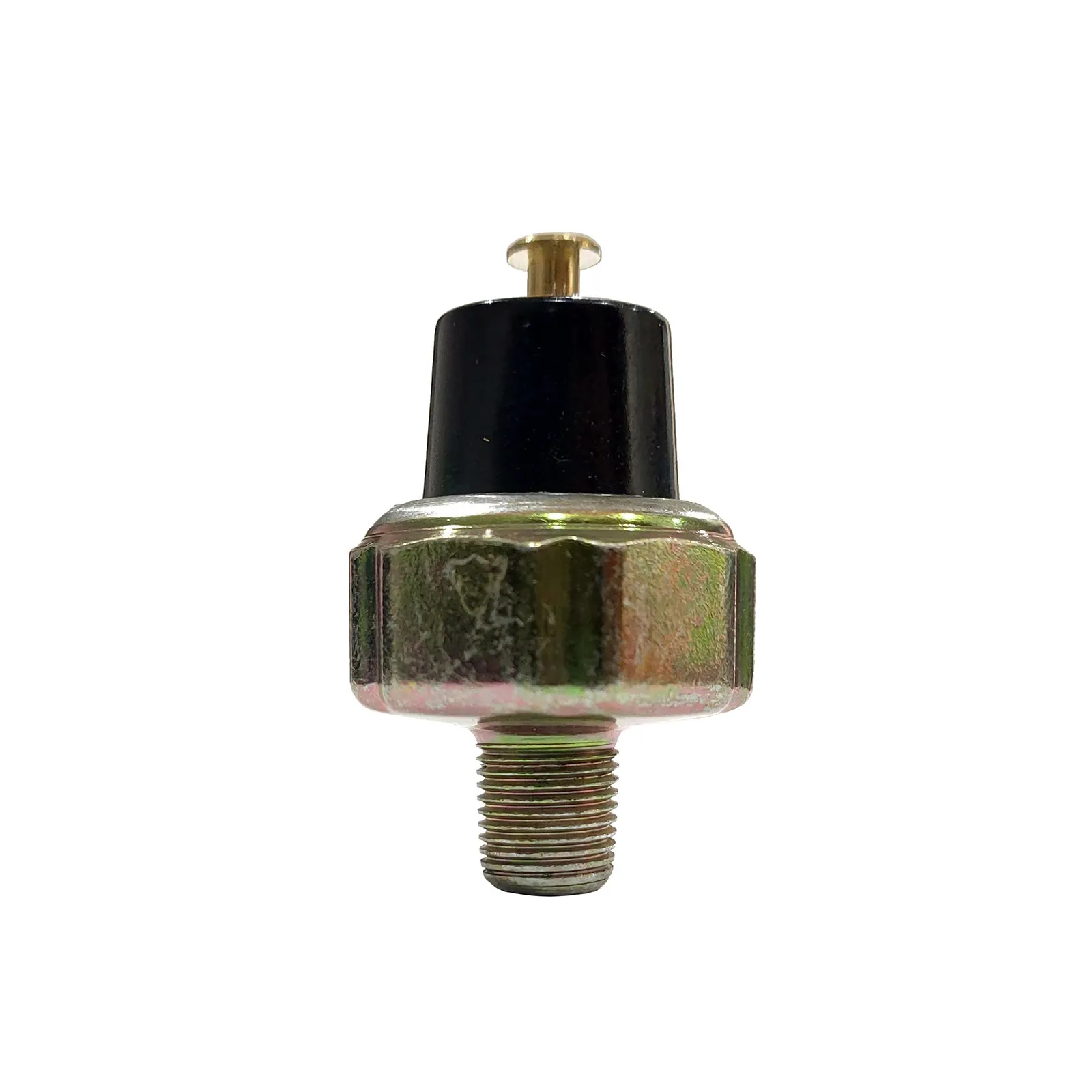

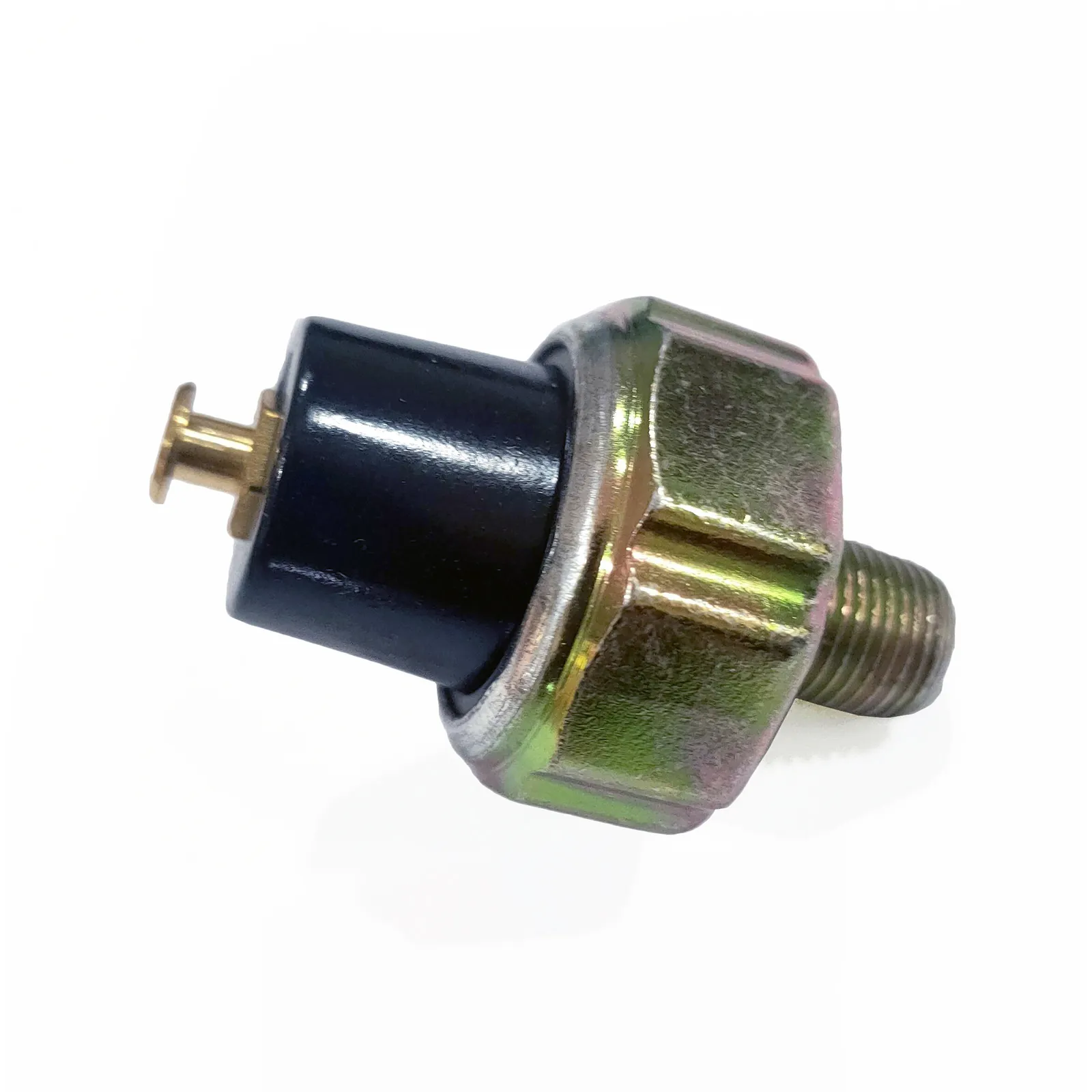

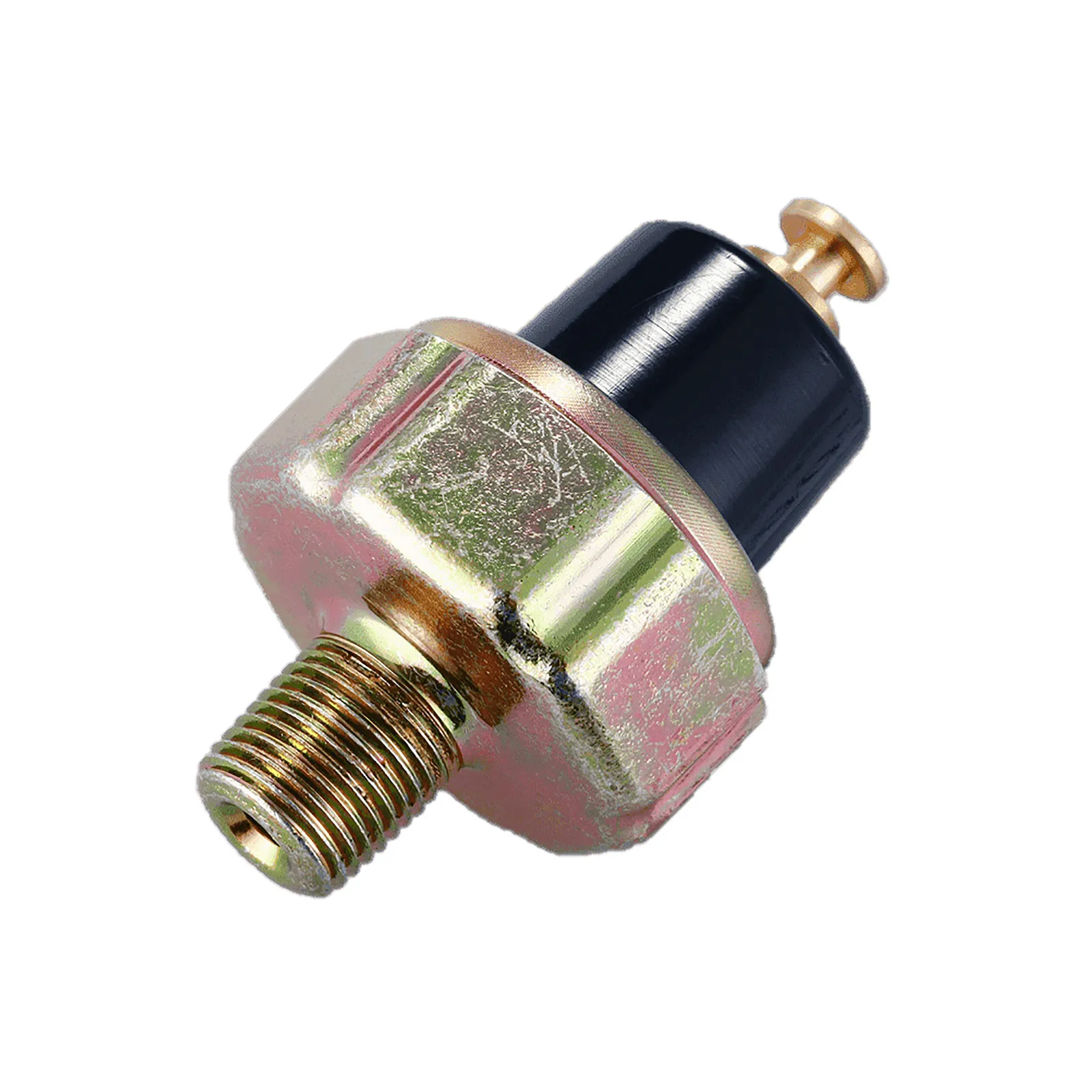

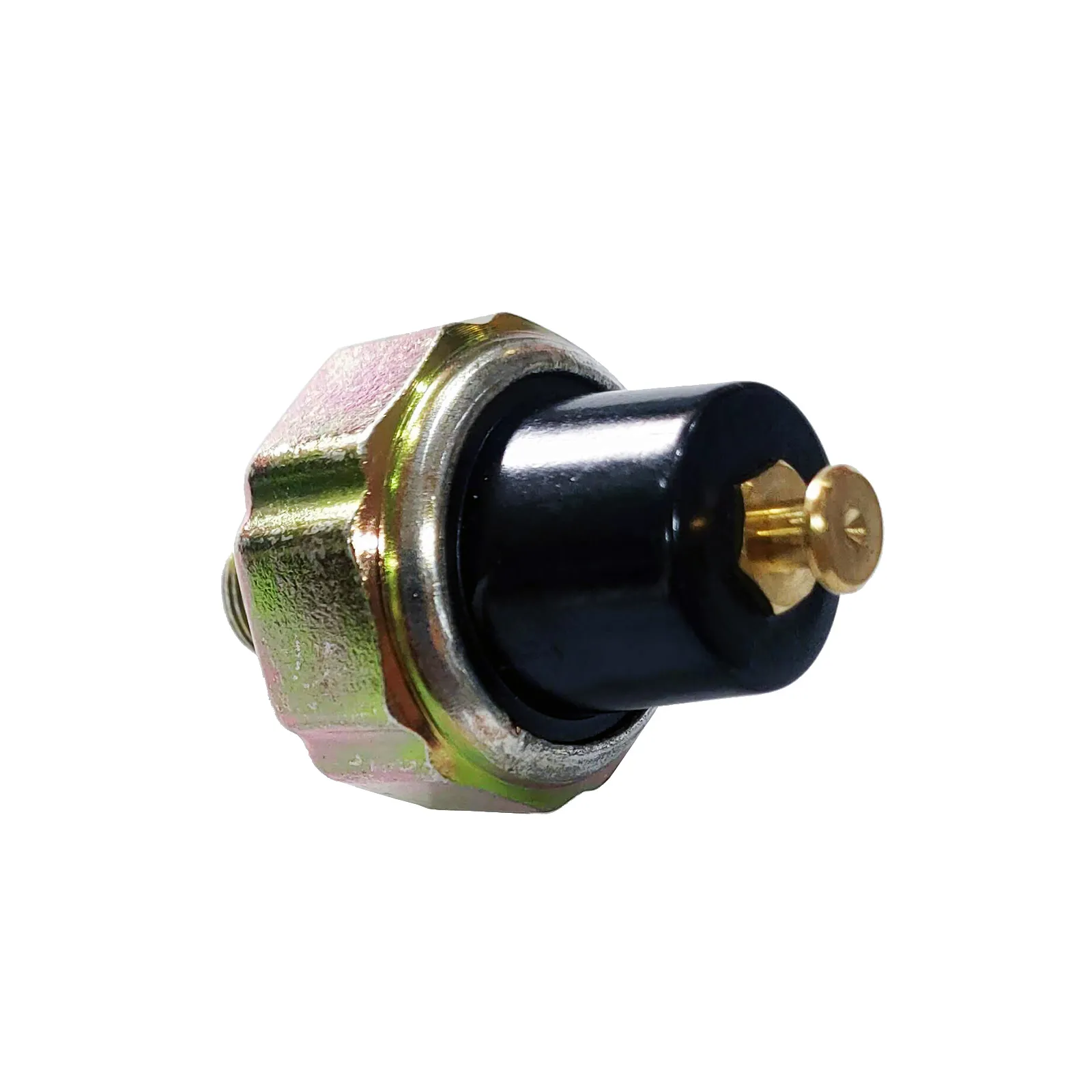

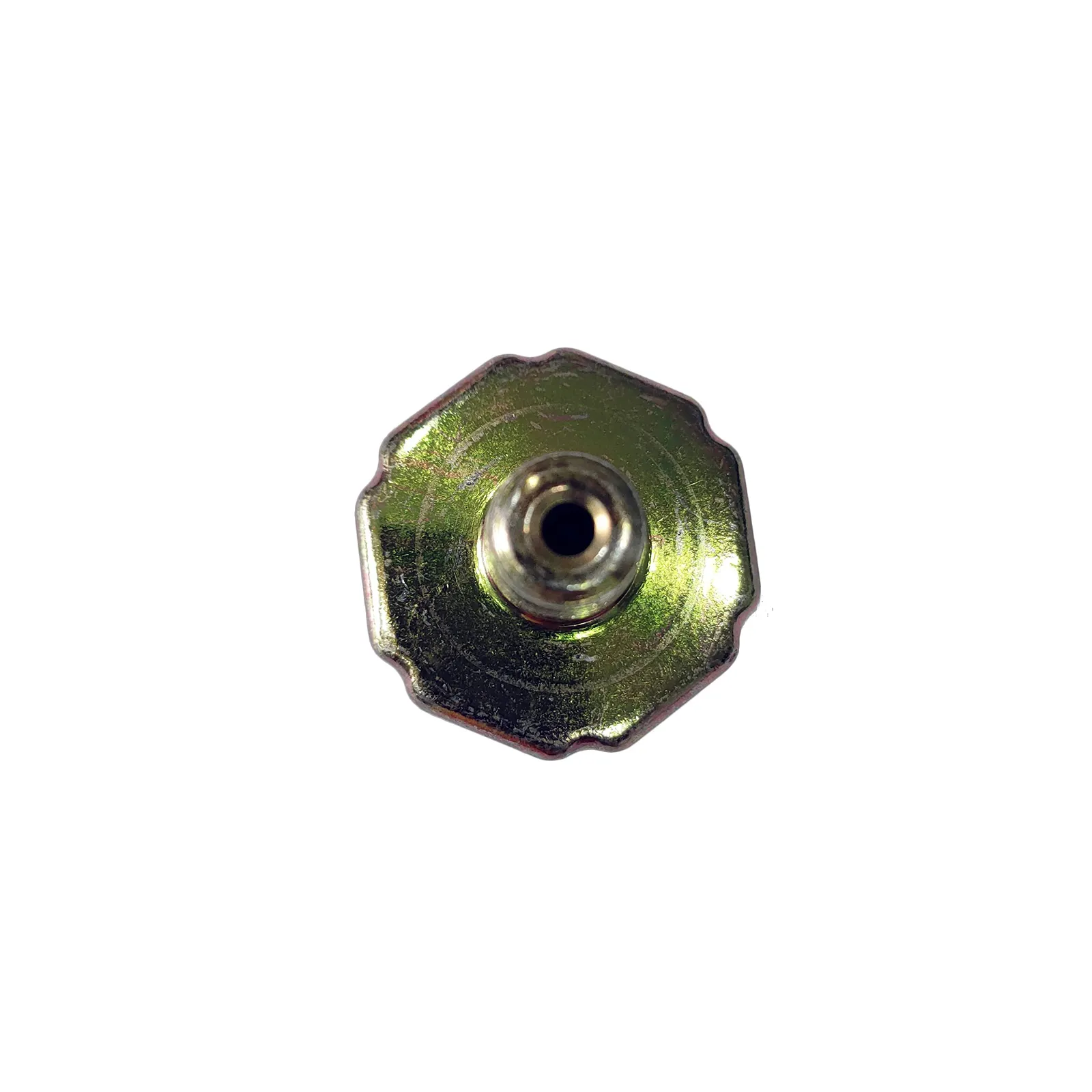

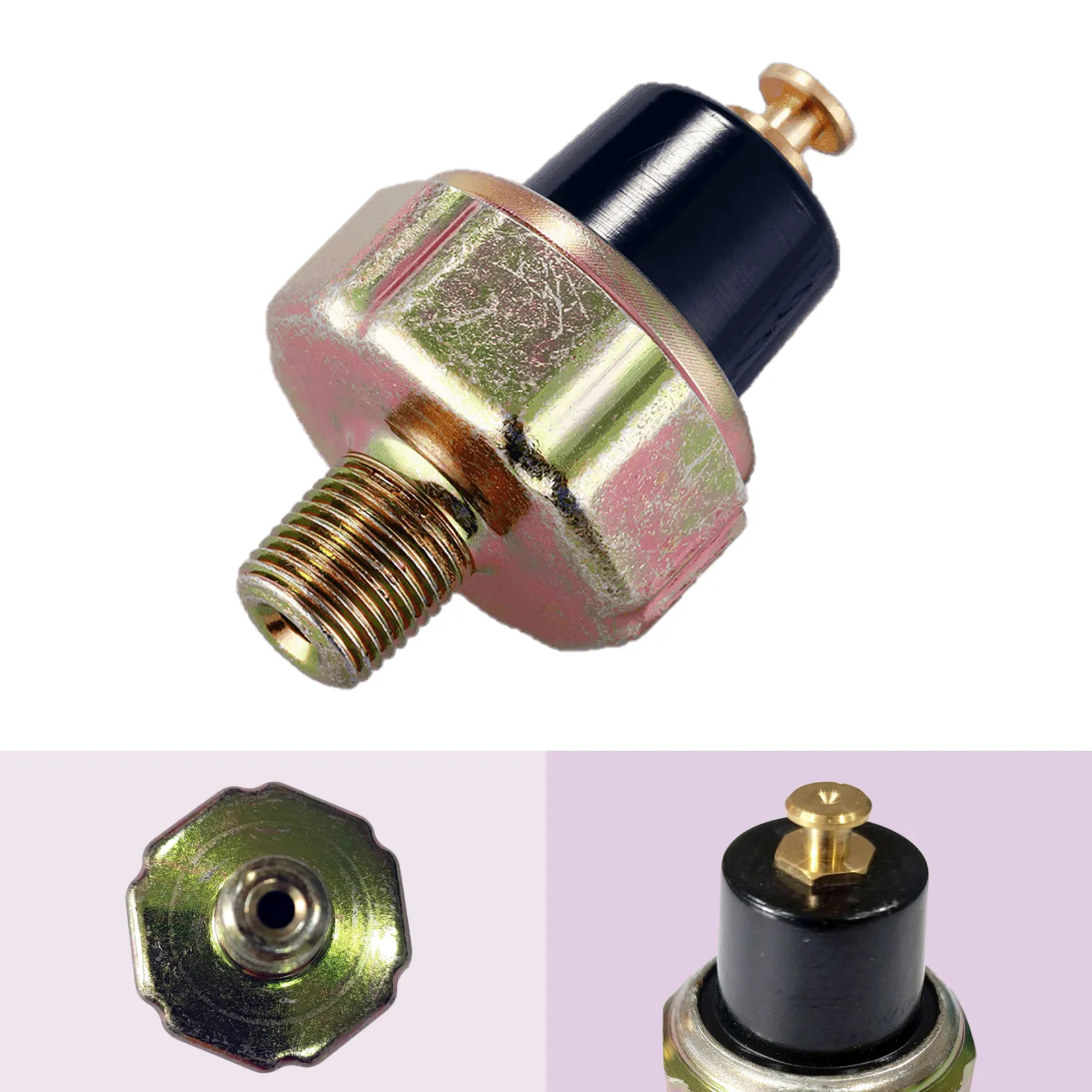

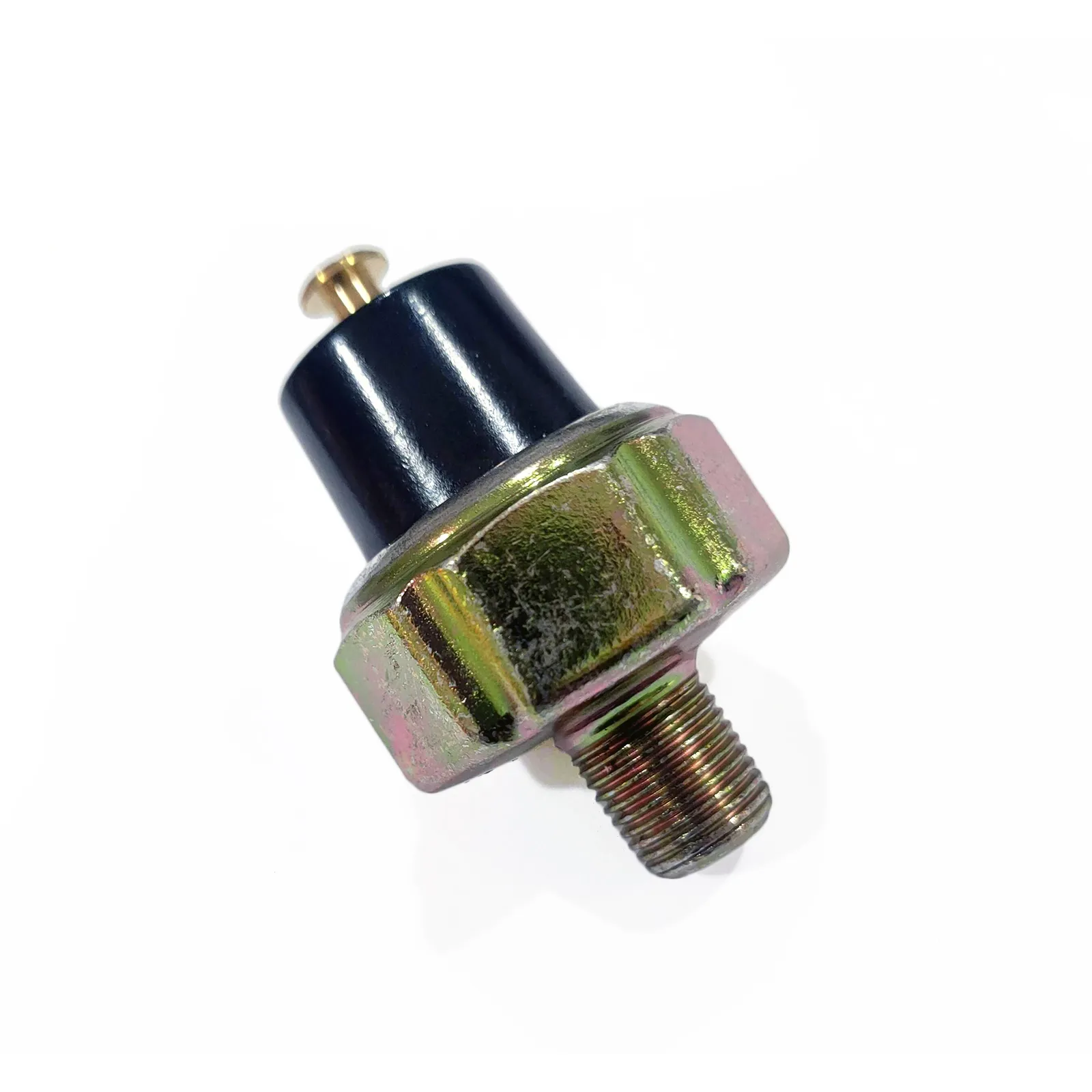

1 x oil pressure switch - 1-pin connector, 1/8 GAS thread, 27mm spanner size.

ABOUT THIS SENSOR

The oil pressure switch screws into the oil gallery on the Toyota Dyna 77-99 and closes the warning light circuit when pressure falls below the set point. Once the engine builds pressure the contacts open and the light goes out.

Heat cycling hardens the internal seal over time, leading to oil seepage at the connector and false or missing warnings. Always confirm actual oil pressure with a mechanical gauge before replacing.

COMMON SYMPTOMS OF FAILURE

  • Oil pressure circuit code P0520 on ECU-monitored engines
  • Oil warning light stays on with correct oil level and pressure
  • Oil light flickers at hot idle
  • No oil light at key on during the bulb check
  • Oil seeping from the switch body or terminal
  • [01/84 - 12/84] TOYOTA DYNA BU20R 3.0L 4cyl B
  • [01/85 - 01/95] TOYOTA DYNA BU60R 3.0L 4cyl B
  • [01/85 - 01/89] TOYOTA DYNA BU85R 3.4L 4cyl 13B
  • [01/89 - 12/95] TOYOTA DYNA BU88R 3.7L 4cyl 14B
  •
  • [08/77 - 07/81] TOYOTA DYNA HU30R 3.6L 6cyl H
  • [01/86 - 12/90] TOYOTA DYNA LH80R 2.4L 4cyl 2L
  • [01/95 - 12/01] TOYOTA DYNA LY211R 2.8L 4cyl 3L
  • [01/01 - 12/04] TOYOTA DYNA LY220R 3.0L 4cyl 5L
  • [01/01 - 12/04] TOYOTA DYNA LY230R 3.0L 4cyl 5L
  • [01/86 - 01/90] TOYOTA DYNA LY60R 2.4L 4cyl 2L
  • [01/91 - 01/95] TOYOTA DYNA LY61R 2.8L 4cyl 3L
  •
  • [08/68 - 07/77] TOYOTA DYNA RU10 2.0L 4cyl 5R
  • [08/68 - 07/77] TOYOTA DYNA RU12 2.0L 4cyl 5R
  • [08/68 - 07/77] TOYOTA DYNA RU15 2.0L 4cyl 5R
  • [01/83 - 01/84] TOYOTA DYNA RU20R 2.0L 4cyl 5R
  •
  • [01/86 - 12/95] TOYOTA DYNA YH81R 1.8L 4cyl 2Y-C
  • [01/85 - 01/86] TOYOTA DYNA YU60R 2.0L 4cyl 3Y-C
  • [01/87 - 12/90] TOYOTA DYNA YU62R 2.2L 4cyl 4Y
  • [01/95 - 12/01] TOYOTA DYNA YY100R 1.8L 4cyl 2Y-C
What is the difference between an oil pressure sensor and an oil pressure switch?

An oil pressure switch is a simple on/off device that triggers the oil pressure warning light when pressure drops below a fixed threshold. It provides no information about the actual pressure level - just whether it is above or below the activation point. An oil pressure sensor provides a continuous analogue signal to the ECU and instrument cluster, allowing the dashboard to display an actual pressure reading and giving the ECU real-time data for engine management decisions. Many vehicles use both - a switch for the warning light and a sensor for the gauge.

What are the symptoms of a faulty oil pressure sensor or switch?

The most common symptom is a false oil pressure warning light on the dashboard despite the engine having correct oil level and pressure. The light may be on constantly or may flicker particularly at idle when oil pressure is naturally at its lowest. An oil leak from around the sensor or switch body is also a common sign of failure. On vehicles with a pressure gauge rather than just a warning light, a faulty sensor may cause the gauge to read zero, maximum, or erratically.

How do I confirm if the oil pressure warning is a faulty sensor or actual low pressure?

Never assume a warning light is a faulty sensor without checking first. Turn the engine off immediately when the oil pressure light comes on and check the oil level on the dipstick. If oil level is correct, you can verify actual oil pressure by fitting a mechanical oil pressure gauge to the sending unit port and running the engine briefly. A reading within the normal range (typically 200 to 500 kPa at operating temperature and idle) confirms the warning is from a faulty sensor rather than actual low pressure.

Is it safe to continue driving with the oil pressure warning light on?

No - stop the engine as soon as it is safe to do so. An actual low oil pressure condition will cause catastrophic engine damage within minutes of continued running. Even if the fault turns out to be a faulty sensor, you cannot confirm this while driving. Always treat an oil pressure warning light as a critical fault requiring immediate attention until proven otherwise.

How difficult is it to replace an oil pressure sensor or switch?

Most oil pressure sensors and switches are threaded directly into the engine block or oil filter housing and can be replaced with basic tools - a socket or spanner of the correct size and some thread sealant. Allow the engine to cool before removal to avoid burns from hot oil. Have a rag ready to catch the small amount of oil that will spill when the old sensor is removed. The job typically takes 15 to 30 minutes on most vehicles.

Will a faulty oil pressure sensor damage the engine?

The sensor itself does not affect oil pressure or lubrication - it only monitors and reports pressure. A faulty sensor that gives a false low reading may cause unnecessary anxiety but will not damage the engine. However if the sensor gives a false normal reading when actual pressure is low, it will prevent the warning light from alerting you to a real low pressure condition that could cause serious engine damage. This is why verifying actual oil pressure is important before dismissing an oil pressure fault as a sensor issue.

Identification
BrandAftermarket OEM Replacement
Part Numbers
Part NumberSCPS23
Reference OEM Number83530-36011
Other OEM Numbers8353010010, 8353010020, 8353012010, 8353012020, 8353036011
Related Part NumbersCPS23, CPS37, OS0026, TPS006
Interchange Part Numbers0 986 345 000, V70-73-0005, 6ZL003259321
Product Specifics
Product TypeSENSOR
Sensor TypeOil Pressure Switch Sensor
TypeSensor
FeaturesDirect Fit
Manufacturer Warranty1 Year
NoteSuits Warning Light
Thread Size1/8 GAS
Spanner Size27mm
Number of pins1 -pin connector
Supplementary Article InfoSuits Warning Light
Housing ColourBlack
Pressure Range0.3 bar TO 0.5 bar
Other Details
NoteAlways verify fitment using your vehicle's OEM part number.
Unit Of Measureea
