BRAND NEW *OEM Quality* coolant temperature sensor to suit Mitsubishi 6G72 4G63 4G15 4G54 6G74 engines.

A failing coolant temperature sensor sends the wrong signal to the ECU and throws off fuel trims and cooling fan operation. This one is matched to the OEM part number for a direct plug-and-play fit. Same-day dispatch before 12pm from Melbourne.

TO SUIT

Covers the Mitsubishi V6 range (Pajero NH-NL, Triton MH/MJ, Verada KS, 3000GT, GTO) using the 6G72 and 6G74 V6, and the four-cylinder Magna TM-TS (4G54), Lancer CA-CE (4G15), and Express/Starwagon (4G63). Full year-by-year coverage is listed in the vehicle compatibility section below.

OEM PART NUMBERS

MD149338

OTHER PART NUMBERS

VEMO: V37-72-0001
NTY: ECT-HY-000
WALKER PRODUCTS: 211-1032

PACKAGE INCLUDES

1 x OEM Quality coolant temperature sensor (2-pin plug).

ABOUT THIS SENSOR

The coolant temperature sensor is a thermistor mounted in the coolant passage that reports engine temperature to the ECU. On these V6 and 4-cylinder Mitsubishi engines it directly influences cold-start fuel enrichment, ignition timing and radiator fan switching.

A drifting or open-circuit sensor on the 6G72/6G74 V6 typically shows up as a rich cold-start and a fan that never cuts in, while on the 4G54/4G63 four-cylinder engines it more commonly presents as hesitant idle and a stored P0116/P0117 code.

COMMON SYMPTOMS OF FAILURE

Poor cold-start fuel enrichment or hard starting from cold
Check Engine Light with DTC P0116, P0117 or P0118
Engine running rich or lean and reduced fuel economy
Cooling fan running constantly or not switching on
Radiator cooling fan cycling incorrectly on V6 Pajero and Verada models

[1990 - 1995] MITSUBISHI PAJERO Canvas Top 3.0 V6 (V23C) (3.0L 6cyl 6G72)
[1991 - 1997] MITSUBISHI PAJERO NH,NJ,NK,NL 3.0 V6 4WD (V23W, V43W) (3.0L 6cyl 6G72)
[1995 - 1997] MITSUBISHI PAJERO NH,NJ,NK,NL 3.5 V6 24V All-wheel Drive (V25W, V45W) (3.5L 6cyl 6G74)
[1997 - 2000] MITSUBISHI PAJERO NH,NJ,NK,NL 3.5 V6 24V All-wheel Drive (V45W, V25W) (3.5L 6cyl 6G74)
[1990 - 1996] MITSUBISHI TRITON ME,MF,MG,MH,MJ 3.0 i 4WD (3.0L 6cyl 6G72)
[1987 - 1989] MITSUBISHI MAGNA TN 2.6 (2.6L 4cyl 4G54)
[1987 - 1989] MITSUBISHI MAGNA TN 2.6 i (2.6L 4cyl 4G54)
[1989 - 1991] MITSUBISHI MAGNA TP 2.6 (2.6L 4cyl 4G54)
[1991 - 1994] MITSUBISHI MAGNA TR 2.6 (2.6L 4cyl 4G54)
[1991 - 1994] MITSUBISHI MAGNA TR 2.6 i (2.6L 4cyl 4G54)
[1991 - 1994] MITSUBISHI MAGNA TR 3.0 i (3.0L 6cyl 6G72)
[1994 - 1996] MITSUBISHI MAGNA TS 2.6 (2.6L 4cyl 4G54)
[1994 - 1996] MITSUBISHI MAGNA TS 2.6 i (2.6L 4cyl 4G54)
[1994 - 1996] MITSUBISHI MAGNA TS 3.0 i (3.0L 6cyl 6G72)
[1988 - 1992] MITSUBISHI LANCER CA,CB 1.5 (C62A) (1.5L 4cyl 4G15)
[1990 - 1992] MITSUBISHI LANCER CA,CB 1.5 i (C63A) (1.5L 4cyl 4G15)
[1996 - 2003] MITSUBISHI LANCER CE 1.5 12V (CK2A) (1.5L 4cyl 4G15)
[1992 - 1998] MITSUBISHI 3000 GT 3.0 Turbo 4WD (Z16A) (3.0L 6cyl 6G72-T)
[1989 - 1996] MITSUBISHI GTO 3.0 AWD (Z15A) (3.0L 6cyl 6G72)
[1994 - 2000] MITSUBISHI GTO 3.0 AWD (Z16A) (3.0L 6cyl 6G72-T)
[1994 - 1996] MITSUBISHI EXPRESS SF,SG,SH,SJ,WA 2.0 (P03V, P13V) (2.0L 4cyl 4G63)
[1994 - 2003] MITSUBISHI EXPRESS SF,SG,SH,SJ,WA 2.0 (P23V, P03V, P13V) (2.0L 4cyl 4G63)
[1986 - 1997] MITSUBISHI STARWAGON SD,SE,SF,SG,SH,SJ,WA 2.0 (P03W, P13W) (2.0L 4cyl 4G63)
[1994 - 2004] MITSUBISHI STARWAGON SD,SE,SF,SG,SH,SJ,WA 2.0 GLS (P03W, P13W) (2.0L 4cyl 4G63)
[1994 - 2002] MITSUBISHI STARWAGON SD,SE,SF,SG,SH,SJ,WA 2.0 i (P03W, P13W) (2.0L 4cyl 4G63)
[1994 - 1997] MITSUBISHI VERADA KS 3.0 (3.0L 6cyl 6G72 (SOHC 12V))
[1994 - 1997] MITSUBISHI VERADA KS 3.0 (3.0L 6cyl 6G72)

How do I test a coolant temperature sensor?

The most common test is to measure the sensor resistance with a multimeter at a known coolant temperature and compare against the manufacturer resistance curve. A cold engine (20 degrees C) typically reads 2,000 to 3,000 ohms and drops to around 200 to 300 ohms at operating temperature (90 degrees C). An OBD2 scanner showing a fixed temperature reading that does not change as the engine warms up is also a strong indicator of sensor failure.

Can a faulty coolant temperature sensor cause my engine to overheat?

Indirectly yes. If the sensor reports a lower temperature than actual, the ECU may not activate the cooling fan at the correct time, allowing the engine to overheat. It can also suppress the dashboard warning light, meaning you may not be alerted until the engine is already at a dangerously high temperature. Replace a suspected faulty sensor promptly.

Do I need to drain the coolant to replace the sensor?

Not always - many coolant temperature sensors can be replaced quickly with minimal coolant loss if you work fast and have a replacement ready to thread in immediately. However on some vehicles the sensor location requires partial coolant drainage. Check the sensor position on your specific engine before starting. Always use fresh coolant when topping up after replacement.

What are the symptoms of a faulty coolant temperature sensor?

Symptoms include poor fuel economy, black smoke, engine overheating warning, incorrect temperature gauge reading, hard starting when cold, and rough idle. Fault codes P0115 to P0119 are commonly associated with coolant temperature sensor faults.

Is it safe to drive with a bad coolant temperature sensor?

A faulty coolant temperature sensor can cause the ECU to run rich fuel mixtures and prevent the cooling fan from operating correctly, risking engine overheating. Replace it promptly - it is a low-cost part that can prevent expensive engine damage.

How do I know if my coolant temperature sensor or my thermostat is faulty?

A faulty thermostat typically causes the engine to overheat or never reach operating temperature. A faulty coolant temp sensor causes incorrect gauge readings and running issues but the coolant itself may be at the correct temperature. An OBD2 scanner showing live coolant temp data helps distinguish between the two.

Are there two coolant temperature sensors on my vehicle?

Many vehicles have two sensors - one for the ECU (engine management) and one for the dashboard temperature gauge. They look similar but are not interchangeable. Check your vehicle's service manual or contact us with your vehicle details to confirm which sensor you need.

Identification
SKU	CCS33
Barcode #	9314258071929
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	CCS33
Reference OEM Number	MD149338
Other OEM Numbers	97036606, MD149338
Related Part Numbers	CCS33, CS854, TCS050
Trade Part Numbers	VEMO: V37-72-0001, NTY: ECT-HY-000, WALKER PRODUCTS: 211-1032
Product Specifics
Product Type	SENSOR
Sensor Type	Coolant Temperature Sensor
Fitting Position	Coolant

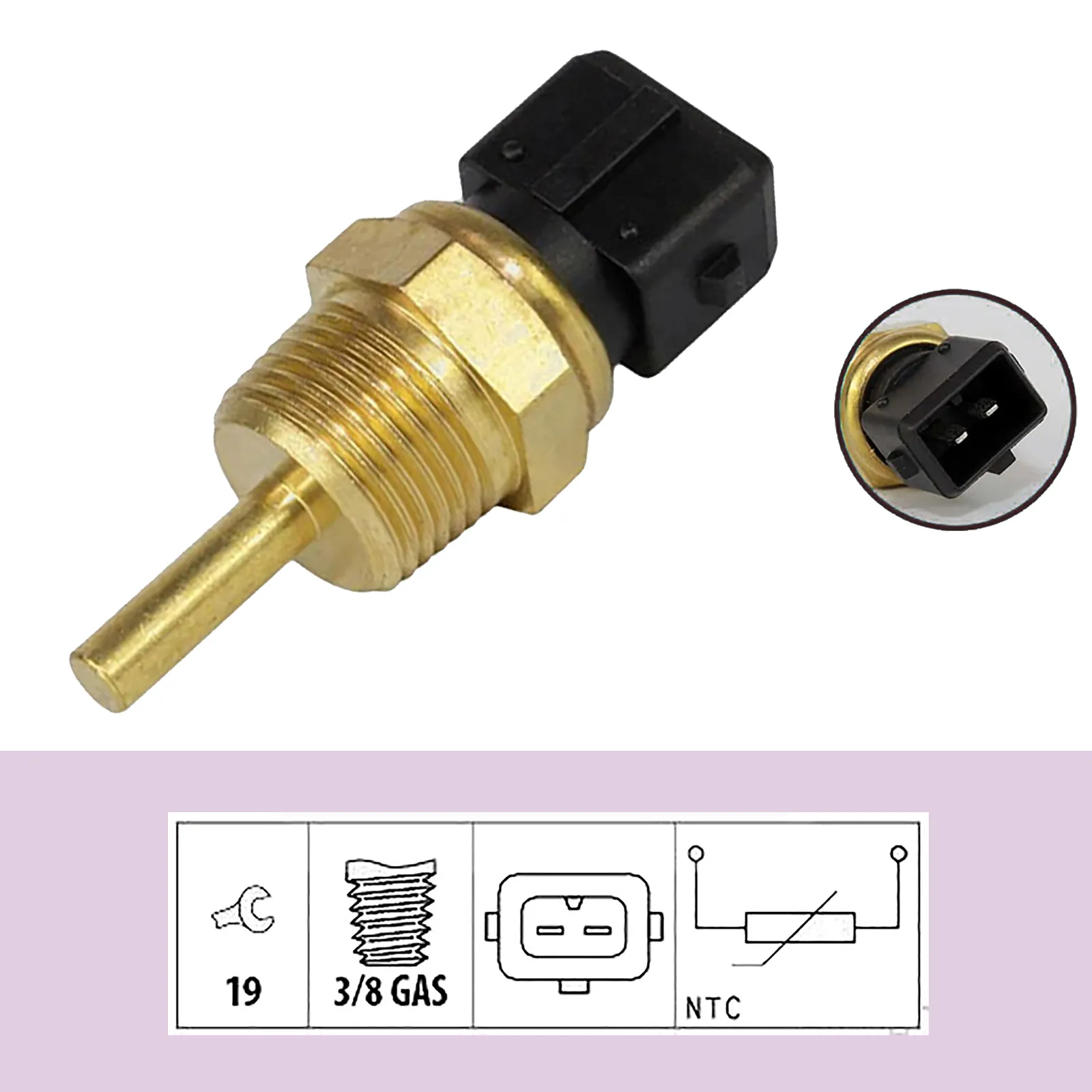

Thread Size	3/8"-Gas
Spanner Size	19mm
Number of pins	2-Pin
Connector Shape	rectangular
Housing Colour	Black
Mounting Type	Threaded
Compatible Makes	Mitsubishi
Fitment Type	Direct Replacement
Other Details
Note	Always verify fitment using your vehicle's OEM part number.
Unit Of Measure	ea
