BRAND NEW *OEM Quality* coolant temperature sensor to suit Land Rover Freelander 2 / Discovery Sport / Range Rover Evoque / Jaguar XF 2.2L diesel.

If your Land Rover or Jaguar is throwing a P0115-P0119 fault code, running rich when warm, showing an inaccurate temperature gauge, or struggling with cold starts, a failed coolant temperature sensor is one of the most likely causes. This direct OEM replacement fits the 2-pin rectangular green connector - dispatched same-day before 12pm from Cranbourne VIC.

TO SUIT

Designed for the Land Rover Freelander 2 L359 2.2L TD4/SD4 diesel, Discovery Sport L550 2.2L D 4x4, Range Rover Evoque L538 2.2L D FWD and 4x4, and Jaguar XF X250 2.2L D. All vehicles use the PSA-sourced 2.2L 224DT diesel engine sharing the same coolant sensor. Confirm chassis code before ordering.

OEM PART NUMBERS

LR001207
LR006857
C2S44029
XR850974

OTHER PART NUMBERS

VEMO: V25-72-0049
HELLA: CS882
Standard: CTS2015

PACKAGE INCLUDES

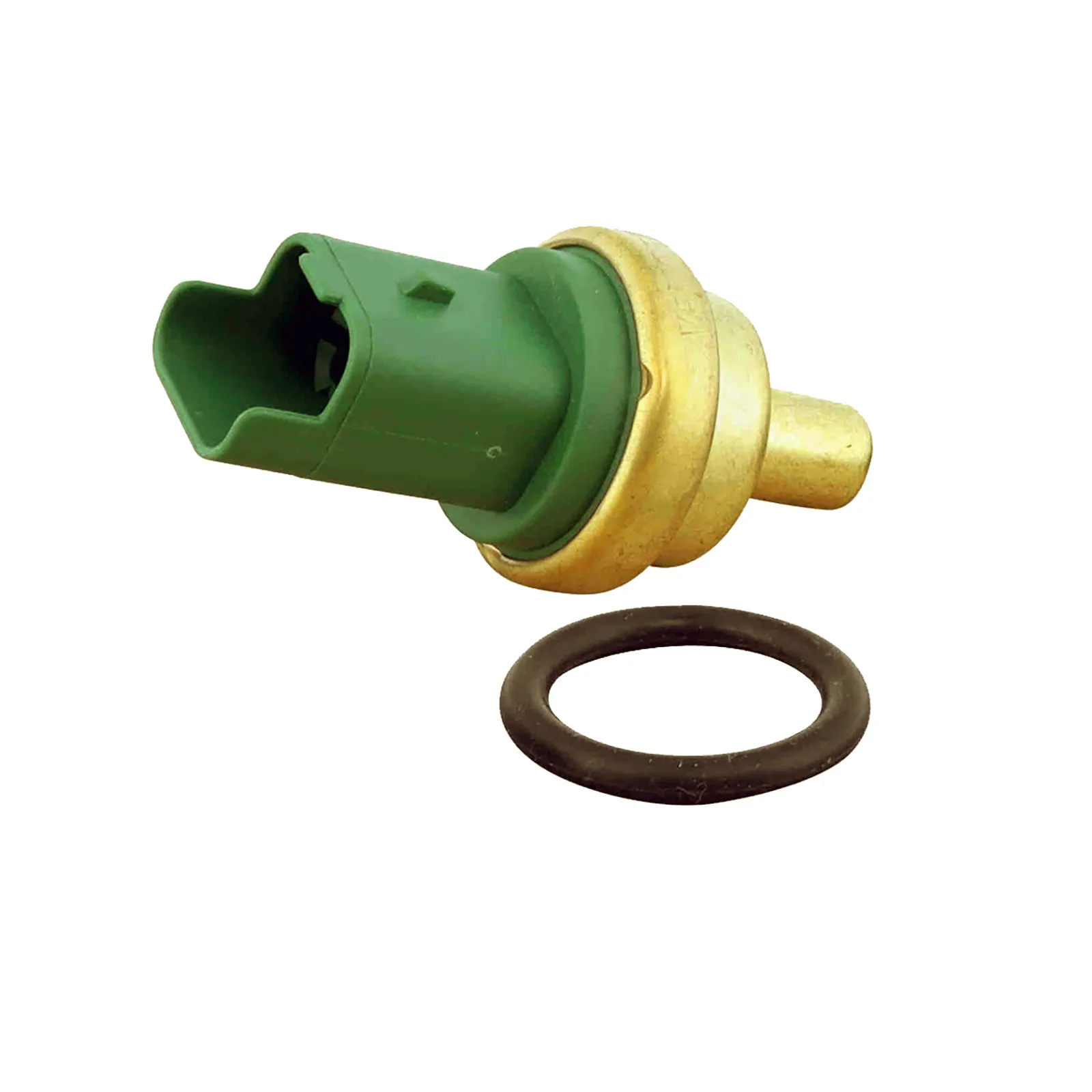

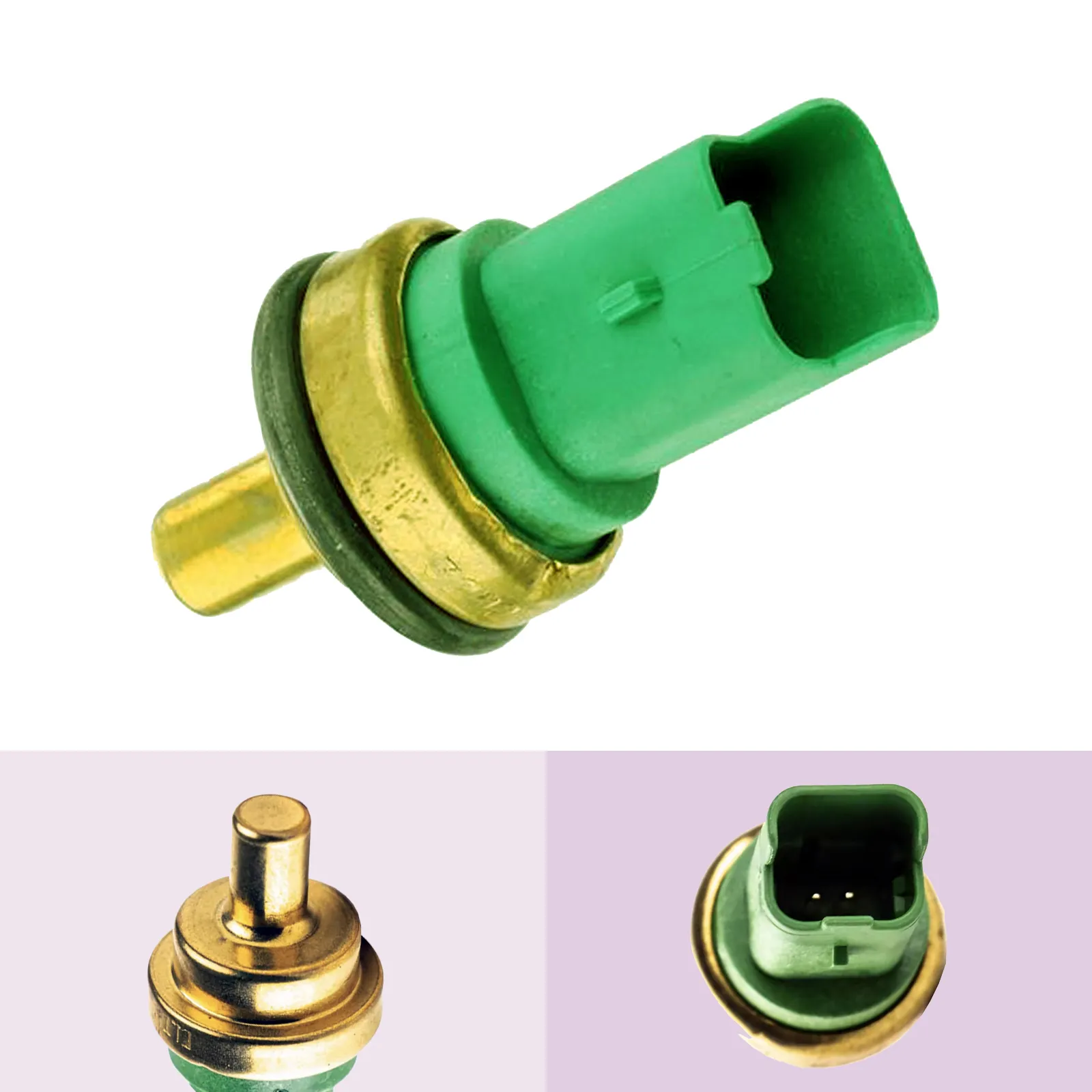

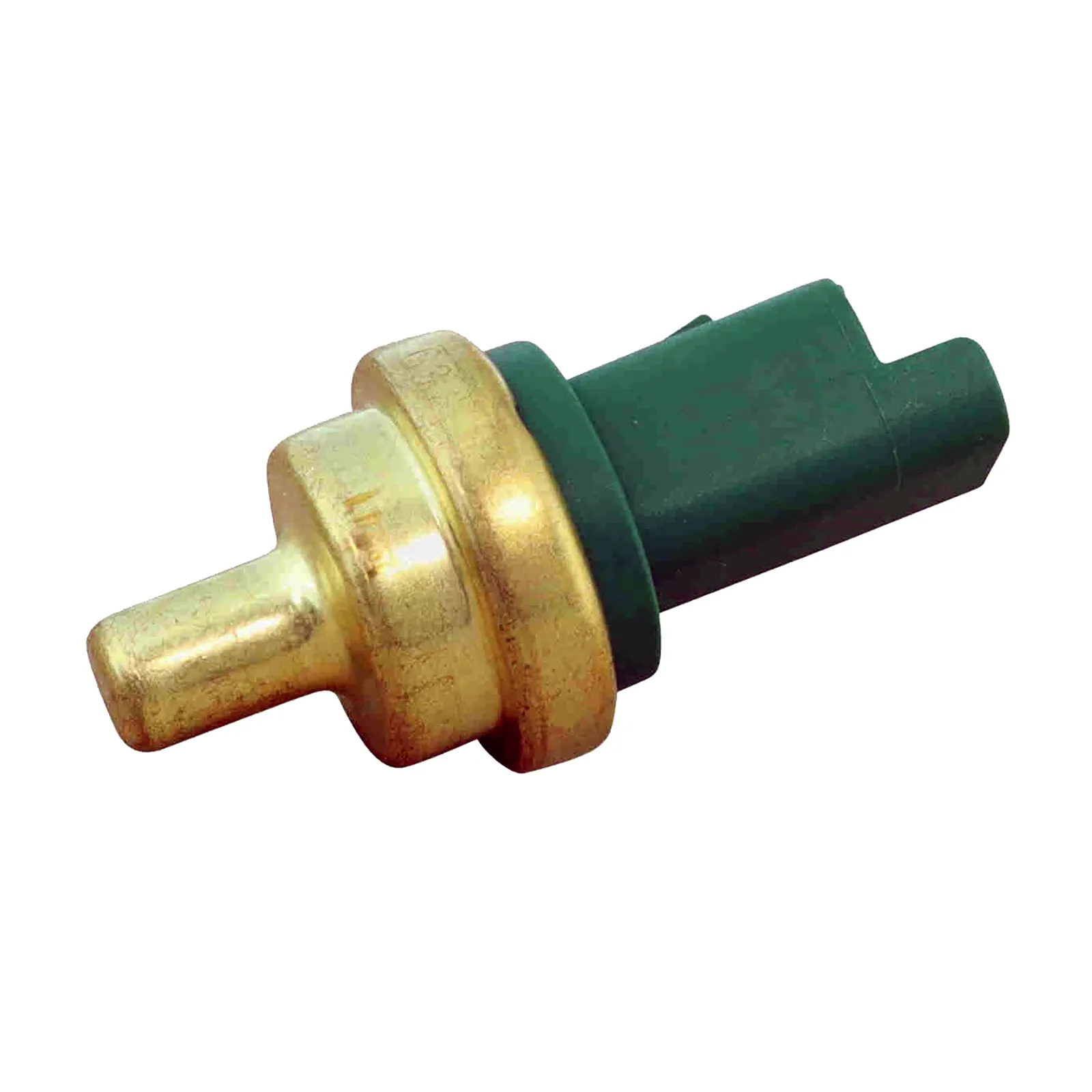

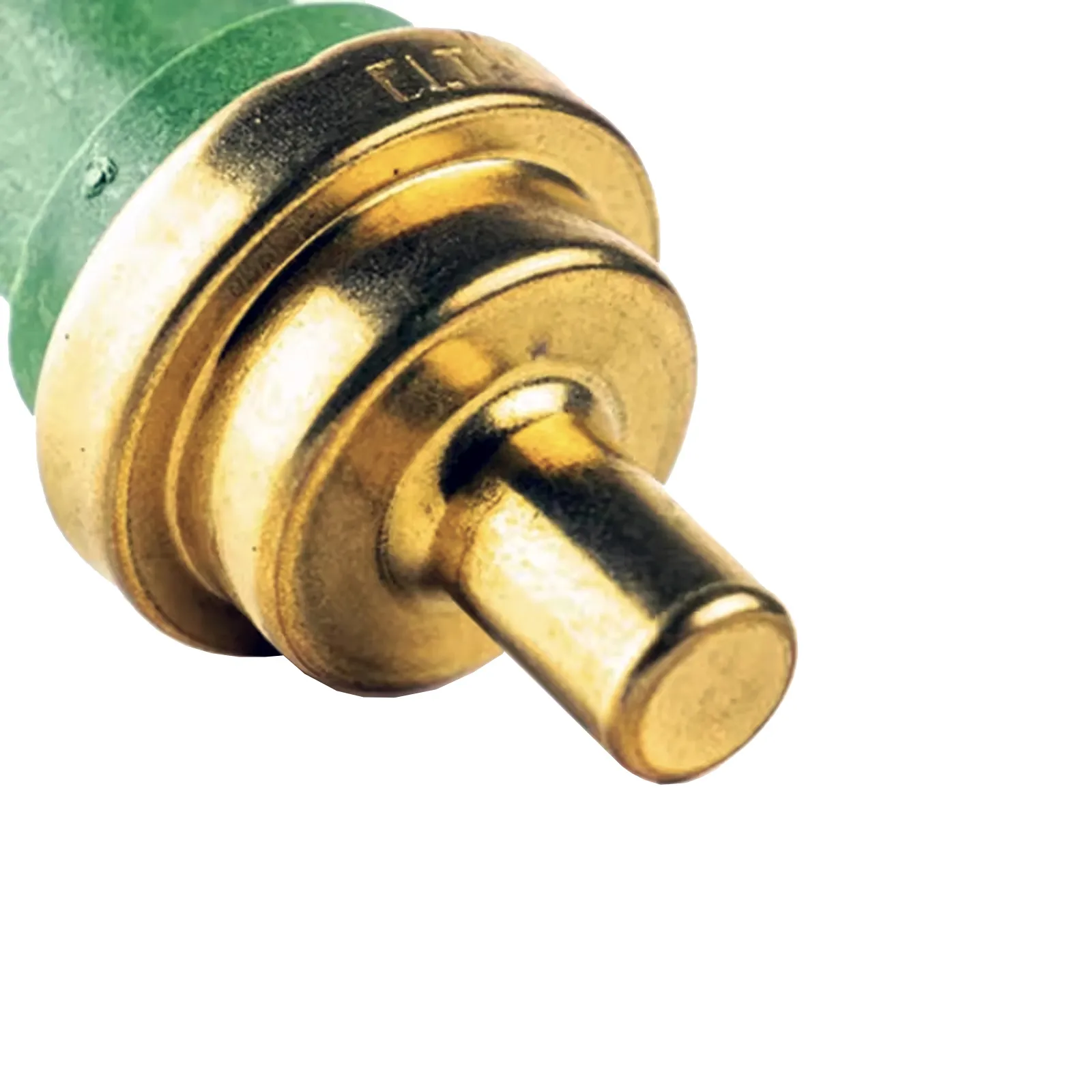

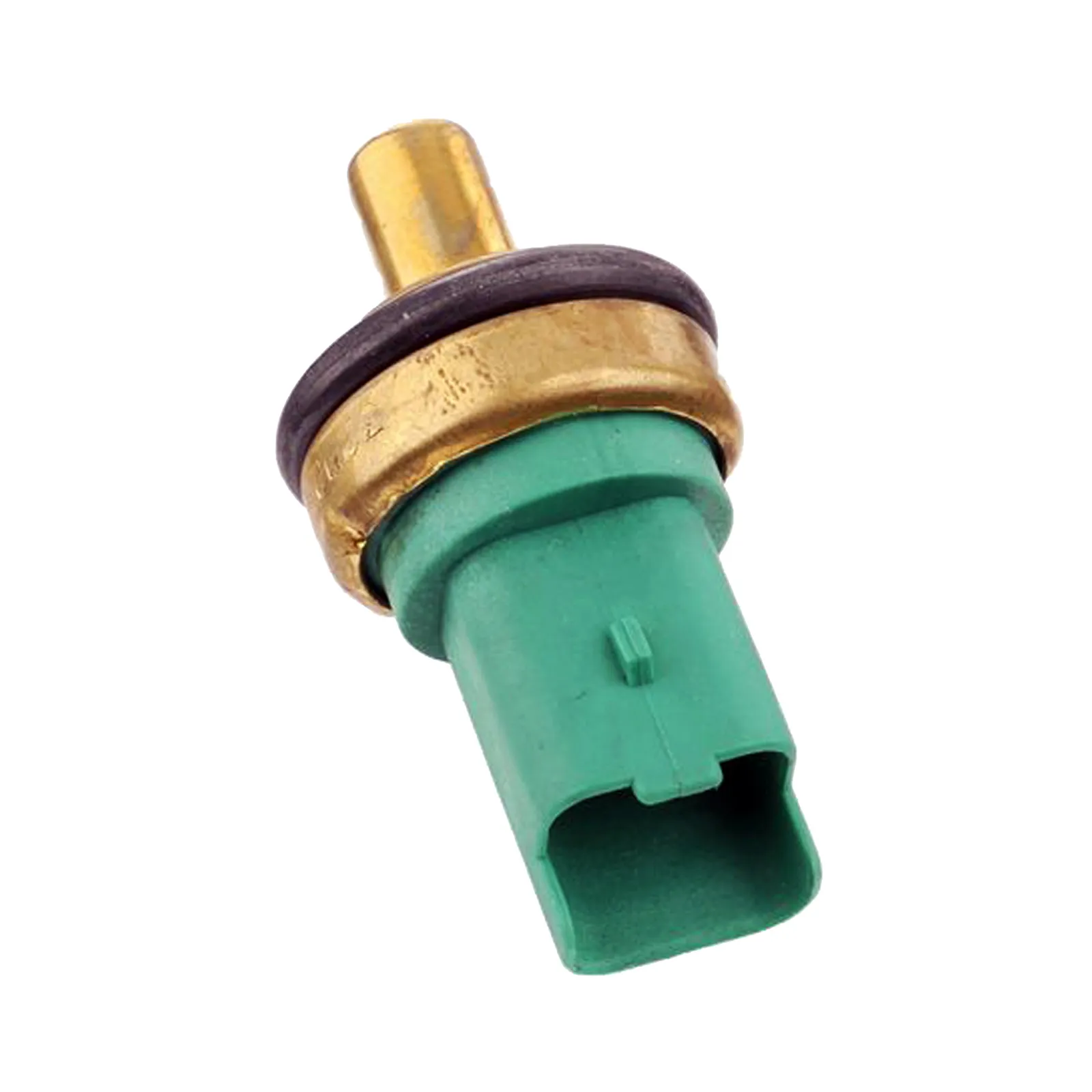

1 x BRAND NEW coolant temperature sensor (2-pin rectangular green connector). Push-in style with retainer clip. Includes seal. Direct OEM replacement - no wiring modification required.

ABOUT THIS SENSOR

The coolant temperature sensor monitors engine coolant temperature and sends a signal to the ECU. The ECU uses this data to adjust fuel injection timing, fuel mixture, idle speed, and ignition timing - especially critical during cold starts and warm-up.

The Land Rover Freelander 2, Discovery Sport, Range Rover Evoque, and Jaguar XF all use the PSA 2.2L 224DT diesel engine which shares the same coolant temperature sensor design. This is a direct plug-in replacement with the OEM 2-pin rectangular green connector.

COMMON SYMPTOMS OF FAILURE

Check Engine light with codes P0115 P0116 P0117 P0118 P0119
Engine running rich when warm - black smoke or strong fuel smell
Poor cold-start performance or extended warm-up time
Inaccurate or erratic temperature gauge reading
Increased fuel consumption
Rough idle or hesitation at operating temperature

[09/14 - 06/16] LAND ROVER DISCOVERY SPORT L550 2.2L 4cyl 224DT D 110kW-140kW SUV 4x4
[01/06 - 10/14] LAND ROVER FREELANDER 2 L359 2.2L 4cyl 224DT TD4 112kW-115kW SUV 4x4
[10/06 - 10/14] LAND ROVER FREELANDER 2 L359 2.2L 4cyl 224DT TD4 110kW-118kW SUV 4x4
[08/10 - 10/14] LAND ROVER FREELANDER 2 L359 2.2L 4cyl 224DT SD4 140kW SUV 4x4
[06/11 - 07/15] LAND ROVER RANGE ROVER EVOQUE L538 2.2L 4cyl 224DT D 110kW SUV FWD
[06/11 - 07/15] LAND ROVER RANGE ROVER EVOQUE L538 2.2L 4cyl 224DT D 110kW SUV 4x4
[06/11 - 07/15] LAND ROVER RANGE ROVER EVOQUE L538 2.2L 4cyl 224DT D 140kW SUV 4x4
[11/11 - 04/15] JAGUAR XF X250 2.2L 4cyl 224DT D 140kW Sedan
[11/11 - 04/15] JAGUAR XF X250 2.2L 4cyl 224DT D 147kW Sedan

How do I test a coolant temperature sensor?

The most common test is to measure the sensor resistance with a multimeter at a known coolant temperature and compare against the manufacturer resistance curve. A cold engine (20 degrees C) typically reads 2,000 to 3,000 ohms and drops to around 200 to 300 ohms at operating temperature (90 degrees C). An OBD2 scanner showing a fixed temperature reading that does not change as the engine warms up is also a strong indicator of sensor failure.

Can a faulty coolant temperature sensor cause my engine to overheat?

Indirectly yes. If the sensor reports a lower temperature than actual, the ECU may not activate the cooling fan at the correct time, allowing the engine to overheat. It can also suppress the dashboard warning light, meaning you may not be alerted until the engine is already at a dangerously high temperature. Replace a suspected faulty sensor promptly.

Do I need to drain the coolant to replace the sensor?

Not always - many coolant temperature sensors can be replaced quickly with minimal coolant loss if you work fast and have a replacement ready to thread in immediately. However on some vehicles the sensor location requires partial coolant drainage. Check the sensor position on your specific engine before starting. Always use fresh coolant when topping up after replacement.

What are the symptoms of a faulty coolant temperature sensor?

Symptoms include poor fuel economy, black smoke, engine overheating warning, incorrect temperature gauge reading, hard starting when cold, and rough idle. Fault codes P0115 to P0119 are commonly associated with coolant temperature sensor faults.

Is it safe to drive with a bad coolant temperature sensor?

A faulty coolant temperature sensor can cause the ECU to run rich fuel mixtures and prevent the cooling fan from operating correctly, risking engine overheating. Replace it promptly - it is a low-cost part that can prevent expensive engine damage.

How do I know if my coolant temperature sensor or my thermostat is faulty?

A faulty thermostat typically causes the engine to overheat or never reach operating temperature. A faulty coolant temp sensor causes incorrect gauge readings and running issues but the coolant itself may be at the correct temperature. An OBD2 scanner showing live coolant temp data helps distinguish between the two.

Are there two coolant temperature sensors on my vehicle?

Many vehicles have two sensors - one for the ECU (engine management) and one for the dashboard temperature gauge. They look similar but are not interchangeable. Check your vehicle's service manual or contact us with your vehicle details to confirm which sensor you need.

Identification
SKU	CCS57-LandRover
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	CCS57
Reference OEM Number	LR001207
Other OEM Numbers	C2S44029, XR850974, LR001207, LR006857
Related Part Numbers	CCS57, CS882, TCS148, CTS2015
Trade Part Numbers	VEMO: V25-72-0049
Product Specifics

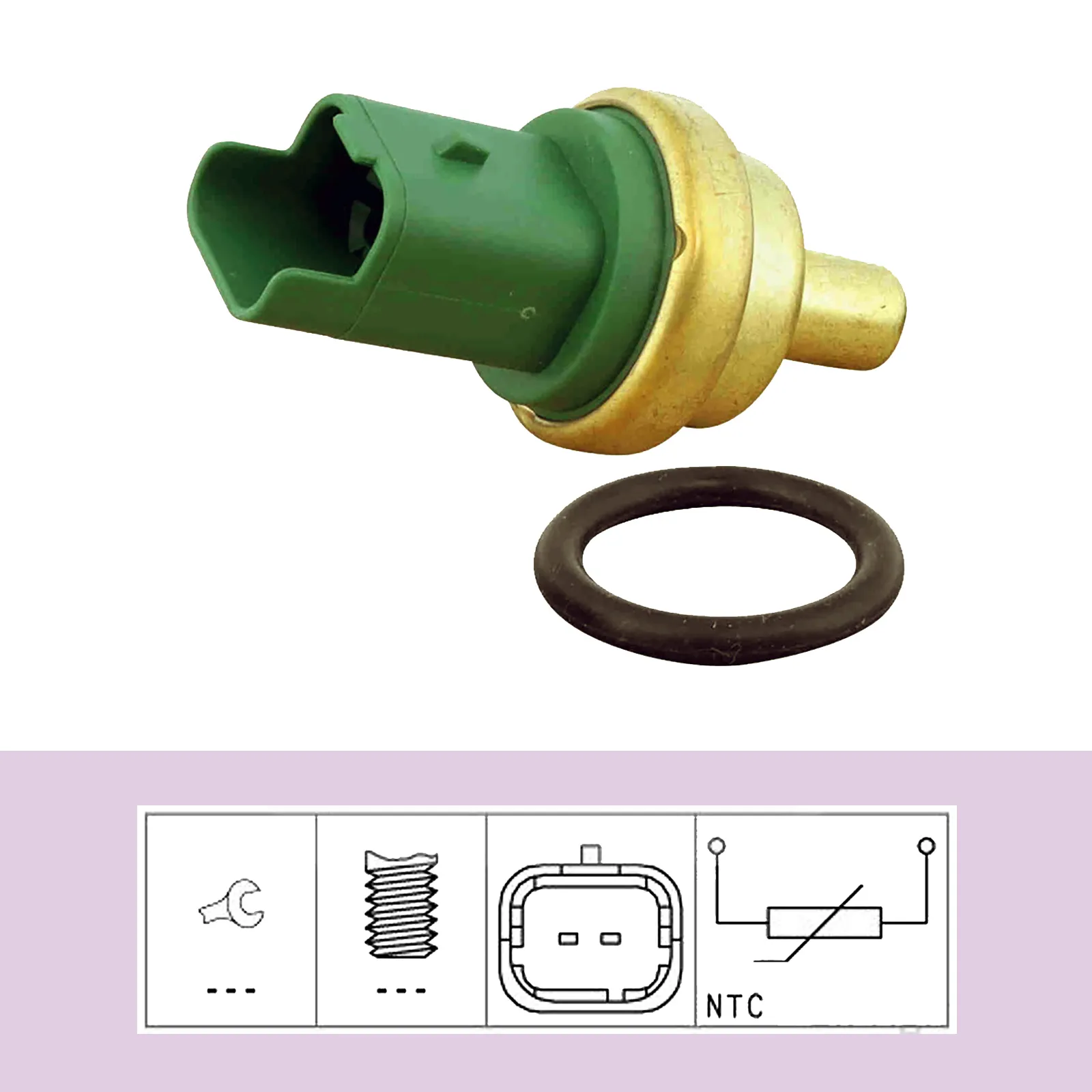

Sensor Type	NTC Sensor
Type	Coolant Temperature Sensor

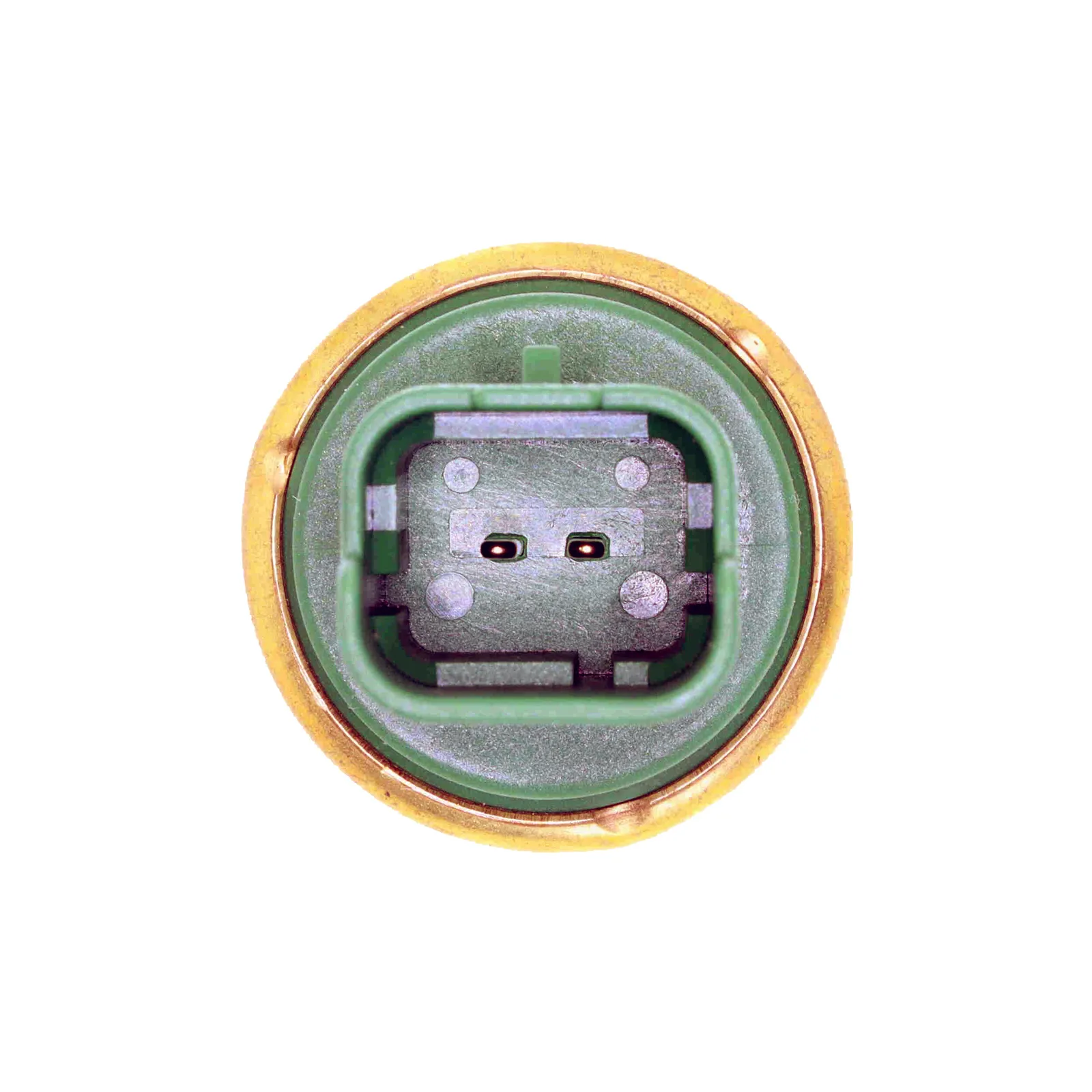

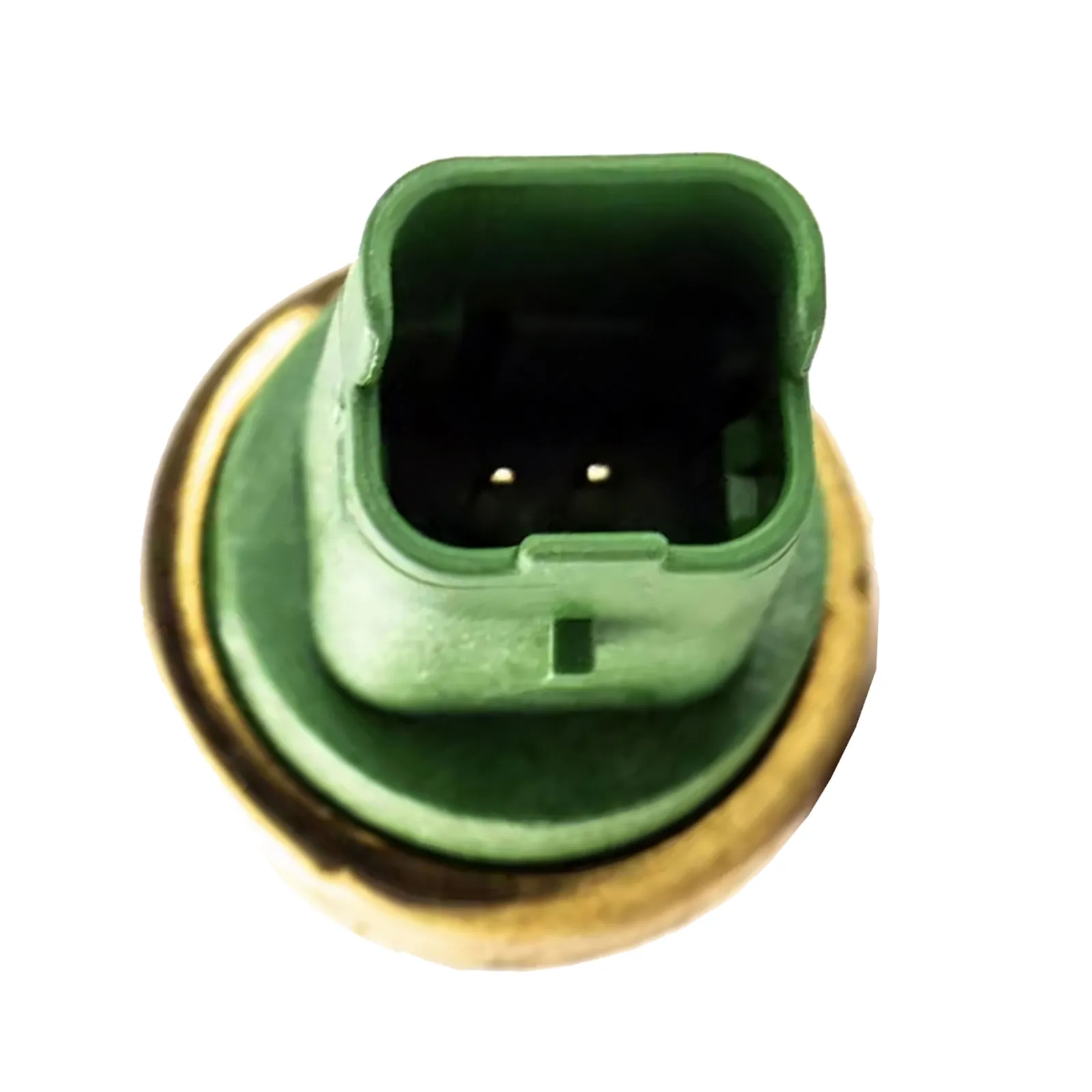

Number of pins	2-Pin
Connector Shape	rectangular
Voltage	12V
Housing Colour	Green
Mounting Type	Push-In / Retainer Clip
Compatible Makes	Land Rover / Jaguar
Fitment Type	Direct Replacement
Brand	Aftermarket OEM Replacement
Other Details

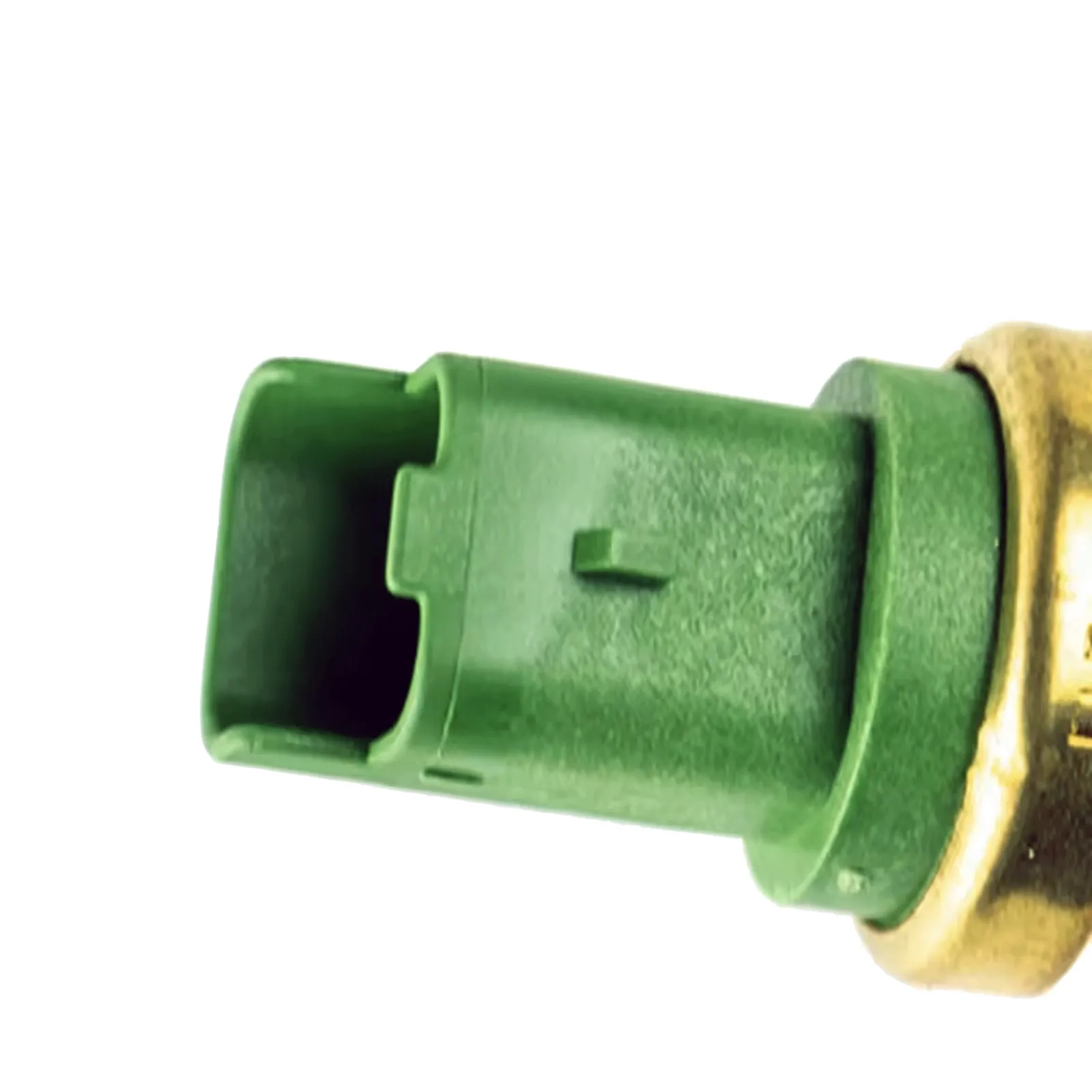

Note	2-pin green rectangular plug with retainer clip.
