BRAND NEW *OEM Quality* Engine Coolant Temperature Sensor to suit the Holden 5.0L V8 (304 black motor) in the VL to VT Commodore and Calais, and the VQ VR VS Statesman and Caprice.

5.0L V8 hard to start when hot, running rich or with a fan that will not cycle? The ECU coolant sensor on the 304 is a common culprit. Direct-fit replacement, packed and shipped from Cranbourne VIC.

TO SUIT

For Holden Commodore VN VP VR VS VT 5.0L V8 GMH 304 (1988-2000)
For Holden Calais VL VN VP VR VS VT 5.0L V8 (1986-2000)
For Holden Statesman / Caprice VQ VR VS 5.0L V8 (1990-2000)
For Holden Commodore VT Wagon 5.0L V8 50LB9 (2000-2002)

FITMENT CHECK

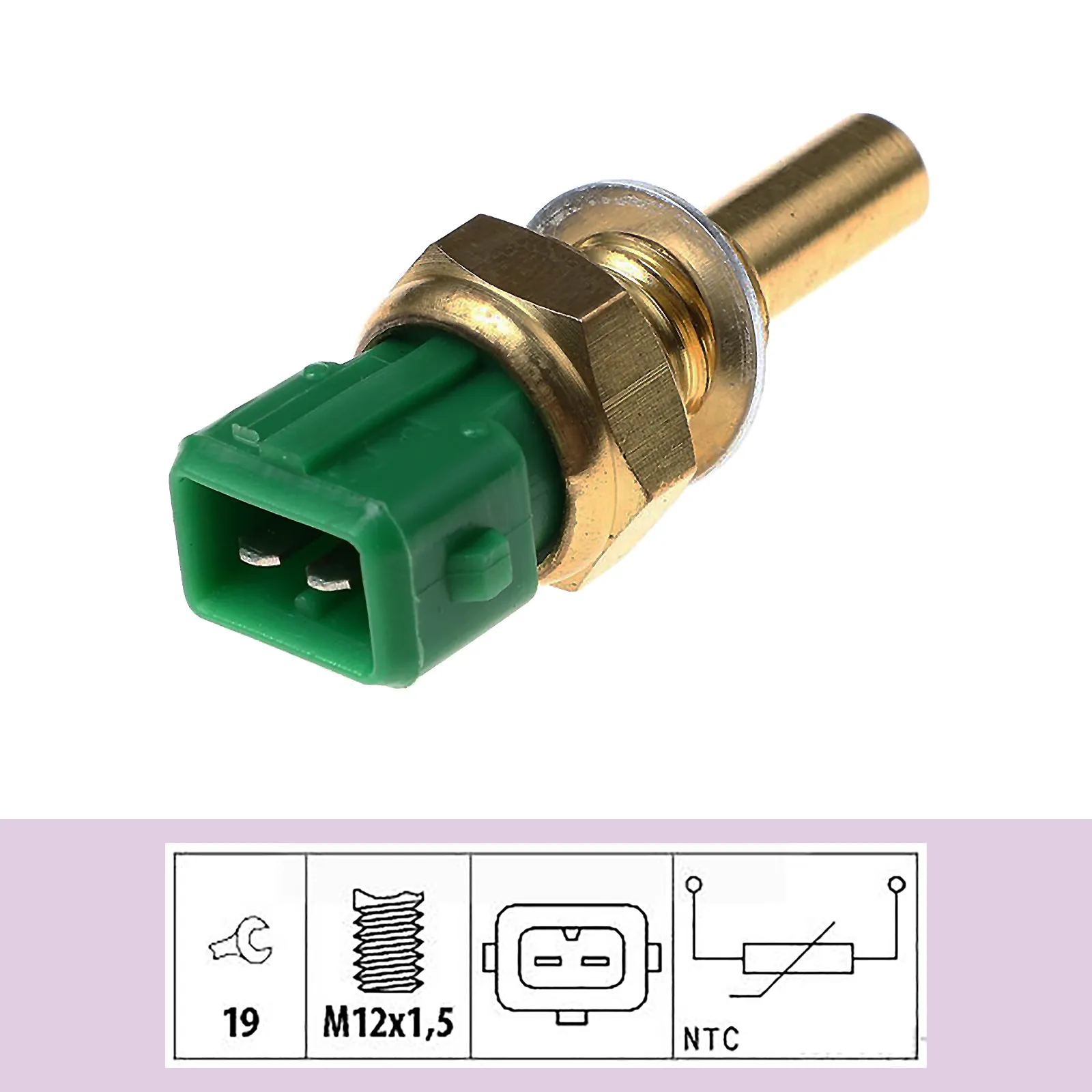

M12 x 1.5 mm thread, 19 mm hex, 2-pin rectangular connector. The housing is green and replaces the original blue sensor. Compare images with your old sensor before ordering.

OEM PART NUMBERS

90018835
90080939
90410792
90510183
92017805
94205866
8942058660
1338444
1338451
1338458
6238317

OTHER PART NUMBERS

CS826
CTS-145
CTS1007
TS10239
0280130026
0280130023

PACKAGE INCLUDES

1 x Engine Coolant Temperature Sensor - 2-pin rectangular connector.

ABOUT THIS SENSOR

The engine coolant temperature sensor tells the ECU how hot the engine is. The ECU uses that reading to set cold-start enrichment, injection quantity, ignition timing, idle speed and cooling fan control.

A failing sensor usually drifts rather than dying outright, so the ECU gets a reading that is plausible but wrong. The engine then runs too rich or too lean, starts badly and the fan may not cycle correctly.

COMMON SYMPTOMS OF FAILURE

Check engine light - coolant sensor fault codes P0115 to P0118
Hard starting when cold or when hot
Poor fuel economy or black smoke
Temperature gauge reading wrong
Cooling fan running constantly or not switching on
Rough idle while warming up

HOLDEN CALAIS VL Sedan/Wagon 5.0L V8 GMH 304 Black [1986 - 1988] 122kW
HOLDEN COMMODORE VG VN VP VR / CALAIS VN VP VR 5.0L V8 GMH 304 Black [1988 - 1995] 165kW
HOLDEN STATESMAN VQ VR / CAPRICE VQ VR 5.0L V8 GMH 304 Black [1990 - 1995] 165kW
HOLDEN COMMODORE VS / CALAIS VS / STATESMAN VS / CAPRICE VS 5.0L V8 GMH 304 Black [1995 - 2000] 165-179kW
HOLDEN COMMODORE VT / CALAIS VT 5.0L V8 GMH 304 Black [1997 - 2000] 179-195kW
HOLDEN COMMODORE VT Wagon 5.0L V8 50LB9 [2000 - 2002] 179kW

How do I test a coolant temperature sensor?

The most common test is to measure the sensor resistance with a multimeter at a known coolant temperature and compare against the manufacturer resistance curve. A cold engine (20 degrees C) typically reads 2,000 to 3,000 ohms and drops to around 200 to 300 ohms at operating temperature (90 degrees C). An OBD2 scanner showing a fixed temperature reading that does not change as the engine warms up is also a strong indicator of sensor failure.

Can a faulty coolant temperature sensor cause my engine to overheat?

Indirectly yes. If the sensor reports a lower temperature than actual, the ECU may not activate the cooling fan at the correct time, allowing the engine to overheat. It can also suppress the dashboard warning light, meaning you may not be alerted until the engine is already at a dangerously high temperature. Replace a suspected faulty sensor promptly.

Do I need to drain the coolant to replace the sensor?

Not always - many coolant temperature sensors can be replaced quickly with minimal coolant loss if you work fast and have a replacement ready to thread in immediately. However on some vehicles the sensor location requires partial coolant drainage. Check the sensor position on your specific engine before starting. Always use fresh coolant when topping up after replacement.

What are the symptoms of a faulty coolant temperature sensor?

Symptoms include poor fuel economy, black smoke, engine overheating warning, incorrect temperature gauge reading, hard starting when cold, and rough idle. Fault codes P0115 to P0119 are commonly associated with coolant temperature sensor faults.

Is it safe to drive with a bad coolant temperature sensor?

A faulty coolant temperature sensor can cause the ECU to run rich fuel mixtures and prevent the cooling fan from operating correctly, risking engine overheating. Replace it promptly - it is a low-cost part that can prevent expensive engine damage.

How do I know if my coolant temperature sensor or my thermostat is faulty?

A faulty thermostat typically causes the engine to overheat or never reach operating temperature. A faulty coolant temp sensor causes incorrect gauge readings and running issues but the coolant itself may be at the correct temperature. An OBD2 scanner showing live coolant temp data helps distinguish between the two.

Are there two coolant temperature sensors on my vehicle?

Many vehicles have two sensors - one for the ECU (engine management) and one for the dashboard temperature gauge. They look similar but are not interchangeable. Check your vehicle's service manual or contact us with your vehicle details to confirm which sensor you need.

Identification
SKU	CCS26-3
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	CCS26
Reference OEM Number	92017805
Other OEM Numbers	90018835, 90080939, 90410792, 90510183, 94205866, 8942058660
Related Part Numbers	CCS26, CS826, CTS-145, CTS1007, TS10239
Trade Part Numbers	0280130026, 0280130023
Product Specifics
Product Type	SENSOR
Sensor Type	ENGINE COOLANT TEMPERATURE SENSOR
Type	Sensor
Features	Direct Fit
Manufacturer Warranty	1 Year
Make	HOLDEN
Thread Size	M12x1.5 mm
Spanner Size	19 mm
Number of pins	2 -pin connector
Connector Shape	rectangular
Supplementary Article Info	without cable
Housing Colour	Green. Replaces original blue
Other Details
Note	Always verify fitment using your vehicle's OEM part number.
Unit Of Measure	ea
