Name: Camshaft Position Sensor 12568983 12585545 12591720 GM Chevrolet GMC Cadillac
Brand: Aftermarket OEM Replacement
SKU: CSCA354-2
Price: 81.90 AUD
Availability: InStock

BRAND NEW OEM Quality CAMSHAFT POSITION SENSOR TO SUIT CADILLAC / CHEVROLET / GMC GEN4 6.0L & 6.2L V8 ENGINES

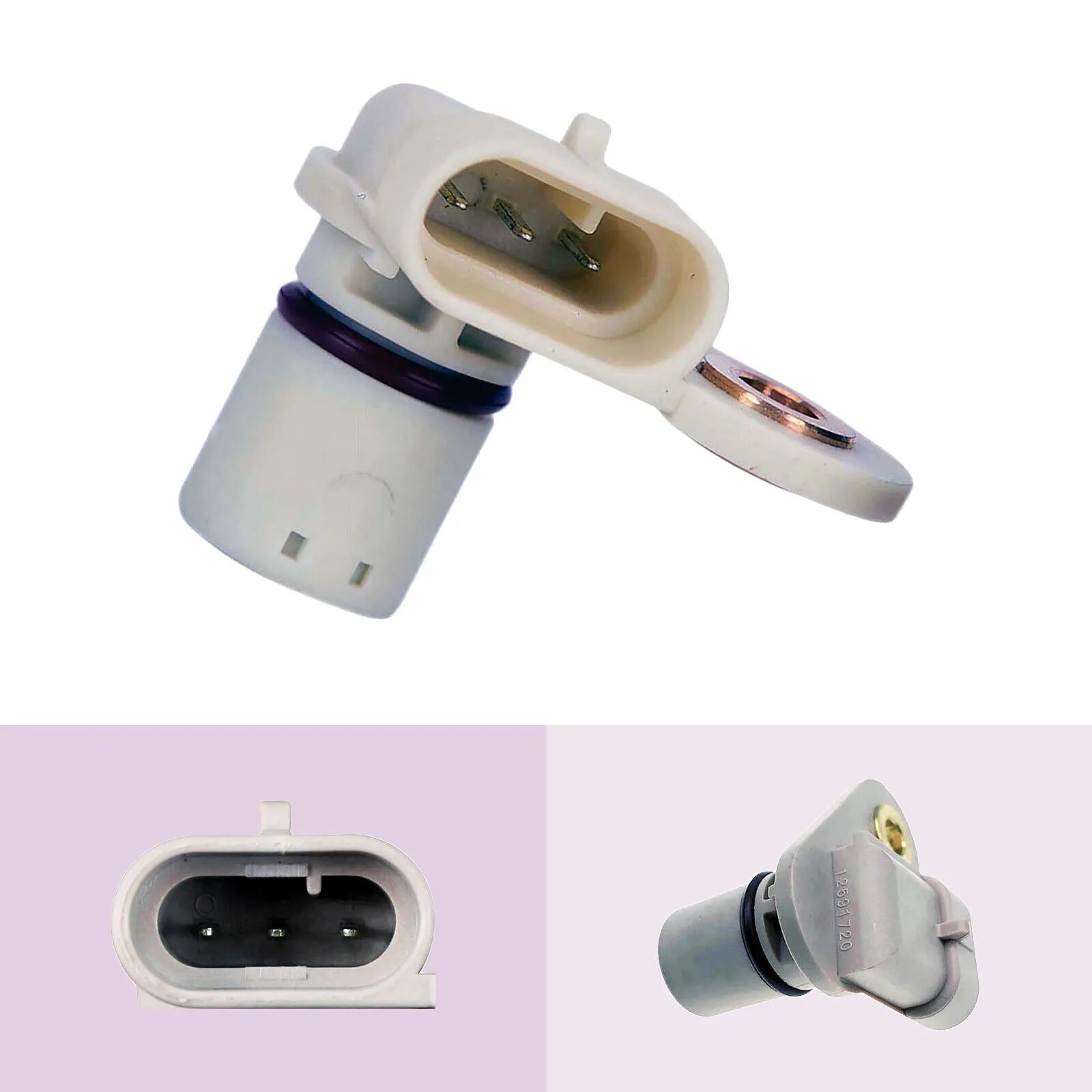

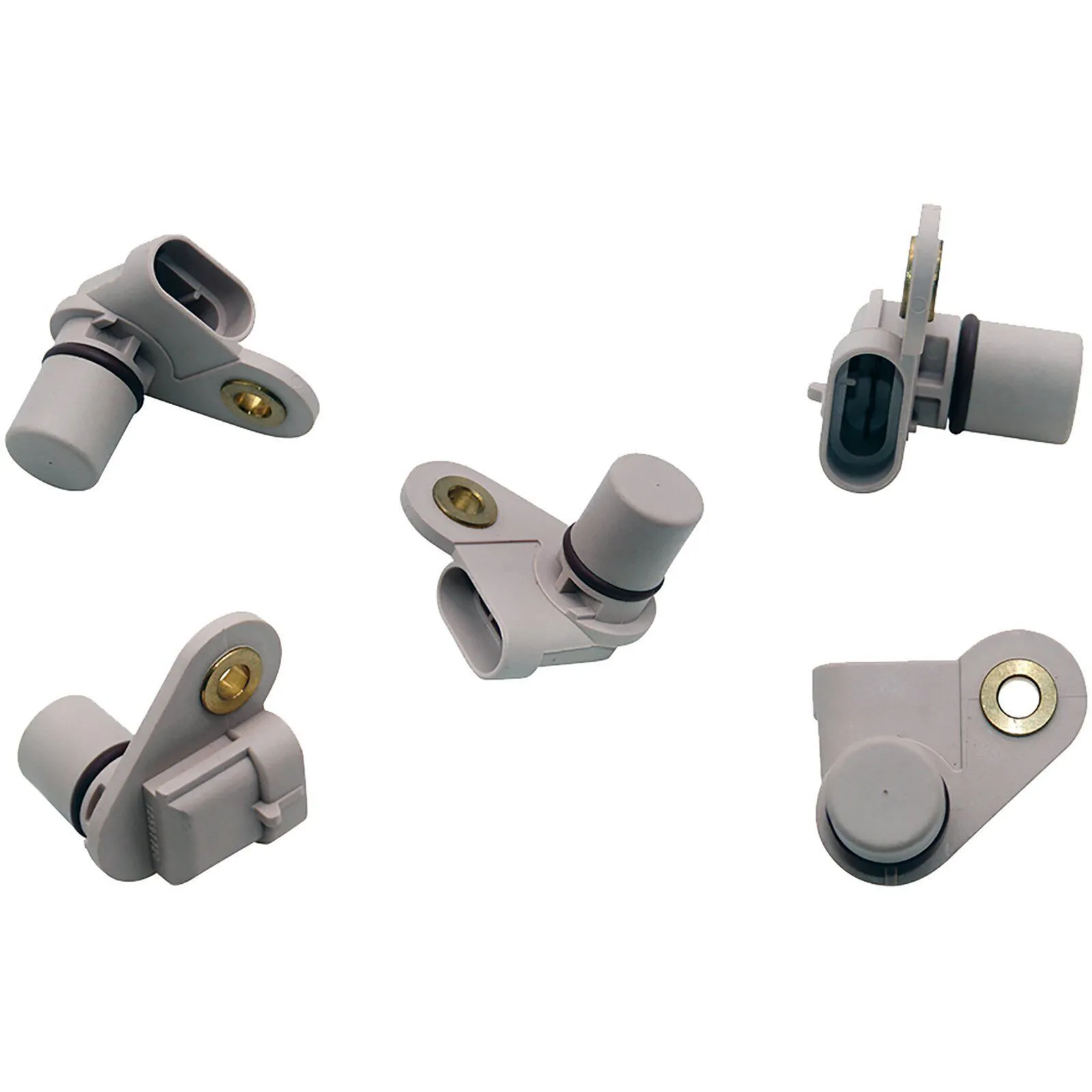

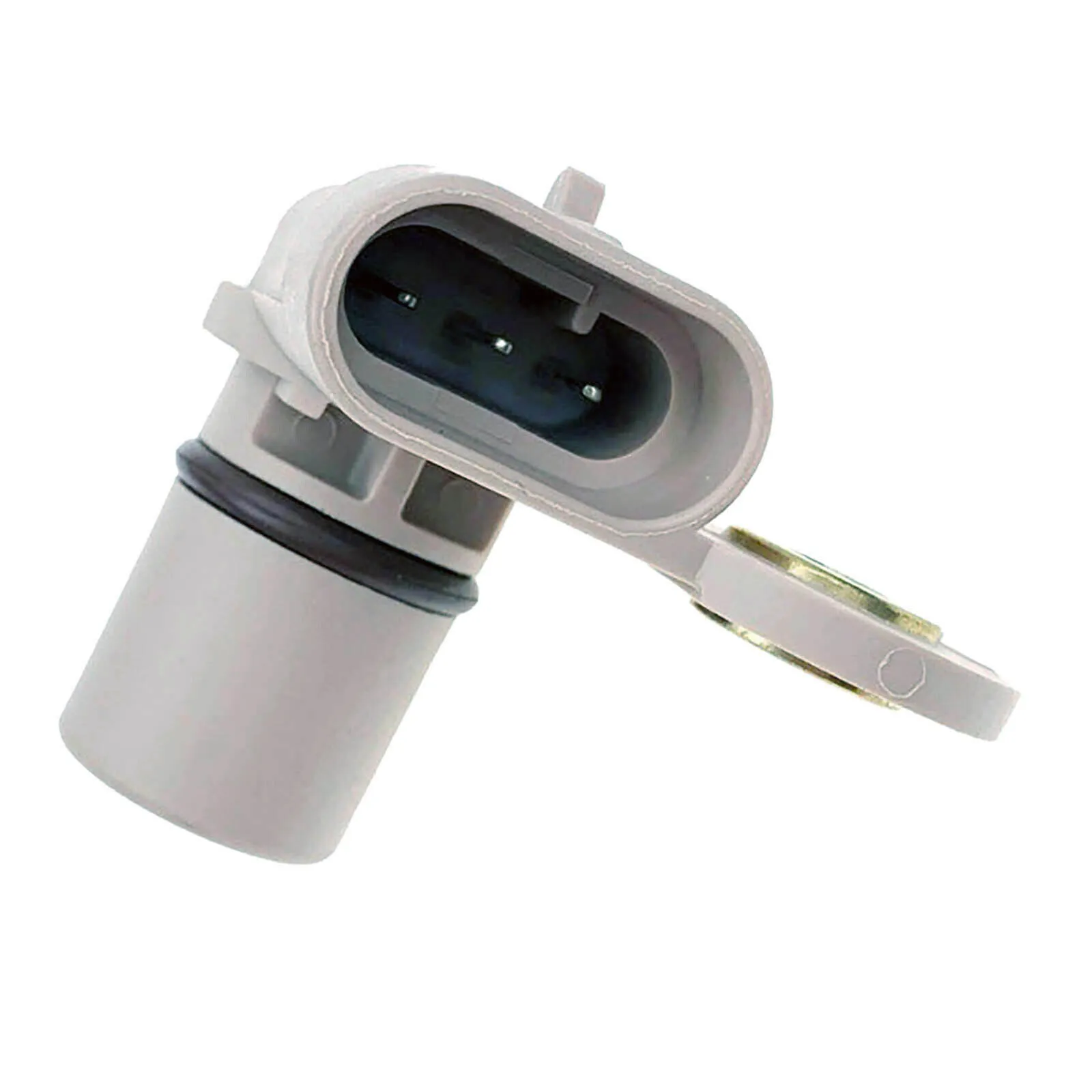

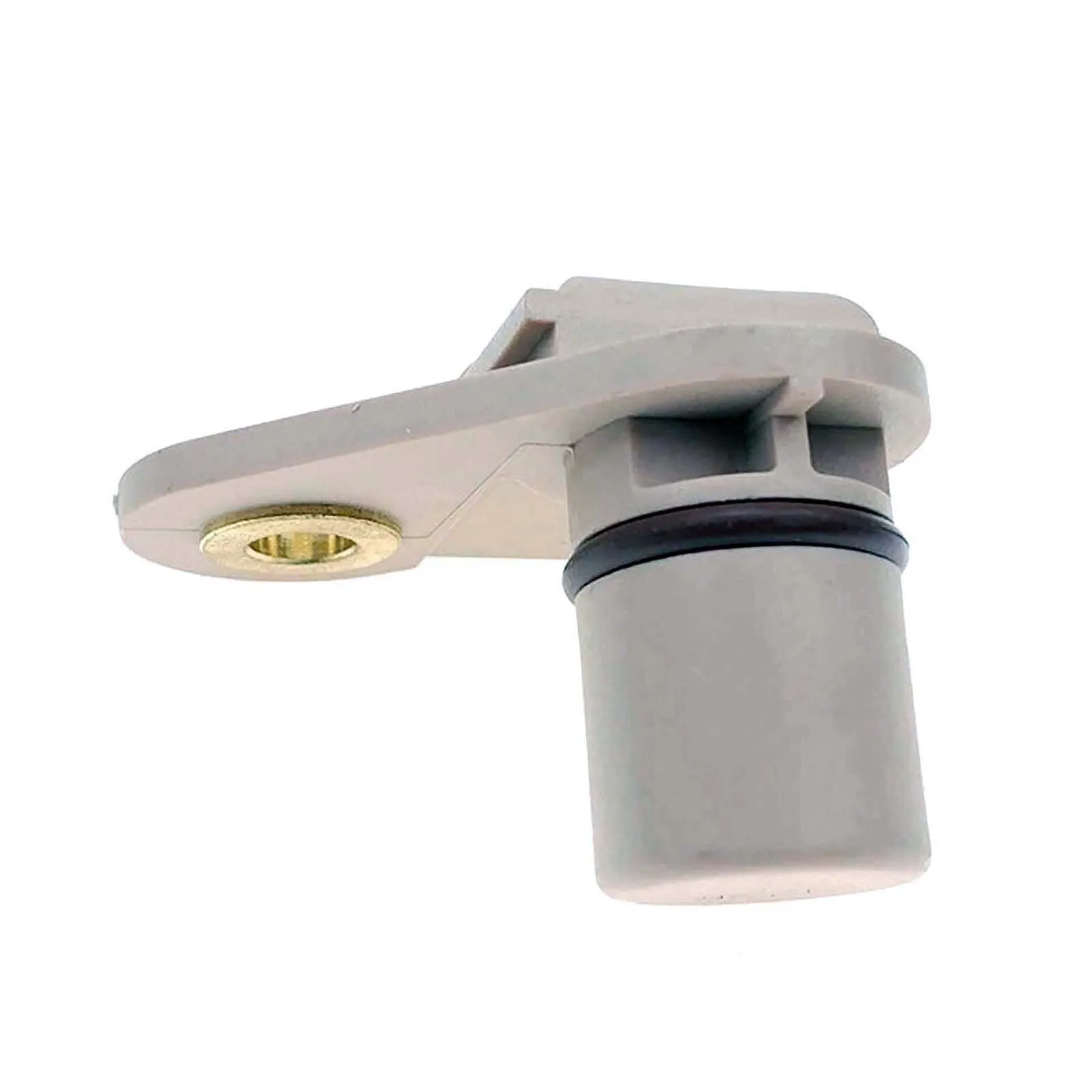

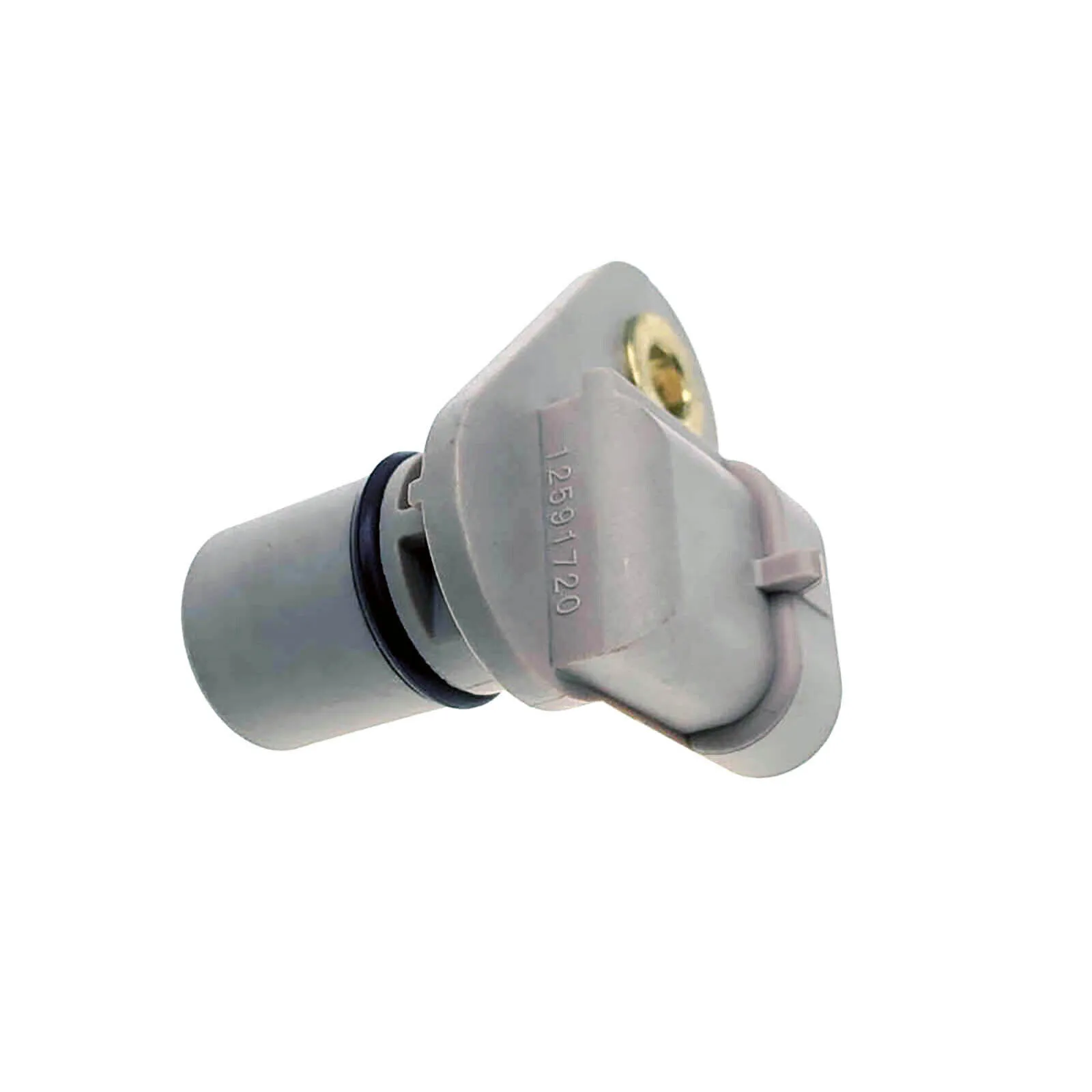

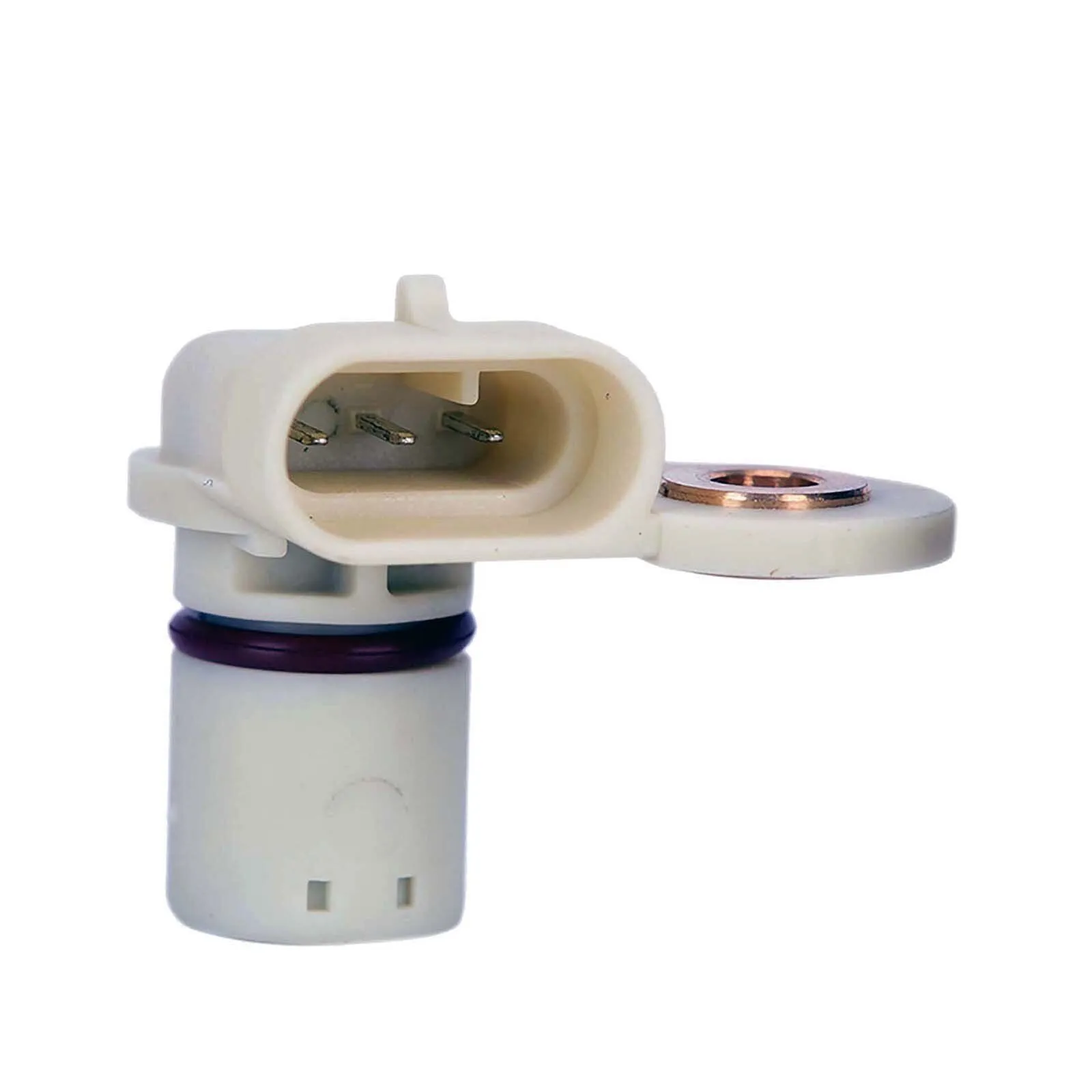

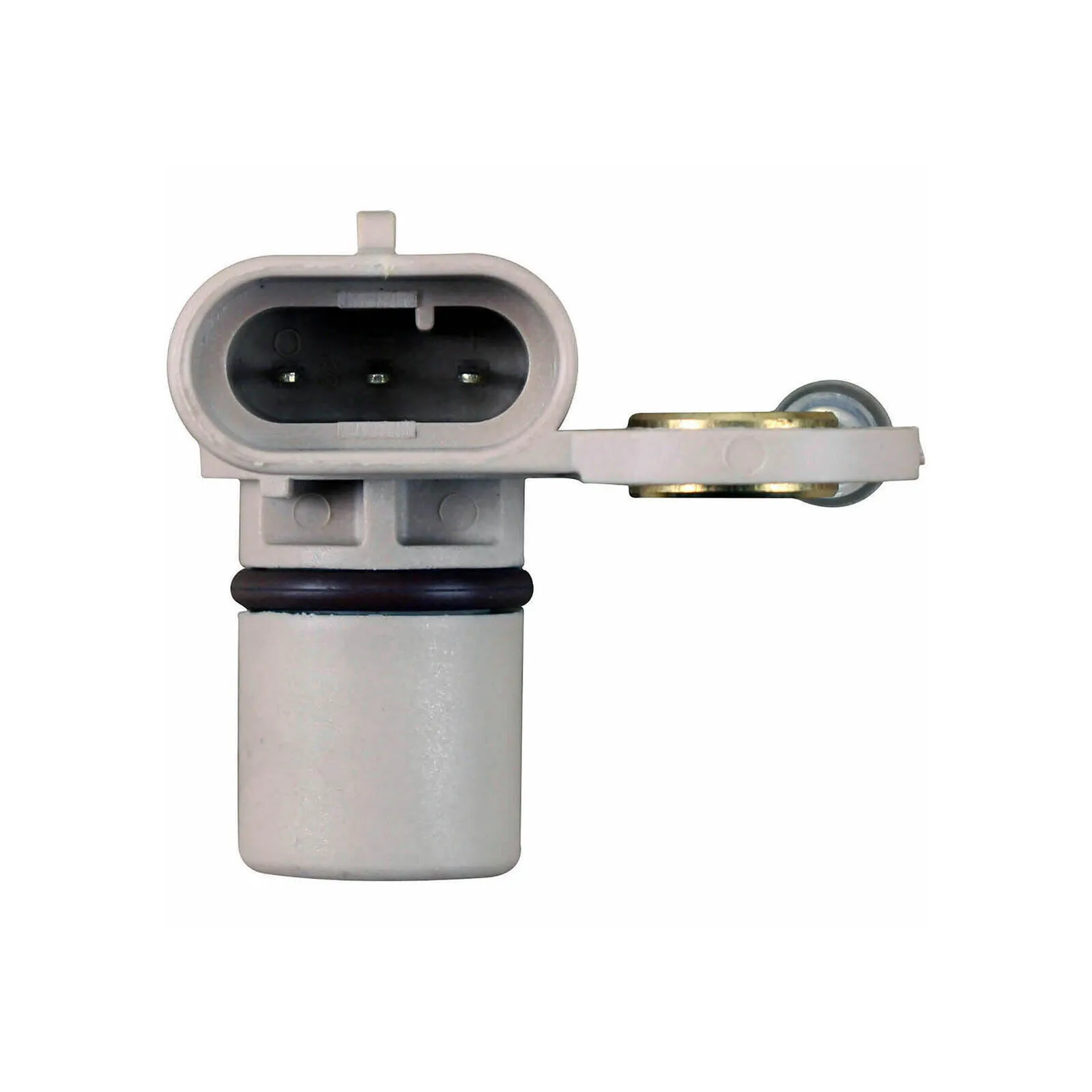

PLEASE COMPARE YOUR ORIGINAL SENSOR WITH THE IMAGES WE PROVIDED IN THE LISTING AND CHECK THE DETAILED VEHICLE LIST IN THE SUITABILITY SECTION.

TO SUIT:

OEM# 12591720, 12585545, 12568983

for OE No: 12568983
Voltage: 12 V
Sensor Type: Hall Sensor
Housing Colour: Brown
Fitting Depth: 25.6 mm
Number of pins: 3-pin connector
Operating Mode: Electric
Supplementary Article Info: without cable

Features:

High Quality
OEM Fit and Design
Easy install
Simple operation
AU Seller-Fast and Free Shipping

Package Includes:

1* CAMSHAFT POSITION SENSOR (3-PIN PLUG). COMPARE WITH YOUR ORIGINAL SENSOR.

COMPATIBLE VEHICLES

CADILLAC CTS 6.2 01.2009- 415kw Saloon
CADILLAC CTS Coupe 6.2 V 01.2008-07.2014 415kw Coupe

CADILLAC CTS Sport Wagon 6.2 09.2011-12.2015 415kw Estate

CADILLAC ESCALADE 6.0 HYBRID 11.2010-12.2013 248kw SUV

CADILLAC ESCALADE 6.0 HYBRID AWD 11.2010-12.2013 248kw SUV

CADILLAC ESCALADE 6.2 AWD 10.2006-12.2014 301kw SUV

CADILLAC ESCALADE 6.2 FLEXFUEL 10.2006-12.2014 301kw SUV

CADILLAC ESCALADE 6.2 FLEXFUEL AWD 10.2006-12.2014 301kw SUV

CHEVROLET TAHOE (GMT900) 6.0 Flex/Hybrid 4WD 09.2009-12.2013 248kw SUV

CHEVROLET TAHOE (GMT900) 5.3 Flexfuel 4WD 01.2007-07.2014 239kw SUV

CHEVROLET TAHOE (GMT900) 5.3 Flexfuel 01.2007-07.2014 239kw SUV

CHEVROLET TAHOE (GMT900) 5.3 01.2007-12.2013 239kw SUV

CHEVROLET TAHOE (GMT900) 4.8 4WD 09.2007-12.2009 220kw SUV

CHEVROLET TAHOE (GMT900) 4.8 09.2007-12.2009 220kw SUV

CHEVROLET SUBURBAN 8.1 05.2000-06.2006 254kw SUV

CHEVROLET SUBURBAN 2500 SUV 6.0 FLEX 4WD 09.2010-12.2013 262kw SUV

CHEVROLET SUBURBAN 2500 SUV 6.0 FLEX 09.2010-12.2013 262kw SUV

CHEVROLET SILVERADO 3500 HD Standard Cab Pickup 6.0 FLEX 4WD 09.2010-12.2013 268kw Pickup

CHEVROLET SILVERADO 2500 HD Standard Cab Pickup 6.0 4WD 09.2008-12.2013 268kw Pickup

CHEVROLET SILVERADO 2500 HD Standard Cab Pickup 6.0 09.2008-12.2013 268kw Pickup

CHEVROLET SILVERADO 2500 HD Extended Cab Pickup 6.0 4WD 09.2008-12.2013 268kw Pickup

CHEVROLET SILVERADO 2500 HD Extended Cab Pickup 6.0 09.2008-12.2013 268kw Pickup

CHEVROLET SILVERADO 2500 HD Crew Cab Pickup 6.0 4WD 09.2008-12.2013 268kw Pickup

CHEVROLET SILVERADO 2500 HD Crew Cab Pickup 6.0 09.2008-12.2013 268kw Pickup

CHEVROLET SILVERADO 1500 Standard Cab Pickup 4.3 4WD 09.2007-12.2013 145kw Pickup

CHEVROLET SILVERADO 1500 Standard Cab Pickup 4.3 09.2007-12.2013 145kw Pickup

CHEVROLET SILVERADO 1500 Extended Cab Pickup 4.3 4WD 09.2007-12.2013 145kw Pickup

CHEVROLET SILVERADO 1500 Extended Cab Pickup 4.3 09.2007-12.2013 145kw Pickup

CHEVROLET SILVERADO 1500 Crew Cab Pickup 4.8 09.2007-12.2009 220kw Pickup

CHEVROLET SILVERADO 1500 Crew Cab Pickup 4.3 4WD 09.2007-12.2013 145kw Pickup

CHEVROLET SILVERADO 1500 Crew Cab Pickup 4.3 09.2007-12.2013 145kw Pickup

CHEVROLET SILVERADO 1500 5.3 FlexFuel AWD 01.2007- 232kw Pickup

CHEVROLET SILVERADO 1500 5.3 AWD 01.2007- 232kw Pickup

CHEVROLET SILVERADO 1500 4.3 AWD 09.2006- 145kw Pickup

CHEVROLET CORVETTE Convertible (C6) 6.0 09.2004- 298kw Convertible

CHEVROLET CORVETTE (C6) Z06 7.0 03.2006- 377kw Coupe

CHEVROLET CORVETTE (C6) 6.2 ZR1 09.2008- 476kw Coupe

CHEVROLET CORVETTE (C6) 6.0 09.2004- 298kw Coupe

CHEVROLET CAMARO Convertible 6.2 01.2011- 318kw Convertible

CHEVROLET CAMARO Convertible 6.2 01.2011- 298kw Convertible

CHEVROLET CAMARO 6.2 ZL1 09.2012-12.2015 432kw Coupe

CHEVROLET CAMARO 6.2 09.2009-12.2015 318kw Coupe

CHEVROLET CAMARO 6.2 09.2009-12.2015 298kw Coupe

CHEVROLET AVALANCHE Crew Cab Pickup 5.3 Flexfuel 4WD 09.2006-12.2011 239kw Pickup

CHEVROLET AVALANCHE Crew Cab Pickup 5.3 Flexfuel 09.2006-12.2009 231kw Pickup

GMC SIERRA 1500 Standard Cab Pickup 6.0 4WD 09.2007-12.2009 274kw Pickup

GMC SIERRA 1500 Standard Cab Pickup 6.0 09.2007-12.2009 274kw Pickup

GMC SIERRA 1500 Standard Cab Pickup 5.3 09.2007-12.2009 235kw Pickup

GMC SIERRA 1500 Standard Cab Pickup 4.8 FLEX 4WD 09.2010-12.2013 225kw Pickup

GMC SIERRA 1500 Standard Cab Pickup 4.8 09.2007-12.2009 220kw Pickup

GMC SIERRA 1500 Extended Cab Pickup 6.0 4WD 09.2007-12.2009 273kw Pickup

GMC SIERRA 1500 Extended Cab Pickup 6.0 09.2007-12.2009 273kw Pickup

GMC SIERRA 1500 Extended Cab Pickup 5.3 09.2007-12.2009 235kw Pickup

GMC SIERRA 1500 Extended Cab Pickup 4.8 FLEX 4WD 09.2009-12.2013 225kw Pickup

GMC SIERRA 1500 Extended Cab Pickup 4.8 09.2007-12.2009 220kw Pickup

GMC SIERRA 1500 Crew Cab Pickup 6.0 4WD 09.2007-12.2009 274kw Pickup

GMC SIERRA 1500 Crew Cab Pickup 6.0 09.2007-12.2009 274kw Pickup

GMC SIERRA 1500 Crew Cab Pickup 5.3 09.2007-12.2009 235kw Pickup

GMC SIERRA 1500 Crew Cab Pickup 4.8 FLEX 4WD 09.2010-12.2013 225kw Pickup

GMC SIERRA 1500 Crew Cab Pickup 4.8 09.2007-12.2009 220kw Pickup

ABOUT YOUR VEHICLE'S CAMSHAFT / CRANKSHAFT POSITION SENSOR

What does a Camshaft/Crankshaft Position Sensor do?
The Camshaft sensor determines which cylinder is firing to establish injector synchronization and coil firing sequence in DIS systems. Crankshaft sensors set ignition timing, supply the RPM signal, and determine engine speed.

Where are these sensors located?
The Camshaft Position sensor is typically located in the cylinder head of the engine and has a cylindrical portion that inserts into the head. The Crankshaft Position sensor is normally located in the timing cover or on the side of the block with a cylindrical portion that inserts into the block.

Will a malfunctioning Cam or Crank Sensor illuminate the check engine light or affect vehicle operation?
Yes, a failing sensor can illuminate the MIL and may cause vehicle stalling or a no-start condition.

What are the common causes of failure?
Typically these sensors fail due to exposure to high heat.

How to determine if these sensors are malfunctioning?
Look for RPM on a scan tool while cranking the engine. If the engine runs, a scope is the best diagnostic tool. Typical trouble codes: Crankshaft P0335; Camshaft P0340.

What makes Our Standard Camshaft and Crankshaft Position Sensors the best?
Integrated A/D converter and digital signal processing with a dynamically adaptive switch point improves accuracy and operation
Advanced circuitry protects the system from stray electro-magnetic fields and power spikes
Custom magnetic circuit programming calibrates the sensor while performance testing for improved timing accuracy between the target wheel and sensor output
100% environmental, endurance, and end-of-line testing for Timing, Pulse Width, and Signal Amplitude ensures consistent product reliability

How do I test a crankshaft or camshaft position sensor?

Use an OBD2 scanner to check for fault codes P0335 to P0338 (crankshaft) or P0340 to P0349 (camshaft). You can also test the sensor with a multimeter - inductive sensors should show resistance between 200 and 1,000 ohms, while Hall effect sensors require a live voltage test with the engine cranking. Erratic or absent RPM signal on a live data scanner is a strong indicator of sensor failure.

Can a cam or crank sensor fault cause my vehicle to go into limp mode?

Yes. A faulty crankshaft position sensor in particular can cause the ECU to lose engine speed and position data entirely, which may trigger limp mode or prevent the engine from starting. A faulty camshaft sensor on variable valve timing engines can cause the VVT system to default to a fixed position, significantly reducing power and fuel economy.

Do cam and crank sensors need to be programmed after replacement?

In most cases no - aftermarket OEM replacement sensors are direct plug-in replacements that require no programming. However some vehicles, particularly late model European makes including BMW and Mercedes-Benz, may require a crankshaft adaptation reset using a dealer-level scan tool after replacement. Check your vehicle service information before replacing the sensor.

What are the symptoms of a faulty crankshaft position sensor?

Symptoms include intermittent stalling, engine not starting, rough idle, misfires, and a Check Engine light with codes P0335-P0338. In severe cases the engine will crank but not start as the ECU cannot determine crank position for ignition timing.

What are the symptoms of a faulty camshaft position sensor?

Symptoms include poor performance, misfires, difficulty starting, rough idle, and fault codes P0340-P0343. Variable valve timing systems (VVT) will also be affected, causing sluggish response and increased fuel consumption.

Can I drive with a bad crankshaft position sensor?

If the sensor has failed completely the engine will not start or will stall and not restart. If it is intermittently failing, driving is dangerous - the engine can cut out without warning. Replace it immediately.

Do I need to replace both the cam and crank sensor at the same time?

Not necessarily - replace whichever has failed based on fault codes and diagnosis. However, if your vehicle has high kilometres and one has failed, it is worth considering replacing both as they are similar in age and condition.

Identification
SKU	CSCA354-2
Barcode #	9314258977511
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	CSCA354
Reference OEM Number	12568983
Other OEM Numbers	12568983, 12585545, 12591720
Related Part Numbers	CSCA354, EC0321, SC233
Trade Part Numbers	8855 80117, V51-72-0179
Product Specifics
Sensor Type	CAMSHAFT POSITION SENSOR
Type	Sensor
Features	Direct Fit
Reference Oe/oem Number	12568983
Manufacturer Warranty	1 Year
Oem	12591720
Ean	9314258977511
Make	GMC
Second Part Number	SC233
Other Part Number	V51-72-0179
Other Details
Note	Always verify fitment using your vehicle's OEM part number.
Unit Of Measure	ea
