BRAND NEW *OEM Quality* boost pressure MAP sensor to suit the Toyota Hilux KUN16 and KUN26 and HiAce or Commuter KDH with the 3.0L 1KD-FTV turbo diesel.

A diesel Hilux or HiAce that lacks boost, smokes or drops into limp mode is a real headache for a working vehicle. This direct fit replacement is dispatched same day from Cranbourne VIC.

TO SUIT

Toyota Hilux KUN16 and KUN26 3.0L 1KD-FTV turbo diesel (120kW to 126kW), built 08/2005 to 09/2015. Toyota HiAce and Commuter KDH 3.0L 1KD-FTV turbo diesel, built 08/2004 to 01/2019. Please match the number on your existing sensor to the OEM part numbers below before ordering.

FITMENT CHECK

This is the sensor only, without a fastening clamp and without a built-in air temperature sensor.

OEM PART NUMBERS

89421-71020
89420-12210
89420-12220
89421-20210

OTHER PART NUMBERS

V70-72-0141
EPBMBN3-V004Z
ECM-TY-004
DAP-0112

PACKAGE INCLUDES

1 x boost pressure MAP sensor with 3-pin oval connector.

ABOUT THIS SENSOR

On the 1KD-FTV turbo diesel this sensor measures boost pressure after the turbo and sends it to the engine computer. The computer uses it to control fuel and turbo output.

When the reading is wrong the engine can lose power, smoke or enter limp mode, and codes such as P0107, P0108 or P0238 may be stored. Replacing the sensor is a quick plug-in job.

COMMON SYMPTOMS OF FAILURE

Check engine light with P0107 P0108 or P0238
Loss of power or no boost
Limp mode
Black smoke under load
Higher diesel consumption

PLEASE NOTE:

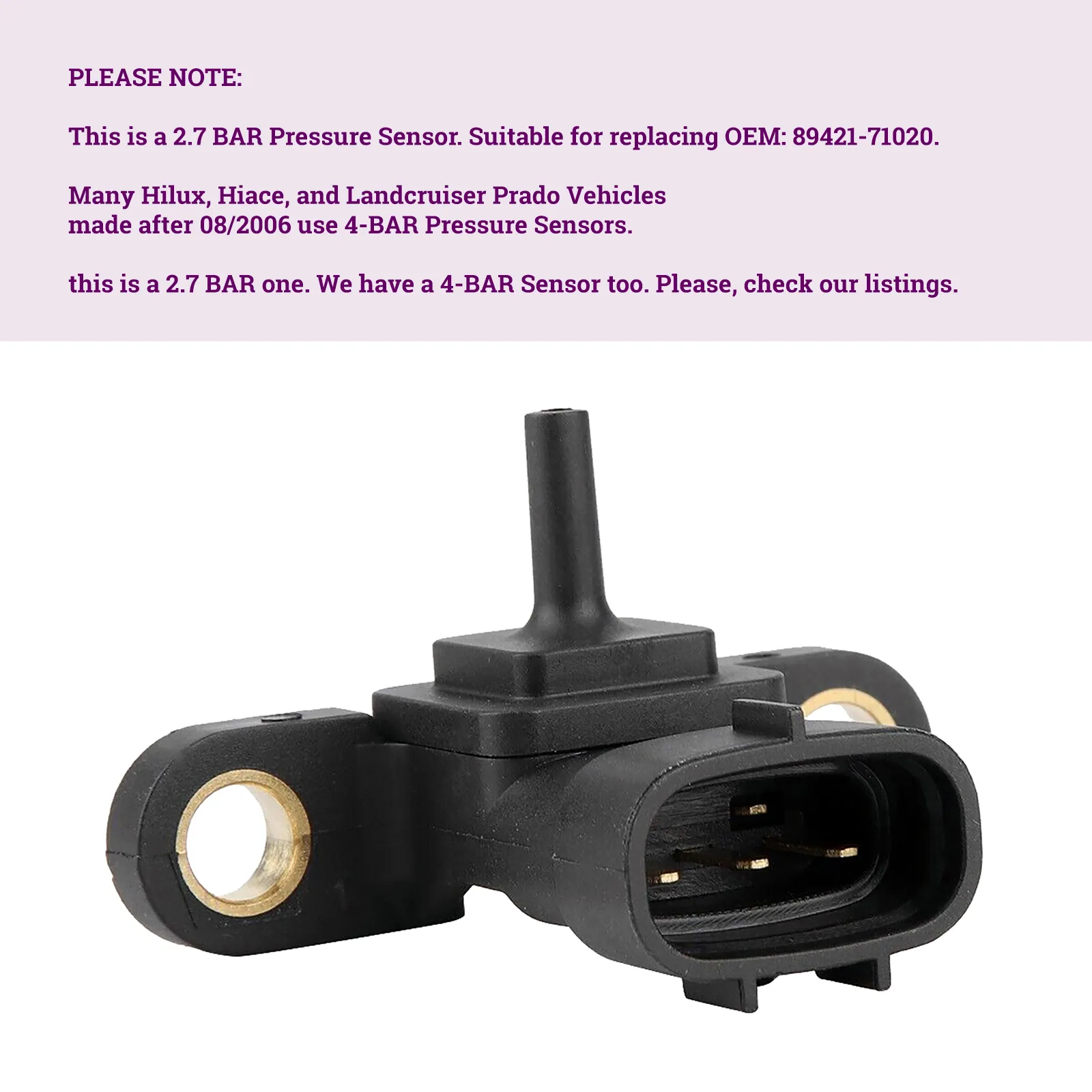

This is a 2.7 BAR Pressure Sensor. Suitable for replacing OEM: 89421-71020.

Many Hilux, Hiace, and Landcruiser Prado Vehicles made after 08/2006 use 4-BAR Pressure Sensors.

this is a 2.7 BAR one. We have a 4-BAR Sensor too. Please, check our listings.

[08/06 - 07/06] TOYOTA HILUX _N1_,_N2_,_N3_ VII D 3.0L 4cyl 1KD-FTV 126kW
[08/05 - 07/06] TOYOTA HILUX KUN16 VII D 3.0L 4cyl 1KD-FTV 120kW
[08/06 - 07/06] TOYOTA HILUX KUN16 VII D 3.0L 4cyl 1KD-FTV 126kW
[08/06 - 07/06] TOYOTA HILUX KUN26 VII D-4D 3.0L 4cyl 1KD-FTV 126kW
[03/05 - 07/06] TOYOTA HILUX _N1_,_N2_,_N3_ VII D-4D 3.0L 4cyl 1KD-FTV 120kW
[08/05 - 08/06] TOYOTA HILUX KUN16 VII D 3.0L 4cyl 1KD-FTV 120kW
[08/06 - 06/15] TOYOTA HILUX KUN16 VII D 3.0L 4cyl 1KD-FTV 126kW
[08/06 - 09/15] TOYOTA HILUX KUN26 VII D-4D 3.0L 4cyl 1KD-FTV 126kW
[08/06 - 05/15] TOYOTA HILUX _N1_,_N2_,_N3_ VII D 3.0L 4cyl 1KD-FTV 126kW
[03/05 - 08/06] TOYOTA HILUX _N1_,_N2_,_N3_ VII D-4D 3.0L 4cyl 1KD-FTV 120kW
[08/04 - 01/19] TOYOTA HIACE / COMMUTER KDH203,KDH221,KDH223 V D 3.0L 4cyl 1KD-FTV 80kW
[05/10 - 12/14] TOYOTA HIACE / COMMUTER KDH223 V D 3.0L 4cyl 1KD-FTV 100kW
[11/06 - 01/19] TOYOTA HIACE GDH2__,KDH2__,LH2__,... V D 3.0L 4cyl 1KD-FTV 80kW
[01/05 - 01/19] TOYOTA HIACE KDH200,KDH223 V D 3.0L 4cyl 1KD-FTV 75kW
[05/10 - 01/19] TOYOTA HIACE KDH201,KDH221 V D 3.0L 4cyl 1KD-FTV 100kW
[08/15 - 06/21] TOYOTA LAND CRUISER VDJ200 D-4D 4.5L V8 1VD-FTV Euro 4 200kW
[01/07 ON] TOYOTA LAND CRUISER VDJ76R,VDJ78R TD 24V 4.5L V8 1VD-FTV Euro 4 151kW
[01/07 ON] TOYOTA LAND CRUISER VDJ79R TD 24V 4.5L V8 1VD-FTV Euro 4 151kW
[09/07 - 07/15] TOYOTA LAND CRUISER _J2_ D-4D 4.5L V8 1VD-FTV Euro 4 195kW
[08/04 - 09/07] TOYOTA HIACE / COMMUTER KDH205,KDH225,KDH227 V D-4D 2.5L 4cyl 2KD-FTV 94kW
[01/05 - 09/06] TOYOTA HIACE KDH200,KDH220 V D-4D 2.5L 4cyl 2KD-FTV 75kW
[08/04 - 12/18] TOYOTA REGIUS ACE KDH200 D-4D 2.5L 4cyl 2KD-FTV 80kW
[09/06 - 12/06] TOYOTA HIACE / COMMUTER KDH202,KDH212,KDH222 V D-4D 2.5L 4cyl 2KD-FTV 80kW
[09/06 - 07/10] TOYOTA HIACE KDH200,KDH220 V D-4D 2.5L 4cyl 2KD-FTV 80kW

What fault codes does a faulty MAP sensor trigger?

A faulty MAP sensor typically triggers codes P0105 to P0109. P0105 indicates a circuit malfunction, P0106 indicates the signal is out of range, P0107 and P0108 indicate the signal is too low or too high respectively, and P0109 indicates an intermittent circuit fault. These codes combined with symptoms such as poor idle and black smoke are strong indicators of MAP sensor failure.

How do I test a MAP sensor?

With an OBD2 scanner in live data mode, the MAP sensor should read close to atmospheric pressure (around 101 kPa) with the engine off, and drop to 30 to 50 kPa at idle with the engine running due to manifold vacuum. Under wide open throttle the reading should rise back toward atmospheric. A sensor that reads flat or does not respond to throttle changes has failed. You can also test supply voltage and signal output with a multimeter.

Can I drive with a faulty MAP sensor?

You can drive short distances but engine performance will be noticeably degraded. The ECU uses the MAP sensor to calculate fuel delivery - a faulty sensor causes incorrect fuelling which leads to poor economy, rough running, and increased emissions. On turbocharged engines a faulty MAP sensor can also prevent boost control from operating correctly. Replace it as soon as possible to avoid further damage.

What does a MAP sensor do?

The Manifold Absolute Pressure (MAP) sensor measures intake manifold pressure to help the ECU calculate the correct fuel and ignition timing. It is critical for engine efficiency, particularly on turbocharged and supercharged vehicles.

What are the symptoms of a faulty MAP sensor?

Symptoms include poor acceleration, rough idle, excessive fuel consumption, black smoke, engine hesitation, and a Check Engine light with codes P0105-P0109. Turbocharged vehicles may also experience boost control issues.

What is the difference between a MAP sensor and a MAF sensor?

A MAF (Mass Air Flow) sensor directly measures the mass of air entering the engine. A MAP sensor measures manifold pressure and the ECU calculates air mass from that reading. Many vehicles use one or the other; some use both. They are not interchangeable.

Identification
SKU	MP189-CMS314
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	CMS314
Reference OEM Number	89421-71020
Other OEM Numbers	89420-12210, 89420-12220, 89421-20210, 89421-71020
Related Part Numbers	MP189, EPBMBN3-V004Z, DAP-0112
Trade Part Numbers	V70-72-0141, EPBMBN3-V004Z, ECM-TY-004, DAP-0112
Product Specifics
Product Type	SENSOR
Sensor Type	Manifold Absolute Pressure (MAP) Sensor
Number of pins	3-Pin
Connector Shape	oval
Supplementary Article Info	without cable, without integrated air temperature sensor

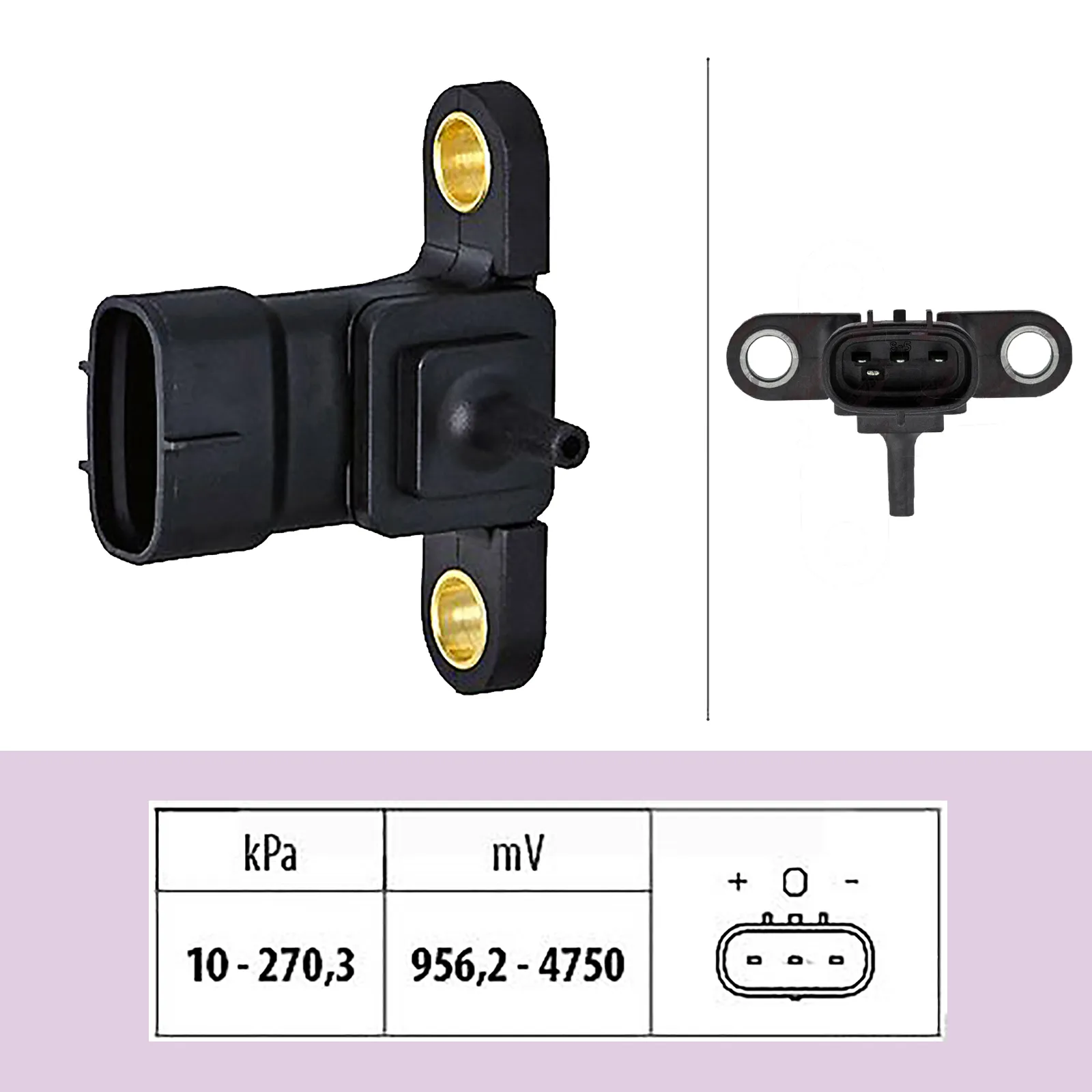

Pressure Range	10 kPa, until 270 kPa
Number of mounting bores	2
Compatible Makes	Toyota
Fitment Type	Direct Replacement
Other Details
Note	Sensor only: no clamp and no built-in air temp sensor
