BRAND NEW OEM Quality MAP SENSOR (MANIFOLD ABSOLUTE PRESSURE SENSOR) TO SUIT AUDI Volkswagen SKODA SEAT VAG

TO SUIT:

OEM#

038906051C, 03G906051E, 03G906051F, 03G906051M,

1J0145770L, 7L6145795AB, 7L6145795L, 7L6145795R, M152868, R4464610040, RH642950

BOSCH: 0281002401
BOSCH: 0281002976
BOSCH: 0281002837
HELLA: 6PP009400-251
NTY: ECM-AU-001
VEMO: V10-72-1107
WALKER: 225-1083
WALKER: 225-1337

PACKAGE INCLUDES:

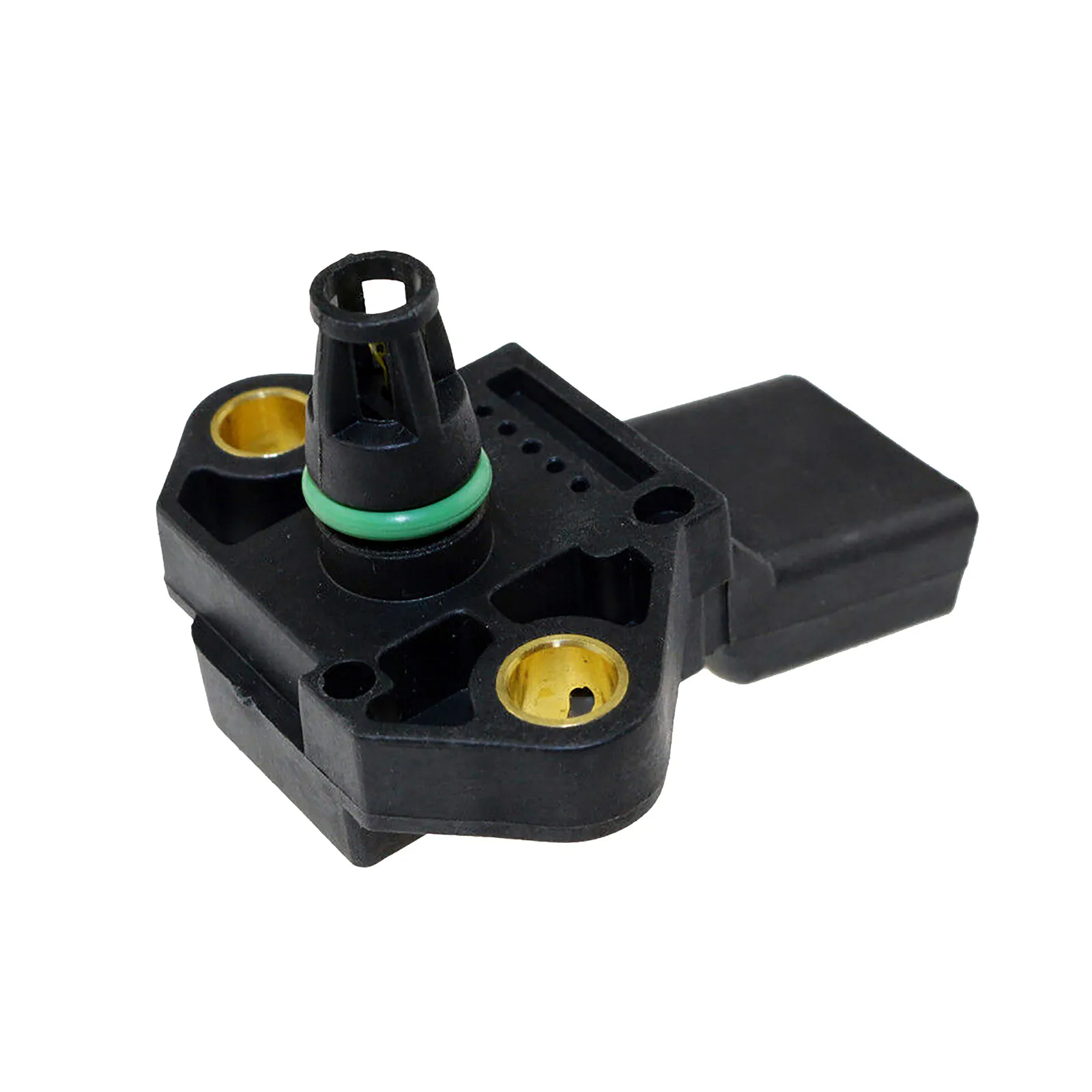

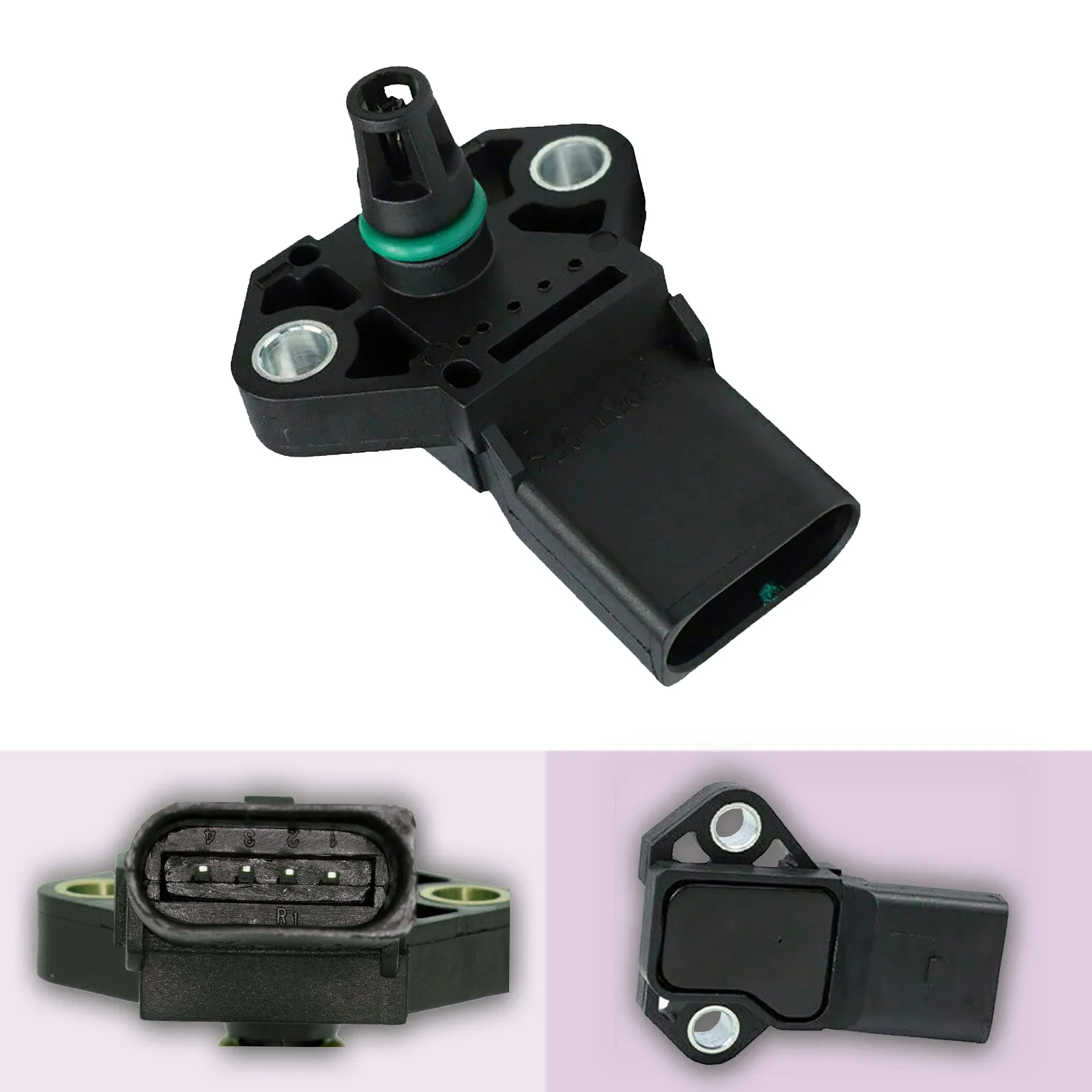

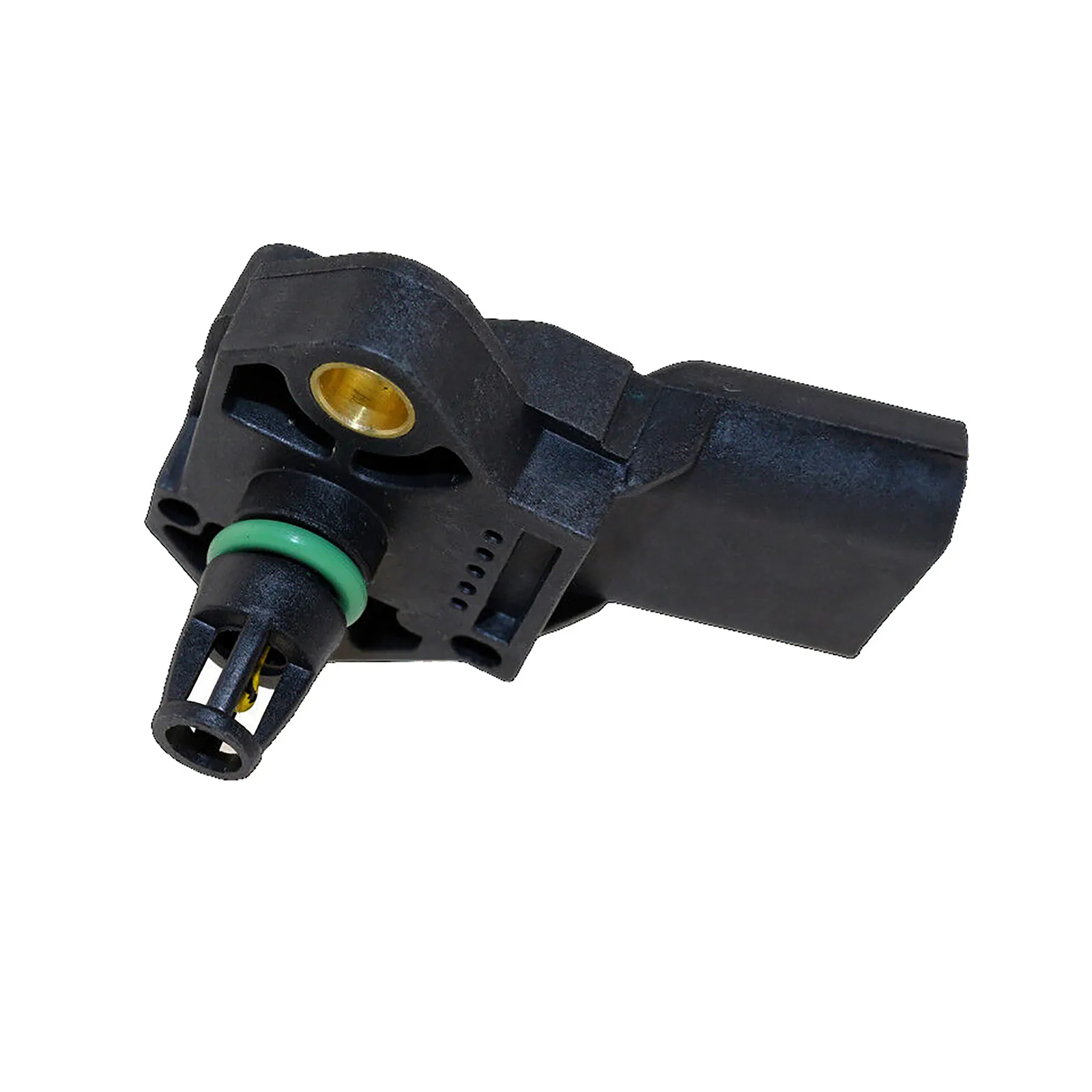

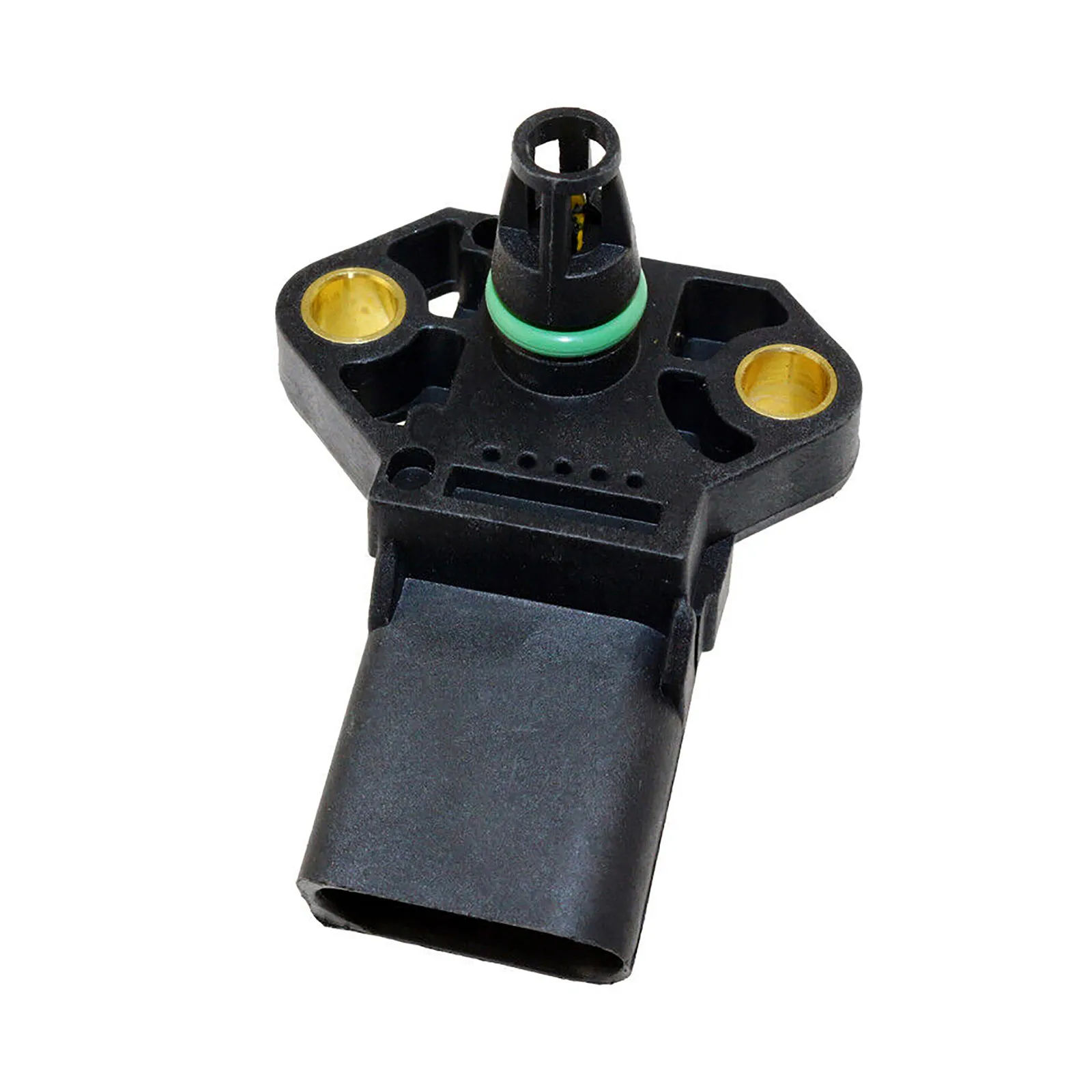

1 X OEM Quality MAP SENSOR (4-PIN PLUG).3 BAR PRESSURE SENSOR.BOOST PRESSURE SENSOR

Check Image. Make Sure of the OEM Number.

The Manifold Absolute Pressure (MAP) sensor is crucial to a vehicle's engine management system. It measures the air pressure inside the intake manifold, providing information about the engine load to the engine control unit (ECU). This data helps the ECU determine the correct air-fuel mixture to optimize engine performance and efficiency.
The MAP sensor typically uses a vacuum to measure pressure changes in the intake manifold. Depending on the vehicle's make and model, it's often located either on the intake manifold or the firewall.

If the MAP sensor malfunctions or fails, it can lead to various engine issues such as rough idling, poor acceleration, decreased fuel efficiency, or even stalling. Regular maintenance and occasional cleaning can help ensure the proper functionality of the MAP sensor. However, if it's faulty, replacement might be necessary to maintain optimal engine performance.

Volkswagen

2004 - 2009 VW Caravelle 2.5 TDI - 131 (AXD)/ 174 (AXE)/ 131 (BNZ)/ 174 (BPC)
1999 - 2005 VW Golf 4 1.9 TDI - 131 (ASZ) PD130
2004 - 2009 VW Caddy 2.0 TDI - 140 (BMM)
2006 - 2009 VW Crafter 2.5 TDI - 88 (BJJ)/ 109 (BJK)/ 136 (BJL)/ 163 (BJM)
2006 - 2008 VW Eos 2.0 TDI - 140 (BMM)
2009 - 2009 VW Eos 2.0 TDI - 140 (CBAB)
2009 - 2009 VW Eos 1.4 FSI Petrol - 160 (CAVD)
1998 - 2006 VW Golf 4 / Bora 1.9 TDI - 131 (ASZ) PD130
2004 - 2005 VW Golf 5 2.0 TDI - 136 (AZV)/ 140 (BKD)/ 140 (BMM)
2006 - 2007 VW Golf 5 2.0 TDI - 136 (AZV)/ 140 (BKD)/ 140 (BMM)
2007 - 2009 VW Golf 5 2.0 TDI - 136 (AZV)/ 140 (BKD)/ 140 (BMM)/ 140 (CBDA)
2009 - 2009 VW Golf 5 2.0 TDI - 136 (CBAA)/ 140 (CBAB)/ 110 (CBDC)
2006 - 2009 VW Golf 5 1.4 TSI Petrol - 170 (BLG)/ 140 (BMY)
2007 - 2009 VW Golf 5 1.4 TSI Petrol - 170 (BLG)/ 140 (BMY)/ 160 (CAVD)
2009 - 2009 VW Golf 5 1.4 TSI Petrol - 160 (CAVD)
2005 - 2007 VW Golf Plus 2.0 TDI - 136 (AZV)/ 140 (BKD)
2008 - 2009 VW Golf Plus 2.0 TDI - 136 (AZV)/ 140 (BKD)/ 140 (BMM)
2005 - 2007 VW Golf Plus 1.4 Petrol - 170 (BLG)/ 140 (BMY)
2007 - 2009 VW Golf Plus 1.4 Petrol - 170 (BLG)/ 140 (BMY)/ 160 (CAVD)
2006 - 2008 VW Jetta 2.0 TDI - 136 (AZV)/ 140 (BKD)/ 140 (BMM)/ 170 (BMN)
2009 - 2009 VW Jetta 2.0 TDI - 140 (CBDA)/ 170 (CEGA)
2006 - 2008 VW Jetta 1.4 Petrol - 170 (BLG)/ 140 (BMY)
2007 - 2009 VW Jetta 1.4 Petrol - 170 (BLG)/ 140 (BMY)/ 160 (CAVD)
2001 - 2002 VW Passat 1.9 TDI - 131 (AVF)/ 131 (AWX)
2003 - 2005 VW Passat 1.9/2.0 TDI - 131 (AVF)/ 131 (AWX) / 136 (BGW)
2006 - 2007 VW Passat 2.0 TDI - 122 (BVE)/ 136 (BMA)/ 140 (BKP)/ 170 (BMR)/ 163 (BUZ)/ 131 (BVD)/ 140 (BMP)/ 120 (BWV)
2008 - 2008 VW Passat 2.0 TDI - 136 (BMA)/ 140 (BKP)/ 170 (BMR)/ 163 (BUZ)/ 131 (BVD)/ 140 (BMP)/ 136 (CBAA)/ 140 (CBAB)
2009 - 2009 VW Passat 1.4 TSI - 150 (CDGA) Natural Gas
2009 - 2009 VW Passat 2.0 TDI - 136 (BMA)/ 140 (BKP)/ 170 (BMR)/ 163 (BUZ)/ 131 (BVD)/ 140 (BMP)/ 136 (CBAA)/ 140 (CBAB)/ 143 (CBAC)/ 170 (CBBB)/ 110 (CBDC)
2009 - 2009 VW Passat CC 2.0 TDI - 136 (CBAA)/ 140 (CBAB)/ 170 (CBBB)
2002 - 2007 VW Phaeton 3.0 V6 TDI - 224 (BMK)
2002 - 2007 VW Phaeton 5.0 V10 TDI - 313 (AJS)
2008 - 2009 VW Phaeton 3.0 V6 TDI - 234 (CARA)/ 239 (CEXA)
2009 - 2009 VW Phaeton 3.0 V6 TDI - 239 (CEXA)
2002 - 2009 VW Polo 1.9 TDI - 131 (ASZ)/ 130 (BLT) PD130 GT TDI / Sport
2009 - 2009 VW Scirocco 2.0 TDI - 140 (CBDB)
2009 - 2009 VW Scirocco 1.4 FSI Petrol - 160 (CAVD)
2003 - 2005 VW Sharan 1.9 TDI - 130 (ASZ)/ 150 (BTB)
2006 - 2008 VW Sharan 1.9/2.0 TDI - 130 (ASZ)/ 150 (BTB) / 130 (BVH)/ 140 (BRT)
2009 - 2009 VW Sharan 1.9/2.0 TDI - 130 (ASZ) / 130 (BVH)/ 140 (BRT)
2008 - 2009 VW Tiguan 2.0 TDI - 136 (CBAA)/ 143 (CBAC)/ 163 (CBBA)/ 170 (CBBB)
2008 - 2009 VW Tiguan 1.4 TSI Petrol - 150 (BWK)/ 150 (CAVA)
2003 - 2005 VW Touran 2.0 TDI - 136 (AZV)/ 140 (BKD)
2006 - 2006 VW Touran 2.0 TDI - 136 (AZV)/ 140 (BKD)/ 140 (BMM)
2006 - 2006 VW Touran 1.4 TSI Petrol - 140 (BMY)/ 170 (BLG)
2007 - 2008 VW Touran 2.0 TDI - 136 (AZV)/ 140 (BKD)/ 140 (BMM)
2007 - 2008 VW Touran 1.4 FSI Petrol - 140 (BMY)/ 170 (BLG)
2009 - 2009 VW Touran 2.0 TDI - 136 (AZV)/ 140 (BKD)/ 140 (BMM)
2009 - 2009 VW Touran 1.4 TSI Petrol - 140 (BMY)/ 170 (BLG)/ 170 (CAVB)/ 140 (CAVC)
2003 - 2005 VW Toureg 2.5 TDI - 174 (BAC)/ 163 (BLK)
2006 - 2007 VW Toureg 2.5 TDI - 174 (BAC)/ 163 (BLK)/ 163 (BPD)/ 174 (BPE)
2006 - 2007 VW Toureg 2.5 TDI - 163 (BPD)/ 174 (BPE)
2003 - 2005 VW Transporter T5 2.5 TDI - 131 (AXD)/ 174 (AXE)/ 163 (BLJ)
2006 - 2009 VW Transporter T5 2.5 TDI - 131 (AXD)/ 174 (AXE)/ 163 (BLJ)/ 131 (BNZ)/ 174 (BPC)

Audi

2000 - 2005 Audi A2 1.4 TDI - 90 (ATL)
2001 - 2003 Audi A3 1.9 TDI - 131 (ASZ) PD130
2004 - 2008 Audi A3 2.0 TDI - 136 (AZV)/ 140 (BKD)
2004 - 2008 Audi A3 2.0 TDI - 163 (BUY/ 170 (BMN)/ 140 (BMM)
2008 - 2009 Audi S3 2.0 Petrol - 265 (BHZ)/ 256 (BZC)
2009 - 2009 Audi A3 2.0 TDI - 136 (CBAA)/ 140 (CBAB)/ 170 (CBBB)
2008 - 2009 Audi A3 Cabriolet 2.0 TDI - 136 (CBAA)/ 140 (CBAB)
2001 - 2005 Audi A4 1.9 TDI - 131 (AWX)/ 131 (AVF) PD130
2005 - 2008 Audi A4 2.0 TDI - 136 (BNA)/ 140 (BLB)/ 140 (BRE)/ 136 (BRF)/ 126 (BVF)/ 121 (BVG)/ 140 (BPW)/ 170 (BRD)/ 163 (BVA)
2005 - 2008 Audi A4 2.7/3.0 TDI - 232 (ASB)/ 204 (BKN)/ 179 (BPP)/ 163 (BSG)
2008 - 2009 Audi A4 2.0 TDI - 143 (CAGA)/ 136 (CAGB)/ 170 (CAHA)/ 163 (CAHB)/ 120 (CAGC)
2008 - 2009 Audi A4 2.7/3.0 V6 TDI - 240 (CAPA)/ 239 (CCWA)/ 211 (CCWB)/ 190 (CAMA)/ 163 (CAMB)/ 190 (CGKA)/ 163 (CGKB)
2001 - 2005 Audi A4 Quattro 1.9 TDI - 131 (AWX)/ 131 (AVF) PD130
2005 - 2008 Audi A4 Quattro 2.0 TDI - 136 (BNA)/ 140 (BLB)/ 140 (BRE)/ 136 (BRF)/ 126 (BVF)/ 121 (BVG)/ 140 (BPW)/ 170 (BRD)/ 163 (BVA)
2005 - 2008 Audi A4 Quattro 2.7/3.0 TDI - 232 (ASB)/ 204 (BKN)/ 179 (BPP)/ 163 (BSG)
2008 - 2009 Audi A4 Quattro 2.0 TDI - 143 (CAGA)/ 136 (CAGB)/ 170 (CAHA)/ 163 (CAHB)/ 120 (CAGC)
2008 - 2009 Audi A4 Quattro 2.7/3.0 TDI - 240 (CAPA)/ 163 (CAMB)/ 190 (CAMA)/ 190 (CGKA)/ 163 (CGKB)/ 239 (CCWA)/ 211 (CCWB)
2007 - 2009 Audi A4 Cabriolet 2.0 TDI - 140 (BPW)/ 136 (BRC)
2007 - 2009 Audi A4 Cabriolet 2.7/3.0 TDI - 232 (ASB)/ 204 (BKN)/ 179 (BPP)
2007 - 2009 Audi A4 Quattro Cabriolet 2.0 TDI - 140 (BPW)/ 136 (BRC)
2007 - 2009 Audi A4 Quattro Cabriolet 2.7/3.0 TDI - 232 (ASB)/ 204 (BKN)/ 179 (BPP)
2008 - 2009 Audi A5 2.0 TDI - 170 (CAHA)/ 163 (CAHB)
2008 - 2009 Audi A5 2.7/3.0 V6 TDI - 240 (CAPA)/ 239 (CCWA)/ 211 (CCWB)/ 190 (CAMA)/ 163 (CAMB)/ 190 (CGKA)/ 163 (CGKB)
2002 - 2005 Audi A6 1.9 TDI - 131 (AWX)/ 131 (AVF)
2005 - 2008 Audi A6 2.0 TDI - 136 (BNA)/ 140 (BLB)/ 140 (BRE)/ 163 (BRF)/ 126 (BVF)/ 121 (BVG)/ 140 (BPW)
2009 - 2009 Audi A6 2.0 TDI - 170 (CAHA)/ 136 (CAGB)
2009 - 2009 Audi A6 2.7/3.0 V6 TDI - 190 (CANA)/ 163 (CANB) / 239 (CDYA)/ 211 (CDYB)/ 239 (CDYC)
2002 - 2005 Audi A6 Quattro 1.9 TDI - 131 (AWX)/ 131 (AVF)
2005 - 2008 Audi A6 Quattro 2.0 TDI - 136 (BNA)/ 140 (BLB)/ 140 (BRE)/ 136 (BRF)/ 126 (BVF)/ 121 (BVG)
2009 - 2009 Audi A6 Quattro 2.0 TDI - 170 (CAHA)/ 136 (CAGB)
2009 - 2009 Audi A6 Quattro 2.7/3.0 V6 TDI - 190 (CANA)/ 163 (CANB) / 239 (CDYA)/ 211 (CDYB)/ 239 (CDYC)
2007 - 2009 Audi Allroad 2.7/3.0 V6 TDI - 190 (CANC)/ 163 (CAND) / 239 (CDYA)/ 211 (CDYB)/ 239 (CDYC)
2004 - 2007 Audi A8 4.2 V8 TDI - 360 (BCM)/ 326 (BVN)
2008 - 2009 Audi A8 4.2 V8 TDI - 326 (BVN)
2003 - 2007 Audi A8 Quattro 4.2 V8 TDI - 360 (BCM)/ 326 (BVN)
2008 - 2009 Audi A8 Quattro 4.2 V8 TDI - 326 (BVN)
2007 - 2009 Audi TT/Roadster 2.0 TDI - 170 (CBBB)
2007 - 2009 Audi TT/TTS/Roadster 2.0 Petrol - 265 (CDLA)/ 272 (CDLB) TTS
2009 - 2009 Audi Q5 2.0 TDI - 170 (CAHA)/ 163 (CAHB)
2009 - 2009 Audi Q5 3.0 V6 TDI - 239 (CCWA)/ 211 (CCWB)
2007 - 2009 Audi Q7 3.0 V6 TDI - 211 (BUN)/ 232 (BUG)/ 211 (CASB)/ 240 (CASA)/ 239 (CCMA)
2007 - 2009 Audi Q7 4.2 V8 TDI - 326 (BTR)
2007 - 2009 Audi Q7 6.0 V12 TDI - 500 (CCGA)

Seat

2003 - 2005 Seat Alhambra 1.9 TDI - 130 (ASZ)/ 150 (BTB) PD130/ PD150
2006 - 2008 Seat Alhambra 1.9/2.0 TDI - 130 (ASZ)/ 150 (BTB) / 140 (BRT)
2009 - 2009 Seat Alhambra 1.9/2.0 TDI - 130 (ASZ) / 140 (BRT)
2004 - 2009 Seat Altea 2.0 TDI - 136 (AZV)/ 140 (BKD)/ 140 (BMM)
2003 - 2005 Seat Cordoba 1.9 TDI - 130 (ASZ) PD130
2006 - 2009 Seat Cordoba 1.9 TDI - 130 (ASZ/ 130 (BLT) PD130
2002 - 2005 Seat Ibiza 1.9 TDI - 130 (ASZ)/ 160 (BUK) Sport / FR / Cupra
2006 - 2009 Seat Ibiza 1.9 TDI - 130 (ASZ)/ 131 (BLT)/ 160 (BPX)/ 160 (BUK) Sport / FR / Cupra
2009 - 2009 Seat Ibiza 1.6 TDI - 90 (CAYA)/ 90 (CAYB) Common Rail
2002 - 2006 Seat Leon 1.9 TDI - 130 (ASZ/ 150 (ARL) PD130/ PD150/ Sport / FR / Cupra
2006 - 2009 Seat Leon 2.0 TDI - 136 (AZV)/ 140 (BKD)/ 140 (BMM)
2002 - 2004 Seat Toledo 1.9 TDI - 130 (ASZ)/ 150 (ARL) PD130/ PD150
2005 - 2009 Seat Toledo 2.0 TDI - 136 (AZV)/ 140 (BKD)/ 140 (BMM)

Skoda

2000 - 2004 Skoda Fabia 1.9 TDI - 131 (ASZ) PD130 vRS
2000 - 2004 Skoda Fabia 1.9 TDI - 131 (ASZ)/ 130 (BLT) PD130 vRS
2001 - 2009 Skoda Octavia 1.9 TDI - 131 (ASZ) PD130
2004 - 2008 Skoda Octavia 2.0 TDI - 136 (AZV)/ 140 (BKD)
2009 - 2009 Skoda Octavia 2.0 TDI - 136 (AZV)/ 140 (BKD)/ 140 (BMM)/ 105 (CHWA)/ 170 (CEGA)
2002 - 2008 Skoda Superb 1.9/2.0 TDI - 131 (AWX)/ 131 (AVF) 105 (BSV)/ 116 (BPZ) / 140 (BSS)/ 124 (BWW)
2008 - 2009 Skoda Superb 2.0 TDI - 140 (BMP)/ 170 (CBBB)

What fault codes does a faulty MAP sensor trigger?

A faulty MAP sensor typically triggers codes P0105 to P0109. P0105 indicates a circuit malfunction, P0106 indicates the signal is out of range, P0107 and P0108 indicate the signal is too low or too high respectively, and P0109 indicates an intermittent circuit fault. These codes combined with symptoms such as poor idle and black smoke are strong indicators of MAP sensor failure.

How do I test a MAP sensor?

With an OBD2 scanner in live data mode, the MAP sensor should read close to atmospheric pressure (around 101 kPa) with the engine off, and drop to 30 to 50 kPa at idle with the engine running due to manifold vacuum. Under wide open throttle the reading should rise back toward atmospheric. A sensor that reads flat or does not respond to throttle changes has failed. You can also test supply voltage and signal output with a multimeter.

Can I drive with a faulty MAP sensor?

You can drive short distances but engine performance will be noticeably degraded. The ECU uses the MAP sensor to calculate fuel delivery - a faulty sensor causes incorrect fuelling which leads to poor economy, rough running, and increased emissions. On turbocharged engines a faulty MAP sensor can also prevent boost control from operating correctly. Replace it as soon as possible to avoid further damage.

What does a MAP sensor do?

The Manifold Absolute Pressure (MAP) sensor measures intake manifold pressure to help the ECU calculate the correct fuel and ignition timing. It is critical for engine efficiency, particularly on turbocharged and supercharged vehicles.

What are the symptoms of a faulty MAP sensor?

Symptoms include poor acceleration, rough idle, excessive fuel consumption, black smoke, engine hesitation, and a Check Engine light with codes P0105-P0109. Turbocharged vehicles may also experience boost control issues.

What is the difference between a MAP sensor and a MAF sensor?

A MAF (Mass Air Flow) sensor directly measures the mass of air entering the engine. A MAP sensor measures manifold pressure and the ECU calculates air mass from that reading. Many vehicles use one or the other; some use both. They are not interchangeable.

Identification
SKU	MP201-CMS249
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	MP201
Reference OEM Number	038906051C
Other OEM Numbers	038906051C, 03G906051E, 03G906051M, 03G906051F
Related Part Numbers	CMS249, MP201, MAP1119
Trade Part Numbers	NTY: ECM-AU-001, VEMO: V10-72-1107, WALKER: 225-1083
Product Specifics
Sensor Type	Manifold Absolute Pressure (MAP) Sensor
Type	Sensor
Features	Direct Fit
Manufacturer Warranty	1 Year

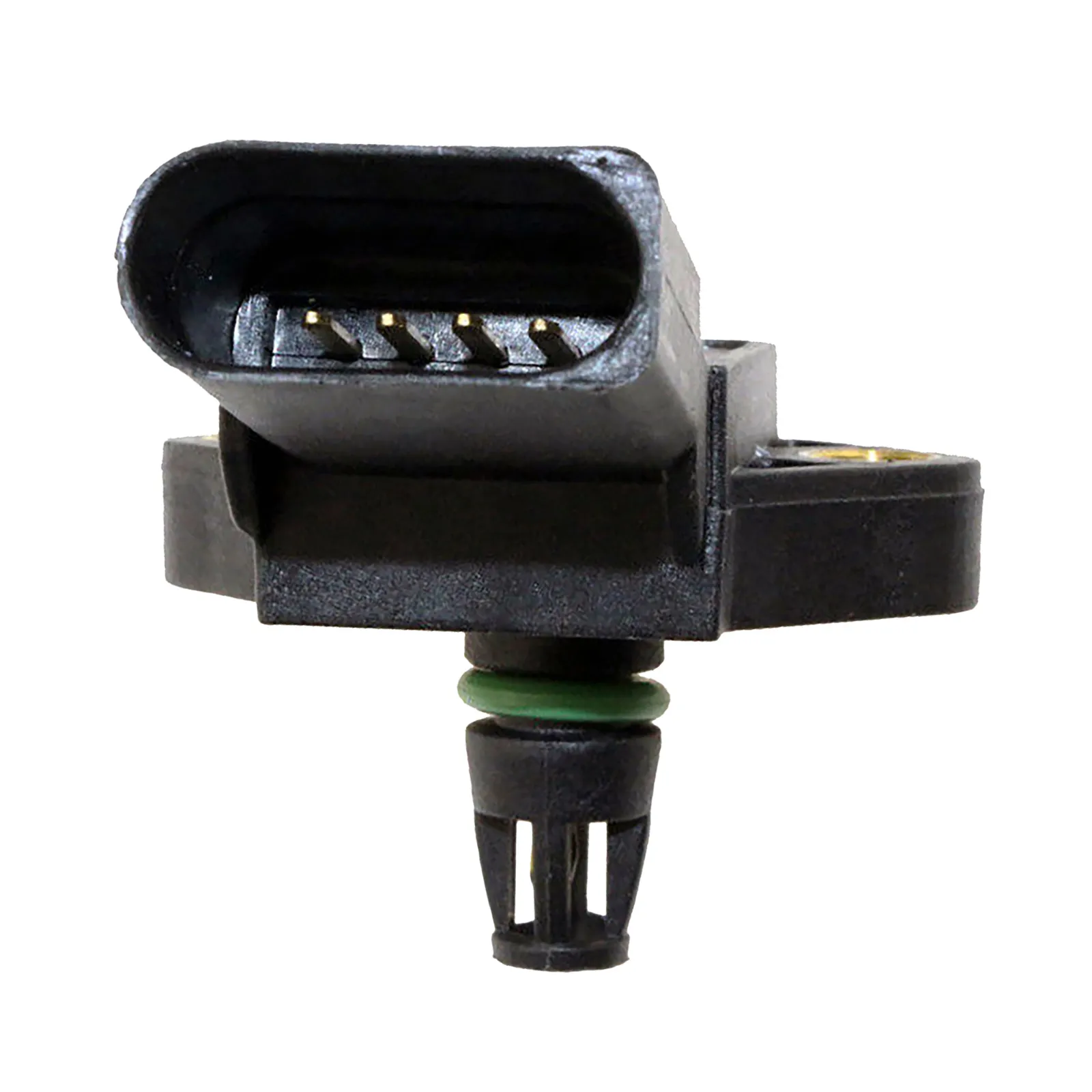

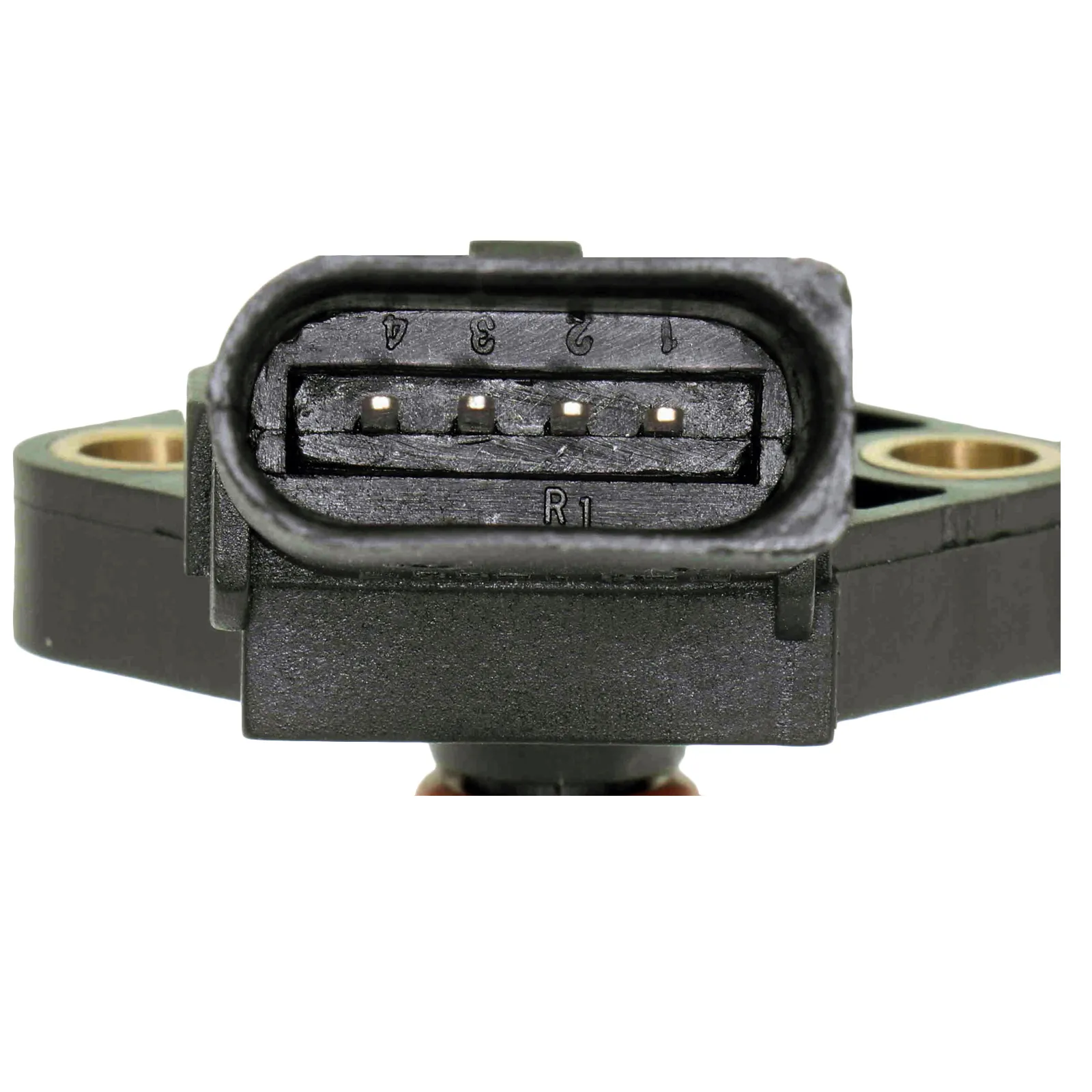

Number of pins	4 -pin connector
Connector Shape	D-shaped
Supplementary Article Info	with integrated air temperature sensor
Housing Colour	Black
Number of Bolt Holes	2
Mounting Type	Bolted

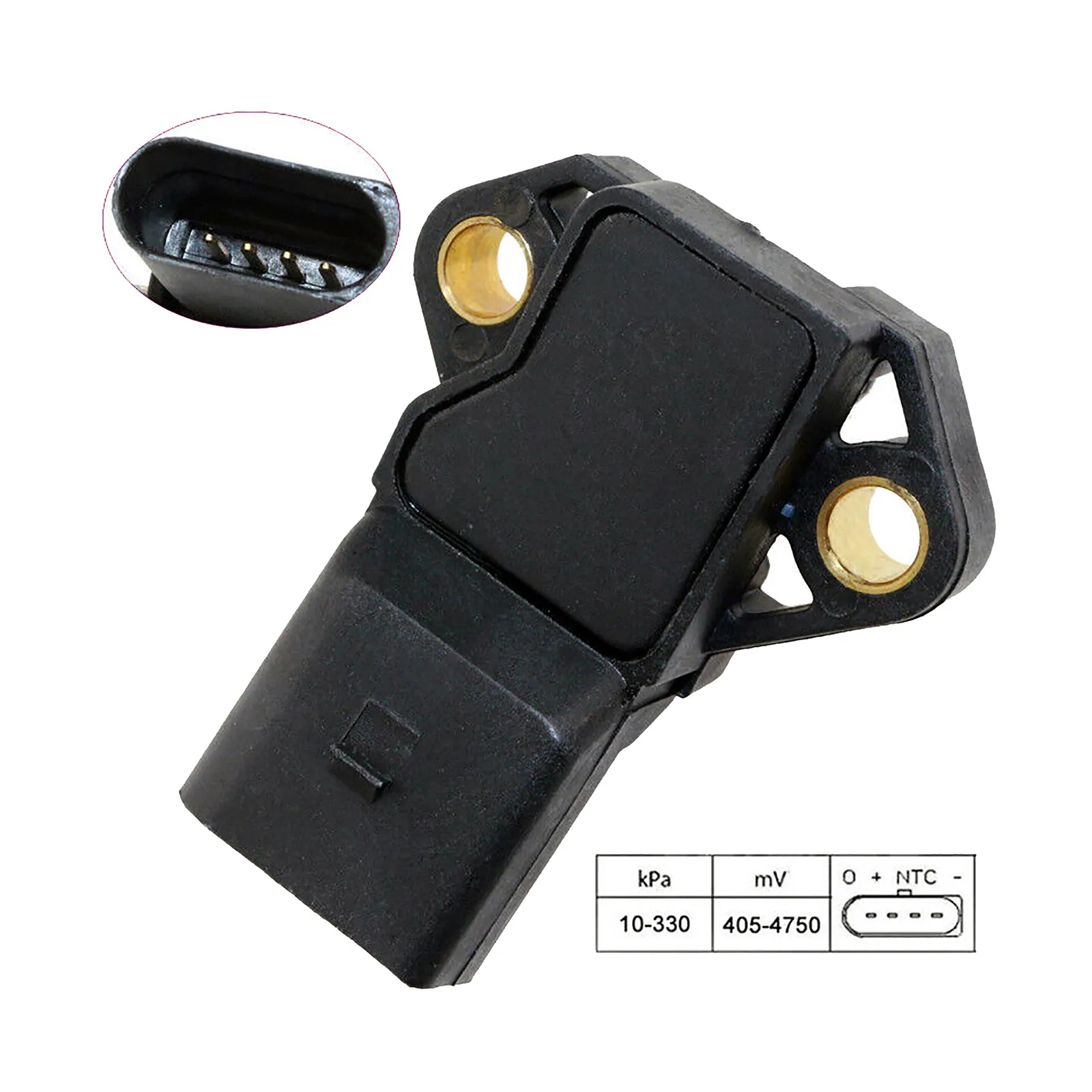

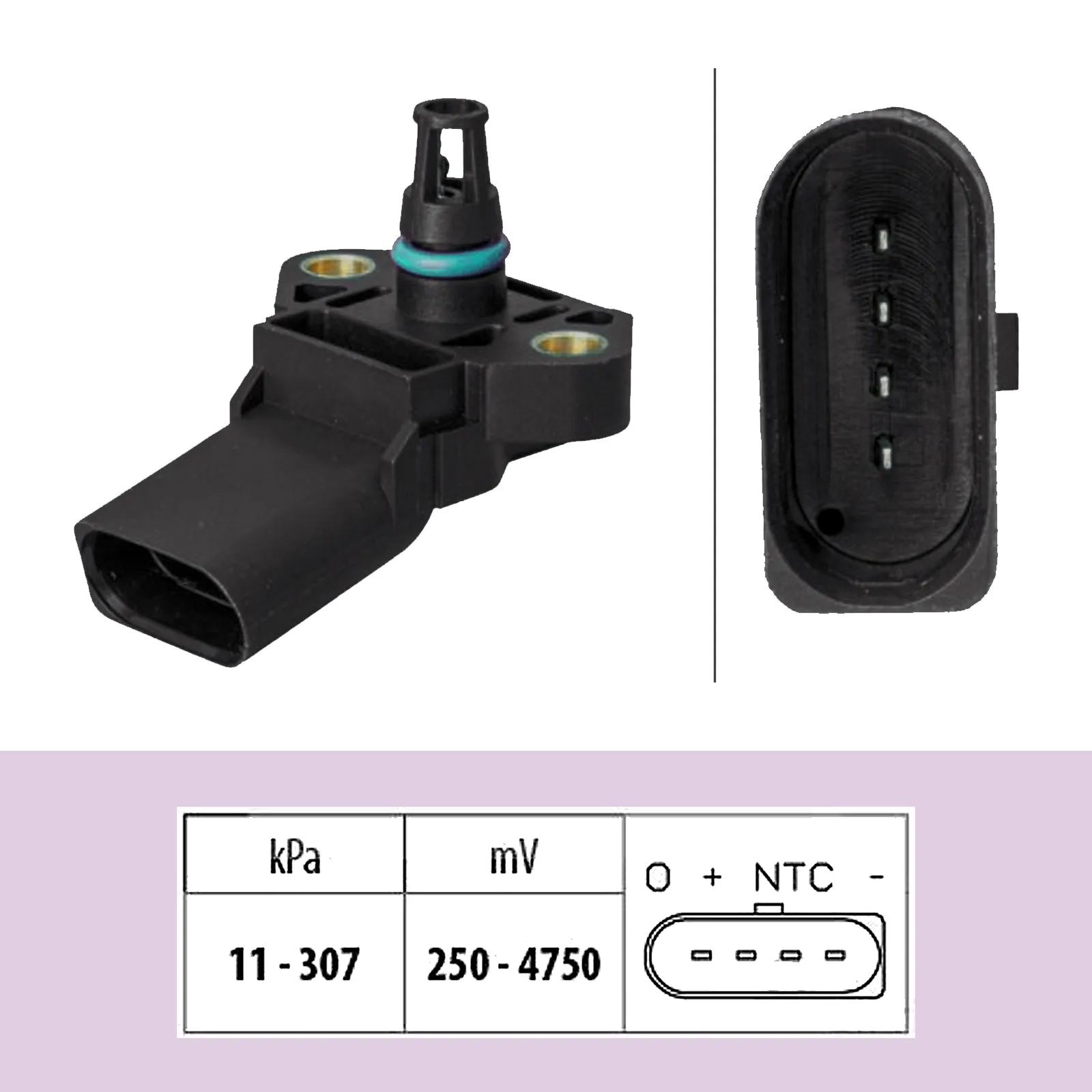

Pressure Range	20 kPa, until 300 kPa
Other Details
Note	Always verify fitment using your vehicle's OEM part number.
Unit Of Measure	ea
