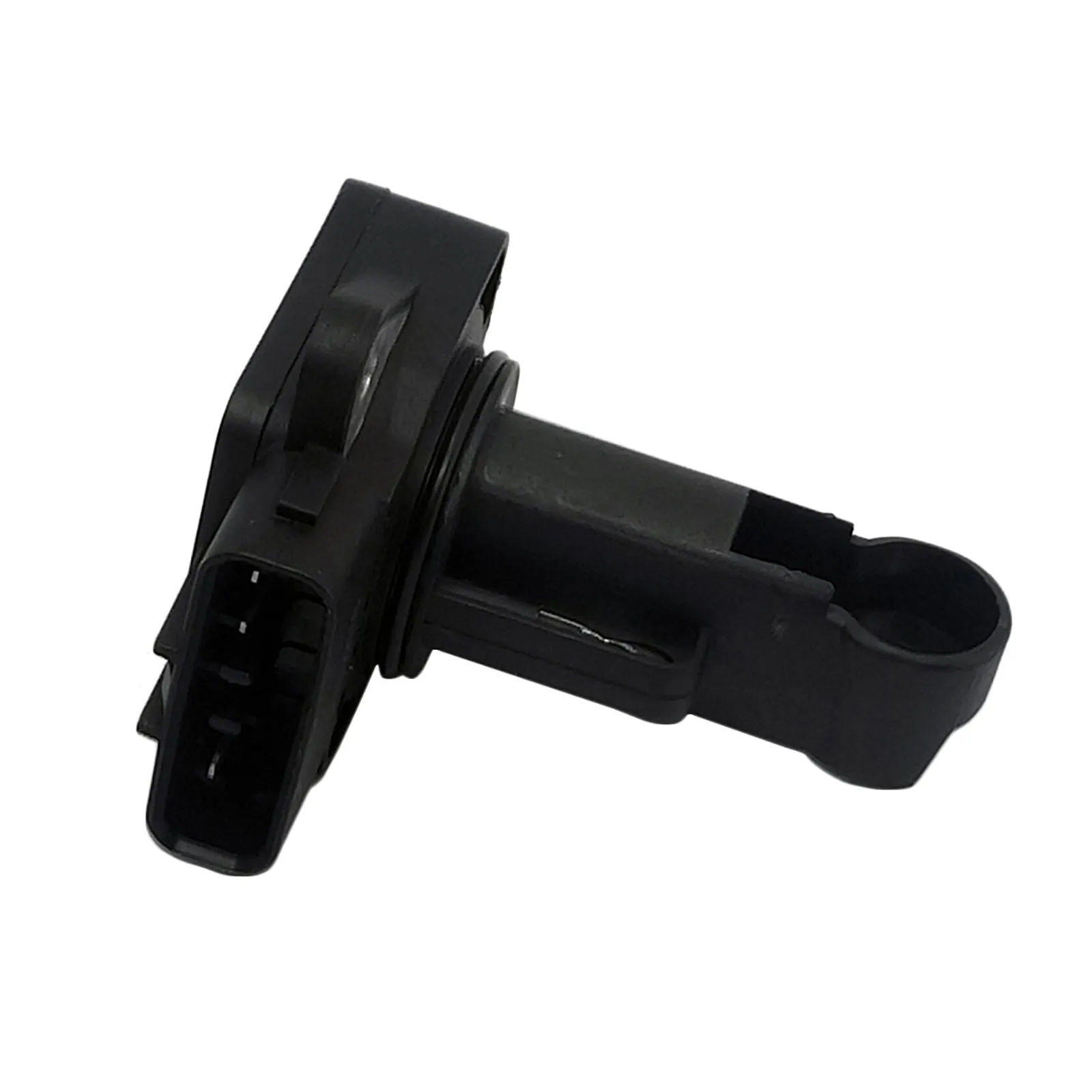

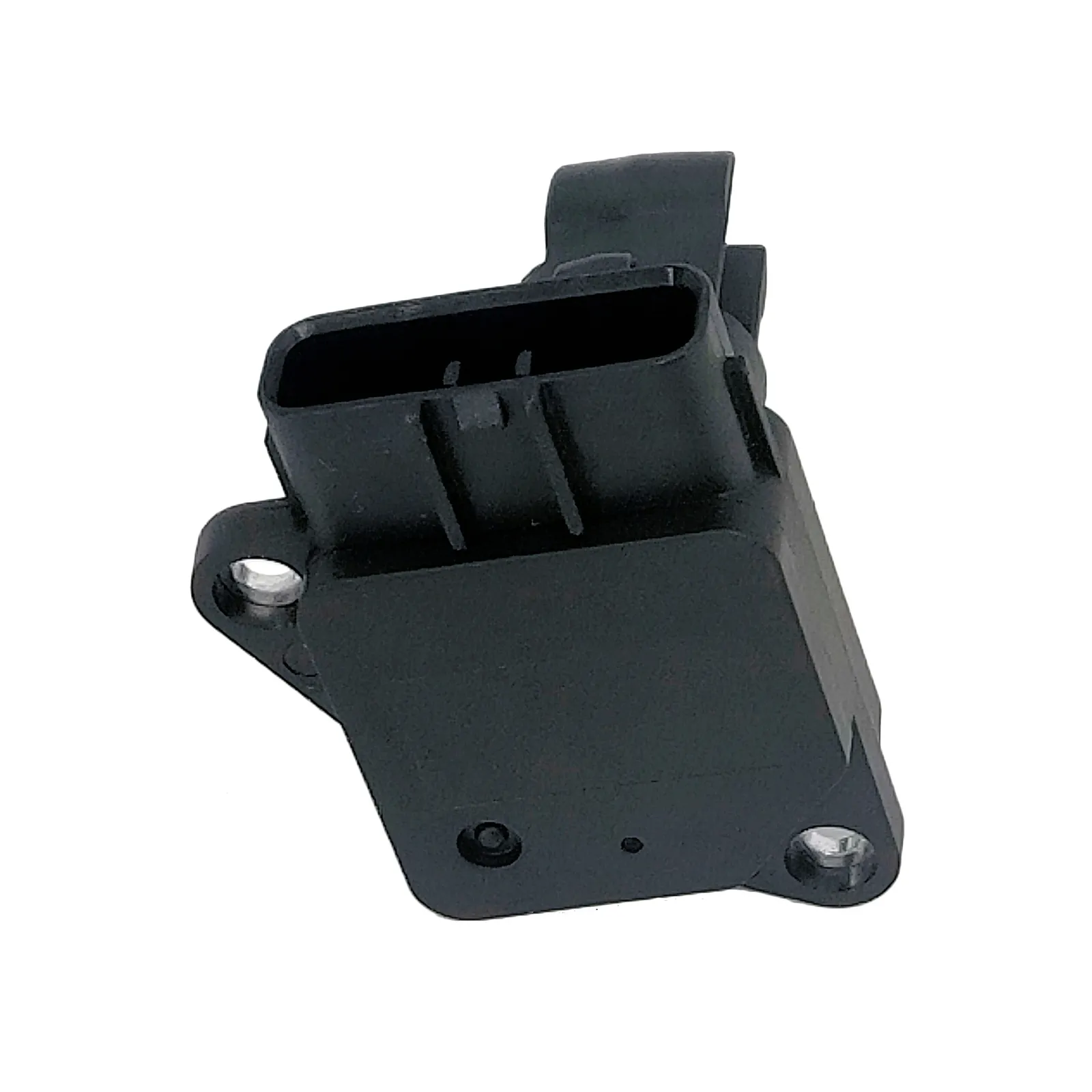

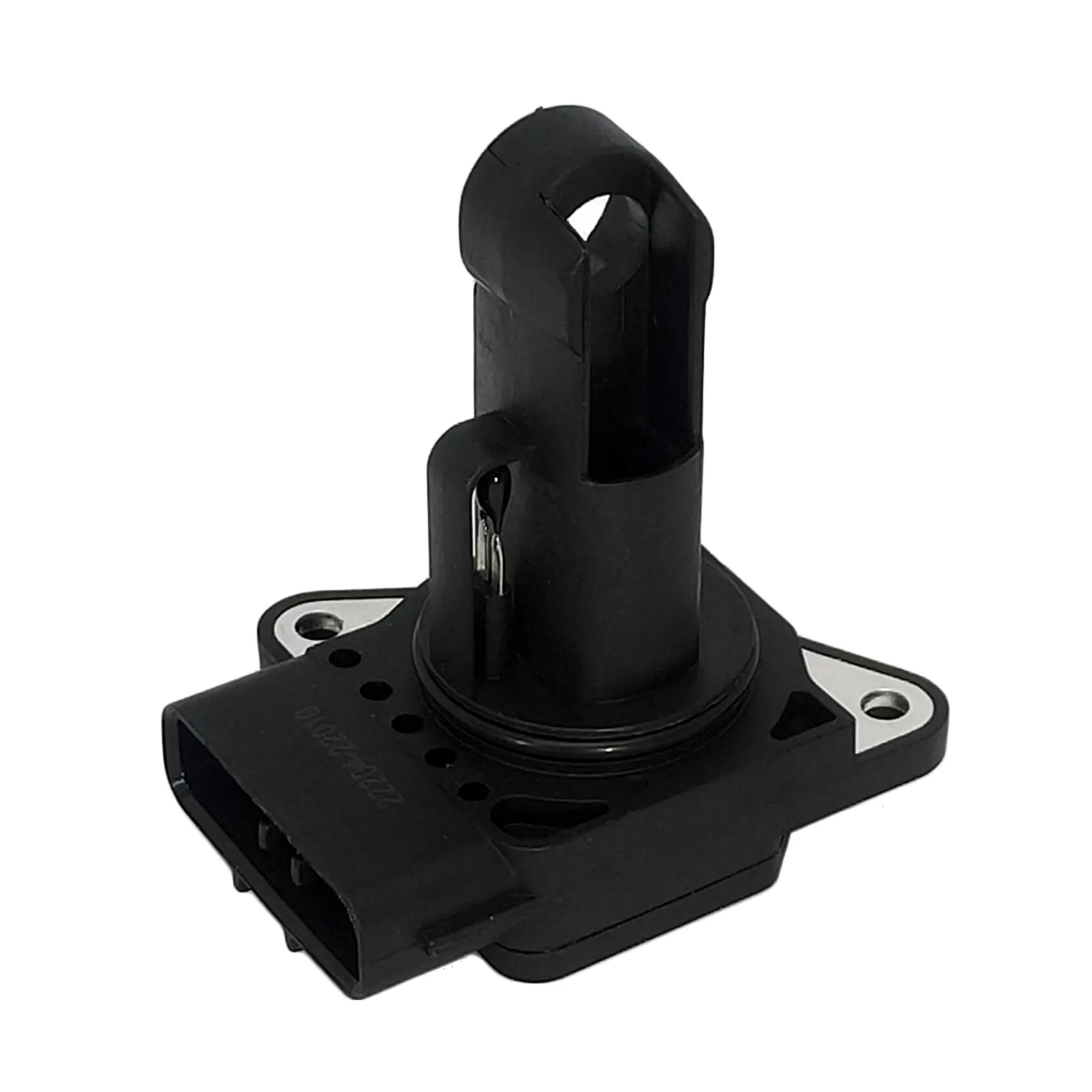

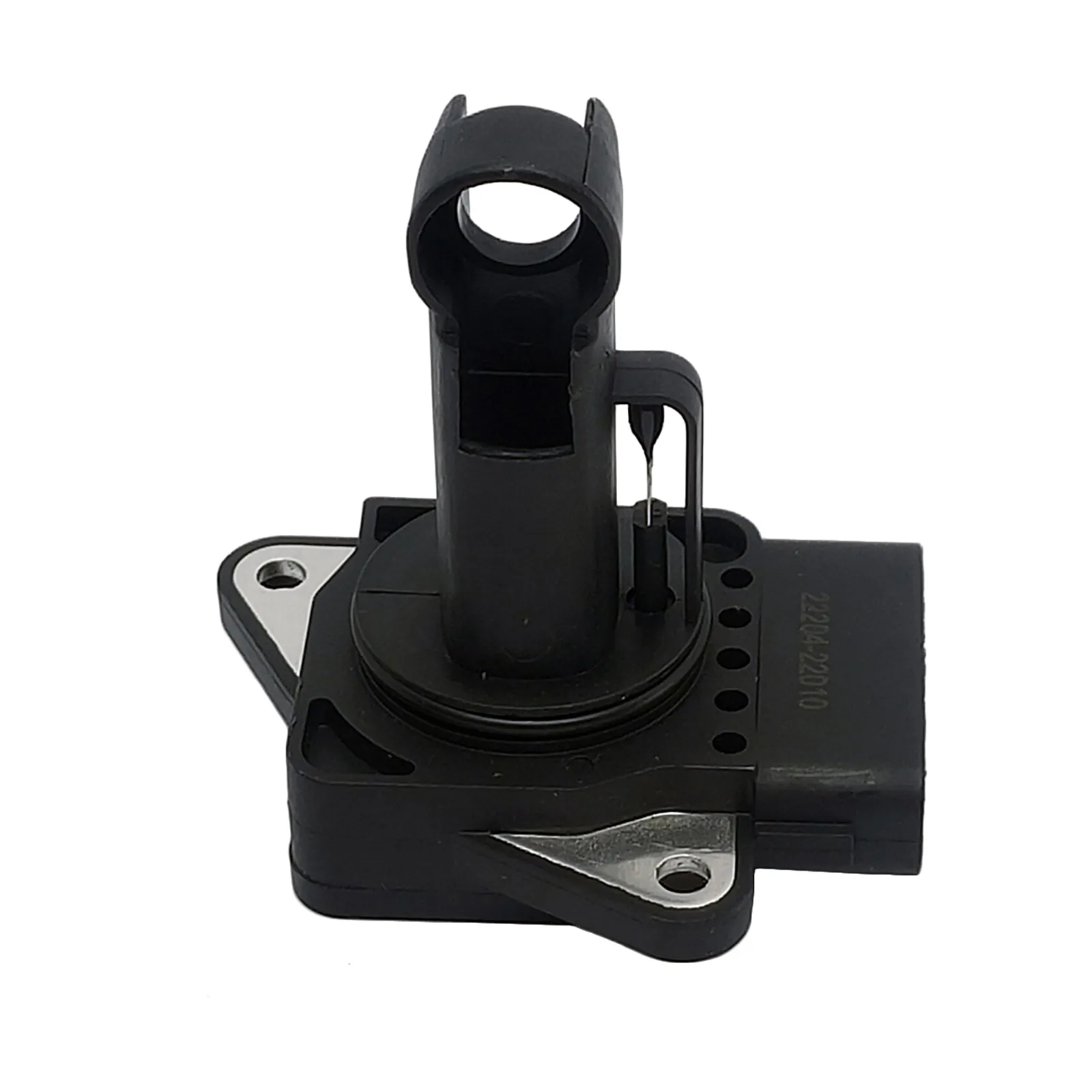

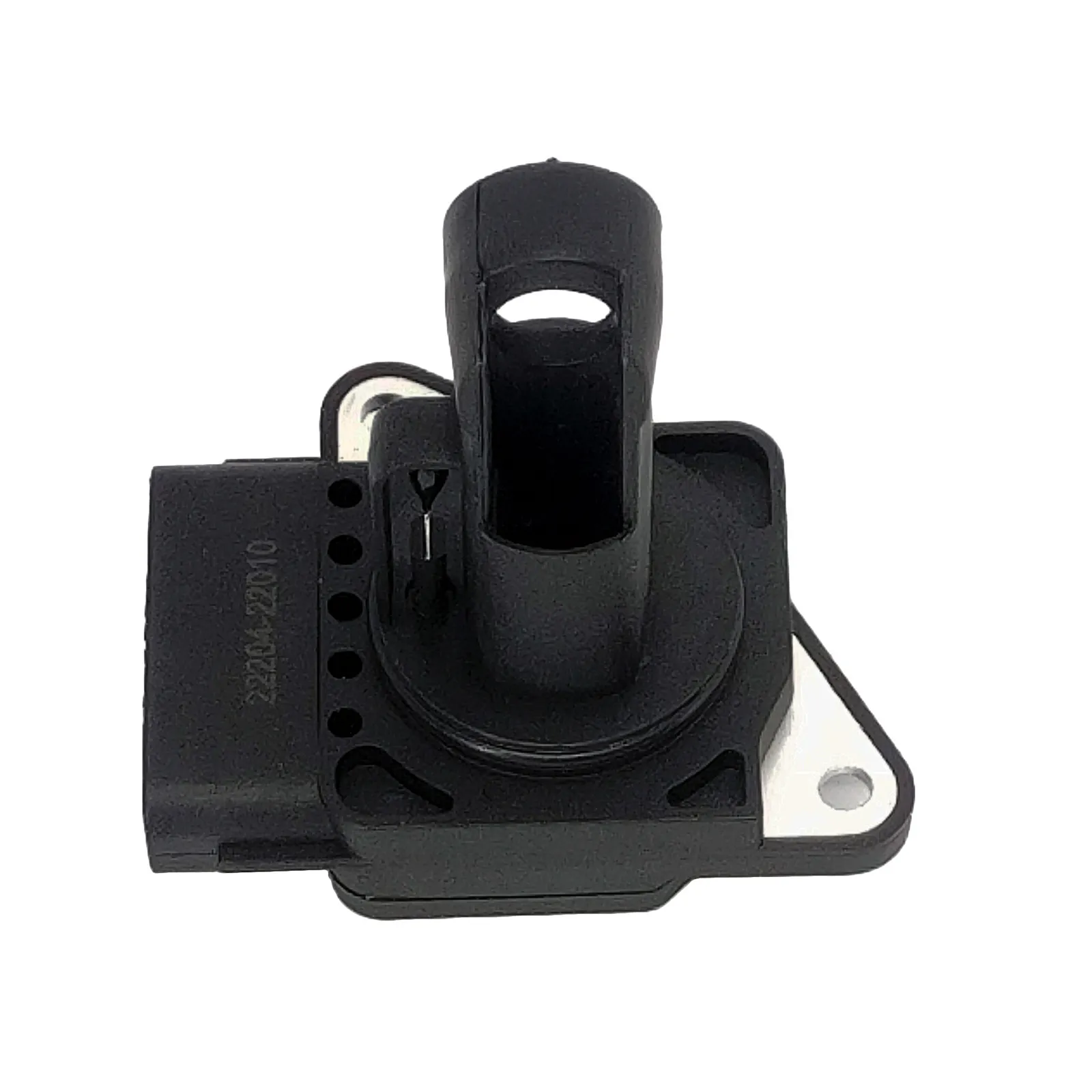

Mass Airflow Sensor for Lexus GS430 LS400 LS430 SC430 V8 3UZ-FE 1UZ-FE
Direct Fit Replaces 22204-22010
BRAND NEW *OEM Quality* mass airflow sensor to suit Lexus GS430, LS400, LS430 and SC430 with the 3UZ-FE and 1UZ-FE V8 petrol engine.
When the MAF sensor fails on the 3UZ or 1UZ V8 the engine runs rough at idle, hesitates on acceleration and can set fault codes P0100-P0103. This BRAND NEW direct-fit unit slots straight in and restores accurate air metering. Stocked in Melbourne and dispatched express Australia-wide.
TO SUIT
This sensor suits the Lexus GS430 UZS190R (2005-2008), LS400 UCF20R 1UZ-FE V8 (1994-2000), LS430 UCF30 3UZ-FE V8 (2000-2006), and SC430 UZZ40R 3UZ-FE V8 (2001-2010). See full vehicle list above.
OEM PART NUMBERS
- 22204-0D030
- 22204-0J010
- 22204-0C020
- 22204-22010
- 197400-2120
OTHER PART NUMBERS
- DENSO: DMA-0108
- NTY: EPP-TY-000
PACKAGE INCLUDES

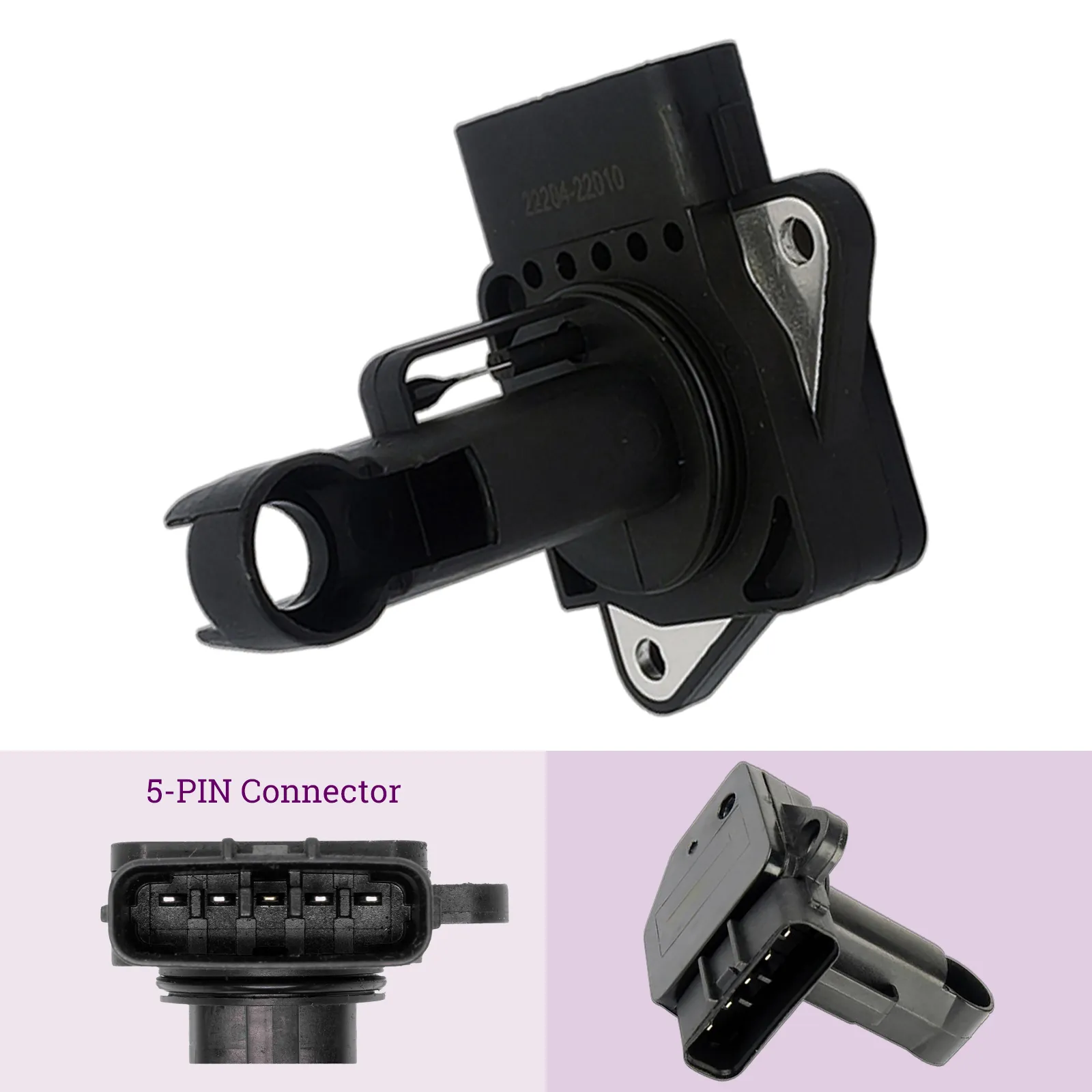

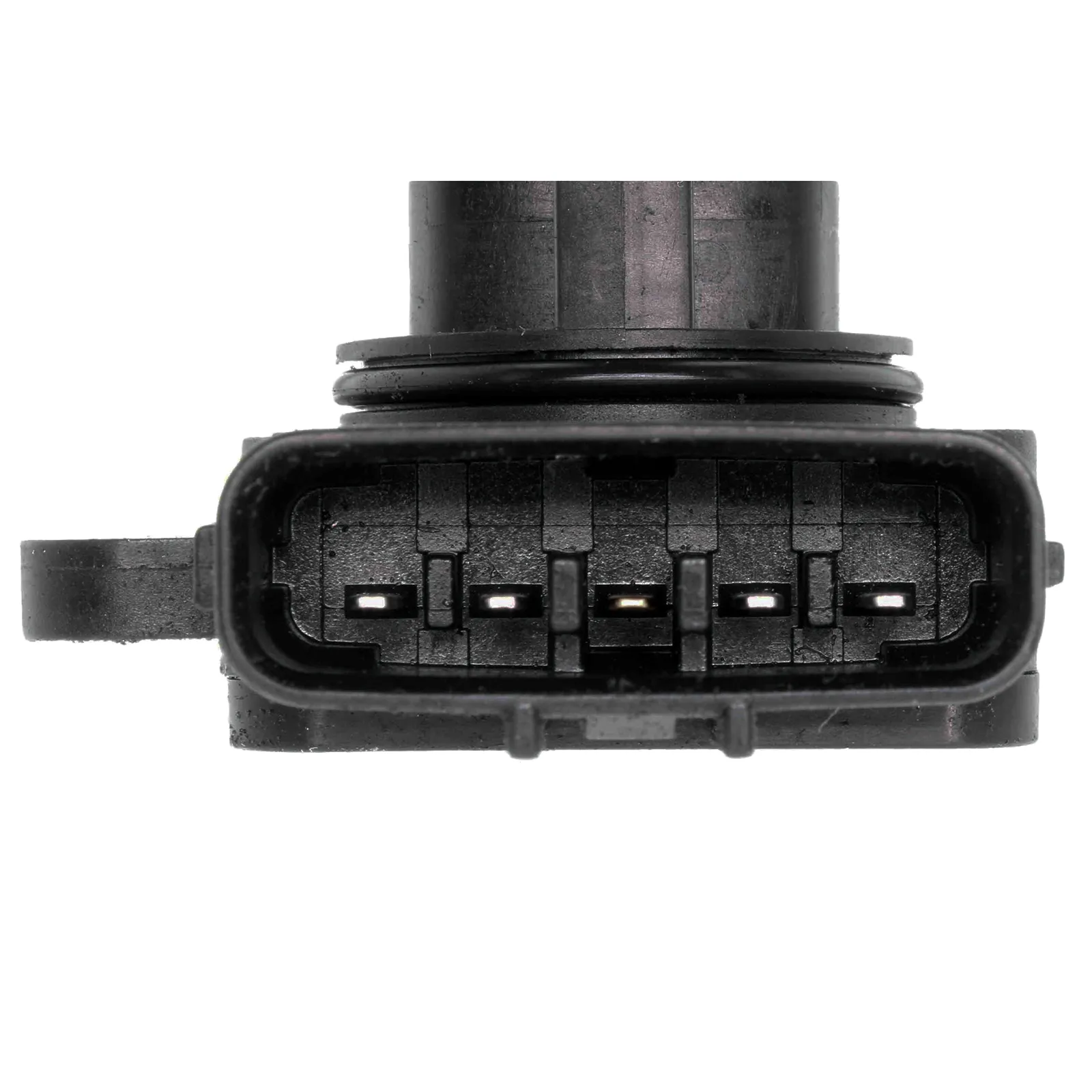

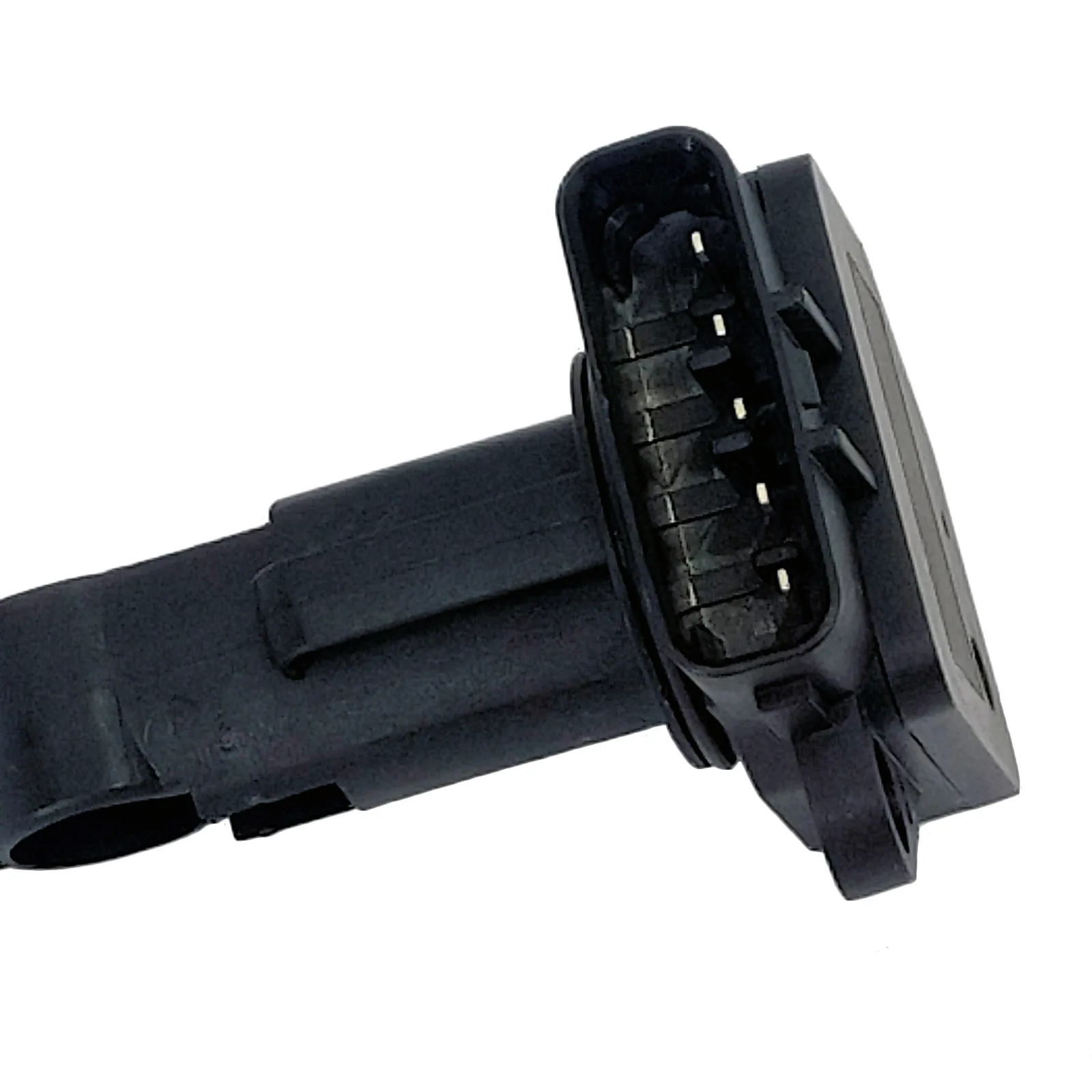

1 x BRAND NEW mass airflow sensor (5-pin rectangular connector, without housing/insert only).
ABOUT THIS SENSOR
The MAF sensor on the Toyota/Lexus V8 platform measures the volume and density of air entering the engine for precise ECU fuel injection control. The 12V bolted-mount insert type features an integrated air temperature sensor and suits the 1UZ-FE and 3UZ-FE V8 engine families.
Sensor drift or failure on the V8 platform causes the ECU to enrich fuelling by default, resulting in poor idle quality, black exhaust smoke and increased fuel consumption.
COMMON SYMPTOMS OF FAILURE
- Check engine light with codes P0100-P0103 (MAF circuit)
- Rough idle at operating temperature
- Hesitation or stumble under acceleration
- Poor throttle response
- Increased fuel consumption
- Rich running (black smoke from exhaust)
- [12/94 - 08/97] LEXUS LS UCF20R 400 4.0L V8 1UZ-FE 194kW
- [09/98 - 10/00] LEXUS LS UCF20R 400 4.0L V8 1UZ-FE 203kW
- [09/97 - 10/00] LEXUS LS UCF20R 400 4.0L V8 1UZ-FE 209kW
- [04/05 - 12/08] LEXUS GS UZS190R 430 4.3L V8 3UZ-FE 208kW
- [08/00 - 08/06] LEXUS LS UCF30 430 4.3L V8 3UZ-FE 207kW
- [05/01 - 07/10] LEXUS SC UZZ40R 430 4.3L V8 3UZ-FE 210kW
Can I clean my MAF sensor instead of replacing it?
Yes - if the sensor is contaminated rather than electrically failed, cleaning with a dedicated MAF sensor cleaner spray can restore correct readings. Do not use brake cleaner or generic electrical contact cleaner as these leave residue that damages the sensing wire. Allow the sensor to dry completely before reinstalling. If cleaning does not resolve the fault codes, the sensor requires replacement.
What is the difference between a MAF sensor and a MAP sensor?
A MAF (Mass Air Flow) sensor directly measures the mass of air entering the engine using a hot wire element in the intake. A MAP (Manifold Absolute Pressure) sensor measures intake manifold pressure to calculate air density. Most modern engines use one or the other - some use both. Your vehicle service manual or OBD2 fault codes will confirm which sensor type your engine uses.
Will a faulty MAF sensor cause my vehicle to fail an emissions test?
Yes. A faulty MAF sensor causes the ECU to miscalculate fuel delivery, typically resulting in a rich running condition that increases CO and hydrocarbon emissions. Most roadworthy and emissions checks will fail a vehicle with an active MAF sensor fault code or visibly excessive exhaust smoke.
What are the symptoms of a bad MAF sensor?
Common symptoms include rough idle, hesitation or stumbling on acceleration, poor fuel economy, black smoke from the exhaust, and an illuminated Check Engine light. Your ECU may log fault codes P0100 to P0104.
Can I drive with a faulty MAF sensor?
You can drive short distances but it is not recommended. A faulty MAF sensor causes the ECU to run incorrect fuel mixtures, which can damage the catalytic converter and O2 sensors over time. Have it replaced as soon as possible.
How do I test if my MAF sensor is bad?
Use an OBD2 scanner to check for fault codes P0100-P0104. You can also use a multimeter or live data scanner to check the sensor output voltage against your vehicle's specification. A reading significantly outside spec confirms a faulty sensor.
What causes a MAF sensor to fail?
The most common causes are a dirty or contaminated sensing element (often from a missing or damaged air filter), oil contamination from an over-oiled aftermarket air filter, heat damage, or general wear over time.
Do I need to reset my ECU after replacing the MAF sensor?
It is good practice to clear any stored fault codes using an OBD2 scanner after replacement. Some vehicles will self-adapt within a short drive cycle, but clearing codes ensures the ECU recalibrates from a clean baseline.
| Identification | |
|---|---|
| SKU | CAF034-Lexus |
| Brand | OEM |
| Part Numbers | |
| Part Number | CAF034 |
| Reference OEM Number | 22204-22010 |
| Other OEM Numbers | 22204-0D030, 22204-0J010, 22204-22010, 22204-0C020 |
| Trade Part Numbers | NTY: EPP-TY-000, DENSO: DMA-0108 |
| Product Specifics | |
| Product Type | SENSOR |
| Sensor Type | Mass Airflow Sensor |
| Type | MAF Sensor |
| Number of pins | 5 |
| Connector Shape | rectangular |
| Housing Colour | Black |
| Housing Type | without housing |
| Compatible Makes | Lexus |
| Fitment Type | Direct Fit |
| Other Details | |
| Note | Always verify fitment using your vehicle's OEM part number. |
