BRAND NEW *OEM Quality* 3-Bar MAP sensor (Manifold Absolute Pressure) to suit Audi A1 A3 A4 A5 A6 A7 A8 Q2 Q3 Q5 Q7 RS3 S1 S3 TT with TFSI and TDI turbocharged engines.

A failed MAP sensor on your Audi will trigger codes P0105 P0107 or P0108 and typically pushes the engine into limp mode with noticeable boost loss. This direct-fit replacement restores accurate pressure sensing and clears the fault. Dispatched same-day from Cranbourne VIC.

TO SUIT

Suits Audi A3 8P and A4 B7/B8 running 2.0 TFSI (CAWB CDNB CDLC) and 2.0 TDI (CAGA CJCA CGLB) engines where MAP sensor failure is common. Also suits A5 Sportback and Q5 with 2.0 TFSI - the sensor sits downstream of the intercooler on all these platforms and is interchangeable. The Q7 and A6/A7/A8 with 3.0 TDI also share this fitment via OEM 038906051C. Verify your OEM number before ordering.

OEM PART NUMBERS

038906051C
03G906051E
03G906051F
03G906051M

OTHER PART NUMBERS

NTY: ECM-AU-001
VEMO: V10-72-1107
WALKER: 225-1083
BOSCH: 0281002401
BOSCH: 0281002976
HELLA: 6PP009400-251

PACKAGE INCLUDES

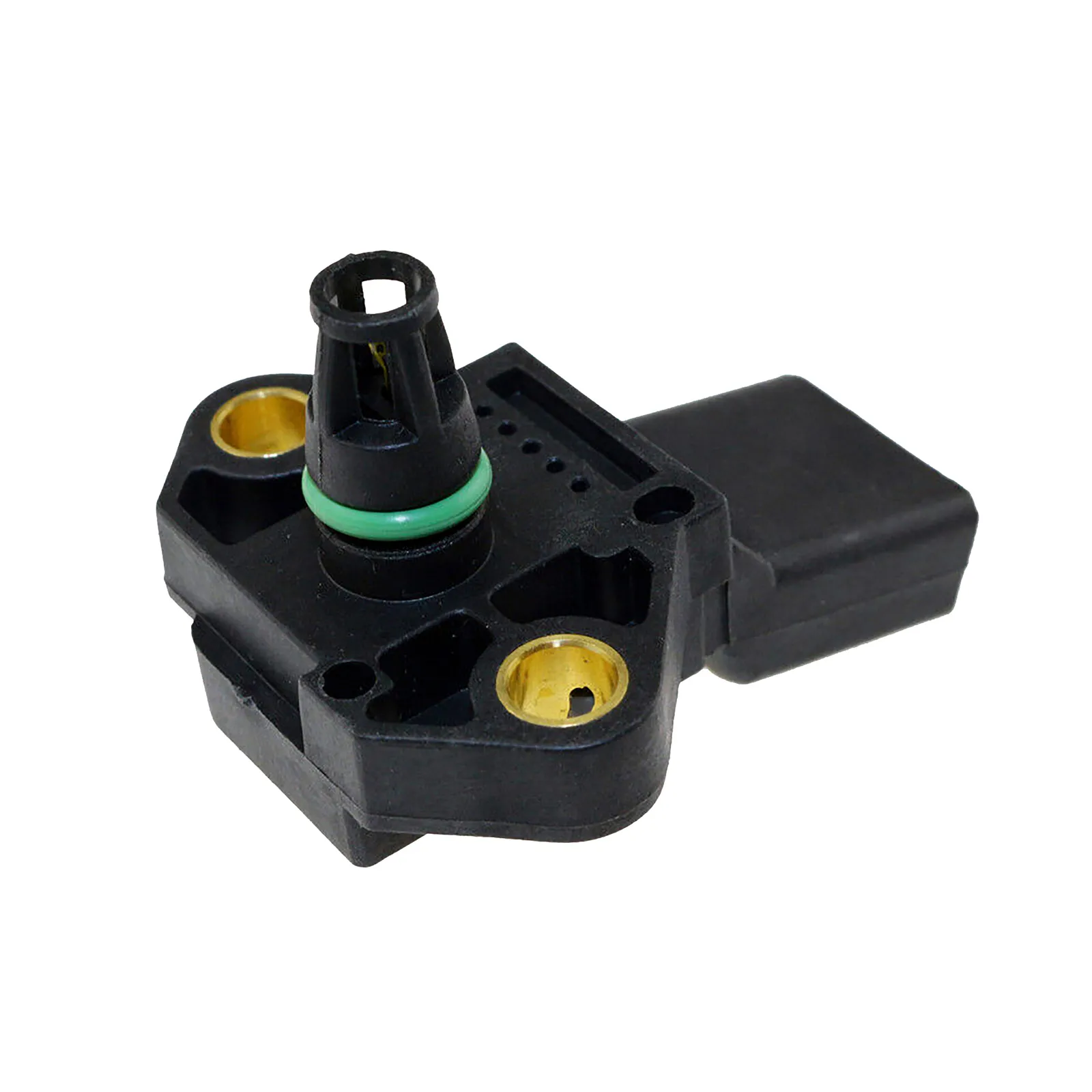

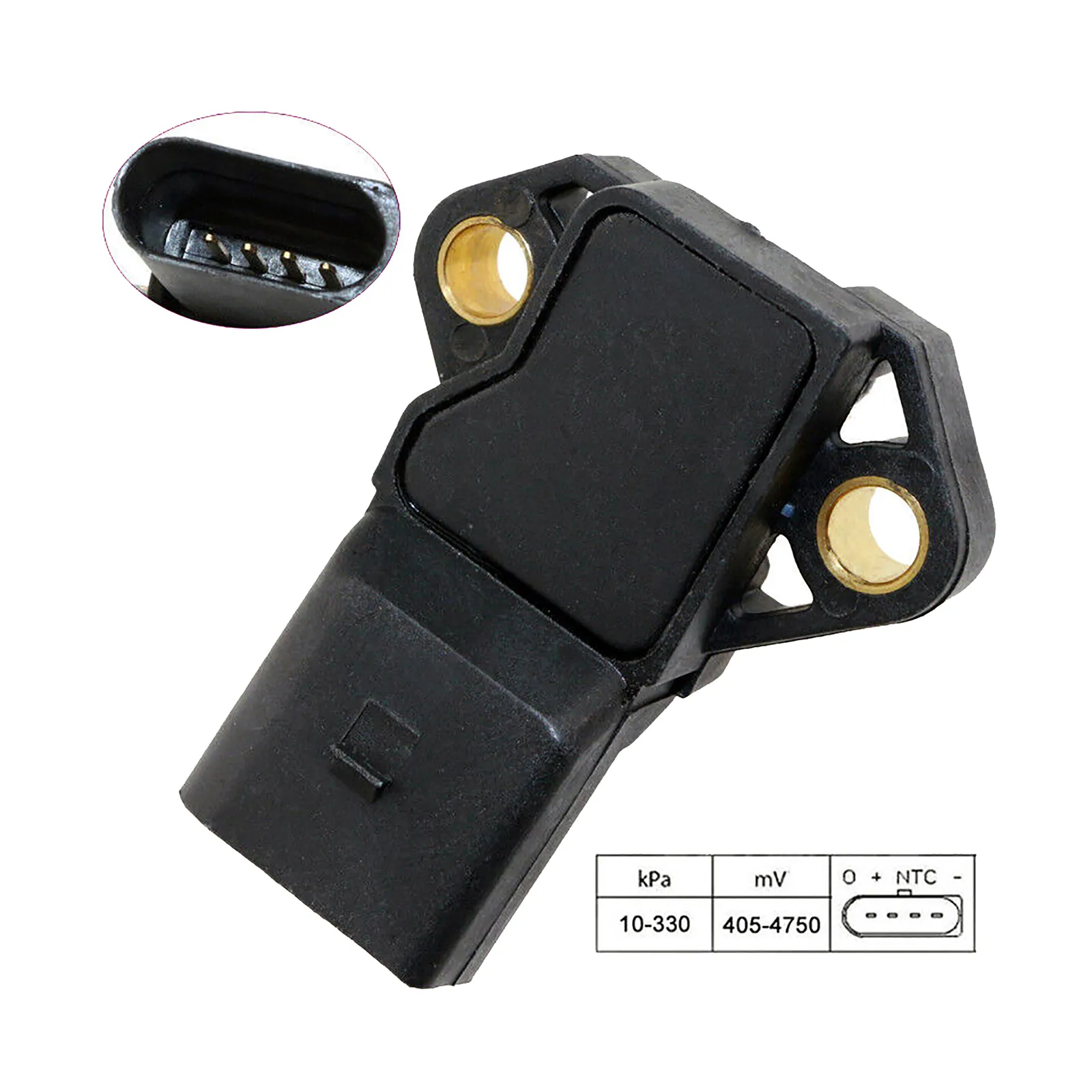

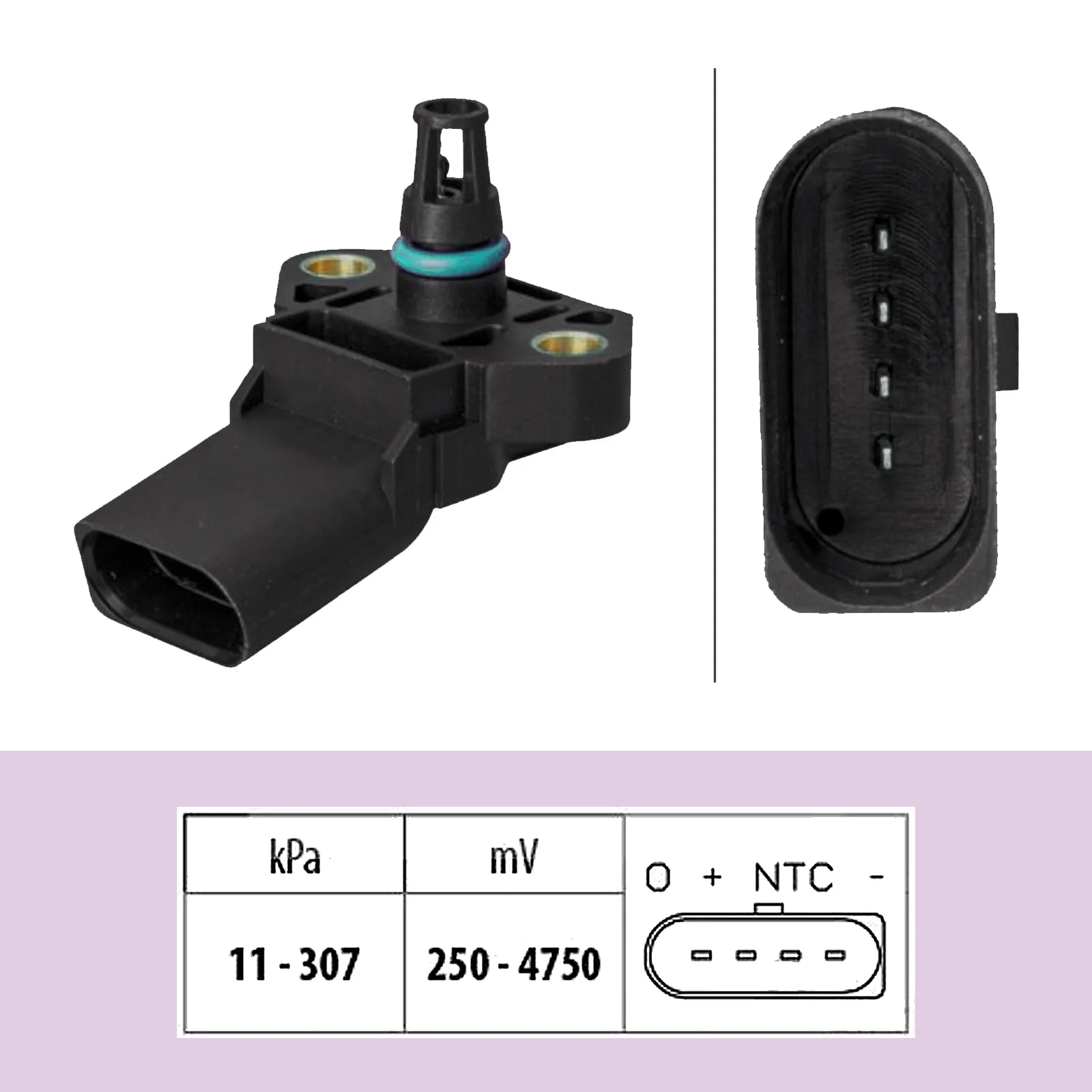

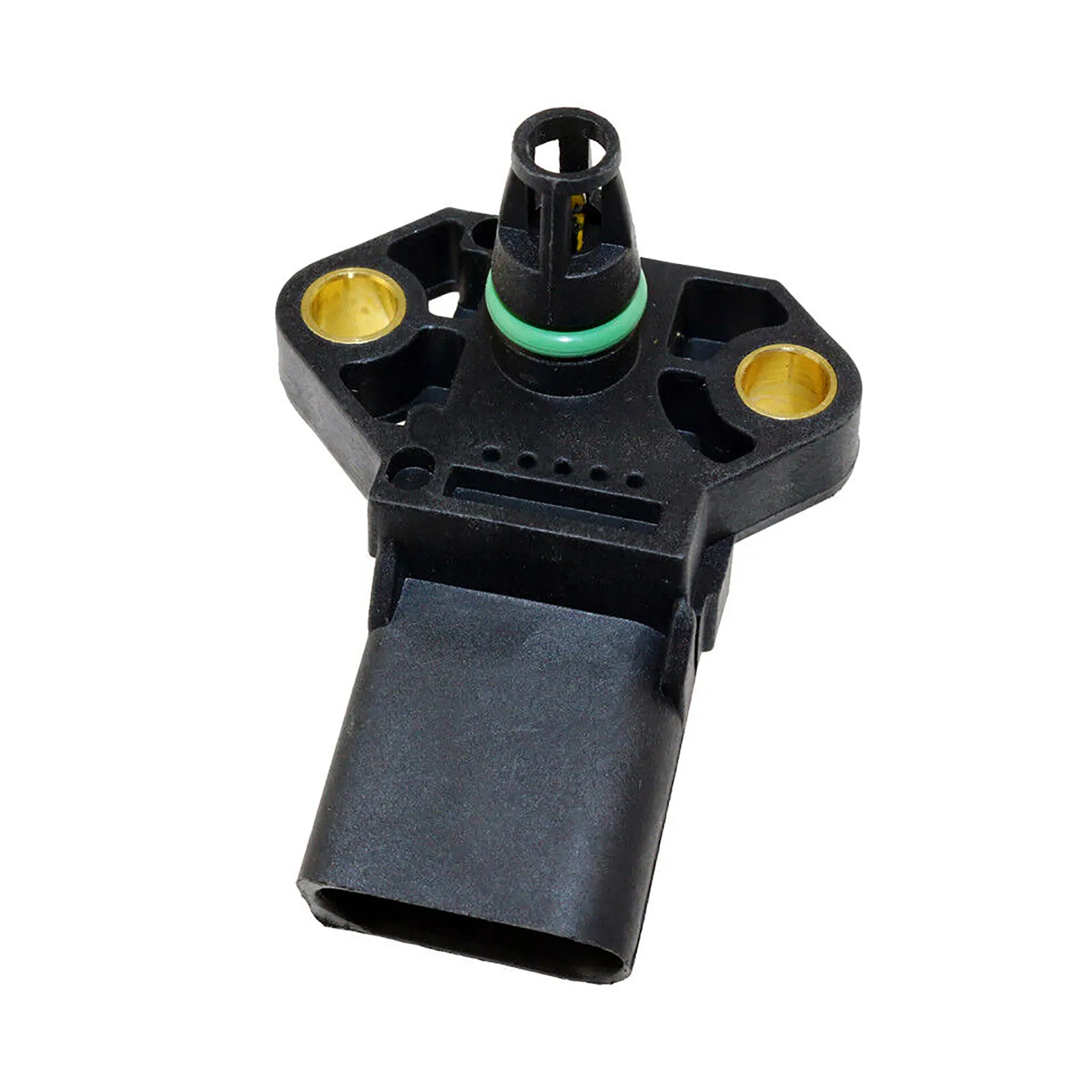

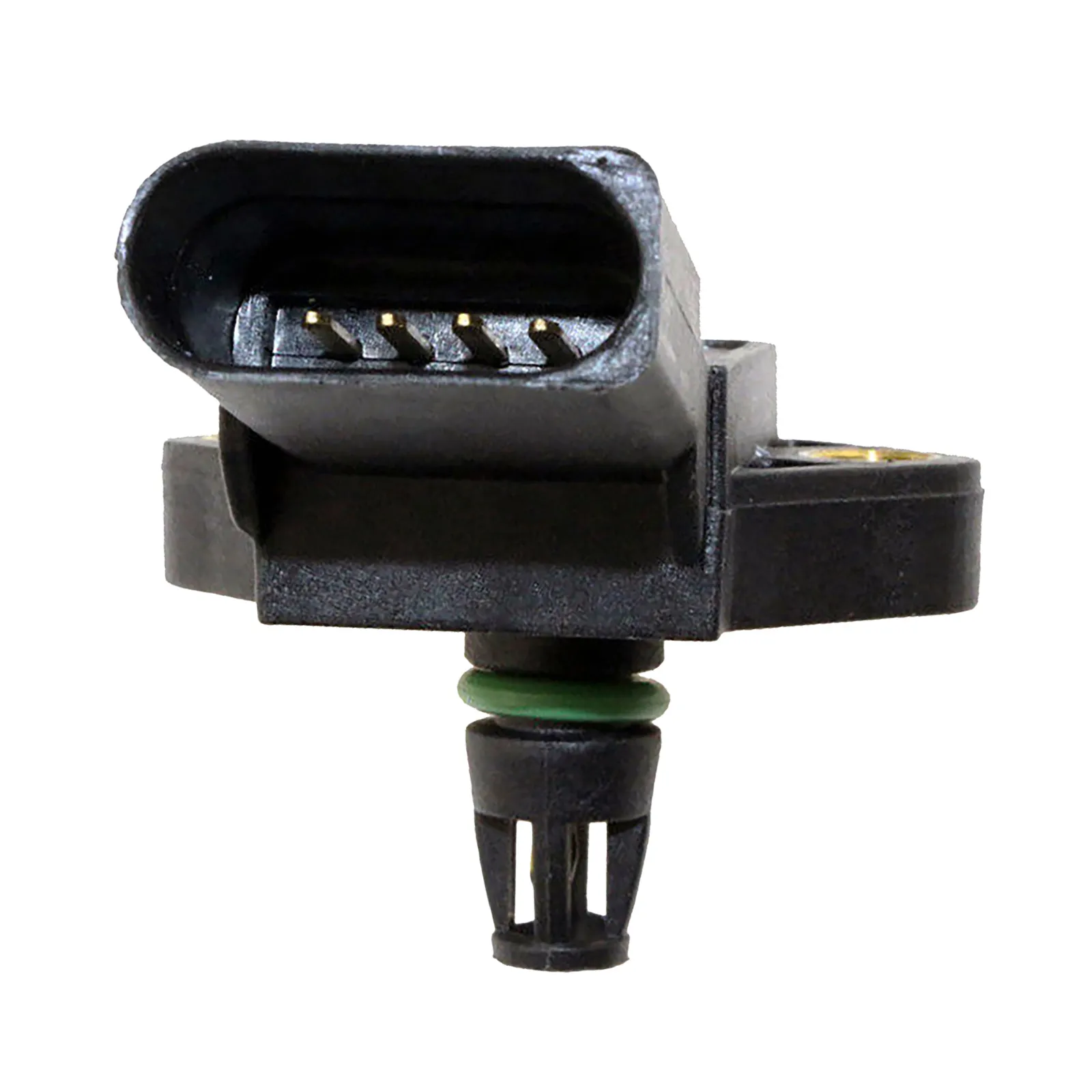

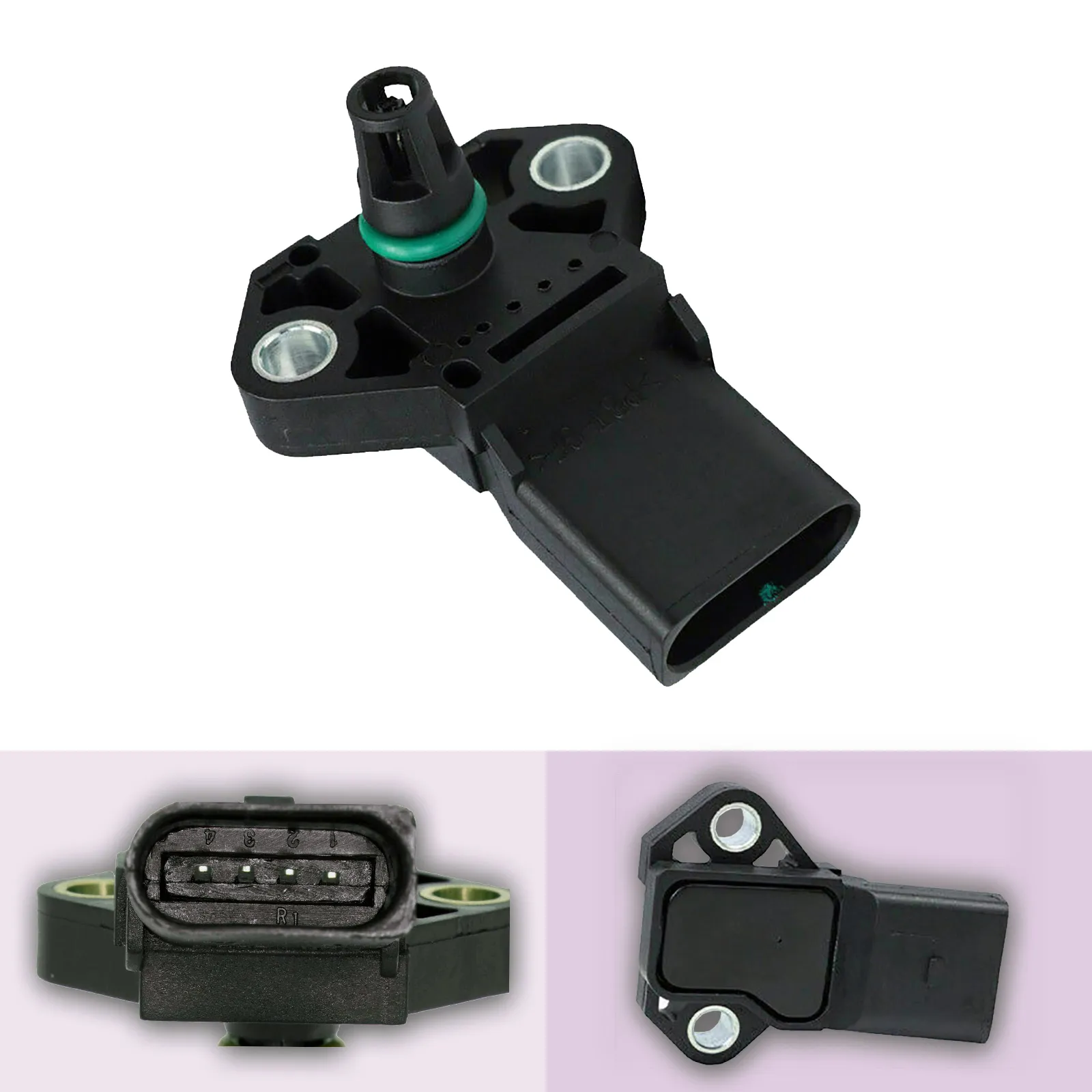

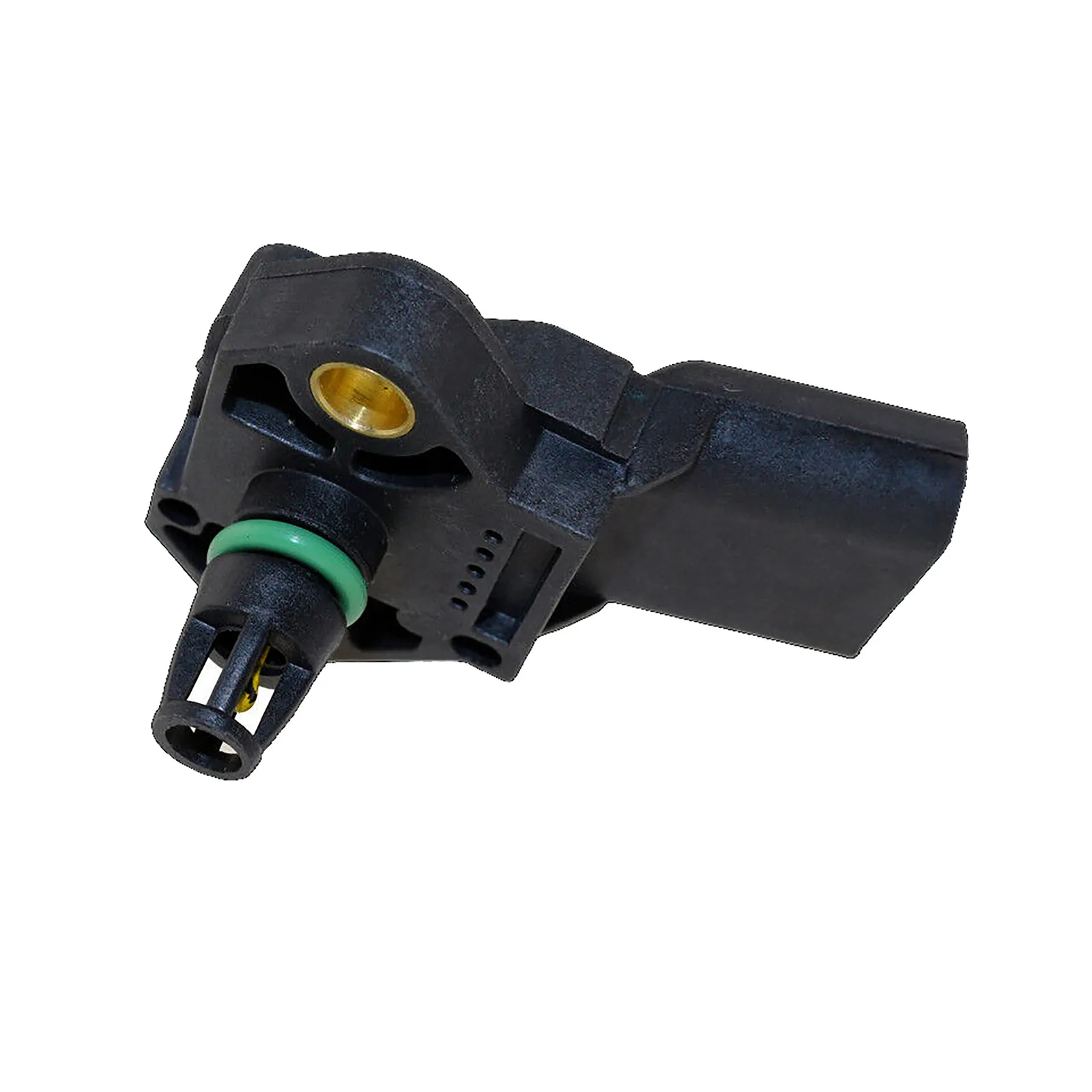

1 x OEM Quality 3-Bar MAP Sensor (4-Pin plug)

ABOUT THIS SENSOR

On Audi TFSI and TDI engines the MAP sensor is mounted on the intake manifold downstream of the turbocharger and intercooler. It measures boost pressure and sends that signal to the ECU which uses it to calculate injection quantity and boost control targets.

On the 2.0 TFSI platform the sensor is particularly vulnerable to oil contamination from the PCV breather system. Contamination degrades the internal diaphragm and causes the sensor to read low or erratically - often mimicking a boost or turbocharger fault before the true cause is identified.

COMMON SYMPTOMS OF FAILURE

Engine management light on with fault codes P0105 P0107 P0108
Engine enters limp mode with limited boost
Turbo lag or flat spot under acceleration
Poor fuel economy on TDI models
Black smoke on TDI under load
Rough idle on TSI/TFSI after cold start

[03/11 - 04/15] AUDI A1 8X1/ 8XK TDI 1.6L 4cyl CAYB 66kW
[01/11 - 04/15] AUDI A1 8X1/ 8XK TFSI 1.4L 4cyl CAVG/ CTHG 136kW
[11/11 - 04/15] AUDI A1 8XA/ 8XF TDI 1.6L 4cyl CAYB 66kW
[11/11 - 04/15] AUDI A1 8XA/ 8XF TFSI 1.4L 4cyl CAVG/ CTHG 136kW
[02/07 - 08/12] AUDI A3 8P1 S3 2.0L 4cyl CDLC/ BZC 188kW
[05/09 - 08/12] AUDI A3 8P1 TDI 1.6L 4cyl CAYC 77kW
[05/03 - 08/12] AUDI A3 8P1 TDI 16V 2.0L 4cyl BKD/ CLJA/ CFFB/ CBAB 103kW
[03/06 - 08/12] AUDI A3 8P1 TDI 2.0L 4cyl CFGB/ CBBB/ BMN 125kW
[07/08 - 03/13] AUDI A3 8PA S3 2.0L 4cyl CDLC 188kW
[05/09 - 03/13] AUDI A3 8PA TDI 1.6L 4cyl CAYC 77kW
[09/04 - 03/13] AUDI A3 8PA TDI 16V 2.0L 4cyl BKD/ CLJA/ CFFB/ CBAB 103kW
[03/06 - 03/13] AUDI A3 8PA TDI 2.0L 4cyl CFGB/ CBBB/ BMN 125kW
[11/04 - 06/08] AUDI A4 8EC B7 TDI 16V 2.0L 4cyl BLB/ BRE 103kW
[01/06 - 06/08] AUDI A4 8EC B7 TDI 3.0L V6 ASB 171kW
[11/04 - 06/08] AUDI A4 8ED B7 TDI 16V 2.0L 4cyl BLB/ BRE 103kW
[11/07 - 12/15] AUDI A4 8K2 B8 TDI 2.0L 4cyl CAGB/ CSUB/ CJCB 100kW
[11/11 - 12/15] AUDI A4 8K2 B8 TDI 2.0L 4cyl CGLC 130kW
[11/11 - 12/15] AUDI A4 8K2 B8 TDI 2.0L 4cyl CGLC/ CMGB 130kW
[11/07 - 12/15] AUDI A4 8K2 B8 TDI 2.0L 4cyl CMEA/ CAGA/ CJCA/ CMFA 105kW
[11/07 - 03/12] AUDI A4 8K2 B8 TDI 3.0L V6 CCLA/ CAPA/ CCWA 176kW
[11/11 - 12/15] AUDI A4 8K2 B8 TDI 3.0L V6 CKVC/ CDUC/ CKVB 180kW
[11/11 - 12/15] AUDI A4 8K5 B8 TDI 2.0L 4cyl CGLC 130kW
[04/08 - 12/15] AUDI A4 8K5 B8 TDI 2.0L 4cyl CMEA/ CAGA/ CJCA/ CMFA 105kW
[11/11 - 05/16] AUDI A4 Allroad 8KH B8 TDI 2.0L 4cyl CGLC 130kW
[10/11 - 01/17] AUDI A5 8F7 TDI 2.0L 4cyl CGLC 130kW
[09/11 - 03/16] AUDI A5 8F7 TFSI 1.8L 4cyl CJEB 125kW
[10/11 - 01/17] AUDI A5 8T3 TDI 2.0L 4cyl CGLC 130kW
[06/07 - 03/12] AUDI A5 8T3 TDI 3.0L V6 CAPA/ CCWA 176kW
[10/07 - 01/17] AUDI A5 8T3 TFSI 1.8L 4cyl CABD/ CJEB 125kW
[05/15 - 01/17] AUDI A5 8T3 TFSI 1.8L 4cyl CJEE Euro 6 130kW
[10/11 - 01/17] AUDI A5 8TA TDI 2.0L 4cyl CGLC 130kW
[09/09 - 03/12] AUDI A5 8TA TDI 3.0L V6 CCWA 176kW
[08/11 - 01/17] AUDI A5 8TA TFSI 1.8L 4cyl CJEB 125kW
[06/06 - 10/08] AUDI A6 4F2 C6 TDI 3.0L V6 ASB 171kW
[10/08 - 03/11] AUDI A6 4F2 C6 TDI 3.0L V6 CDYA/ CDYC 176kW
[03/11 - 09/18] AUDI A6 4G2/ 4GC C7 TDI 2.0L 4cyl CGLC/ CMGB 130kW
[11/13 - 09/18] AUDI A6 4G2/ 4GC C7 TDI 2.0L 4cyl CNHA/ CZJA/ DDDA 140kW
[03/11 - 09/18] AUDI A6 4G2/ 4GC C7 TDI 3.0L V6 CKVC/ CDUD/ CDUC/ CKVB 180kW
[05/11 - 09/18] AUDI A6 4G5/ 4GD C7 TDI 2.0L 4cyl CGLC/ CMGB 130kW
[05/06 - 10/08] AUDI A6 Allroad 4FH C6 TDI 3.0L V6 ASB 171kW
[10/08 - 08/11] AUDI A6 Allroad 4FH C6 TDI 3.0L V6 CDYA/ CDYC 176kW
[01/12 - 06/16] AUDI A6 Allroad 4GH/ 4GJ C7 TDI 3.0L V6 CKVC/ CDUD 180kW
[10/10 - 06/16] AUDI A7 4GA/ 4GF TDI 3.0L V6 CKVC/ CDUD/ CDUC/ CKVB 180kW
[08/03 - 07/10] AUDI A8 4E2/ 4E8 D3 TDI 3.0L V6 ASB 171kW
[07/05 - 07/10] AUDI A8 4E2/ 4E8 D3 TDI 4.1L V8 BVN 240kW
[07/10 - 01/18] AUDI A8 4H2/ 4H8/ 4HC/ 4HL D4 TDI 3.0L V6 CDTC/ CDTA/ CMHA 184kW
[11/09 - 04/14] AUDI A8 4H2/ 4H8/ 4HC/ 4HL D4 TDI 4.1L V8 CDSB Euro 5 258kW
[01/17 - 01/18] AUDI A8 4H2/ 4H8/ 4HC/ 4HL D4 TDI 4.1L V8 CTEC 283kW
[11/08 - 09/12] AUDI Q5 8RB TDI 2.0L 4cyl CGLB/ CMGA/ CAHA 125kW
[11/08 - 05/17] AUDI Q5 8RB TDI 3.0L V6 CPNB/ CCWA 176kW
[03/06 - 05/08] AUDI Q7 4LB TDI 3.0L V6 BUG 171kW
[11/07 - 08/15] AUDI Q7 4LB TDI 3.0L V6 CCMA/ CNRB/ CASA/ CJGA 176kW
[03/07 - 06/09] AUDI Q7 4LB TDI 4.1L V8 BTR 240kW
[05/09 - 08/15] AUDI Q7 4LB TDI 4.1L V8 CCFA/ CCFC 250kW
[09/08 - 05/14] AUDI Q7 4LB TDI 5.9L V12 CCGA 368kW
[07/09 - 06/14] AUDI TT 8J3 RS 2.5L 5cyl CEPA 250kW
[06/08 - 06/14] AUDI TT 8J3 TDI 2.0L 4cyl CFGB/ CBBB 125kW
[05/08 - 06/14] AUDI TT 8J3 TTS 2.0L 4cyl CDLB 200kW
[07/09 - 06/14] AUDI TT 8J9 RS 2.5L 5cyl CEPA 250kW
[06/08 - 06/14] AUDI TT 8J9 TDI 2.0L 4cyl CFGB/ CBBB 125kW
[05/08 - 06/14] AUDI TT 8J9 TTS 2.0L 4cyl CDLB 200kW

What fault codes does a faulty MAP sensor trigger?

A faulty MAP sensor typically triggers codes P0105 to P0109. P0105 indicates a circuit malfunction, P0106 indicates the signal is out of range, P0107 and P0108 indicate the signal is too low or too high respectively, and P0109 indicates an intermittent circuit fault. These codes combined with symptoms such as poor idle and black smoke are strong indicators of MAP sensor failure.

How do I test a MAP sensor?

With an OBD2 scanner in live data mode, the MAP sensor should read close to atmospheric pressure (around 101 kPa) with the engine off, and drop to 30 to 50 kPa at idle with the engine running due to manifold vacuum. Under wide open throttle the reading should rise back toward atmospheric. A sensor that reads flat or does not respond to throttle changes has failed. You can also test supply voltage and signal output with a multimeter.

Can I drive with a faulty MAP sensor?

You can drive short distances but engine performance will be noticeably degraded. The ECU uses the MAP sensor to calculate fuel delivery - a faulty sensor causes incorrect fuelling which leads to poor economy, rough running, and increased emissions. On turbocharged engines a faulty MAP sensor can also prevent boost control from operating correctly. Replace it as soon as possible to avoid further damage.

What does a MAP sensor do?

The Manifold Absolute Pressure (MAP) sensor measures intake manifold pressure to help the ECU calculate the correct fuel and ignition timing. It is critical for engine efficiency, particularly on turbocharged and supercharged vehicles.

What are the symptoms of a faulty MAP sensor?

Symptoms include poor acceleration, rough idle, excessive fuel consumption, black smoke, engine hesitation, and a Check Engine light with codes P0105-P0109. Turbocharged vehicles may also experience boost control issues.

What is the difference between a MAP sensor and a MAF sensor?

A MAF (Mass Air Flow) sensor directly measures the mass of air entering the engine. A MAP sensor measures manifold pressure and the ECU calculates air mass from that reading. Many vehicles use one or the other; some use both. They are not interchangeable.

Identification
SKU	CMS249-Audi
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	CMS249
Reference OEM Number	038906051C
Other OEM Numbers	038906051C, 03G906051E, 03G906051M, 03G906051F
Related Part Numbers	CMS249, MP201, MAP1119
Trade Part Numbers	NTY: ECM-AU-001, VEMO: V10-72-1107, WALKER: 225-1083
Product Specifics
Product Type	SENSOR
Sensor Type	Manifold Absolute Pressure (MAP) Sensor
Fitting Position	Intake Manifold

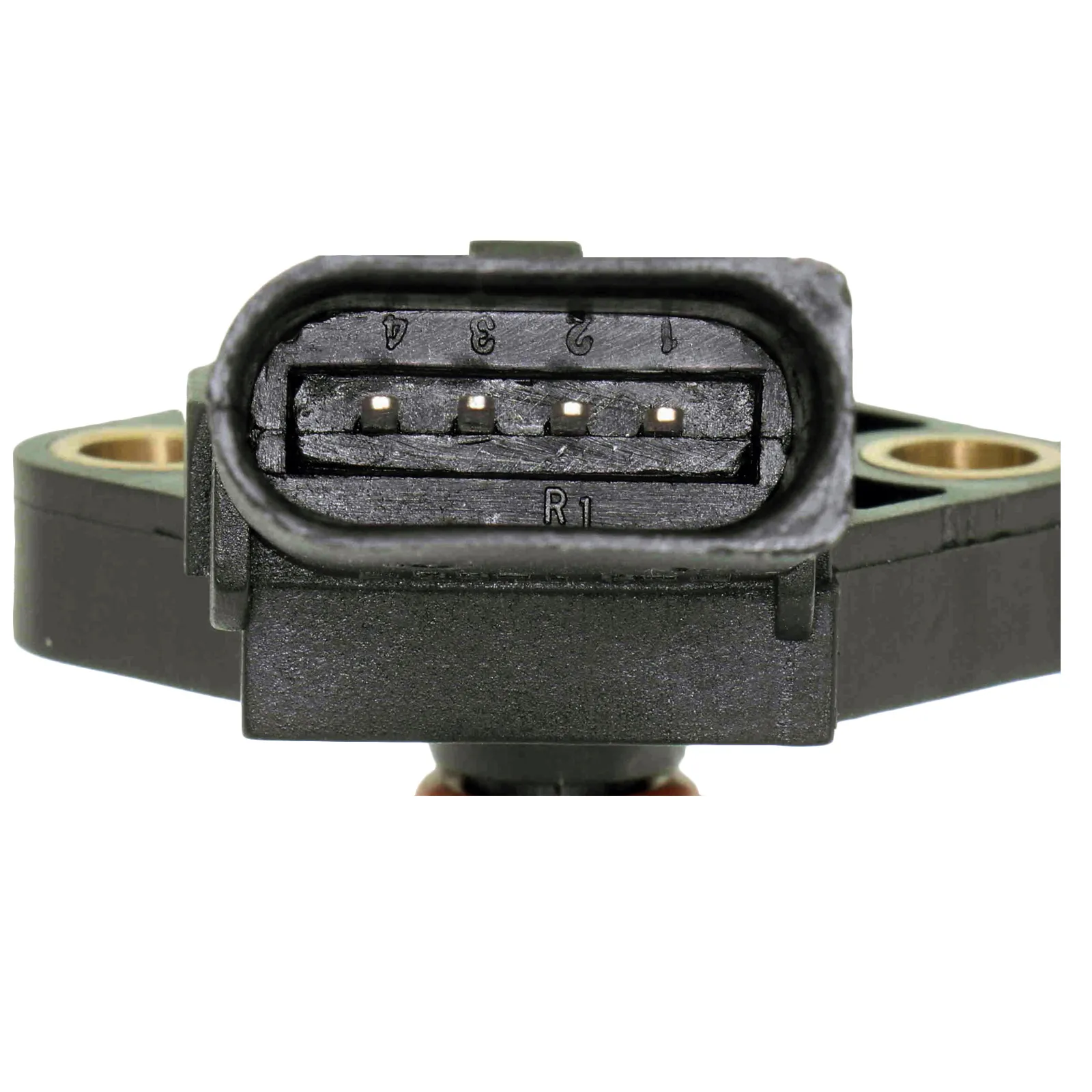

Number of pins	4-Pin
Fitment Type	Direct Replacement
Other Details
Note	Always verify fitment using your vehicle's OEM part number.
Unit Of Measure	ea
