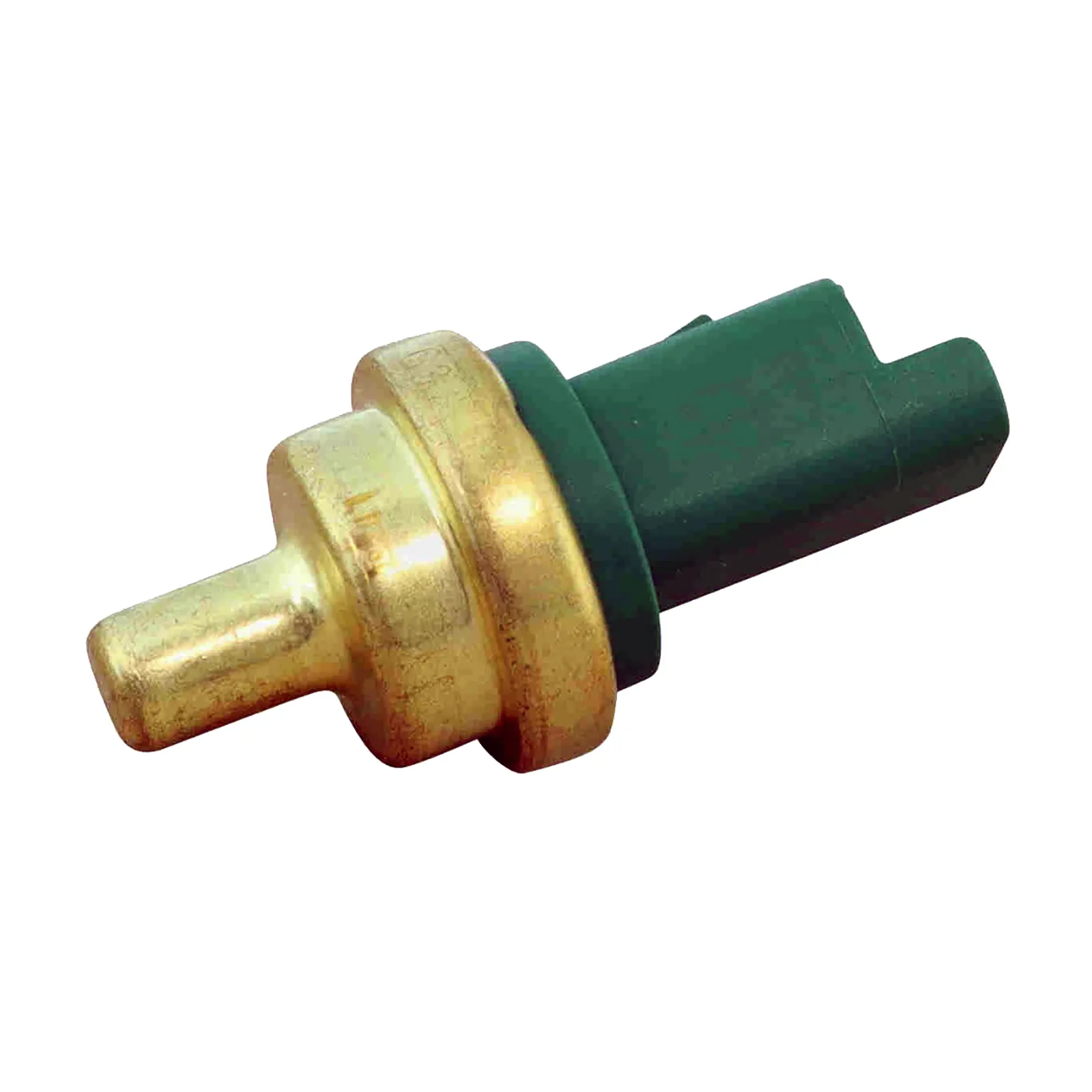

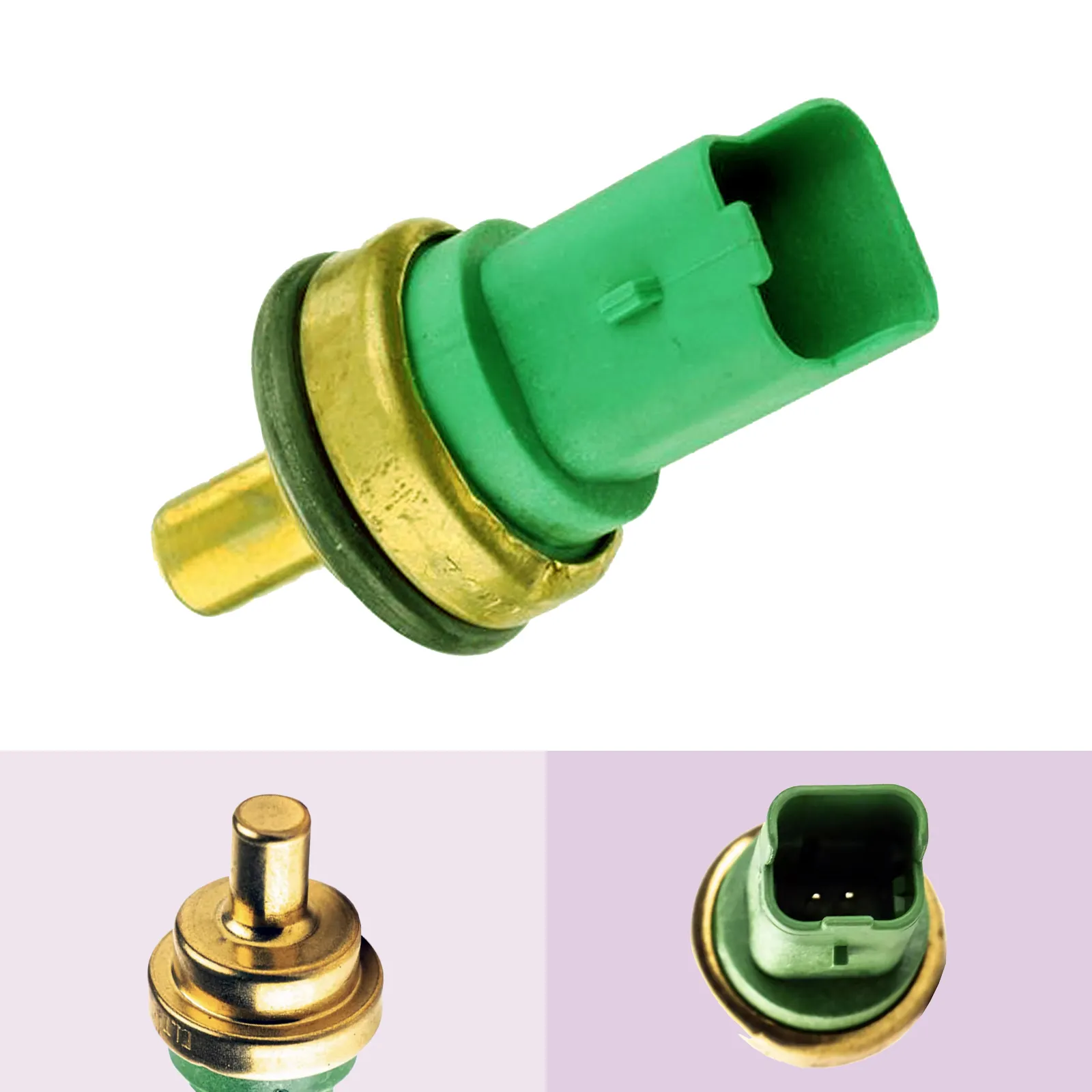

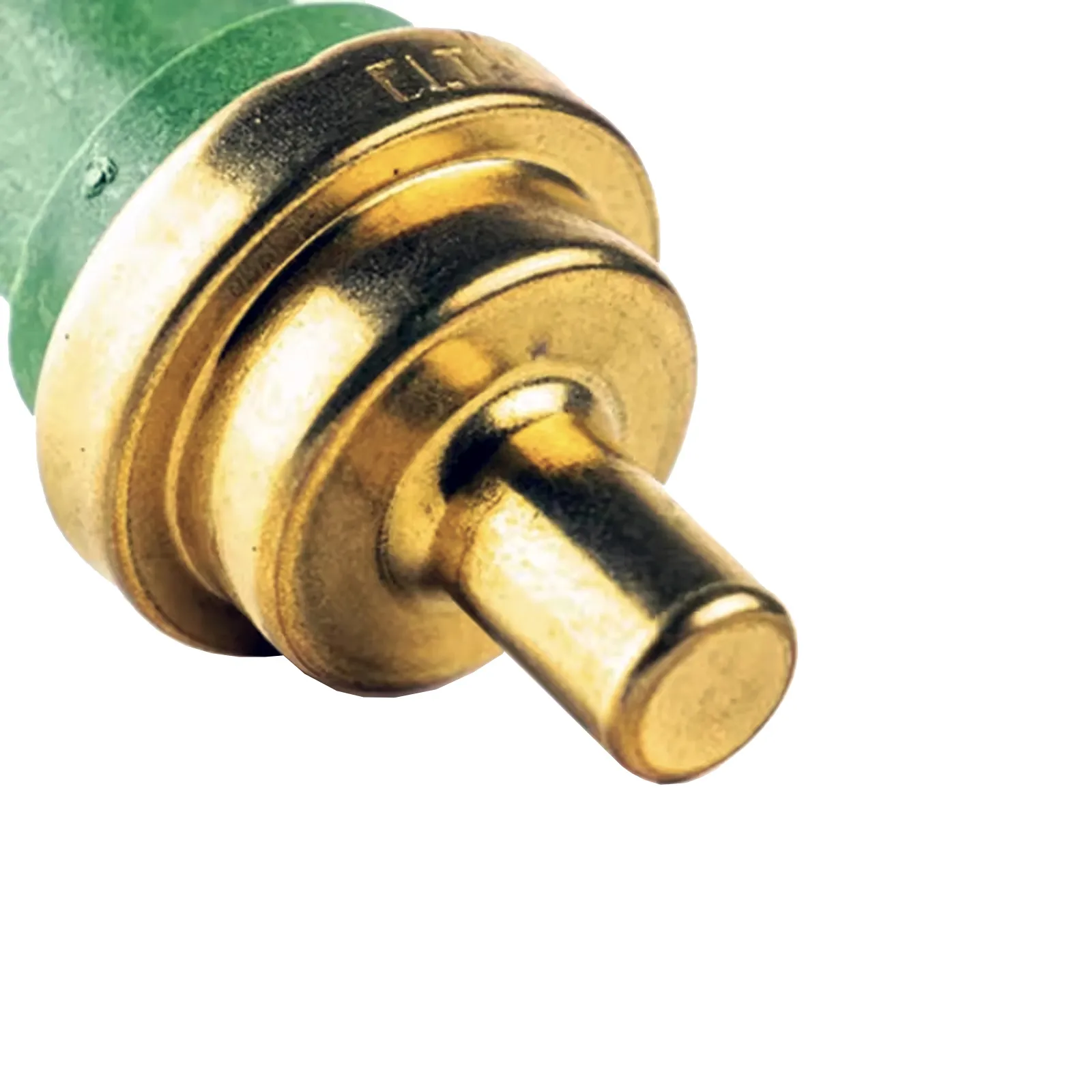

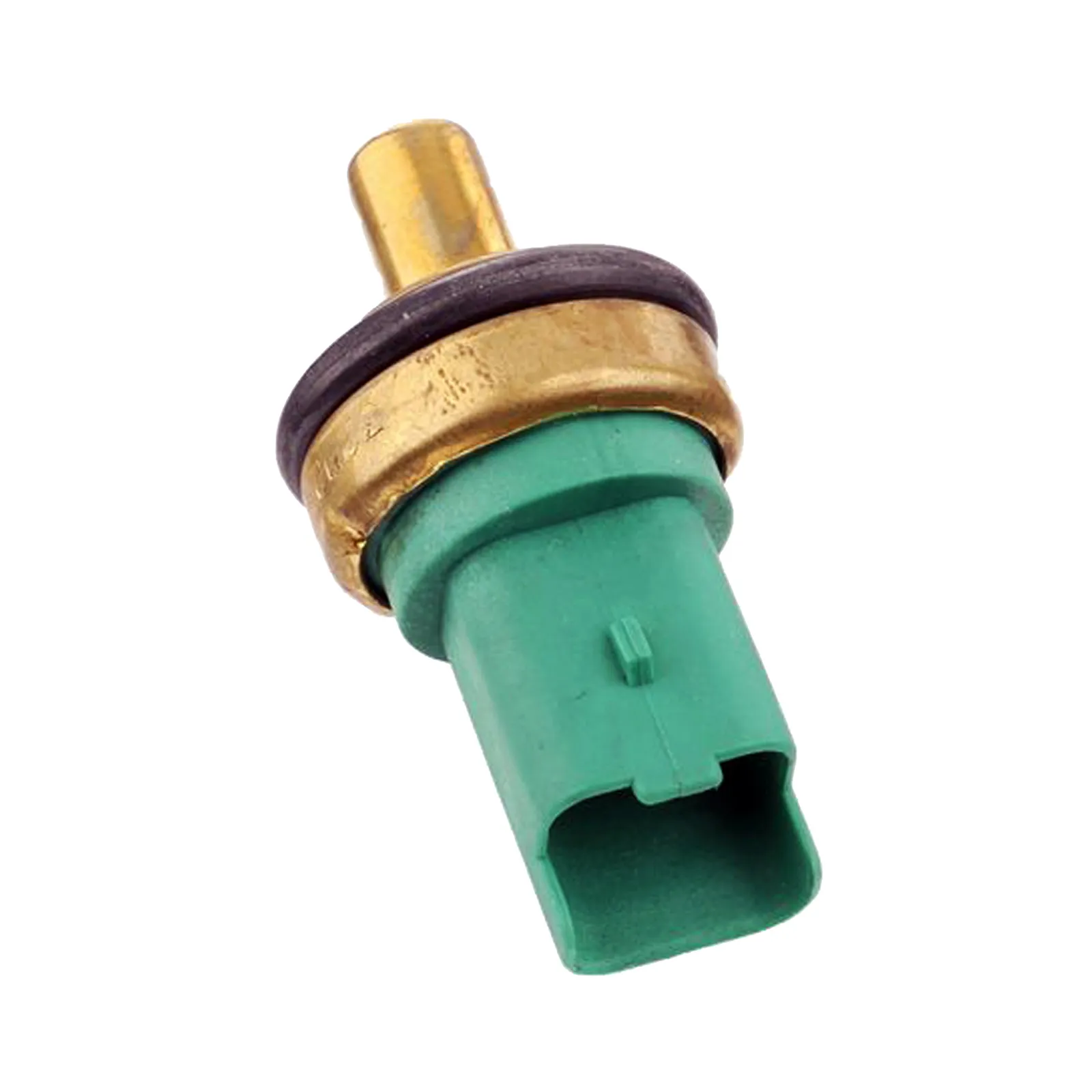

BRAND NEW *OEM Quality* coolant temperature sensor to suit Volvo C30 / S40 II / V40 / V50 1.6L-2.0L diesel.

If your Volvo is throwing a P0115-P0119 fault code, running rich when warm, showing an inaccurate temperature gauge, or struggling with cold starts, a failed coolant temperature sensor is one of the most likely causes. This direct OEM replacement fits the 2-pin rectangular green connector - dispatched same-day before 12pm from Cranbourne VIC.

TO SUIT

Designed for the Volvo C30 533 1.6L D/D2 and 2.0L D/D5, S40 544 II 2.0L D, V40 525/526 D2 1.6L, and V50 545 2.0L D. All variants use the PSA-sourced DV6/DW10 diesel engine sharing the same coolant sensor. Confirm engine code before ordering.

OEM PART NUMBERS

30711088
30757235
8653683
8653828

OTHER PART NUMBERS

VEMO: V25-72-0049
HELLA: CS882
Standard: CTS2015

PACKAGE INCLUDES

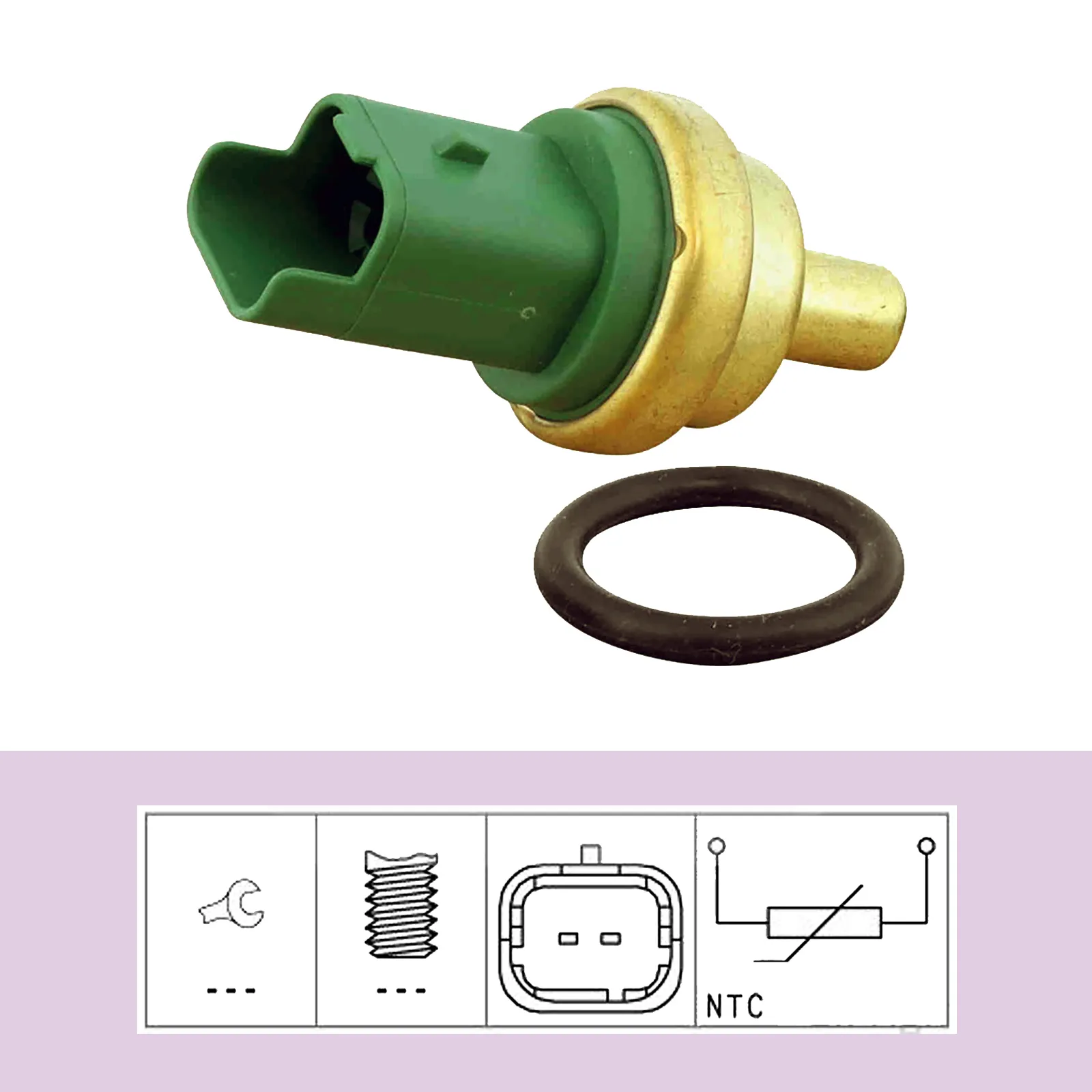

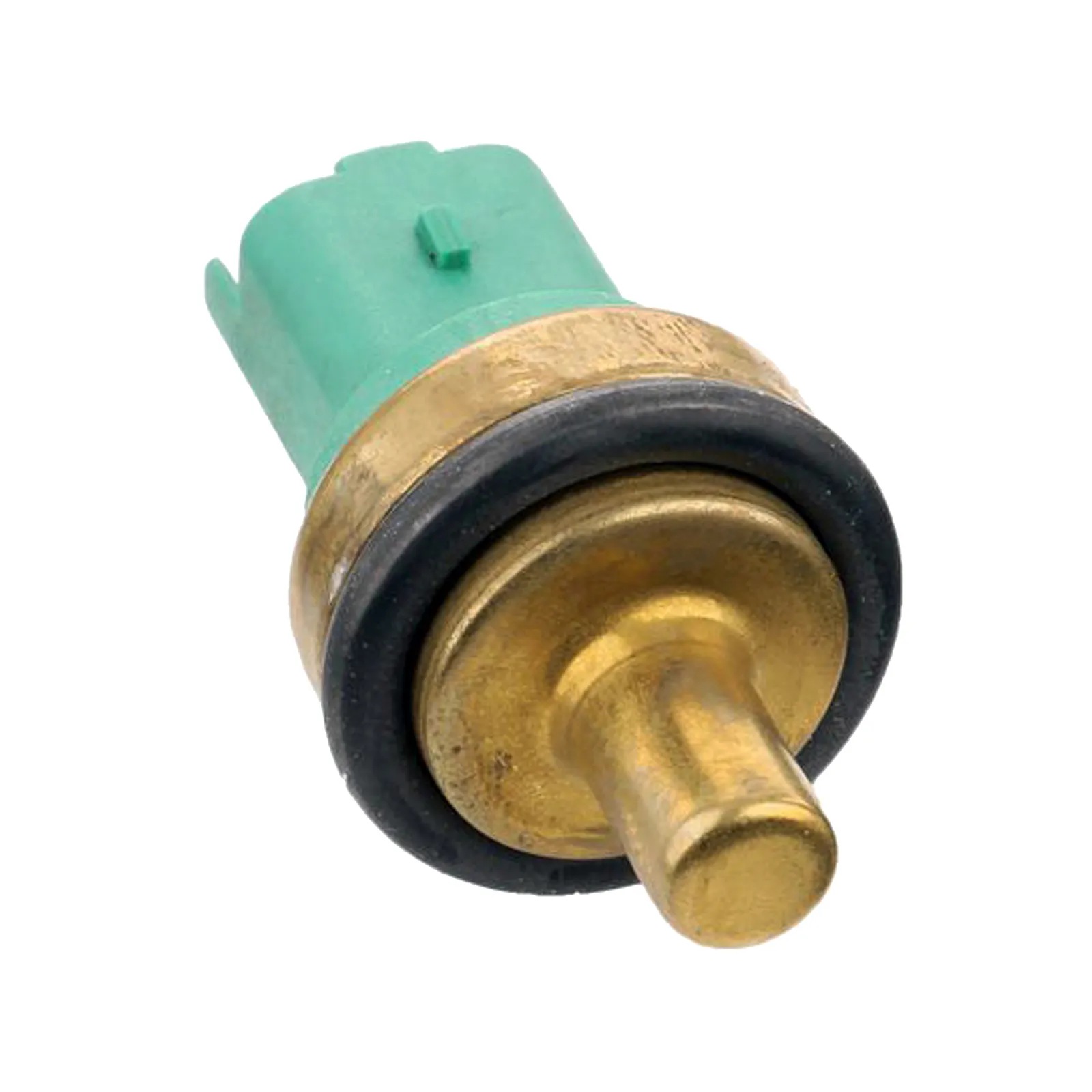

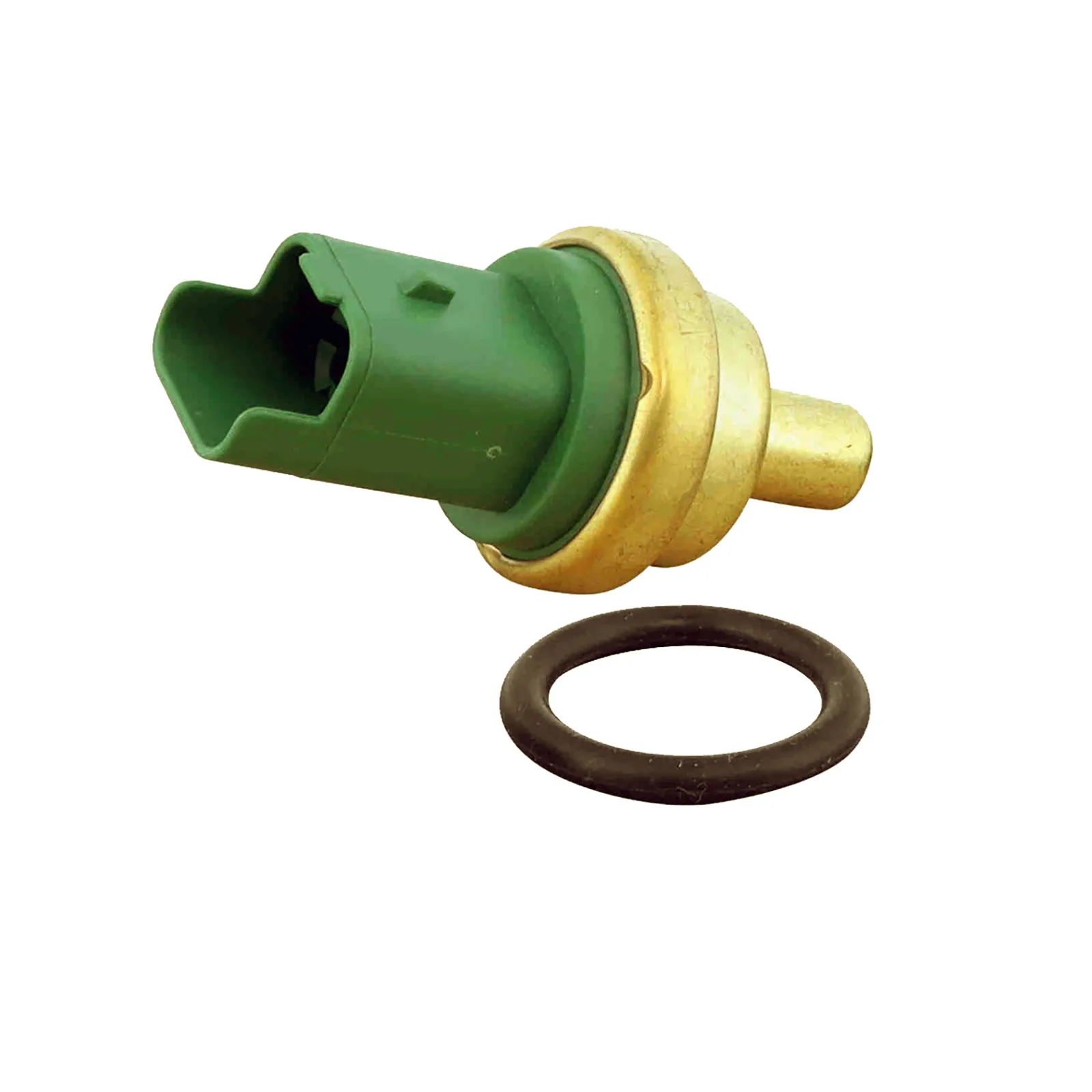

1 x BRAND NEW coolant temperature sensor (2-pin rectangular green connector). Push-in style with retainer clip. Includes seal. Direct OEM replacement - no wiring modification required.

ABOUT THIS SENSOR

The coolant temperature sensor monitors engine coolant temperature and sends a signal to the ECU. The ECU uses this data to adjust fuel injection timing, fuel mixture, idle speed, and ignition timing - especially critical during cold starts and warm-up.

This sensor uses an NTC thermistor - resistance drops as temperature rises. A failed sensor sends an incorrect signal to the ECU, causing the engine to behave as if it is permanently cold or permanently hot.

COMMON SYMPTOMS OF FAILURE

Check Engine light with codes P0115 P0116 P0117 P0118 P0119
Engine running rich when warm - black smoke or strong fuel smell
Poor cold-start performance or extended warm-up time
Inaccurate or erratic temperature gauge reading
Increased fuel consumption
Rough idle or hesitation at operating temperature

[10/06 - 12/12] VOLVO C30 533 1.6L 4cyl D4164T D 80kW Hatchback
[10/06 - 12/12] VOLVO C30 533 1.6L 4cyl D4162T D2 84kW Hatchback
[10/06 - 12/12] VOLVO C30 533 2.0L 4cyl D4204T D 100kW Hatchback
[10/06 - 12/12] VOLVO C30 533 2.0L 4cyl D5244T D5 100kW Hatchback
[01/04 - 12/10] VOLVO S40 544 II 2.0L 4cyl D4204T D 100kW Sedan
[09/09 - 03/15] VOLVO V40 525/ 526 1.6L 4cyl D4162T D2 84kW Hatchback
[03/12 - 03/15] VOLVO V40 526 1.6L 4cyl D4162T Cross Country D2 84kW
[09/09 - 08/10] VOLVO V50 545 2.0L 4cyl D4204T D 100kW Wagon

How do I test a coolant temperature sensor?

The most common test is to measure the sensor resistance with a multimeter at a known coolant temperature and compare against the manufacturer resistance curve. A cold engine (20 degrees C) typically reads 2,000 to 3,000 ohms and drops to around 200 to 300 ohms at operating temperature (90 degrees C). An OBD2 scanner showing a fixed temperature reading that does not change as the engine warms up is also a strong indicator of sensor failure.

Can a faulty coolant temperature sensor cause my engine to overheat?

Indirectly yes. If the sensor reports a lower temperature than actual, the ECU may not activate the cooling fan at the correct time, allowing the engine to overheat. It can also suppress the dashboard warning light, meaning you may not be alerted until the engine is already at a dangerously high temperature. Replace a suspected faulty sensor promptly.

Do I need to drain the coolant to replace the sensor?

Not always - many coolant temperature sensors can be replaced quickly with minimal coolant loss if you work fast and have a replacement ready to thread in immediately. However on some vehicles the sensor location requires partial coolant drainage. Check the sensor position on your specific engine before starting. Always use fresh coolant when topping up after replacement.

What are the symptoms of a faulty coolant temperature sensor?

Symptoms include poor fuel economy, black smoke, engine overheating warning, incorrect temperature gauge reading, hard starting when cold, and rough idle. Fault codes P0115 to P0119 are commonly associated with coolant temperature sensor faults.

Is it safe to drive with a bad coolant temperature sensor?

A faulty coolant temperature sensor can cause the ECU to run rich fuel mixtures and prevent the cooling fan from operating correctly, risking engine overheating. Replace it promptly - it is a low-cost part that can prevent expensive engine damage.

How do I know if my coolant temperature sensor or my thermostat is faulty?

A faulty thermostat typically causes the engine to overheat or never reach operating temperature. A faulty coolant temp sensor causes incorrect gauge readings and running issues but the coolant itself may be at the correct temperature. An OBD2 scanner showing live coolant temp data helps distinguish between the two.

Are there two coolant temperature sensors on my vehicle?

Many vehicles have two sensors - one for the ECU (engine management) and one for the dashboard temperature gauge. They look similar but are not interchangeable. Check your vehicle's service manual or contact us with your vehicle details to confirm which sensor you need.

Identification
SKU	CCS57-Volvo
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	CCS57
Reference OEM Number	30711088
Other OEM Numbers	30711088, 30757235, 8653683, 8653828
Related Part Numbers	CCS57, CS882, TCS148, CTS2015
Trade Part Numbers	VEMO: V25-72-0049
Product Specifics
Sensor Type	NTC Sensor
Type	Coolant Temperature Sensor
Number of pins	2-Pin
Connector Shape	rectangular
Voltage	12V
Housing Colour	Green
Mounting Type	Push-In / Retainer Clip
Compatible Makes	Volvo
Fitment Type	Direct Replacement
Brand	Aftermarket OEM Replacement
Other Details

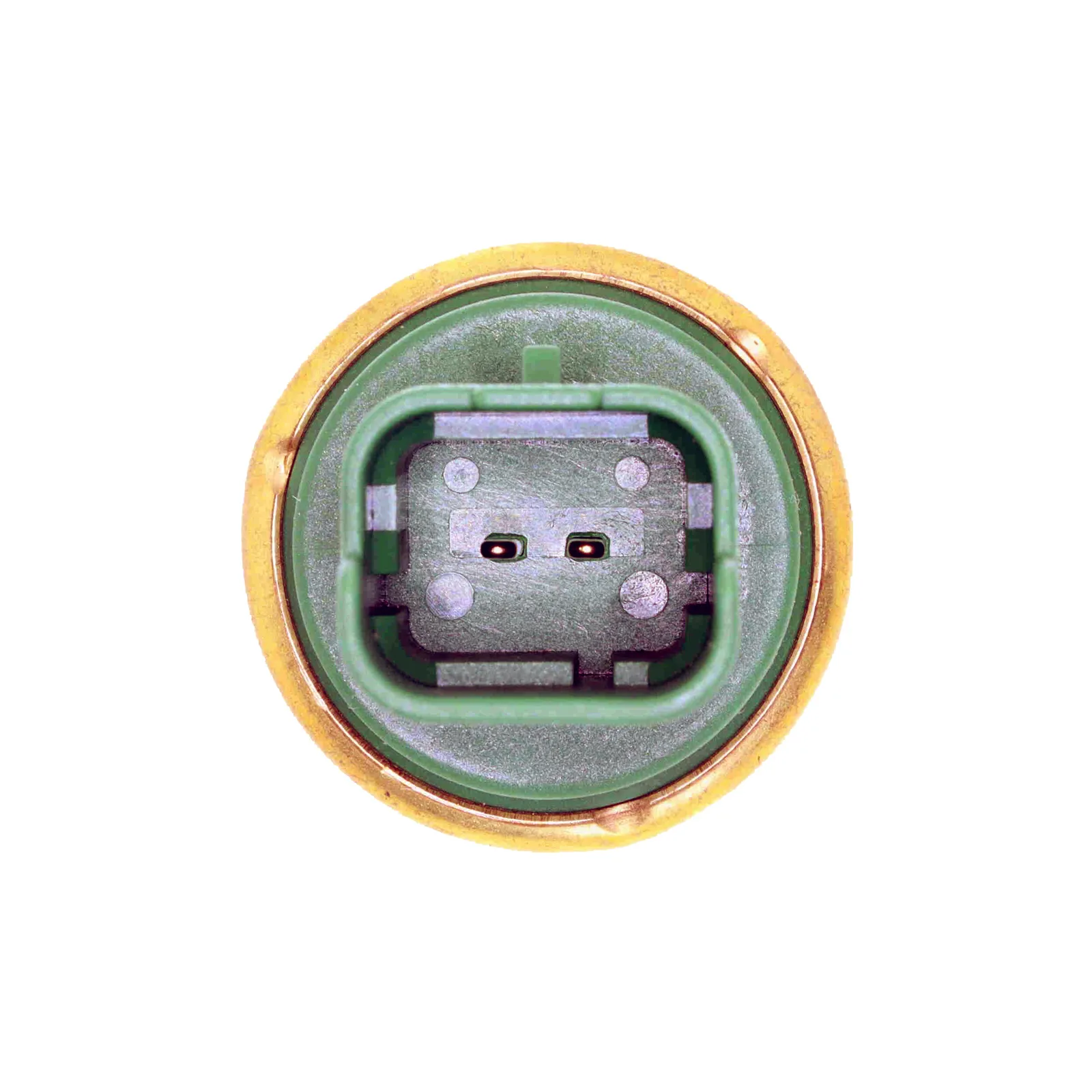

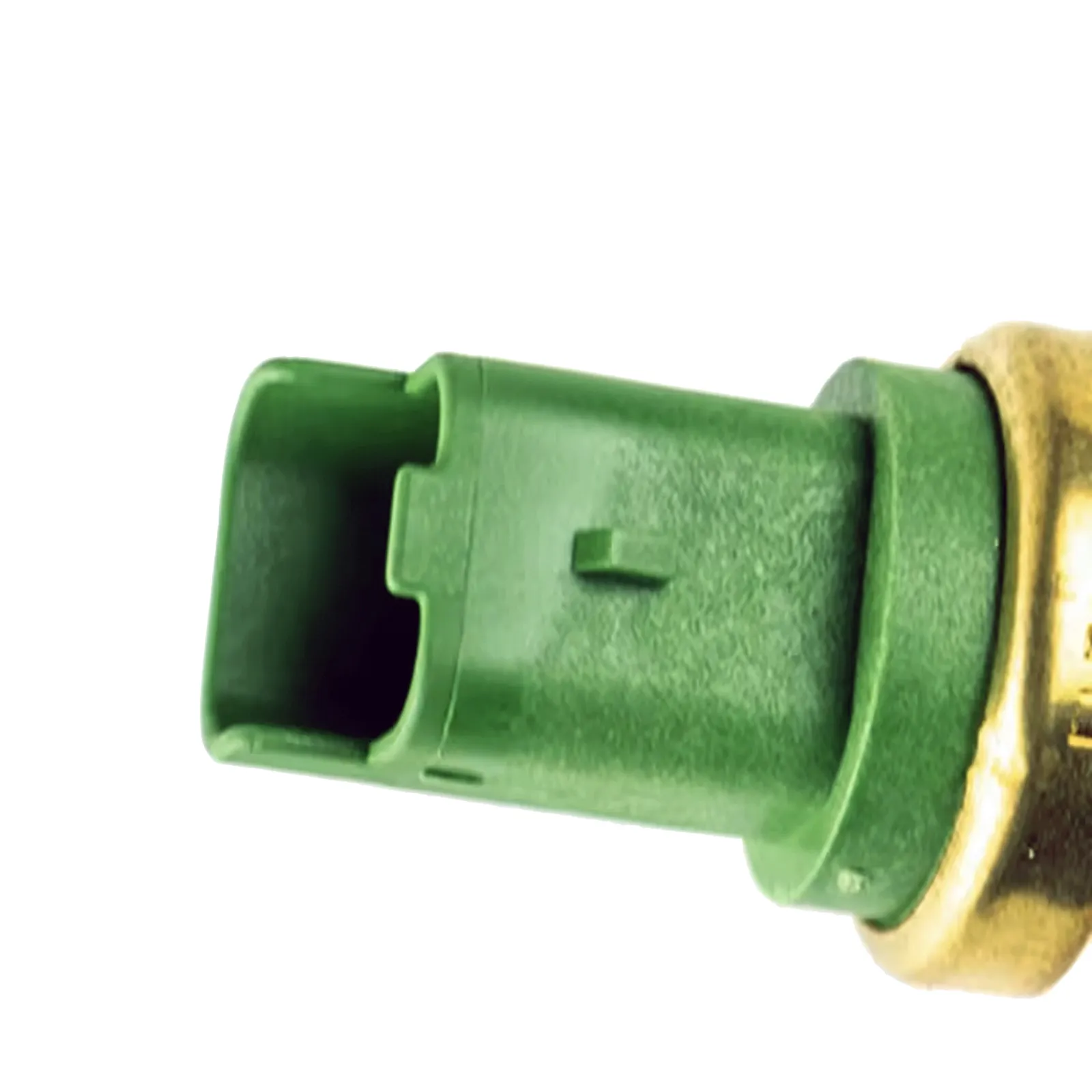

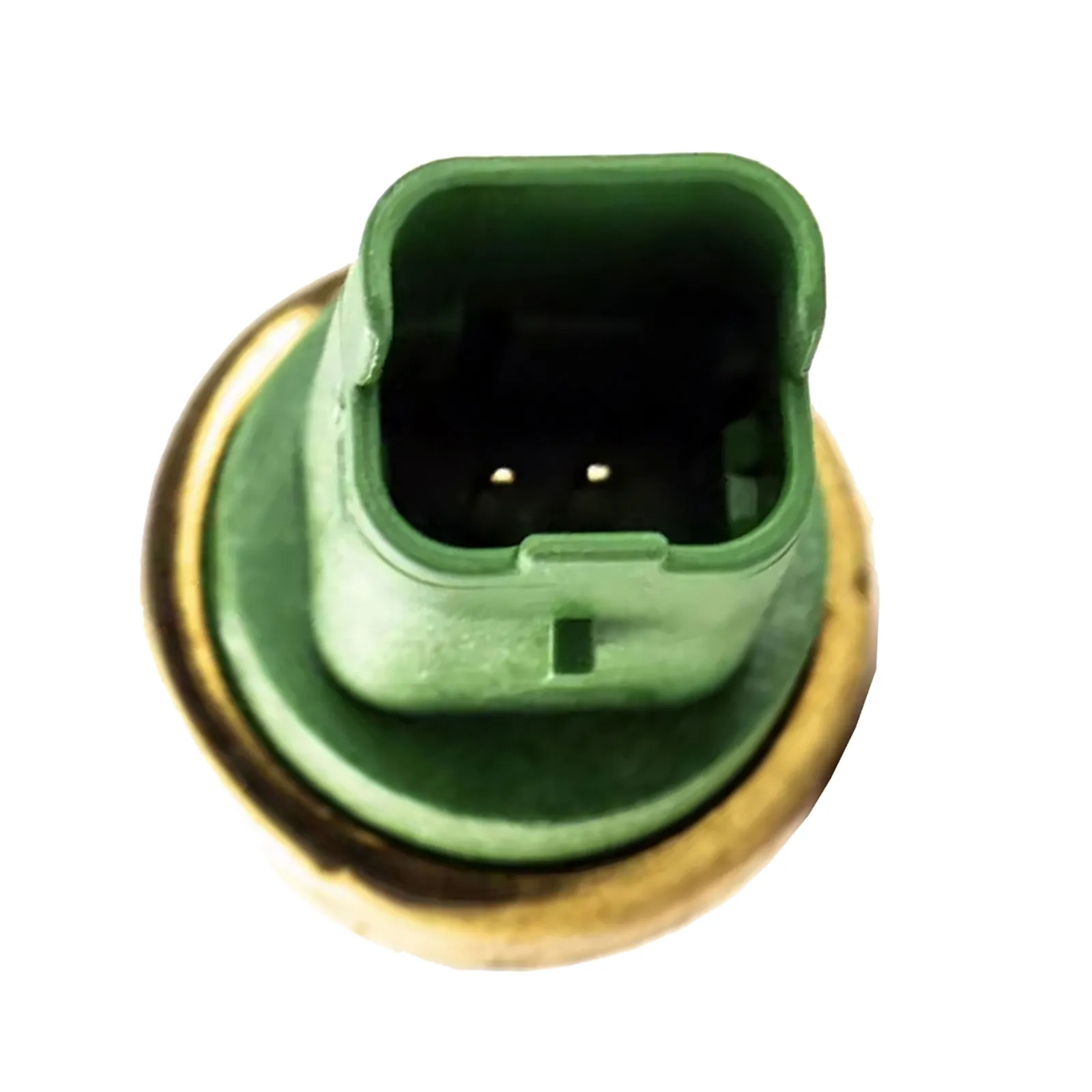

Note	2-pin green rectangular plug with retainer clip.
