BRAND NEW *OEM Quality* coolant temperature sensor to suit Audi A3 A4 B5 A6 C4 C5 S3 S4 TT / VW Golf Bora Passat Beetle Transporter / Seat Cordoba.

If your Audi, VW, or Seat is throwing a P0115-P0119 fault code, running rich when warm, showing an inaccurate temperature gauge, or struggling with cold starts, a failed coolant temperature sensor is one of the most likely causes. This direct OEM replacement fits the standard 4-pin square green connector - dispatched same-day before 12pm from Cranbourne VIC.

TO SUIT

Designed for a wide range of Audi and Volkswagen models using the 4-pin square green CTS connector. Audi coverage includes A3 8L, A4 B5 Sedan and Avant, A6 C4 and C5 Sedan and Avant, S3, S4, TT 8N Coupe and Roadster, and Cabriolet. VW coverage includes Golf III-IV, Bora, Passat B5 and B5.5, New Beetle, Caravelle and Transporter T5, and Vento. Also fits Seat Cordoba. Confirm engine code and connector shape before ordering.

OEM PART NUMBERS

059919501
059919501B
078919501B
4A0919501A

OTHER PART NUMBERS

HELLA: CS871
VEMO: V10-99-0907
Walker Products: 211-1104
Standard: CTS1022
Tridon: TS-607

PACKAGE INCLUDES

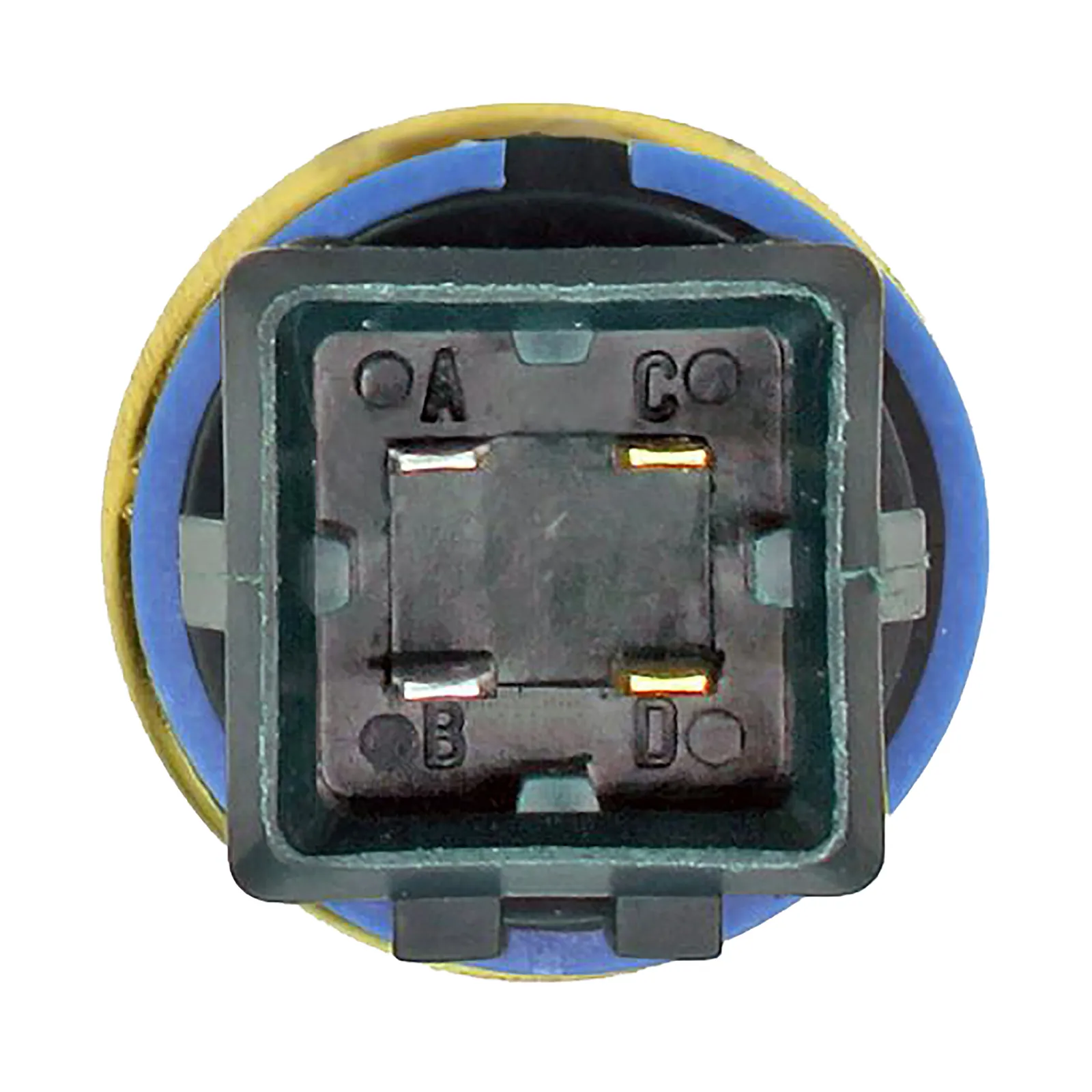

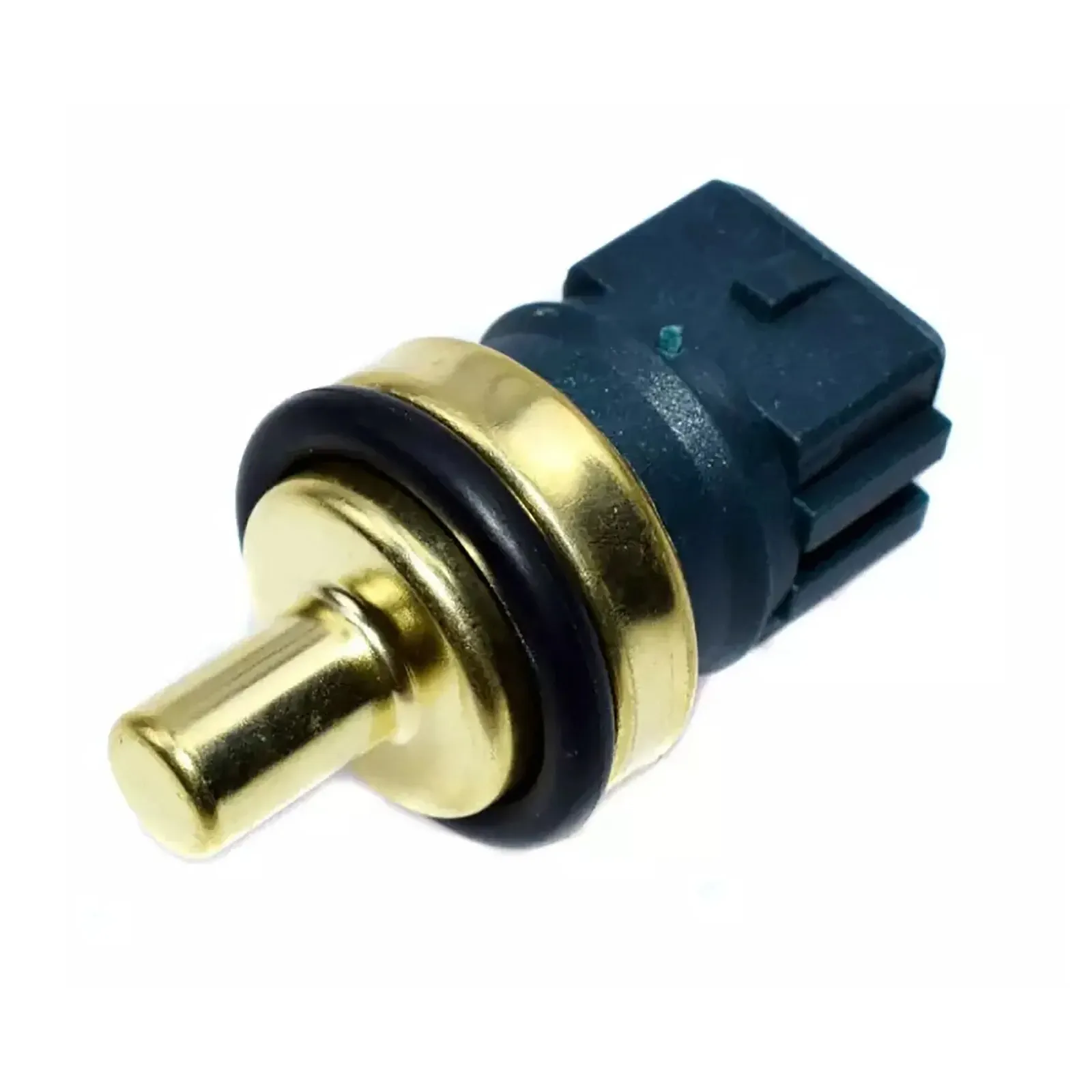

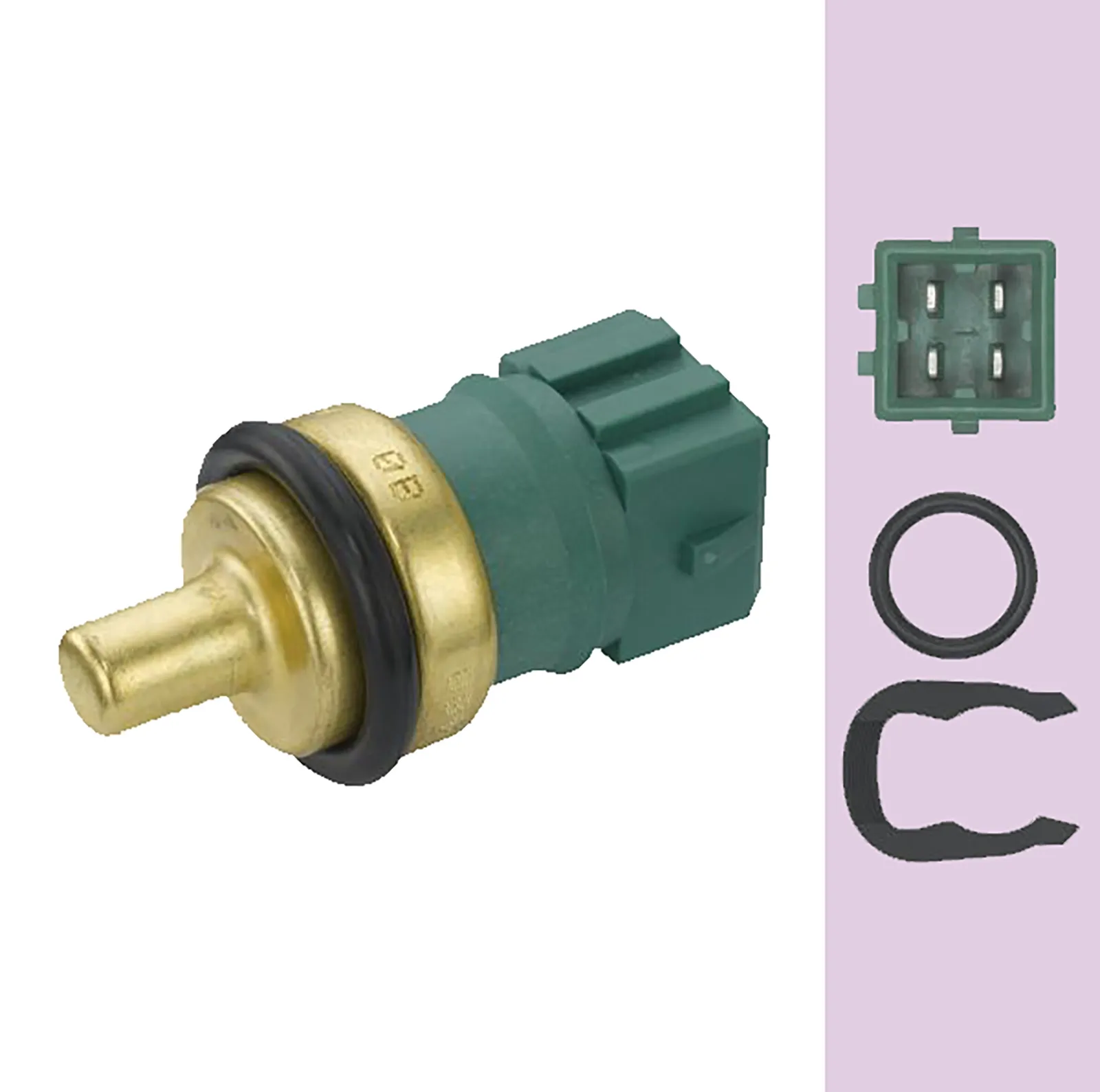

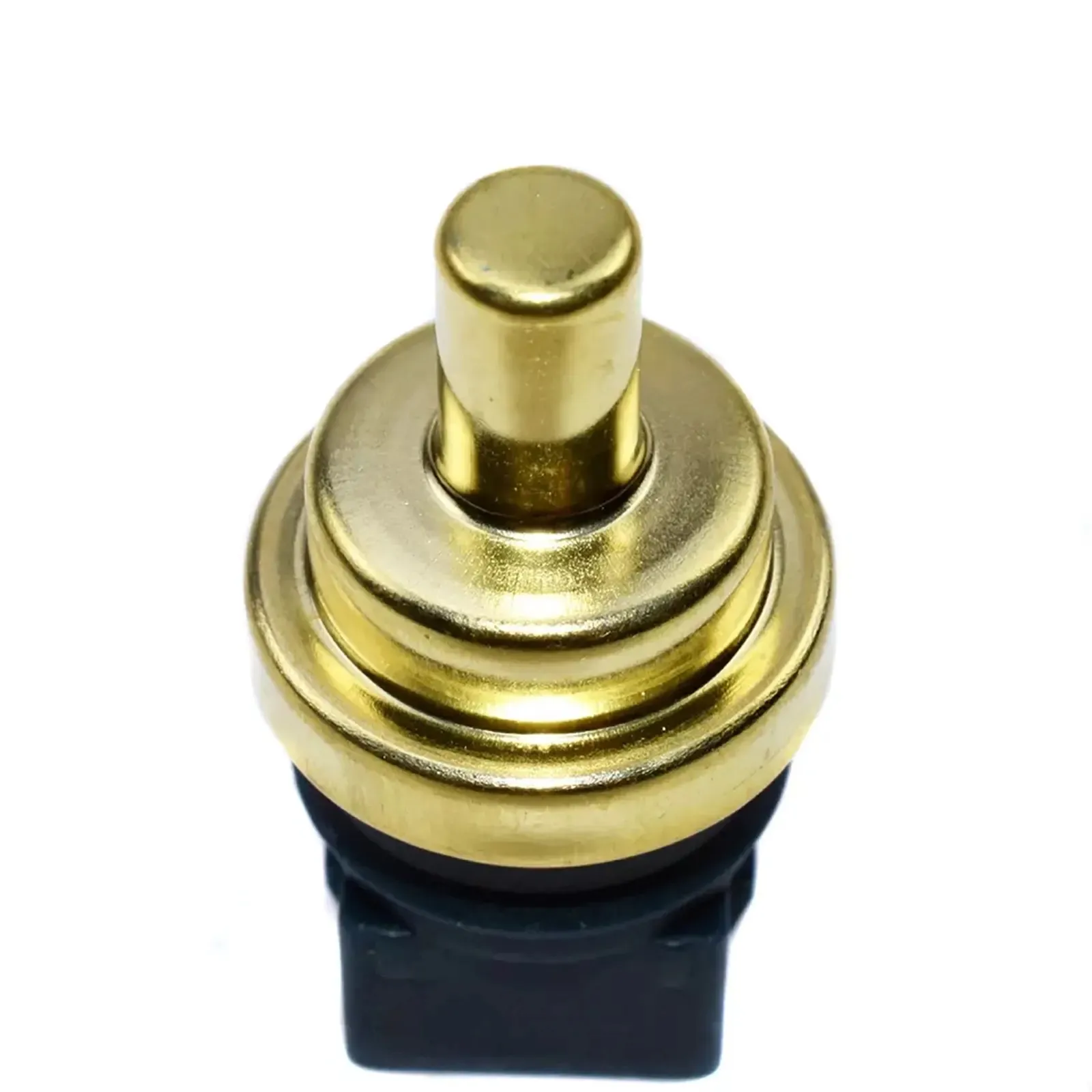

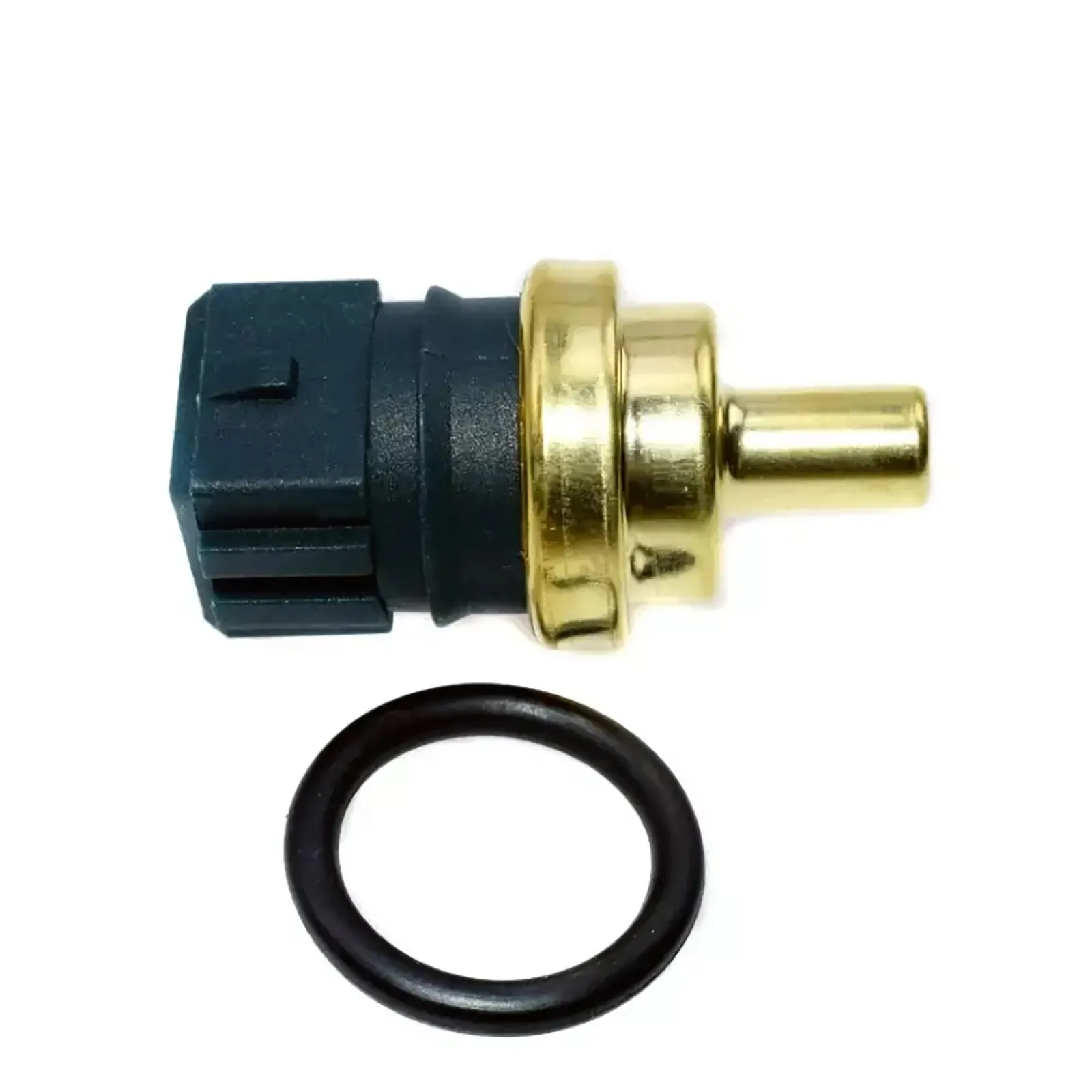

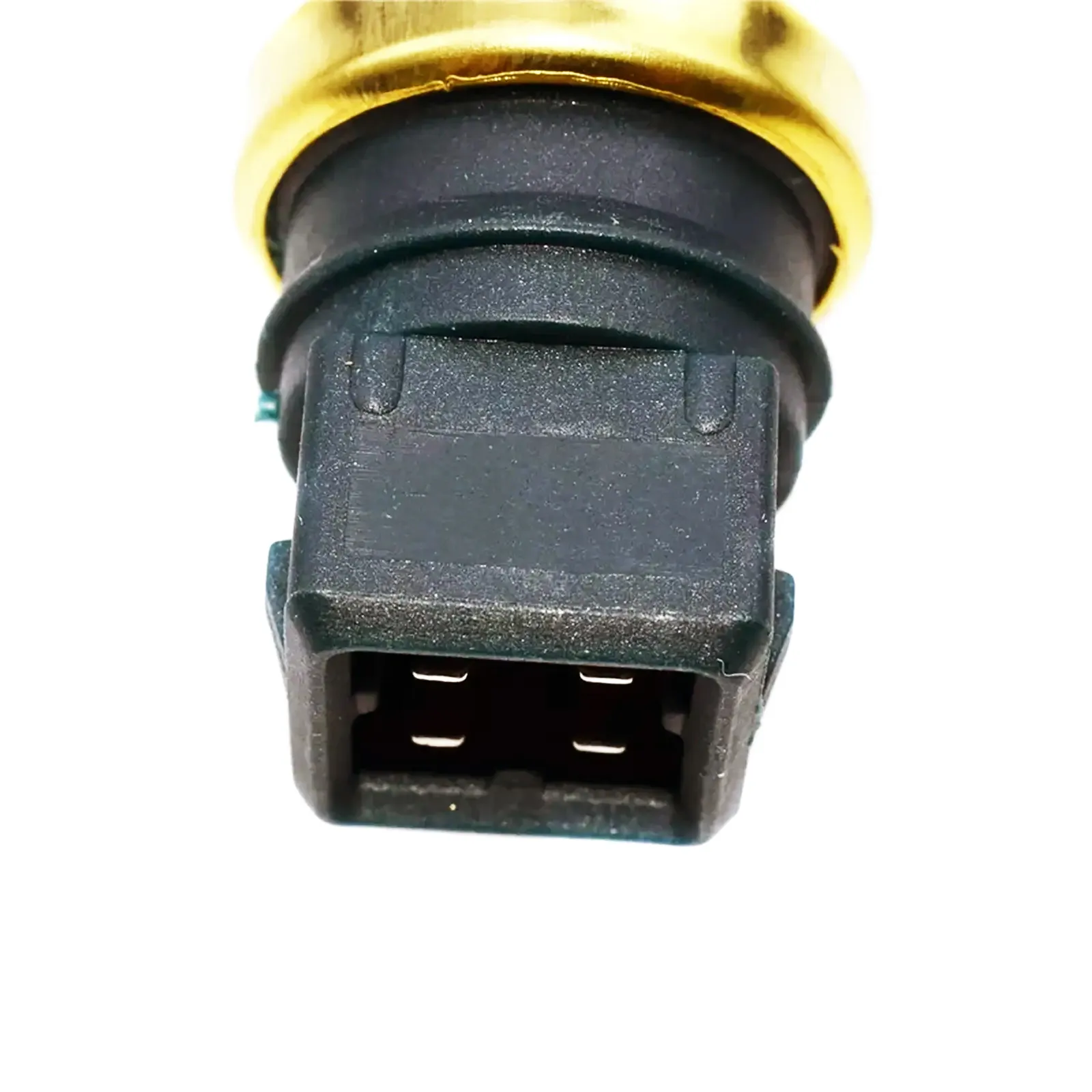

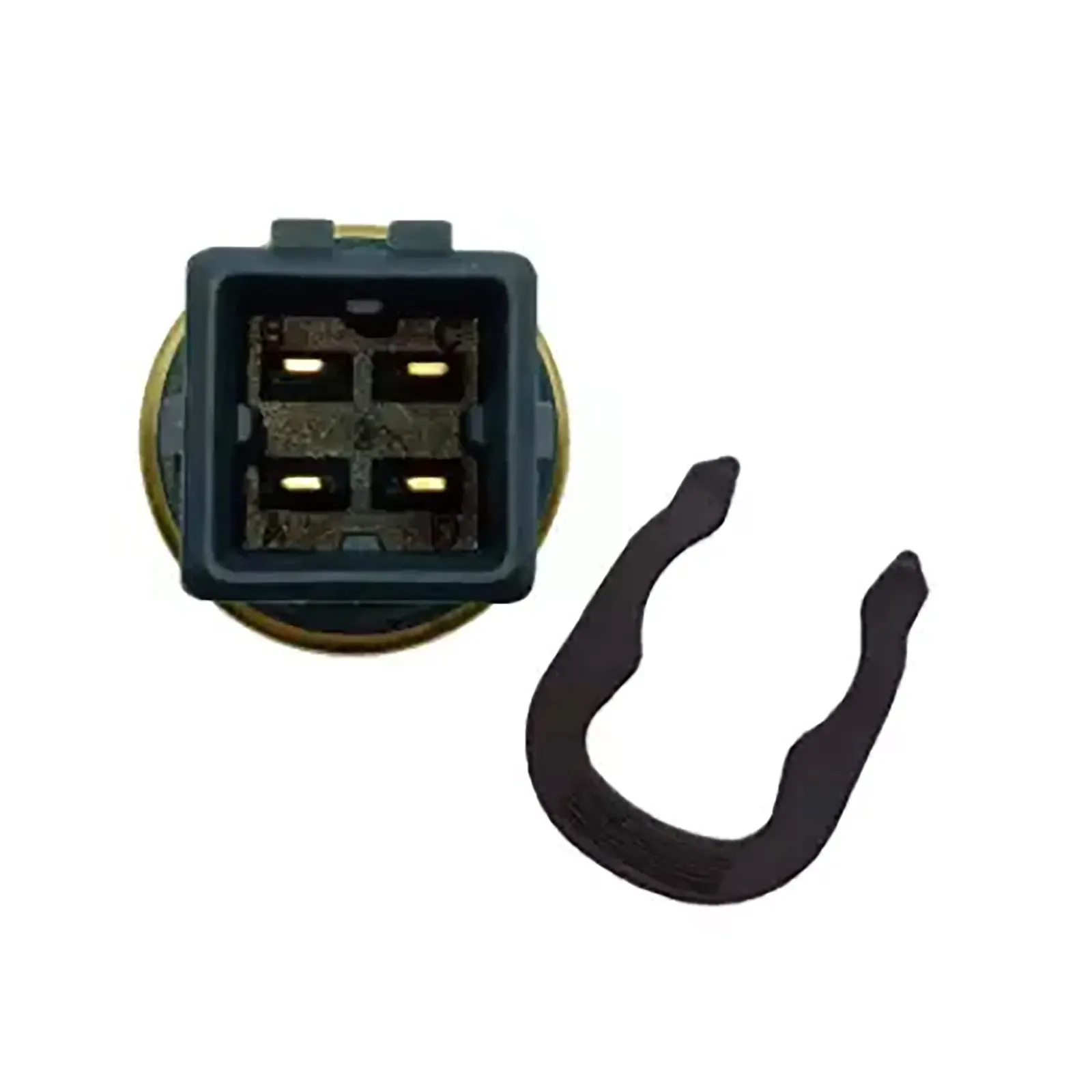

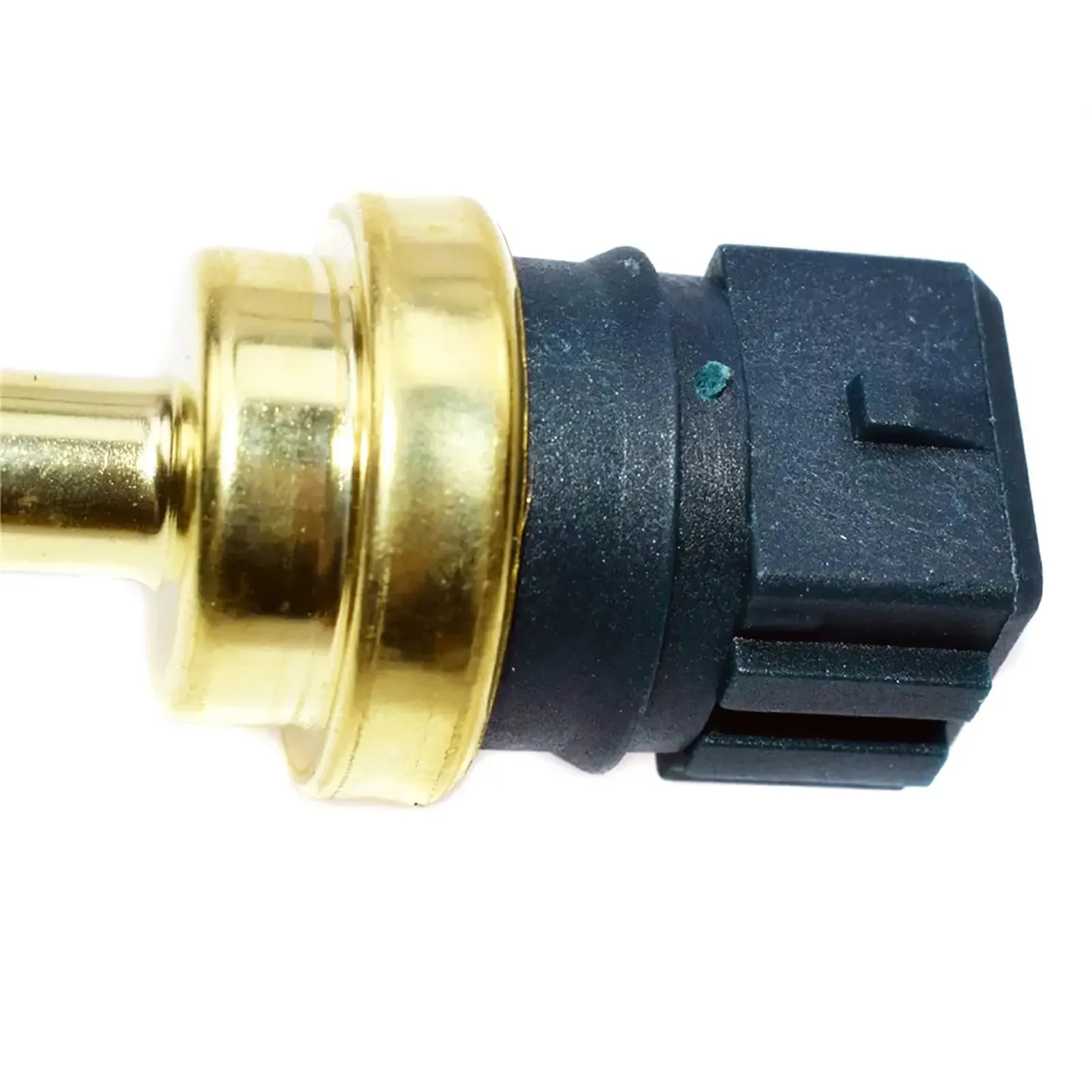

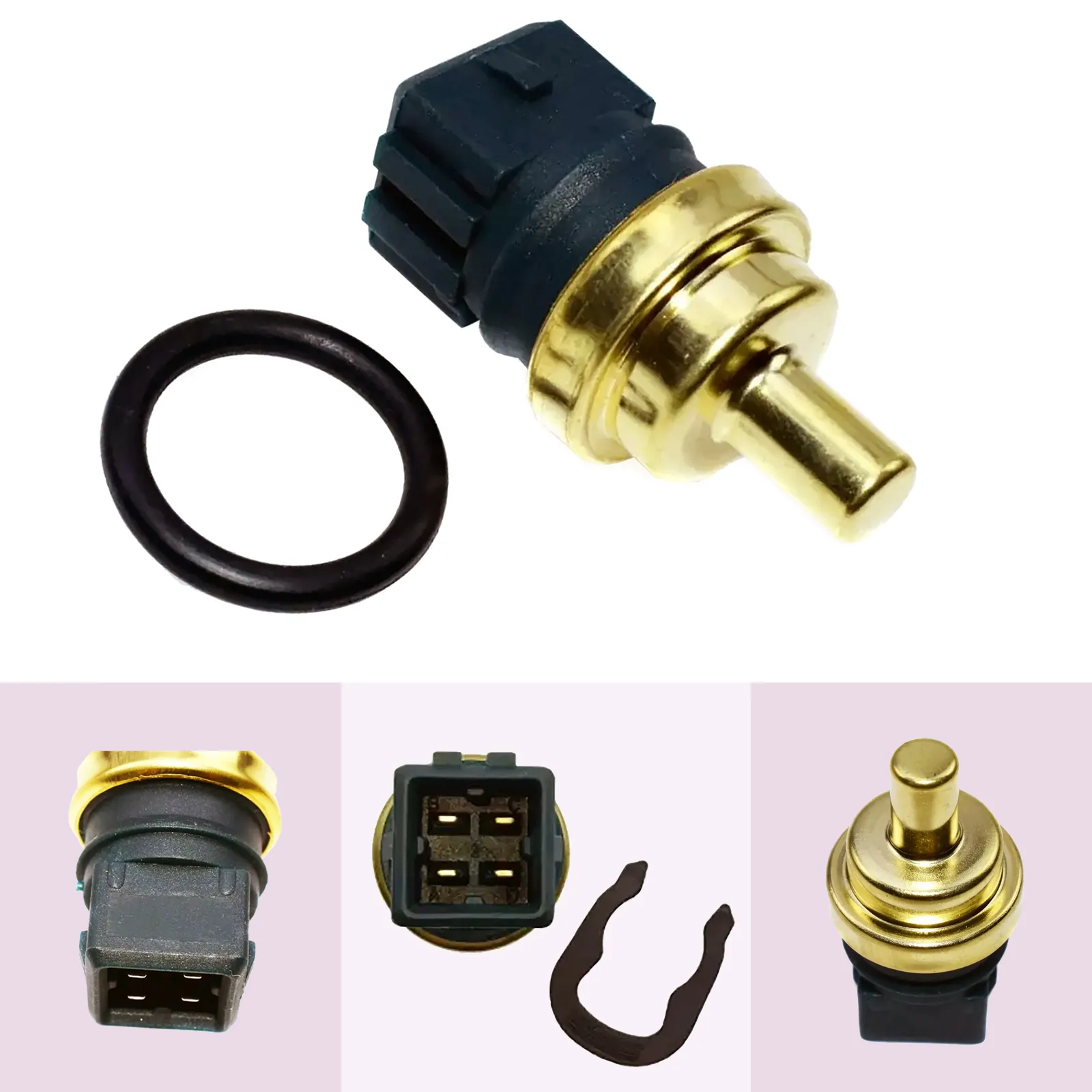

1 x BRAND NEW coolant temperature sensor (4-pin square green connector). Includes seal and retaining ring. Direct OEM replacement - no wiring modification required.

ABOUT THIS SENSOR

The coolant temperature sensor monitors engine coolant temperature and sends a signal to the ECU. The ECU uses this data to adjust fuel injection timing, fuel mixture, idle speed, and ignition timing - especially critical during cold starts and warm-up.

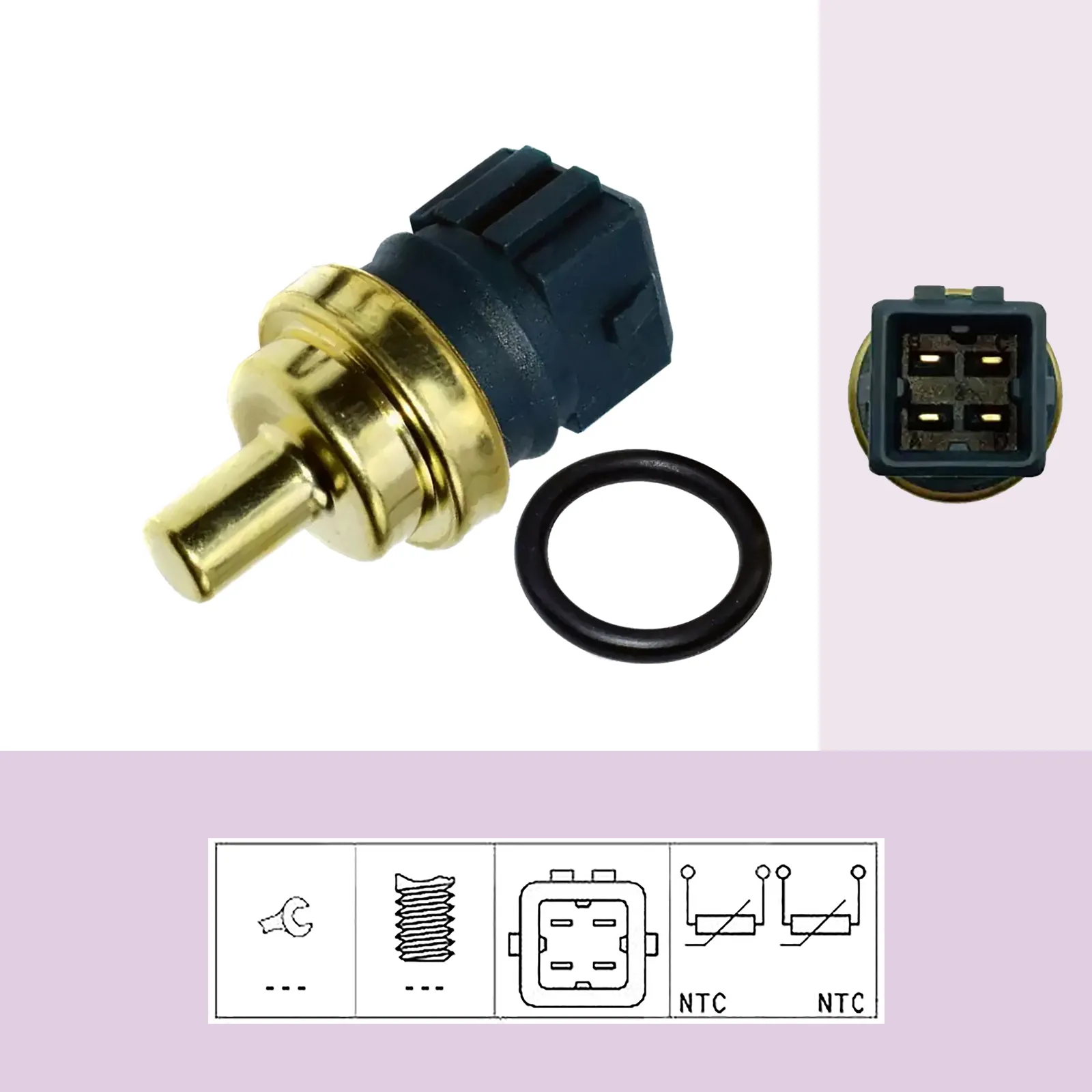

This sensor uses an NTC (Negative Temperature Coefficient) thermistor - resistance drops as temperature rises. A failed sensor sends an incorrect signal to the ECU, causing the engine to behave as if it is permanently cold or hot. This is a direct plug-in replacement with the OEM 4-pin square green connector.

COMMON SYMPTOMS OF FAILURE

Check Engine light with codes P0115 P0116 P0117 P0118 P0119
Engine running rich when warm - black smoke or strong fuel smell
Poor cold-start performance or extended warm-up time
Inaccurate or erratic temperature gauge reading
Increased fuel consumption
Rough idle or hesitation at operating temperature

[05/97 - 05/03] AUDI A3 8L1 1.6L 4cyl AEH/ APF/ AKL 74kW Hatchback
[05/97 - 05/03] AUDI A3 8L1 1.8L 4cyl AGN/ APG 92kW Hatchback
[02/98 - 05/03] AUDI A3 8L1 T 1.8L 4cyl AGU/ AQA/ ARZ/ AUM 110kW Hatchback
[10/98 - 05/03] AUDI A3 8L1 T 1.8L 4cyl AJQ/ ARY 132kW Hatchback quattro AWD
[03/99 - 04/02] AUDI S3 8L1 1.8L 4cyl AMK/ APY 154kW Hatchback quattro AWD
[11/94 - 11/00] AUDI A4 B5 8D2 1.8L 4cyl ARG/ ADR/ AVV/ APT 92kW Sedan
[06/96 - 11/00] AUDI A4 B5 8D2 T 1.8L 4cyl AEB/ AWT/ ARK/ ANB/ APU 110kW Sedan
[12/97 - 11/00] AUDI A4 B5 8D2 T 1.8L 4cyl AJL 132kW Sedan
[03/97 - 11/00] AUDI A4 B5 8D2 2.4L V6 121kW Sedan
[08/95 - 03/98] AUDI A4 B5 8D2 2.6L V6 ABC 110kW Sedan
[01/97 - 08/01] AUDI A4 B5 8D2 2.8L V6 142kW Sedan
[09/97 - 09/01] AUDI S4 B5 8D2 2.7L V6 AGB/ AZB 195kW Sedan quattro AWD
[08/95 - 09/01] AUDI A4 B5 8D5 1.8L 4cyl ARG/ ADR/ AVV/ APT 92kW Avant
[05/99 - 09/01] AUDI A4 B5 8D5 T 1.8L 4cyl AEB/ AWT/ ARK/ ANB/ APU 110kW Avant
[12/97 - 09/01] AUDI A4 B5 8D5 T 1.8L 4cyl AJL 132kW Avant
[03/97 - 09/01] AUDI A4 B5 8D5 2.4L V6 121kW Avant
[08/95 - 03/98] AUDI A4 B5 8D5 2.6L V6 ABC 110kW Avant
[10/96 - 09/01] AUDI A4 B5 8D5 2.8L V6 142kW Avant
[09/97 - 09/01] AUDI S4 B5 8D5 2.7L V6 AGB/ AZB 195kW Avant quattro AWD
[06/94 - 10/97] AUDI A6 C4 4A2 2.6L V6 110kW Sedan
[12/95 - 10/97] AUDI A6 C4 4A2 2.8L V6 ACK 142kW Sedan
[06/94 - 12/97] AUDI A6 C4 4A5 2.6L V6 110kW Avant
[11/97 - 09/04] AUDI A6 C5 4B2 2.4L V6 APS/ BDV 121kW-125kW Sedan
[02/97 - 01/02] AUDI A6 C5 4B2 2.8L V6 142kW Sedan
[01/98 - 01/05] AUDI A6 C5 4B2 T 1.8L 4cyl 110kW Sedan
[12/97 - 01/05] AUDI A6 C5 4B5 2.4L V6 APS 121kW Avant
[12/97 - 01/02] AUDI A6 C5 4B5 2.8L V6 142kW Avant quattro AWD
[09/99 - 06/06] AUDI TT 8N3 Coupe 1.8L T 110kW-132kW FWD/ quattro AWD
[09/99 - 06/06] AUDI TT 8N9 Roadster 1.8L T 110kW-132kW FWD/ quattro AWD
[06/93 - 08/00] AUDI CABRIOLET 8G7 B4 2.6L V6 ABC 110kW Convertible FWD
[07/93 - 05/98] VOLKSWAGEN GOLF 1E7 III 1.8L 4cyl ANP/ ADZ/ ABS 66kW Convertible
[10/97 - 07/04] VOLKSWAGEN GOLF 1J1/ 9B1 IV 1.6L-2.8L Hatchback
[10/00 - 05/05] VOLKSWAGEN BORA 1J2/ 9M2 I V5 2.3L V5 AQN 125kW Sedan
[03/98 - 05/05] VOLKSWAGEN PASSAT B5/ B5.5 3B2/ 3B3/ 3B5 1.8L-2.8L Sedan/ Wagon
[09/02 - 10/10] VOLKSWAGEN BEETLE 1Y7 2.0L 4cyl 85kW Convertible
[01/98 - 09/10] VOLKSWAGEN NEW BEETLE 1C1/ 9C1 2.0L 4cyl 85kW Hatchback
[11/03 - 08/15] VOLKSWAGEN TRANSPORTER/ CARAVELLE T5 2.0L 4cyl AXA 85kW Van/ Bus/ Cab Chassis
[06/95 - 02/97] VOLKSWAGEN VENTO 1H2 2.0L 4cyl 85kW Sedan
[ON] SEAT CORDOBA 6K 1.4L-2.0L Sedan/ Coupe

How do I test a coolant temperature sensor?

The most common test is to measure the sensor resistance with a multimeter at a known coolant temperature and compare against the manufacturer resistance curve. A cold engine (20 degrees C) typically reads 2,000 to 3,000 ohms and drops to around 200 to 300 ohms at operating temperature (90 degrees C). An OBD2 scanner showing a fixed temperature reading that does not change as the engine warms up is also a strong indicator of sensor failure.

Can a faulty coolant temperature sensor cause my engine to overheat?

Indirectly yes. If the sensor reports a lower temperature than actual, the ECU may not activate the cooling fan at the correct time, allowing the engine to overheat. It can also suppress the dashboard warning light, meaning you may not be alerted until the engine is already at a dangerously high temperature. Replace a suspected faulty sensor promptly.

Do I need to drain the coolant to replace the sensor?

Not always - many coolant temperature sensors can be replaced quickly with minimal coolant loss if you work fast and have a replacement ready to thread in immediately. However on some vehicles the sensor location requires partial coolant drainage. Check the sensor position on your specific engine before starting. Always use fresh coolant when topping up after replacement.

What are the symptoms of a faulty coolant temperature sensor?

Symptoms include poor fuel economy, black smoke, engine overheating warning, incorrect temperature gauge reading, hard starting when cold, and rough idle. Fault codes P0115 to P0119 are commonly associated with coolant temperature sensor faults.

Is it safe to drive with a bad coolant temperature sensor?

A faulty coolant temperature sensor can cause the ECU to run rich fuel mixtures and prevent the cooling fan from operating correctly, risking engine overheating. Replace it promptly - it is a low-cost part that can prevent expensive engine damage.

How do I know if my coolant temperature sensor or my thermostat is faulty?

A faulty thermostat typically causes the engine to overheat or never reach operating temperature. A faulty coolant temp sensor causes incorrect gauge readings and running issues but the coolant itself may be at the correct temperature. An OBD2 scanner showing live coolant temp data helps distinguish between the two.

Are there two coolant temperature sensors on my vehicle?

Many vehicles have two sensors - one for the ECU (engine management) and one for the dashboard temperature gauge. They look similar but are not interchangeable. Check your vehicle's service manual or contact us with your vehicle details to confirm which sensor you need.

Identification
SKU	CCS54
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	CCS54
Reference OEM Number	59919501B
Other OEM Numbers	059919501, 059919501B, 078919501B, 4A0919501A
Related Part Numbers	CS871, TS-607, CTS1022
Trade Part Numbers	VEMO: V10-99-0907, WALKER: 211-1104
Product Specifics
Sensor Type	NTC Sensor
Type	Coolant Temperature Sensor
Number of pins	4-Pin
Connector Shape	Square
Voltage	12V
Housing Colour	Green
Mounting Type	Plugged
Compatible Makes	Audi / Volkswagen / Seat
Fitment Type	Direct Replacement
Brand	Aftermarket OEM Replacement
Other Details
Note	4-pin square green connector. Includes seal and retaining ring.
Unit Of Measure	ea
