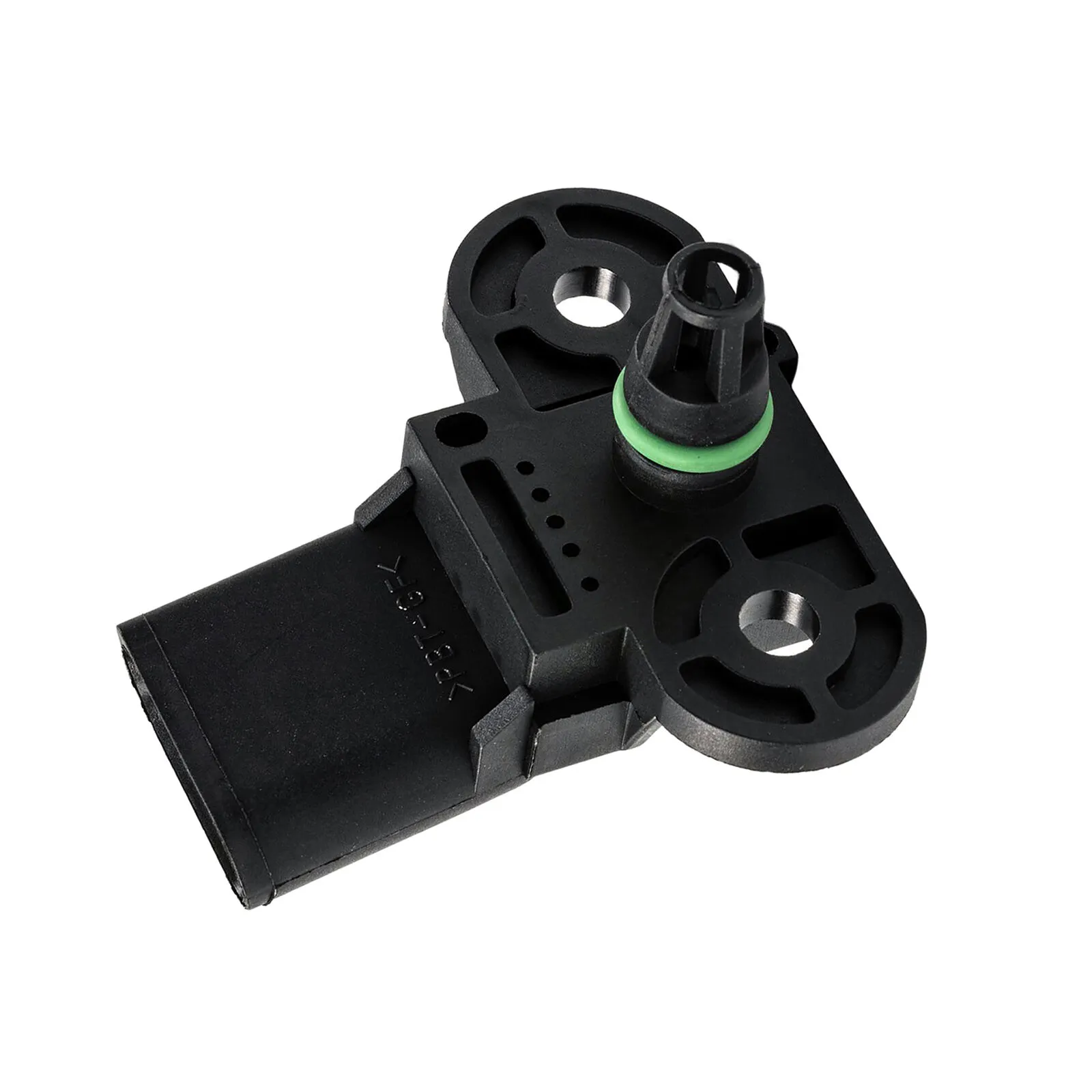

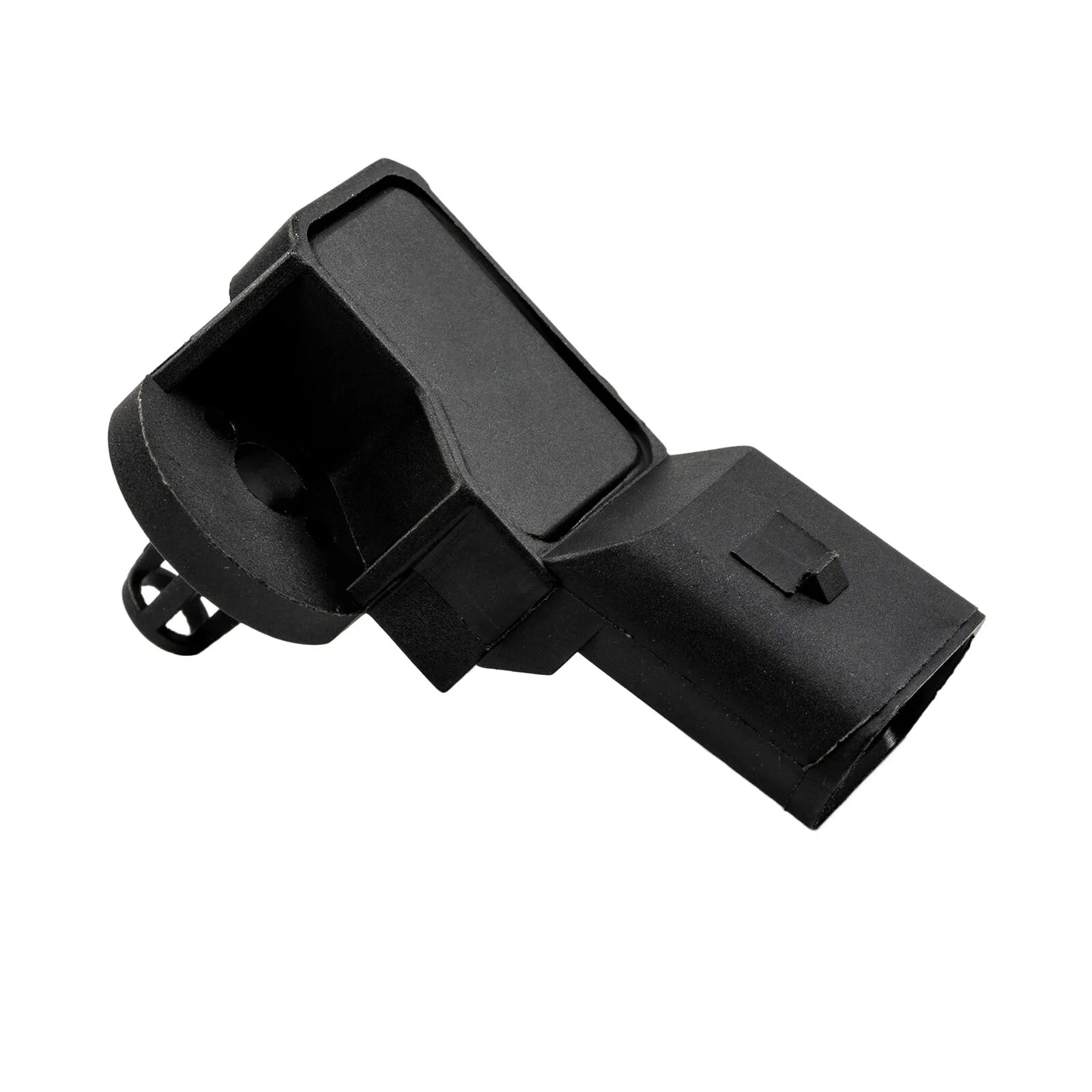

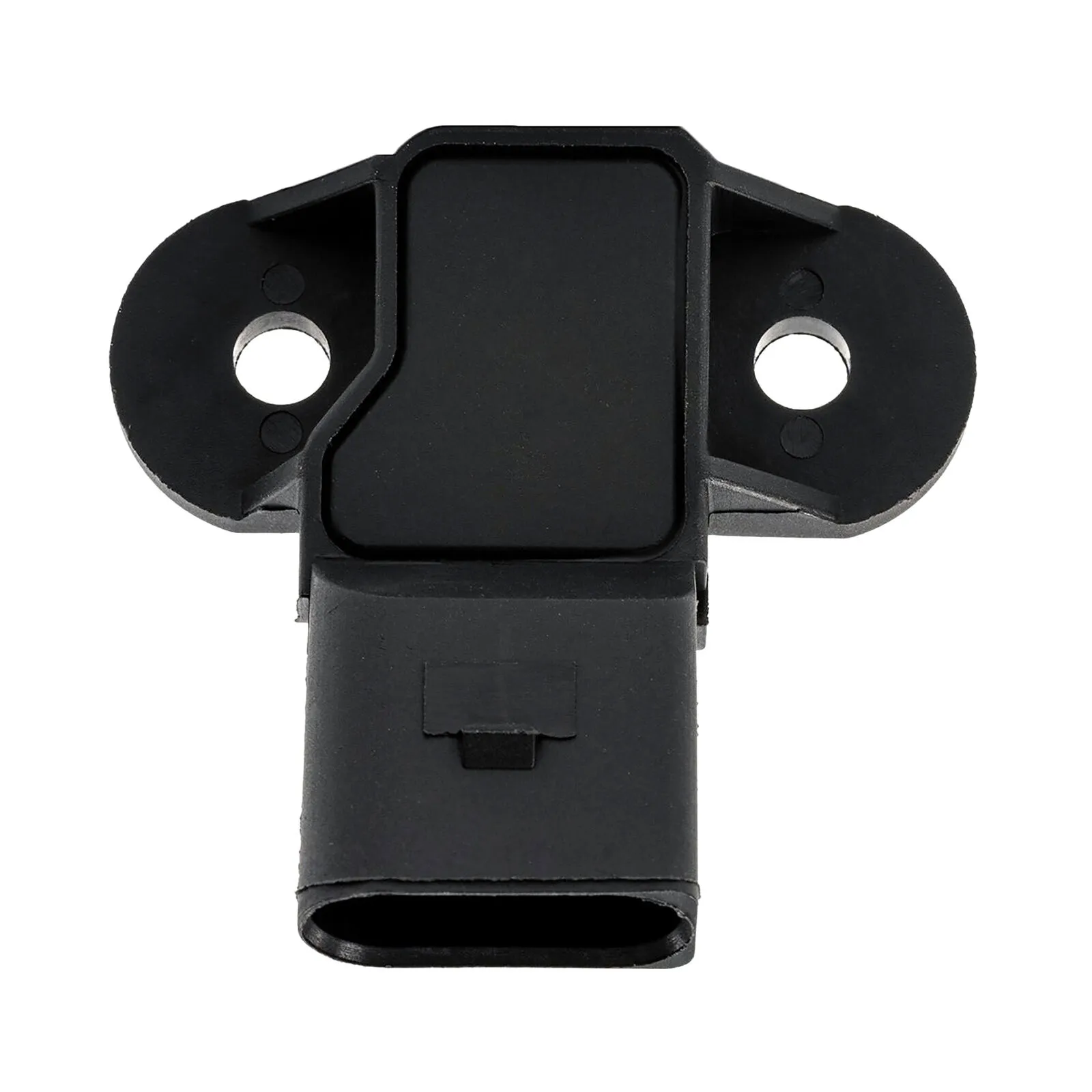

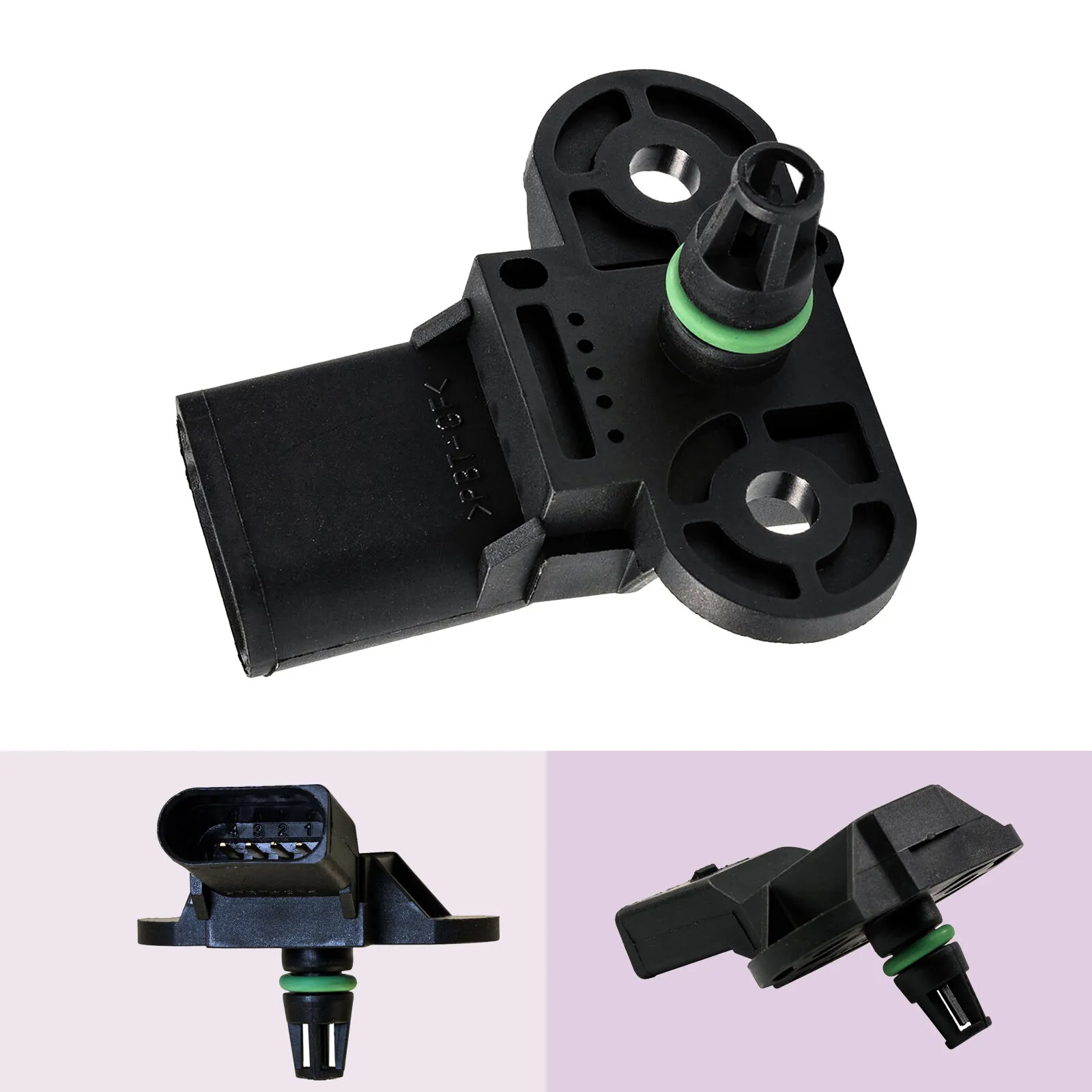

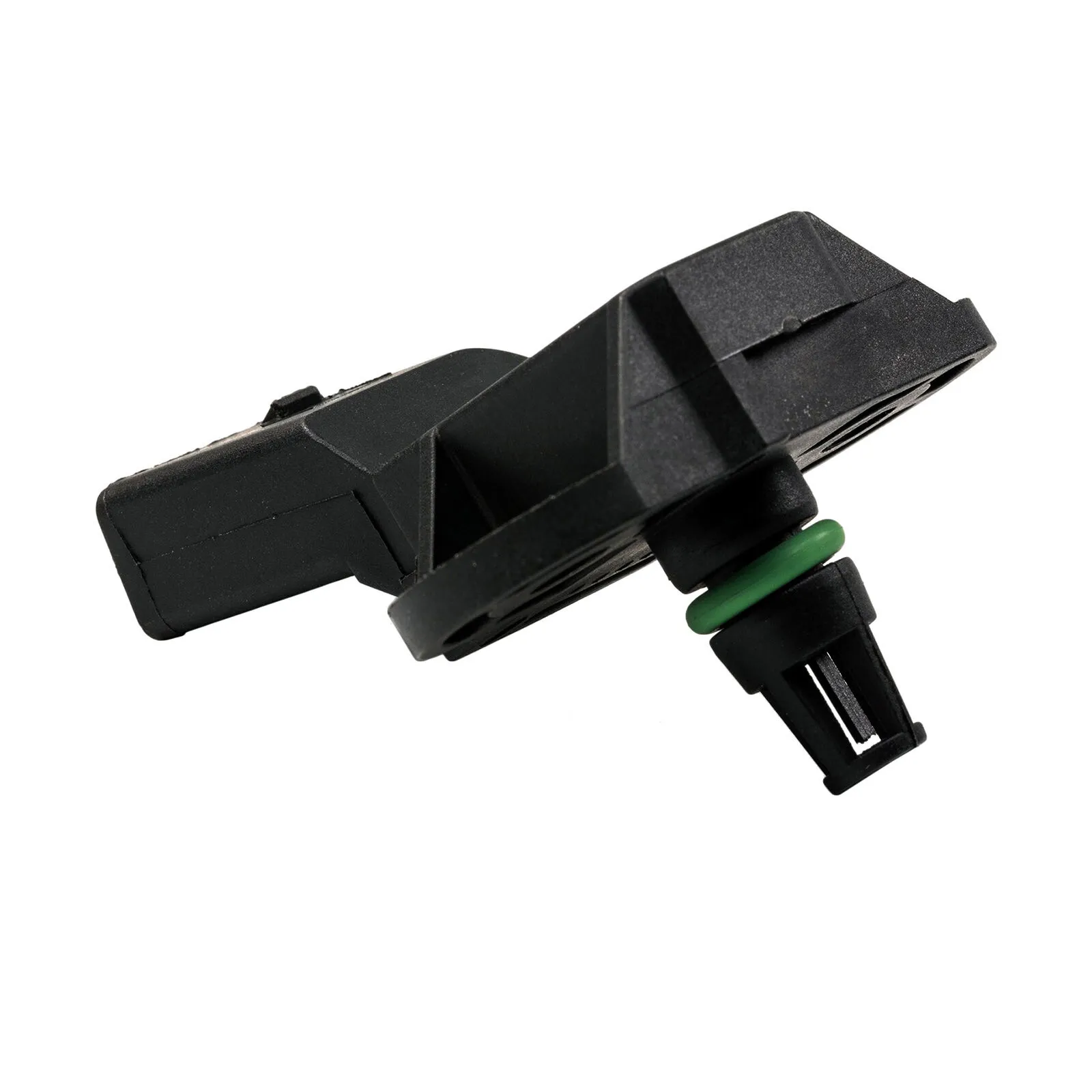

*OEM QUALITY* brake Boost Pressure Sensor 036906051G for Audi A1 A3 A5 Q3 Q5 Q7

BRAND NEW *OEM QUALITY* BRAKE BOOSTER PRESSURE SENSOR TO SUIT Audi A1 A3 A5 Q3 Q5 Q7 and More

TO SUIT:

OEM#

03C906051, 03C906051F, 036906051G, 03C906051E

BOSCH: 0261230234
BOSCH: 0261230081
BOSCH: 0261230095
HELLA: 6PP009400-541
NTY: ECM-VW-002
VEMO: V10-72-1131
WALKER PRODUCTS: 225-1256

PACKAGE INCLUDES:

1 X *OEM QUALITY* PRESSURE SENSOR (4-PIN PLUG).1 BAR PRESSURE SENSOR. BOOST PRESSURE SENSOR

Suits models with Engine Stop / Start - Located at the brake booster

A brake booster pressure sensor is an important component in modern braking systems, specifically in vehicles equipped with electronic brake control systems (like anti-lock braking systems or brake-by-wire). It measures the amount of vacuum or pressure in the brake booster, which assists the driver in applying force to the brake pedal.

[10/12 - 04/15] AUDI A1 8X1/ 8XK TFSI 1.4L 4cyl CAXA/ CNVA Euro 5 90kW
[10/12 - 04/15] AUDI A1 8XA/ 8XF TFSI 1.4L 4cyl CAXA/ CNVA Euro 5 90kW
[09/04 - 08/12] AUDI A3 8P1 TFSI 2.0L 4cyl AXX/ CAWB/ CCZA/ BWA 147kW
[09/04 - 08/12] AUDI A3 8P1 TFSI 2.0L 4cyl AXX/ CCZA/ BWA 147kW
[07/03 - 05/09] AUDI A3 8P1 V6 3.2L V6 BUB/ BDB/ BMJ 184kW
[09/04 - 03/13] AUDI A3 8PA TFSI 2.0L 4cyl BPY/ AXX/ CCZA/ BWA 147kW
[09/04 - 03/13] AUDI A3 8PA TFSI 2.0L 4cyl CBFA/ AXX/ CAWB/ CCZA/ BWA 147kW
[09/04 - 05/09] AUDI A3 8PA V6 3.2L V6 BUB/ BDB/ BMJ 184kW
[10/12 - 01/17] AUDI A5 8F7 TFSI 2.0L 4cyl CDNC/ CPMA/ CAEB 155kW
[10/12 - 05/16] AUDI A5 8F7 TFSI 2.0L 4cyl CNCD Euro 6 165kW
[10/12 - 01/17] AUDI A5 8T3 TFSI 2.0L 4cyl CDNC/ CPMA/ CAEB 155kW
[10/12 - 01/17] AUDI A5 8TA TFSI 2.0L 4cyl CDNC 155kW
[10/12 - 05/16] AUDI A5 8TA TFSI 2.0L 4cyl CNCD Euro 6 165kW
[06/11 - 04/15] AUDI Q3 8UB/ 8UG TFSI 2.0L 4cyl CCZC 125kW
[05/11 - 04/15] AUDI Q3 8UB/ 8UG TFSI 2.0L 4cyl CPSA 155kW
[11/08 - 09/12] AUDI Q5 8RB TDI 2.0L 4cyl CGLB/ CMGA/ CAHA 125kW
[10/12 - 09/12] AUDI Q5 8RB TFSI 2.0L 4cyl CDNC/ CAEB 155kW
[05/11 - 08/15] AUDI Q7 4LB TDI 3.0L V6 CRCA/ CLZB/ CJGD 180kW

Identification
SKU	CMS245-Audi
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	CMS245
Reference OEM Number	036906051G
Other OEM Numbers	03C906051, 03C906051F, 036906051G, 03C906051E
Related Part Numbers	MAP1153, MP195, MP204
Trade Part Numbers	BOSCH: 0261230234, BOSCH: 0261230081
Product Specifics
Product Type	sensor
Sensor Type	Boost Pressure Sensor
Fitting Position	Located At Brake Booster

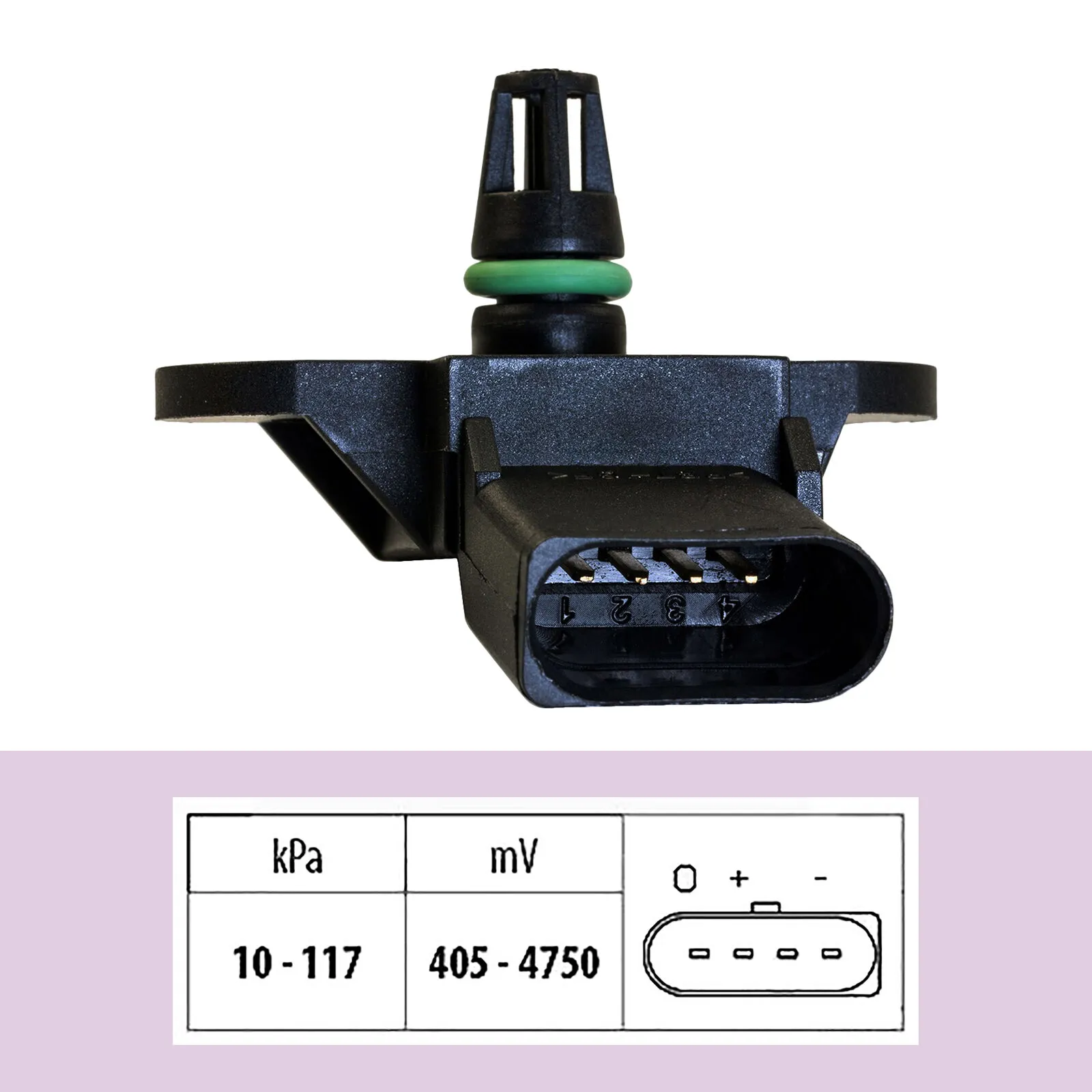

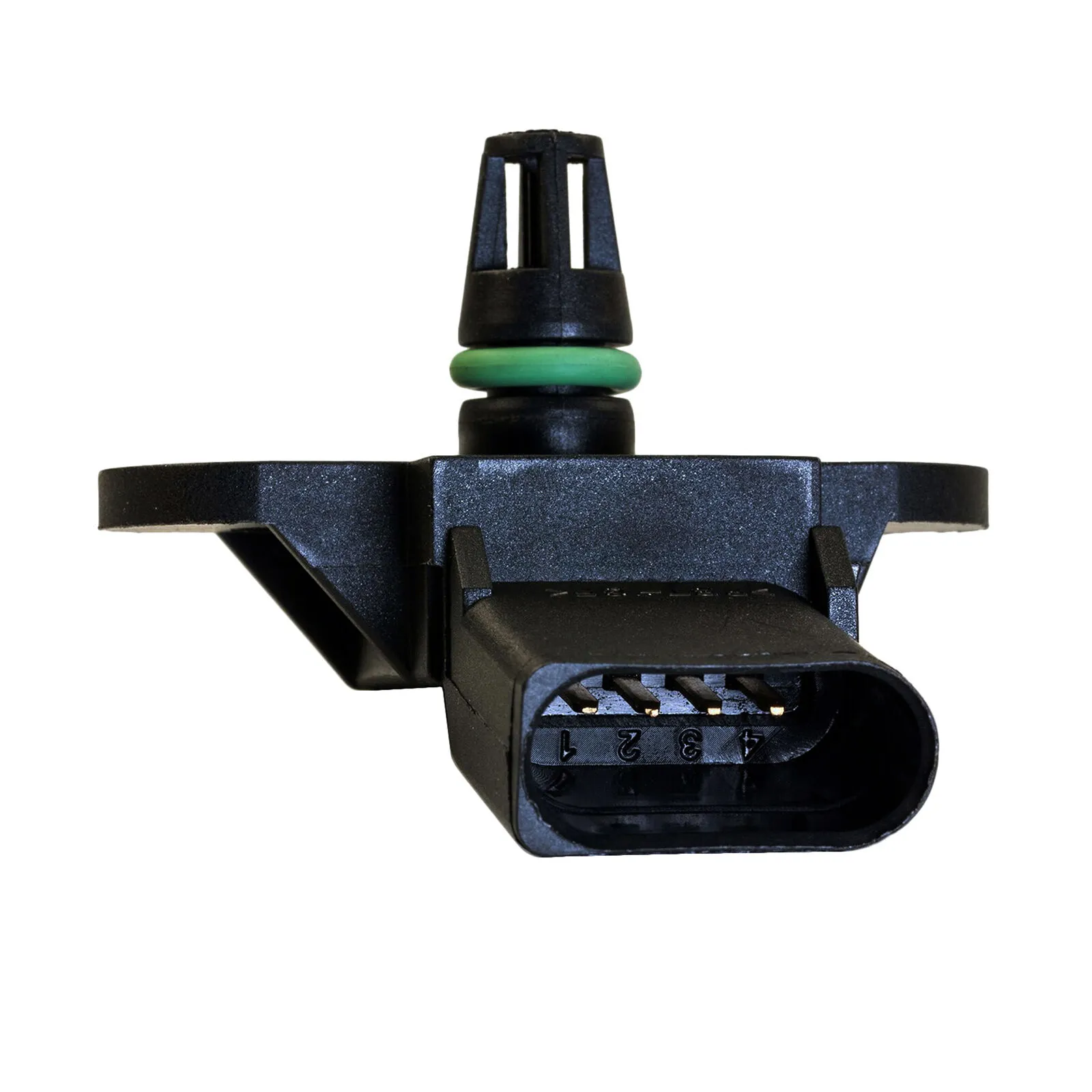

Number of pins	4 -pin connector
Connector Shape	D-shaped
Supplementary Article Info	Suits models with Engine Stop / Start - Located at brake booster
Pressure Range	10 kPa, until 117 kPa
Number of mounting bores	2
Shipping & Dimensions
Shipping Weight	0.5000 kg
Shipping Width	0.230 m
Shipping Height	0.050 m
Shipping Length	0.160 m
Other Details
Note	CHECK IMAGES. CONFIRM WITH OEM NUMBER.
