Dynamic Stability Control Pressure Sensor for BMW 6 Series E63 E64 645Ci 650i M6

Part #: SDSC100 Replaces OEM: 34521164458

OEM Spec Fit Replaces 34521164458

$97.97
RRP $219.97
SAVE $122.00 (55%)
In Stock

BRAND NEW *OEM Quality* DSC brake pressure sensor to suit BMW 6 Series E63 coupe and E64 convertible.

A DSC failure message on the iDrive screen takes the shine off a big grand tourer fast. This direct fit sensor sorts the most common hardware cause and is packed and shipped from Cranbourne VIC.

TO SUIT

Suits the BMW 6 Series E63 coupe and E64 convertible from 2003 to 2009 - the 645Ci with the 4.4L N62 B44 V8, the 650i with the 4.8L N62 B48 V8 and the M6 with the 5.0L S85 V10.

FITMENT CHECK

Later-build 6 Series can use a different DSC unit and sensor. Check the number on your old sensor matches 34521164458 or 1164458 before ordering.

OEM PART NUMBERS

  • BMW: 34521164458
  • BMW: 34 52 1 164 458
  • BMW: 1164458

OTHER PART NUMBERS

  • V20-72-0301
  • 504740

PACKAGE INCLUDES

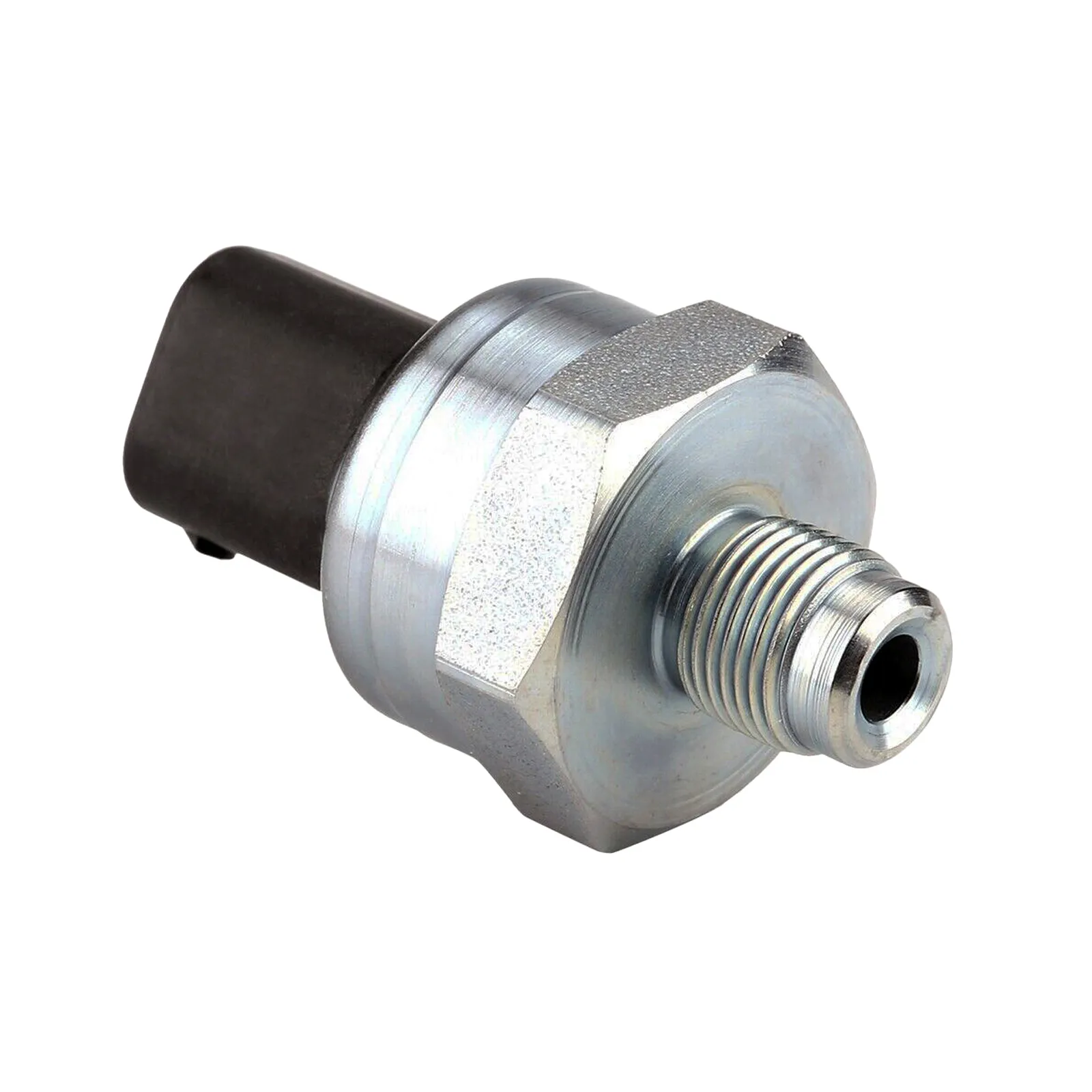

1 x DSC brake master cylinder pressure sensor with 3-pin connector.

ABOUT THIS SENSOR

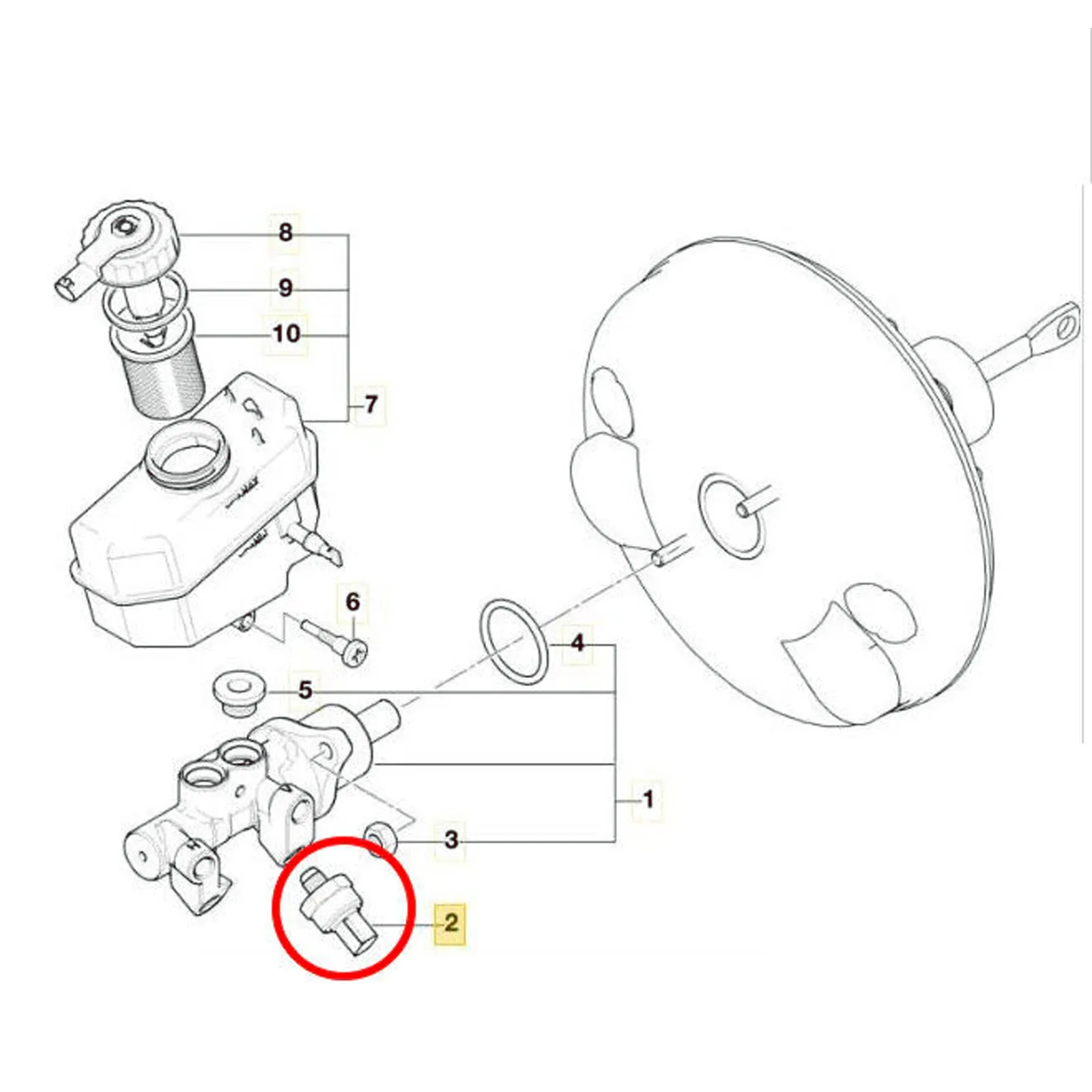

On the E63 and E64 the sensor sits on the brake master cylinder and tells the DSC module how much brake pressure the driver is asking for. On these heavy V8 and V10 cars that reading drives brake assist, brake fade compensation and brake standby as well as ABS and DSC.

With a faulty signal the car falls back to basic braking with DSC off, which is a real loss on a 245kW to 373kW rear-drive coupe in the wet.

COMMON SYMPTOMS OF FAILURE

  • DSC failed or drive moderately message on the iDrive display
  • Yellow DSC and brake warning lamps on the cluster
  • DSC pressure sensor fault in the DSC module memory
  • Brake standby and brake drying functions not working
  • DSC cannot be switched back on after a restart
  • [2003 - 2009] BMW 6 SERIES E63 COUPE 645Ci (4.4L 8cyl petrol N62 B44 A 245kW)
  • [2005 - 2009] BMW 6 SERIES E63 COUPE 650i (4.8L 8cyl petrol N62 B48 B 270kW)
  • [2005 - 2009] BMW 6 SERIES E63 COUPE M (5.0L 10cyl petrol S85 B50 A 373kW)
  • [2004 - 2009] BMW 6 SERIES E64 CONVERTIBLE 645Ci (4.4L 8cyl petrol N62 B44 A 245kW)
  • [2005 - 2009] BMW 6 SERIES E64 CONVERTIBLE 650i (4.8L 8cyl petrol N62 B48 B 270kW)
  • [2006 - 2009] BMW 6 SERIES E64 CONVERTIBLE M6 (5.0L 10cyl petrol S85 B50 A 373kW)
What is the difference between an oil pressure sensor and an oil pressure switch?

An oil pressure switch is a simple on/off device that triggers the oil pressure warning light when pressure drops below a fixed threshold. It provides no information about the actual pressure level - just whether it is above or below the activation point. An oil pressure sensor provides a continuous analogue signal to the ECU and instrument cluster, allowing the dashboard to display an actual pressure reading and giving the ECU real-time data for engine management decisions. Many vehicles use both - a switch for the warning light and a sensor for the gauge.

What are the symptoms of a faulty oil pressure sensor or switch?

The most common symptom is a false oil pressure warning light on the dashboard despite the engine having correct oil level and pressure. The light may be on constantly or may flicker particularly at idle when oil pressure is naturally at its lowest. An oil leak from around the sensor or switch body is also a common sign of failure. On vehicles with a pressure gauge rather than just a warning light, a faulty sensor may cause the gauge to read zero, maximum, or erratically.

How do I confirm if the oil pressure warning is a faulty sensor or actual low pressure?

Never assume a warning light is a faulty sensor without checking first. Turn the engine off immediately when the oil pressure light comes on and check the oil level on the dipstick. If oil level is correct, you can verify actual oil pressure by fitting a mechanical oil pressure gauge to the sending unit port and running the engine briefly. A reading within the normal range (typically 200 to 500 kPa at operating temperature and idle) confirms the warning is from a faulty sensor rather than actual low pressure.

Is it safe to continue driving with the oil pressure warning light on?

No - stop the engine as soon as it is safe to do so. An actual low oil pressure condition will cause catastrophic engine damage within minutes of continued running. Even if the fault turns out to be a faulty sensor, you cannot confirm this while driving. Always treat an oil pressure warning light as a critical fault requiring immediate attention until proven otherwise.

How difficult is it to replace an oil pressure sensor or switch?

Most oil pressure sensors and switches are threaded directly into the engine block or oil filter housing and can be replaced with basic tools - a socket or spanner of the correct size and some thread sealant. Allow the engine to cool before removal to avoid burns from hot oil. Have a rag ready to catch the small amount of oil that will spill when the old sensor is removed. The job typically takes 15 to 30 minutes on most vehicles.

Will a faulty oil pressure sensor damage the engine?

The sensor itself does not affect oil pressure or lubrication - it only monitors and reports pressure. A faulty sensor that gives a false low reading may cause unnecessary anxiety but will not damage the engine. However if the sensor gives a false normal reading when actual pressure is low, it will prevent the warning light from alerting you to a real low pressure condition that could cause serious engine damage. This is why verifying actual oil pressure is important before dismissing an oil pressure fault as a sensor issue.

Identification
BrandAftermarket OEM Replacement
Part Numbers
Part NumberSDSC100
Reference OEM Number34521164458
Other OEM Numbers34521164458, 1164458
Related Part Numbers55CP09-03 DSC100
Interchange Part NumbersV20-72-0301, 504740
Product Specifics
Product TypeSENSOR
Sensor TypeDSC Brake Master Cylinder Pressure Sensor
Fitting PositionBRAKE MASTER CYLINDER

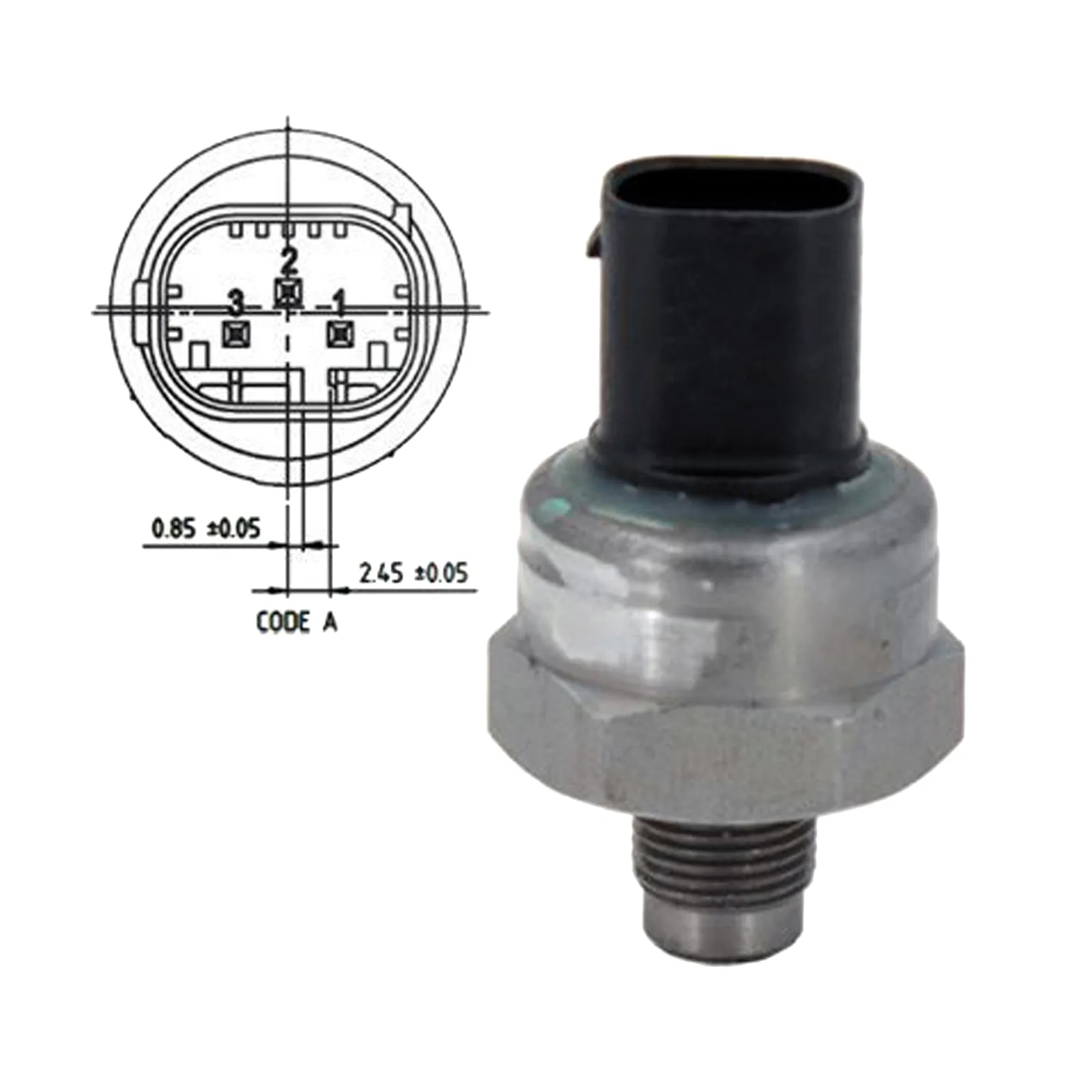

Number of pins3-Pin
Connector ShapeAngular
Housing ColourBlack
Number of mounting bores2
Compatible MakesBMW
Fitment TypeDirect Replacement
Other Details
NoteLate 2005-on E63 E64: confirm old sensor reads 34521164458
