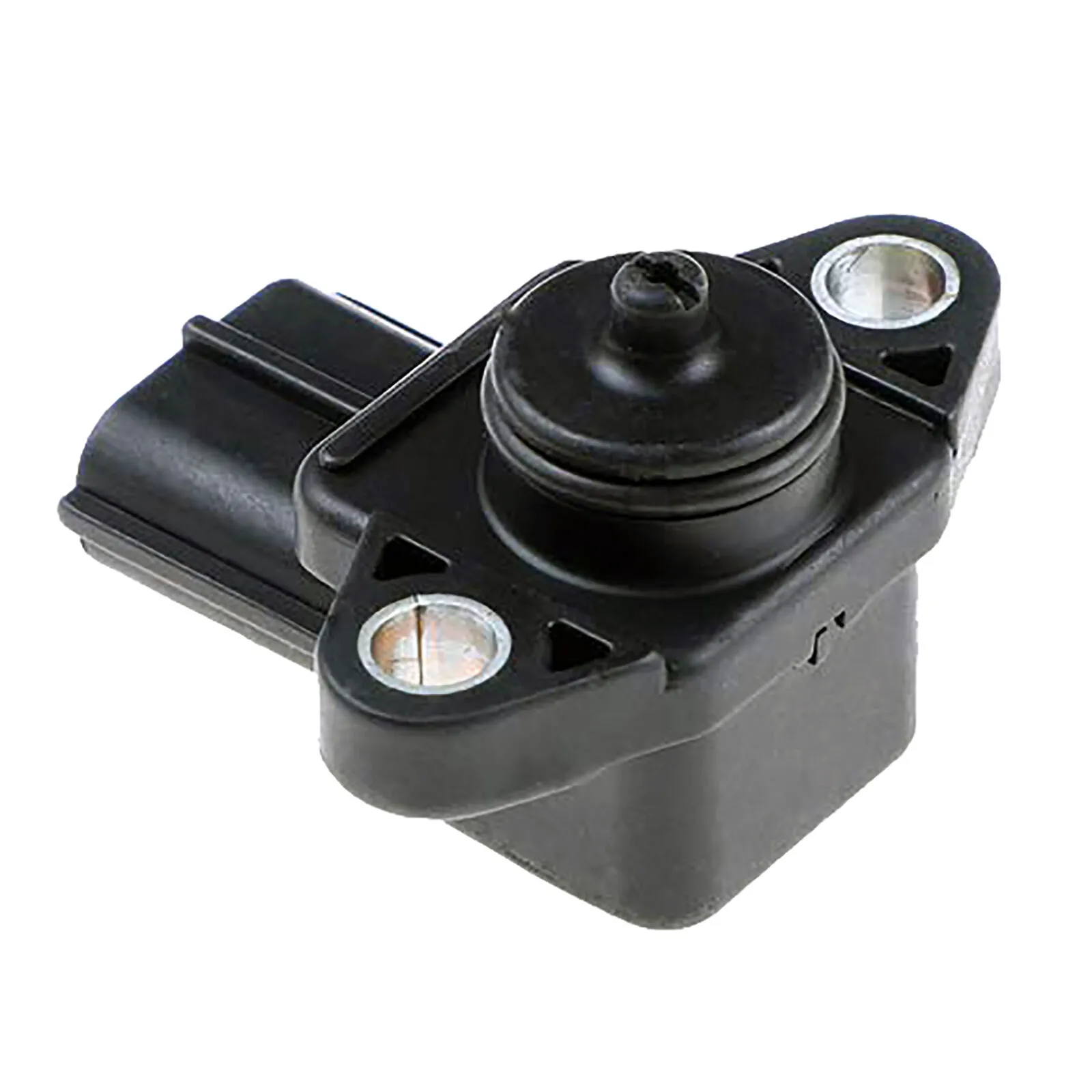

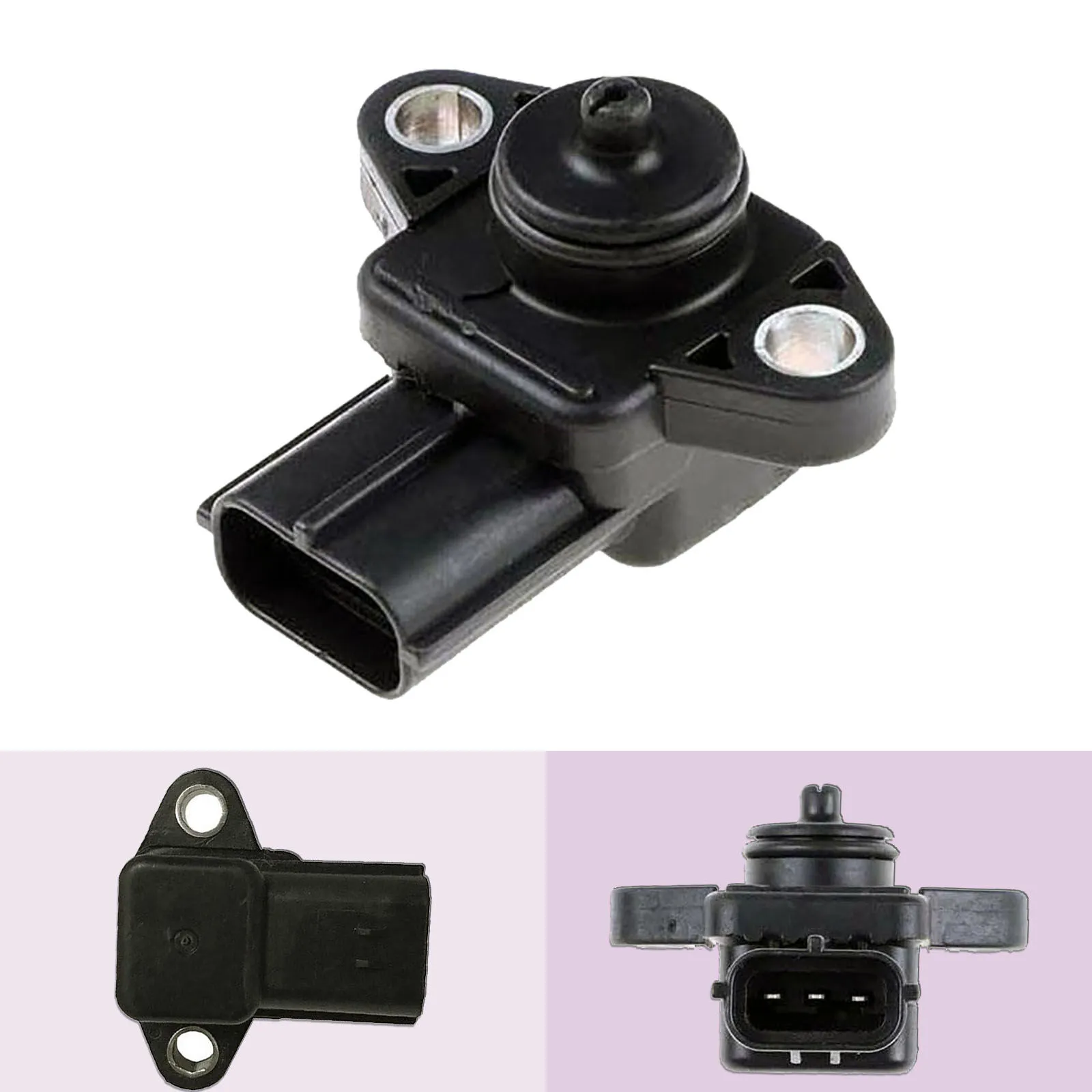

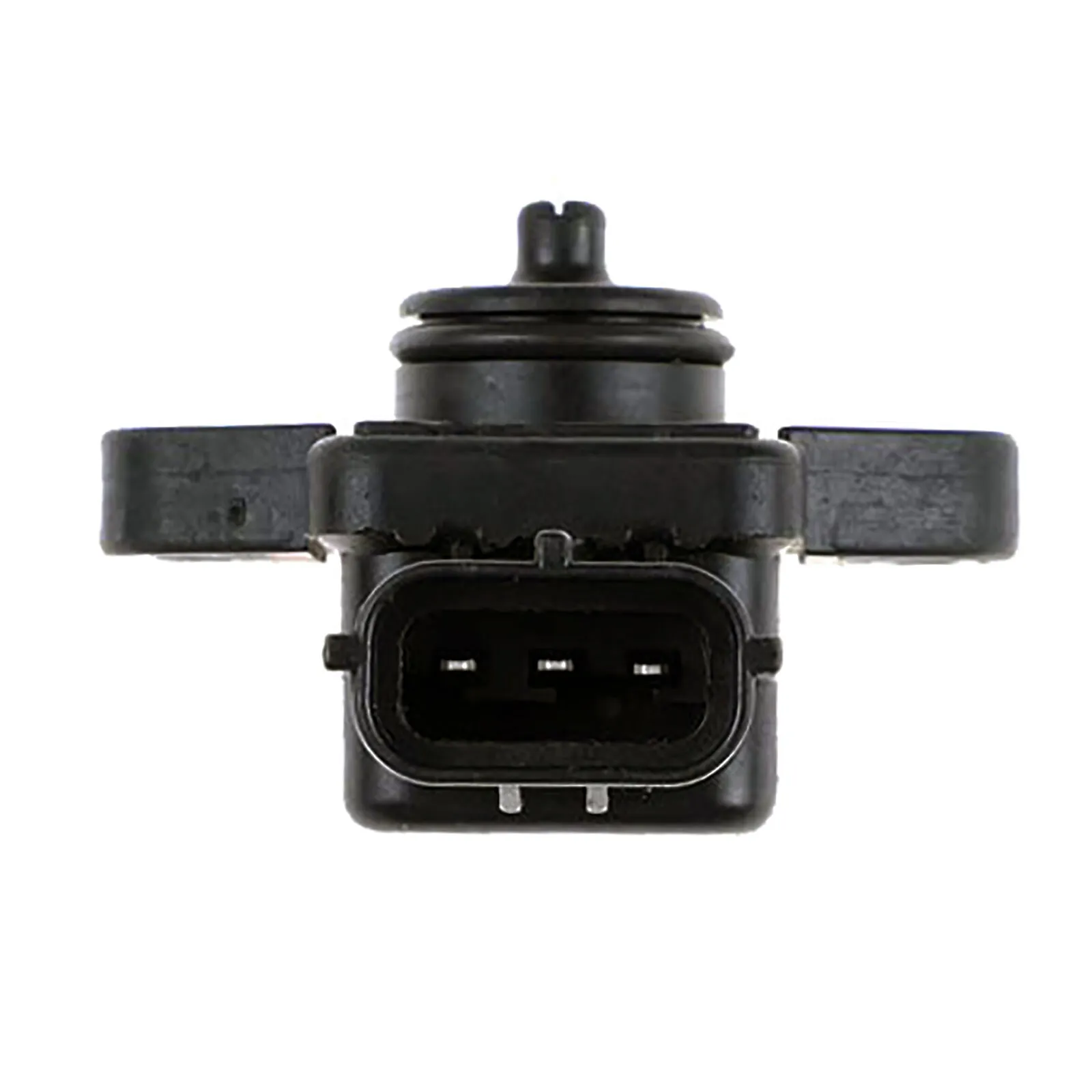

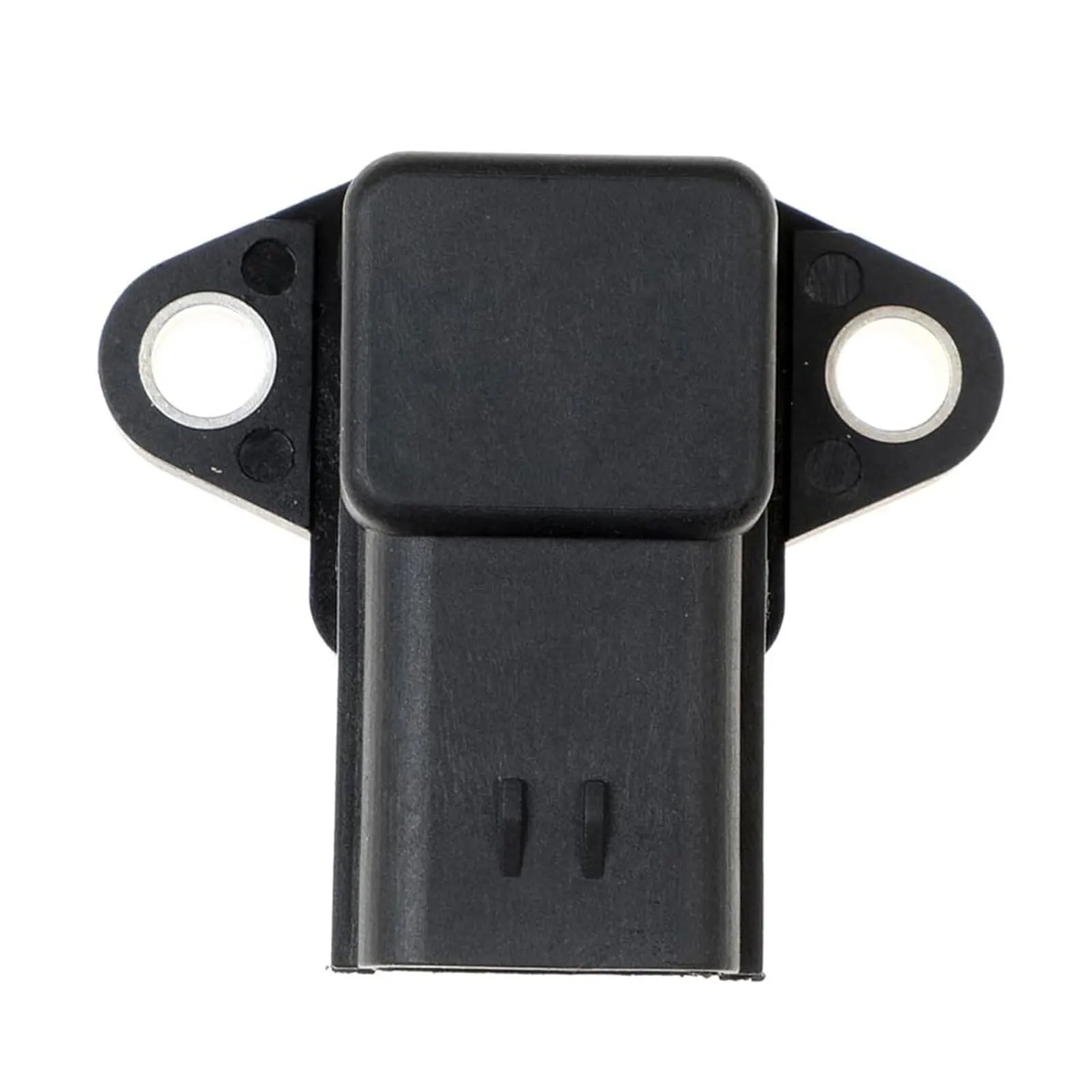

MAP Sensor for Suzuki Jimny Vitara Swift Holden Cruze M13A M15A M16A H27A XL-7

BRAND NEW *OEM QUALITY* BOOST PRESSURE SENSOR / MAP SENSOR (MANIFOLD ABSOLUTE PRESSURE SENSOR) TO SUIT SUZUKI

TO SUIT:

OEM#

71742176, E1T26571A, 18590-72F20, 18590-72F20-000, 18590-72F21, 18590-72F21-000, 91176190

NTY: ECM-SU-001
VEMO: V64-72-0035
WALKER PRODUCTS: 225-1113
MITSUBISHI:E1T26571A
SUZUKI:18590-72F21, 1859072F21,18590-72F20, 1859072F20
ACDelco: 213-1717
CHEVROLET: 89052713
GM: 91176190
FIAT: 71742176
CARQUEST: 721525
AIRTEX: 5S2415
WELLS: SU1416
STANDARD MOTOR PRODUCTS: AS115
DELPHI: PS10037
BWD: EC1752
ECHLIN: 216508

PACKAGE INCLUDES:

1 X *OEM QUALITY* MAP SENSOR (3-PIN PLUG).

Check Image. Make Sure of the OEM Number.

The Manifold Absolute Pressure (MAP) sensor is crucial to a vehicle's engine management system. It measures the air pressure inside the intake manifold, providing information about the engine load to the engine control unit (ECU). This data helps the ECU determine the correct air-fuel mixture to optimize engine performance and efficiency.
The MAP sensor typically uses a vacuum to measure pressure changes in the intake manifold. Depending on the vehicle's make and model, it's often located either on the intake manifold or the firewall.

If the MAP sensor malfunctions or fails, it can lead to various engine issues such as rough idling, poor acceleration, decreased fuel efficiency, or even stalling. Regular maintenance and occasional cleaning can help ensure the proper functionality of the MAP sensor. However, if it's faulty, replacement might be necessary to maintain optimal engine performance.

[09/05 - 02/15] SUZUKI GRAND VITARA JB416/ TA74 1.6L 4cyl M16A 73kW
[05/15 ON] SUZUKI VITARA APK416/ YD21S 1.6L 4cyl M16A 86kW
[05/15 - 12/16] SUZUKI VITARA APK416/ YE21S 1.6L 4cyl M16A 86kW
[10/00 - 12/05] SUZUKI IGNIS HV51/ HX51/ RG413 1.3L 4cyl M13A 61kW
[08/03 - 12/05] SUZUKI IGNIS HV81/ RG415 1.5L 4cyl M15A 83kW
[09/00 - 12/17] SUZUKI JIMNY SN413 16V 1.3L 4cyl M13A 60kW
[08/05 - 10/18] SUZUKI JIMNY SN413 16V 1.3L 4cyl M13A 63kW
[03/02 - 02/04] SUZUKI LIANA RH416 1.6L 4cyl M16A 76kW
[12/13 - 07/16] SUZUKI S-CROSS AKK416/ YA22S 1.6L 4cyl M16A 86kW
[12/13 - 07/16] SUZUKI S-CROSS AKK416/ YB22S 1.6L 4cyl M16A 86kW
[01/04 - 12/11] SUZUKI SWIFT RS415/ ZC21S 1.5L 4cyl M15A 75kW
[01/12 - 03/17] SUZUKI SWIFT RS416/ ZA32S/ ZC32S 1.6L 4cyl M16A 100kW
[05/06 - 02/11] SUZUKI SWIFT ZC31S 1.6L 4cyl M16A 92kW

Identification
SKU	CMS223-1
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	CMS223
Reference OEM Number	1859072F21
Other OEM Numbers	18590-72F20, 18590-72F21, E1T26571A, 91176190
Related Part Numbers	MAP-035, CMS223, MP193, MAP1053
Trade Part Numbers	NTY: ECM-SU-001, VEMO: V64-72-0035, WALKER: 225-1113
Product Specifics
Product Type	sensor
Sensor Type	Manifold Absolute Pressure (MAP) Sensor

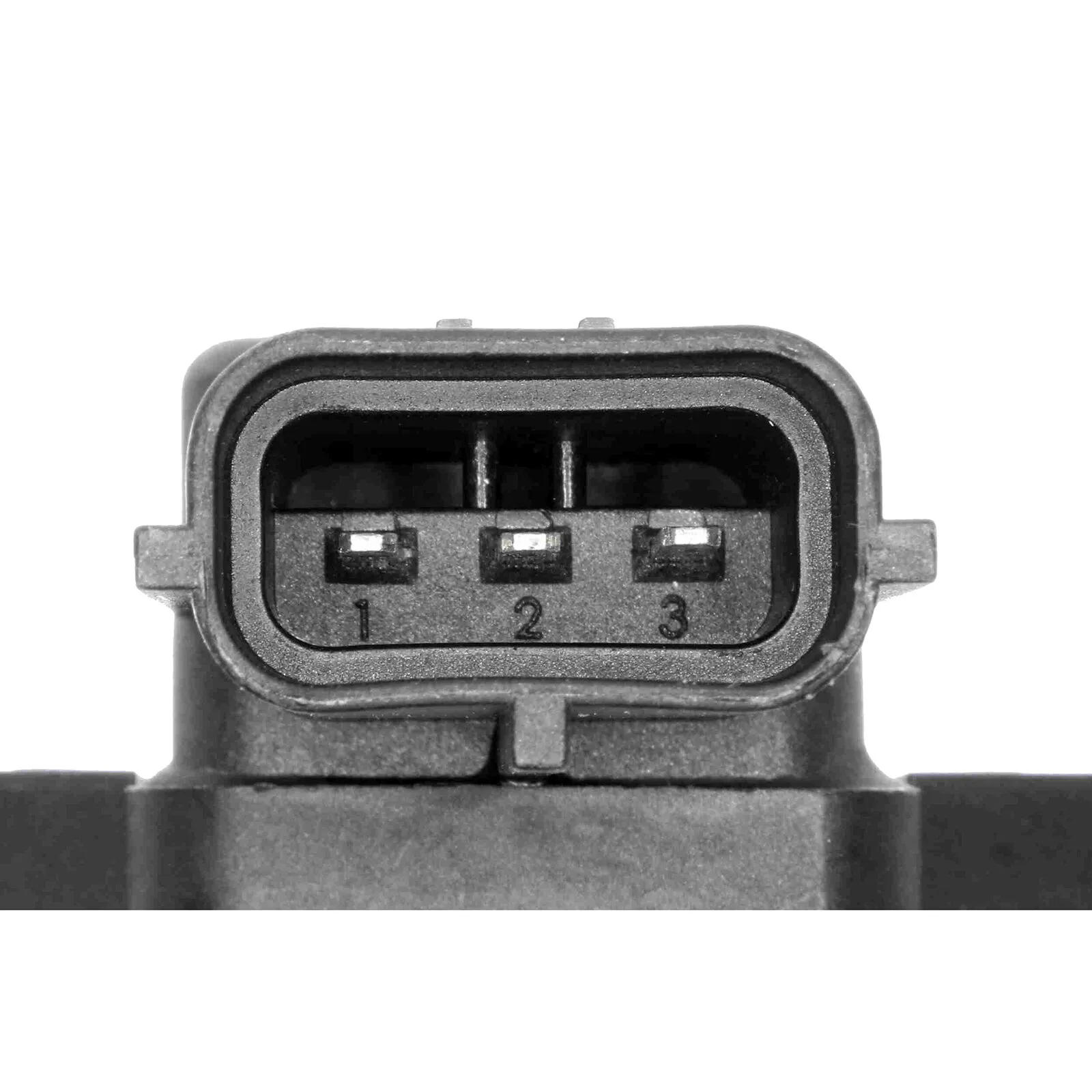

Number of pins	3 -pin connector
Connector Shape	oval
Number of Bolt Holes	2

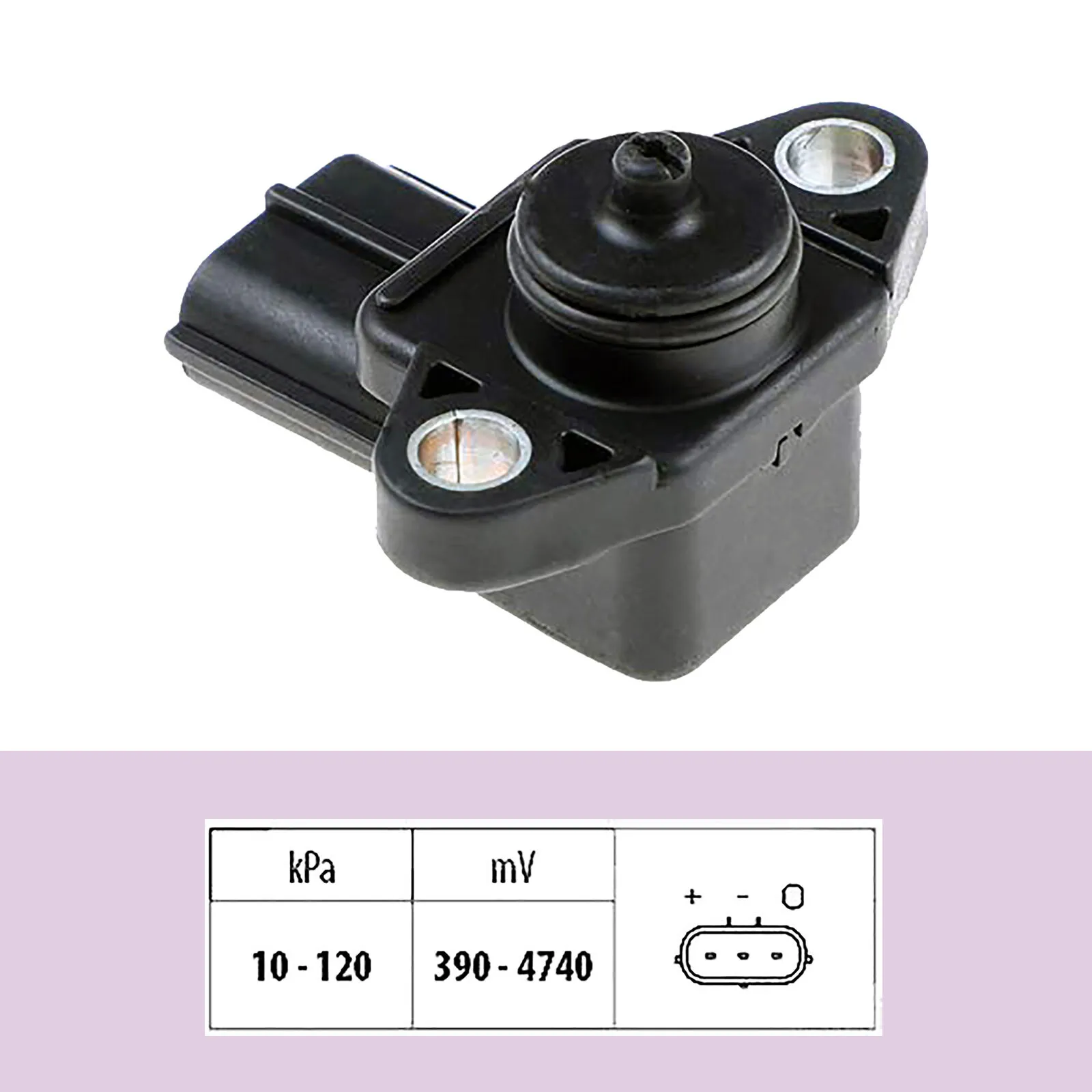

Pressure Range	10 kPa, until 120 kPa
Shipping & Dimensions
Shipping Weight	0.5000 kg
Shipping Width	0.230 m
Shipping Height	0.050 m
Shipping Length	0.160 m
Other Details
Note	CHECK IMAGES. CONFIRM WITH OEM NUMBER.
