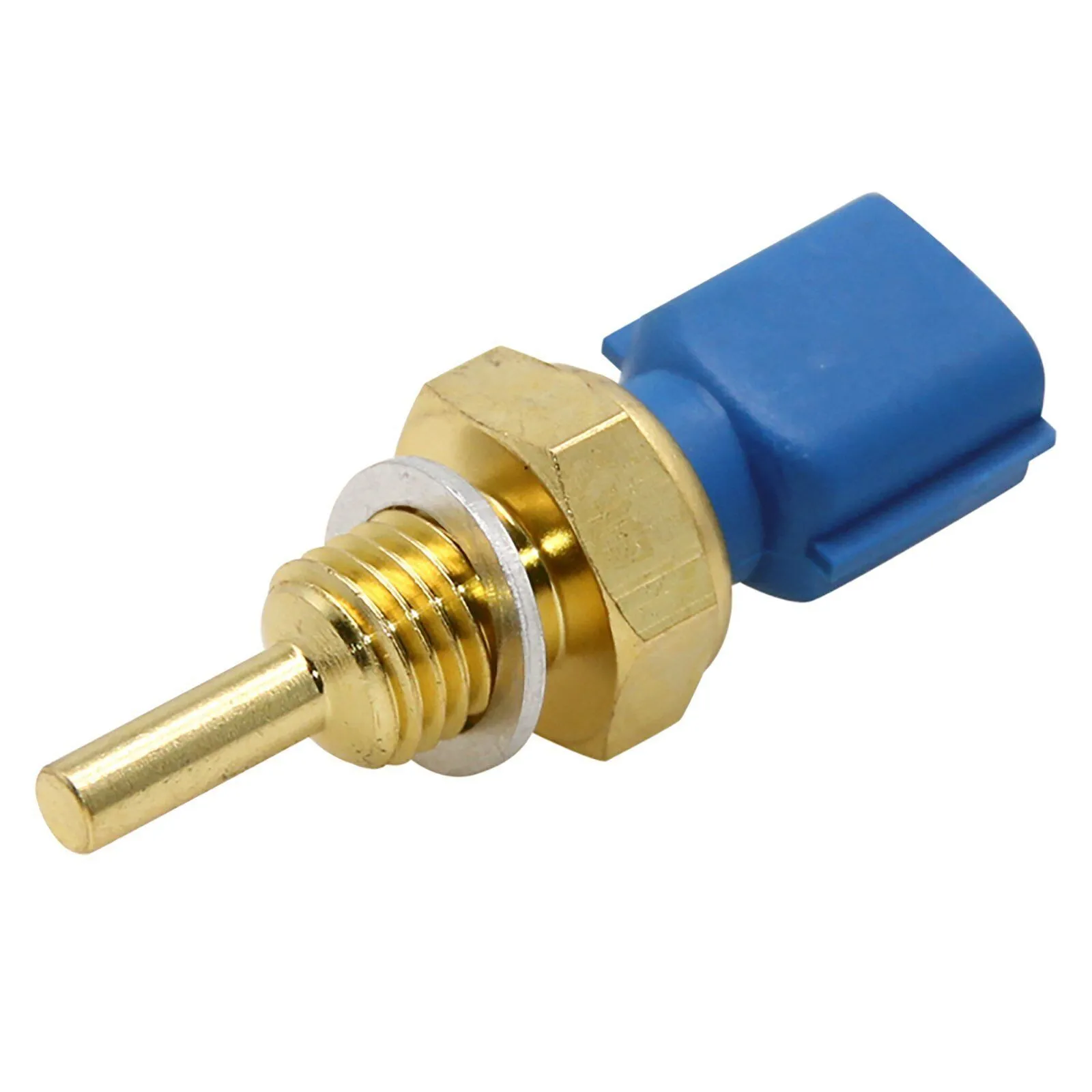

BRAND NEW OEM Quality COOLANT TEMPERATURE SENSOR TO SUIT NISSAN / INFINITI

PLEASE COMPARE YOUR ORIGINAL SENSOR WITH THE IMAGES WE PROVIDED IN THE LISTING AND

CHECK THE DETAILED VEHICLE LIST IN THE SUITABILITY SECTION.

SUITS

Suit GQ & GU with TD42 engines.

Suit GU with RD28 & ZD30 engines.

Suit GU with TB45 & TB48 engines.

Suit Y62 with VK56 Engine.

This sensor is on the later model GQ TD42 engines after August 1995 and all GU TD42 engines.

This sensor the temp of the engine to tell the glow plugs when to stop glowing on Diesel Engines, and on Petrol engines it gives the temperature to the ECU.

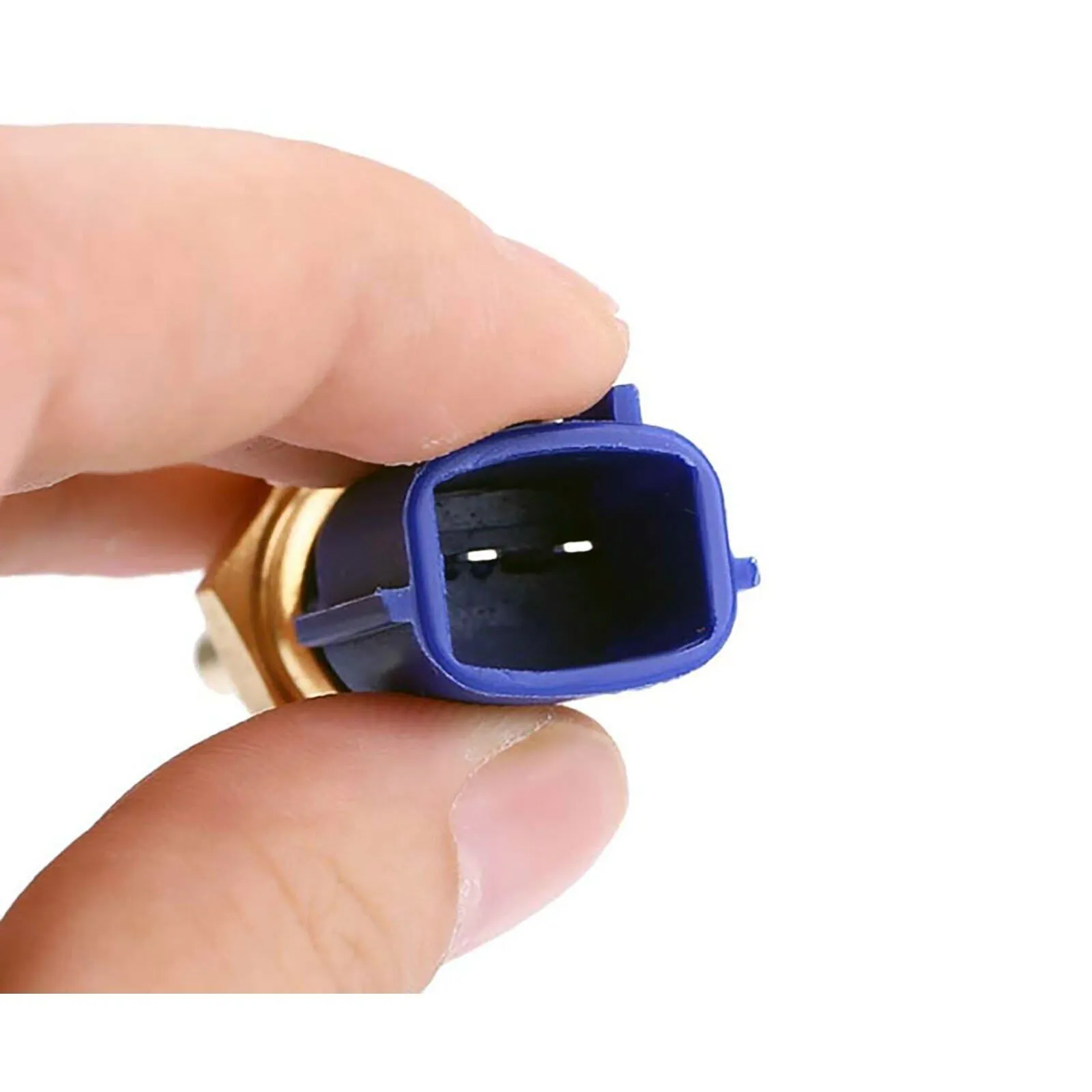

NOTE: Please check the plug, as earlier GQ TD42 engines have a different plug and run a different sensor.

OEM# 22630-44B20

NISSAN	NISSAN	NISSAN	NISSAN	NISSAN
22630-7Y000	22630-75F0B	22630-71L00	22630-44B20	22630-D9701

22630-99B10	22630-99B00	22630-95F0B	22630-JN00A	22630-JA10A

22630-ED000	22630-D9702	22630-00QAH	22630-0M200	22630-1W400

22630-3NA0A	22630-43Y00	22630-44B10

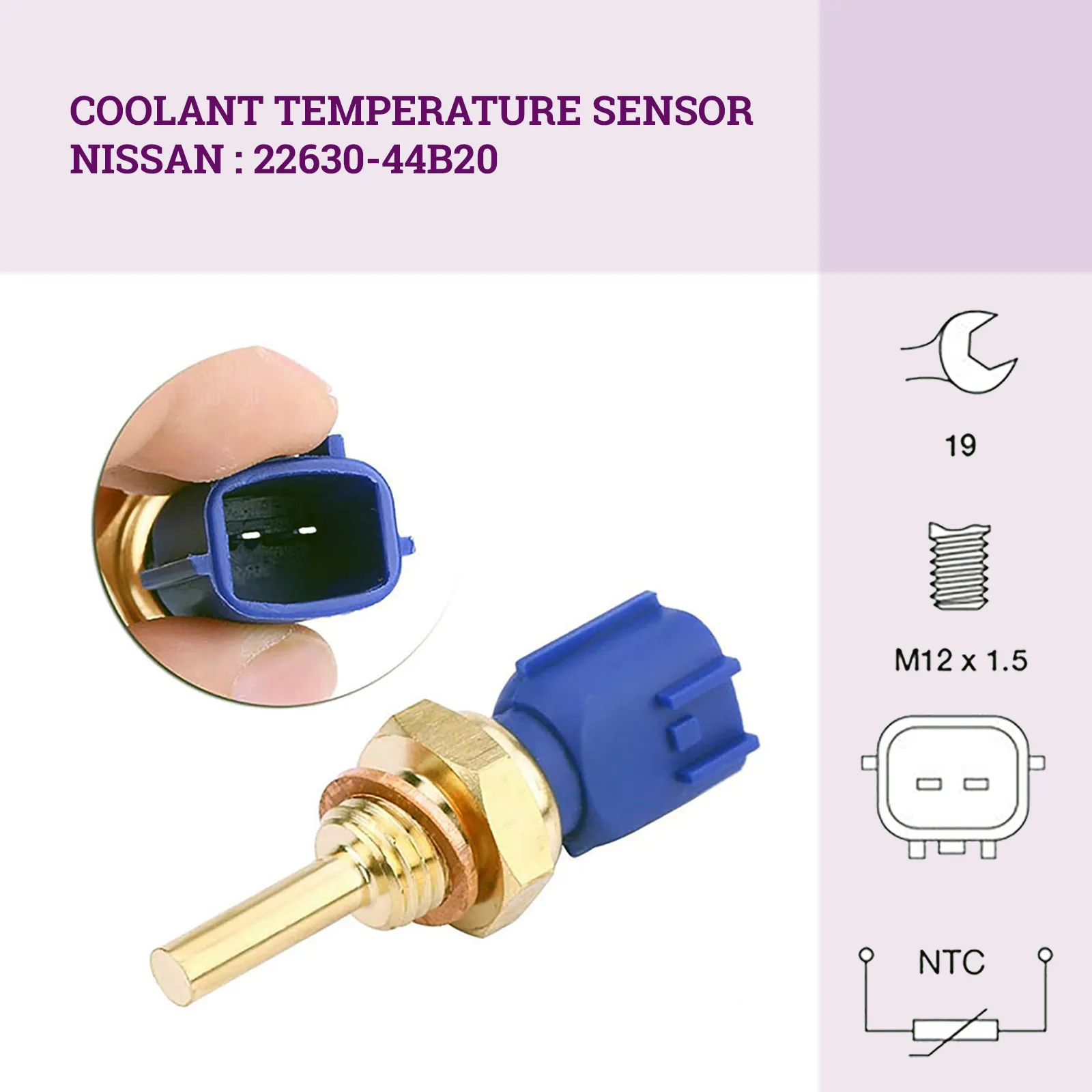

SPECIFICATION

Number of connectors	2
Housing Colour	Black, Blue
Thread Size	M12 X 1,5
Spanner size	19
Number of Poles	2 -pin connector

Features?

High Quality
OEM Fit and Design
Easy install
Simple operation
AU Seller-Fast and Free Shipping

Package Includes:

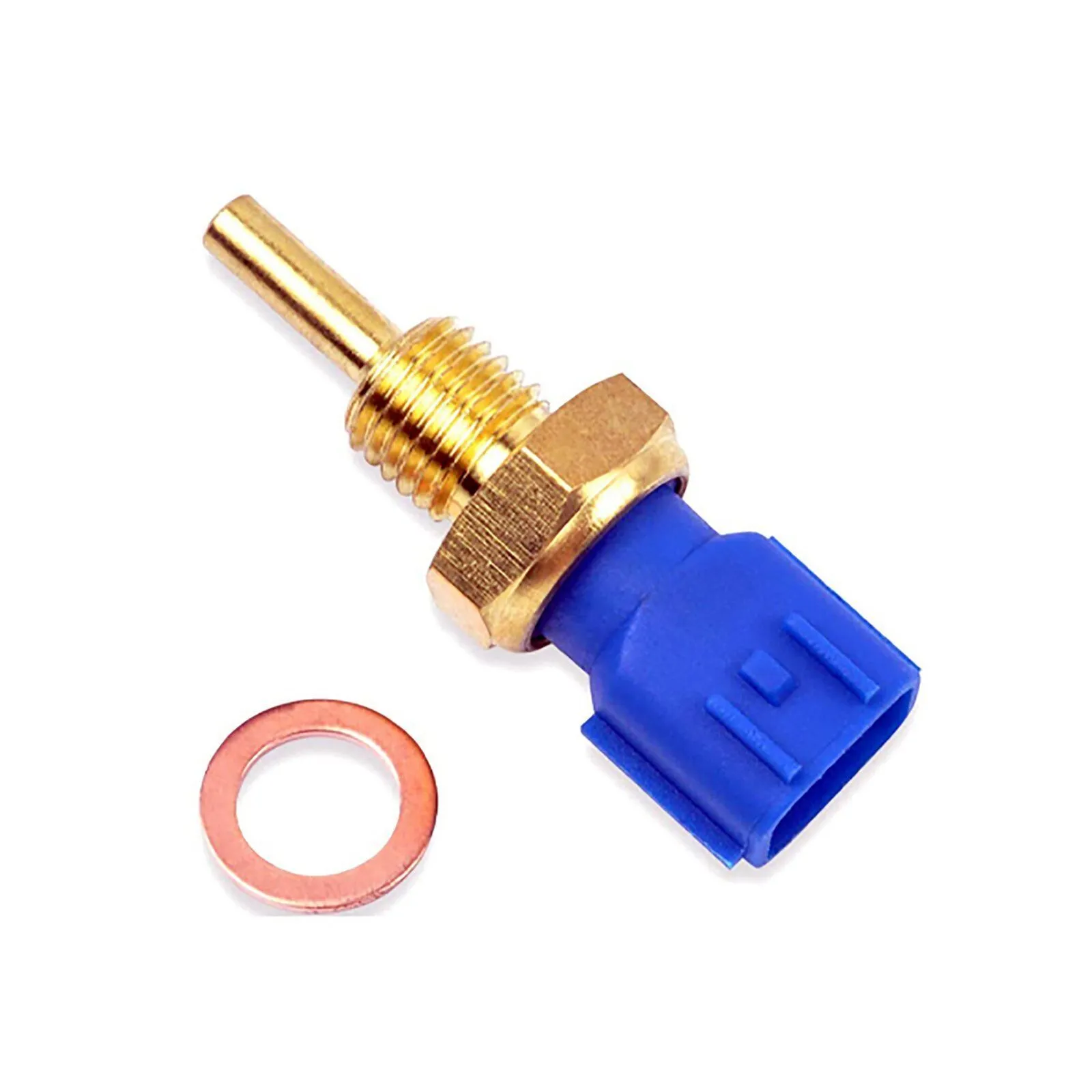

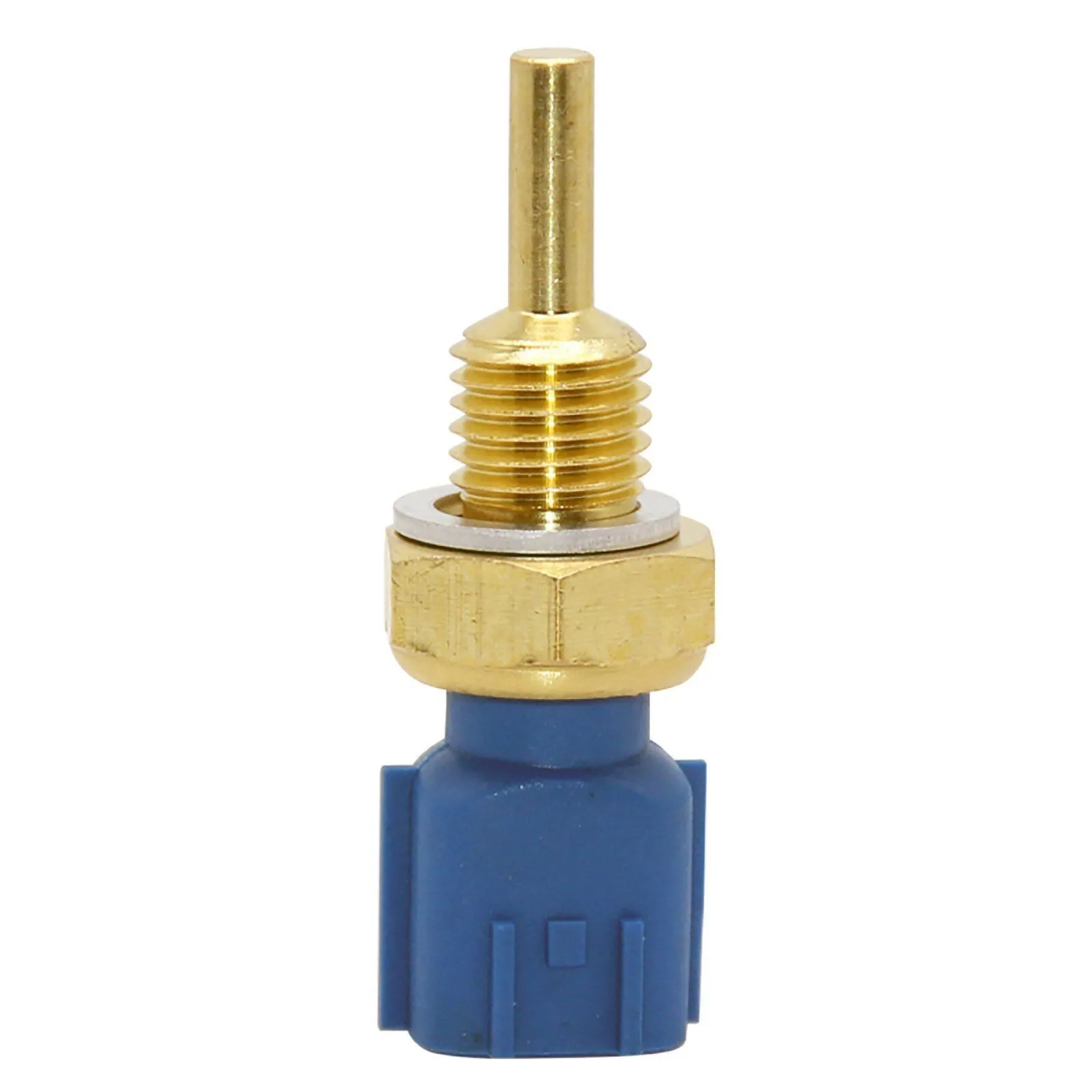

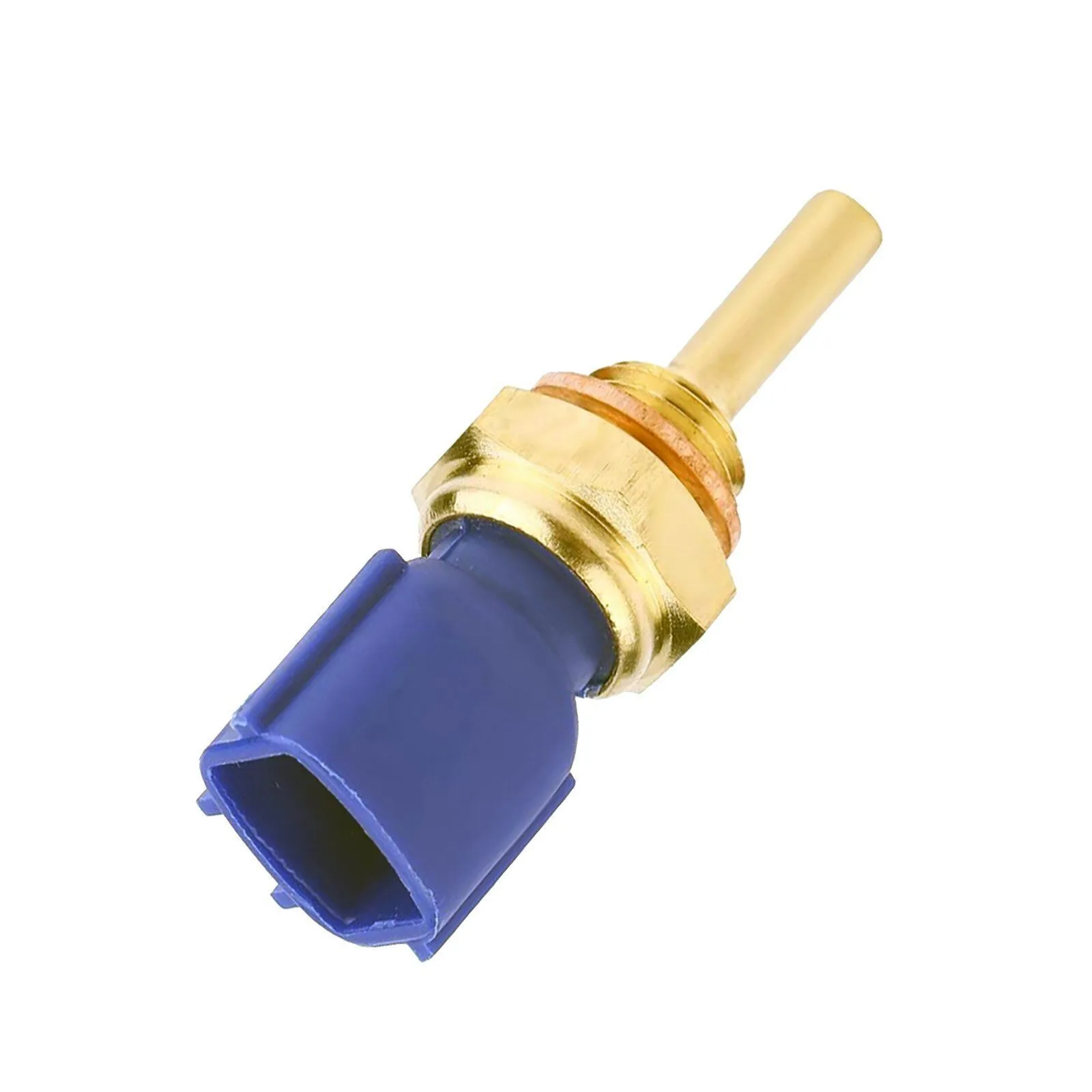

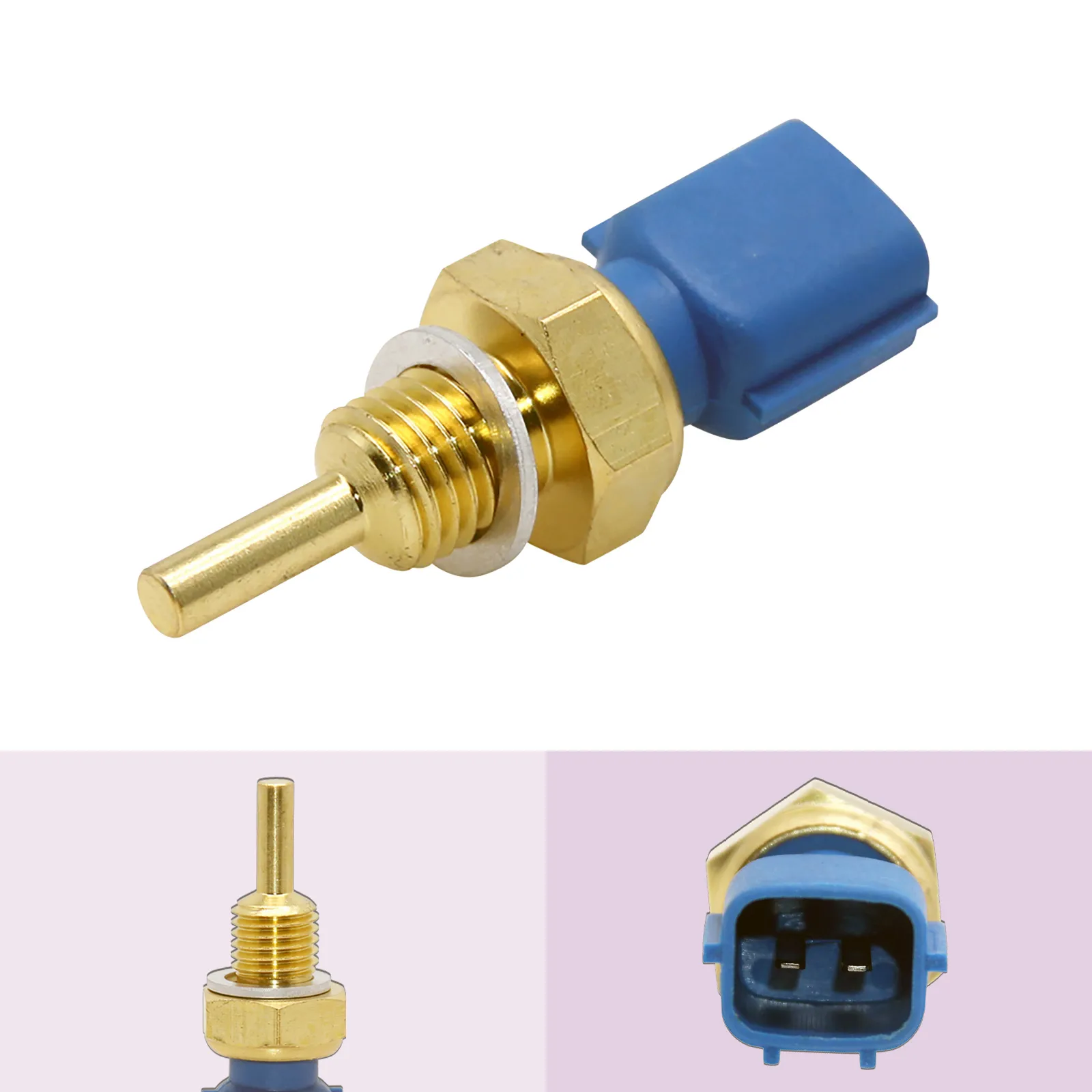

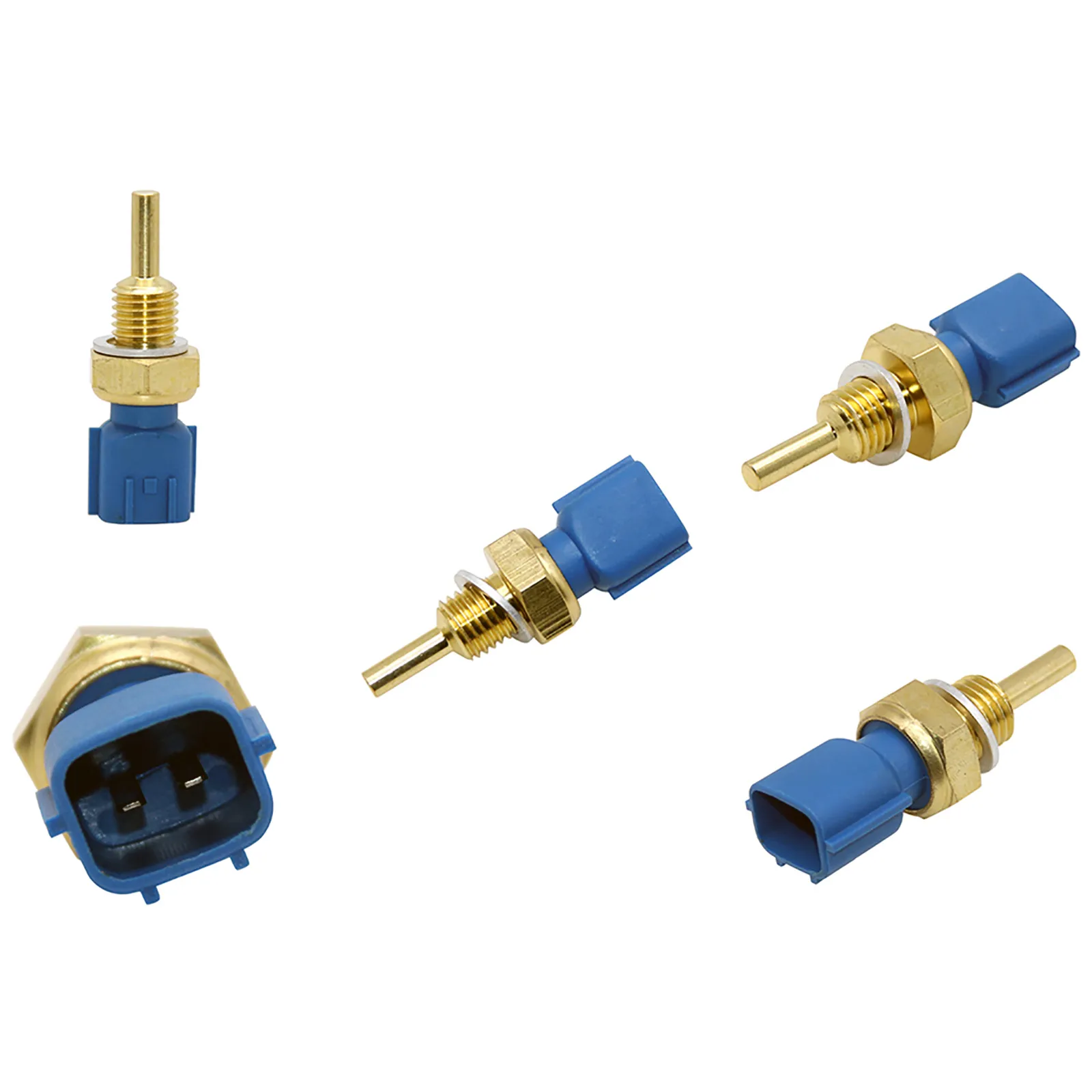

1* Temperature Sensor (2 -pin connector). Rounded Rectangular Connector - M12x1.5 Thread The water temperature sender is designed to measure the integrity of the engine cooling system. The sender responds to changes in engine coolant temperature, displayed via the operation of the water temperature light or gauge. The engine coolant temperature sensor (CTS) is used to measure the temperature of the engine coolant of an engine. The readings from this sensor are then fed back to the engine control unit (ECU), which uses this data to adjust the fuel injection and ignition timing. Common signs of a bad or failing coolant temperature sensor include poor fuel economy, black smoke coming from the engine, engine overheating, and the Check Engine Light turning on.

COMPATIBLE VEHICLES:

NISSAN PATROL Y61 GU 2.8L RD28ETI SOHC 12v Turbo Diesel Inj. 6cyl 95kW 5sp Man 4dr Wagon 4WD [12/97 - 03/00]

NISSAN PATROL Y61 GU 3.0L ZD30DDTi DOHC 16v Turbo Diesel Direct Inj. 4cyl 116kW 4sp Auto 4dr Wagon 4WD [04/00 - 03/07]

NISSAN PATROL Y61 GU 3.0L ZD30DDTi DOHC 16v Turbo Diesel Direct Inj. 4cyl 116kW 5sp Man 4dr Wagon 4WD [04/00 - 03/07]

NISSAN PATROL Y61 GU 3.0L ZD30DDTi Euro4 DOHC 16v Turbo Diesel Direct Inj. 4cyl 118kW 4sp Auto 4dr Wagon 4WD [03/07 - 12/16]

NISSAN PATROL Y61 GU 3.0L ZD30DDTi Euro4 DOHC 16v Turbo Diesel Direct Inj. 4cyl 118kW 5sp Man 2dr Cab Chassis & Pickup 4WD [04/07 - 12/16]

NISSAN PATROL Y61 GU 3.0L ZD30DDTi Euro4 DOHC 16v Turbo Diesel Direct Inj. 4cyl 118kW 5sp Man 4dr Wagon 4WD [04/07 - 12/16]

NISSAN PATROL Y61 GU 4.2L TD42 OHV 12v Diesel Inj. 6cyl 91kW 5sp Man 2dr Cab Chassis & Pickup 4WD [12/97 - 12/02]

NISSAN PATROL Y61 GU 4.2L TD42 OHV 12v Diesel Inj. 6cyl 91kW 5sp Man 4dr Wagon 4WD [12/97 - 12/02]

NISSAN PATROL Y61 GU 4.2L TD42T/TD42Ti OHV 12v Turbo Diesel Inj. 6cyl 114kW 5sp Man 2dr Cab Chassis & Pickup 4WD [06/99 - 12/06]

NISSAN PATROL Y61 GU 4.2L TD42T/TD42Ti OHV 12v Turbo Diesel Inj. 6cyl 114kW 5sp Man 4dr Wagon 4WD [06/99 - 12/06]

NISSAN PATROL Y61 GU 4.5L TB45E OHV 12v MPFI 6cyl 145kW 4sp Auto 4dr Wagon 4WD [12/97 - 09/01]

NISSAN PATROL Y61 GU 4.5L TB45E OHV 12v MPFI 6cyl 145kW 5sp Man 4dr Wagon 4WD [12/97 - 09/01]

NISSAN PATROL Y61 GU 4.8L TB48DE DOHC 24v MPFI 6cyl 185kW 5sp Auto 4dr Wagon 4WD [10/01 - 11/12]

NISSAN PATROL Y61 GU 4.8L TB48DE DOHC 24v MPFI 6cyl 185kW 5sp Man 4dr Wagon 4WD [10/01 - 11/12]

NISSAN PATROL Y62 5.6L VK56VD DOHC-PB 32v Petrol Direct Inj. V8 298kW 7sp Auto 4dr Wagon 4WD [12/12 ON]

ABOUT YOUR VEHICLE'S ENGINE COOLANT TEMPERATURE SENSOR

What does a Coolant Temperature Sensor do?
The Coolant Temperature sensor changes resistance with the temperature. The Coolant Temperature sensor is critical to many PCM functions such as fuel injection, ignition timing, variable valve timing, and transmission shifting.

Where are these sensors located?
The Coolant Temperature sensor is located in a coolant passage in the engine usually near the thermostat.

Will a malfunctioning Coolant Temp Sensor illuminate the check engine light or affect vehicle operation?
Yes, a failing sensor can illuminate the MIL, and cause the engine to run rich or lean. The transmission may shift incorrectly or not lock up the torque converter.

What are the common causes of failure?
Typically these sensors fail due to corrosion within the coolant system. They may also leak coolant through the wiring connector.

How to determine if these sensors are malfunctioning?
A DTC will be set if an abnormal reading occurs, P0116 for sensor performance, P0117 low input, or P0118 for high input. The coolant temperature sensor temperature reading should closely match the air charge/manifold temperature reading on a scan tool if the engine has not been run for over an hour. The sensor circuit can be checked for proper voltage using a voltmeter.

Why Buy from Us / What makes Our Coolant Temp Sensors the best?
As an OEM manufacturer, Standard/ Our Supplier has complete control of the manufacturing process from componentry to finished product
Temperature sensor design specifies tight tolerance thermistor response values to assure the accuracy of the temperature measurement and proper part operation
All Coolant Temperature sensors are 100% factory tested to ensure trouble-free performance.

How do I test a coolant temperature sensor?

The most common test is to measure the sensor resistance with a multimeter at a known coolant temperature and compare against the manufacturer resistance curve. A cold engine (20 degrees C) typically reads 2,000 to 3,000 ohms and drops to around 200 to 300 ohms at operating temperature (90 degrees C). An OBD2 scanner showing a fixed temperature reading that does not change as the engine warms up is also a strong indicator of sensor failure.

Can a faulty coolant temperature sensor cause my engine to overheat?

Indirectly yes. If the sensor reports a lower temperature than actual, the ECU may not activate the cooling fan at the correct time, allowing the engine to overheat. It can also suppress the dashboard warning light, meaning you may not be alerted until the engine is already at a dangerously high temperature. Replace a suspected faulty sensor promptly.

Do I need to drain the coolant to replace the sensor?

Not always - many coolant temperature sensors can be replaced quickly with minimal coolant loss if you work fast and have a replacement ready to thread in immediately. However on some vehicles the sensor location requires partial coolant drainage. Check the sensor position on your specific engine before starting. Always use fresh coolant when topping up after replacement.

What are the symptoms of a faulty coolant temperature sensor?

Symptoms include poor fuel economy, black smoke, engine overheating warning, incorrect temperature gauge reading, hard starting when cold, and rough idle. Fault codes P0115 to P0119 are commonly associated with coolant temperature sensor faults.

Is it safe to drive with a bad coolant temperature sensor?

A faulty coolant temperature sensor can cause the ECU to run rich fuel mixtures and prevent the cooling fan from operating correctly, risking engine overheating. Replace it promptly - it is a low-cost part that can prevent expensive engine damage.

How do I know if my coolant temperature sensor or my thermostat is faulty?

A faulty thermostat typically causes the engine to overheat or never reach operating temperature. A faulty coolant temp sensor causes incorrect gauge readings and running issues but the coolant itself may be at the correct temperature. An OBD2 scanner showing live coolant temp data helps distinguish between the two.

Are there two coolant temperature sensors on my vehicle?

Many vehicles have two sensors - one for the ECU (engine management) and one for the dashboard temperature gauge. They look similar but are not interchangeable. Check your vehicle's service manual or contact us with your vehicle details to confirm which sensor you need.

Identification
SKU	CCS37-CS830
Barcode #	9314258071967
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	CS830
Reference OEM Number	22630-44B10
Other OEM Numbers	22630-44B10, 2263044B10, 22630ED000, 22630JN00A
Related Part Numbers	CS830, CTS028, CTS-031, TCS075
Trade Part Numbers	BOSCH: 0280130129, DELPHI: TS10248
Product Specifics
Sensor Type	ENGINE COOLANT TEMPERATURE SENSOR
Type	Sensor
Features	Direct Fit
Manufacturer Warranty	1 Year
Ean	9314258071967
Make	Nissan
Thread Size	M12x1.5 mm
Spanner Size	19 mm

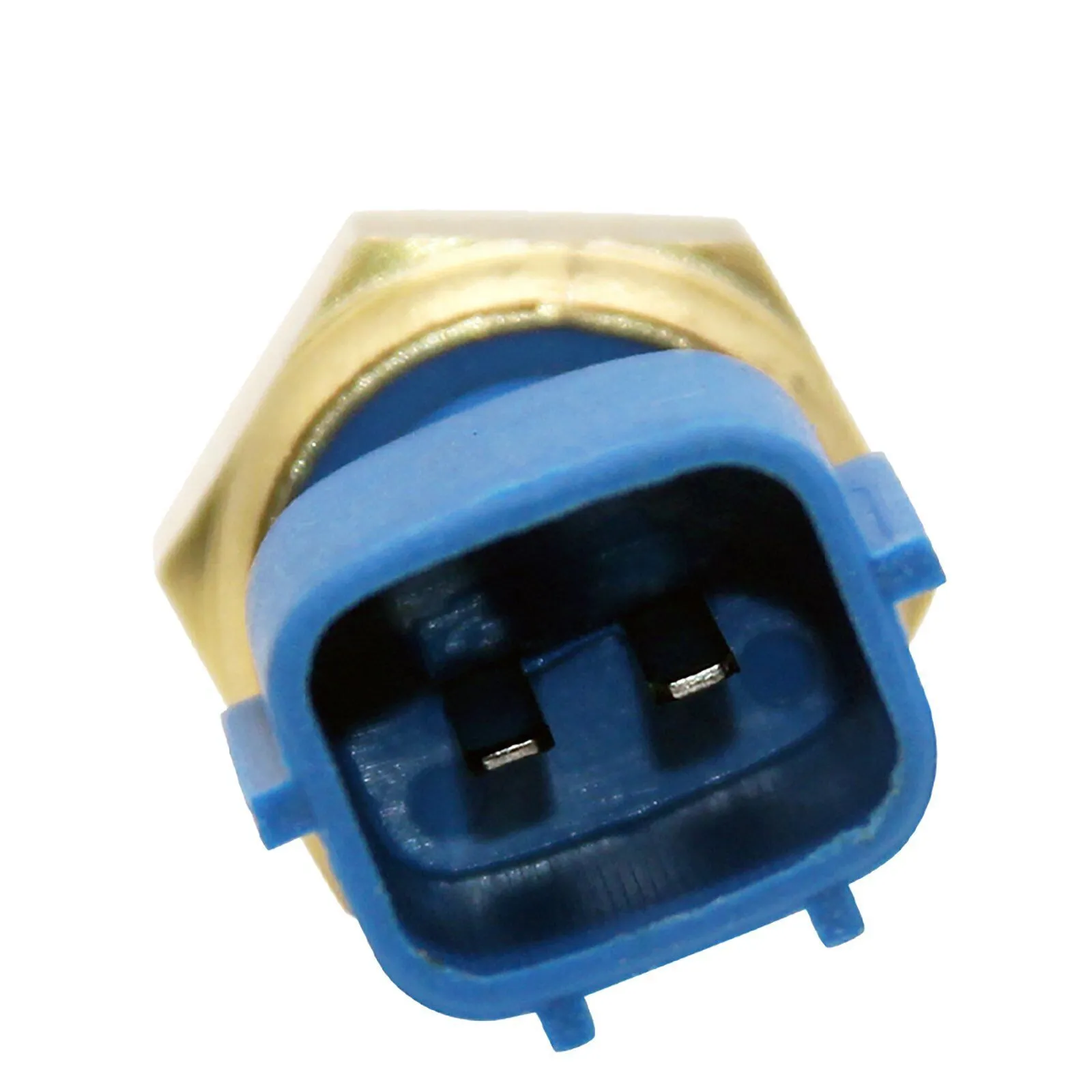

Number of pins	2 -pin connector
Connector Shape	oval
Housing Colour	Black, Blue
Other Details
Note	Always verify fitment using your vehicle's OEM part number.
Unit Of Measure	ea
