DSC Brake Pressure Sensor for BMW 3 5 6 Series E46 E60 E63 Z3 Z4
OEM Spec Fit Replaces 34521164458
BRAND NEW *OEM Quality* DSC brake master cylinder pressure sensor to suit BMW 3, 5 and 6 Series, Z3 and Z4.
ABS, DSC and brake warning lights all on at once is stressful, and a failed master cylinder pressure sensor is one of the usual causes. This direct fit replacement gets your stability control working again and goes out same day before 12pm with express delivery Australia-wide.
TO SUIT
- BMW 3 Series E46 sedan, touring, coupe, convertible and compact - 1997 to 2006
- BMW 5 Series E60 sedan and E61 touring - 2002 to 2010
- BMW 6 Series E63 coupe and E64 convertible - 2003 to 2009
- BMW Z3 E36 roadster and coupe - 1996 to 2003
- BMW Z4 E85 roadster - 2003 to 2008
FITMENT CHECK
BMW used more than one DSC pressure sensor across these ranges, and later-build 5 and 6 Series can carry a different unit. Check the number on your old sensor matches 34521164458 or 1164458 before ordering. The full vehicle list is in the compatibility table.
OEM PART NUMBERS
- BMW: 34521164458
- BMW: 34 52 1 164 458
- BMW: 1164458
OTHER PART NUMBERS
- V20-72-0301
- 504740
PACKAGE INCLUDES

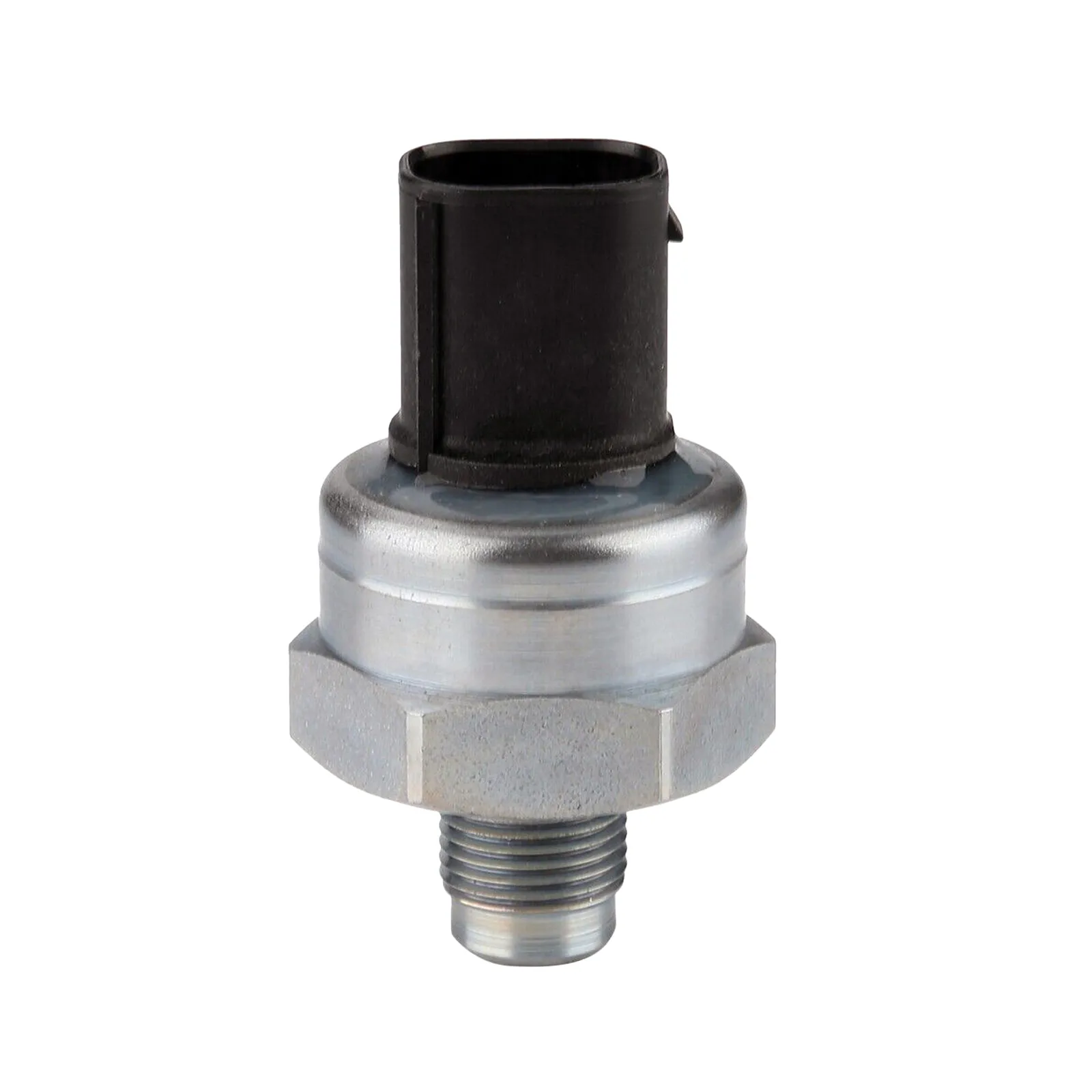

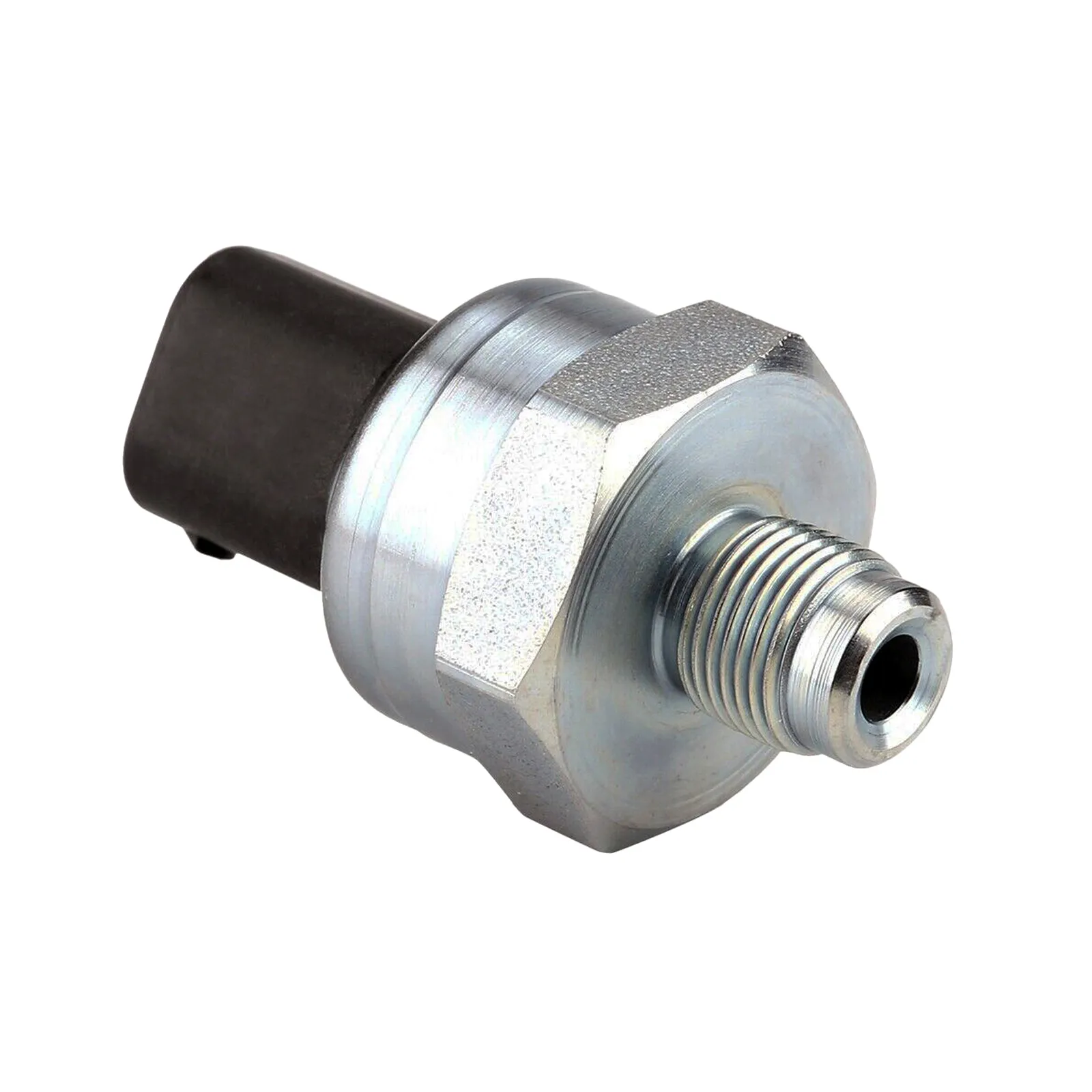

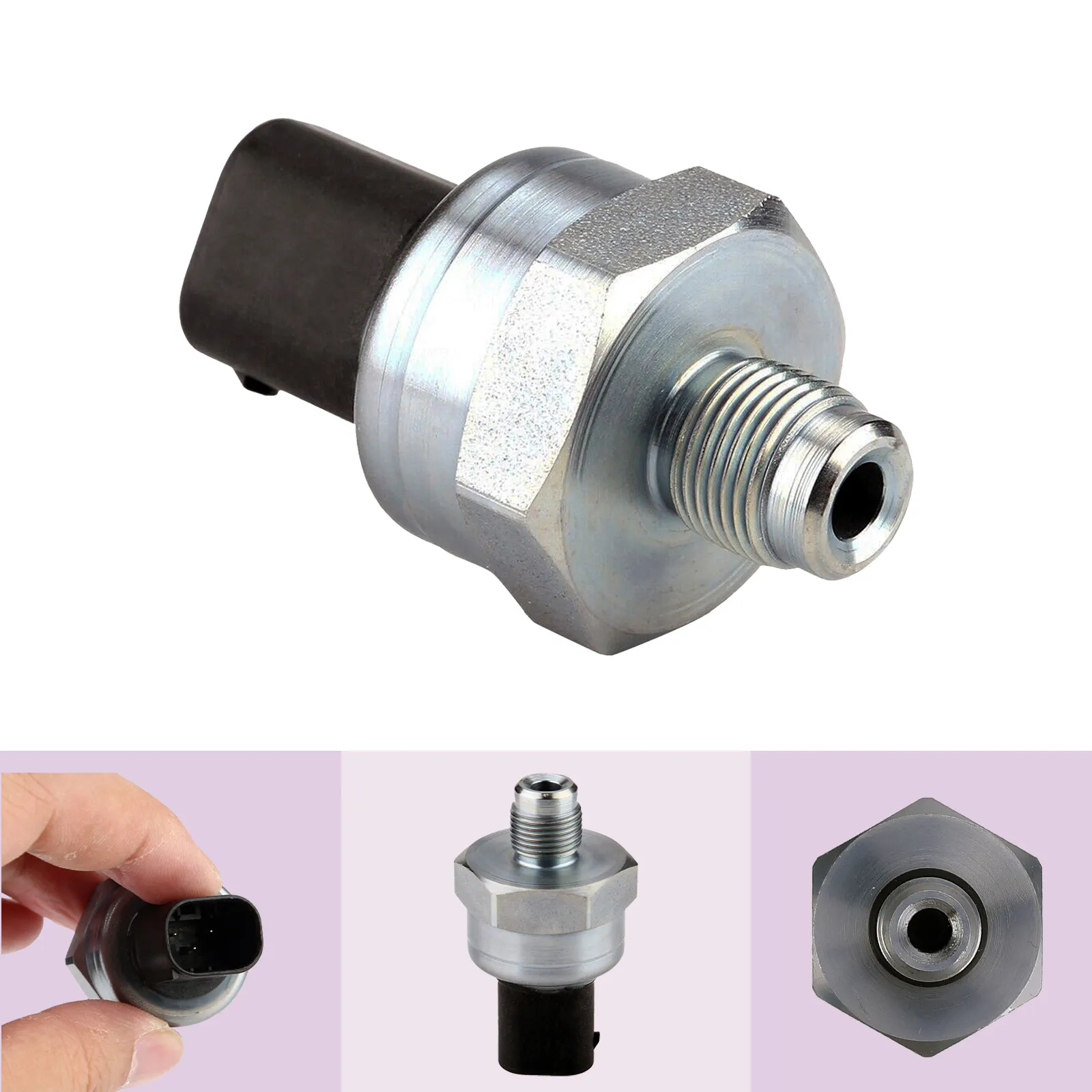

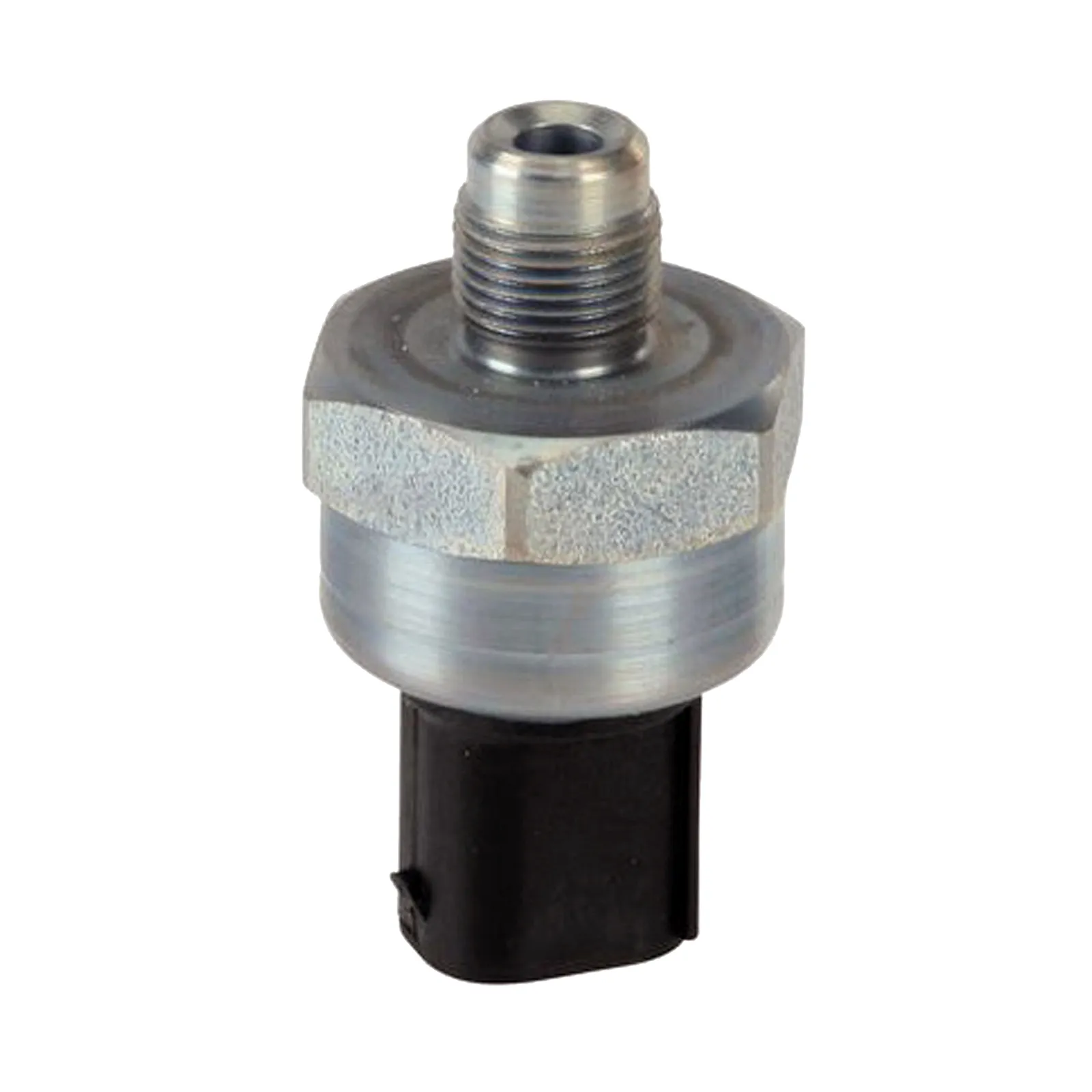

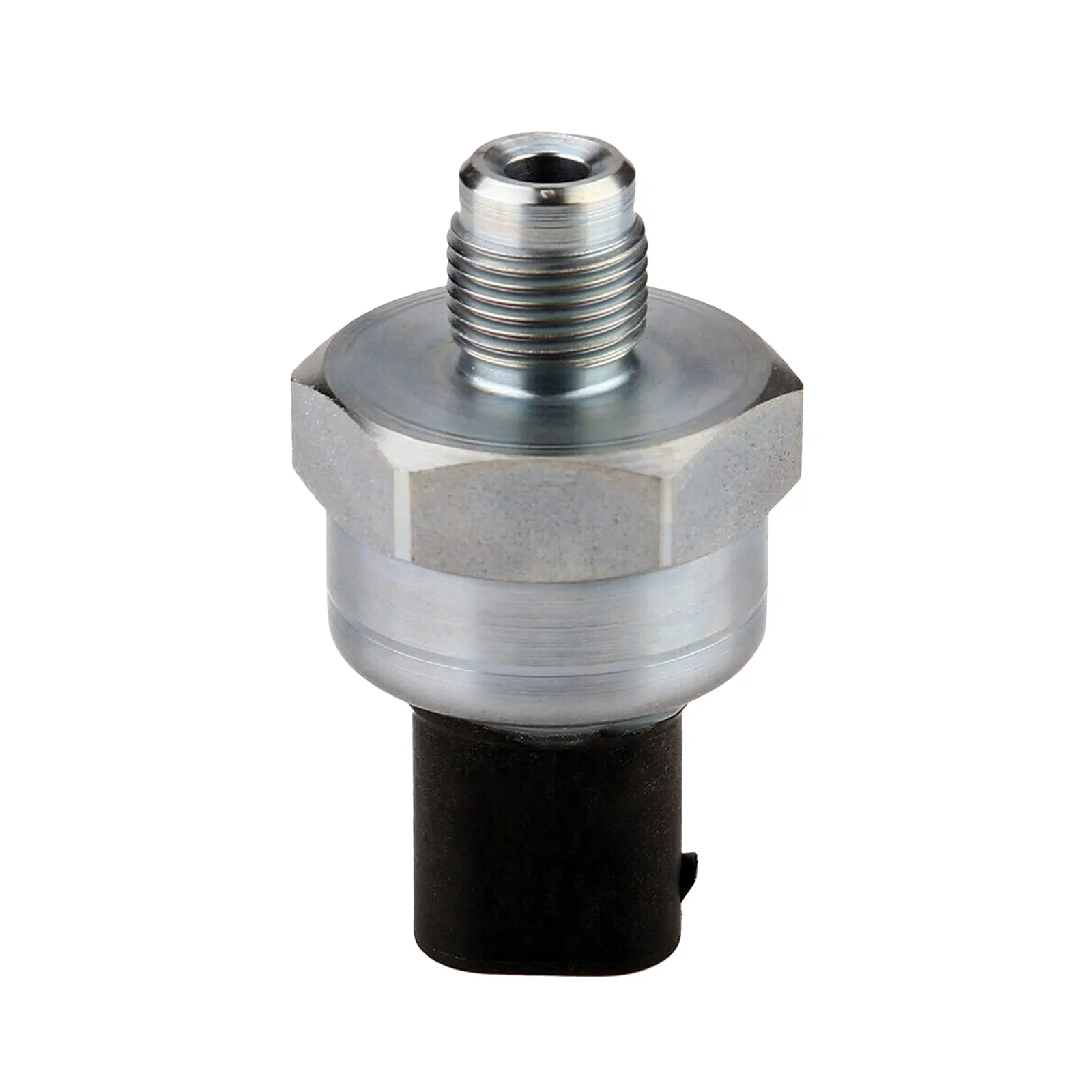

1 x DSC brake master cylinder pressure sensor with 3-pin connector.
ABOUT THIS SENSOR

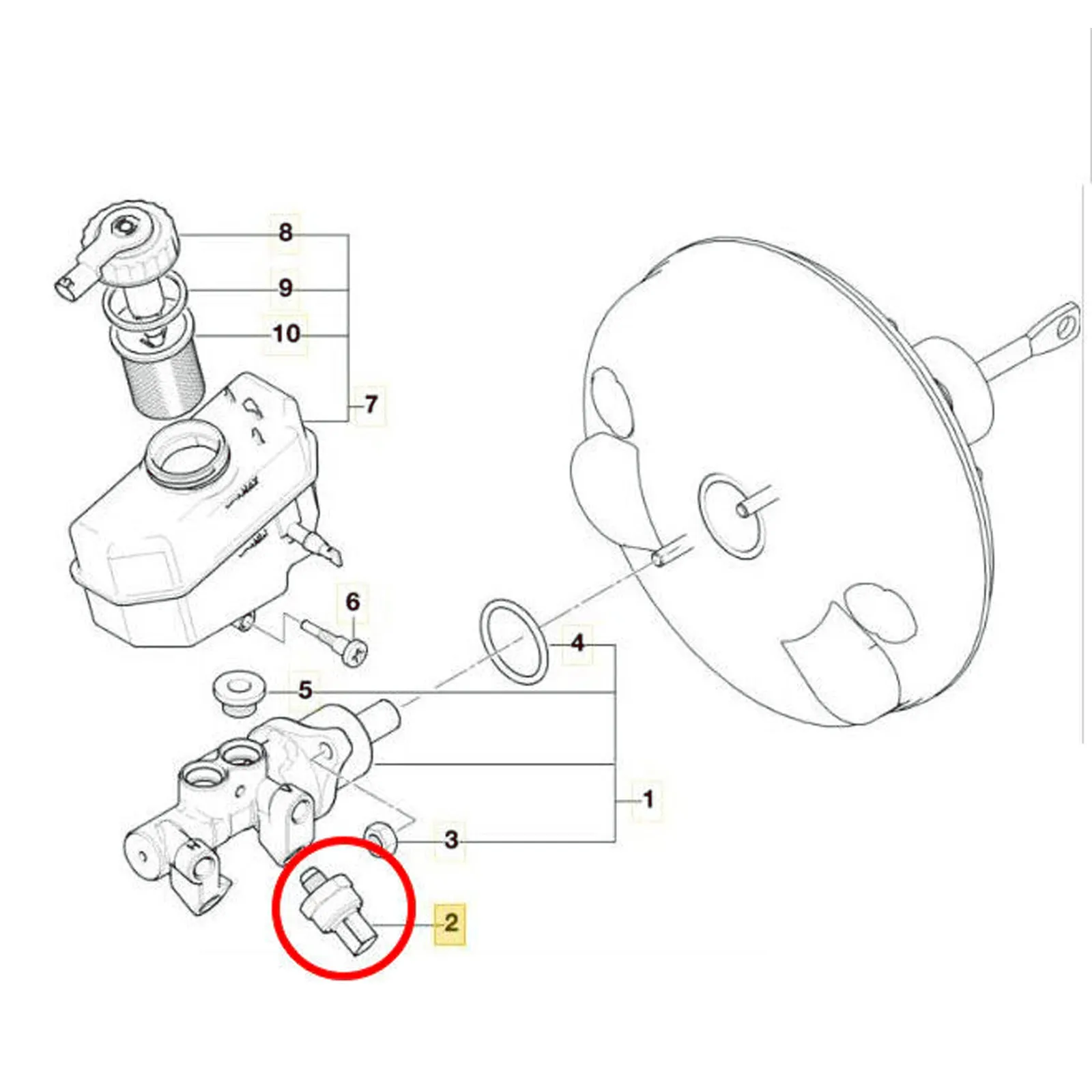

This sensor threads into the brake master cylinder and reports how hard the driver is pressing the brake pedal to the DSC module. The module uses that reading for ABS, Dynamic Stability Control, brake assist and cornering brake control.
When the signal drops out or reads implausibly the DSC module switches the system off as a safety measure, so you lose stability control and brake assist until the sensor is replaced and the fault is cleared.
COMMON SYMPTOMS OF FAILURE
- ABS, DSC and brake warning lights on together
- DSC pressure sensor fault stored in the DSC module
- Stability control and brake assist switched off
- Warning lights that come and go over bumps or in wet weather
- Hill start or brake standby functions not working on later models
- [2001 - 2005] BMW 3 SERIES E46 COMPACT 316ti (1.8L 4cyl petrol N46 B18 A / N42 B18 A 85kW)
- [2002 - 2004] BMW 3 SERIES E46 COMPACT 318ti (2.0L 4cyl petrol N42 B20 A / N46 B20 A 105kW)
- [2002 - 2004] BMW 3 SERIES E46 COMPACT 325ti (2.5L 6cyl petrol M54 B25 141kW)
- [2000 - 2000] BMW 3 SERIES E46 CONVERTIBLE 323Ci (2.5L 6cyl petrol M52 B25 125kW)
- [2000 - 2006] BMW 3 SERIES E46 CONVERTIBLE 325Ci (2.5L 6cyl petrol M54 B25 141kW)
- [2000 - 2006] BMW 3 SERIES E46 CONVERTIBLE 330Ci (3.0L 6cyl petrol M54 B30 170kW)
- [2001 - 2006] BMW 3 SERIES E46 CONVERTIBLE M3 (3.2L 6cyl petrol S54 B32 252kW)
- [1999 - 2001] BMW 3 SERIES E46 COUPE 318Ci (1.9L 4cyl petrol M43 B19 87kW)
- [2001 - 2004] BMW 3 SERIES E46 COUPE 318Ci (2.0L 4cyl petrol N42 B20 A 105kW)
- [2004 - 2006] BMW 3 SERIES E46 COUPE 318Ci (2.0L 4cyl petrol N46 B20 A / N46 B20 C 110kW)
- [2000 - 2006] BMW 3 SERIES E46 COUPE 320Ci (2.2L 6cyl petrol M54 B22 125kW)
- [1999 - 2000] BMW 3 SERIES E46 COUPE 323Ci (2.5L 6cyl petrol M52 B25 125kW)
- [2000 - 2006] BMW 3 SERIES E46 COUPE 325Ci (2.5L 6cyl petrol M54 B25 141kW)
- [1998 - 2006] BMW 3 SERIES E46 COUPE 328Ci (2.8L 6cyl petrol M52 B28 142kW)
- [2000 - 2006] BMW 3 SERIES E46 COUPE 330Ci (3.0L 6cyl petrol M54 B30 170kW)
- [2000 - 2006] BMW 3 SERIES E46 COUPE M3 (3.2L 6cyl petrol S54 B32 252kW)
- [2003 - 2003] BMW 3 SERIES E46 COUPE M3 CSL (3.2L 6cyl petrol S54 B32 265kW)
- [1998 - 2002] BMW 3 SERIES E46 SEDAN 316i (1.9L 4cyl petrol M43 B19 77kW)
- [1997 - 2001] BMW 3 SERIES E46 SEDAN 318i (1.9L 4cyl petrol M43 B19 87kW)
- [2001 - 2005] BMW 3 SERIES E46 SEDAN 318i (2.0L 4cyl petrol N42 B20 A / N46 B20 A / N46 B20 C 105kW)
- [2001 - 2005] BMW 3 SERIES E46 SEDAN 320d (2.0L 4cyl diesel M47 D20 110kW)
- [1998 - 2000] BMW 3 SERIES E46 SEDAN 320i (2.0L 6cyl petrol M52 B20 110kW)
- [2000 - 2005] BMW 3 SERIES E46 SEDAN 320i (2.2L 6cyl petrol M54 B22 125kW)
- [1998 - 2000] BMW 3 SERIES E46 SEDAN 323i (2.5L 6cyl petrol M52 B25 125kW)
- [2000 - 2005] BMW 3 SERIES E46 SEDAN 325i (2.5L 6cyl petrol M54 B25 141kW)
- [1998 - 2005] BMW 3 SERIES E46 SEDAN 328i (2.8L 6cyl petrol M52 B28 142kW)
- [1999 - 2005] BMW 3 SERIES E46 SEDAN 330d (3.0L 6cyl diesel M57 D30 135kW)
- [2003 - 2005] BMW 3 SERIES E46 SEDAN 330d (3.0L 6cyl diesel M57 D30 150kW)
- [2000 - 2005] BMW 3 SERIES E46 SEDAN 330i (3.0L 6cyl petrol M54 B30 170kW)
- [1999 - 2001] BMW 3 SERIES E46 TOURING 318i (1.9L 4cyl petrol M43 B19 87kW)
- [2000 - 2005] BMW 3 SERIES E46 TOURING 320i (2.2L 6cyl petrol M54 B22 125kW)
- [2000 - 2005] BMW 3 SERIES E46 TOURING 330i (3.0L 6cyl petrol M54 B30 170kW)
- [2007 - 2009] BMW 5 SERIES E60 SEDAN 520d (2.0L 4cyl diesel N47 D20 A / N47 D20 C 130kW)
- [2007 - 2009] BMW 5 SERIES E60 SEDAN 520i (2.0L 4cyl petrol N43 B20 A 125kW)
- [2007 - 2009] BMW 5 SERIES E60 SEDAN 523i (2.5L 6cyl petrol N52 B25 A / N52 B25 BE 140kW)
- [2007 - 2010] BMW 5 SERIES E60 SEDAN 523i (2.5L 6cyl petrol N53 B25 A 140kW)
- [2003 - 2005] BMW 5 SERIES E60 SEDAN 525i (2.5L 6cyl petrol M54 B25 141kW)
- [2005 - 2009] BMW 5 SERIES E60 SEDAN 525i (2.5L 6cyl petrol N52 B25 A / N52 B25 B / N52 B25 BF 160kW)
- [2002 - 2005] BMW 5 SERIES E60 SEDAN 530d (3.0L 6cyl diesel M57 D30 160kW)
- [2005 - 2007] BMW 5 SERIES E60 SEDAN 530d (3.0L 6cyl diesel M57 D30 170kW)
- [2007 - 2009] BMW 5 SERIES E60 SEDAN 530d (3.0L 6cyl diesel M57 D30 173kW)
- [2003 - 2005] BMW 5 SERIES E60 SEDAN 530i (3.0L 6cyl petrol M54 B30 170kW)
- [2005 - 2007] BMW 5 SERIES E60 SEDAN 530i (3.0L 6cyl petrol N52 B30 BF / N52 B30 A 190kW)
- [2006 - 2006] BMW 5 SERIES E60 SEDAN 530i (3.0L 6cyl petrol N52 B30 A / N52 B30 B / N52 B30 BF 200kW)
- [2007 - 2009] BMW 5 SERIES E60 SEDAN 530i (3.0L 6cyl petrol N52 B30 BF / N52 B30 A 200kW)
- [2007 - 2009] BMW 5 SERIES E60 SEDAN 530i (3.0L 6cyl petrol N53 B30 A 200kW)
- [2007 - 2009] BMW 5 SERIES E60 SEDAN 540i (4.0L 8cyl petrol N62 B40 A 225kW)
- [2003 - 2005] BMW 5 SERIES E60 SEDAN 545i (4.4L 8cyl petrol N62 B44 A 245kW)
- [2005 - 2009] BMW 5 SERIES E60 SEDAN 550i (4.8L 8cyl petrol N62 B48 B 270kW)
- [2005 - 2009] BMW 5 SERIES E60 SEDAN M5 (5.0L 10cyl petrol S85 B50 A 373kW)
- [2004 - 2007] BMW 5 SERIES E61 TOURING 530i (3.0L 6cyl petrol N52 B30 BF / N52 B30 A 190kW)
- [2006 - 2010] BMW 5 SERIES E61 TOURING 530i (3.0L 6cyl petrol N52 B30 A 200kW)
- [2007 - 2010] BMW 5 SERIES E61 TOURING 530i (3.0L 6cyl petrol N53 B30 A 200kW)
- [2003 - 2009] BMW 6 SERIES E63 COUPE 645Ci (4.4L 8cyl petrol N62 B44 A 245kW)
- [2005 - 2009] BMW 6 SERIES E63 COUPE 650i (4.8L 8cyl petrol N62 B48 B 270kW)
- [2005 - 2009] BMW 6 SERIES E63 COUPE M (5.0L 10cyl petrol S85 B50 A 373kW)
- [2004 - 2009] BMW 6 SERIES E64 CONVERTIBLE 645Ci (4.4L 8cyl petrol N62 B44 A 245kW)
- [2005 - 2009] BMW 6 SERIES E64 CONVERTIBLE 650i (4.8L 8cyl petrol N62 B48 B 270kW)
- [2006 - 2009] BMW 6 SERIES E64 CONVERTIBLE M6 (5.0L 10cyl petrol S85 B50 A 373kW)
- [1998 - 2000] BMW Z3 E36 COUPE 2.8i (2.8L 6cyl petrol M52 B28 142kW)
- [1998 - 2001] BMW Z3 E36 COUPE M (3.2L 6cyl petrol S50 B32 236kW)
- [1997 - 1999] BMW Z3 E36 ROADSTER 1.9i (1.9L 4cyl petrol M44 B19 103kW)
- [1999 - 2000] BMW Z3 E36 ROADSTER 2.0i (2.0L 6cyl petrol M52 B20 110kW)
- [2000 - 2002] BMW Z3 E36 ROADSTER 2.2i (2.2L 6cyl petrol M54 B22 125kW)
- [1996 - 2000] BMW Z3 E36 ROADSTER 2.8i (2.8L 6cyl petrol M52 B28 142kW)
- [2000 - 2003] BMW Z3 E36 ROADSTER 3.0i (3.0L 6cyl petrol M54 B30 170kW)
- [1997 - 2000] BMW Z3 E36 ROADSTER M 3.2 (3.2L 6cyl petrol S50 B32 236kW)
- [2003 - 2006] BMW Z4 E85 ROADSTER 2.5i (2.5L 6cyl petrol M54 B25 141kW)
- [2006 - 2008] BMW Z4 E85 ROADSTER 2.5si (2.5L 6cyl petrol N52 B25 A 160kW)
- [2003 - 2006] BMW Z4 E85 ROADSTER 3.0i (3.0L 6cyl petrol M54 B30 170kW)
- [2006 - 2008] BMW Z4 E85 ROADSTER 3.0si (3.0L 6cyl petrol N52 B30 BF / N52 B30 A 195kW)
- [2006 - 2006] BMW Z4 E85 ROADSTER M (3.2L 6cyl petrol S54 B32 252kW)
What is the difference between an oil pressure sensor and an oil pressure switch?
An oil pressure switch is a simple on/off device that triggers the oil pressure warning light when pressure drops below a fixed threshold. It provides no information about the actual pressure level - just whether it is above or below the activation point. An oil pressure sensor provides a continuous analogue signal to the ECU and instrument cluster, allowing the dashboard to display an actual pressure reading and giving the ECU real-time data for engine management decisions. Many vehicles use both - a switch for the warning light and a sensor for the gauge.
What are the symptoms of a faulty oil pressure sensor or switch?
The most common symptom is a false oil pressure warning light on the dashboard despite the engine having correct oil level and pressure. The light may be on constantly or may flicker particularly at idle when oil pressure is naturally at its lowest. An oil leak from around the sensor or switch body is also a common sign of failure. On vehicles with a pressure gauge rather than just a warning light, a faulty sensor may cause the gauge to read zero, maximum, or erratically.
How do I confirm if the oil pressure warning is a faulty sensor or actual low pressure?
Never assume a warning light is a faulty sensor without checking first. Turn the engine off immediately when the oil pressure light comes on and check the oil level on the dipstick. If oil level is correct, you can verify actual oil pressure by fitting a mechanical oil pressure gauge to the sending unit port and running the engine briefly. A reading within the normal range (typically 200 to 500 kPa at operating temperature and idle) confirms the warning is from a faulty sensor rather than actual low pressure.
Is it safe to continue driving with the oil pressure warning light on?
No - stop the engine as soon as it is safe to do so. An actual low oil pressure condition will cause catastrophic engine damage within minutes of continued running. Even if the fault turns out to be a faulty sensor, you cannot confirm this while driving. Always treat an oil pressure warning light as a critical fault requiring immediate attention until proven otherwise.
How difficult is it to replace an oil pressure sensor or switch?
Most oil pressure sensors and switches are threaded directly into the engine block or oil filter housing and can be replaced with basic tools - a socket or spanner of the correct size and some thread sealant. Allow the engine to cool before removal to avoid burns from hot oil. Have a rag ready to catch the small amount of oil that will spill when the old sensor is removed. The job typically takes 15 to 30 minutes on most vehicles.
Will a faulty oil pressure sensor damage the engine?
The sensor itself does not affect oil pressure or lubrication - it only monitors and reports pressure. A faulty sensor that gives a false low reading may cause unnecessary anxiety but will not damage the engine. However if the sensor gives a false normal reading when actual pressure is low, it will prevent the warning light from alerting you to a real low pressure condition that could cause serious engine damage. This is why verifying actual oil pressure is important before dismissing an oil pressure fault as a sensor issue.
| Identification | |
|---|---|
| Brand | Aftermarket OEM Replacement |
| Part Numbers | |
| Part Number | SDSC100 |
| Reference OEM Number | 34521164458 |
| Other OEM Numbers | 34521164458, 1164458 |
| Related Part Numbers | 55CP09-03 DSC100 |
| Interchange Part Numbers | V20-72-0301, 504740 |
| Product Specifics | |
| Product Type | SENSOR |
| Sensor Type | DSC Brake Master Cylinder Pressure Sensor |
| Fitting Position | BRAKE MASTER CYLINDER |

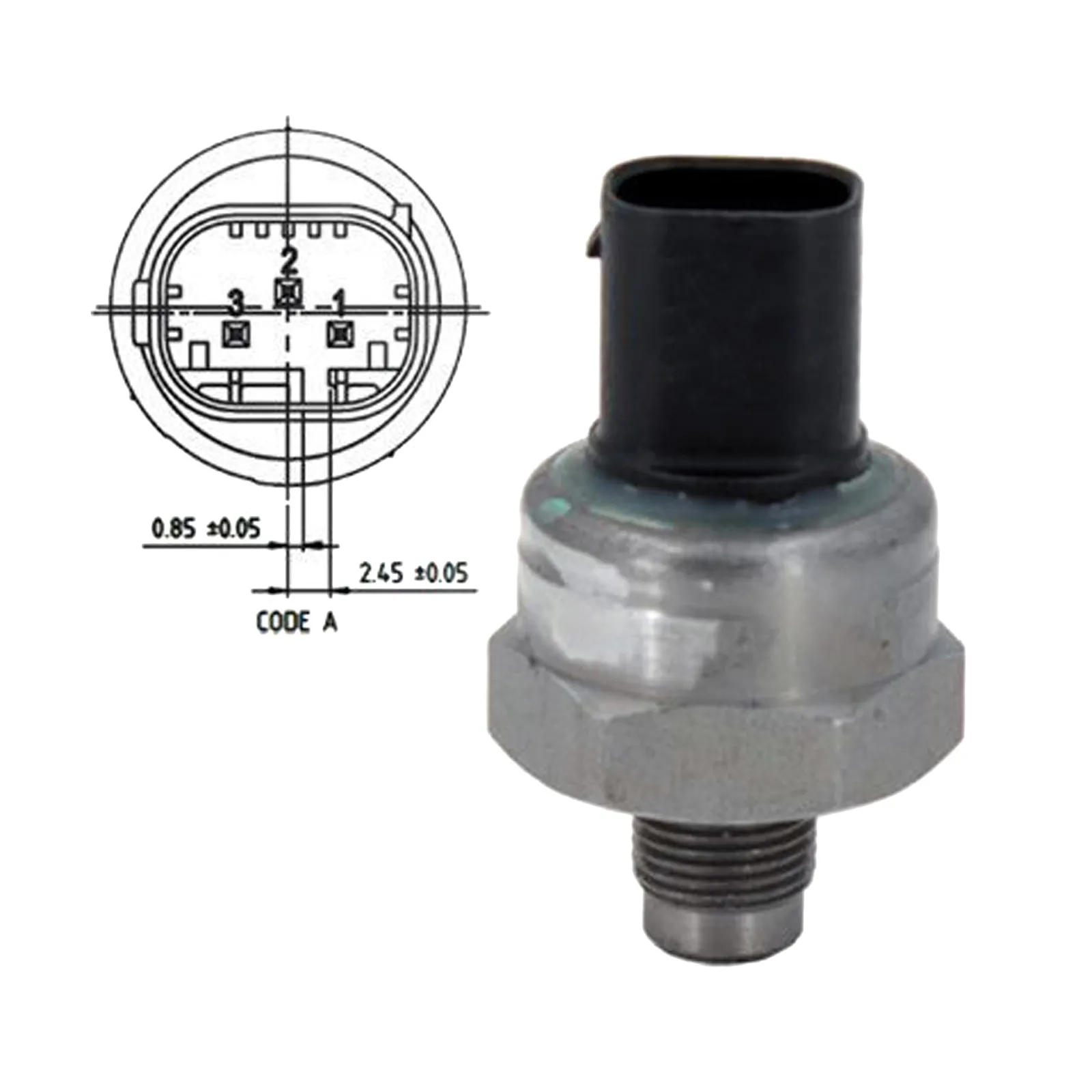

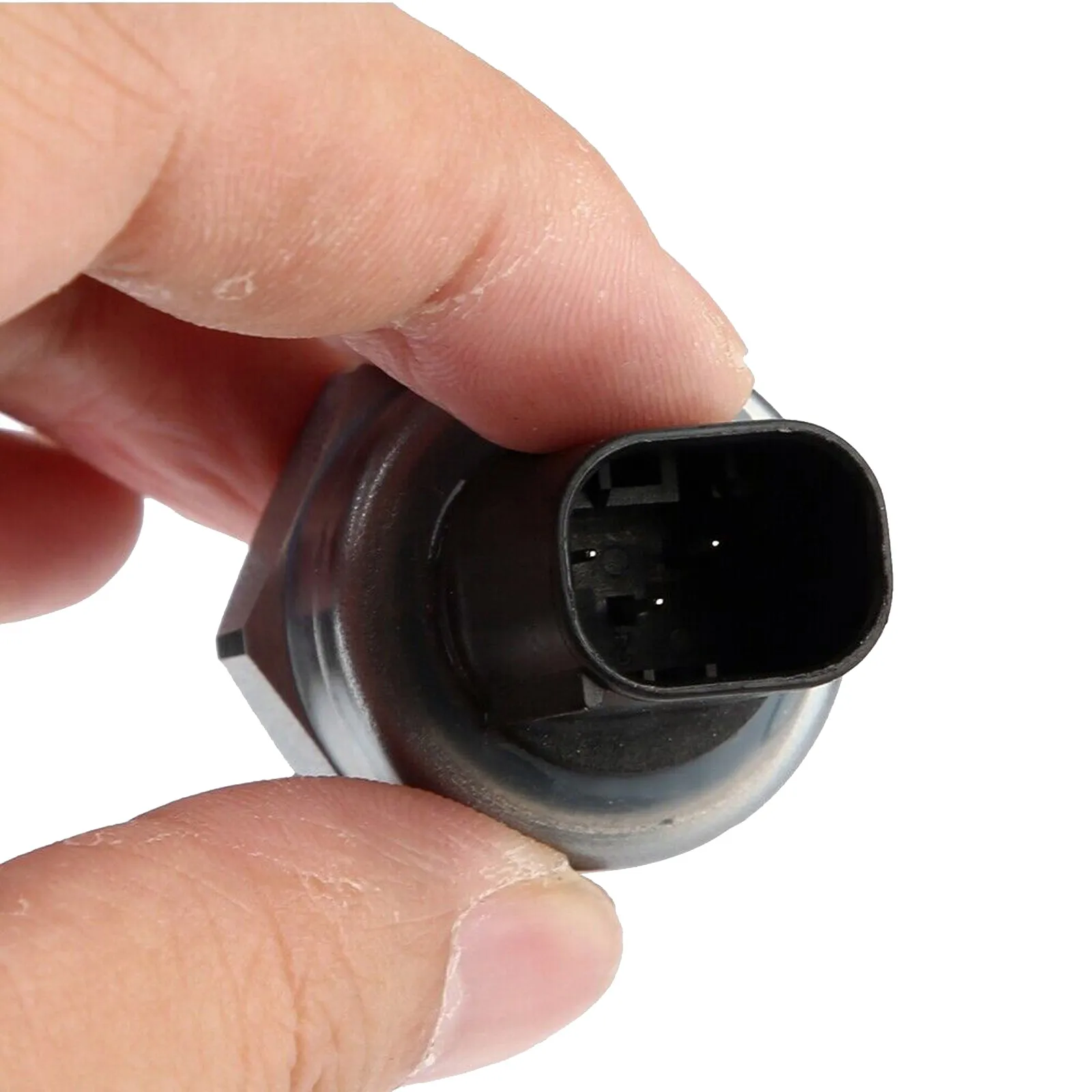

| Number of pins | 3-Pin |
| Connector Shape | Angular |
| Housing Colour | Black |
| Number of mounting bores | 2 |
| Compatible Makes | BMW |
| Fitment Type | Direct Replacement |
| Other Details | |
| Note | Late E60 E61 E63 E64: confirm old sensor reads 34521164458 |
