BRAND NEW *OEM Quality* engine coolant temperature sensor to suit the full range of Suzuki petrol models covered by this part number, including Baleno, Carry, Grand Vitara, Jimny, Vitara, APV, Wagon R+ and X-90.

A failing coolant sensor sends the wrong signal to the ECU, causing rough running, poor fuel economy or a cooling fan stuck on or off. Same-day dispatch from Cranbourne VIC.

TO SUIT

Suzuki APV GD416 [2003 - 2017]
Suzuki Baleno SY416 SY418 [1995 - 2002]
Suzuki Carry DA32 [1999 - 2005]
Suzuki Grand Vitara SQ JA JB series [1998 - 2009]
Suzuki Jimny SN413 [1998 - 2017]
Suzuki Vitara ET TA SV series [1994 - 2000]
Suzuki Wagon R+ EM [1997 - 1999]
Suzuki X-90 SZ416 [1996 - 1998]

OEM PART NUMBERS

13650-50G00
13650-50G01
13650-50G01-000

OTHER PART NUMBERS

211-1051

PACKAGE INCLUDES

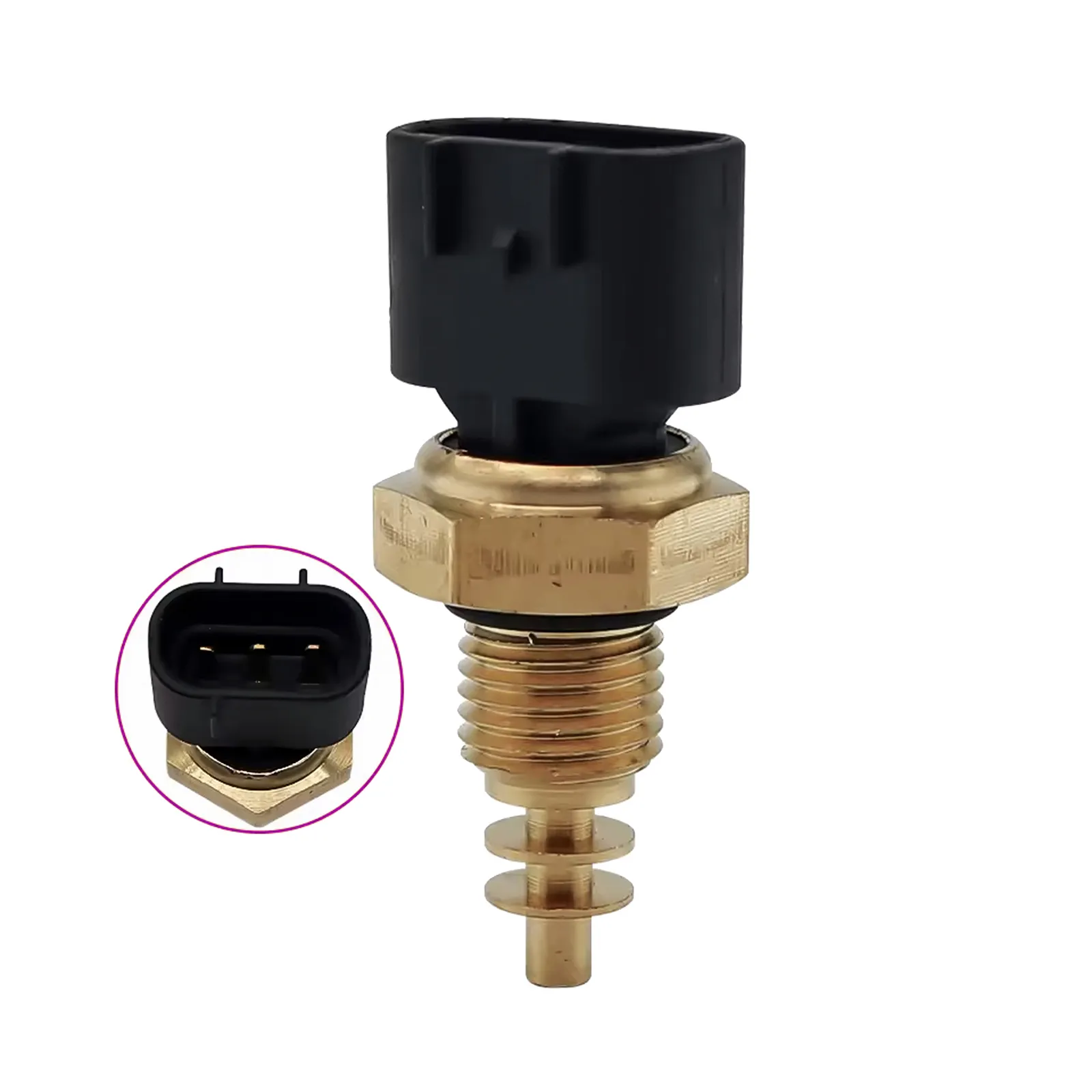

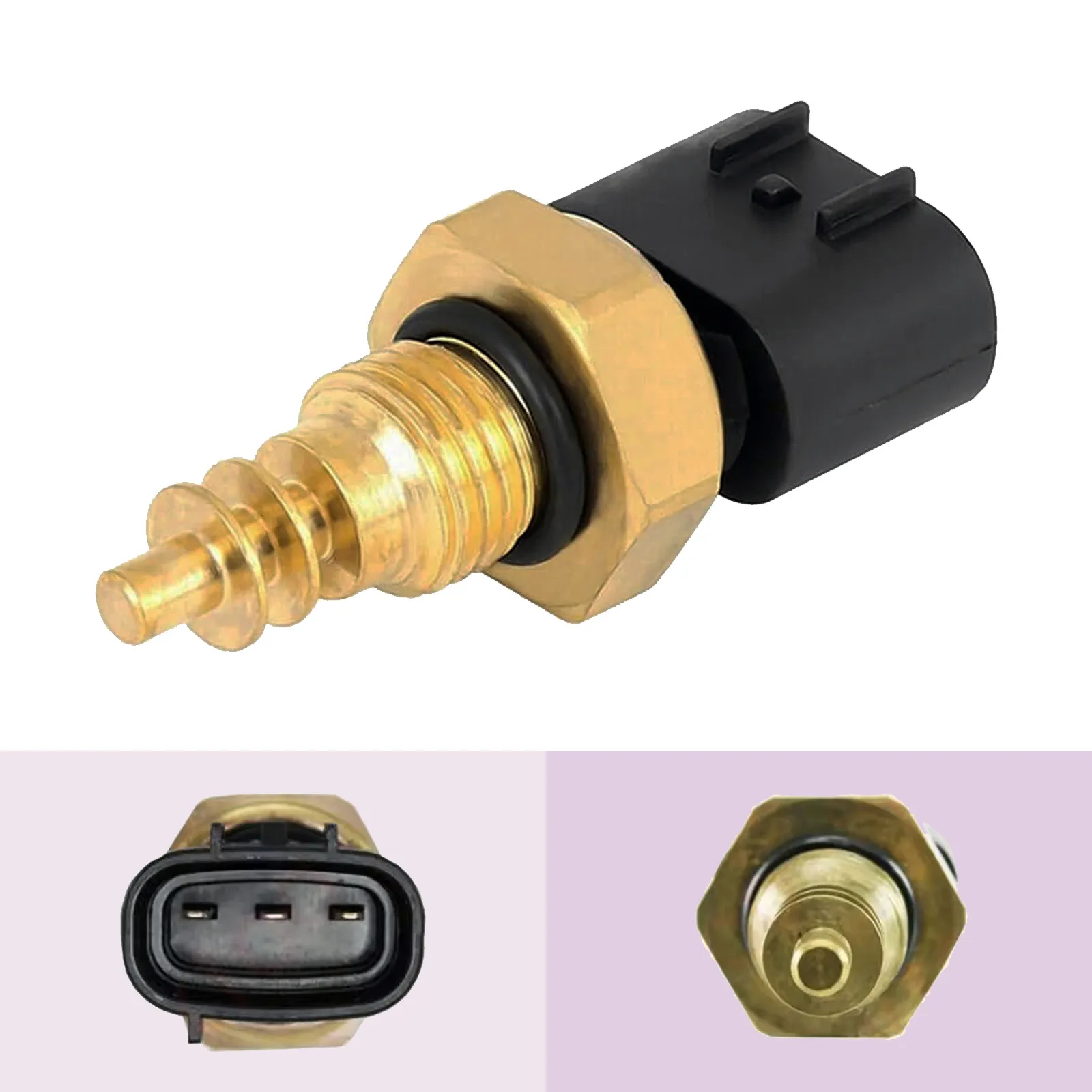

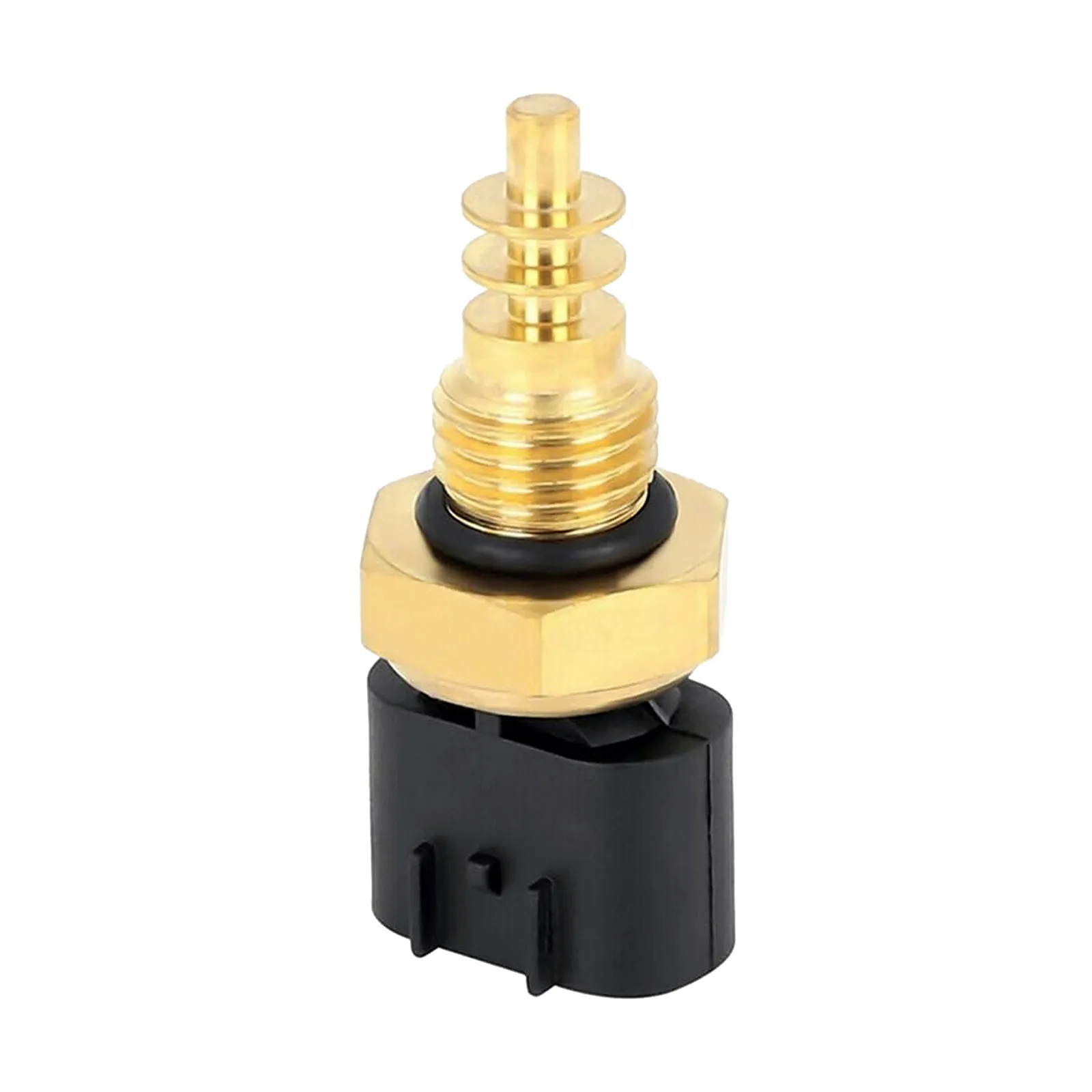

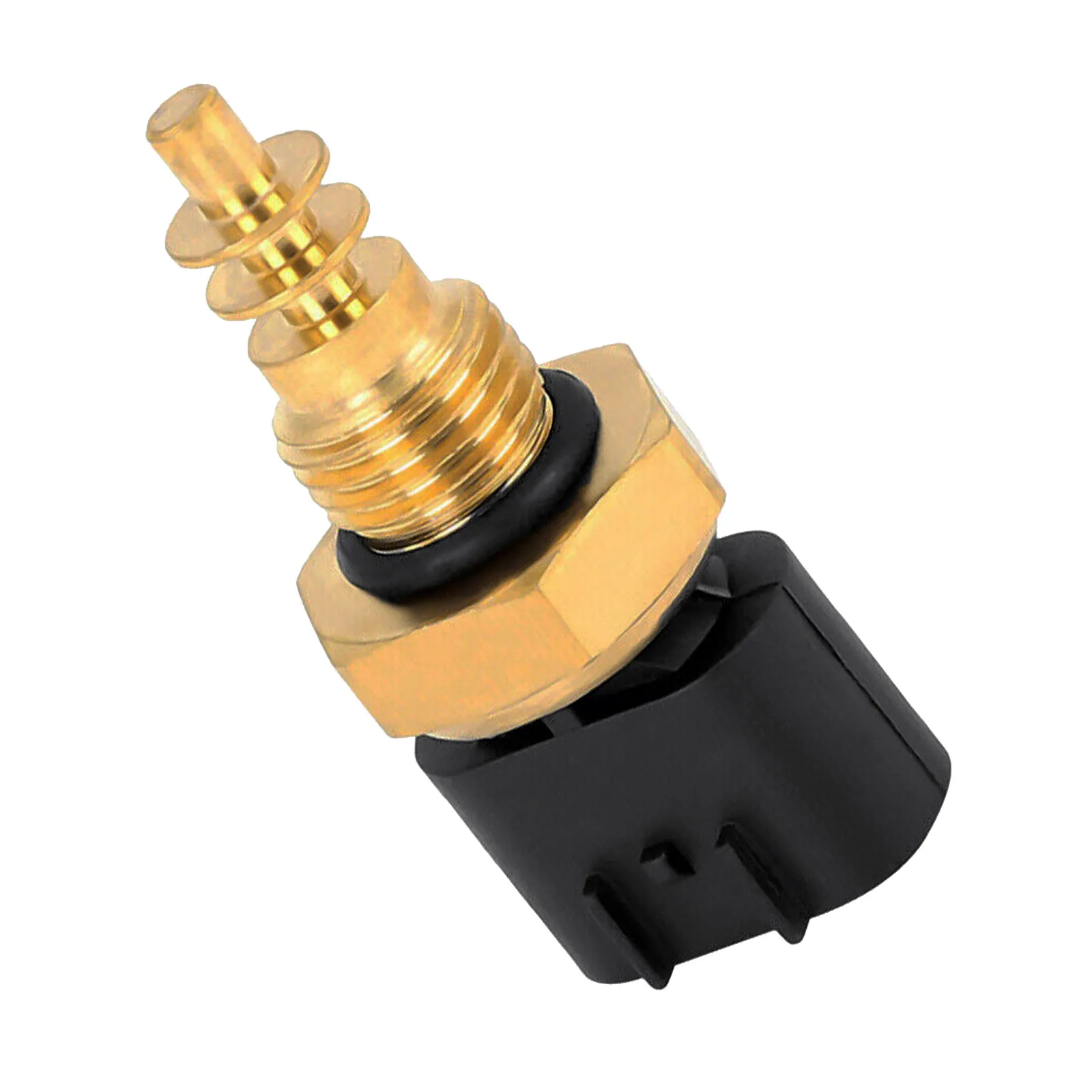

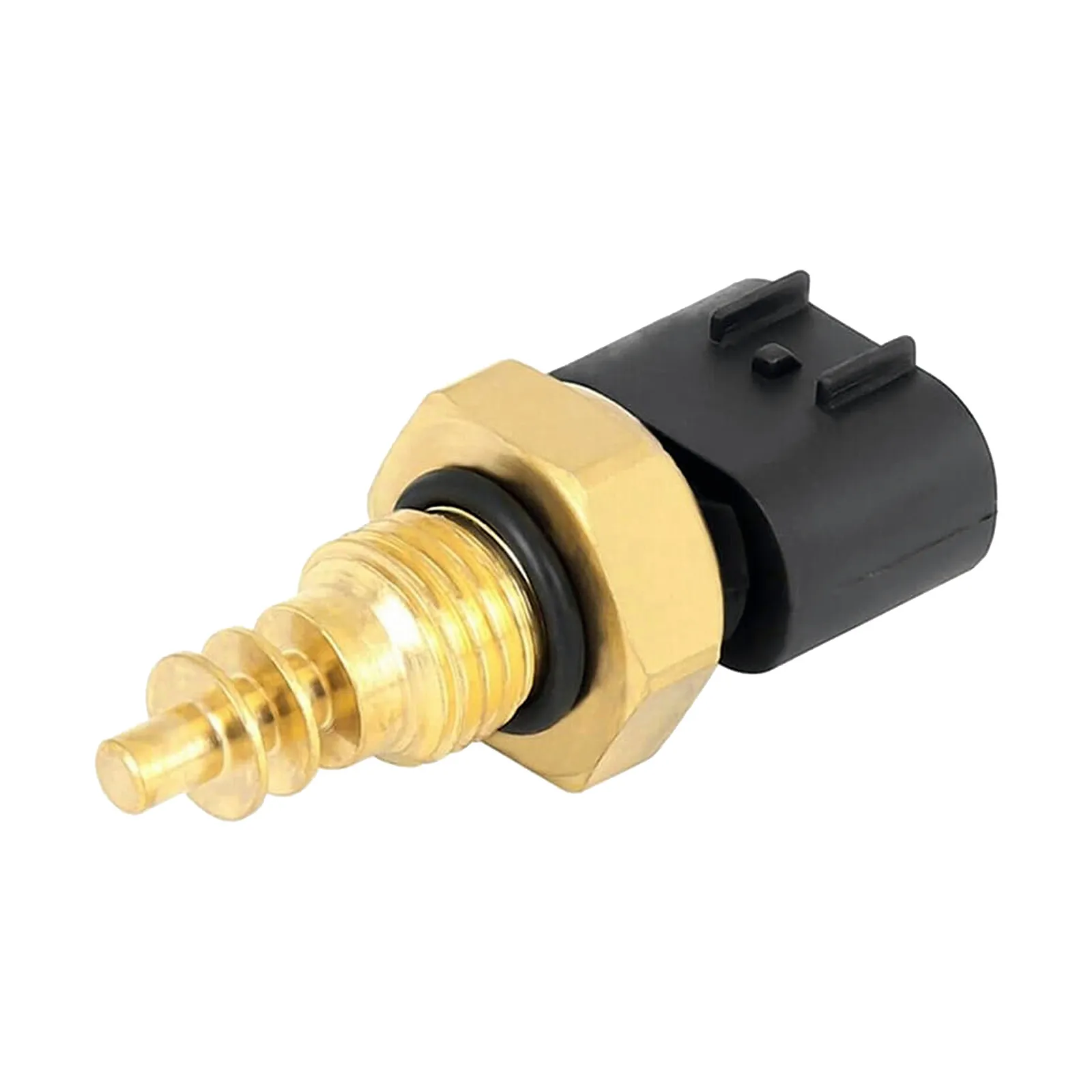

1 x OEM Quality engine coolant temperature sensor with 3-pin oval connector and seal ring.

ABOUT THIS SENSOR

The coolant temperature sensor reads engine coolant temperature and reports it to the ECU, which uses that reading to control fuel mixture, ignition timing and cooling fan operation across this whole Suzuki range, from the compact Baleno through to the Grand Vitara V6.

A worn or drifting sensor is one of the more common causes of an unexplained check engine light on these older Suzuki engines, since the factory sensor hardens and reads inaccurately with age.

COMMON SYMPTOMS OF FAILURE

Check engine light with fault code P0116, P0117 or P0118
Cooling fan running constantly or not switching on at all
Poor fuel economy or a rich-running engine
Difficulty starting when the engine is cold
Inaccurate temperature gauge reading

[2003 - 2017] SUZUKI APV GC,GD VAN (GD416) 1.6 16V (1.6L 4cyl G16A (16V) 68kW)
[1995 - 2002] SUZUKI BALENO SY416 HATCHBACK (EG) i 16V (1.6L 4cyl G16B 72kW)
[1995 - 2001] SUZUKI BALENO SY416 SEDAN (EG) i 16V (1.6L 4cyl G16B 72kW)
[1996 - 2001] SUZUKI BALENO SY416 WAGON (EG) i 16V (1.6L 4cyl G16B 72kW)
[1996 - 2001] SUZUKI BALENO SY418 HATCHBACK (EG) GTX (1.8L 4cyl J18A 89kW)
[1996 - 2001] SUZUKI BALENO SY418 SEDAN (EG) GTX (1.8L 4cyl J18A 89kW)
[1996 - 2001] SUZUKI BALENO SY418 WAGON (EG) i 16V (1.8L 4cyl J18A 89kW)
[1999 - 2005] SUZUKI CARRY DA32V VAN (FD) 16V (1.3L 4cyl G13BB 58kW)
[2000 - 2005] SUZUKI CARRY DA32T PLATFORM/CHASSIS (FD) 4x4 (1.3L 4cyl G13BB 58kW)
[1998 - 2005] SUZUKI GRAND VITARA SQ416 SUV (FT,HT) 1.6 4x4 (1.6L 4cyl G16B 69kW)
[1998 - 2003] SUZUKI GRAND VITARA SQ416 OPEN OFF-ROAD (GT) 1.6 4x4 (1.6L 4cyl G16B 69kW)
[1998 - 2005] SUZUKI GRAND VITARA SQ420,TA52,TL52 SUV (FT,HT) 2.0 4x4 (2.0L 4cyl J20A 94kW)
[1998 - 2003] SUZUKI GRAND VITARA SQ420 OPEN OFF-ROAD (GT) 2.0 4x4 (2.0L 4cyl J20A 94kW)
[1998 - 2004] SUZUKI GRAND VITARA SQ625,TD62 SUV (FT,HT) V6 24V 4x4 (2.5L V6 H25A 106kW)
[2001 - 2005] SUZUKI GRAND VITARA SQ625 SUV (FT,HT) V6 24V 4x4 (2.5L V6 H25A 116kW)
[2001 - 2003] SUZUKI GRAND VITARA JA627 SUV (FT,HT) 2.7 4x4 (2.7L V6 H27A 130kW)
[2003 - 2008] SUZUKI GRAND VITARA JA627,TX92 SUV (FT,HT) 2.7 4x4 (2.7L V6 H27A 135kW)
[2005 - 2009] SUZUKI GRAND VITARA JB627,TD94V II SUV (JT,TD,TE) 2.7 AWD (2.7L V6 H27A 136kW)
[1998 - 2017] SUZUKI JIMNY SN413 SUV (SN) 1.3 16V (1.3L 4cyl G13BB 59kW)
[1998 - 2002] SUZUKI JIMNY SN413 SUV (SN) 1.3 16V 4WD (1.3L 4cyl G13BB 59kW)
[1994 - 1999] SUZUKI VITARA TA02,SE416 CABRIO (ET,TA) 1.6 i 16V (1.6L 4cyl G16B 71kW)
[1994 - 1998] SUZUKI VITARA ET,TA02,SE416 SUV (ET,TA,TD) 1.6 i 16V AWD (1.6L 4cyl G16B 71kW)
[1997 - 2000] SUZUKI VITARA TA51,SV420 CABRIO (ET,TA) 2.0 16V (2.0L 4cyl J20A 97kW)
[1999 - 2000] SUZUKI VITARA SV420 SUV (ET,TA) 2.0 16V AWD (2.0L 4cyl J20A 97kW)
[1997 - 1998] SUZUKI VITARA SV420 SUV (ET,TA,TD) 2.0 16V AWD (2.0L 4cyl J20A 97kW)
[1995 - 1998] SUZUKI VITARA SV620 SUV (ET,TA,TD) 2.0 V6 24V AWD (2.0L V6 H20A 100kW)
[1997 - 1999] SUZUKI WAGON R+ RC410,SR410,SR412 HATCHBACK (EM) 1.0 (1.0L 4cyl K10A 48kW)
[1996 - 1998] SUZUKI X-90 SZ416 OPEN OFF-ROAD (EL) i 16V 4x4 (1.6L 4cyl G16B 71kW)

How do I test a coolant temperature sensor?

The most common test is to measure the sensor resistance with a multimeter at a known coolant temperature and compare against the manufacturer resistance curve. A cold engine (20 degrees C) typically reads 2,000 to 3,000 ohms and drops to around 200 to 300 ohms at operating temperature (90 degrees C). An OBD2 scanner showing a fixed temperature reading that does not change as the engine warms up is also a strong indicator of sensor failure.

Can a faulty coolant temperature sensor cause my engine to overheat?

Indirectly yes. If the sensor reports a lower temperature than actual, the ECU may not activate the cooling fan at the correct time, allowing the engine to overheat. It can also suppress the dashboard warning light, meaning you may not be alerted until the engine is already at a dangerously high temperature. Replace a suspected faulty sensor promptly.

Do I need to drain the coolant to replace the sensor?

Not always - many coolant temperature sensors can be replaced quickly with minimal coolant loss if you work fast and have a replacement ready to thread in immediately. However on some vehicles the sensor location requires partial coolant drainage. Check the sensor position on your specific engine before starting. Always use fresh coolant when topping up after replacement.

What are the symptoms of a faulty coolant temperature sensor?

Symptoms include poor fuel economy, black smoke, engine overheating warning, incorrect temperature gauge reading, hard starting when cold, and rough idle. Fault codes P0115 to P0119 are commonly associated with coolant temperature sensor faults.

Is it safe to drive with a bad coolant temperature sensor?

A faulty coolant temperature sensor can cause the ECU to run rich fuel mixtures and prevent the cooling fan from operating correctly, risking engine overheating. Replace it promptly - it is a low-cost part that can prevent expensive engine damage.

How do I know if my coolant temperature sensor or my thermostat is faulty?

A faulty thermostat typically causes the engine to overheat or never reach operating temperature. A faulty coolant temp sensor causes incorrect gauge readings and running issues but the coolant itself may be at the correct temperature. An OBD2 scanner showing live coolant temp data helps distinguish between the two.

Are there two coolant temperature sensors on my vehicle?

Many vehicles have two sensors - one for the ECU (engine management) and one for the dashboard temperature gauge. They look similar but are not interchangeable. Check your vehicle's service manual or contact us with your vehicle details to confirm which sensor you need.

Identification
SKU	CCS138
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	CCS138
Reference OEM Number	13650-50G00
Other OEM Numbers	13650-50G00, 13650-50G01, 13650-50G01-000, 1365050G00, 1365050G01
Related Part Numbers	CCS138, CS937, CTS1017, TCS135
Trade Part Numbers	211-1051
Product Specifics
Product Type	SENSOR
Sensor Type	ENGINE COOLANT TEMPERATURE SENSOR

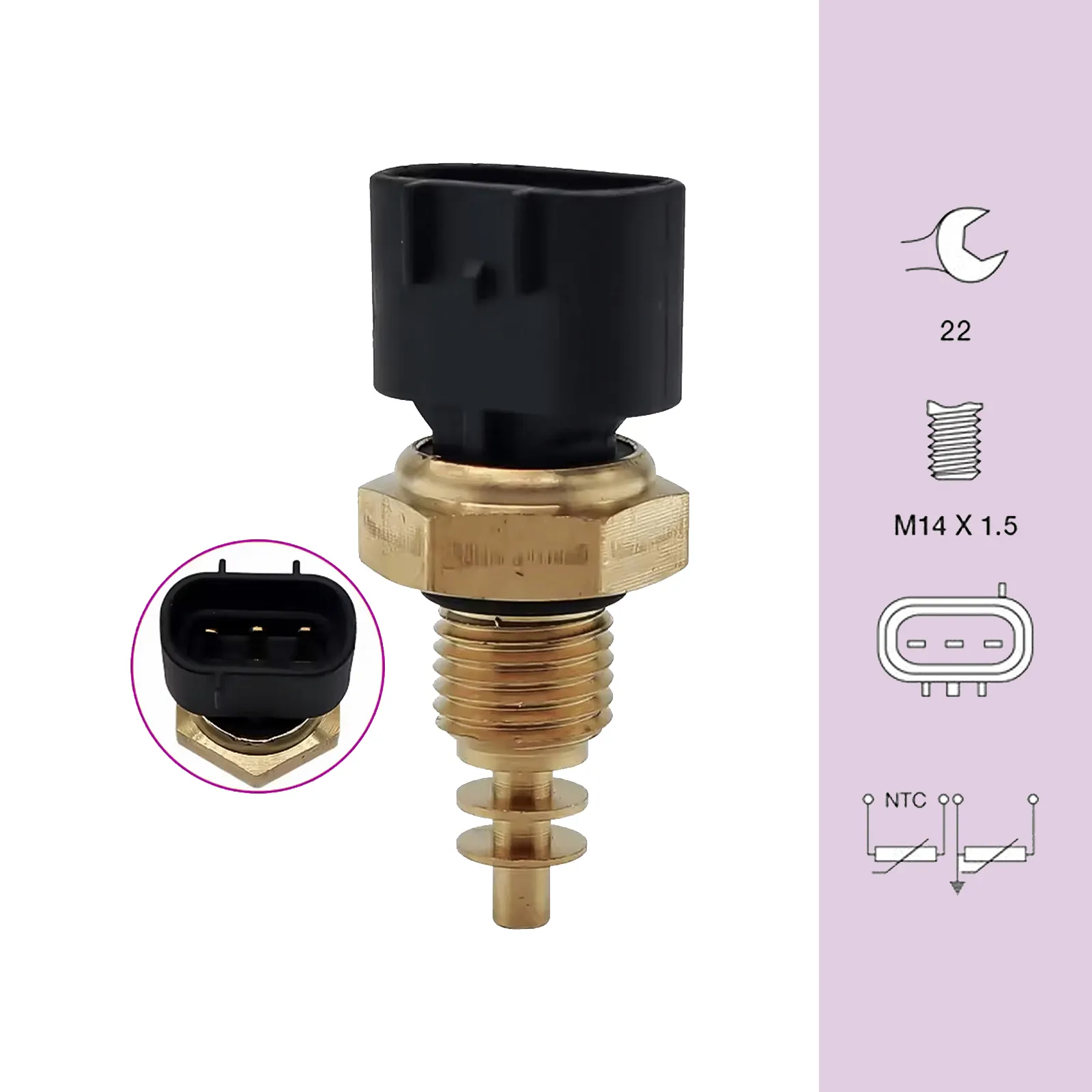

Thread Size	M14x1.5 mm
Spanner Size	22mm

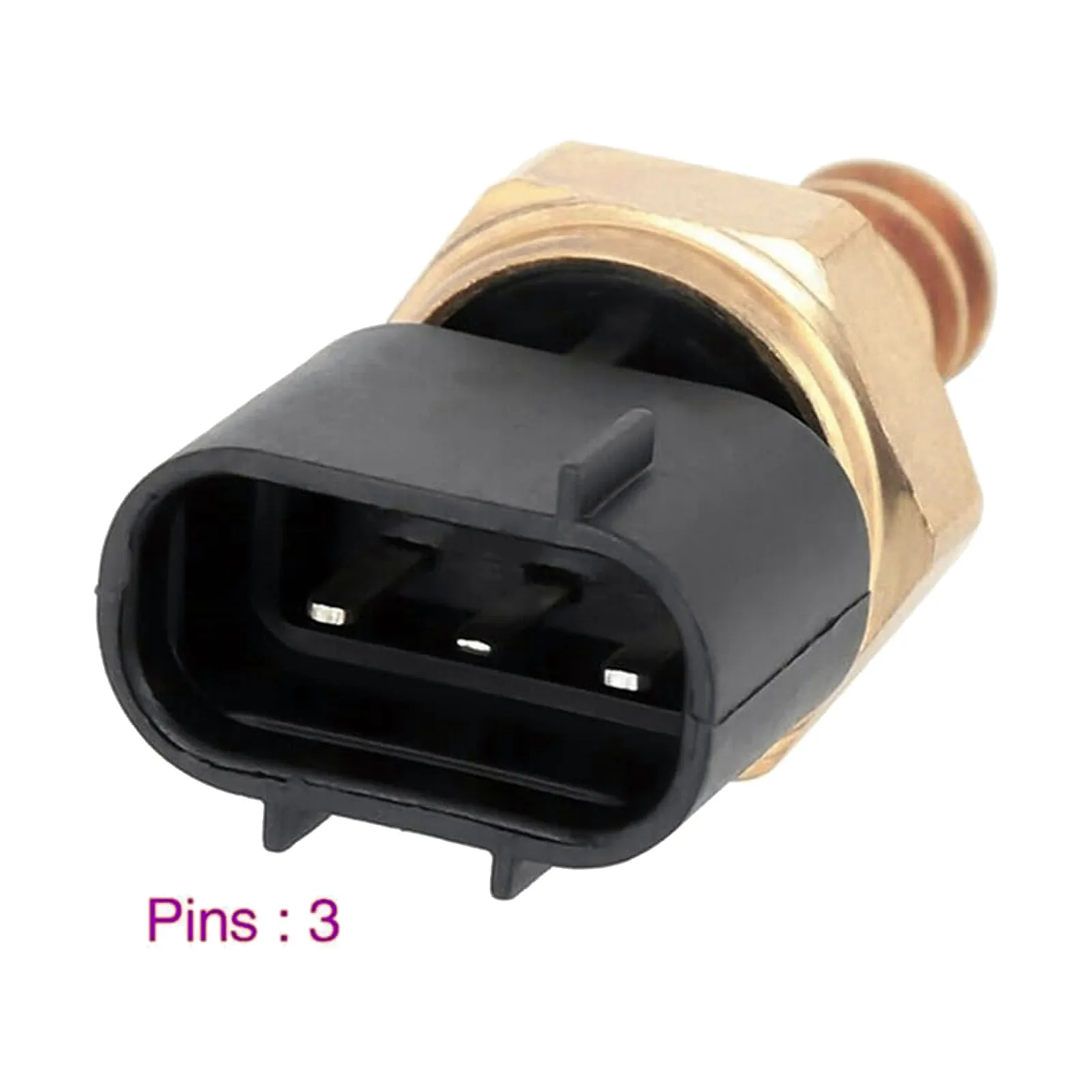

Number of pins	3-Pin

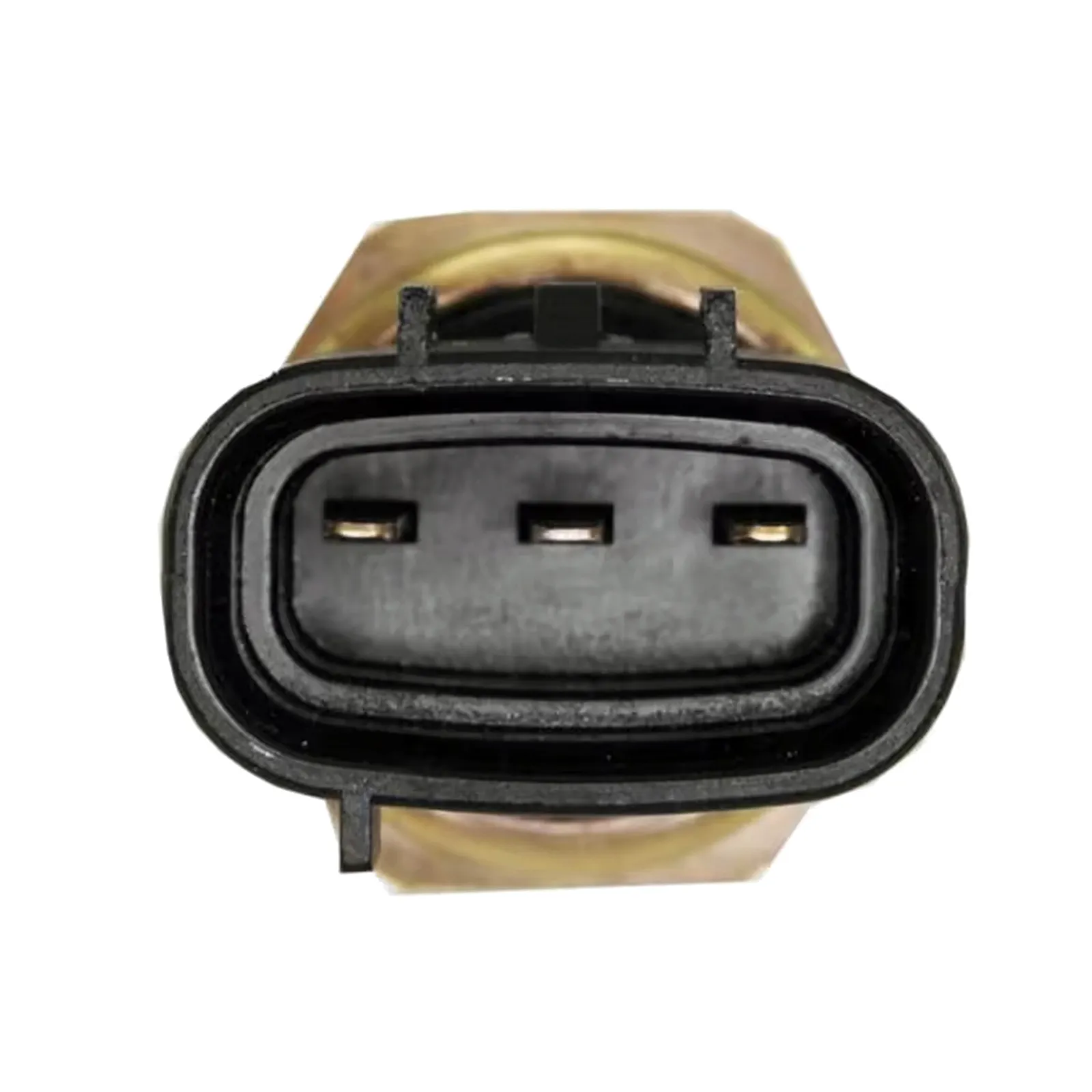

Connector Shape	oval
Housing Colour	Black
Mounting Type	Bolted
Compatible Makes	Suzuki
Fitment Type	Direct Replacement
Other Details
Note	Always verify fitment using your vehicle's OEM part number.
