Coolant Temperature Sensor for Hyundai Sonata EF Y-2 Y-3 G4JP G6AT
Direct Fit Replaces 39220-21310
BRAND NEW *OEM Quality* coolant temperature sensor to suit the Hyundai Sonata Y-2 Y-3 and EF with 1.8L 2.0L 2.4L four-cylinder and 3.0L V6 petrol engines.
A failed coolant sensor tells the ECU the engine is colder or hotter than it really is - so the Sonata floods on a cold start, runs rich all day or idles high. This sensor restores the correct reading and goes out same-day before 12pm from Cranbourne VIC.
TO SUIT
- for Hyundai Sonata Y-2 1.8L G4CM, 2.4L G4CS and 3.0L V6 G6AT (1989-1993)
- for Hyundai Sonata Y-3 2.0L 16V G4CP-D and 3.0L V6 G6AT (1993-1998)
- for Hyundai Sonata EF 2.0L 16V G4JP (1998-2000)
FITMENT CHECK
This sensor has two push-on blade terminals (no fixed cable) and a 3/8 BSPT tapered thread. Check your original has the same 2-blade plug before ordering - the full build-date list is in the compatibility chart on this page.
OEM PART NUMBERS
- 39220-21310 / 3922021310
- 39220-21320 / 3922021320
- 39220-21330 / 3922021330
- 9465021200
- MD069879
- MD082430
OTHER PART NUMBERS
- V37-72-0005
- 211-1010
- 211-1013
PACKAGE INCLUDES

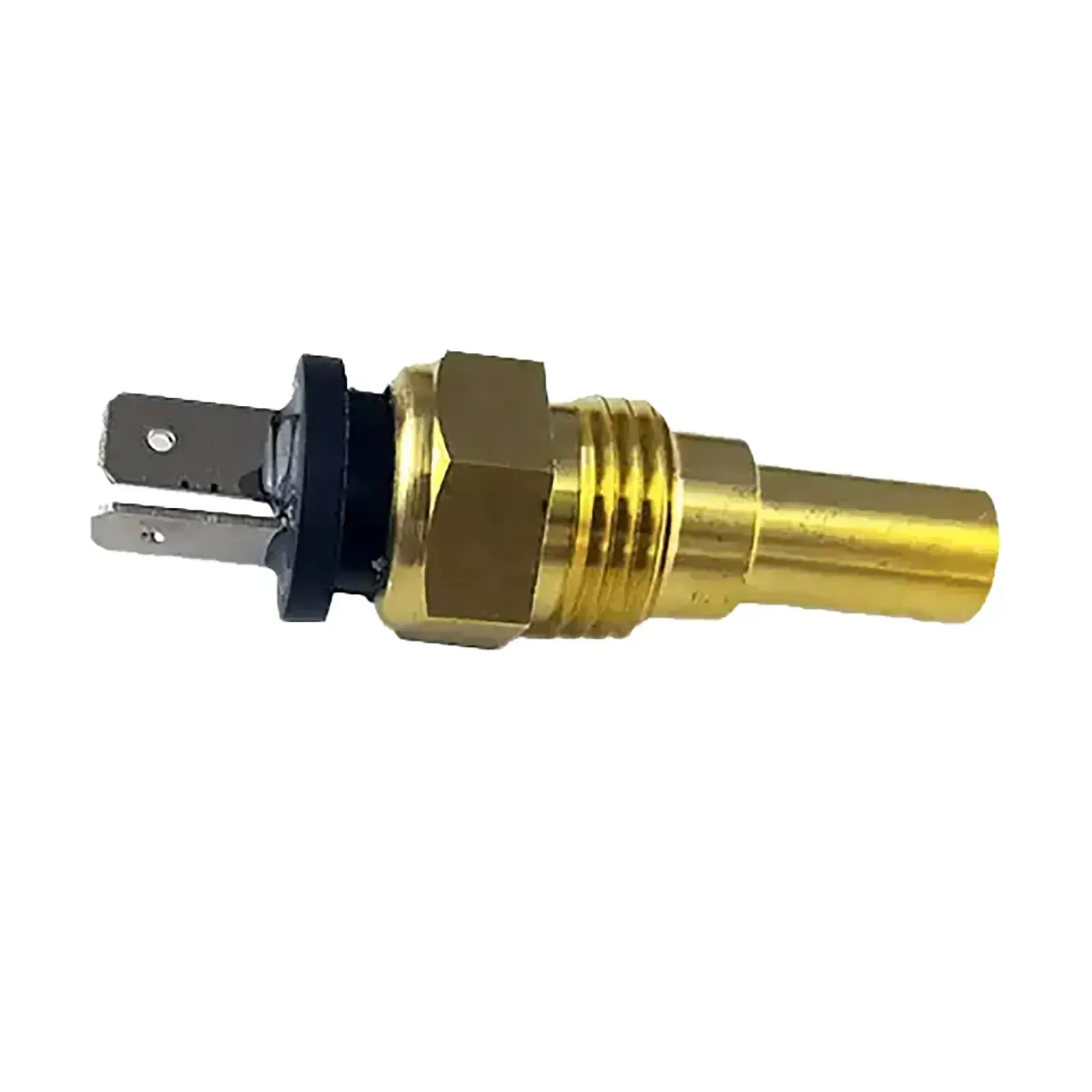

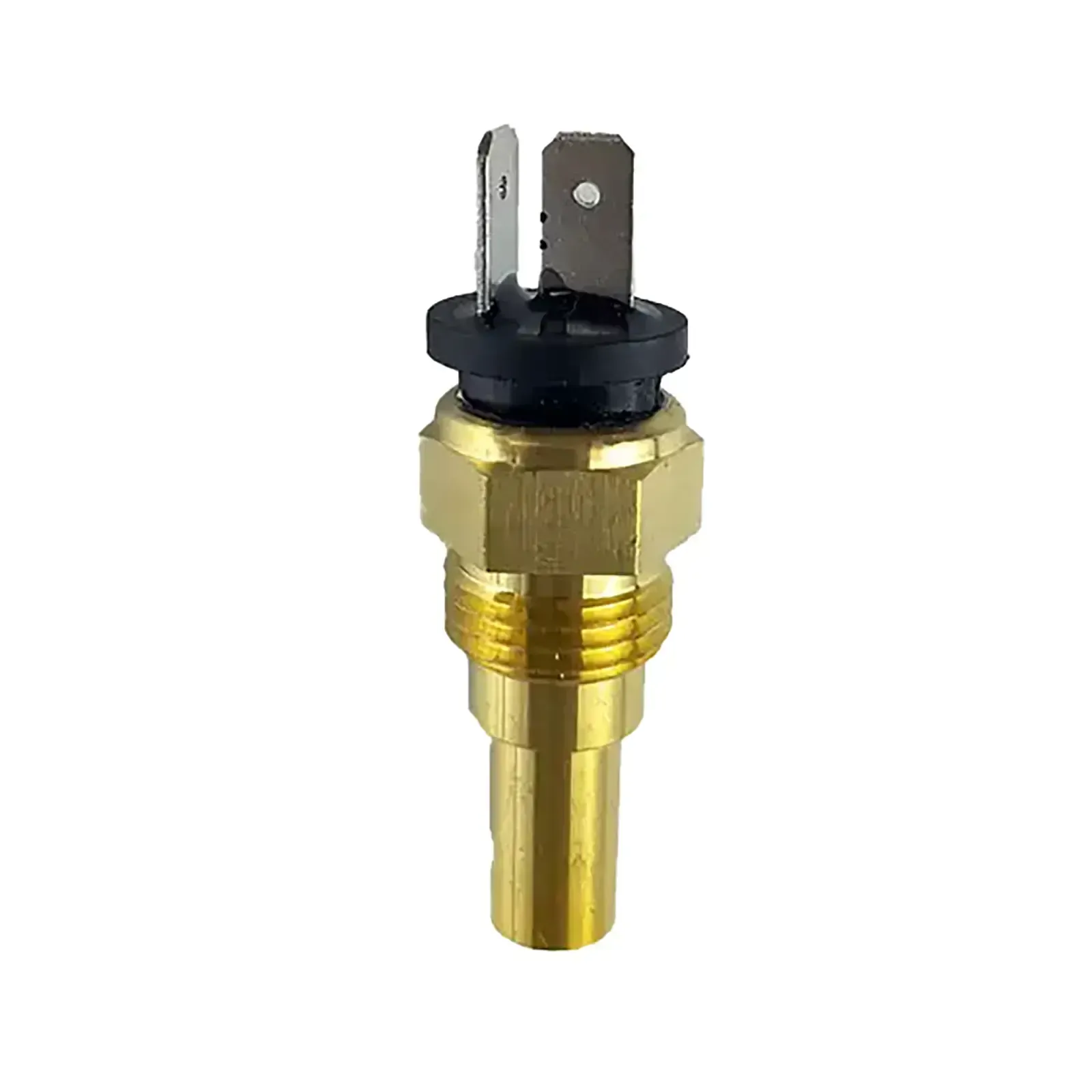

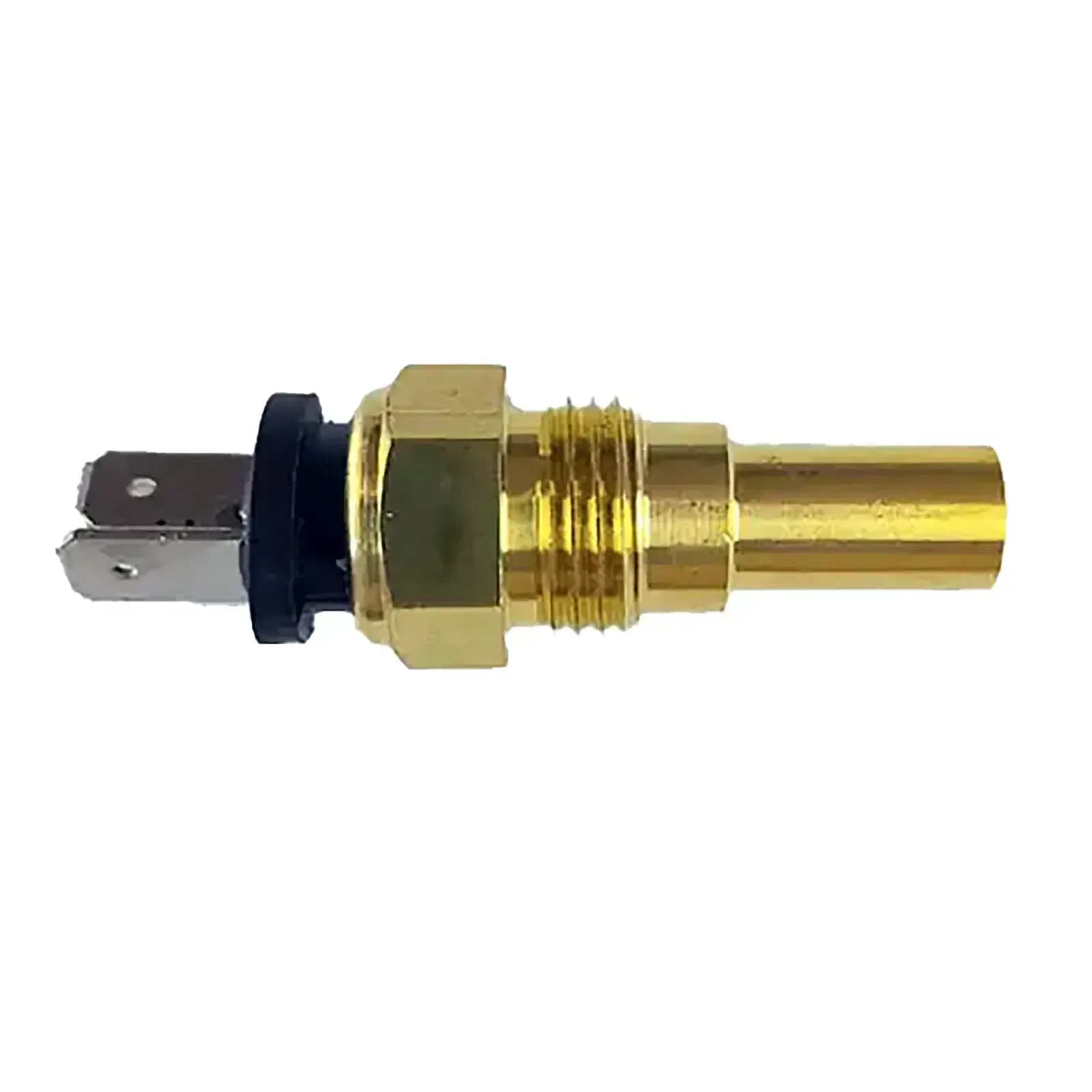

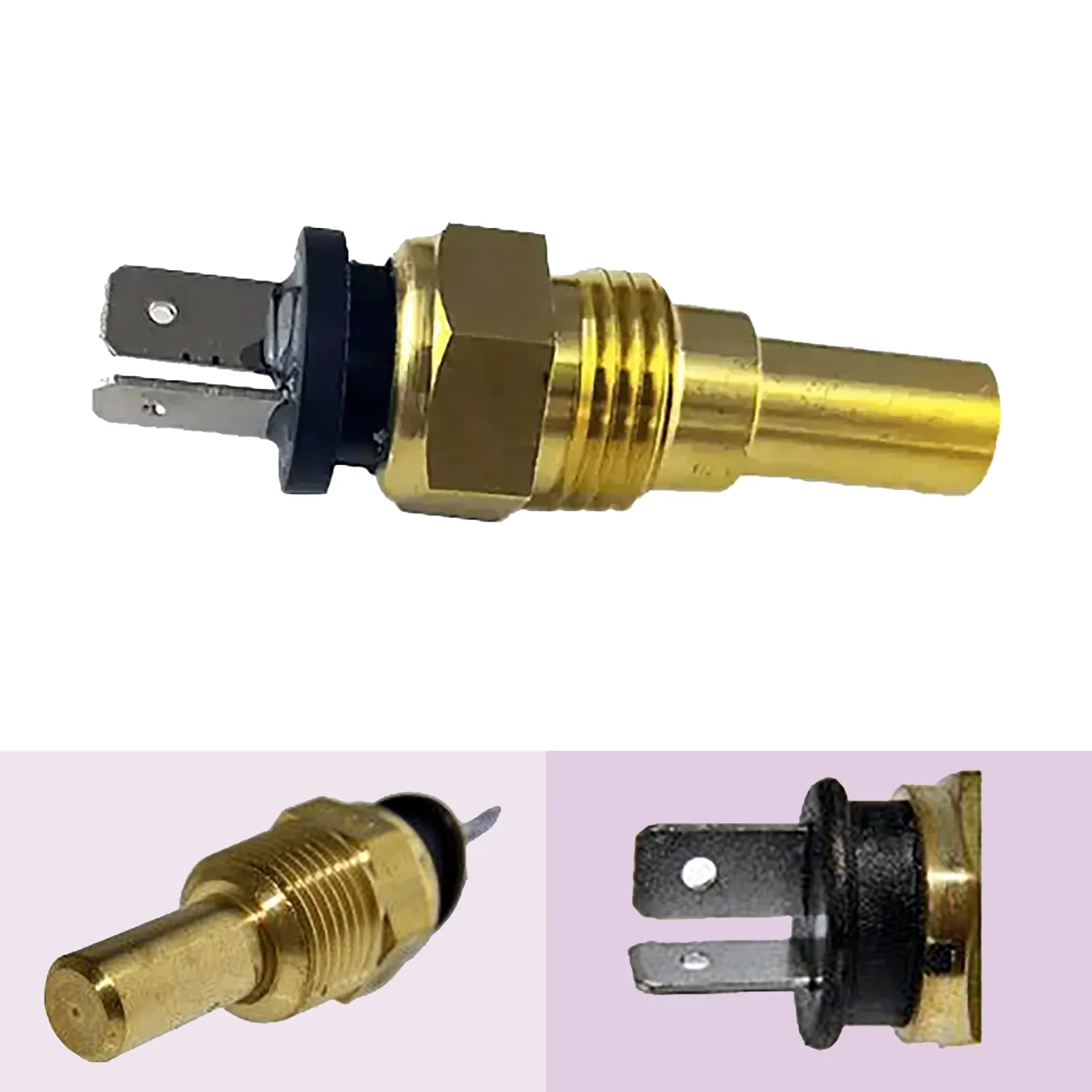

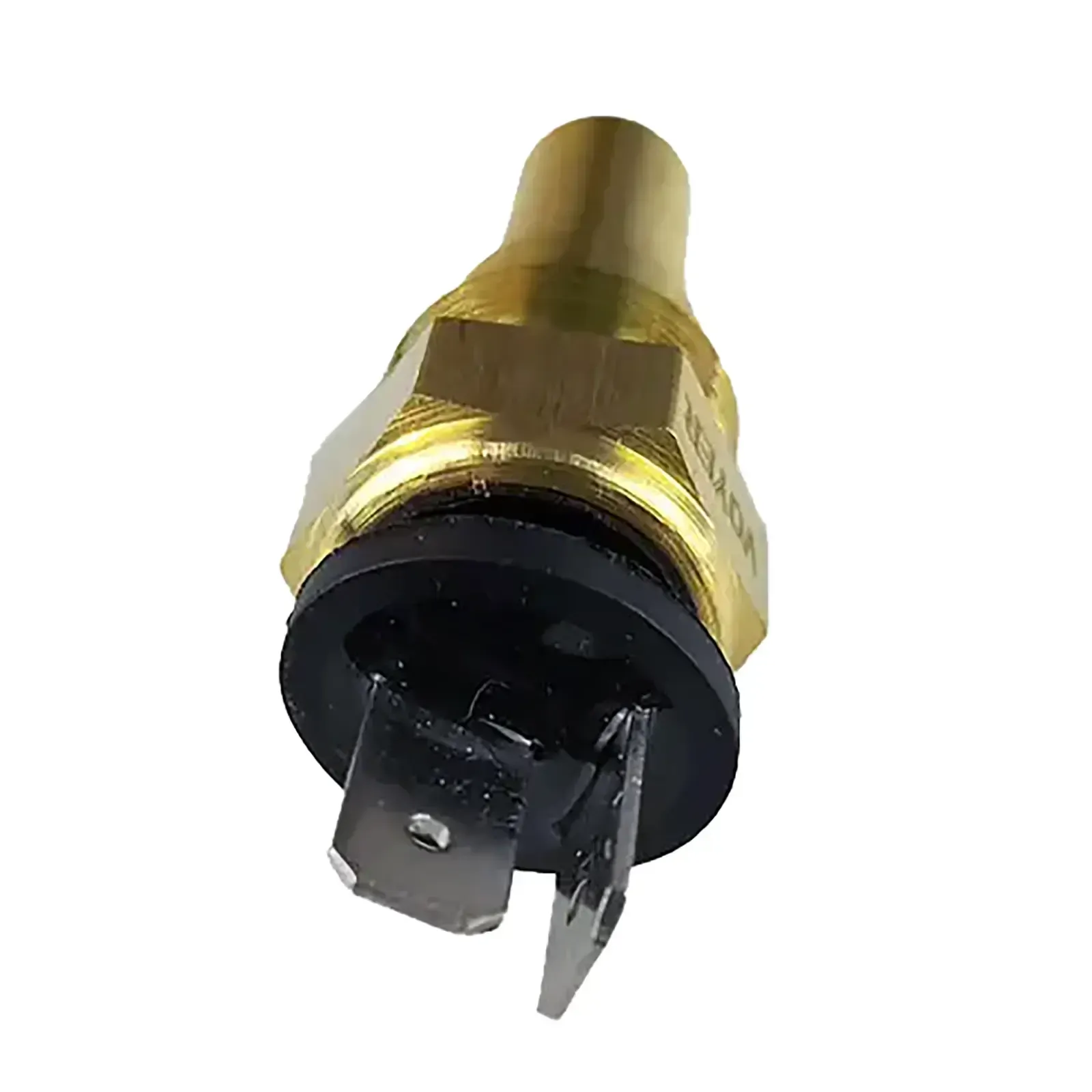

1 x Coolant Temperature Sensor - 2-pin blade terminals / 3/8 BSPT thread / 39mm long / black housing.
ABOUT THIS SENSOR
The coolant temperature sensor is a thermistor that screws into the water outlet on the Sonata engine. Its resistance changes with coolant temperature and the ECU uses that signal to set cold-start enrichment, injector pulse width, ignition timing and idle speed.
On the older Y-2 and Y-3 Sonatas the original sensor is now well past its service life - a drifting reading is a common cause of poor cold starts and heavy fuel use on the G4CS and G6AT V6.
COMMON SYMPTOMS OF FAILURE
- Check engine light with P0115 P0116 P0117 or P0118 stored
- Hard starting when cold or long cranking
- Rich running and higher fuel consumption
- Temperature gauge erratic or reading wrong
- Cooling fan running constantly or not at all
- Rough or high idle that never settles
- [06/98 - 04/00] HYUNDAI SONATA EF IV 16V 2.0L 4cyl G4JP 100kW
- [06/89 - 03/91] HYUNDAI SONATA Y-2 II 1.8L 4cyl G4CM 73kW
- [03/89 - 02/92] HYUNDAI SONATA Y-2 II i 2.4L 4cyl G4CS 83kW
- [04/90 - 10/93] HYUNDAI SONATA Y-2 II i V6 3.0L V6 G6AT 107kW
- [10/93 - 08/98] HYUNDAI SONATA Y-3 III i 16V 2.0L 4cyl G4CP-D 102kW
- [05/93 - 08/94] HYUNDAI SONATA Y-3 III i V6 3.0L V6 G6AT 107kW
How do I test a coolant temperature sensor?
The most common test is to measure the sensor resistance with a multimeter at a known coolant temperature and compare against the manufacturer resistance curve. A cold engine (20 degrees C) typically reads 2,000 to 3,000 ohms and drops to around 200 to 300 ohms at operating temperature (90 degrees C). An OBD2 scanner showing a fixed temperature reading that does not change as the engine warms up is also a strong indicator of sensor failure.
Can a faulty coolant temperature sensor cause my engine to overheat?
Indirectly yes. If the sensor reports a lower temperature than actual, the ECU may not activate the cooling fan at the correct time, allowing the engine to overheat. It can also suppress the dashboard warning light, meaning you may not be alerted until the engine is already at a dangerously high temperature. Replace a suspected faulty sensor promptly.
Do I need to drain the coolant to replace the sensor?
Not always - many coolant temperature sensors can be replaced quickly with minimal coolant loss if you work fast and have a replacement ready to thread in immediately. However on some vehicles the sensor location requires partial coolant drainage. Check the sensor position on your specific engine before starting. Always use fresh coolant when topping up after replacement.
What are the symptoms of a faulty coolant temperature sensor?
Symptoms include poor fuel economy, black smoke, engine overheating warning, incorrect temperature gauge reading, hard starting when cold, and rough idle. Fault codes P0115 to P0119 are commonly associated with coolant temperature sensor faults.
Is it safe to drive with a bad coolant temperature sensor?
A faulty coolant temperature sensor can cause the ECU to run rich fuel mixtures and prevent the cooling fan from operating correctly, risking engine overheating. Replace it promptly - it is a low-cost part that can prevent expensive engine damage.
How do I know if my coolant temperature sensor or my thermostat is faulty?
A faulty thermostat typically causes the engine to overheat or never reach operating temperature. A faulty coolant temp sensor causes incorrect gauge readings and running issues but the coolant itself may be at the correct temperature. An OBD2 scanner showing live coolant temp data helps distinguish between the two.
Are there two coolant temperature sensors on my vehicle?
Many vehicles have two sensors - one for the ECU (engine management) and one for the dashboard temperature gauge. They look similar but are not interchangeable. Check your vehicle's service manual or contact us with your vehicle details to confirm which sensor you need.
| Identification | |
|---|---|
| Brand | Aftermarket OEM Replacement |
| Part Numbers | |
| Part Number | SCCS24 |
| Reference OEM Number | 39220-21310 |
| Other OEM Numbers | 3922021320, 3922021310, 3922021330, MD069879, MD082430 |
| Related Part Numbers | CS827, TCS030, CTS1004, CCS24 |
| Interchange Part Numbers | V37-72-0005, 211-1010, 211-1013 |
| Product Specifics | |
| Product Type | SENSOR |
| Sensor Type | COOLANT TEMPERATURE GAUGE SENDER |
| Thread Size | 3/8 GAS |
| Number of pins | 2-Pin |

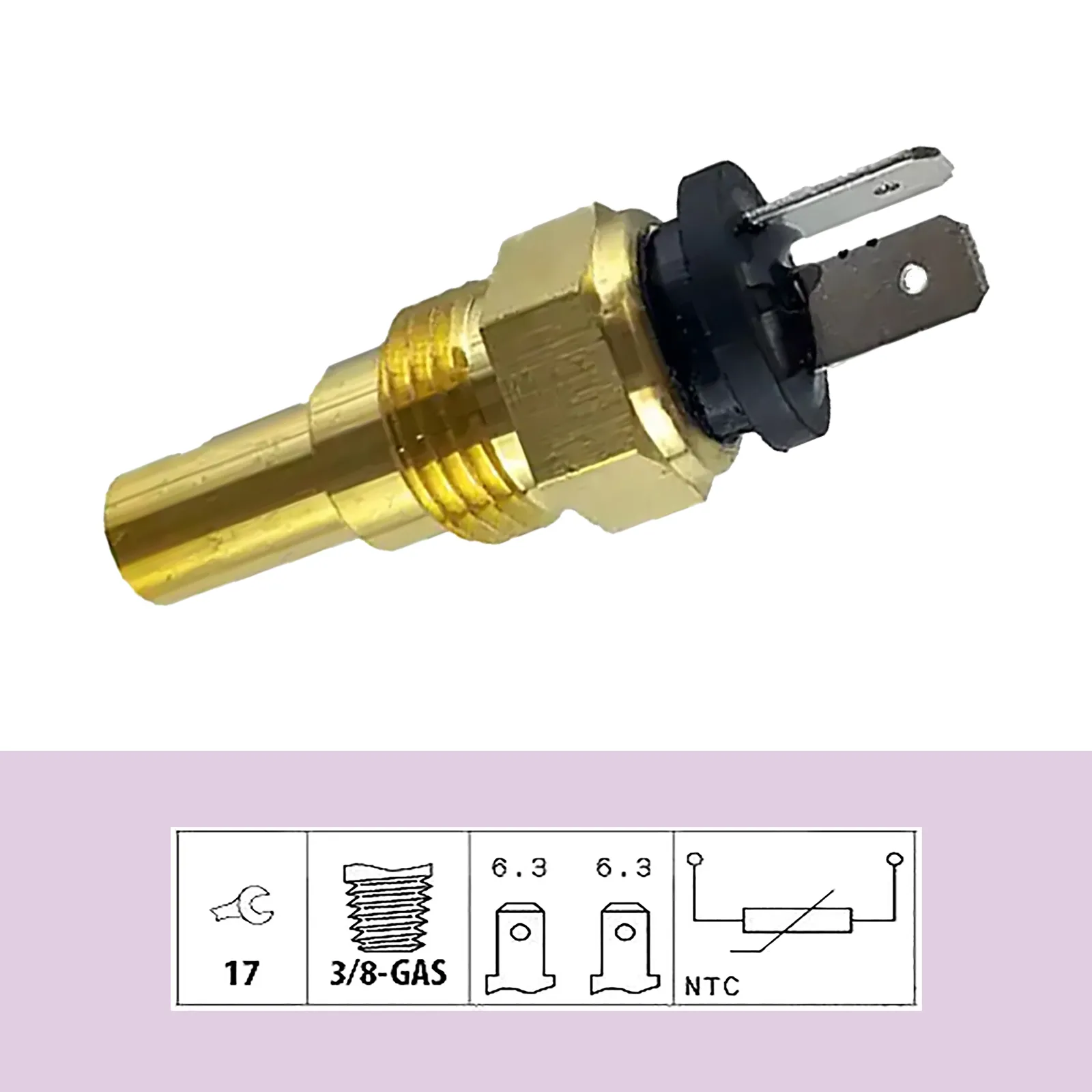

| Supplementary Article Info | 2 Push-on Terminals - 3/8 GAS Thread |
| Housing Colour | Black |
| Plug Type | Blade Terminal |
| Compatible Makes | Hyundai |
| Fitment Type | Direct Replacement |
| Other Details | |
| Note | 2-pin blade terminals - 3/8 BSPT thread - 39mm long |
