*OEM Quality* Coolant Temperature Sensor for Citroen Berlingo C3 C4 C5 DS3 DS4 DS5 XSARA

BRAND NEW *OEM QUALITY* ENGINE COOLANT TEMPERATURE SENSOR TO SUIT Citroen Peugeot

TO SUIT:

OEM#

133800, 9632562480, 9655414180, 1338C1, 1338C2, 1338C9, 1338G5

PACKAGE INCLUDES:

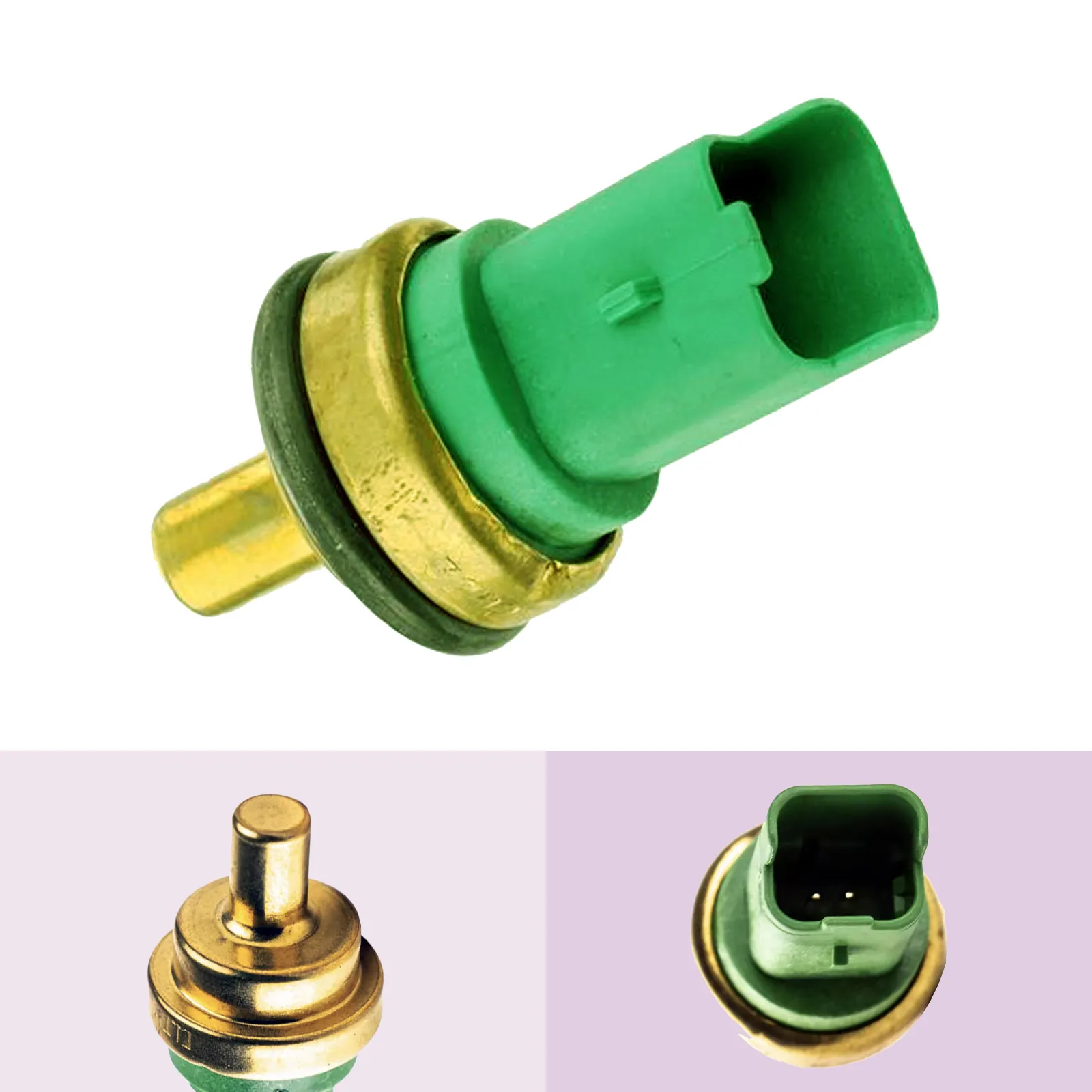

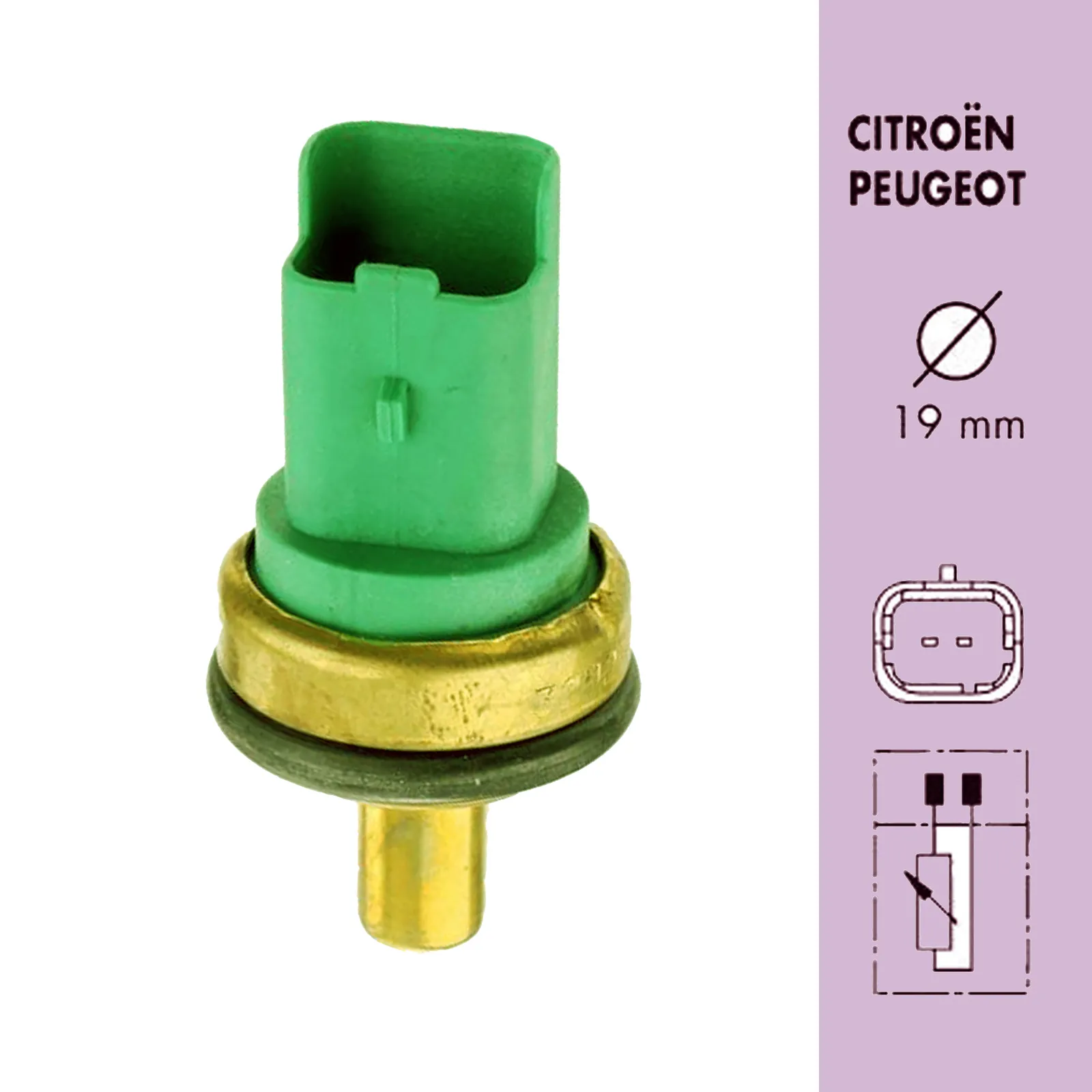

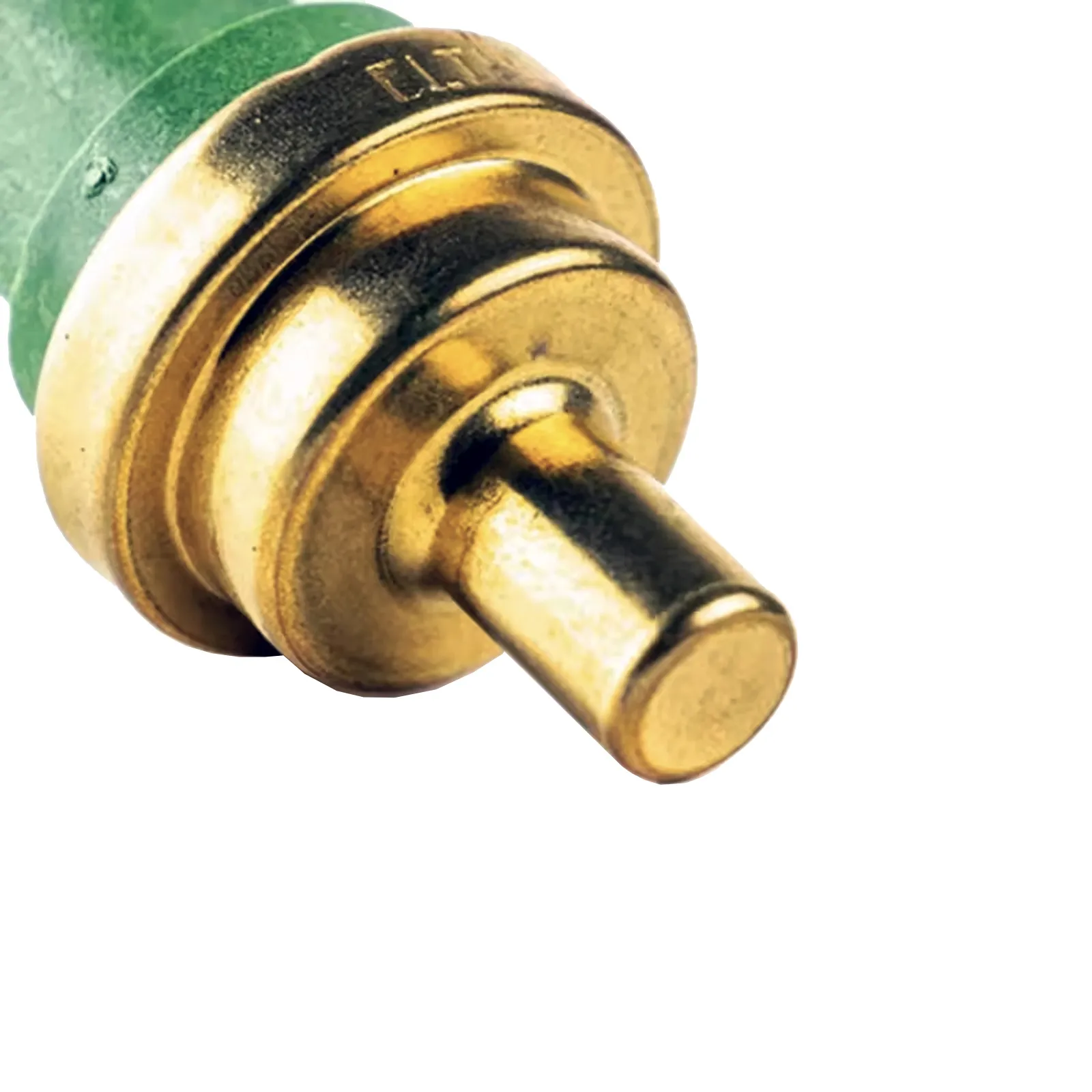

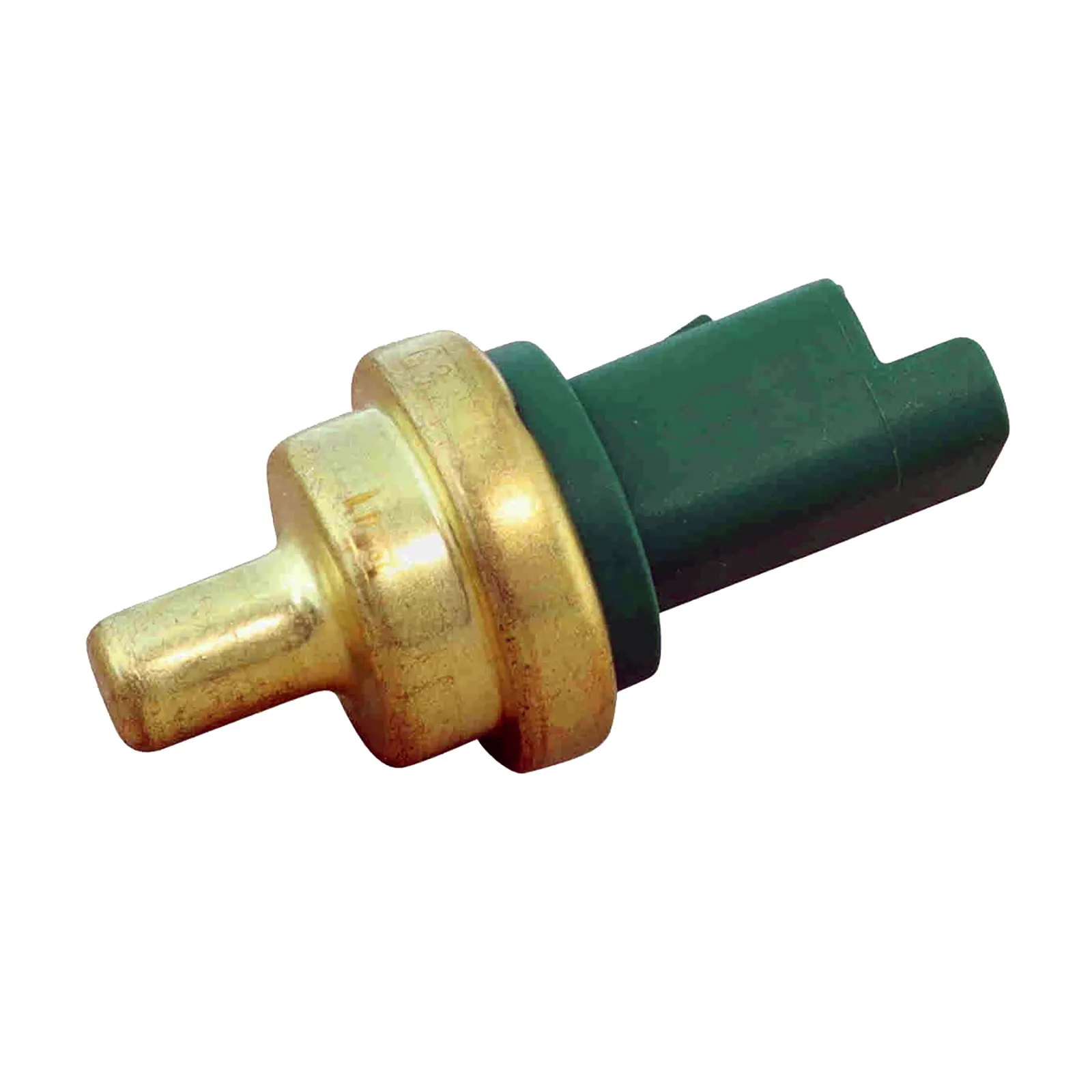

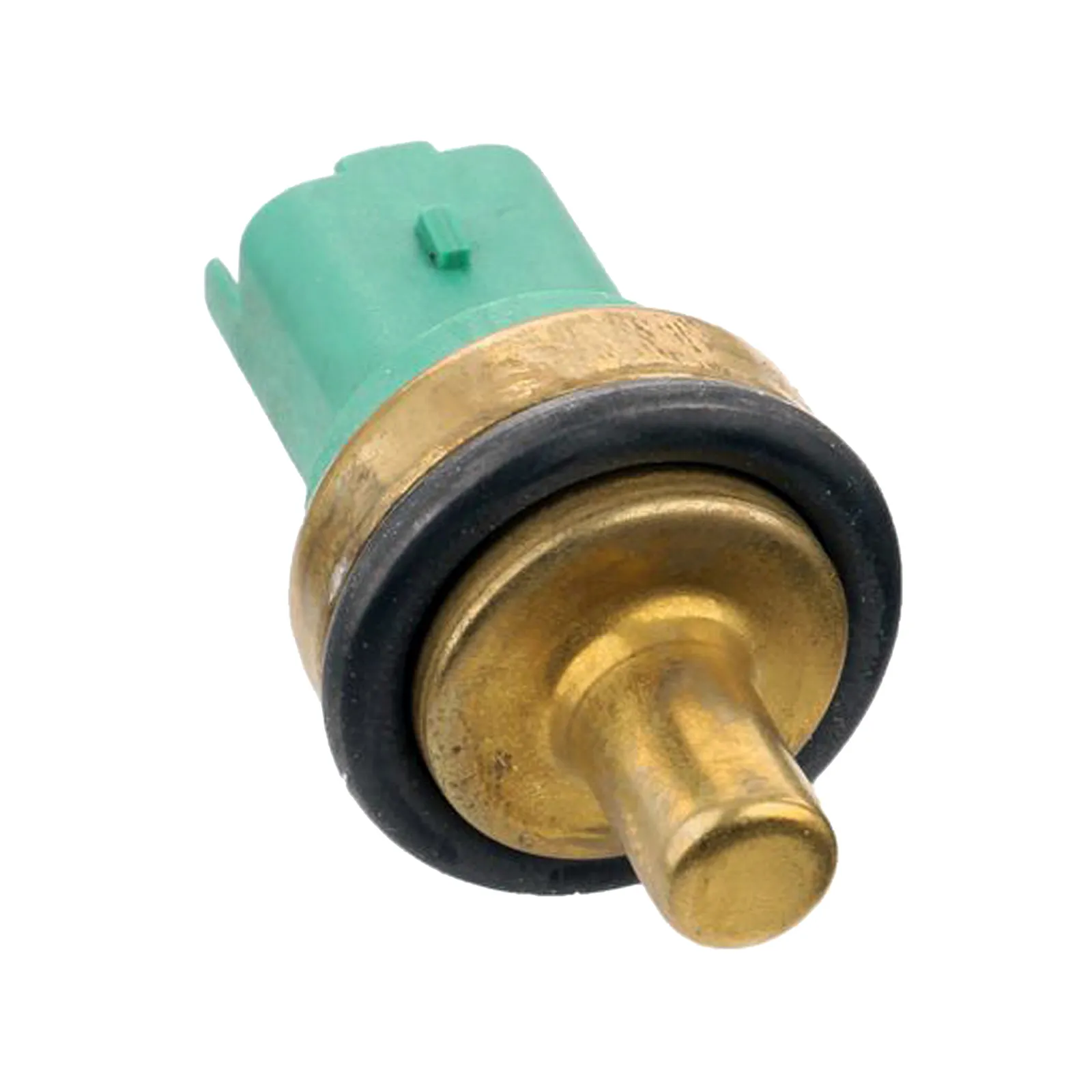

1 X *OEM QUALITY* ENGINE COOLANT TEMPERATURE SENSOR (2-PIN PLUG).

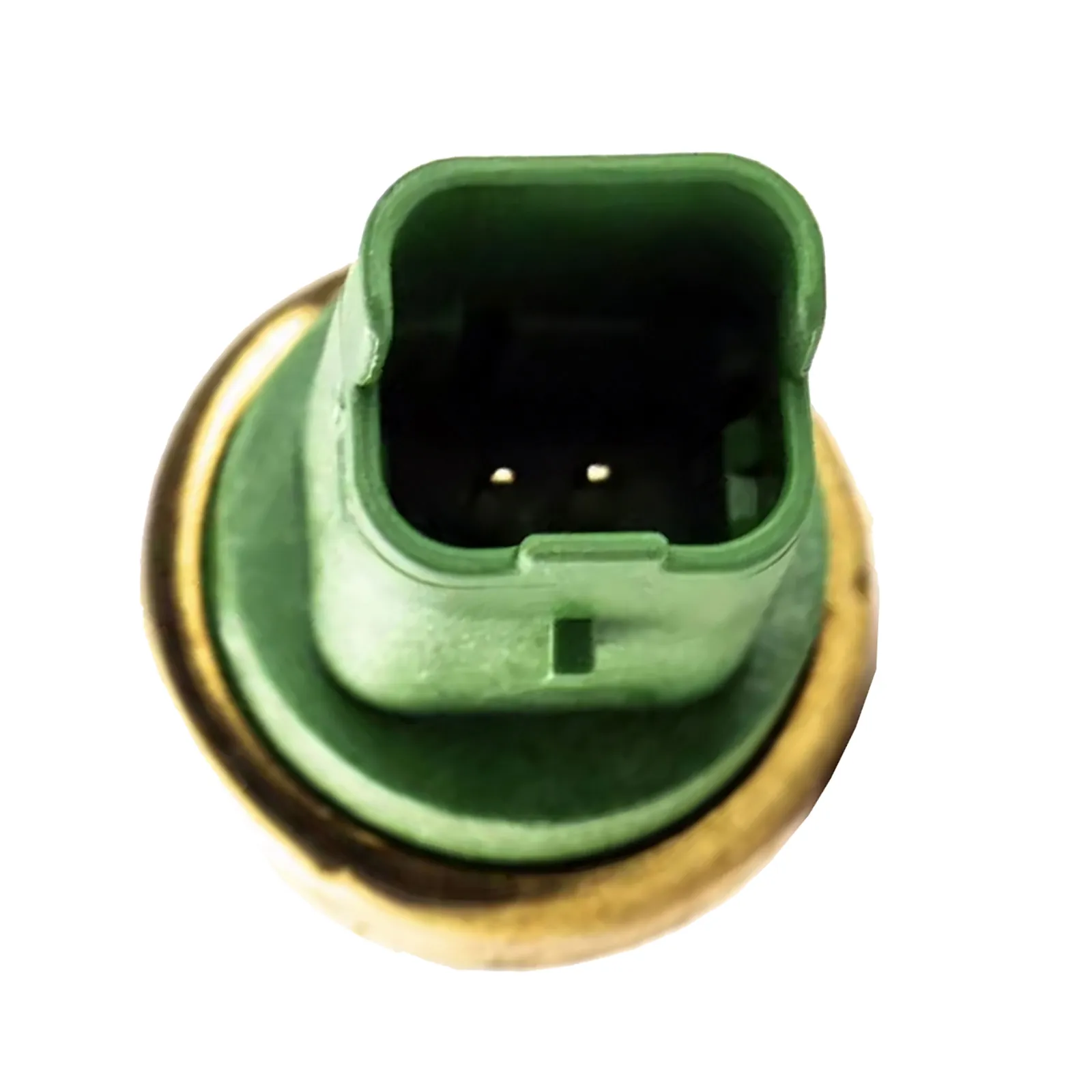

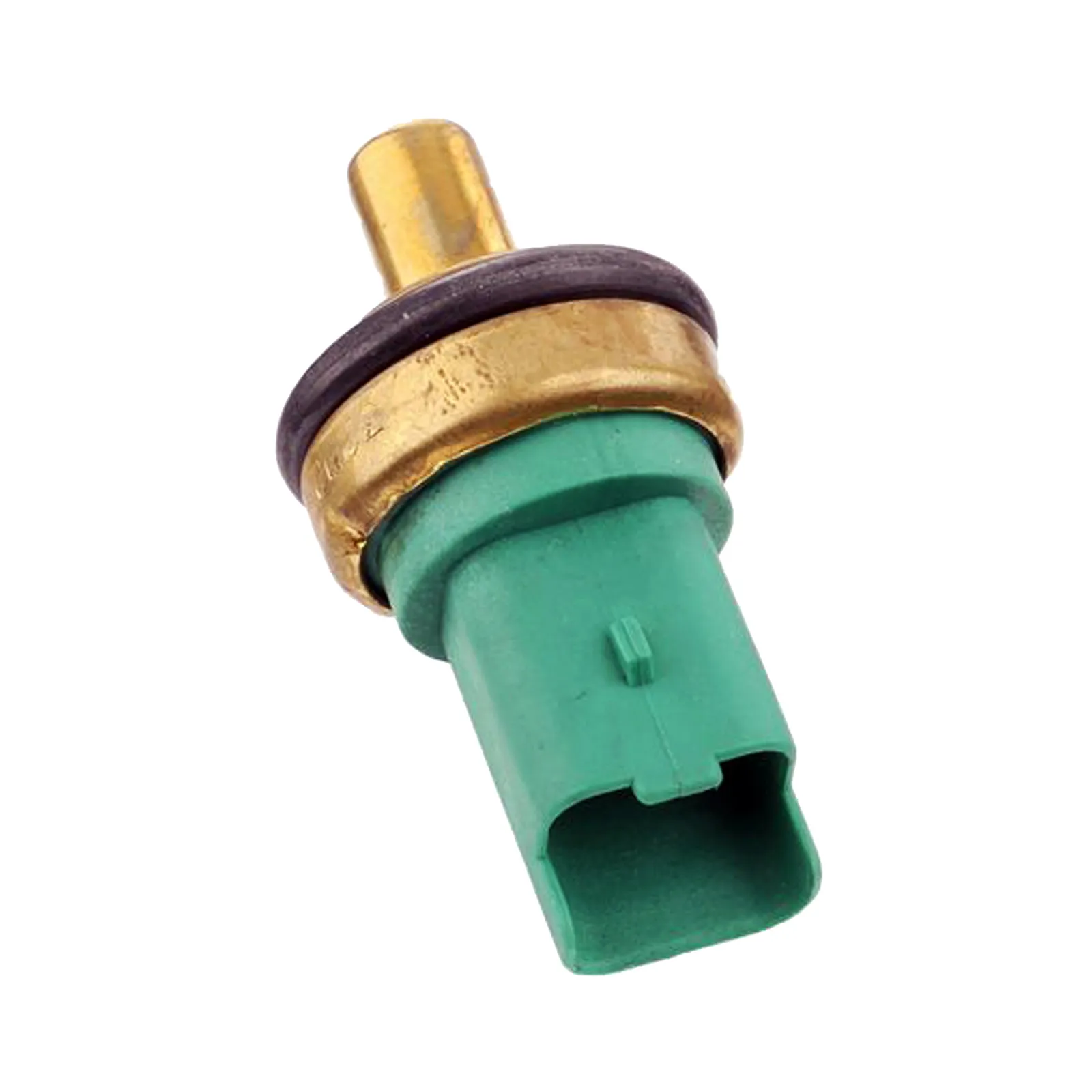

Unthreaded: Unit Held In With Retainer Clip: Rectangle 2 Pin Connector

The Engine Coolant Temperature Sensor, often called ECT sensor or CTS (Coolant Temperature Sensor), is a crucial component in a vehicle's engine management system. It measures the temperature of the engine coolant and sends this information to the engine control unit (ECU) or the powertrain control module (PCM). This data helps the ECU adjust fuel injection, ignition timing, and other engine parameters to ensure optimal performance, fuel efficiency, and emission control.

If the coolant temperature sensor malfunctions or fails, it can lead to issues such as incorrect fuel mixture, poor engine performance, increased emissions, or problems with starting the engine. A failing sensor might cause the engine to run too rich or too lean, impacting fuel efficiency and potentially causing damage to the engine over time.

[07/10 - 12/18] CITROEN BERLINGO B9 HDi 90 1.6L 4cyl 9HF (DV6DTED),9HE (DV6DBM) Euro 4 66kW
[04/08 - 12/18] CITROEN BERLINGO B9 HDi 90 16V 1.6L 4cyl 9HX (DV6AUTED4),9HS (DV6TED4BU) Euro 4 66kW
[10/05 - 05/10] CITROEN C3 FC_,FN 16V HDi 1.6L 4cyl 9HX (DV6ATED4) Euro 4 66kW
[11/09 - 12/13] CITROEN C3 SC HDi 1.6L 4cyl 9HP (DV6DTED),9HJ (DV6DTEDM) Euro 4 68kW
[11/09 - 12/14] CITROEN C3 SC HDi 90 1.6L 4cyl 9HX (DV6ATED4) Euro 4 66kW
[09/14 - 05/20] CITROEN C4 CACTUS HDi 90 1.6L 4cyl 9HP (DV6DTED),9HP (DV6D),9HJ (DV6DTEDM) Euro 4 68kW
[10/06 - 12/13] CITROEN C4 GRAND PICASSO UA HDi 138 2.0L 4cyl RHJ (DW10BTED4),RHR (DW10BTED4) 100kW
[10/06 - 08/13] CITROEN C4 GRAND PICASSO UA 16V 2.0L 4cyl RFJ (EW10A) 103kW
[11/04 - 07/11] CITROEN C4 LA HDi 1.6L 4cyl 9HZ (DV6TED4),9HY (DV6TED4) Euro 4 80kW
[03/05 - 11/09] CITROEN C4 LC 16V 2.0L 4cyl RFJ (EW10A) 103kW
[01/06 - 11/09] CITROEN C4 LC HDi 1.6L 4cyl 9HZ (DV6TED4),9HY (DV6TED4) Euro 4 80kW
[11/04 - 07/11] CITROEN C4 LC HDi 2.0L 4cyl RHR (DW10BTED4) 100kW
[11/09 - 04/15] CITROEN C4 NC HDi 110 1.6L 4cyl 9HR (DV6C) 82kW
[05/07 - 11/09] CITROEN C4 PICASSO UD HDi 138 2.0L 4cyl RHJ (DW10BTED4),RHR (DW10BTED4) 100kW
[09/10 - 08/13] CITROEN C4 PICASSO UD HDi 165 2.0L 4cyl RHH (DW10CTED4) 120kW
[09/07 - 11/09] CITROEN C4 PICASSO UD 16V 2.0L 4cyl RFJ (EW10A) 103kW
[06/01 - 08/04] CITROEN C5 DCRHZB,DCRHZE HDi 2.0L 4cyl RHZ (DW10ATED) 80kW
[06/01 - 08/04] CITROEN C5 DE4HXB,DE4HXE HDi 2.2L 4cyl 4HX (DW12TED4) 98kW
[06/01 - 08/04] CITROEN C5 DERHZB,DERHZE HDi 2.0L 4cyl RHZ (DW10ATED) 80kW
[04/06 - 08/08] CITROEN C5 RC HDi 2.2L 4cyl 4HT (DW12BTED4) 125kW
[02/05 - 08/08] CITROEN C5 RC4HXE HDi 2.2L 4cyl 4HX (DW12TED4) 98kW
[09/04 - 08/08] CITROEN C5 RCRFJB,RCRFJC 16V 2.0L 4cyl RFJ (EW10A) 103kW
[09/04 - 01/08] CITROEN C5 RCRHRH HDi 2.0L 4cyl RHR (DW10BTED4) 100kW
[07/10 - 04/16] CITROEN C5 RD4HLA HDi 200 2.2L 4cyl 4HL (DW12C) 150kW
[03/15 - 07/16] CITROEN C5 RDAHWT HDi 180 2.0L 4cyl AHW (DW10FC) 133kW
[02/08 - 08/08] CITROEN C5 RDRFJC,RDRFJF 16V 2.0L 4cyl RFJ (EW10A) 103kW
[11/08 - 12/09] CITROEN C5 RDRHA8,RDRHAJ,RDRHF8... HDi 140 2.0L 4cyl RHA (DW10CTED4),RHF (DW10BTED4) 103kW
[02/08 - 06/14] CITROEN C5 RDRHDJ,RDRHR8,RDRHRJ HDi 2.0L 4cyl RHR (DW10BTED4),RHD (DW10CTED4),RHF (DW10BTED4) 100kW
[04/09 - 12/13] CITROEN C5 RDRHH8,RDRHHA HDi 165 2.0L 4cyl RHH (DW10CTED4) 120kW
[04/06 - 08/08] CITROEN C5 RE4HT2,RE4HTE HDi 2.2L 4cyl 4HT (DW12BTED4) 125kW
[02/05 - 04/08] CITROEN C5 RE4HXE HDi 2.2L 4cyl 4HX (DW12TED4) 98kW
[09/04 - 01/08] CITROEN C5 RERFJB,RERFJC 16V 2.0L 4cyl RFJ (EW10A) 103kW
[09/04 - 12/09] CITROEN C5 RERHRH HDi 2.0L 4cyl RHR (DW10BTED4) 100kW
[04/09 - 12/13] CITROEN C5 RW HDi 165 2.0L 4cyl RHH (DW10CTED4) 120kW
[02/08 - 12/09] CITROEN C5 RW HDi 2.0L 4cyl RHR (DW10BTED4),RHD (DW10CTED4) 100kW
[01/07 - 12/12] CITROEN DISPATCH HDi 120 2.0L 4cyl RHK (DW10UTED4) 88kW
[11/09 - 07/15] CITROEN DS3 SA HDi 110 1.6L 4cyl 9HR (DV6C) 82kW
[04/11 - 07/15] CITROEN DS4 NX HDi 110 1.6L 4cyl 9HR (DV6C) 82kW
[04/11 - 07/15] CITROEN DS4 NX HDi 165 2.0L 4cyl RHH (DW10CTED4) 120kW
[11/11 - 07/15] CITROEN DS5 HDi 165 2.0L 4cyl RHH (DW10CTED4) 120kW
[02/99 - 03/05] CITROEN XSARA N1 HDi 90 2.0L 4cyl RHY (DW10TD) 66kW

Identification
SKU	CCS57-Citroen
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	CCS57
Reference OEM Number	1338C1
Other OEM Numbers	133800, 9632562480, 9655414180, 1338C1, 1338C2, 1338C9, 1338G5
Related Part Numbers	CCS57, CS882, TCS148, CTS2015
Product Specifics
Product Type	sensor
Sensor Type	ENGINE COOLANT TEMPERATURE SENSOR

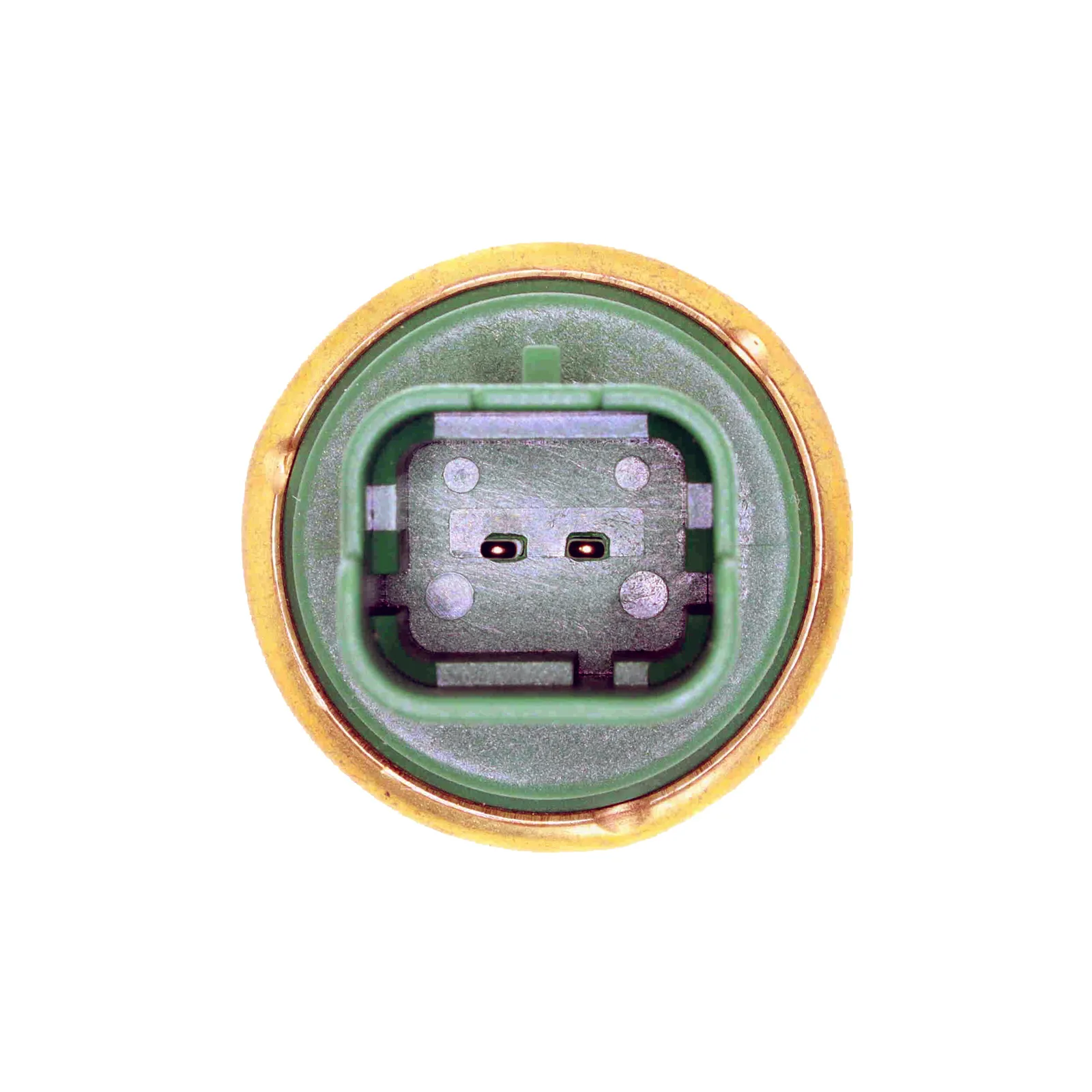

Number of pins	2 -pin connector

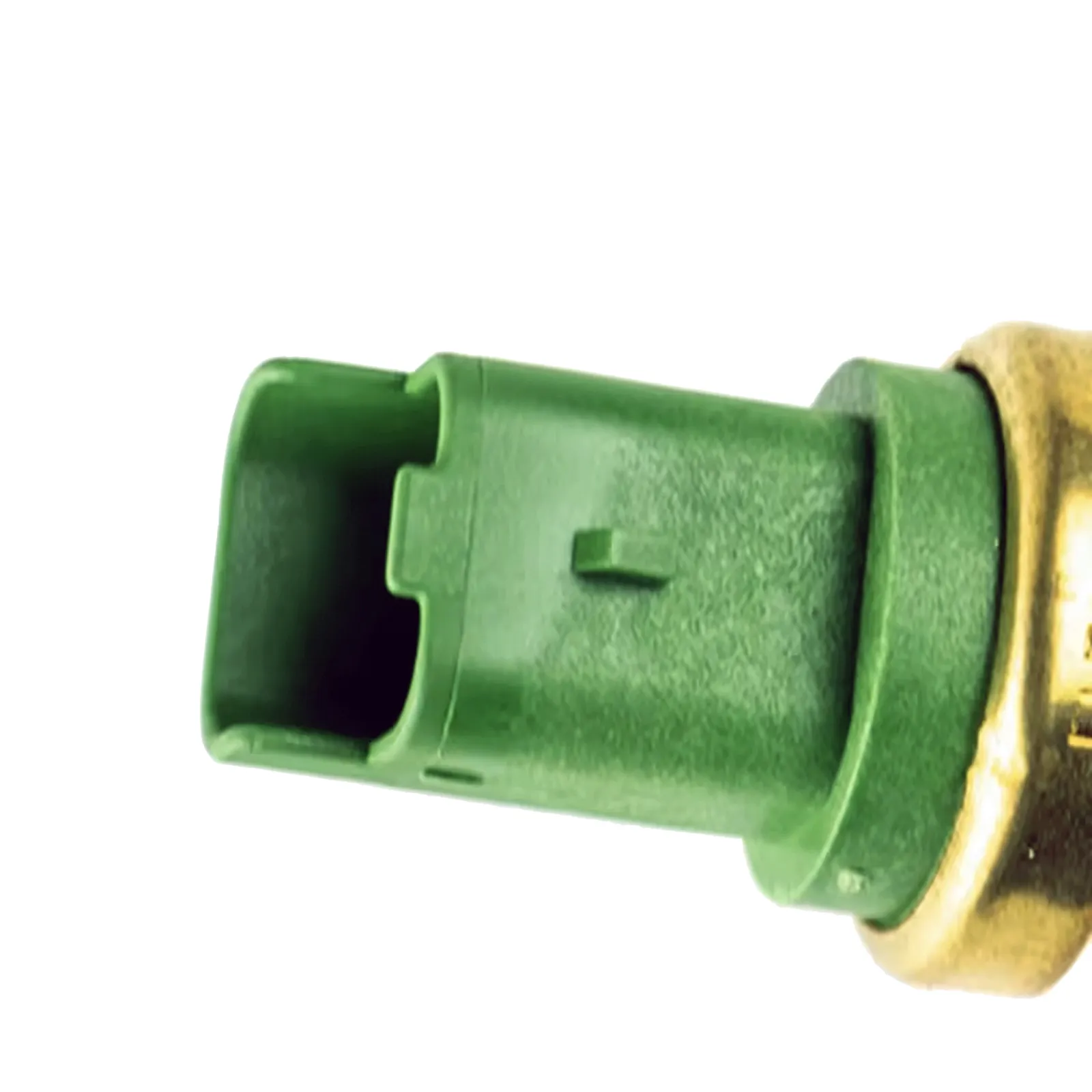

Connector Shape	rectangular

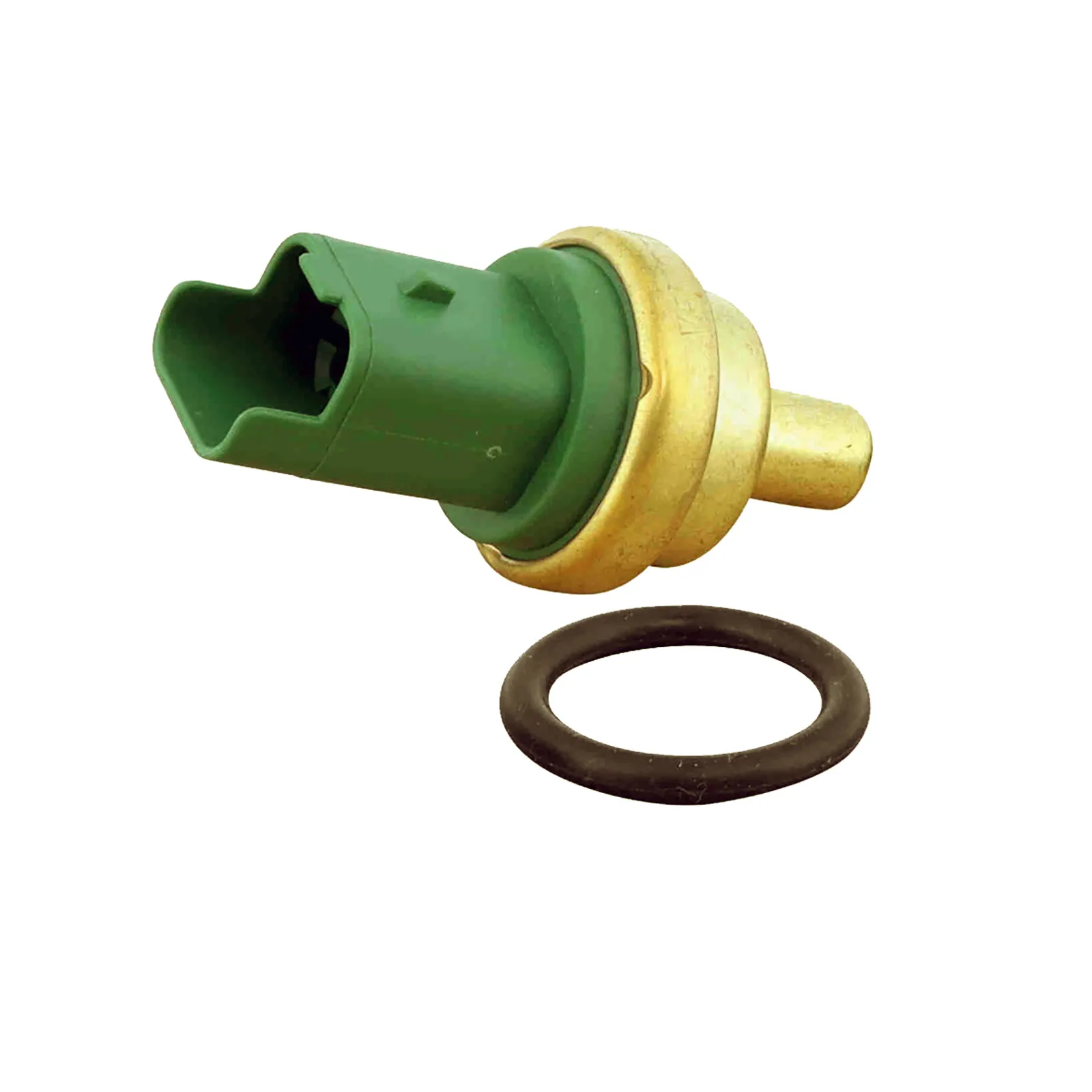

Supplementary Article Info	with seal, without cable
Rated Voltage	12 V
Housing Colour	Green
Thread Type	Push in style
Shipping & Dimensions
Shipping Weight	0.5000 kg
Shipping Width	0.230 m
Shipping Height	0.050 m
Shipping Length	0.160 m
Other Details
Note	CHECK IMAGES. CONFIRM WITH OEM NUMBER.
