BRAND NEW *OEM Quality* Engine Coolant Temperature Sensor to suit BMW 3 Series E30 E36 E46 E90 E91 E92 E93 1987-2018.

The 3 Series is BMW's highest-volume model on Australian roads, and this sensor is one of the most common coolant system failures reported across the range. A worn sensor sends the ECU an inaccurate coolant reading, throwing the fuel mixture off and often triggering an engine warning light.

TO SUIT

Fits BMW 3 Series sedan, coupe, convertible and touring models built from 1987 to 2018, spanning the E30, E36, E46, E90, E91, E92, E93 and F30 chassis across four-cylinder and six-cylinder petrol engines.

OEM PART NUMBERS

7788077
1433077
13621433077
13627788077

OTHER PART NUMBERS

VEMO: V20-72-0441
HELLA: 6PT 009 309-541
NTY: ECT-BM-012

PACKAGE INCLUDES

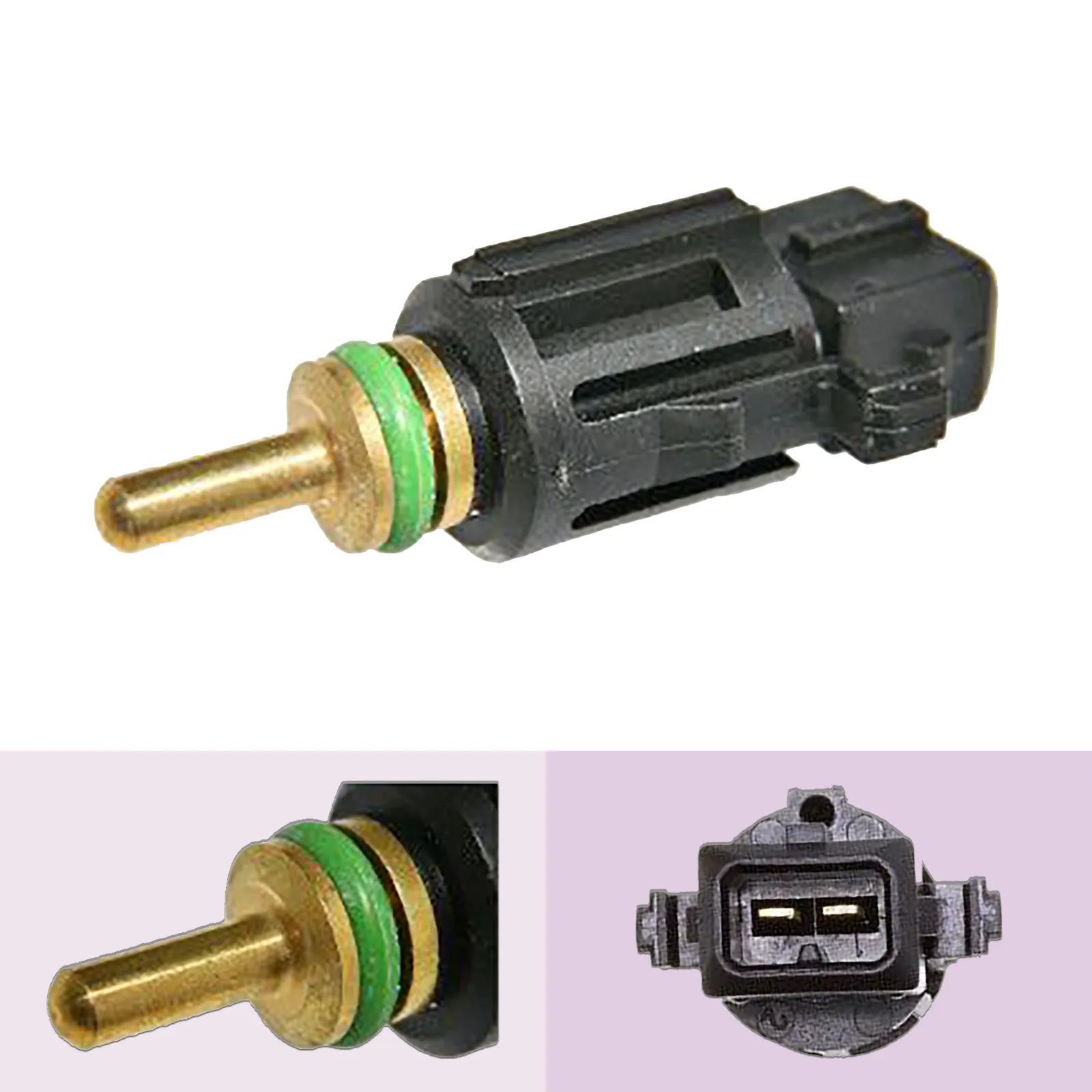

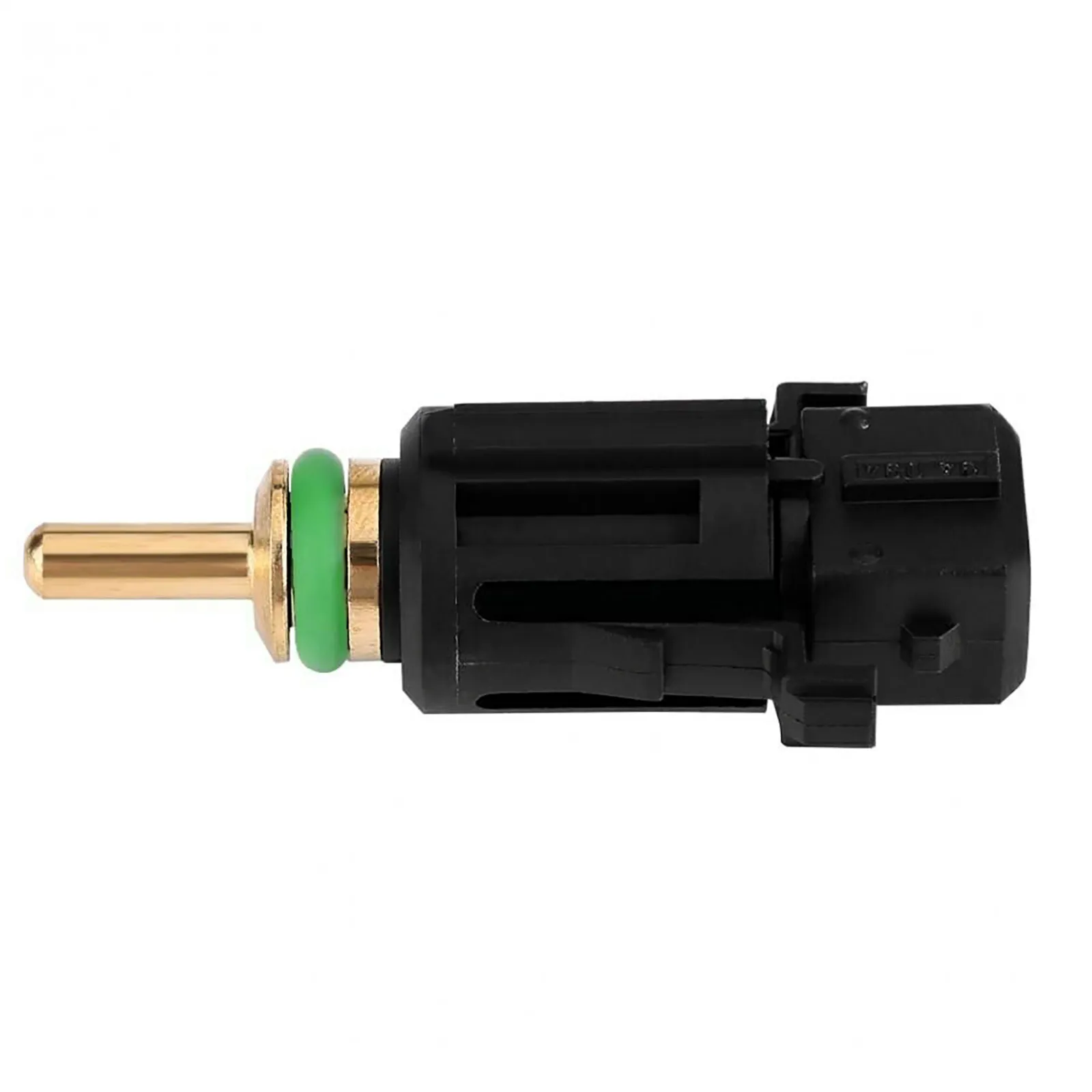

1 x OEM Quality Engine Coolant Temperature Sensor (2-pin connector, with seal ring).

ABOUT THIS SENSOR

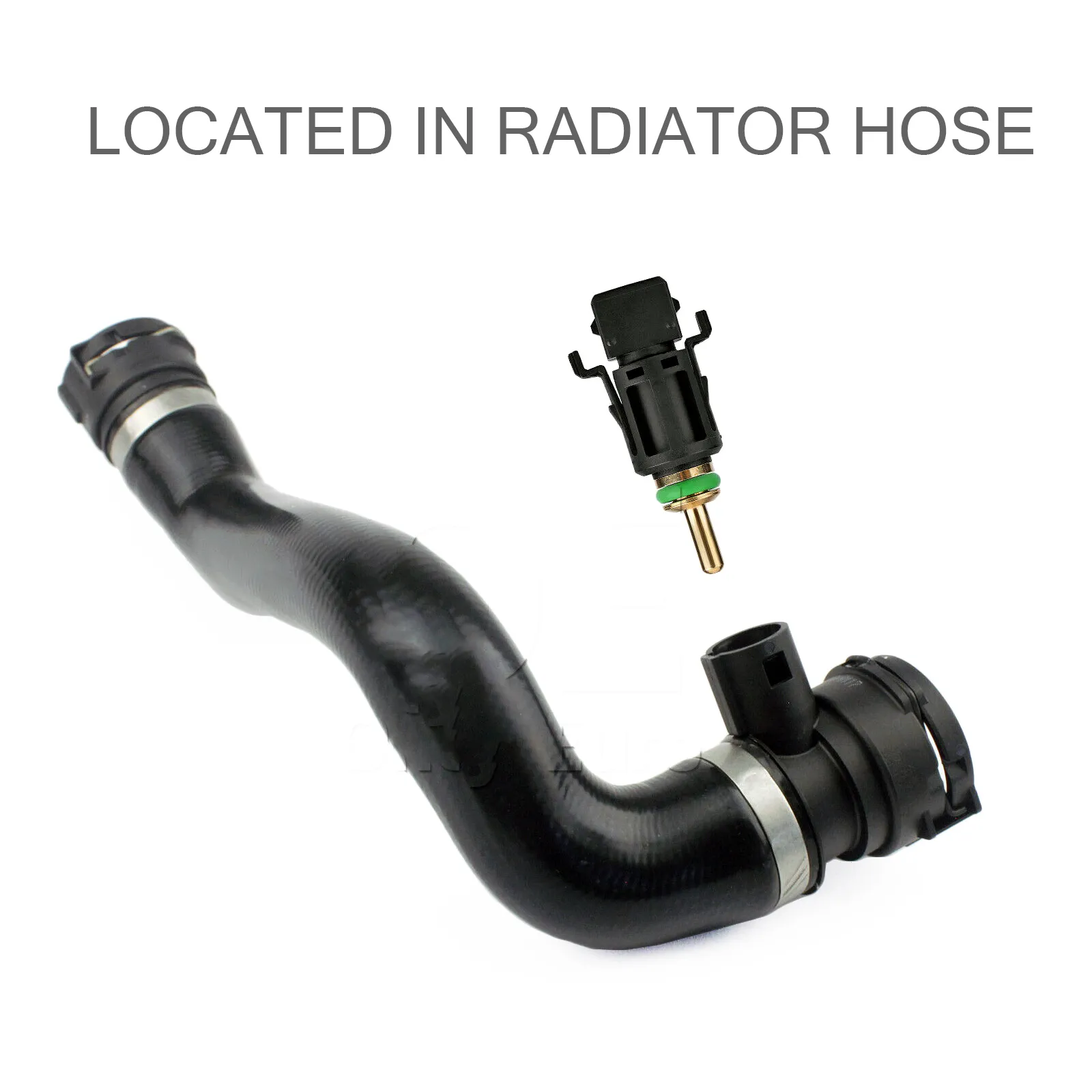

The 3 Series coolant temperature sensor sits in the lower radiator hose and reports coolant temperature to the ECU, which uses that reading to manage fuel trim, ignition timing and the electric cooling fan.

A failing sensor is a common cause of erratic temperature gauge readings and rough idle on the E46 and E9x generations in particular, and is cheap insurance against a bigger cooling system failure down the track.

COMMON SYMPTOMS OF FAILURE

Check engine light with a P0115-P0118 fault code
Temperature gauge reading incorrectly or fluctuating
Engine running rich or lean, poor fuel economy
Cooling fan running constantly or not at all
Difficulty starting when cold

[1987 - 1988] BMW 3 E30 Sedan 316 i (1.8L 4cyl M10 B18 (184KA) 75kW)
[1988 - 1991] BMW 3 E30 Sedan 316 i (1.6L 4cyl M40 B16 (164E1) 75kW)
[1991 - 1995] BMW 3 E36 Sedan 320 i (2.0L 6cyl M50 B20 (206S1),M50 B20 (206S2),M52 B20 (206S3) 110kW)
[1991 - 1998] BMW 3 E36 Coupe 320 i (2.0L 6cyl M50 B20 (206S1),M50 B20 (206S2),M52 B20 (206S3) 110kW)
[1995 - 1999] BMW 3 E36 Coupe 318 is (1.9L 4cyl M44 B19 (194S1) 103kW)
[1996 - 1998] BMW 3 E36 Sedan 318 is (1.9L 4cyl M44 B19 (194S1) 103kW)
[1996 - 1999] BMW 3 E36 Compact 318 ti (1.9L 4cyl M44 B19 (194S1) 103kW)
[1997 - 2001] BMW 3 E46 Sedan 318 i (1.9L 4cyl M43 B19 (194E1) 87kW)
[1998 - 2000] BMW 3 E46 Sedan 320 i (2.0L 6cyl M52 B20 (206S4) 110kW)
[1998 - 2000] BMW 3 E46 Sedan 323 i (2.5L 6cyl M52 B25 (256S4) 125kW)
[1998 - 2002] BMW 3 E46 Sedan 316 i (1.9L 4cyl M43 B19 (194E1) 77kW)
[1998 - 2005] BMW 3 E46 Sedan 328 i (2.8L 6cyl M52 B28 (286S2) 142kW)
[1998 - 2006] BMW 3 E46 Coupe 328 Ci (2.8L 6cyl M52 B28 (286S2) 142kW)
[1999 - 2000] BMW 3 E46 Coupe 323 Ci (2.5L 6cyl M52 B25 (256S4) 125kW)
[1999 - 2001] BMW 3 E46 Coupe 318 Ci (1.9L 4cyl M43 B19 (194E1) 87kW)
[1999 - 2001] BMW 3 E46 Touring 318 i (1.9L 4cyl M43 B19 (194E1) 87kW)
[2000 - 2005] BMW 3 E46 Sedan 320 i (2.2L 6cyl M54 B22 (226S1) 125kW)
[2000 - 2005] BMW 3 E46 Sedan 325 i (2.5L 6cyl M54 B25 (256S5) 141kW)
[2000 - 2005] BMW 3 E46 Sedan 330 i (3.0L 6cyl M54 B30 (306S3) 170kW)
[2000 - 2005] BMW 3 E46 Touring 320 i (2.2L 6cyl M54 B22 (226S1) 125kW)
[2000 - 2005] BMW 3 E46 Touring 330 i (3.0L 6cyl M54 B30 (306S3) 170kW)
[2000 - 2006] BMW 3 E46 Convertible 325 Ci (2.5L 6cyl M54 B25 (256S5) 141kW)
[2000 - 2006] BMW 3 E46 Convertible 330 Ci (3.0L 6cyl M54 B30 (306S3) 170kW)
[2000 - 2006] BMW 3 E46 Coupe 320 Ci (2.2L 6cyl M54 B22 (226S1) 125kW)
[2000 - 2006] BMW 3 E46 Coupe 325 Ci (2.5L 6cyl M54 B25 (256S5) 141kW)
[2000 - 2006] BMW 3 E46 Coupe 330 Ci (3.0L 6cyl M54 B30 (306S3) 170kW)
[2000 - 2006] BMW 3 E46 Coupe M3 (3.2L 6cyl S54 B32 (326S4) 252kW)
[2000] BMW 3 E46 Convertible 323 Ci (2.5L 6cyl M52 B25 (256S4) 125kW)
[2001 - 2004] BMW 3 E46 Coupe 318 Ci (2.0L 4cyl N42 B20 A 105kW)
[2001 - 2005] BMW 3 E46 Compact 316 ti (1.8L 4cyl N46 B18 A,N42 B18 A 85kW)
[2001 - 2005] BMW 3 E46 Sedan 318 i (2.0L 4cyl N42 B20 A,N46 B20 A,N46 B20 C 105kW)
[2001 - 2006] BMW 3 E46 Convertible M3 (3.2L 6cyl S54 B32 (326S4) 252kW)
[2002 - 2004] BMW 3 E46 Compact 318 ti (2.0L 4cyl N42 B20 A,N46 B20 A 105kW)
[2002 - 2004] BMW 3 E46 Compact 325 ti (2.5L 6cyl M54 B25 (256S5) 141kW)
[2003] BMW 3 E46 Coupe M3 CSL (3.2L 6cyl S54 B32 (326S4) 265kW)
[2004 - 2006] BMW 3 E46 Coupe 318 Ci (2.0L 4cyl N46 B20 A,N46 B20 C 110kW)
[2004 - 2007] BMW 3 E90 Sedan 320 i (2.0L 4cyl N46 B20 B 110kW)
[2004 - 2008] BMW 3 E91 Touring 325 i (2.5L 6cyl N52 B25 A 160kW)
[2004 - 2011] BMW 3 E90 Sedan 325 i (2.5L 6cyl N52 B25 A,N52 B25 B,N52 B25 BF 160kW)
[2004 - 2011] BMW 3 E90 Sedan 330 i (3.0L 6cyl N52 B30 BF,N52 B30 A 190kW)
[2005 - 2007] BMW 3 E90 Sedan 318 i (2.0L 4cyl N46 B20 B 95kW)
[2005 - 2007] BMW 3 E90 Sedan 323 i (2.5L 6cyl N52 B25 A,N52 B25 B,N52 B25 BF,N52 B25 BE 130kW)
[2005 - 2012] BMW 3 E91 Touring 320 i (2.0L 4cyl N46 B20 B,N46 B20 BD,N46 B20 C 115kW)
[2005 - 2012] BMW 3 E91 Touring 320 i (2.0L 4cyl N46 B20 B,N46 B20 C 110kW)
[2005 - 2012] BMW 3 E91 Touring 330 i (3.0L 6cyl N52 B30 A 190kW)
[2006 - 2007] BMW 3 E91 Touring 323 i (2.5L 6cyl N52 B25 A 130kW)
[2006 - 2010] BMW 3 E92 Coupe 325 i (2.5L 6cyl N52 B25 A,N52 B25 AF,N52 B25 BF 160kW)
[2006 - 2010] BMW 3 E93 Convertible 325 i (2.5L 6cyl N52 B25 A 160kW)
[2006 - 2011] BMW 3 E90 Sedan 335 i (3.0L 6cyl N55 B30 A,N54 B30 A 225kW)
[2006 - 2012] BMW 3 E91 Touring 323 i (2.5L 6cyl N52 B25 A 140kW)
[2006 - 2012] BMW 3 E92 Coupe 323 i (2.5L 6cyl N52 B25 AE,N52 B25 BE 140kW)
[2007 - 2011] BMW 3 E90 Sedan 320 i (2.0L 4cyl N46 B20 B,N46 B20 CC,N46 B20 CD,N46 B20 E,N46 B20 C 115kW)
[2007 - 2011] BMW 3 E90 Sedan 323 i (2.5L 6cyl N52 B25 A,N52 B25 BF 140kW)
[2007 - 2012] BMW 3 E91 Touring 320 i (2.0L 4cyl N43 B20 A 125kW)
[2007 - 2012] BMW 3 E92 Coupe 320 i (2.0L 4cyl N43 B20 A 125kW)
[2010 - 2012] BMW 3 E92 Coupe 330 i (3.0L 6cyl N52 B30 A 190kW)
[2010 - 2013] BMW 3 E92 Coupe 325 i (2.5L 6cyl N52 B25 A,N52 B25 AF,N52 B25 BF 150kW)
[2011 - 2012] BMW 3 E91 Touring 325 i (2.5L 6cyl N52 B25 A 160kW)
[2011 - 2018] BMW 3 F30,F80 Sedan 328 i (2.0L 4cyl N26 B20 A,N20 B20 A 180kW)
[2012 - 2016] BMW 3 F30,F80 Sedan 316 i (1.6L 4cyl N13 B16 A 100kW)
[2014 - 2018] BMW 3 F30,F80 Sedan 328 i ActiveFlex (2.0L 4cyl N20 B20 A 180kW)

How do I test a coolant temperature sensor?

The most common test is to measure the sensor resistance with a multimeter at a known coolant temperature and compare against the manufacturer resistance curve. A cold engine (20 degrees C) typically reads 2,000 to 3,000 ohms and drops to around 200 to 300 ohms at operating temperature (90 degrees C). An OBD2 scanner showing a fixed temperature reading that does not change as the engine warms up is also a strong indicator of sensor failure.

Can a faulty coolant temperature sensor cause my engine to overheat?

Indirectly yes. If the sensor reports a lower temperature than actual, the ECU may not activate the cooling fan at the correct time, allowing the engine to overheat. It can also suppress the dashboard warning light, meaning you may not be alerted until the engine is already at a dangerously high temperature. Replace a suspected faulty sensor promptly.

Do I need to drain the coolant to replace the sensor?

Not always - many coolant temperature sensors can be replaced quickly with minimal coolant loss if you work fast and have a replacement ready to thread in immediately. However on some vehicles the sensor location requires partial coolant drainage. Check the sensor position on your specific engine before starting. Always use fresh coolant when topping up after replacement.

What are the symptoms of a faulty coolant temperature sensor?

Symptoms include poor fuel economy, black smoke, engine overheating warning, incorrect temperature gauge reading, hard starting when cold, and rough idle. Fault codes P0115 to P0119 are commonly associated with coolant temperature sensor faults.

Is it safe to drive with a bad coolant temperature sensor?

A faulty coolant temperature sensor can cause the ECU to run rich fuel mixtures and prevent the cooling fan from operating correctly, risking engine overheating. Replace it promptly - it is a low-cost part that can prevent expensive engine damage.

How do I know if my coolant temperature sensor or my thermostat is faulty?

A faulty thermostat typically causes the engine to overheat or never reach operating temperature. A faulty coolant temp sensor causes incorrect gauge readings and running issues but the coolant itself may be at the correct temperature. An OBD2 scanner showing live coolant temp data helps distinguish between the two.

Are there two coolant temperature sensors on my vehicle?

Many vehicles have two sensors - one for the ECU (engine management) and one for the dashboard temperature gauge. They look similar but are not interchangeable. Check your vehicle's service manual or contact us with your vehicle details to confirm which sensor you need.

Identification
SKU	CCS56-6
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	CCS56

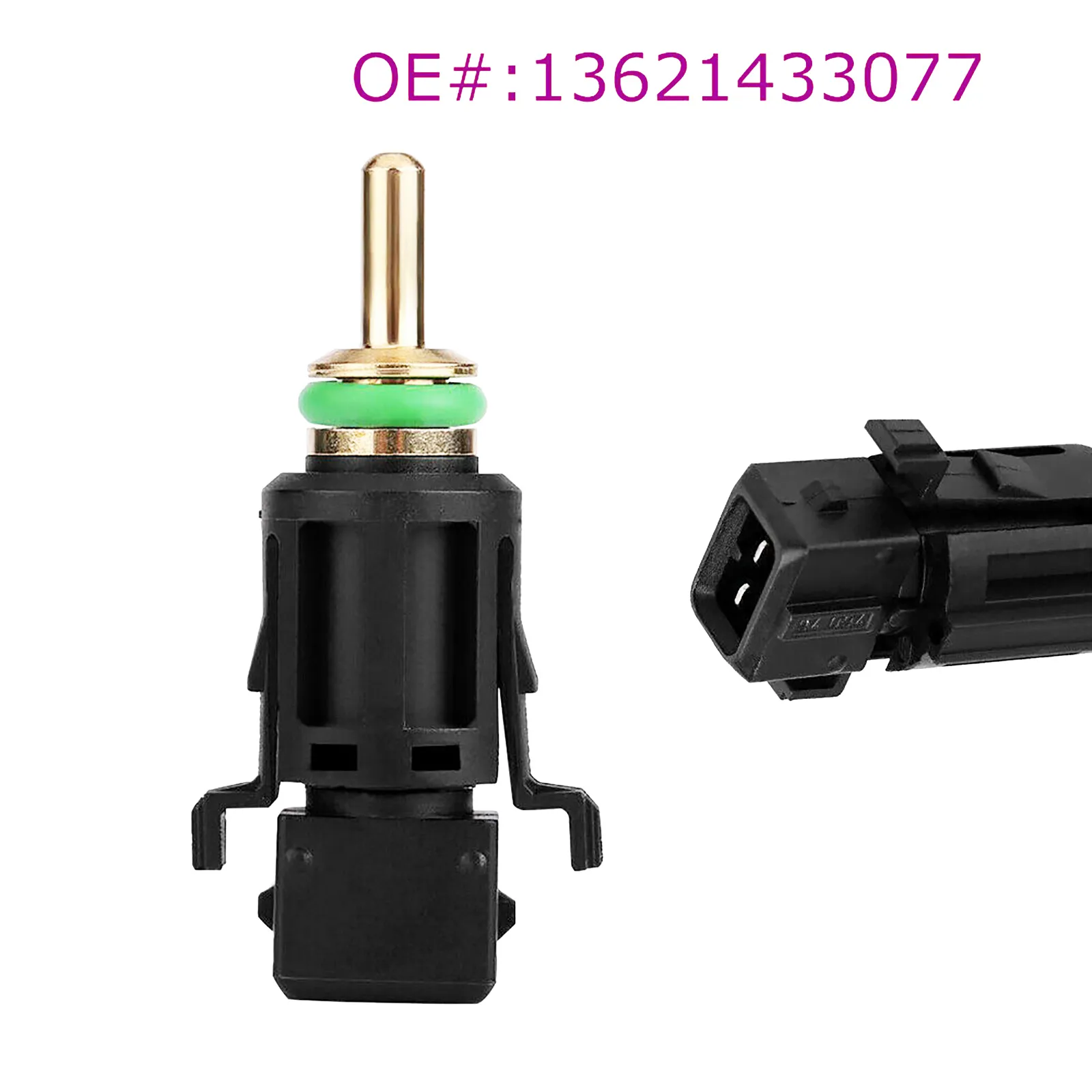

Reference OEM Number	13621433077
Other OEM Numbers	7788077, 1433077, 13621433077, 13627788077
Related Part Numbers	CCS56, CS881, CTS1070, TCS140, TS10485, TX128
Trade Part Numbers	VEMO: V20-72-0441, HELLA: 6PT 009 309-541, NTY: ECT-BM-012
Product Specifics
Product Type	SENSOR
Sensor Type	ENGINE COOLANT TEMPERATURE SENSOR
Placement On Vehicle	Bottom Radiator Hose
Features	Direct Fit
Manufacturer Warranty	1 Year
Number Of Sensors	1
Fitting Position	Radiator, Right, Lower

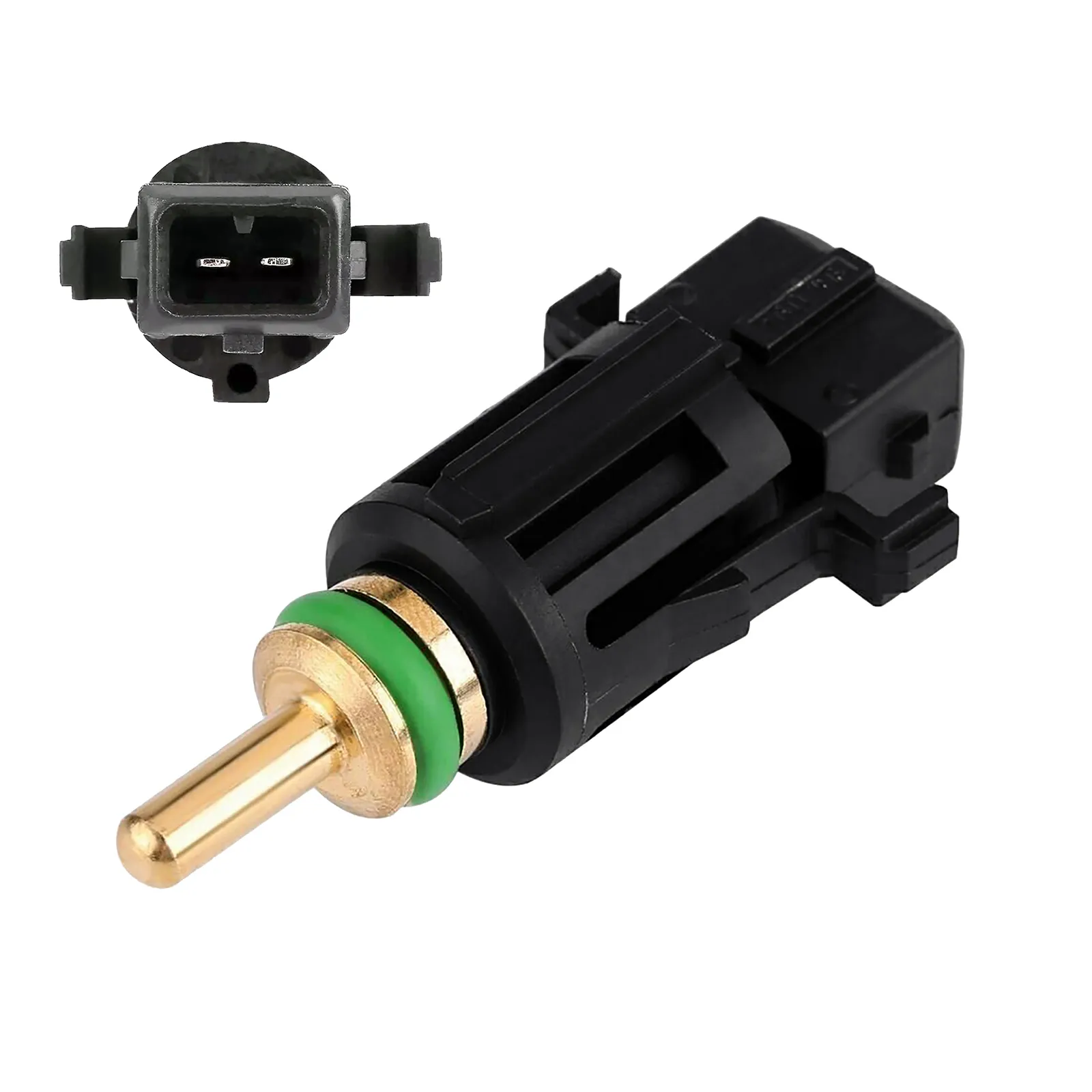

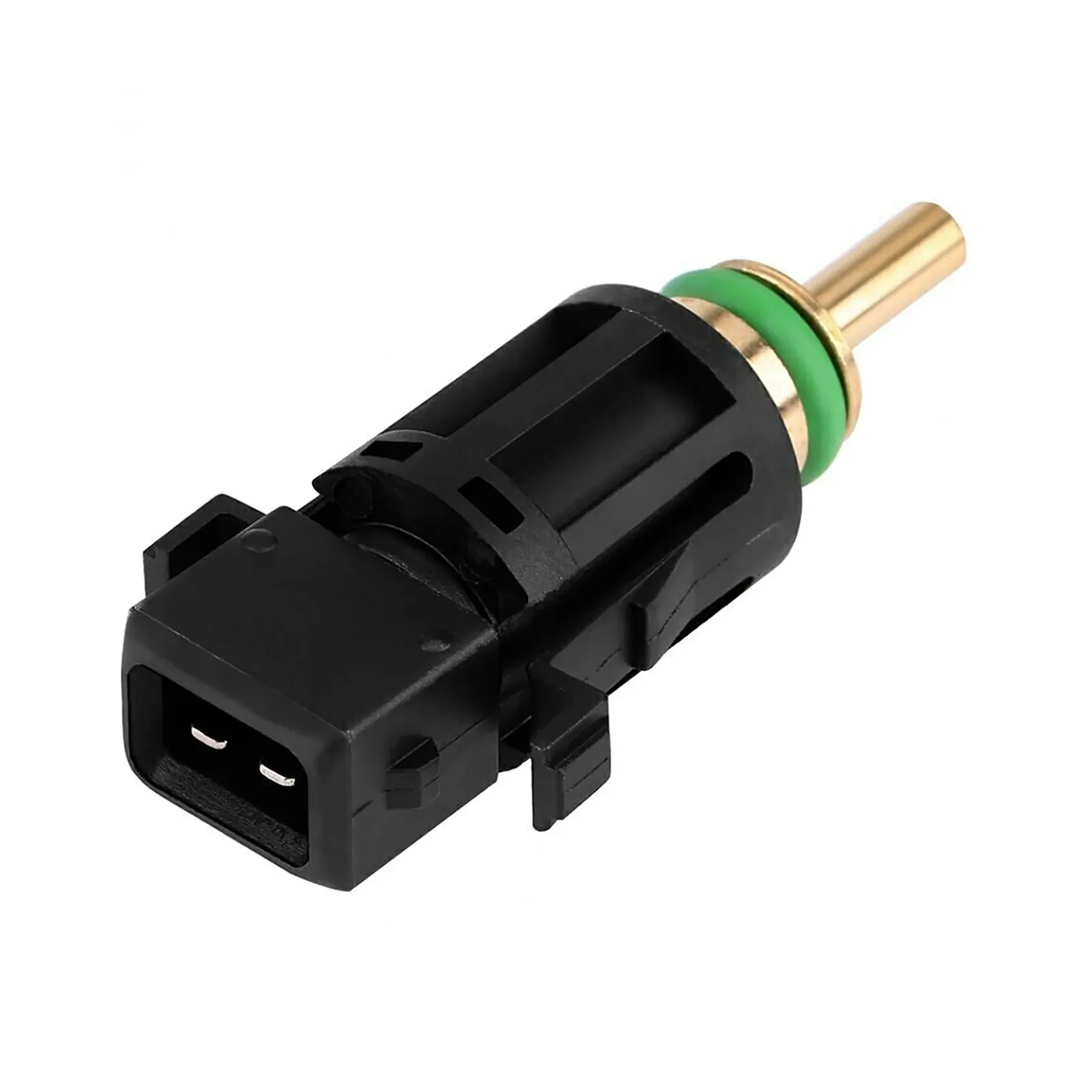

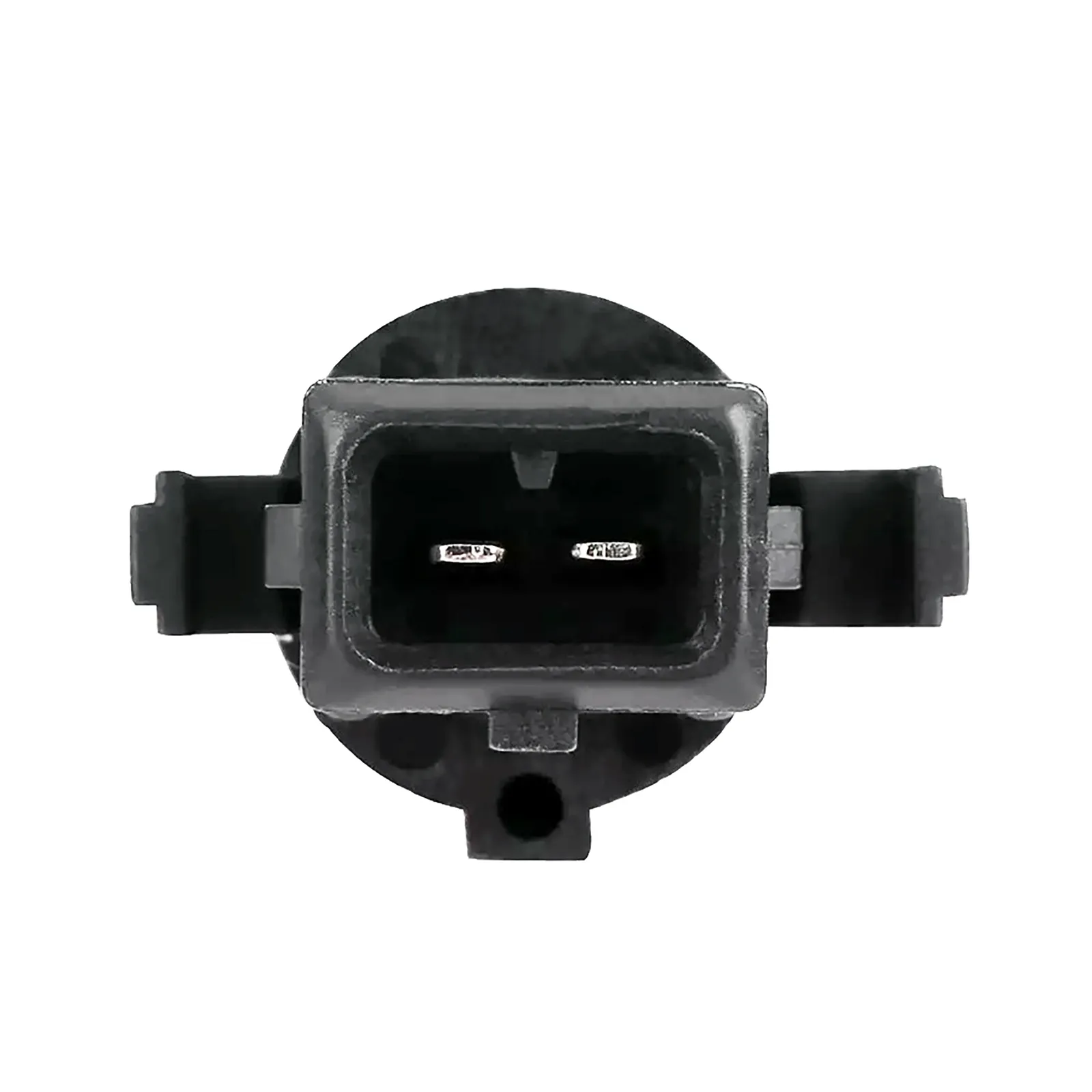

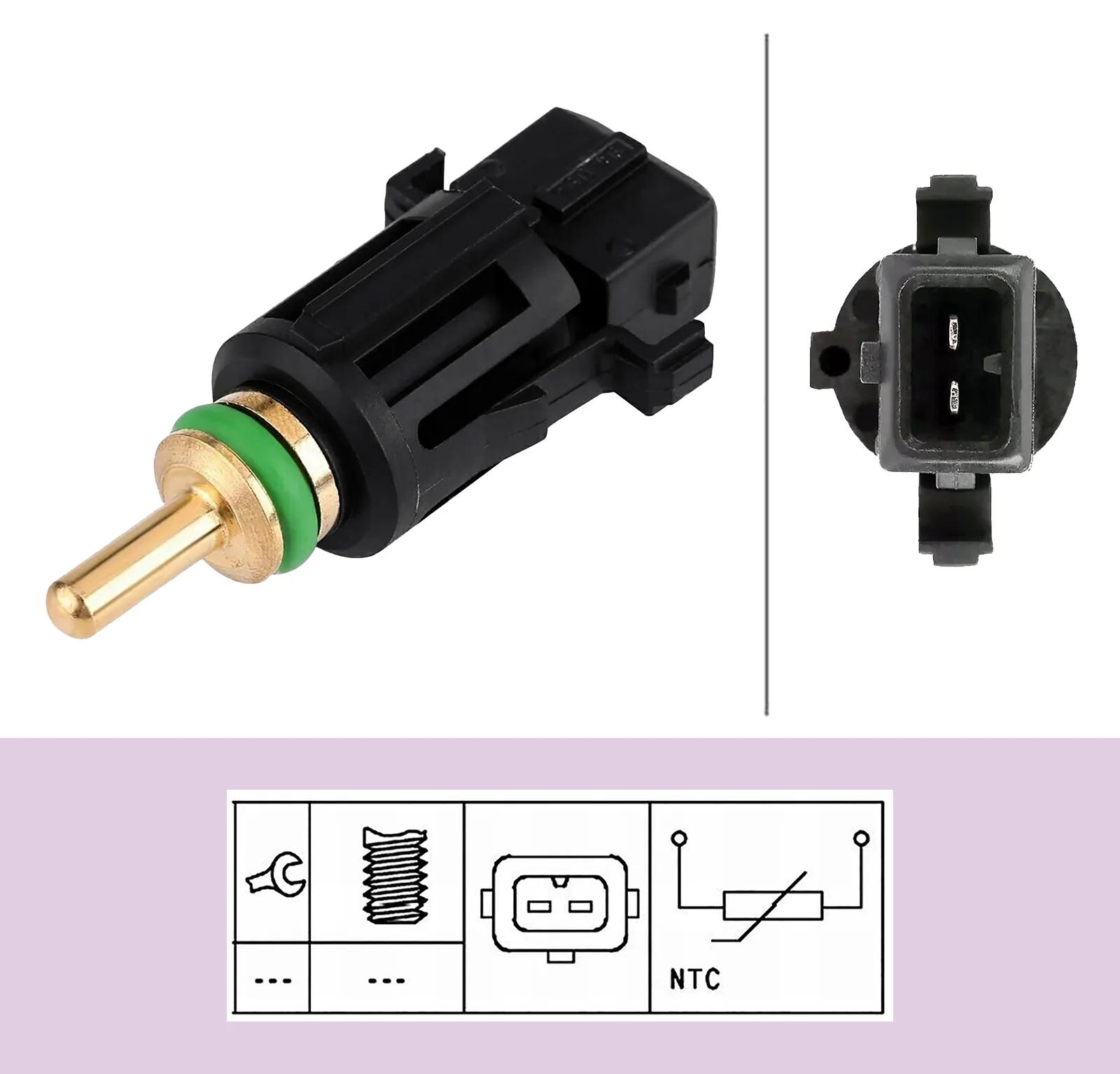

Number of pins	2 -pin connector
Connector Shape	rectangular
Supplementary Article Info	with seal ring
Housing Colour	Black
Mounting Type	Plugged
Housing Diameter	12.95 mm
Fastening Type	Pin Fixing
Compatible Makes	BMW
Fitment Type	Direct Replacement
Other Details
Note	Always verify fitment using your vehicle's OEM part number.
Unit Of Measure	ea
