BRAND NEW *OEM QUALITY* ENGINE COOLANT TEMPERATURE GUAGE SENSOR TO SUIT TOYOTA

PLEASE COMPARE YOUR ORIGINAL SENSOR WITH THE IMAGES WE PROVIDED IN THE LISTING AND CHECK THE DETAILED VEHICLE LIST IN THE SUITABILITY SECTION.

TO SUIT:

OEM# 89422-33030

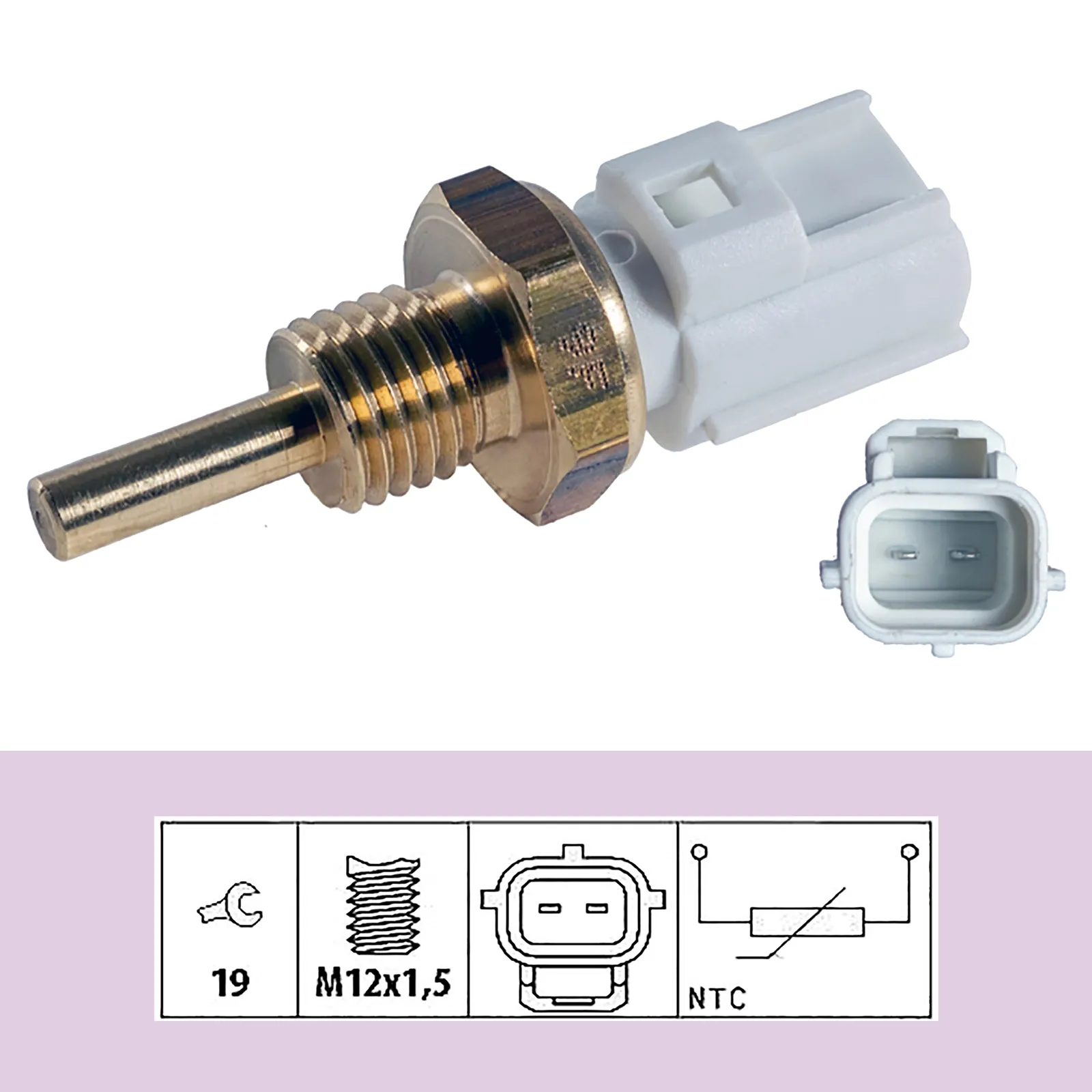

• Number of pins: 2-pin connector
• Connector Shape: oval
• Socket Color: White
• Thread Size: M12x1.5
• Sensor Type: NTC Sensor
• Spanner size: 19 mm

Features:

• High Quality
• OEM Fit and Design
• Easy install
• Simple operation
• AU Seller-Fast and Free Shipping

Package Includes:

COMPATIBLE VEHICLES

[11/05 – 11/12] TOYOTA RAV4 ACA33R 2.4L 4cyl 2AZ-FE 125kW
[03/10 – 11/12] TOYOTA RAV4 ACA38R 2.4L 4cyl 2AZ-FE 125kW
[12/15 – 12/17] TOYOTA RAV4 ALA49R 2.2L 4cyl 2AD-FHV 110kW
[12/12 – 12/18] TOYOTA RAV4 ALA49R 2.2L 4cyl 2AD-FTV 110kW
[08/07 – 11/12] TOYOTA RAV4 GSA33R 3.5L V6 2GR-FE
[12/12 – 12/18] TOYOTA RAV4 ZSA42R 2.0L 4cyl 3ZR-FE 107kW

[09/03 – 04/09] TOYOTA PRIUS NHW20R 1.5L 4cyl 1NZ-FXE 57kW
[05/09 – 12/15] TOYOTA PRIUS ZVW30R 1.8L 4cyl 2ZR-FXE 73kW

[08/02 – 05/06] TOYOTA CAMRY ACV36R 2.4L 4cyl 2AZ-FE 112kW
[06/06 – 09/11] TOYOTA CAMRY ACV40R 2.4L 4cyl 2AZ-FE 117kW
[07/09 – 11/11] TOYOTA CAMRY AHV40R 2.4L 4cyl 2AZ-FXE 110kW
[12/11 – 09/17] TOYOTA CAMRY ASV50R 2.5L 4cyl 2AR-FE
[12/11 – 09/17] TOYOTA CAMRY AVV50R 2.5L 4cyl 2AR-FXE 118kW

[08/07 – 11/13] TOYOTA KLUGER GSU40R 3.5L V6 2GR-FE
[08/07 – 11/13] TOYOTA KLUGER GSU45R 3.5L V6 2GR-FE

[11/04 – 09/09] TOYOTA MARK X GRX120 (GREY IMPORT) 2.5L V6 4GR-FSE
[11/04 – 09/09] TOYOTA MARK X GRX121 (GREY IMPORT) 3.0L V6 3GR-FSE
[11/04 – 09/09] TOYOTA MARK X GRX125 (GREY IMPORT) 2.5L V6 4GR-FSE
[10/09 – 07/12] TOYOTA MARK X GRX133 (GREY IMPORT) 3.5L V6 2GR-FSE
[09/07 – 09/13] TOYOTA MARK X ZIO GGA10 (GREY IMPORT) 3.5L V6 2GR-FE

[04/03 – 12/05] TOYOTA TARAGO ACR30R 2.4L 4cyl 2AZ-FE 115kW
[03/06 – 06/12] TOYOTA TARAGO ACR50R 2.4L 4cyl 2AZ-FE 125kW
[07/12 ON] TOYOTA TARAGO ACR50R 2.4L 4cyl 2AZ-FE 125kW

[05/08 – 12/14] TOYOTA ALPHARD ANH20W (GREY IMPORT) 2.4L 4cyl 2AZ-FE 125kW
[10/06 – 03/12] TOYOTA AURION GSV40R 3.5L V6 2GR-FE
[01/12 – 12/17] TOYOTA AURION GSV50R 3.5L V6 2GR-FE
[12/03 – 12/10] TOYOTA AVENSIS VERSO ACM21R 2.4L 4cyl 2AZ-FE 118kW
[12/05 – 06/16] TOYOTA BB QNC21 (GREY IMPORT) 1.5L 4cyl 3SZ-VE

[01/06 ON] TOYOTA ESTIMA ACR50 (GREY IMPORT) 2.4L 4cyl 2AZ-FE 125kW
[01/06 ON] TOYOTA ESTIMA ACR55 (GREY IMPORT) 2.4L 4cyl 2AZ-FE 125kW
[03/11 – 08/16] TOYOTA FJ CRUISER GSJ15R 4.0L V6 1GR-FE
[11/08 ON] TOYOTA IQ KGJ10 (GREY IMPORT) 1.0L 3cyl 1KR-FE
[08/09 ON] TOYOTA IQ NGJ10 (GREY IMPORT) 1.3L 4cyl 1NR-FE
[06/07 – 05/10] TOYOTA NOAH ZRR70 (GREY IMPORT) 2.0L 4cyl 3ZR-FE 107kW
[10/05 – 10/10] TOYOTA RACTIS NCP105 (GREY IMPORT) 1.5L 4cyl 1NZ-FE 80kW
[05/10 – 12/15] TOYOTA RUKUS AZE151R 2.4L 4cyl 2AZ-FE 123kW
[11/05 – 11/12] TOYOTA VANGUARD ACA33 (GREY IMPORT) 2.4L 4cyl 2AZ-FE 125kW
[05/08 – 12/14] TOYOTA VELLFIRE GGH20 (GREY IMPORT) 3.5L V6 2GR-FE
[06/07 – 12/13] TOYOTA VOXY ZRR70 (GREY IMPORT) 2.0L 4cyl 3ZR-FAE

ABOUT YOUR VEHICLE’S ENGINE COOLANT TEMPERATURE SENSOR

What does a Coolant Temperature Sensor do?
The Coolant Temperature sensor changes resistance with the temperature. The Coolant Temperature sensor is critical to many PCM functions such as fuel injection, ignition timing, variable valve timing, and transmission shifting.

Where are these sensors located?
The Coolant Temperature sensor is located in a coolant passage in the engine usually near the thermostat.

Will a malfunctioning Coolant Temp Sensor illuminate the check engine light or affect vehicle operation?
Yes, a failing sensor can illuminate the MIL, and cause the engine to run rich or lean. The transmission may shift incorrectly or not lock up the torque converter.

What are the common causes of failure?
Typically these sensors fail due to corrosion within the coolant system. They may also leak coolant through the wiring connector.

How to determine if these sensors are malfunctioning?
A DTC will be set if an abnormal reading occurs, P0116 for sensor performance, P0117 low input, or P0118 for high input. The coolant temperature sensor temperature reading should closely match the air charge/manifold temperature reading on a scan tool if the engine has not been run for over an hour. The sensor circuit can be checked for proper voltage using a voltmeter.

Why Buy from Us / What makes Our Coolant Temp Sensors the best?
• As an OEM manufacturer, Standard/ Our Supplier has complete control of the manufacturing process from componentry to finished product
• Temperature sensor design specifies tight tolerance thermistor response values to assure the accuracy of the temperature measurement and proper part operation
• All Coolant Temperature sensors are 100% factory tested to ensure trouble-free performance.
