BRAND NEW OEM Quality ENGINE COOLANT TEMPERATURE GUAGE SENSOR TO SUIT MERCEDES-BENZ

ALSO WORKS AS AN OIL / FUEL TEMPERATURE SENSOR FOR MANY MERCEDES VEHICLES.

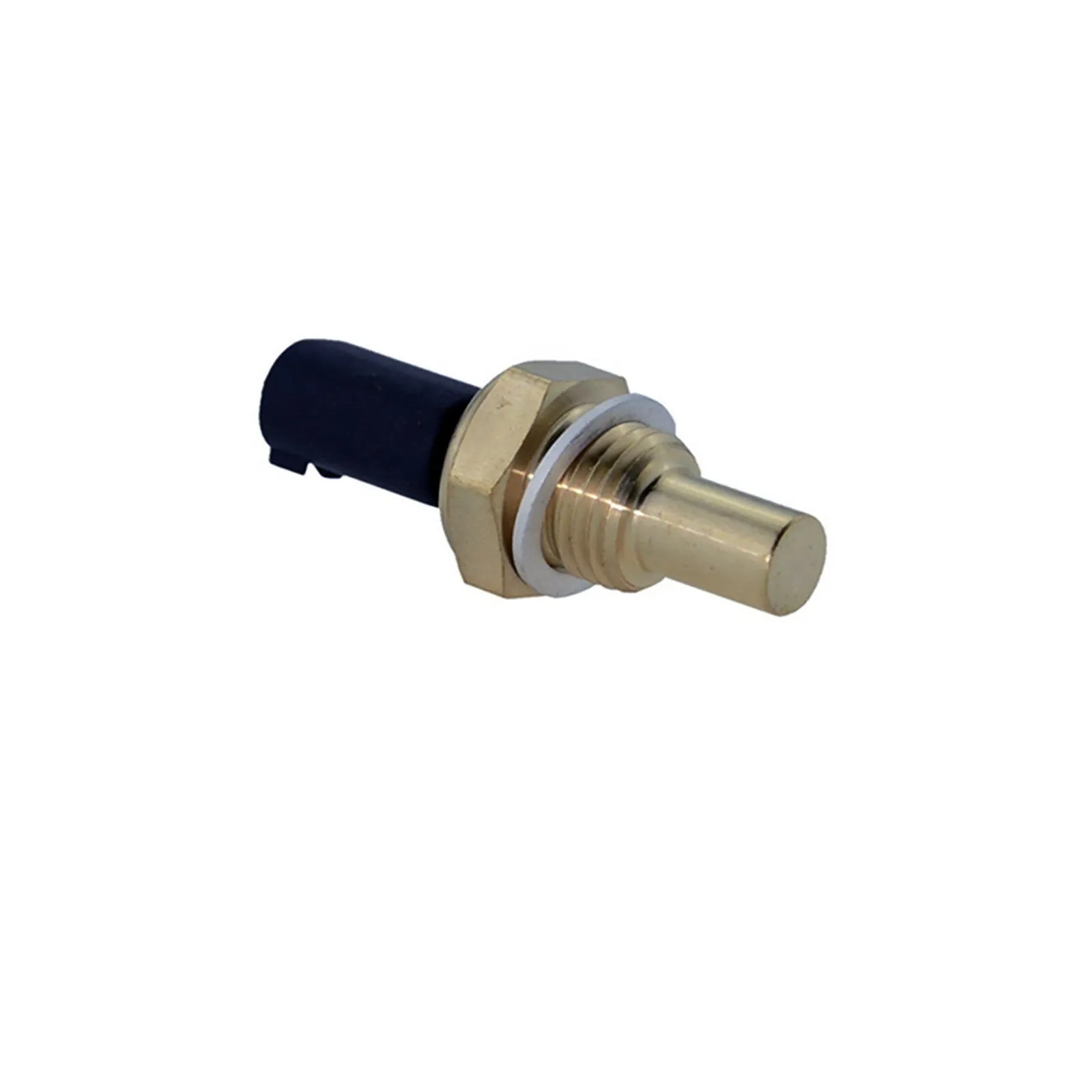

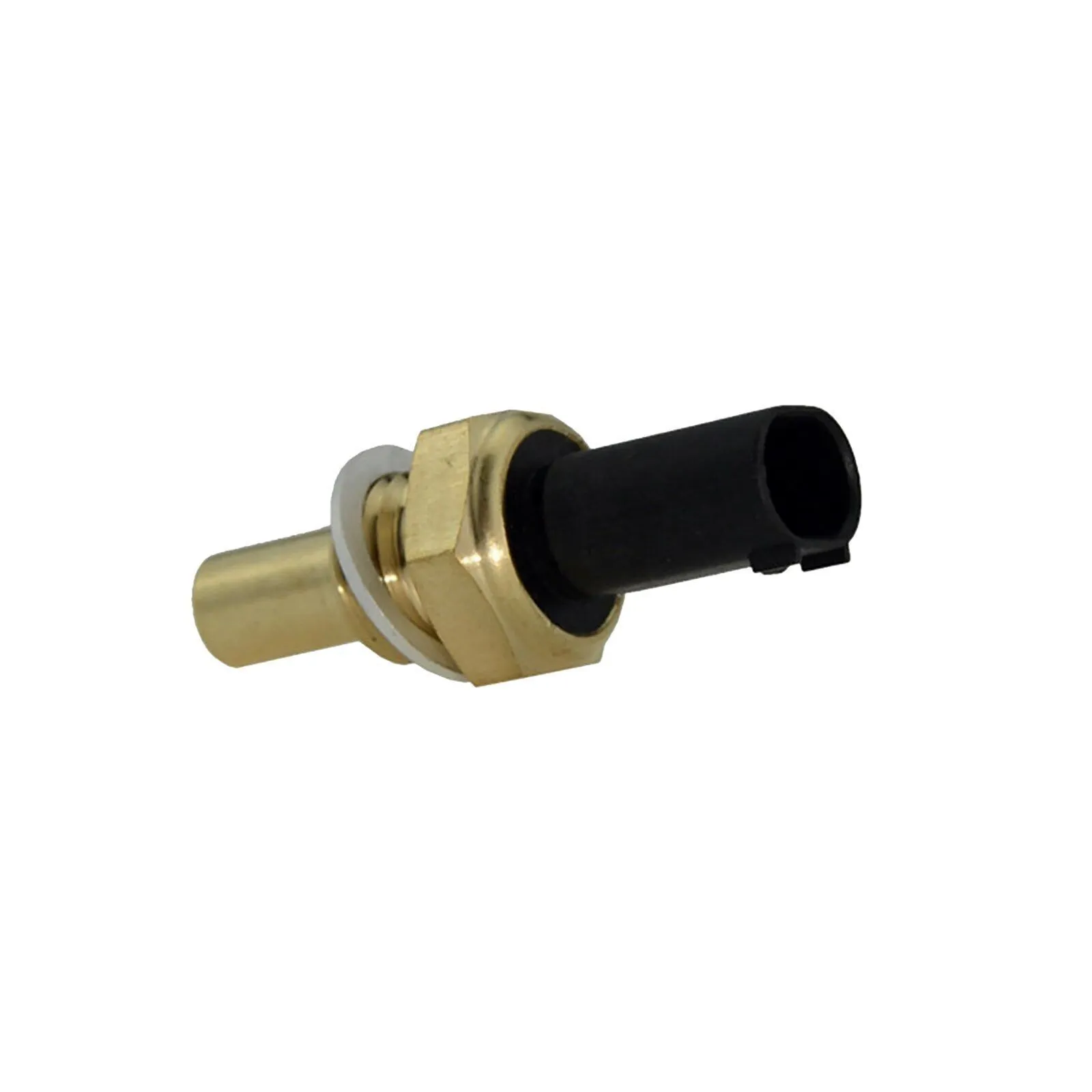

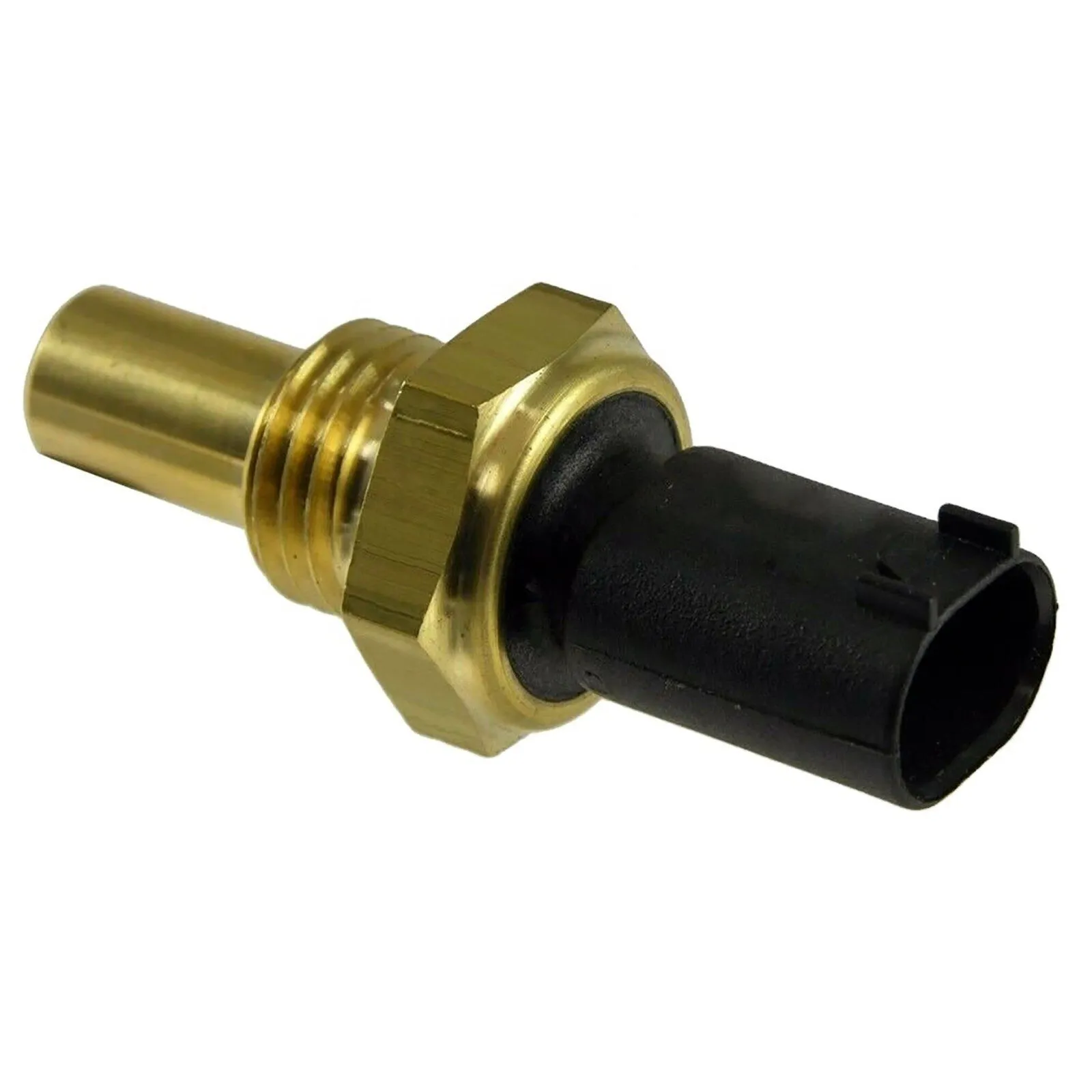

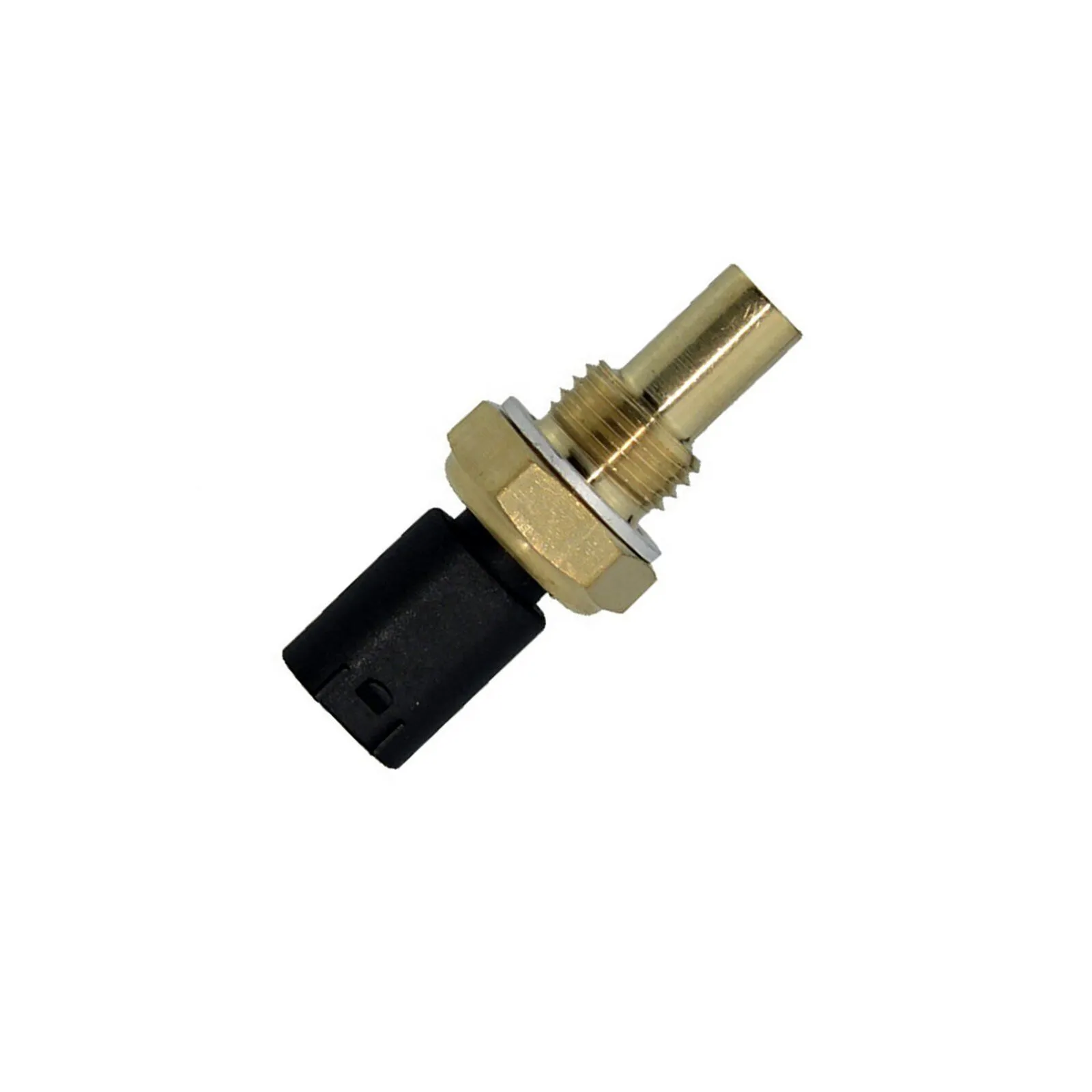

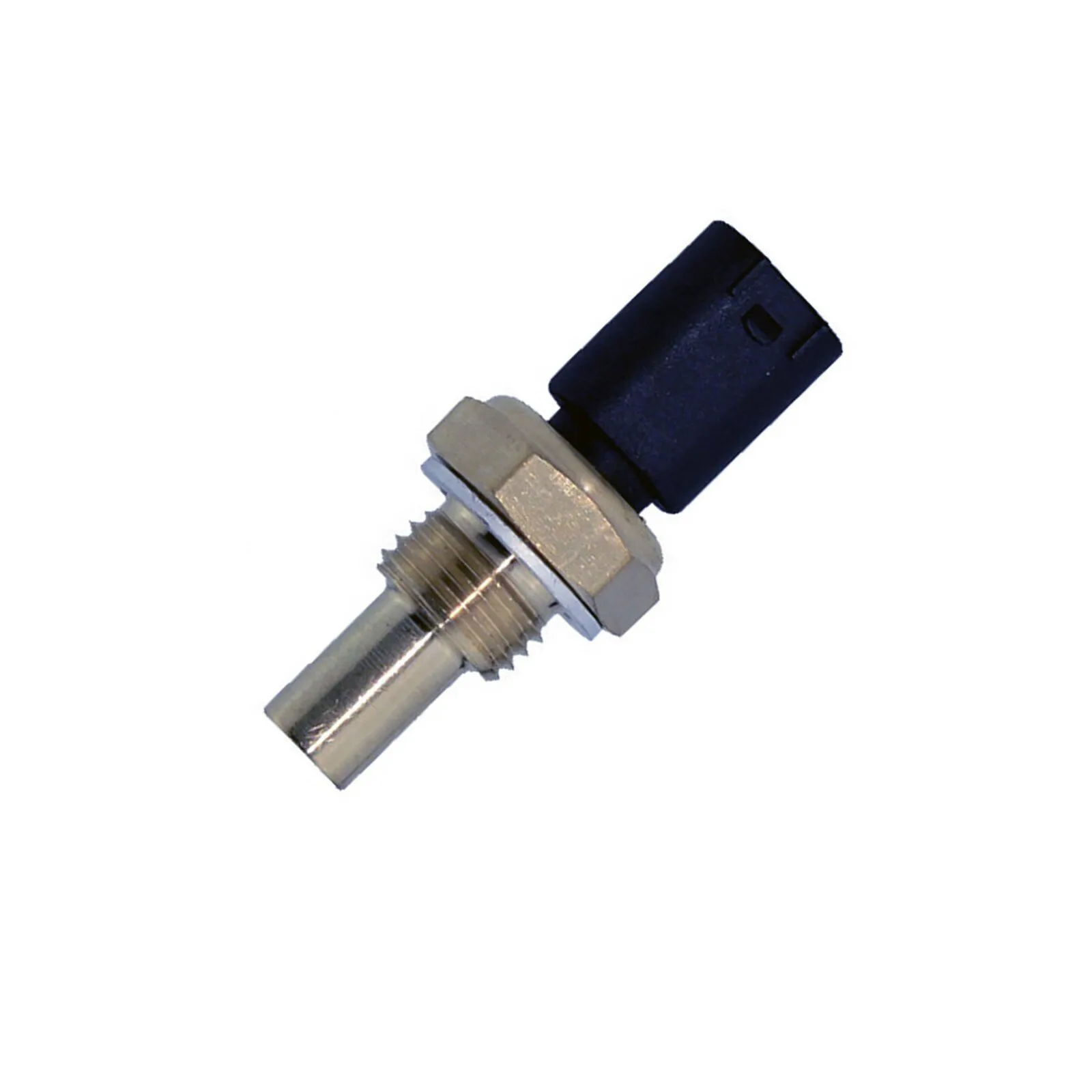

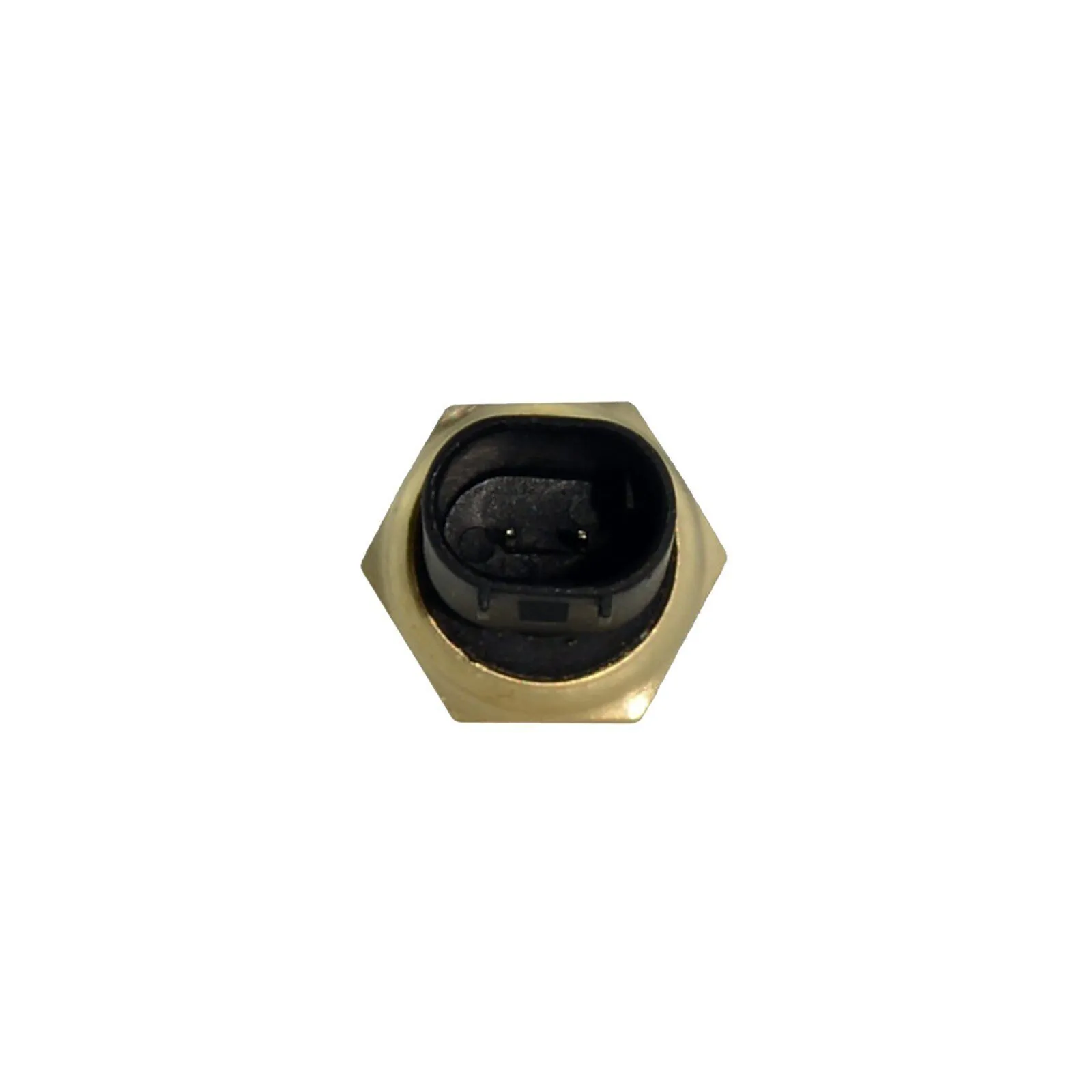

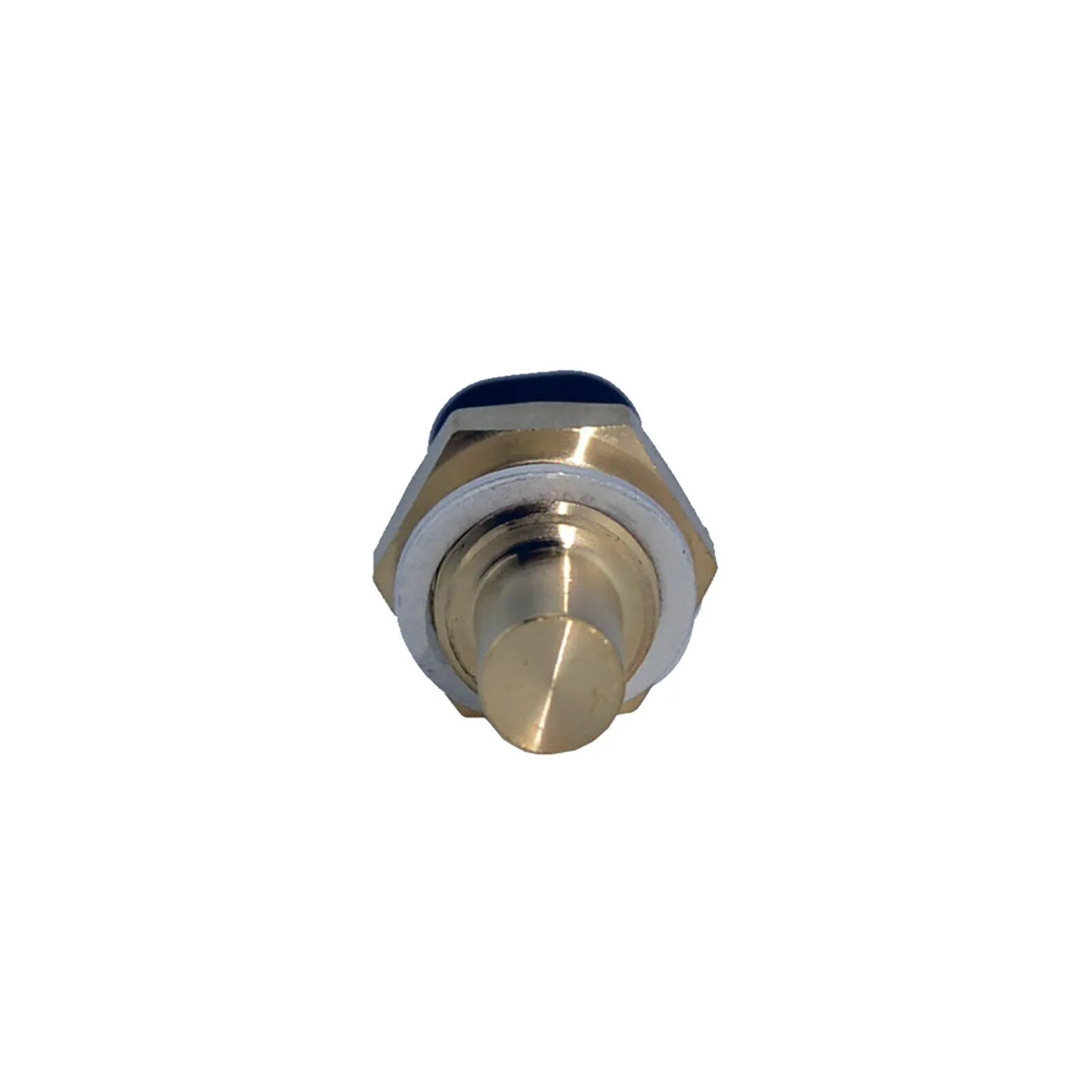

PLEASE COMPARE YOUR ORIGINAL SENSOR WITH THE IMAGES WE PROVIDED IN THE LISTING AND CHECK THE DETAILED VEHICLE LIST IN THE SUITABILITY SECTION.

TO SUIT:

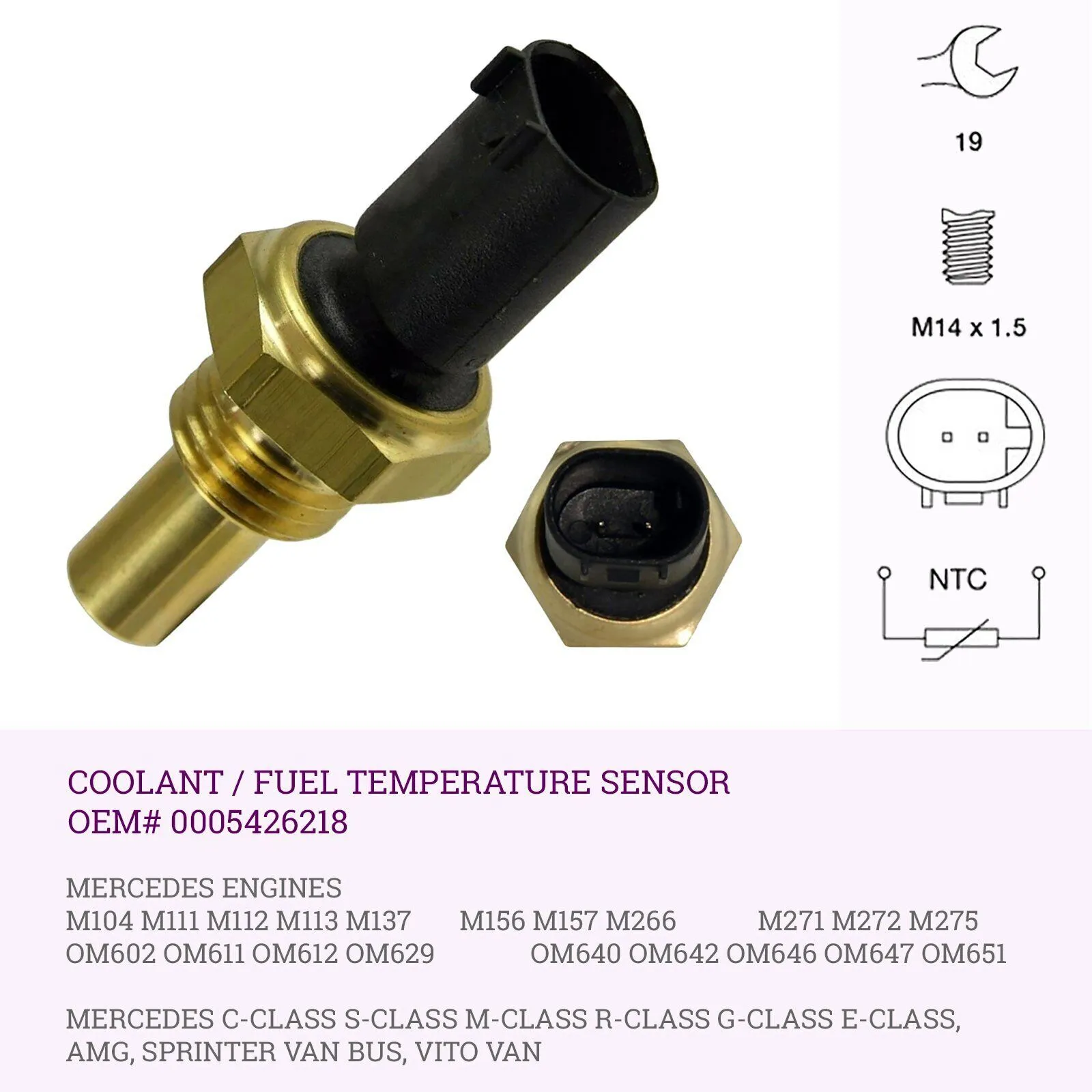

OEM# 0005426218

for OE No: 005 153 23 28
Number of pins: 2 -pin connector
Connector Shape: oval
Socket Color: Black
External Thread: M 14×1.5 mm
Sensor Type: NTC Sensor
Spanner size: 19
Thickness: 51 mm

Features:

High Quality
OEM Fit and Design
Easy install
Simple operation
AU Seller-Fast and Free Shipping

Package Includes:

1* Temperature Sensor (2 PIN PLUG). The engine coolant temperature sensor (CTS) is used to measure the temperature of the engine coolant of an engine. The readings from this sensor are then fed back to the engine control unit (ECU), which uses this data to adjust the fuel injection and ignition timing. Common signs of a bad or failing coolant temperature sensor include poor fuel economy, black smoke coming from the engine, engine overheating, and the Check Engine Light turning on.

COMPATIBLE VEHICLES

[01/09 - 12/11] MERCEDES-BENZ SPRINTER 906 316NGT 1.8L 4cyl M271
[01/98 - 12/00] MERCEDES-BENZ SPRINTER 903 312D 2.9L 5cyl OM602
[01/99 - 12/00] MERCEDES-BENZ SPRINTER 903 312D 2.9L 5cyl OM602
[01/98 - 12/00] MERCEDES-BENZ SPRINTER 904 412D 2.9L 5cyl OM602

[01/02 - 12/06] MERCEDES-BENZ SPRINTER 902 208CDI 2.2L 4cyl OM611
[01/01 - 12/06] MERCEDES-BENZ SPRINTER 903 308CDI 2.2L 4cyl OM611
[01/00 - 12/06] MERCEDES-BENZ SPRINTER 903 308CDI 2.2L 4cyl OM611
[01/03 - 12/06] MERCEDES-BENZ SPRINTER 903 308CDI 2.2L 4cyl OM611
[01/05 - 12/06] MERCEDES-BENZ SPRINTER 903 311CDI 2.2L 4cyl OM611
[01/00 - 12/06] MERCEDES-BENZ SPRINTER 903 313CDI 2.2L 4cyl OM611
[01/03 - 12/06] MERCEDES-BENZ SPRINTER 903 313CDI 2.2L 4cyl OM611
[01/04 - 12/06] MERCEDES-BENZ SPRINTER 903 313CDI 2.2L 4cyl OM611
[01/00 - 12/06] MERCEDES-BENZ SPRINTER 904 413CDI 2.2L 4cyl OM611

[01/03 - 12/06] MERCEDES-BENZ SPRINTER 903 316CDI 2.7L 5cyl OM612
[01/03 - 12/03] MERCEDES-BENZ SPRINTER 903 316CDI 2.7L 5cyl OM612
[01/02 - 12/06] MERCEDES-BENZ SPRINTER 903 316CDI 2.7L 5cyl OM612
[01/03 - 12/06] MERCEDES-BENZ SPRINTER 904 416CDI 2.7L 5cyl OM612

[01/06 - 12/09] MERCEDES-BENZ SPRINTER 906 318CDI 3.0L V6 OM642
[01/10 - 12/11] MERCEDES-BENZ SPRINTER 906 319CDI 3.0L V6 OM642
[01/12 - 12/18] MERCEDES-BENZ SPRINTER 906 319CDI 3.0L V6 OM642
[01/08 - 12/09] MERCEDES-BENZ SPRINTER 906 418CDI 3.0L V6 OM642
[01/10 - 12/11] MERCEDES-BENZ SPRINTER 906 419CDI 3.0L V6 OM642
[01/12 - 12/18] MERCEDES-BENZ SPRINTER 906 419CDI 3.0L V6 OM642
[01/06 - 12/09] MERCEDES-BENZ SPRINTER 906 518CDI 3.0L V6 OM642
[01/10 - 12/11] MERCEDES-BENZ SPRINTER 906 519CDI 3.0L V6 OM642
[01/12 - 12/18] MERCEDES-BENZ SPRINTER 906 519CDI 3.0L V6 OM642

[01/08 - 12/09] MERCEDES-BENZ SPRINTER 906 215CDI 2.1L 4cyl OM646
[01/06 - 12/09] MERCEDES-BENZ SPRINTER 906 309CDI 2.1L 4cyl OM646
[01/06 - 12/09] MERCEDES-BENZ SPRINTER 906 311CDI 2.1L 4cyl OM646
[01/06 - 12/09] MERCEDES-BENZ SPRINTER 906 315CDI 2.1L 4cyl OM646
[01/08 - 12/09] MERCEDES-BENZ SPRINTER 906 415CDI 2.1L 4cyl OM646
[01/06 - 12/09] MERCEDES-BENZ SPRINTER 906 515CDI 2.1L 4cyl OM646

[01/13 - 12/18] MERCEDES-BENZ SPRINTER 906 310CDI 2.1L 4cyl OM651
[01/10 - 12/11] MERCEDES-BENZ SPRINTER 906 313CDI 2.1L 4cyl OM651
[01/10 - 12/18] MERCEDES-BENZ SPRINTER 906 313CDI 2.1L 4cyl OM651
[01/12 - 12/18] MERCEDES-BENZ SPRINTER 906 313CDI 2.1L 4cyl OM651
[01/16 - 12/18] MERCEDES-BENZ SPRINTER 906 313CDI TRANSFER 2.1L 4cyl OM651
[01/10 - 12/18] MERCEDES-BENZ SPRINTER 906 316CDI 2.1L 4cyl OM651
[01/10 - 12/11] MERCEDES-BENZ SPRINTER 906 316CDI 2.1L 4cyl OM651
[01/12 - 12/18] MERCEDES-BENZ SPRINTER 906 316CDI 2.1L 4cyl OM651
[01/10 - 12/11] MERCEDES-BENZ SPRINTER 906 316CDI TRANSFER 2.1L 4cyl OM651
[01/12 - 12/18] MERCEDES-BENZ SPRINTER 906 316CDI TRANSFER 2.1L 4cyl OM651
[01/10 - 12/11] MERCEDES-BENZ SPRINTER 906 416CDI 2.1L 4cyl OM651
[01/10 - 12/18] MERCEDES-BENZ SPRINTER 906 416CDI 2.1L 4cyl OM651
[01/12 - 12/18] MERCEDES-BENZ SPRINTER 906 416CDI 2.1L 4cyl OM651
[01/13 - 12/18] MERCEDES-BENZ SPRINTER 906 513CDI 2.1L 4cyl OM651
[01/10 - 12/18] MERCEDES-BENZ SPRINTER 906 516CDI 2.1L 4cyl OM651
[01/10 - 12/11] MERCEDES-BENZ SPRINTER 906 516CDI 2.1L 4cyl OM651
[01/12 - 12/18] MERCEDES-BENZ SPRINTER 906 516CDI 2.1L 4cyl OM651

ABOUT YOUR VEHICLE'S ENGINE COOLANT TEMPERATURE SENSOR

What does a Coolant Temperature Sensor do?
The Coolant Temperature sensor changes resistance with the temperature. The Coolant Temperature sensor is critical to many PCM functions such as fuel injection, ignition timing, variable valve timing, and transmission shifting.

Where are these sensors located?
The Coolant Temperature sensor is located in a coolant passage in the engine usually near the thermostat.

Will a malfunctioning Coolant Temp Sensor illuminate the check engine light or affect vehicle operation?
Yes, a failing sensor can illuminate the MIL, and cause the engine to run rich or lean. The transmission may shift incorrectly or not lock up the torque converter.

What are the common causes of failure?
Typically these sensors fail due to corrosion within the coolant system. They may also leak coolant through the wiring connector.

How to determine if these sensors are malfunctioning?
A DTC will be set if an abnormal reading occurs, P0116 for sensor performance, P0117 low input, or P0118 for high input. The coolant temperature sensor temperature reading should closely match the air charge/manifold temperature reading on a scan tool if the engine has not been run for over an hour. The sensor circuit can be checked for proper voltage using a voltmeter.

Why Buy from Us / What makes Our Coolant Temp Sensors the best?
As an OEM manufacturer, Standard/ Our Supplier has complete control of the manufacturing process from componentry to finished product
Temperature sensor design specifies tight tolerance thermistor response values to assure the accuracy of the temperature measurement and proper part operation
All Coolant Temperature sensors are 100% factory tested to ensure trouble-free performance.

How do I test a coolant temperature sensor?

The most common test is to measure the sensor resistance with a multimeter at a known coolant temperature and compare against the manufacturer resistance curve. A cold engine (20 degrees C) typically reads 2,000 to 3,000 ohms and drops to around 200 to 300 ohms at operating temperature (90 degrees C). An OBD2 scanner showing a fixed temperature reading that does not change as the engine warms up is also a strong indicator of sensor failure.

Can a faulty coolant temperature sensor cause my engine to overheat?

Indirectly yes. If the sensor reports a lower temperature than actual, the ECU may not activate the cooling fan at the correct time, allowing the engine to overheat. It can also suppress the dashboard warning light, meaning you may not be alerted until the engine is already at a dangerously high temperature. Replace a suspected faulty sensor promptly.

Do I need to drain the coolant to replace the sensor?

Not always - many coolant temperature sensors can be replaced quickly with minimal coolant loss if you work fast and have a replacement ready to thread in immediately. However on some vehicles the sensor location requires partial coolant drainage. Check the sensor position on your specific engine before starting. Always use fresh coolant when topping up after replacement.

What are the symptoms of a faulty coolant temperature sensor?

Symptoms include poor fuel economy, black smoke, engine overheating warning, incorrect temperature gauge reading, hard starting when cold, and rough idle. Fault codes P0115 to P0119 are commonly associated with coolant temperature sensor faults.

Is it safe to drive with a bad coolant temperature sensor?

A faulty coolant temperature sensor can cause the ECU to run rich fuel mixtures and prevent the cooling fan from operating correctly, risking engine overheating. Replace it promptly - it is a low-cost part that can prevent expensive engine damage.

How do I know if my coolant temperature sensor or my thermostat is faulty?

A faulty thermostat typically causes the engine to overheat or never reach operating temperature. A faulty coolant temp sensor causes incorrect gauge readings and running issues but the coolant itself may be at the correct temperature. An OBD2 scanner showing live coolant temp data helps distinguish between the two.

Are there two coolant temperature sensors on my vehicle?

Many vehicles have two sensors - one for the ECU (engine management) and one for the dashboard temperature gauge. They look similar but are not interchangeable. Check your vehicle's service manual or contact us with your vehicle details to confirm which sensor you need.

Identification
SKU	CCS83
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	CCS83
Reference OEM Number	0005426218
Other OEM Numbers	0005426218, 0051532328, 0051536328
Related Part Numbers	CCS83, CS904, TCS177, TS-604
Product Specifics
Sensor Type	ENGINE COOLANT TEMPERATURE SENSOR
Type	Sensor
Features	Direct Fit
Reference Oe/oem Number	0005426218
Manufacturer Warranty	1 Year
Oem	0051536328
Make	MERCEDES-BENZ
Note	CHECK IMAGES. CONFIRM WITH OE NUMBER
Model	Sprinter
Interchange Part Number	TS-604
Upc	9314258425524
Other Details
Note	Always verify fitment using your vehicle's OEM part number.
Unit Of Measure	ea
