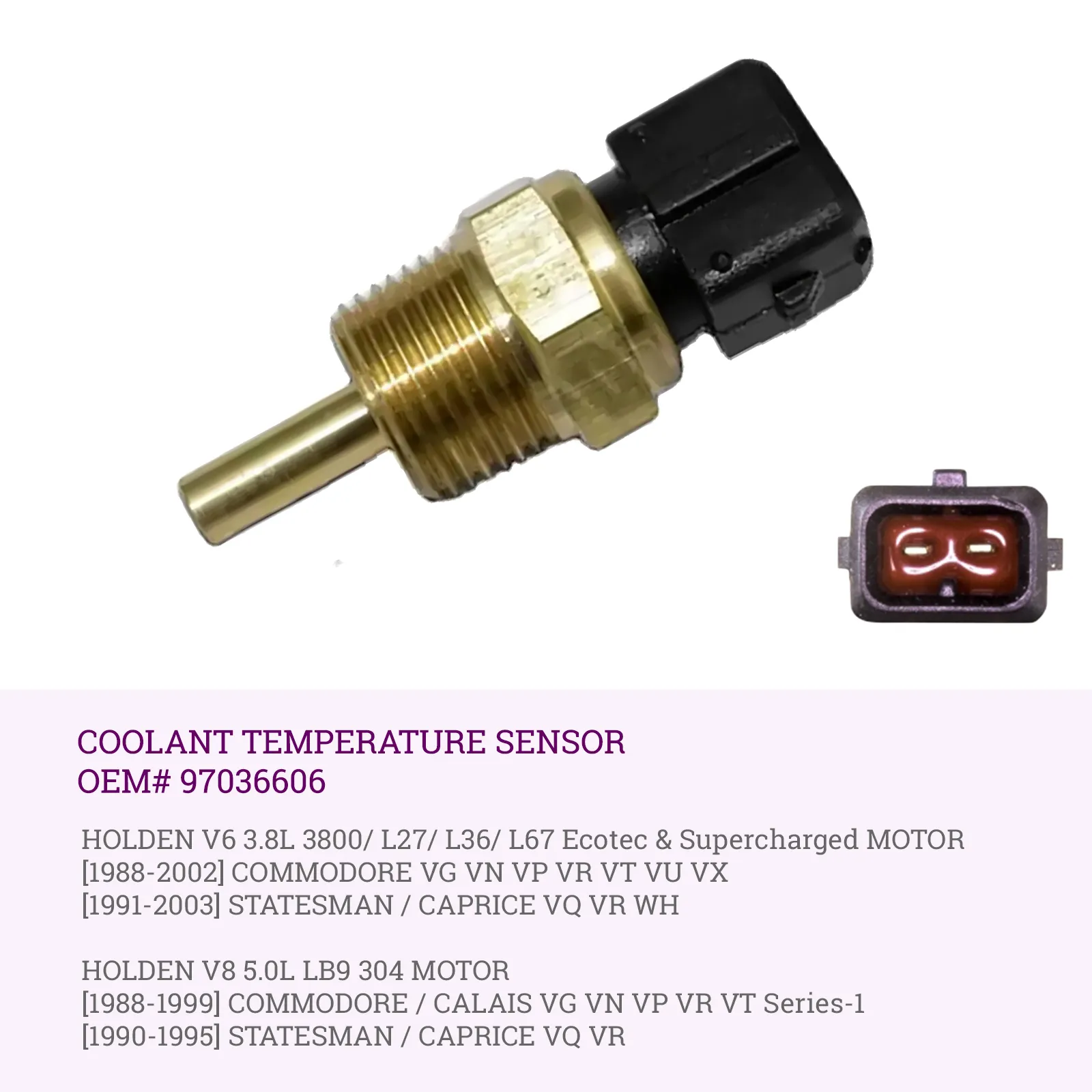

BRAND NEW *OEM Quality* coolant temperature sensor to suit Holden Commodore VG VN VP VR VT VU VX 3.8L V6 Ecotec models.

This covers both the naturally aspirated and Supercharged 3.8L V6, where the ECU relies on the signal for knock control as well as fuelling. Aftermarket OEM specification. Shipped via Australia Post Express from Victoria.

TO SUIT

Covers the Holden Commodore VG, VN, VP, VR, VT, VU and VX built with the 3.8L V6 (LG2, LN3, L36, and the L67 Supercharged), including HSV-badged variants, from 1988 to 2002. Full year-by-year coverage is listed in the vehicle compatibility section below.

OEM PART NUMBERS

97036606

OTHER PART NUMBERS

VEMO: V37-72-0001
NTY: ECT-HY-000
WALKER PRODUCTS: 211-1032

PACKAGE INCLUDES

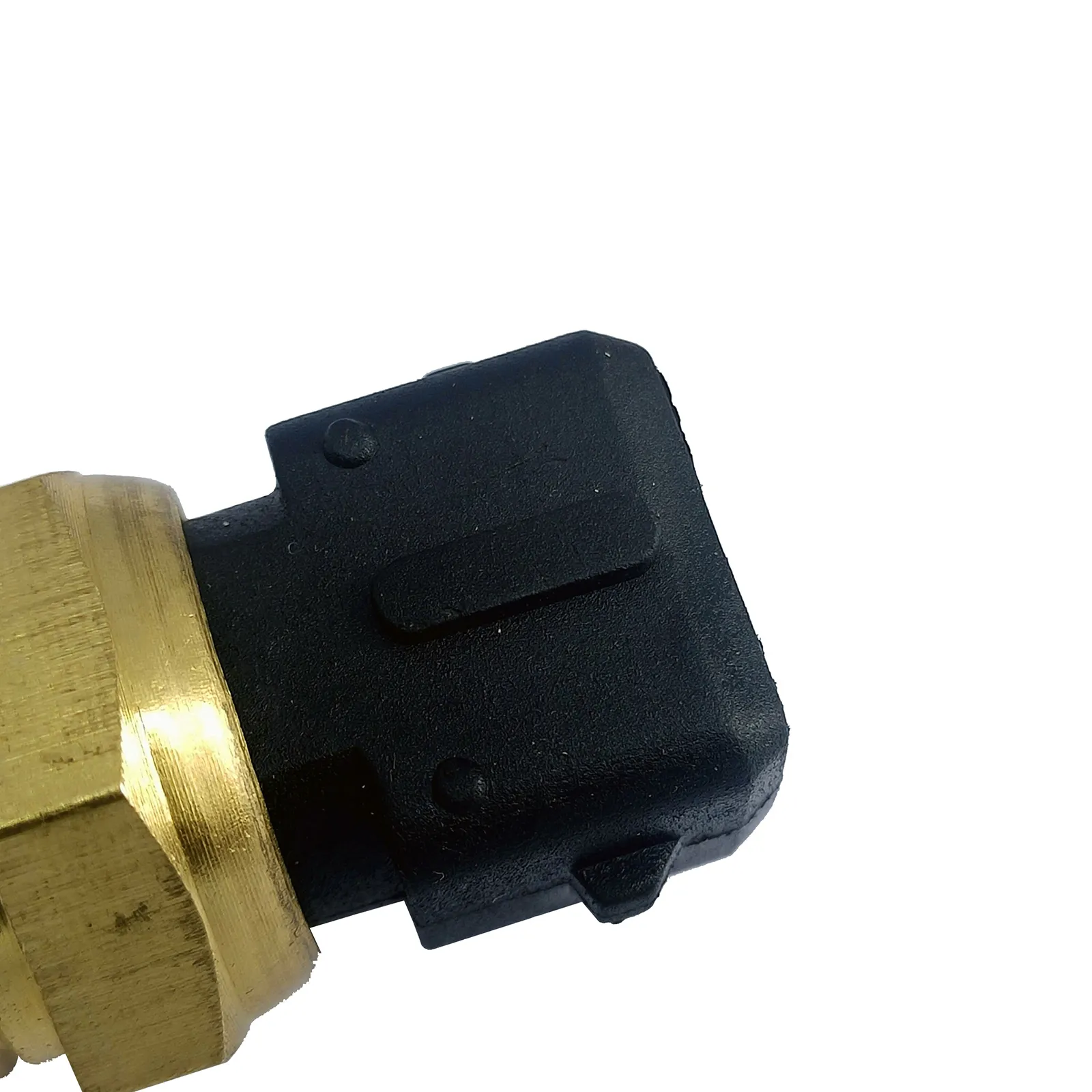

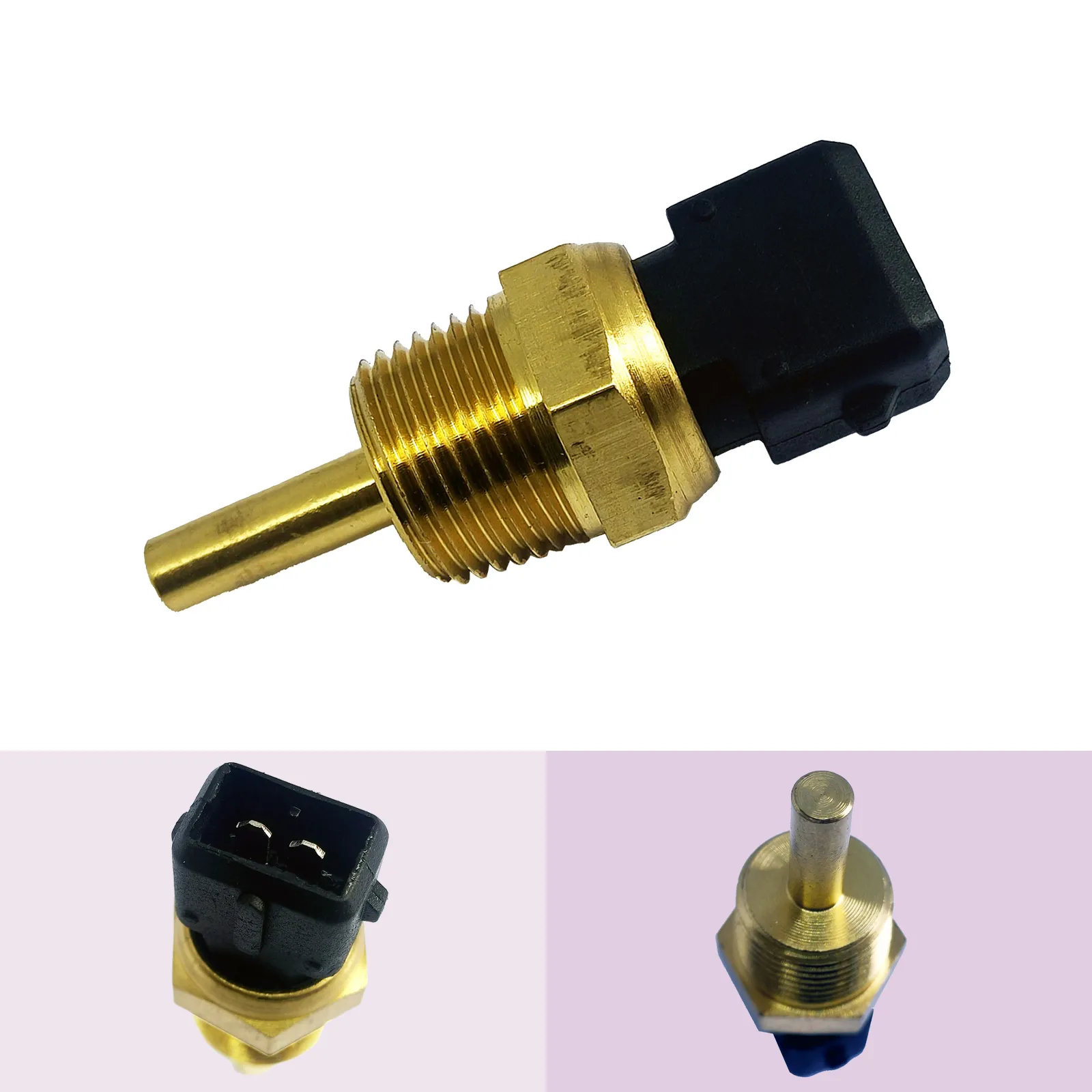

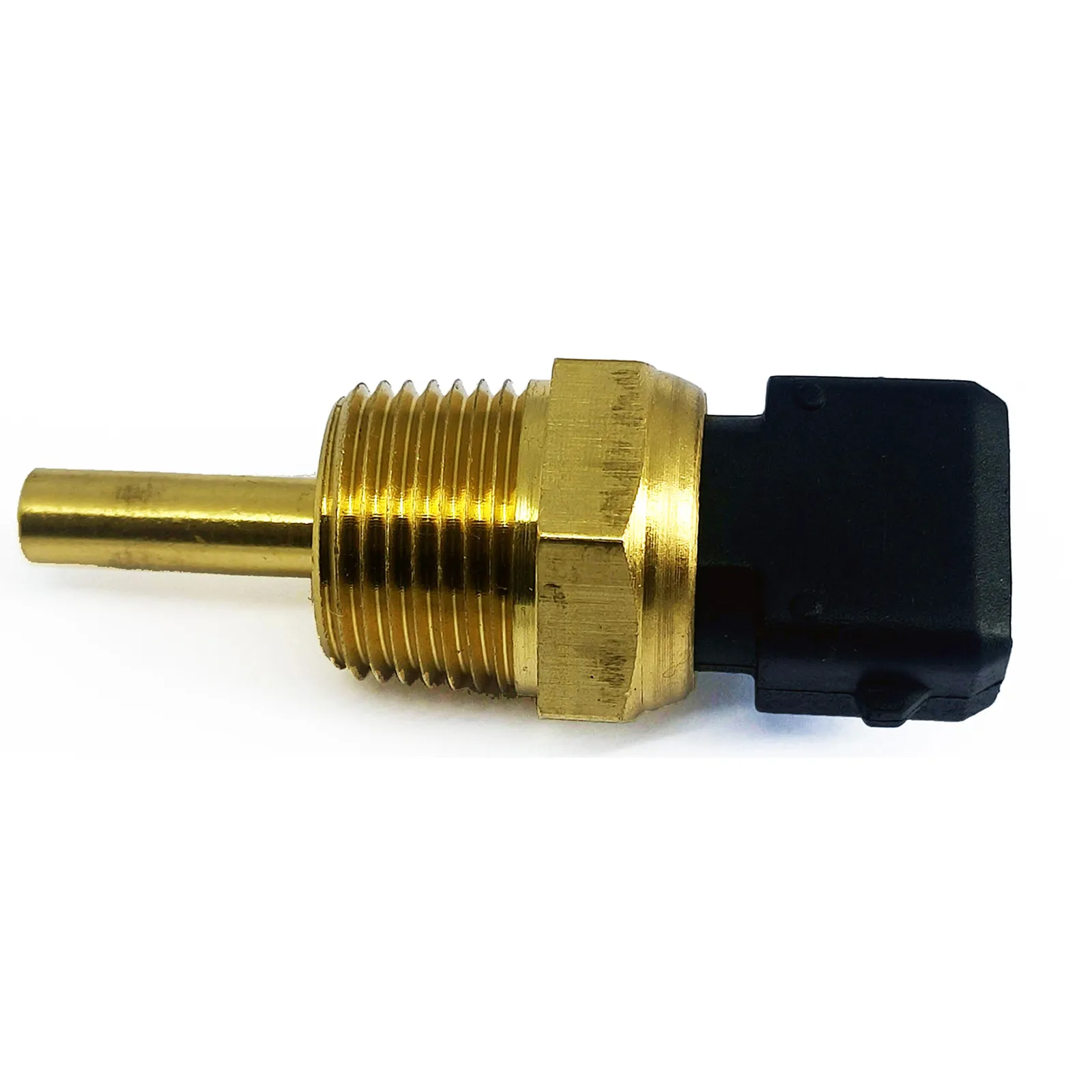

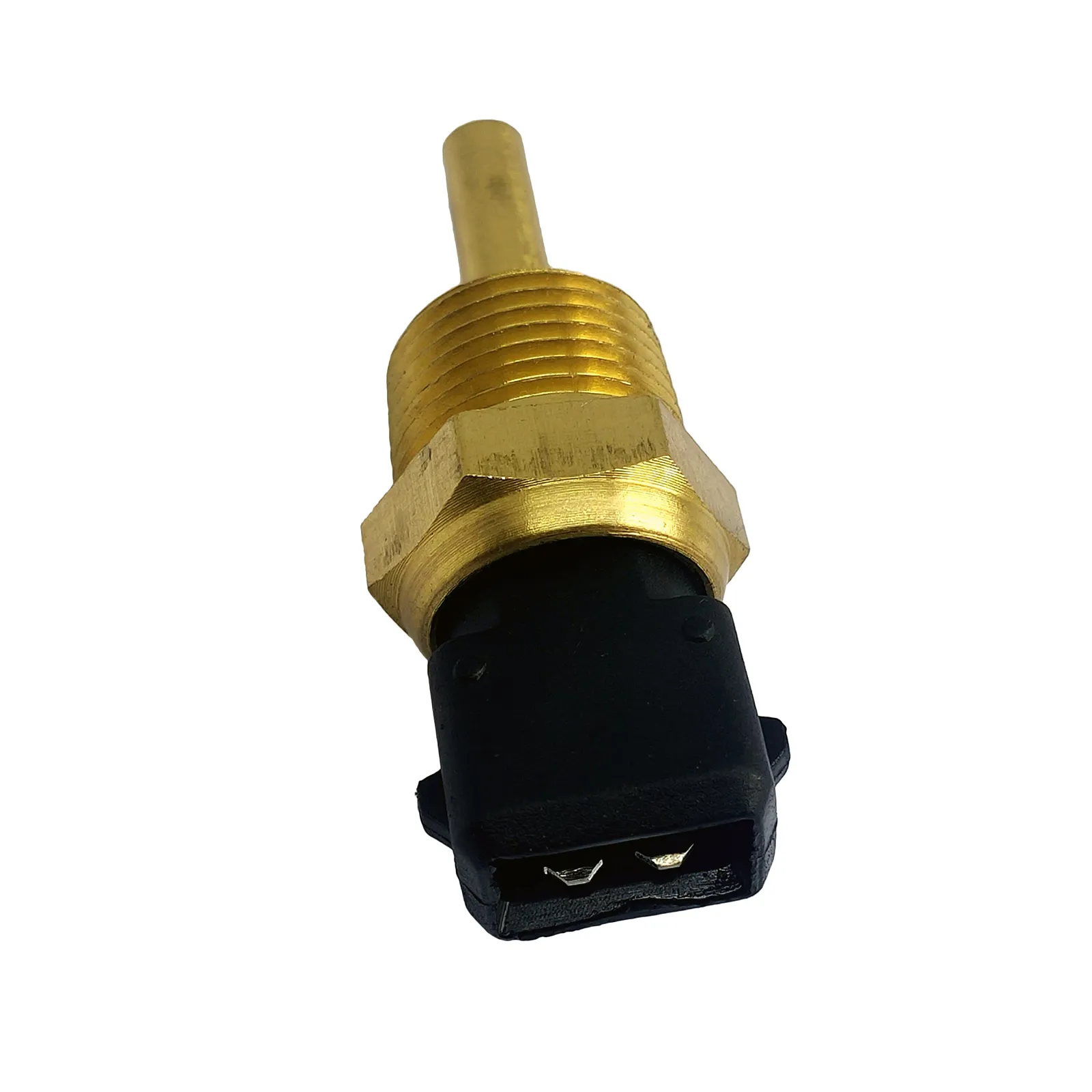

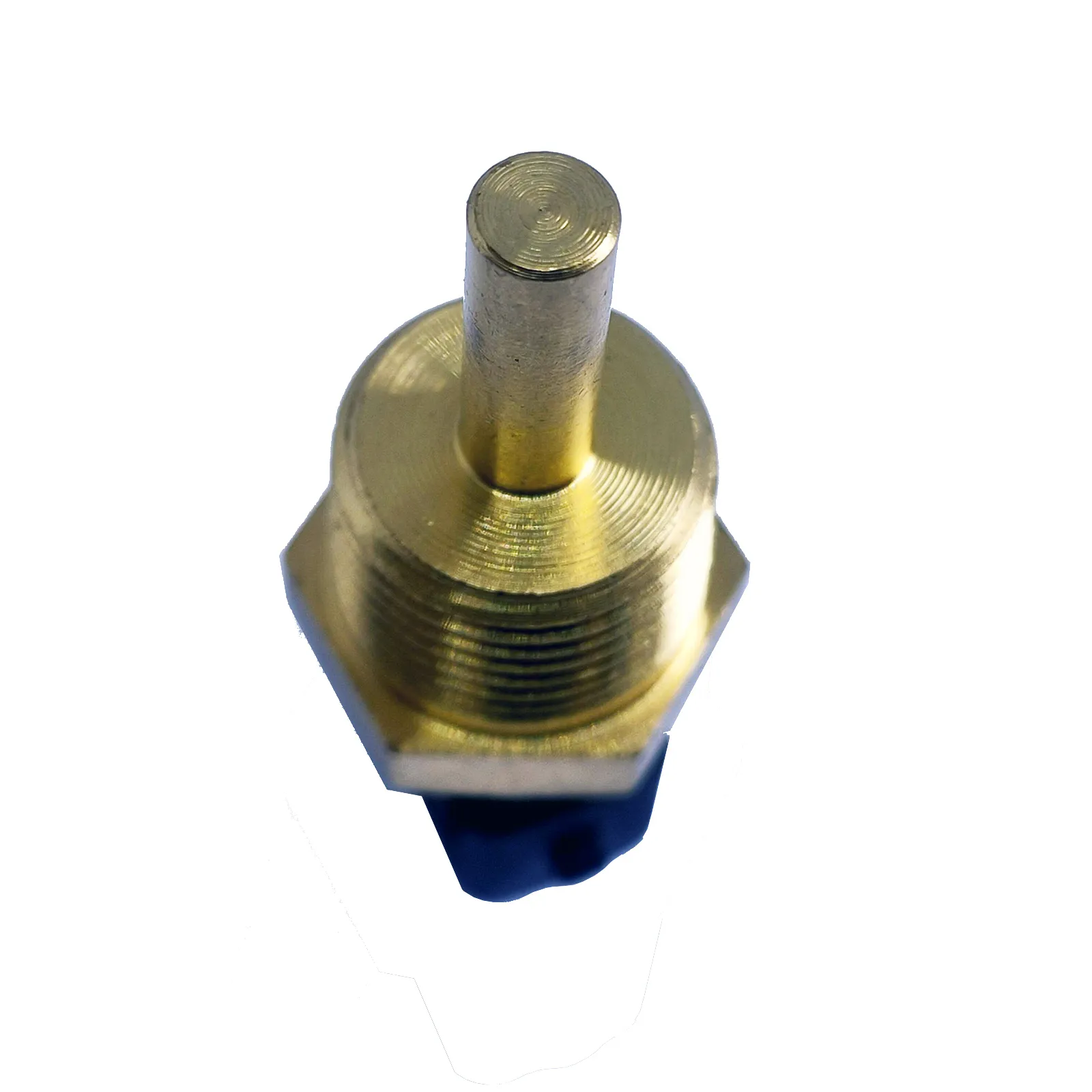

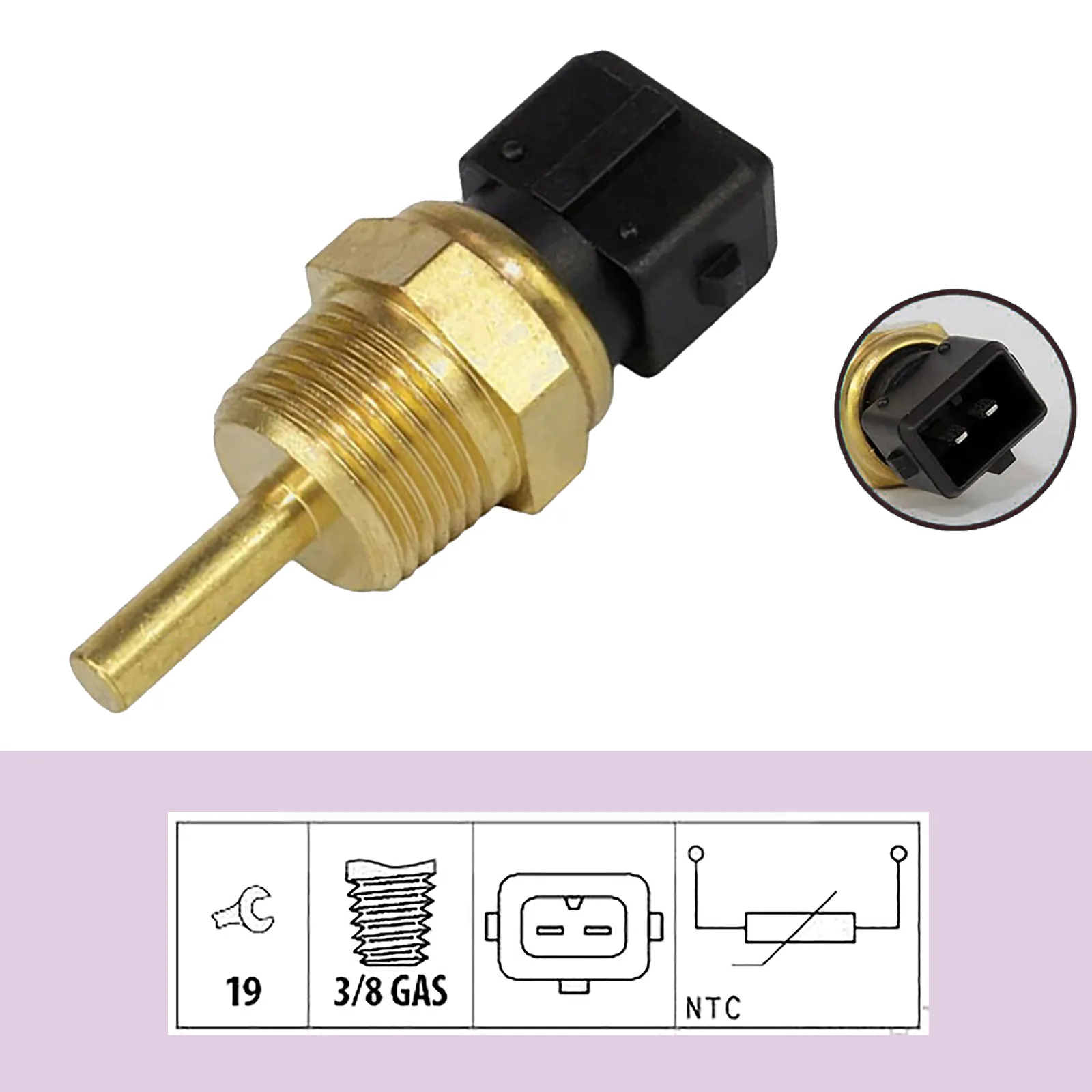

1 x OEM Quality coolant temperature sensor (2-pin plug).

ABOUT THIS SENSOR

On the naturally aspirated LN3/L36 the most common symptom is a rough cold idle and extended warm-up time, while the extra heat load of the L67 Supercharged engine makes a failing sensor more likely to show up as reduced boost and a pulled-timing power loss under acceleration.

The sensor also switches the radiator fan relay, so an open circuit reading typically leaves the fan running constantly rather than cycling with load.

COMMON SYMPTOMS OF FAILURE

Poor cold-start fuel enrichment or hard starting from cold
Check Engine Light with DTC P0116, P0117 or P0118
Engine running rich or lean and reduced fuel economy
Cooling fan running constantly or not switching on
Reduced boost or pulled timing under load on Supercharged L67 models

[1988 - 1991] HOLDEN COMMODORE VG 3.8 i V6 (3.8L 6cyl LG2)
[1988 - 1991] HOLDEN COMMODORE VN 3.8 i V6 (3.8L 6cyl LG2)
[1989 - 1991] HOLDEN COMMODORE VN 3.8 i V6 (3.8L 6cyl LN3)
[1991 - 1993] HOLDEN COMMODORE VP 3.8 i V6 (3.8L 6cyl LG2)
[1992 - 1993] HOLDEN COMMODORE VP 3.8 i V6 (3.8L 6cyl LN3)
[1993 - 1995] HOLDEN COMMODORE VR 3.8 i V6 (3.8L 6cyl LG2)
[1997 - 2002] HOLDEN COMMODORE VT 3.8 i V6 (3.8L 6cyl LN3)
[1997 - 2000] HOLDEN COMMODORE VT 3.8 i V6 Supercharged (3.8L 6cyl L67)
[2000 - 2002] HOLDEN COMMODORE VU 3.8 i V6 (3.8L 6cyl L36)
[2000 - 2002] HOLDEN COMMODORE VX 3.8 i V6 (3.8L 6cyl LN3)
[2000 - 2002] HOLDEN COMMODORE VX 3.8 i V6 Supercharged (3.8L 6cyl L67)
[2001 - 2002] HOLDEN COMMODORE VU 3.8 i V6 (3.8L 6cyl LN3)

How do I test a coolant temperature sensor?

The most common test is to measure the sensor resistance with a multimeter at a known coolant temperature and compare against the manufacturer resistance curve. A cold engine (20 degrees C) typically reads 2,000 to 3,000 ohms and drops to around 200 to 300 ohms at operating temperature (90 degrees C). An OBD2 scanner showing a fixed temperature reading that does not change as the engine warms up is also a strong indicator of sensor failure.

Can a faulty coolant temperature sensor cause my engine to overheat?

Indirectly yes. If the sensor reports a lower temperature than actual, the ECU may not activate the cooling fan at the correct time, allowing the engine to overheat. It can also suppress the dashboard warning light, meaning you may not be alerted until the engine is already at a dangerously high temperature. Replace a suspected faulty sensor promptly.

Do I need to drain the coolant to replace the sensor?

Not always - many coolant temperature sensors can be replaced quickly with minimal coolant loss if you work fast and have a replacement ready to thread in immediately. However on some vehicles the sensor location requires partial coolant drainage. Check the sensor position on your specific engine before starting. Always use fresh coolant when topping up after replacement.

What are the symptoms of a faulty coolant temperature sensor?

Symptoms include poor fuel economy, black smoke, engine overheating warning, incorrect temperature gauge reading, hard starting when cold, and rough idle. Fault codes P0115 to P0119 are commonly associated with coolant temperature sensor faults.

Is it safe to drive with a bad coolant temperature sensor?

A faulty coolant temperature sensor can cause the ECU to run rich fuel mixtures and prevent the cooling fan from operating correctly, risking engine overheating. Replace it promptly - it is a low-cost part that can prevent expensive engine damage.

How do I know if my coolant temperature sensor or my thermostat is faulty?

A faulty thermostat typically causes the engine to overheat or never reach operating temperature. A faulty coolant temp sensor causes incorrect gauge readings and running issues but the coolant itself may be at the correct temperature. An OBD2 scanner showing live coolant temp data helps distinguish between the two.

Are there two coolant temperature sensors on my vehicle?

Many vehicles have two sensors - one for the ECU (engine management) and one for the dashboard temperature gauge. They look similar but are not interchangeable. Check your vehicle's service manual or contact us with your vehicle details to confirm which sensor you need.

Identification
SKU	CCS33-5
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	CCS33
Reference OEM Number	97036606
Other OEM Numbers	97036606
Related Part Numbers	CCS33, CS854, TCS050
Trade Part Numbers	VEMO: V37-72-0001, NTY: ECT-HY-000, WALKER PRODUCTS: 211-1032
Product Specifics
Product Type	SENSOR
Sensor Type	Coolant Temperature Sensor
Fitting Position	Coolant

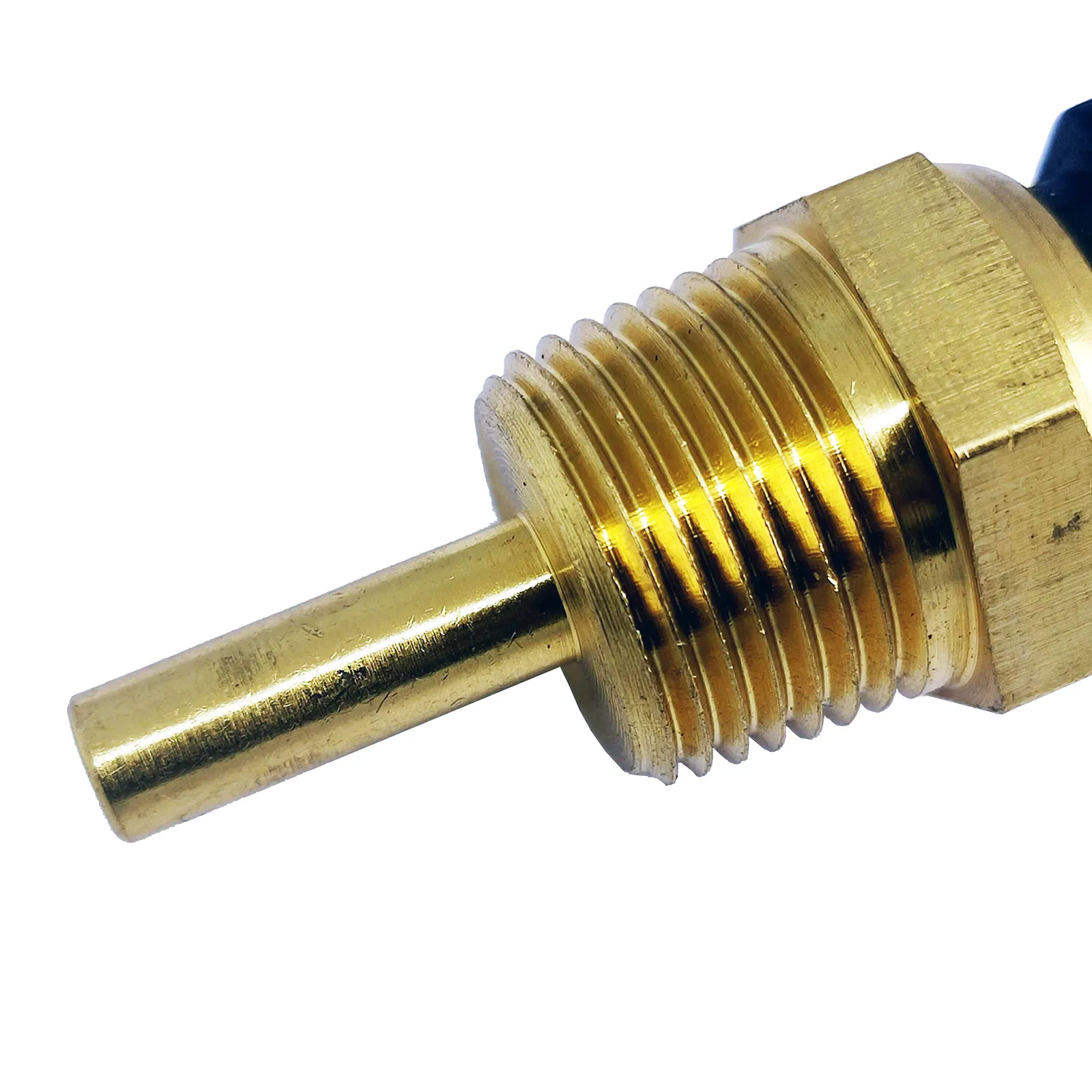

Thread Size	3/8"-Gas
Spanner Size	19mm

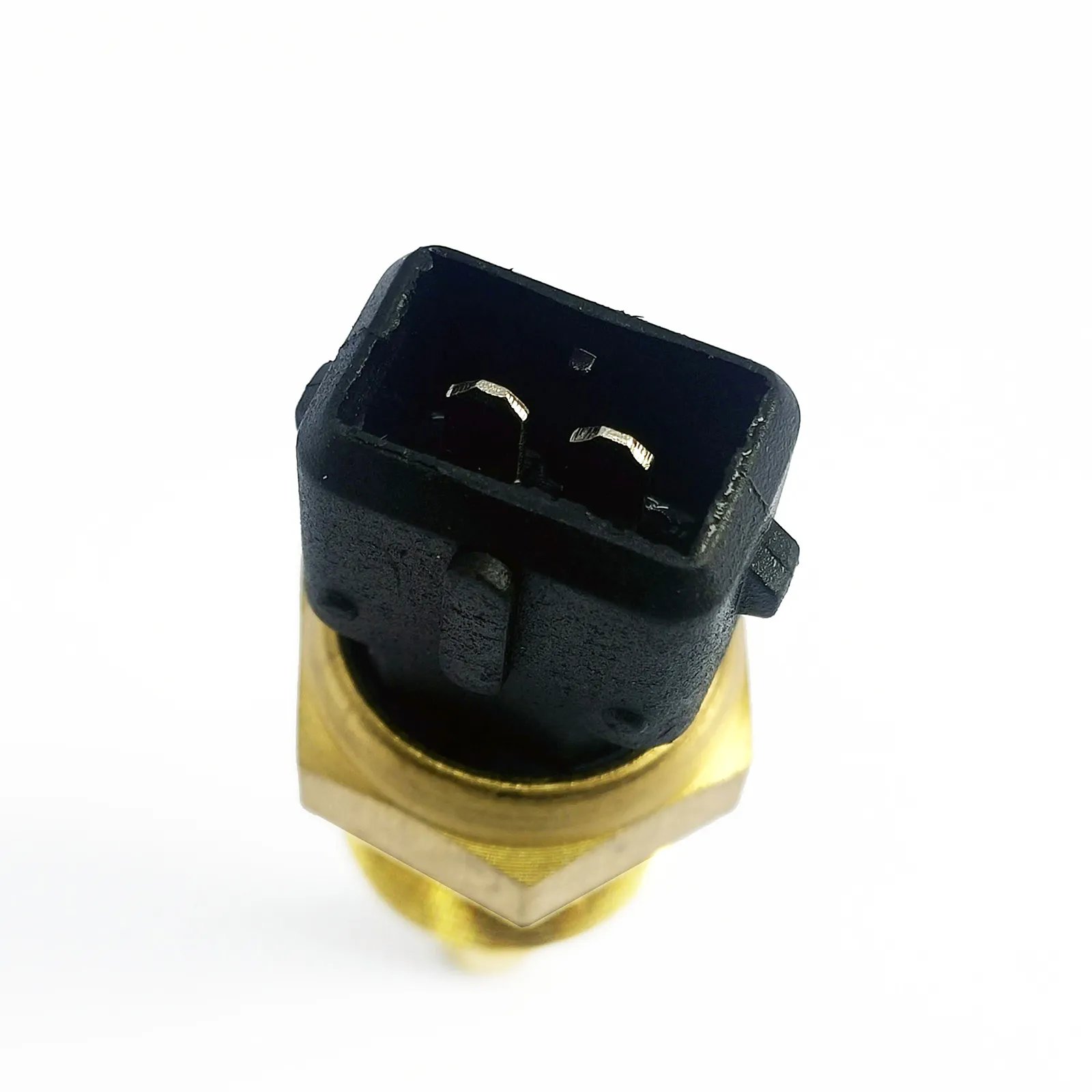

Number of pins	2-Pin
Connector Shape	rectangular
Housing Colour	Black
Mounting Type	Threaded
Compatible Makes	Holden
Fitment Type	Direct Replacement
Other Details
Note	Always verify fitment using your vehicle's OEM part number.
Unit Of Measure	ea
