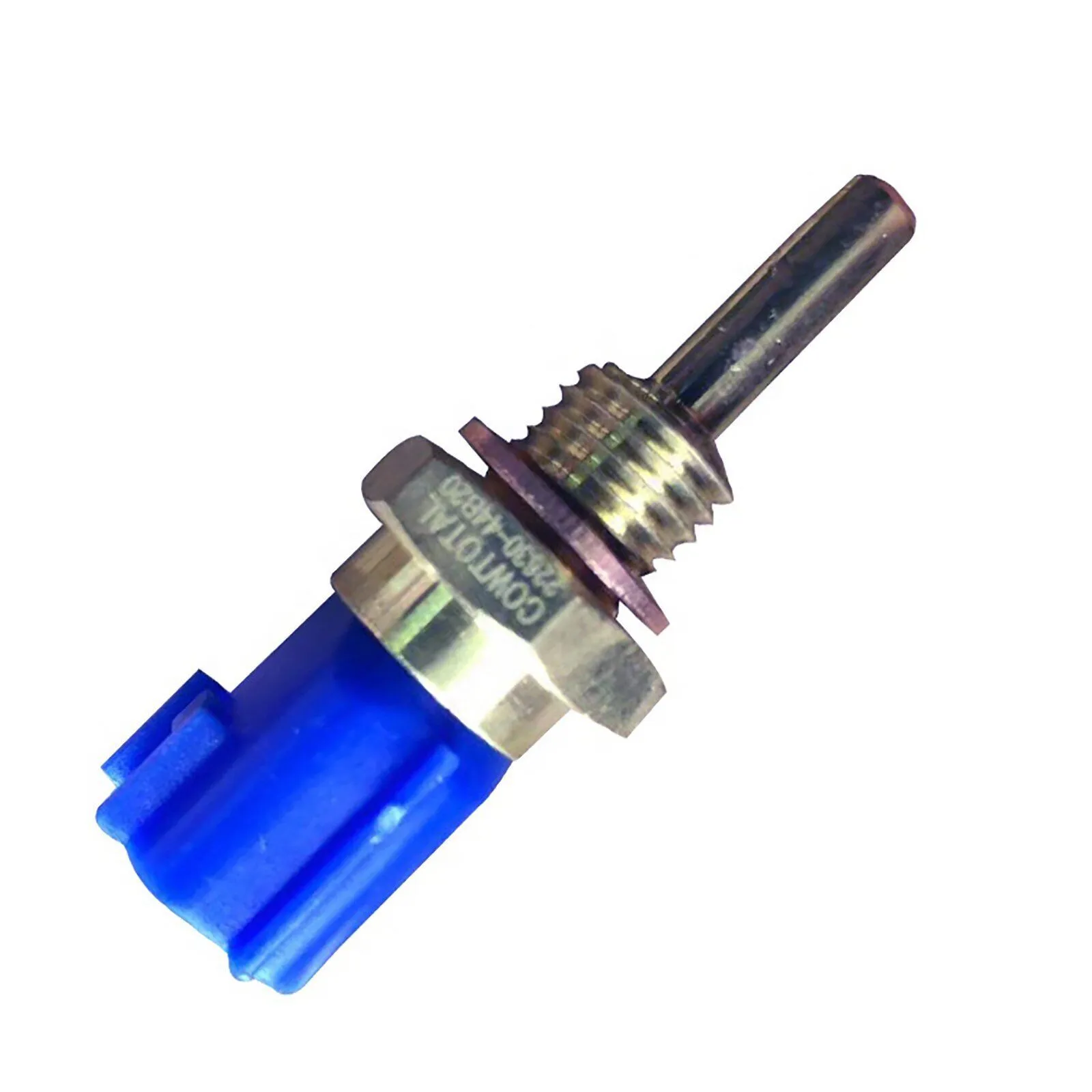

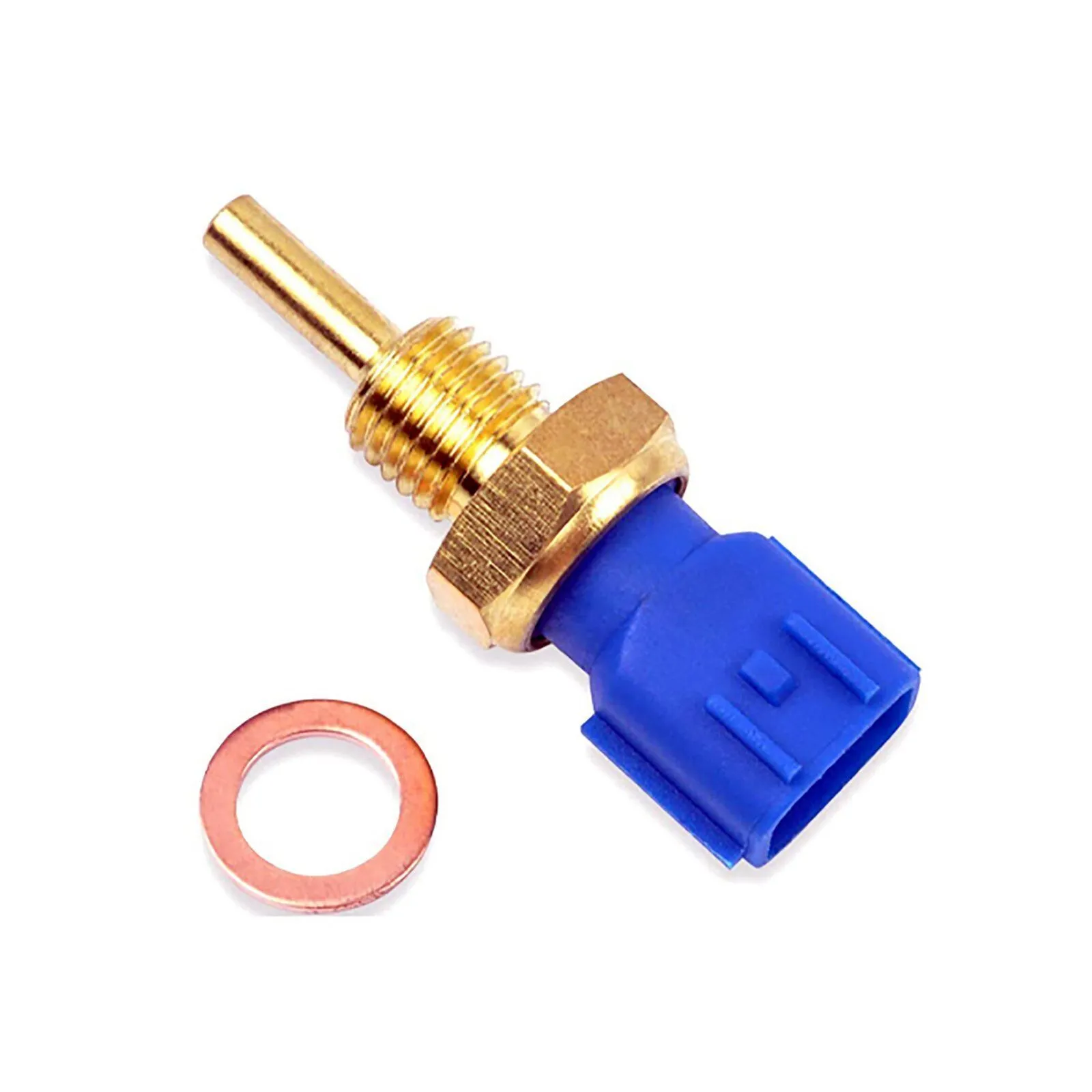

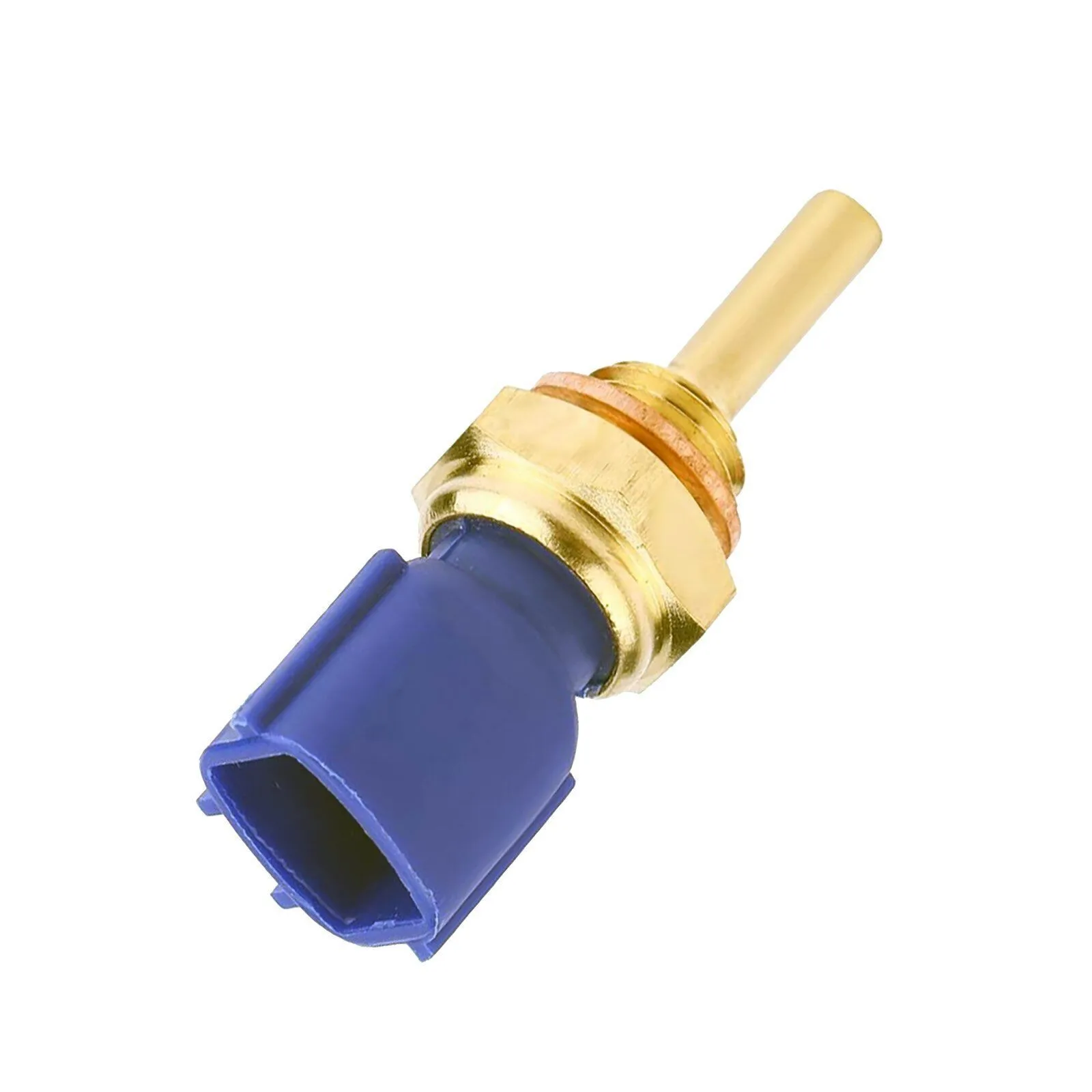

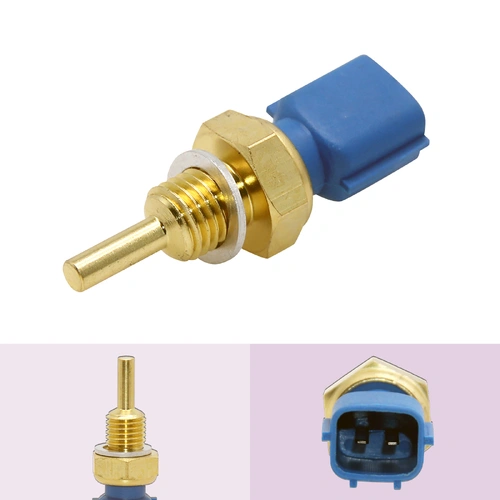

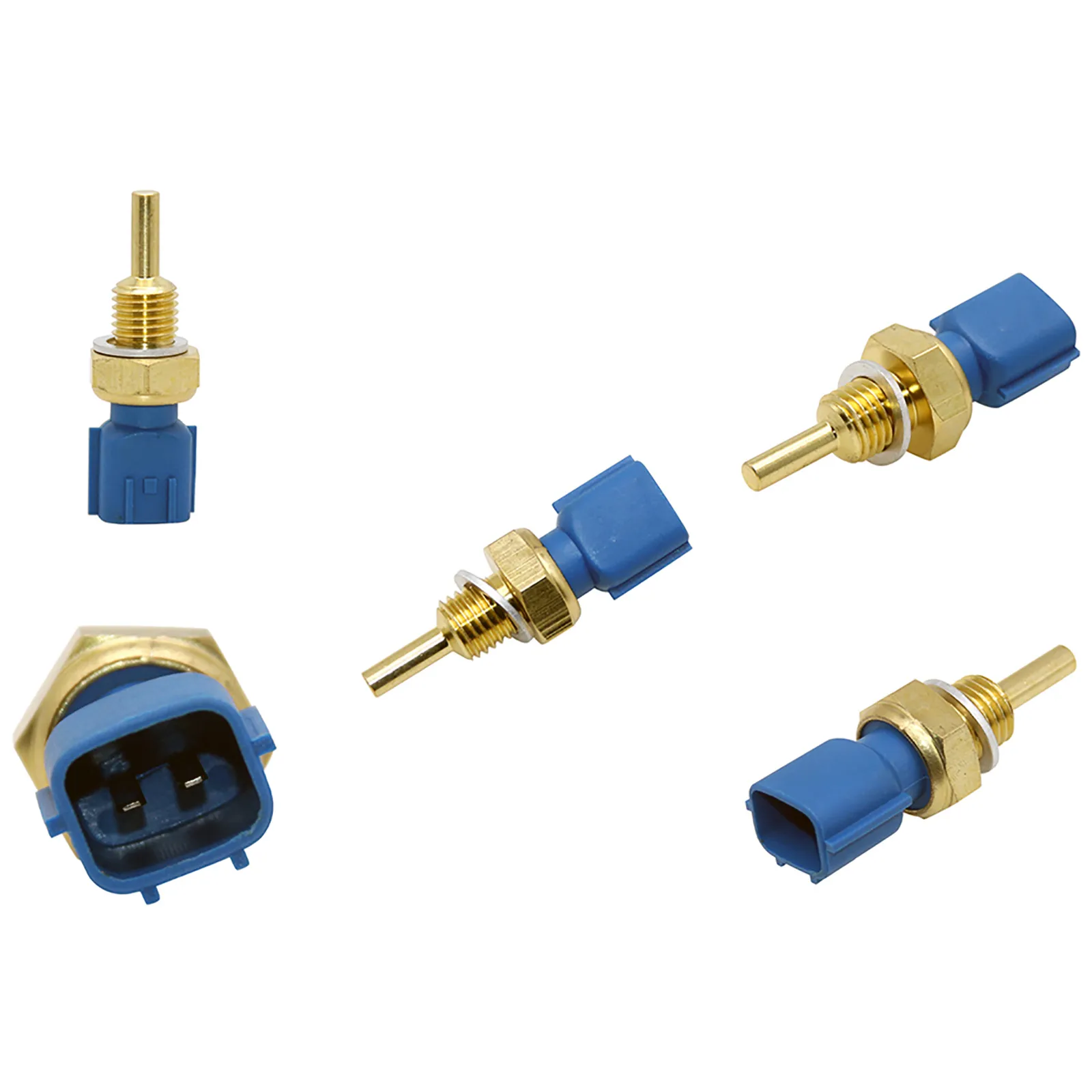

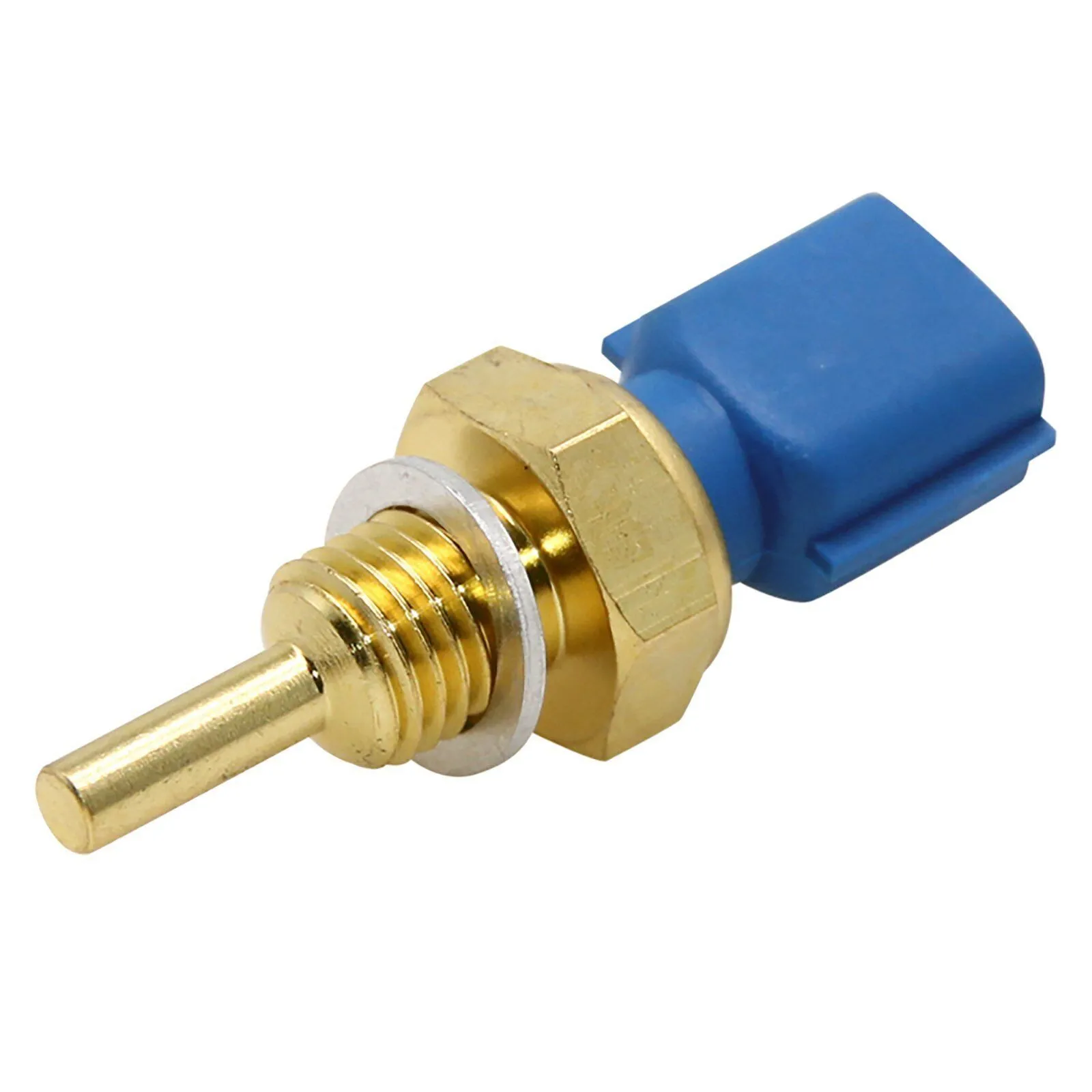

BRAND NEW OEM Quality COOLANT TEMPERATURE SENSOR TO SUIT NISSAN / INFINITI

PLEASE COMPARE YOUR ORIGINAL SENSOR WITH THE IMAGES WE PROVIDED IN THE LISTING AND

CHECK THE DETAILED VEHICLE LIST IN THE SUITABILITY SECTION.

SUITS

NISSAN 200SX S14 SR20DET 2.0L 4cyl [10/94 - 10/00]

NISSAN 350Z Z33 VQ35DE 3.5L V6 [07/02 - 12/06]

NISSAN 350Z Z33 VQ35HR 3.5L V6 [01/07 - 04/09]

NISSAN 370Z Z34 VQ37VHR 3.7L V6 [05/09 ON]

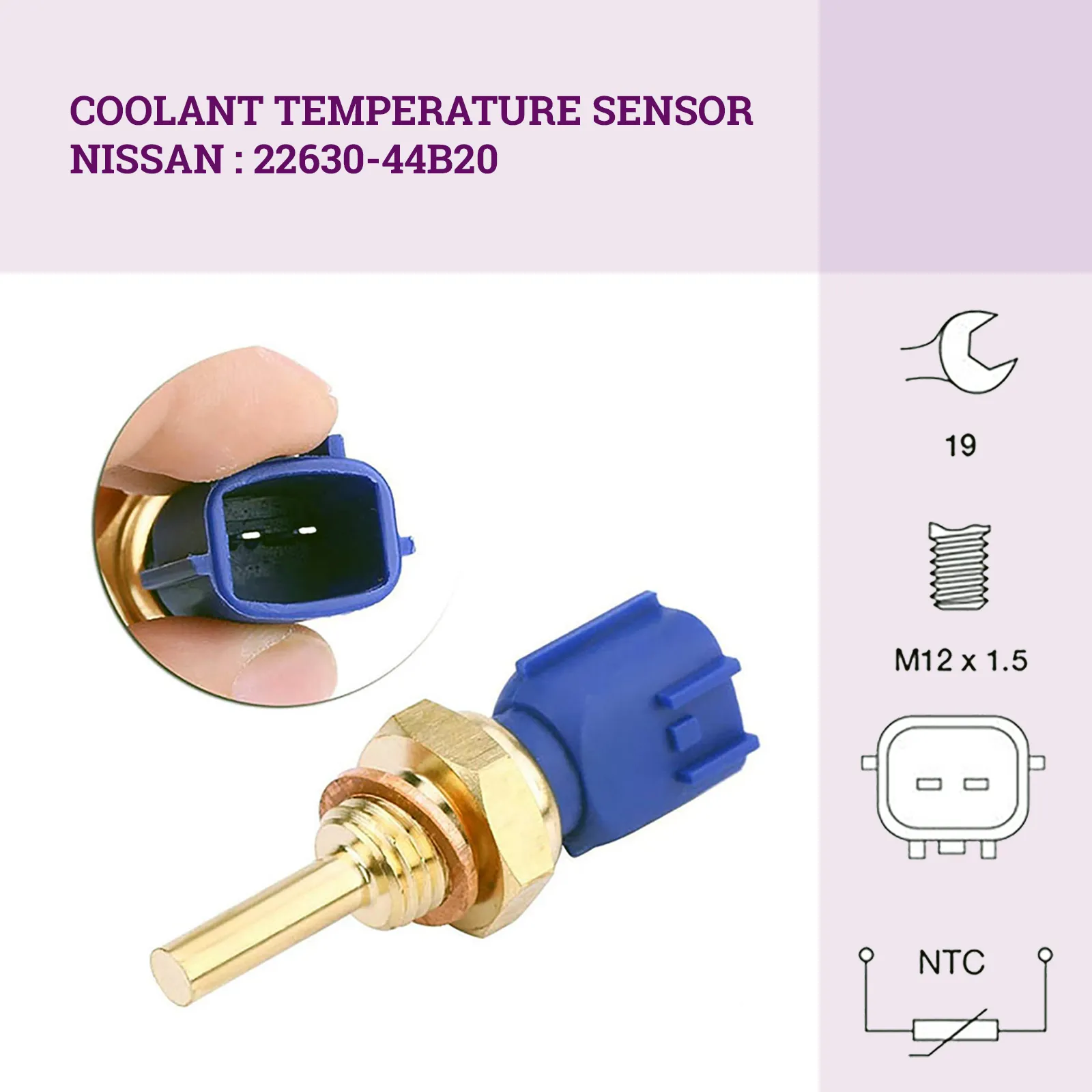

OEM# 22630-44B20

SPECIFICATION

Number of connectors	2
Housing Colour	Black, Blue
Thread Size	M12 X 1,5
Spanner size	19
Number of Poles	2 -pin connector

Features?

High Quality
OEM Fit and Design
Easy install
Simple operation
AU Seller-Fast and Free Shipping

Package Includes:

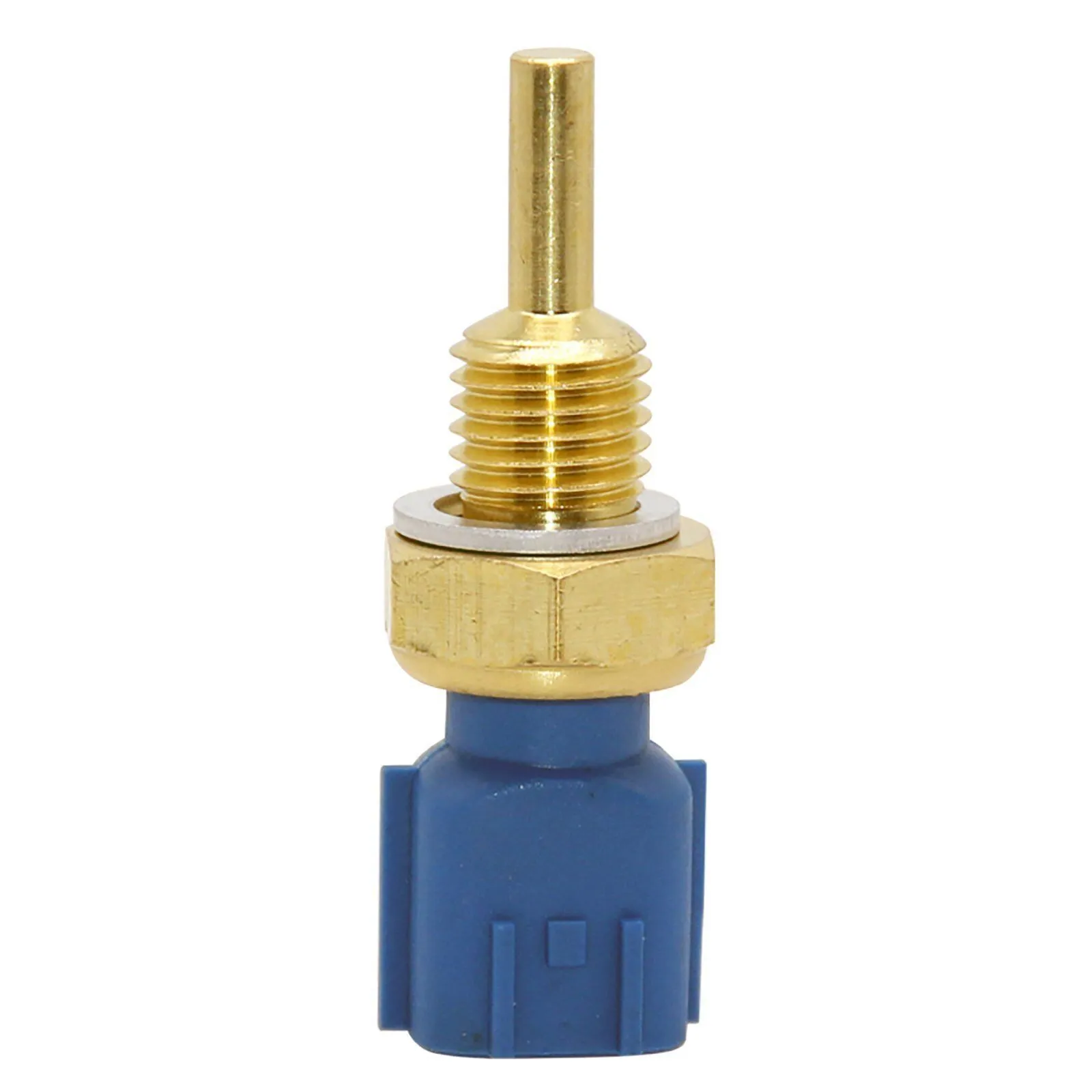

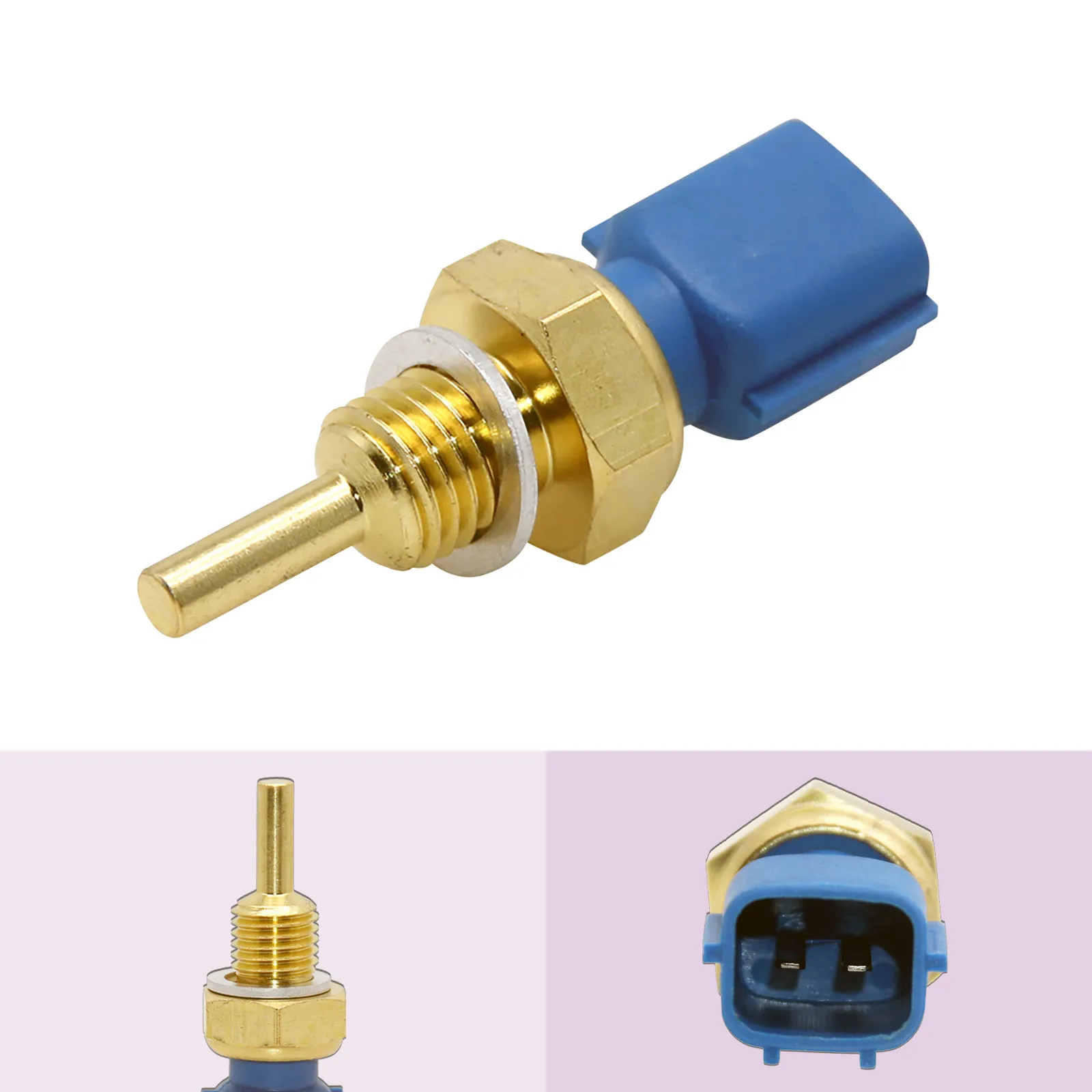

1* Temperature Sensor (2 -pin connector). Rounded Rectangular Connector - M12x1.5 Thread The water temperature sender is designed to measure the integrity of the engine cooling system. The sender responds to changes in engine coolant temperature, displayed via the operation of the water temperature light or gauge. The engine coolant temperature sensor (CTS) is used to measure the temperature of the engine coolant of an engine. The readings from this sensor are then fed back to the engine control unit (ECU), which uses this data to adjust the fuel injection and ignition timing. Common signs of a bad or failing coolant temperature sensor include poor fuel economy, black smoke coming from the engine, engine overheating, and the Check Engine Light turning on.

COMPATIBLE VEHICLES:

VEHICLE MODEL	ENGINE	LITRE	CYL	YEAR
HYUNDAI TERRACAN HP	G6CU	3.5L	V6	[01/01 - 12/08]
NISSAN 200SX S14	SR20DET	2.0L	4cyl	[10/94 - 10/00]
NISSAN 350Z Z33	VQ35DE	3.5L	V6	[07/02 - 12/06]
NISSAN 350Z Z33	VQ35HR	3.5L	V6	[01/07 - 04/09]
NISSAN 370Z Z34	VQ37VHR	3.7L	V6	[05/09 ON]
NISSAN ALMERA N17	HR15DE	1.5L	4cyl	[08/12 - 12/13]
NISSAN ALTIMA L33	VQ35DE	3.5L	V6	[11/13 - 12/17]
NISSAN CARAVAN E25 (GREY IMPORT)	ZD30DD	3.0L	4cyl	[04/01 - 03/12]
NISSAN CARAVAN E25 (GREY IMPORT)	ZD30DDTi	3.0L	4cyl	[04/01 - 03/12]
NISSAN CEFIRO A31 (GREY IMPORT)	RB20DE	2.0L	6cyl	[09/88 - 07/94]
NISSAN CEFIRO A31 (GREY IMPORT)	RB20DET	2.0L	6cyl	[09/88 - 07/94]
NISSAN CUBE Z11 (GREY IMPORT)	CR14DE	1.4L	4cyl	[10/02 - 10/08]
NISSAN CUBE Z11 (GREY IMPORT)	HR15DE	1.5L	4cyl	[05/05 - 10/08]
NISSAN DUALIS J10	MR20DE	2.0L	4cyl	[10/07 - 12/13]
NISSAN ELGRAND E51 (GREY IMPORT)	VQ25DE	2.5L	V6	[07/02 - 06/10]
NISSAN ELGRAND E51 (GREY IMPORT)	VQ35DE	3.5L	V6	[07/02 - 06/10]
NISSAN ELGRAND E52 (GREY IMPORT)	QR25DE	2.5L	4cyl	[07/10 - 12/13]
NISSAN ELGRAND E52 (GREY IMPORT)	VQ35DE	3.5L	V6	[07/10 - 12/13]
NISSAN GLORIA Y34 (GREY IMPORT)	VQ30DET	3.0L	V6	[11/99 - 09/04]
NISSAN INFINITI Q45	VH45DE	4.5L	V8	[01/93 - 12/97]
NISSAN JUKE F15	HR16DE	1.6L	4cyl	[10/13 - 12/17]
NISSAN JUKE F15	HR16DE	1.6L	4cyl	[10/13 - 12/14]
NISSAN JUKE F15	MR16DDT	1.6L	4cyl	[10/13 - 12/19]
NISSAN MAXIMA A32	VQ30DE	3.0L	V6	[02/95 - 11/99]
NISSAN MAXIMA A33	VQ30DE	3.0L	V6	[12/99 - 11/03]
NISSAN MAXIMA J30	VG30E	3.0L	V6	[10/88 - 12/93]
NISSAN MAXIMA J31	VQ35DE	3.5L	V6	[12/03 - 12/05]
NISSAN MAXIMA J31	VQ35DE	3.5L	V6	[01/06 - 05/09]
NISSAN MAXIMA J32	VQ25DE	2.5L	V6	[06/09 - 09/14]
NISSAN MAXIMA J32	VQ35DE	3.5L	V6	[06/09 - 09/14]
NISSAN MICRA K11	CG13DE	1.3L	4cyl	[06/95 - 12/97]
NISSAN MICRA K12	CR14DE	1.4L	4cyl	[10/07 - 10/10]
NISSAN MICRA K13	HR12DE	1.2L	3cyl	[11/10 - 12/16]
NISSAN MICRA K13	HR15DE	1.5L	4cyl	[11/10 - 12/12]
NISSAN MURANO Z50	VQ35DE	3.5L	V6	[01/05 - 12/08]
NISSAN MURANO Z51	VQ35DE	3.5L	V6	[01/09 - 12/15]
NISSAN PATHFINDER R50	VG33E	3.3L	V6	[11/95 - 06/05]
NISSAN PATHFINDER R51	YD25DDTi	2.5L	4cyl	[07/05 - 09/13]
NISSAN PATHFINDER R51	VQ40DE	4.0L	V6	[07/05 - 12/10]
NISSAN PRESEA R10 (GREY IMPORT)	SR20DE	2.0L	4cyl	[06/90 - 12/94]
NISSAN PRIMERA P10 (GREY IMPORT)	SR20DE	2.0L	4cyl	[01/90 - 12/95]
NISSAN PRIMERA P12 (GREY IMPORT)	QR20DE	2.0L	4cyl	[01/01 - 12/08]
NISSAN PULSAR B17	MR16DDT	1.6L	4cyl	[11/12 - 12/17]
NISSAN PULSAR C12	MR16DDT	1.6L	4cyl	[11/12 - 12/16]
NISSAN PULSAR C12	MRA8DE	1.8L	4cyl	[11/12 - 12/16]
NISSAN PULSAR N15	GA16DE	1.6L	4cyl	[10/95 - 06/00]
NISSAN PULSAR N15	SR20DE	2.0L	4cyl	[10/95 - 06/00]
NISSAN PULSAR N16	QG16DE	1.6L	4cyl	[07/00 - 12/05]
NISSAN PULSAR N16	QG18DE	1.8L	4cyl	[07/00 - 12/05]
NISSAN QASHQAI J11	MR20DD	2.0L	4cyl	[06/14 ON]
NISSAN SILVIA S14 (GREY IMPORT)	SR20DE	2.0L	4cyl	[10/93 - 12/98]
NISSAN SKYLINE CROSSOVER J50 (GREY IMPORT) 370GT	VQ37VHR	3.7L	V6	[01/09 - 12/12]
NISSAN SKYLINE R33 (GREY IMPORT)	RB26DETT	2.6L	6cyl	[08/93 - 12/98]
NISSAN SKYLINE R34 (GREY IMPORT)	RB26DETT	2.6L	6cyl	[05/98 - 05/01]
NISSAN SKYLINE V35 (GREY IMPORT)	VQ25DD	2.5L	V6	[06/01 - 10/06]
NISSAN SKYLINE V35 (GREY IMPORT)	VQ35DE	3.5L	V6	[06/01 - 10/06]
NISSAN SKYLINE V36 (GREY IMPORT)	VQ25HR	2.5L	V6	[11/06 - 12/10]
NISSAN SKYLINE V36 (GREY IMPORT)	VQ35HR	3.5L	V6	[11/06 - 12/10]
NISSAN SKYLINE V36 (GREY IMPORT)	VQ37VHR	3.7L	V6	[11/07 - 12/13]
NISSAN STAGEA C34 (GREY IMPORT)	RB20DE	2.0L	6cyl	[10/96 - 09/01]
NISSAN STAGEA C34 (GREY IMPORT)	RB25DE	2.5L	6cyl	[10/96 - 09/01]
NISSAN STAGEA C34 (GREY IMPORT)	RB26DETT	2.6L	6cyl	[10/96 - 09/01]
NISSAN STAGEA M35 (GREY IMPORT)	VQ25DET	2.5L	V6	[10/01 - 09/07]
NISSAN STAGEA M35 (GREY IMPORT)	VQ30DD	3.0L	V6	[10/01 - 09/07]
NISSAN STAGEA M35 (GREY IMPORT)	VQ35DE	3.5L	V6	[10/01 - 09/07]
NISSAN TERRANO II R20 (GREY IMPORT)	KA24E	2.4L	4cyl	[03/97 - 12/00]
NISSAN TERRANO II R20	TD27TI	2.7L	4cyl	[09/96 - 12/00]
NISSAN TERRANO R50 (GREY IMPORT)	TD27ETI	2.7L	4cyl	[09/95 - 12/04]
NISSAN TIIDA C11	MR18DE	1.8L	4cyl	[01/06 - 01/13]
NISSAN X-TRAIL T30	QR25DE	2.5L	4cyl	[10/01 - 09/07]
NISSAN X-TRAIL T31	MR20DE	2.0L	4cyl	[12/10 - 12/13]
NISSAN X-TRAIL T31	QR25DE	2.5L	4cyl	[10/07 - 12/13]
NISSAN X-TRAIL T32	MR20DD	2.0L	4cyl	[01/14 ON]
NISSAN X-TRAIL T32	QR25DE	2.5L	4cyl	[01/14 ON]

ABOUT YOUR VEHICLE'S ENGINE COOLANT TEMPERATURE SENSOR

What does a Coolant Temperature Sensor do?
The Coolant Temperature sensor changes resistance with the temperature. The Coolant Temperature sensor is critical to many PCM functions such as fuel injection, ignition timing, variable valve timing, and transmission shifting.

Where are these sensors located?
The Coolant Temperature sensor is located in a coolant passage in the engine usually near the thermostat.

Will a malfunctioning Coolant Temp Sensor illuminate the check engine light or affect vehicle operation?
Yes, a failing sensor can illuminate the MIL, and cause the engine to run rich or lean. The transmission may shift incorrectly or not lock up the torque converter.

What are the common causes of failure?
Typically these sensors fail due to corrosion within the coolant system. They may also leak coolant through the wiring connector.

How to determine if these sensors are malfunctioning?
A DTC will be set if an abnormal reading occurs, P0116 for sensor performance, P0117 low input, or P0118 for high input. The coolant temperature sensor temperature reading should closely match the air charge/manifold temperature reading on a scan tool if the engine has not been run for over an hour. The sensor circuit can be checked for proper voltage using a voltmeter.

Why Buy from Us / What makes Our Coolant Temp Sensors the best?
As an OEM manufacturer, Standard/ Our Supplier has complete control of the manufacturing process from componentry to finished product
Temperature sensor design specifies tight tolerance thermistor response values to assure the accuracy of the temperature measurement and proper part operation
All Coolant Temperature sensors are 100% factory tested to ensure trouble-free performance.

Identification
SKU	CCS37-TS10248-12
Barcode #	9314258071967
Brand	Aftermarket OEM Replacement
Part Numbers
Part Number	CTS-031
Reference OEM Number	22630-44B10
Other OEM Numbers	22630-44B10, 2263044B10, 22630ED000, 22630JN00A
Related Part Numbers	CS830, CTS028, CTS-031, TCS075
Trade Part Numbers	0280130129, 6PT 009 107-531, TS10248, V38-72-0004
Product Specifics
Sensor Type	ENGINE COOLANT TEMPERATURE SENSOR
Type	Sensor
Features	Direct Fit
Manufacturer Warranty	1 Year
Ean	9314258071967
Make	Nissan
Thread Size	M12x1.5 mm
Spanner Size	19 mm
Number of pins	2 -pin connector

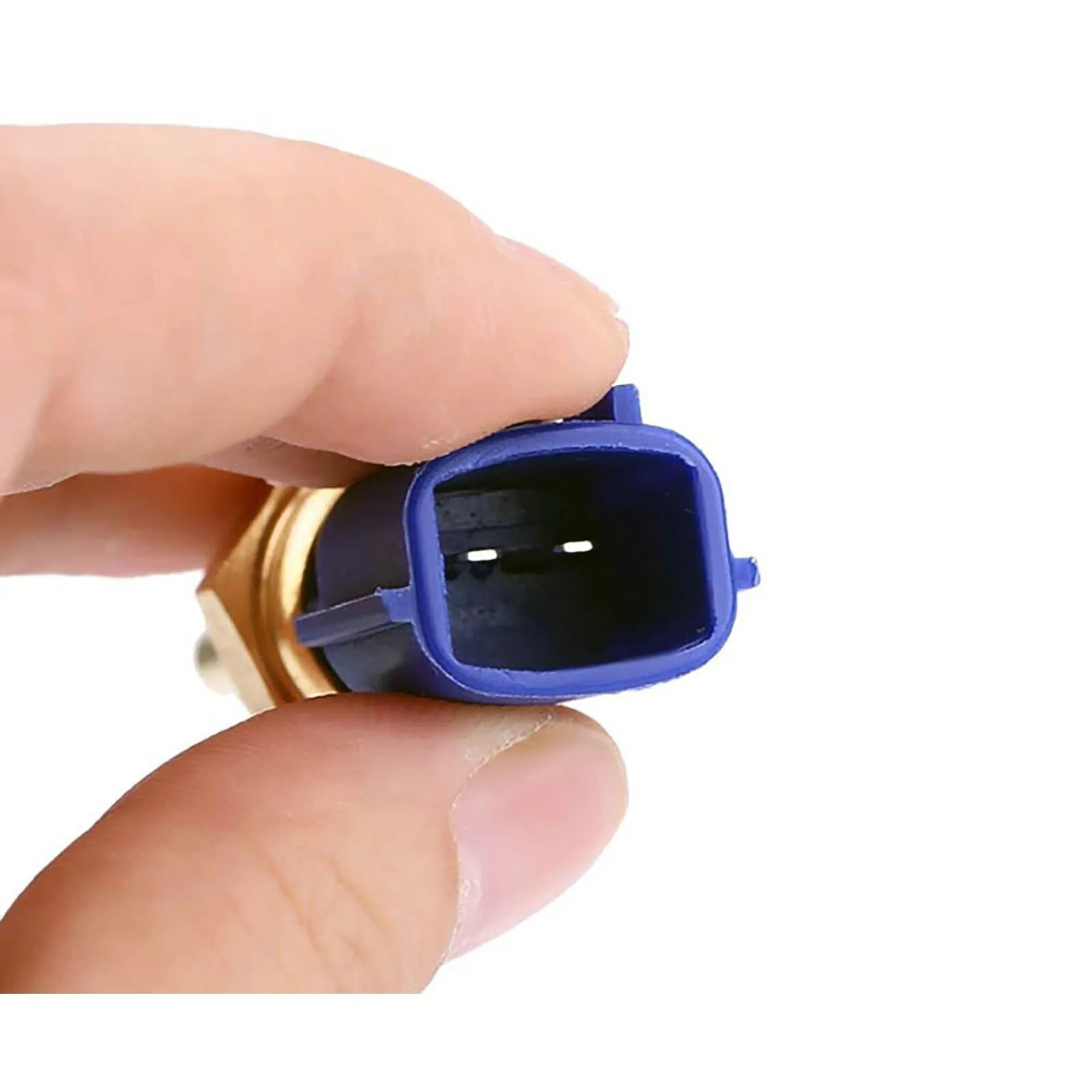

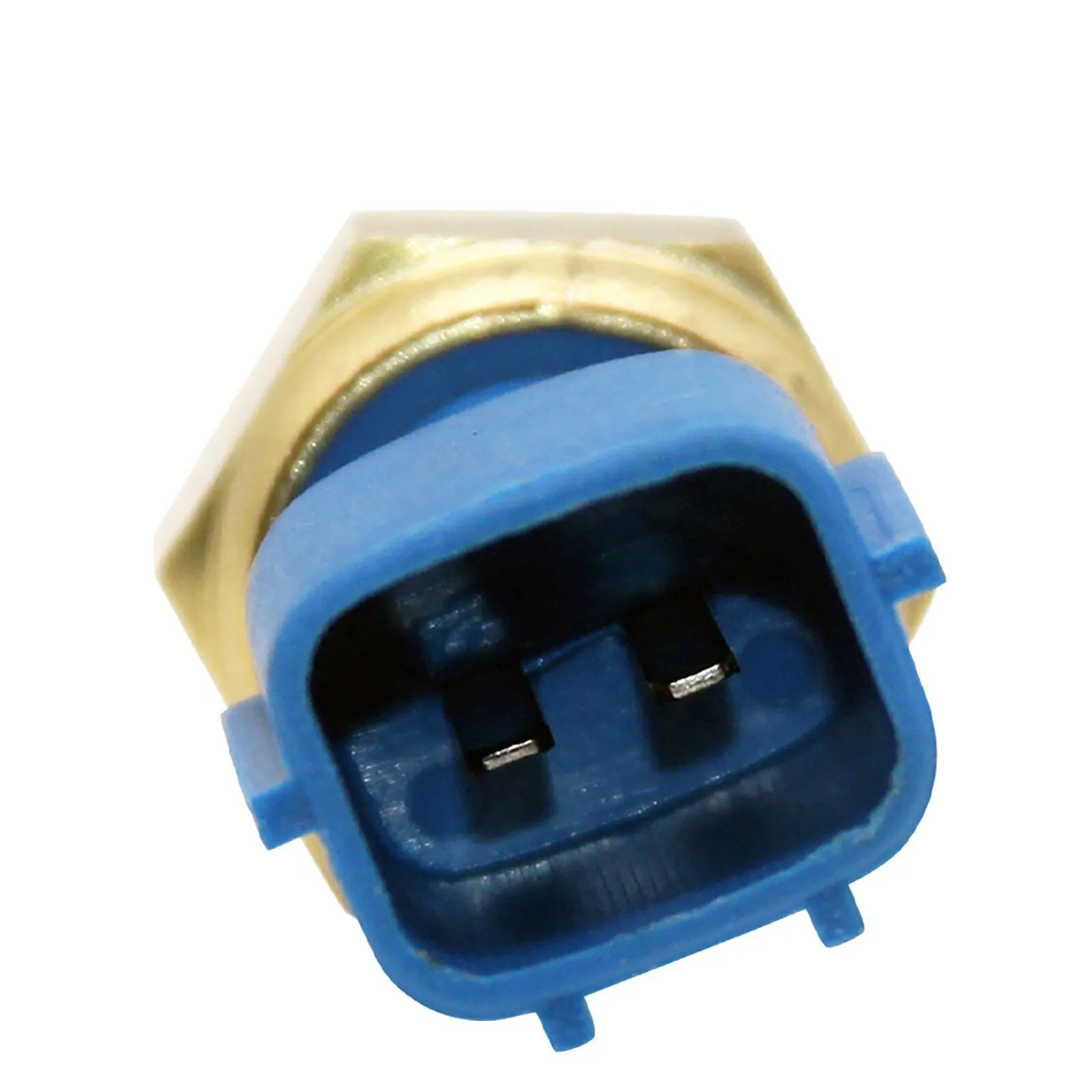

Connector Shape	oval
Housing Colour	Black, Blue
Other Details
Note	Verify fitment using the OEM part number before ordering.
Unit Of Measure	ea

How do I test a coolant temperature sensor?

The most common test is to measure the sensor resistance with a multimeter at a known coolant temperature and compare against the manufacturer resistance curve. A cold engine (20 degrees C) typically reads 2,000 to 3,000 ohms and drops to around 200 to 300 ohms at operating temperature (90 degrees C). An OBD2 scanner showing a fixed temperature reading that does not change as the engine warms up is also a strong indicator of sensor failure.

Can a faulty coolant temperature sensor cause my engine to overheat?

Indirectly yes. If the sensor reports a lower temperature than actual, the ECU may not activate the cooling fan at the correct time, allowing the engine to overheat. It can also suppress the dashboard warning light, meaning you may not be alerted until the engine is already at a dangerously high temperature. Replace a suspected faulty sensor promptly.

Do I need to drain the coolant to replace the sensor?

Not always - many coolant temperature sensors can be replaced quickly with minimal coolant loss if you work fast and have a replacement ready to thread in immediately. However on some vehicles the sensor location requires partial coolant drainage. Check the sensor position on your specific engine before starting. Always use fresh coolant when topping up after replacement.

What are the symptoms of a faulty coolant temperature sensor?

Symptoms include poor fuel economy, black smoke, engine overheating warning, incorrect temperature gauge reading, hard starting when cold, and rough idle. Fault codes P0115 to P0119 are commonly associated with coolant temperature sensor faults.

Is it safe to drive with a bad coolant temperature sensor?

A faulty coolant temperature sensor can cause the ECU to run rich fuel mixtures and prevent the cooling fan from operating correctly, risking engine overheating. Replace it promptly - it is a low-cost part that can prevent expensive engine damage.

How do I know if my coolant temperature sensor or my thermostat is faulty?

A faulty thermostat typically causes the engine to overheat or never reach operating temperature. A faulty coolant temp sensor causes incorrect gauge readings and running issues but the coolant itself may be at the correct temperature. An OBD2 scanner showing live coolant temp data helps distinguish between the two.

Are there two coolant temperature sensors on my vehicle?

Many vehicles have two sensors - one for the ECU (engine management) and one for the dashboard temperature gauge. They look similar but are not interchangeable. Check your vehicle's service manual or contact us with your vehicle details to confirm which sensor you need.
